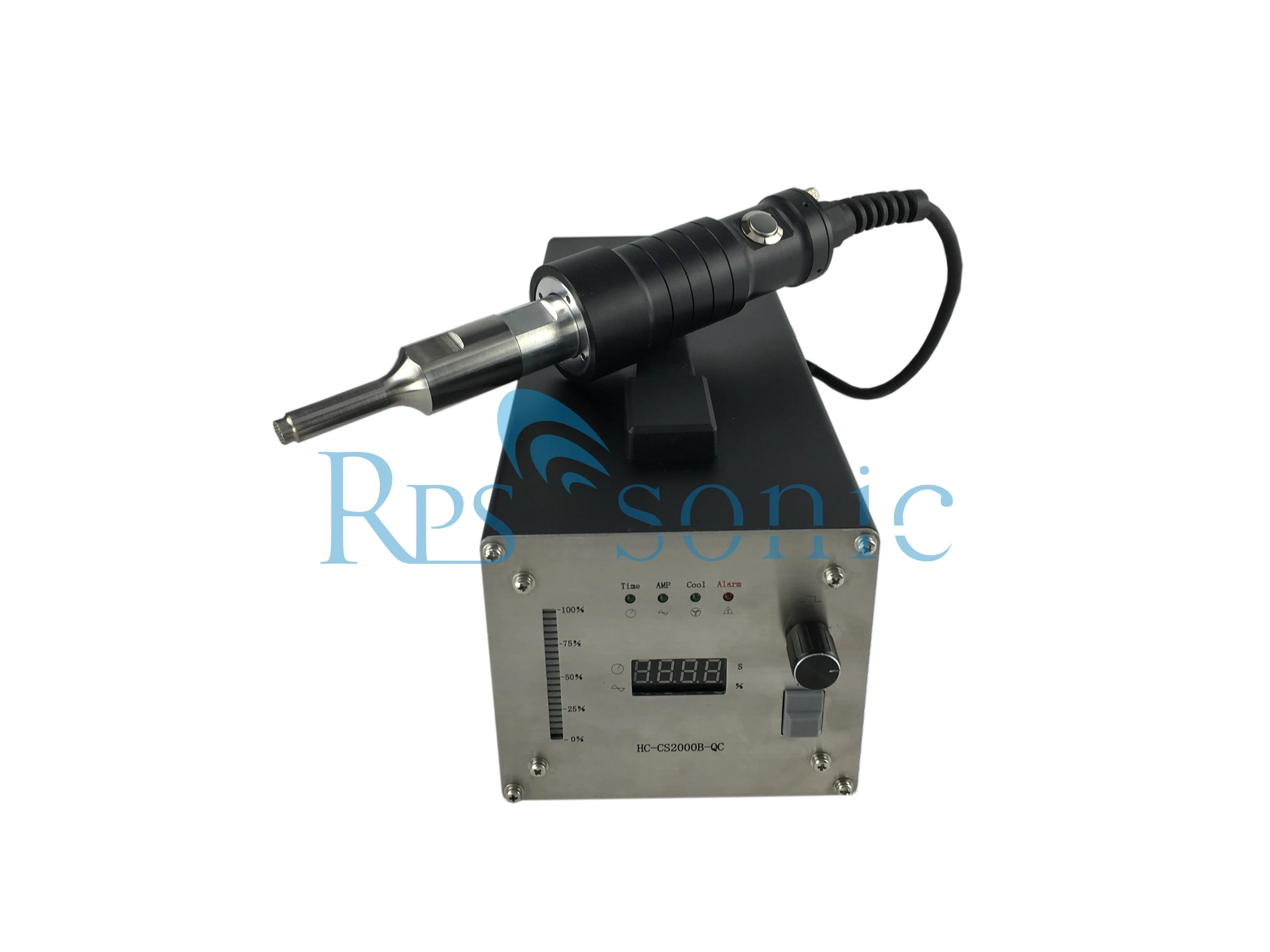

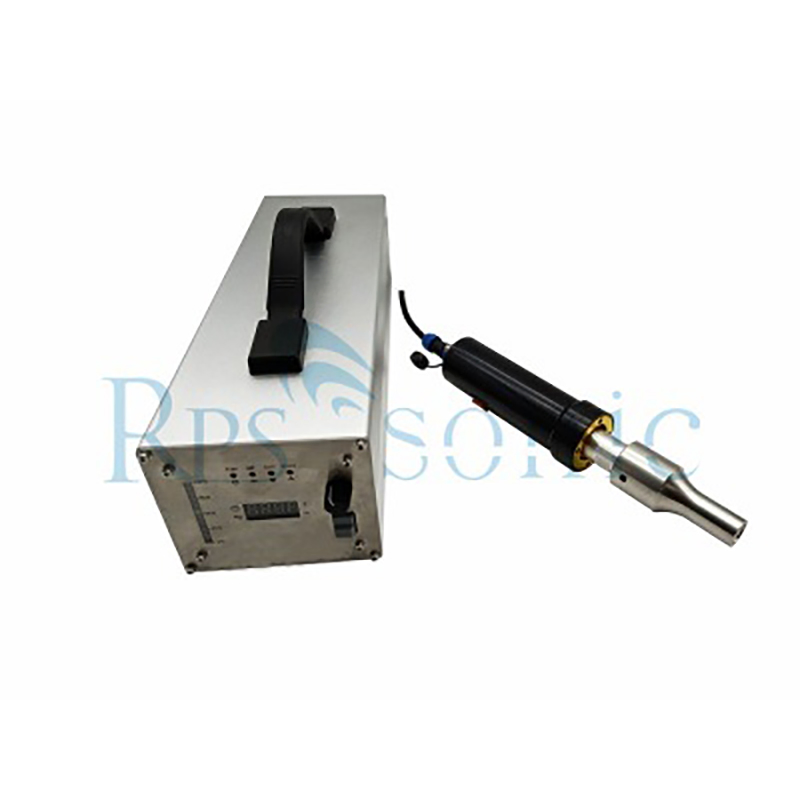

Hand Held Ultrasonic Plastic Welder High Power Ultrasonic Welding Device

1 / 5

Hand Held Ultrasonic Plastic Welder High Power Ultrasonic Welding Device

Customization:	Available
Application:	Commodity, Auto Part, Electronic, Stationery, Toy
Cooling Way:	Air Cooling

Send Inquiry

Product Description

Technical Overview

Model NO.

RPS-W20-800

Control

Semi-Automatic

Frequency Range

High Frequency

Electric Current

Style

Handheld

Power

Ultrasonic

Frequency

30K

Horn Tip Diameter

12mm

Generator

Digital Generator

Horn Material

Aluminum Alloy / Steel / Titanium Alloy

Production Capacity

1000 Units

HS Code

8515900090

Product Description

💡

The ultrasonic hand welder offers a low-cost solution for parts where automation is not viable or production volumes are low. It is ideal for spot-welding, staking of components, access to difficult weld areas, and second operations/re-work.

The ultrasonic hand press offers a cost-effective alternative to a standard pneumatic bench press. It is ideal for low-volume production, offering an advantage over a handheld welder with its rigidly fixed welding head. The weld depth can be set giving consistent, repeatable results.

Key Advantages

Easy to transport, operate, and install.
Welds by Time, Energy, or Peak Power with settable +/- window limits.
Automatic frequency tuning.
Overload protection to safeguard equipment.
Clear Power and Status Display.
Short Circuit Protection.

Technical Parameters

Item	20	28	35	40
Frequency	20Khz	28khz	35khz	40khz
Power	800w	600w	500w	300w
Horn Tip Diameter	12mm	10mm	8mm	8mm
Horn Material	Aluminum Alloy / Steel / Titanium Alloy
Generator	Digital Generator

Core Features

Small and flexible handle-type design for convenient operation.
Equipped with high-quality Japanese NTK Type converters.
Automatic frequency tracking ensures stability.
Specially suitable for 1-15mm spot welding applications.
Versatile functions: Riveting, spot welding, pattern welding, and dot welding.
Durable assembly with excellent components for long-term use.

Broad Scope of Application

Widely used in printing supplies, toys, daily necessities, communication, electricity, jewelry, watches, aviation, and other industries. It is particularly effective for automotive door panels and other hard-to-reach assembly areas.

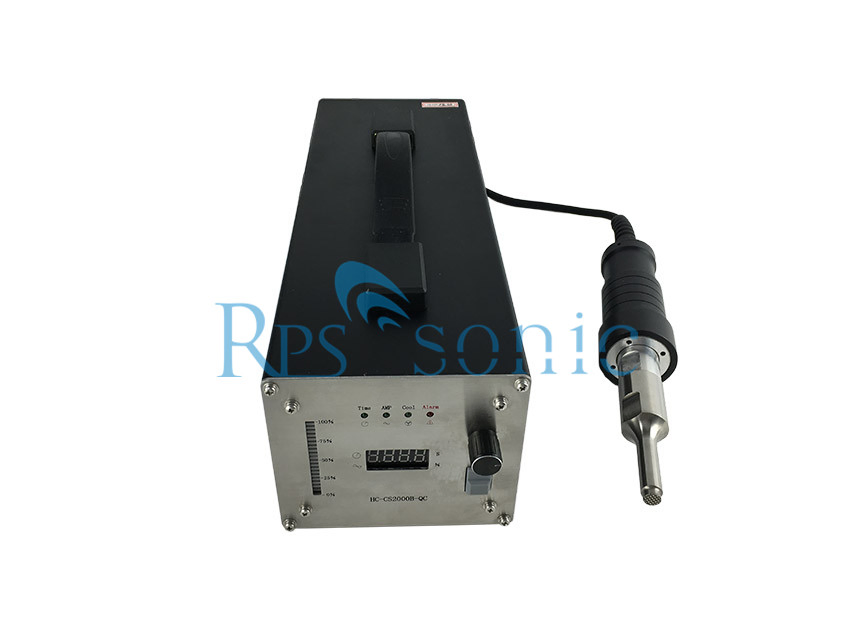

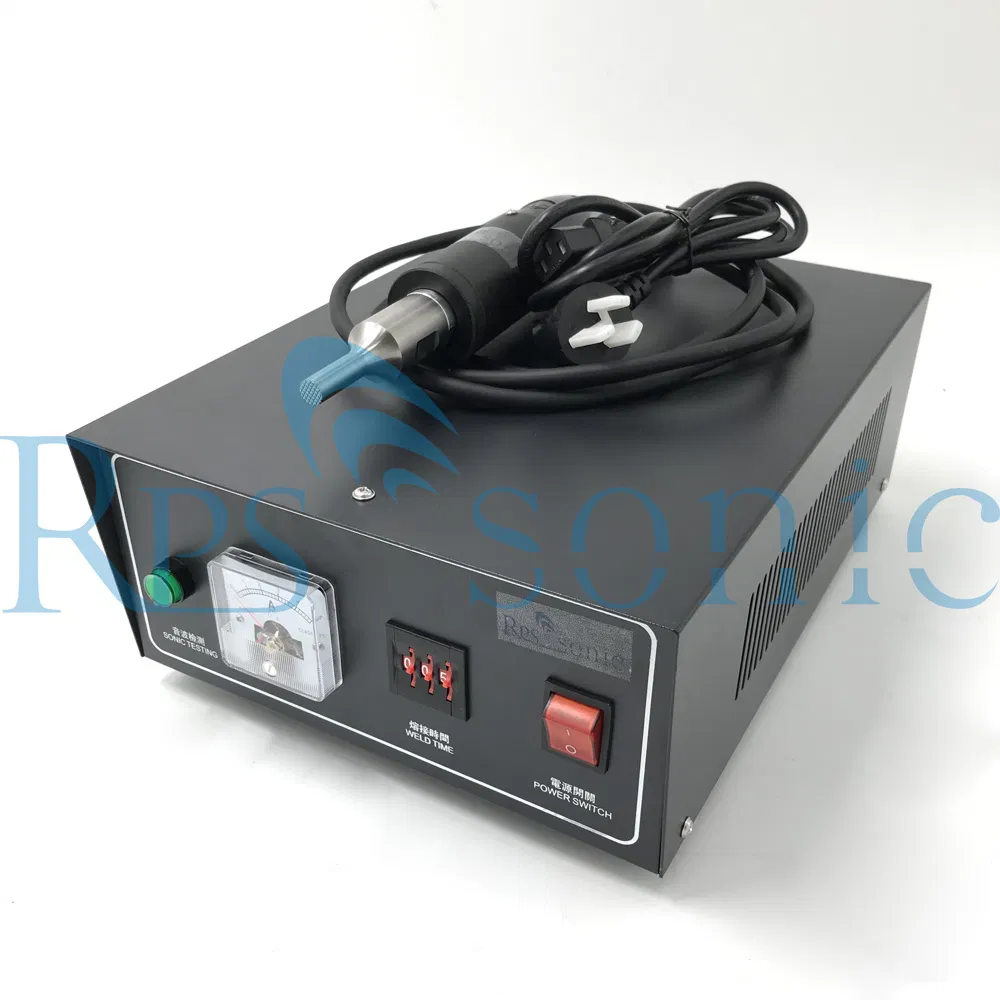

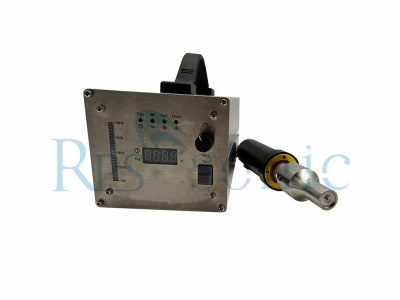

Product Showcase

Frequently Asked Questions

What materials can be welded with this machine?

It is designed for thermoplastic materials and is excellent for spot welding, riveting, and inserting operations in various plastic components.

What frequency options are available?

We offer multiple frequency configurations including 20KHz, 28KHz, 35KHz, and 40KHz to suit different welding requirements.

What are the safety features of the digital generator?

The digital generator includes automatic frequency tracking, overload protection, and short-circuit protection to ensure equipment safety and longevity.

Can the welding horn be customized?

Yes, the horn can be made from Aluminum Alloy, Steel, or Titanium Alloy, with different tip diameters (8mm to 12mm) depending on the model.

Is this machine suitable for mass production?

While perfect for low-volume production and manual rework, its precision and digital control also make it a reliable tool for specialized small-series applications.

How portable is the device?

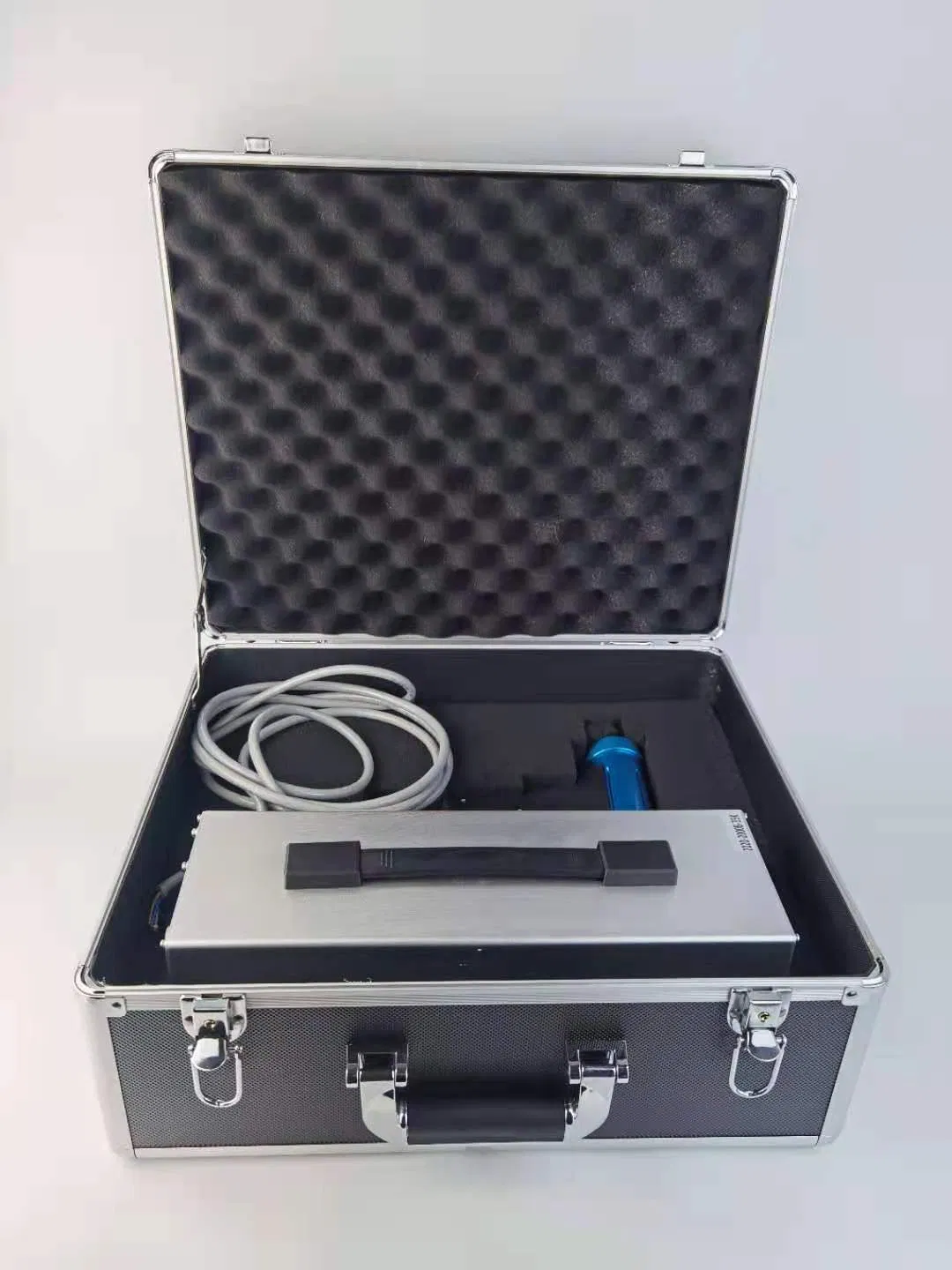

The machine features a handheld, lightweight design, making it extremely easy to transport and use in hard-to-reach areas of large workpieces.
