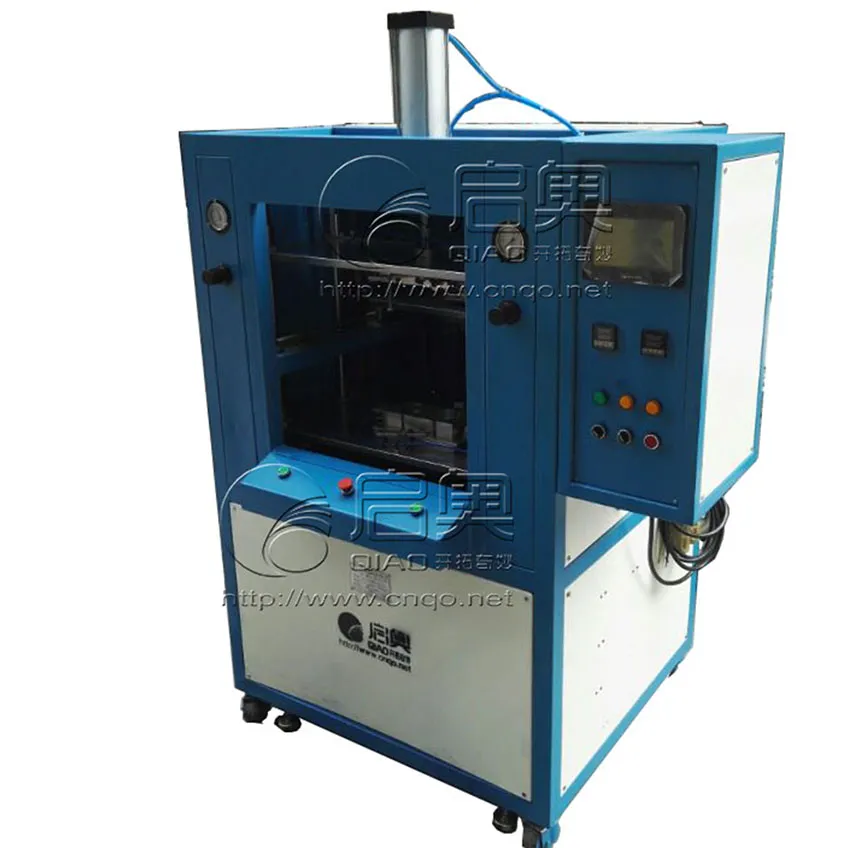

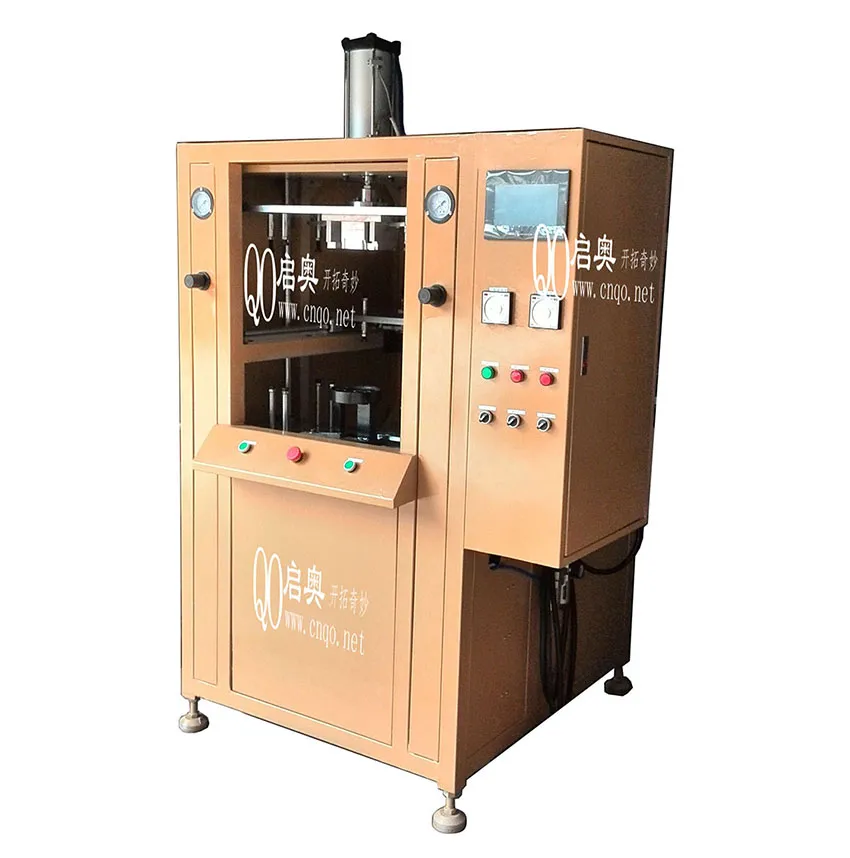

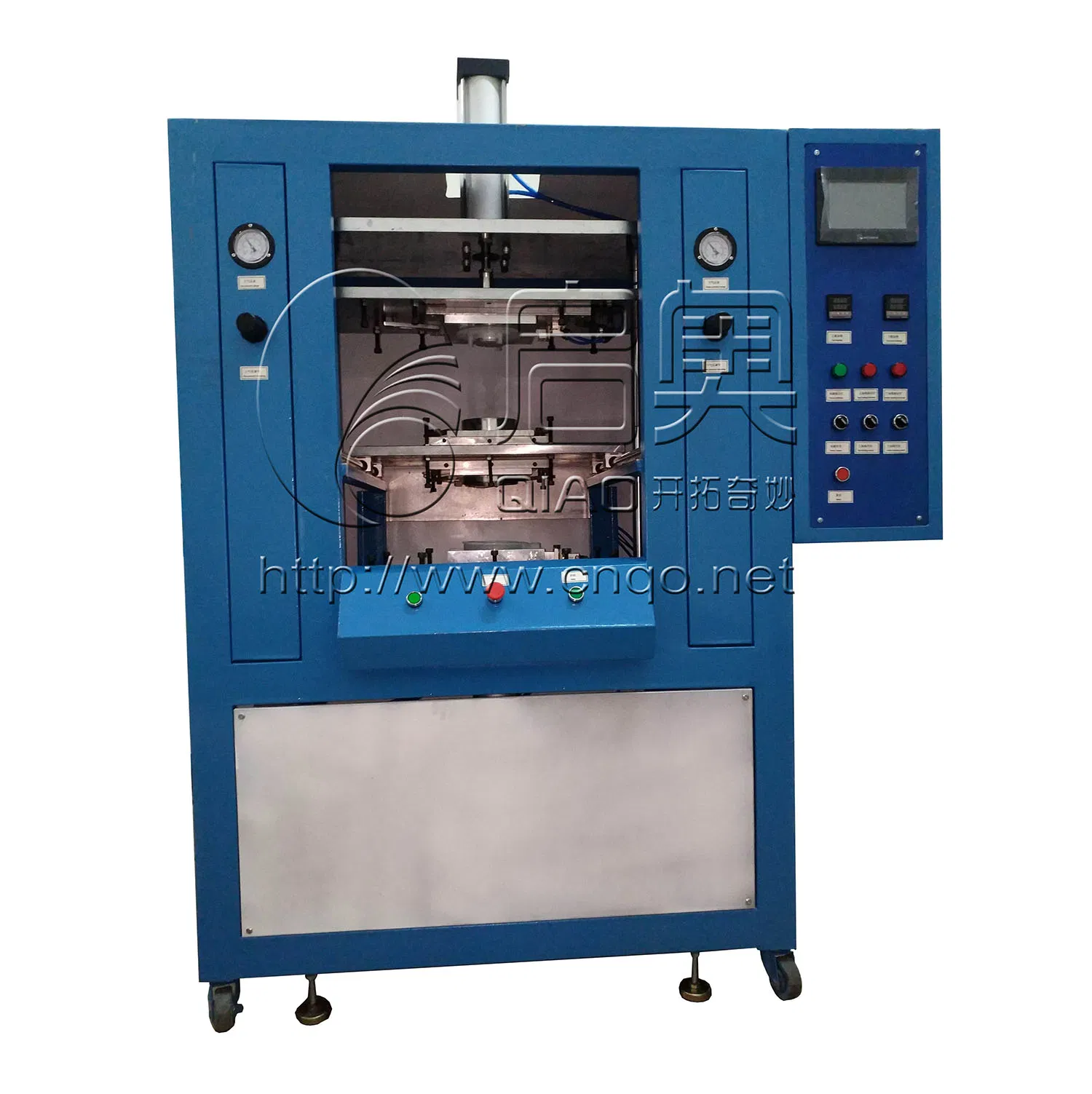

The hot plate machine exploit the fact that electrothermal melting principle, Control temperature changes, with perfect mechanical means for perfect welding. It compensates for the lack of ultrasonic welding for welding large and special plastic parts. The plastic component to be fused is heated by a metal plate having a higher melting point than the plastic material, and is heated at the joint surface of the fused joint to melt the joint of the plastic part. After the contact surface is melted, the hot metal plate is removed, and the upper and lower plastic parts are pressed to fuse the joint.

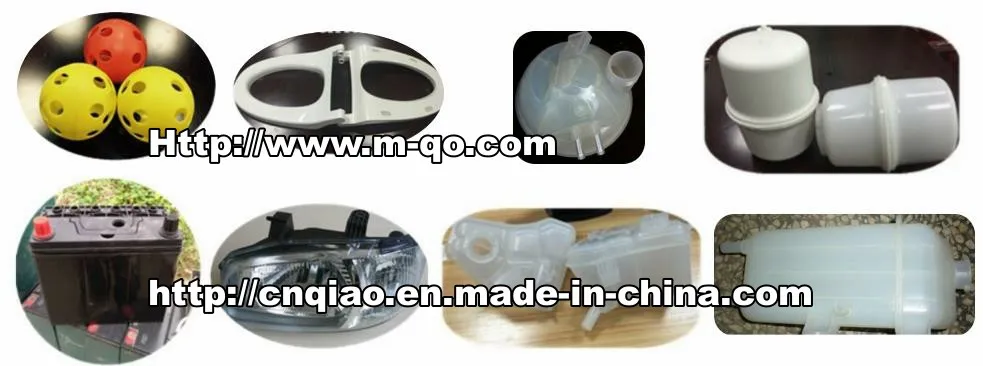

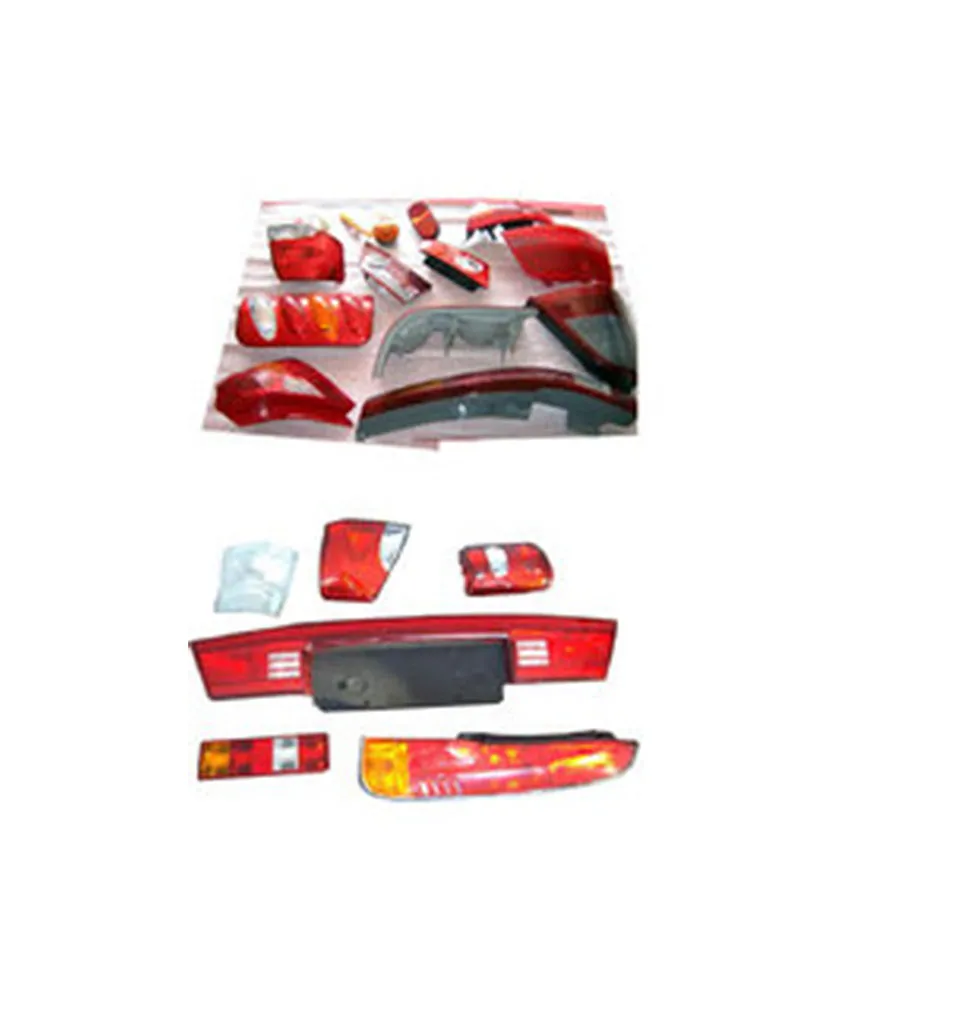

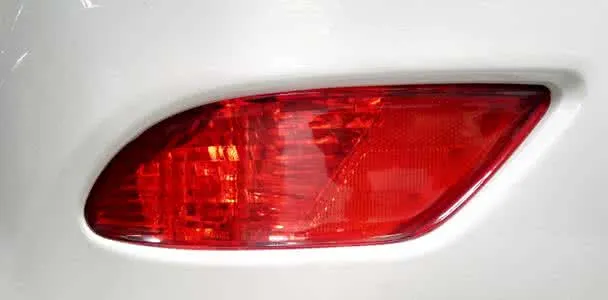

It is mainly used for welding of thermoplastic materials such as PE, PP, ABS, nylon, acrylic, POM, etc. and plastic parts with large and complex weld area. As such car lights, car water tanks, washing machine water plugs, batteries, steam irons, car tails, car dashboards, board, dust buckets, washing machine balance ring lights, and the welding of other irregular shaped plastic products.

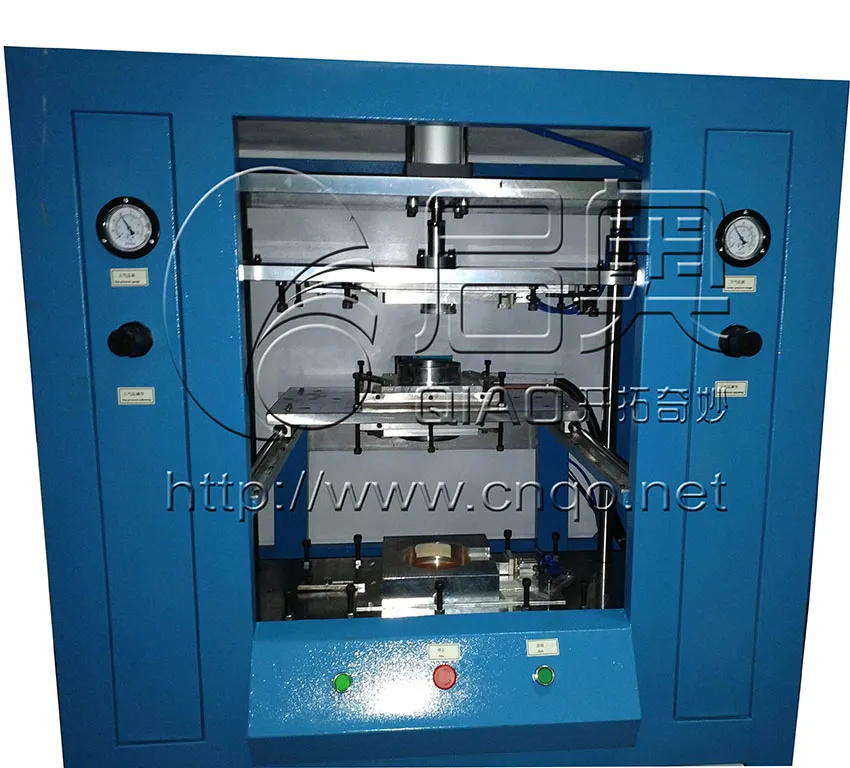

The hot plate machine welds the plastic components through a temperature-controlled heating plate. When heating, the heating plate device is used between two plastic parts. When the workpiece is in close contact with the hot plate, the plastic begins to melt. After the heat time elapses, the material is heated under the heating element, the molecules reach the molten state, and the heating plate is retracted. In a short time, the two plastic parts are pressed under a certain pressure, and are integrated into each other by molecular motion.
| Model | QO-4040RB | QO-R4060RB |
|---|---|---|
| Table size | 400*400mm | 400*600mm |
| Transmission system | Pneumatic / hydraulic / servo drive optional | |
| Power supply | AC 220V or 380V 50HZ | |
| Output power | 10-70KW | |
| Temperature control | 0-500°C | |
| Input pressure | 0.6-1.0Mpa | |
| Control System | PLC control system | |
| Total net weight | 350kg | 500kg |
