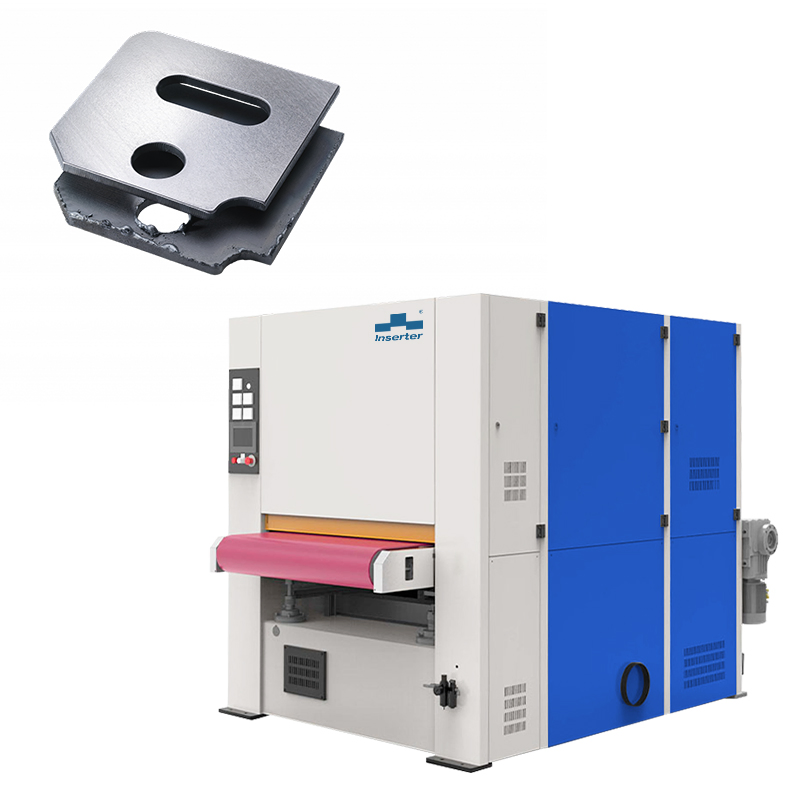

Polishing and Grinding Machine with Industrial Quality User Friendly

1 / 5

Polishing and Grinding Machine with Industrial Quality User Friendly

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

1000SRSP

Certification

Condition

New

Voltage

380V

Application

Metal Sheet

Max.Working Width

1000mm

Working Thickness

0.5-50mm

Min. Working Size

50*50mm

Feed Speed

0.5-5m/Min

Head Rotation Speed

1-17r/Min Variable

Brush Spindle Speed

30-1300r/Min

Abrasive Cylinders

Dust Extraction

4000m³/H

Origin

China

Packaging & Delivery

Package Size

320.00cm * 210.00cm * 240.00cm

Gross Weight

3800.000kg

Transport Package

Wooden Box

Product Features

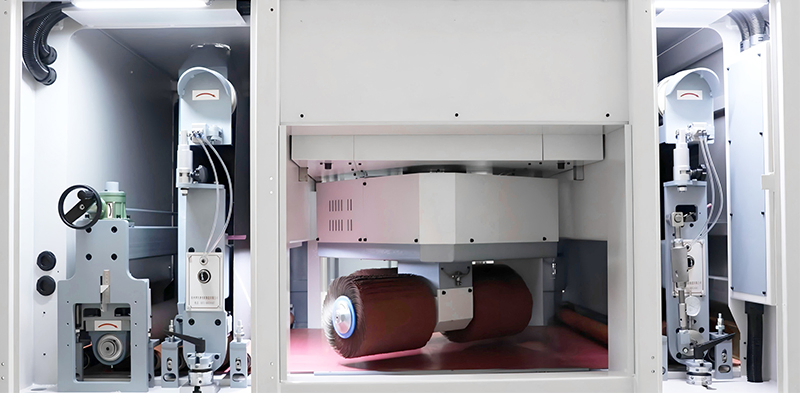

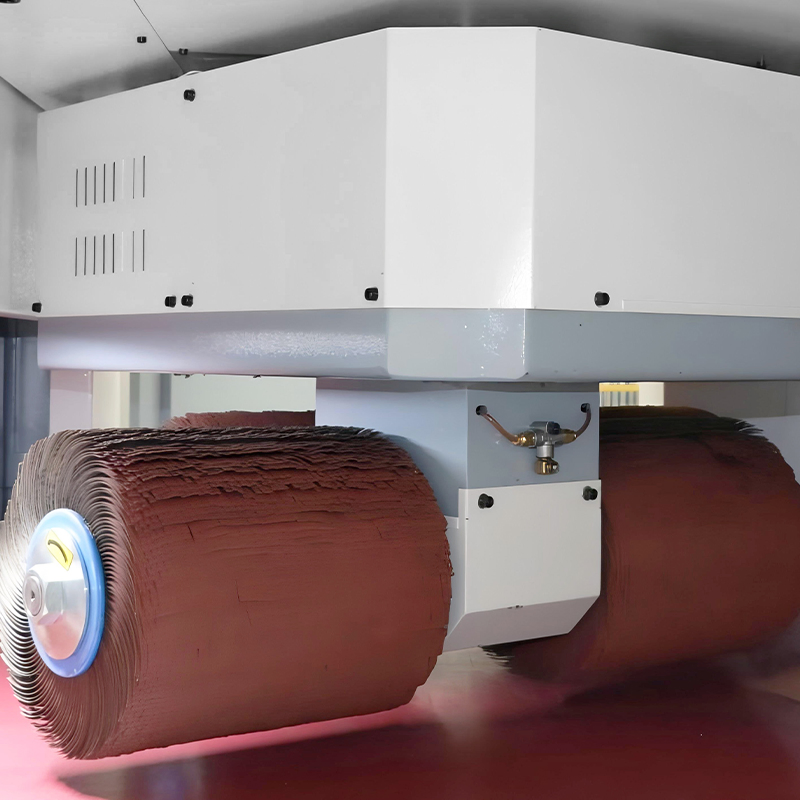

Four rotating brush planetary position. Size: Φ295mmx300mm
Each spins itself while the whole head rotates in the meantime.
The either two abrasive cylinders rotation directions is opposite for even deburring.
Variable speed for abrasive cylinder, whole deburring assembly, and conveyor, controlled by Delta brand inverters.
Brush drive motor: 5.5KW, brush assembly oscillation motor: 1.5KW.

Technical Specification

Model	1000SRSP
Max.working width	1000mm
Working thickness	0.5-50mm
Min. working size	50*50mm
Feed speed	0.5-5m/min
Speed of whole head rotation	1-17r/min variable speed
Speed of brush spindle	30-1300r/min
Number of abrasive cylinders	4
Size of abrasive cylinder	Φ295mmx300mm
Size of wide belt	1030*2200mm
Dust extraction	4000m³/h
Total power	47KW
Weight	3800KG
Size	320020502400mm
