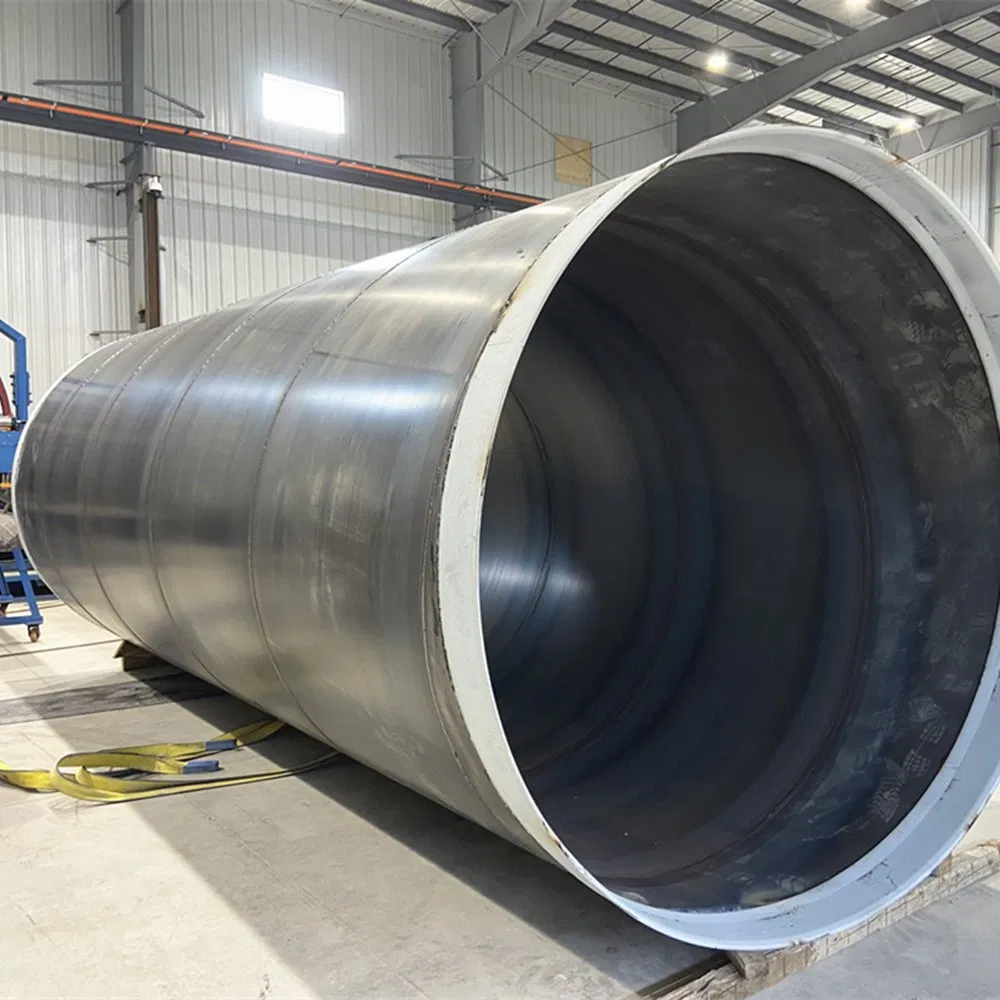

DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
1 / 5
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder
DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder

DN1200-3600mm Pccp Jccp Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder

Customization: Available
Cooling Way: Air Cooling
Style: Hanging
Send Inquiry

Product Description

Basic Specifications

Model NO.
DN600-3600X6000MM
Frequency
Low Frequency
Electric Current
AC
Work Form
Moving-Coil
Type
Submerged-Arc Welder
Diameter
DN600-3600
Pipe Type
PCCP Concrete Pipe
Welder Type
DC-1000 Lincoln Welder
Coil Thickness
1.5mm
Coil Width
1250mm
Capacity
100 set Per Year
HS Code
8480600000

Product Description

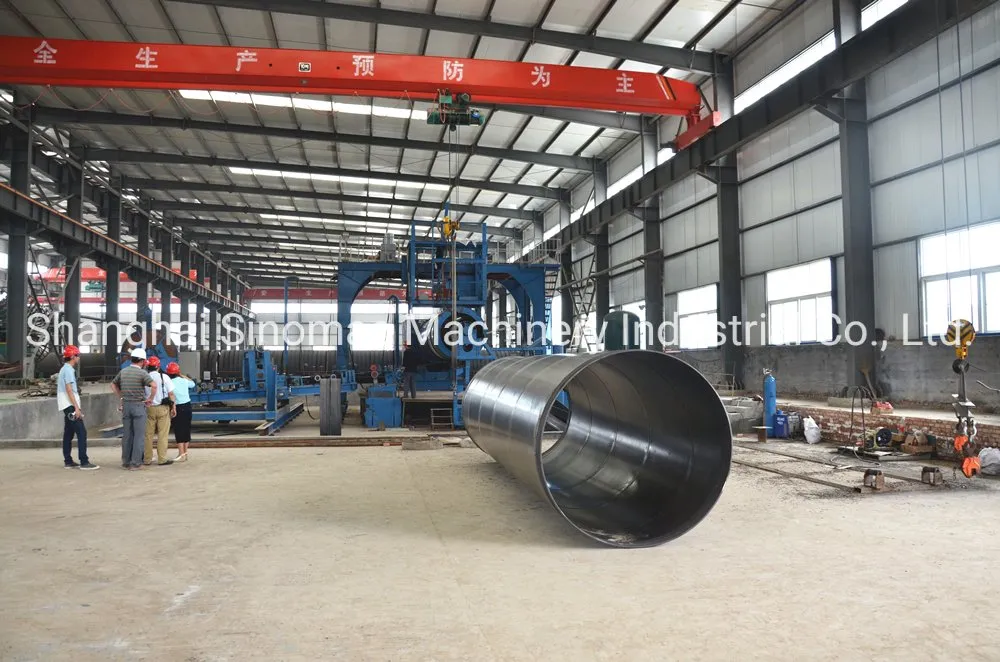

DN1200-3600MM PCCP JCCP Concrete Jacking Pipe Steel Cylinder Spiral Arc Welder

PCCP Concrete Jacking Pipe Welder

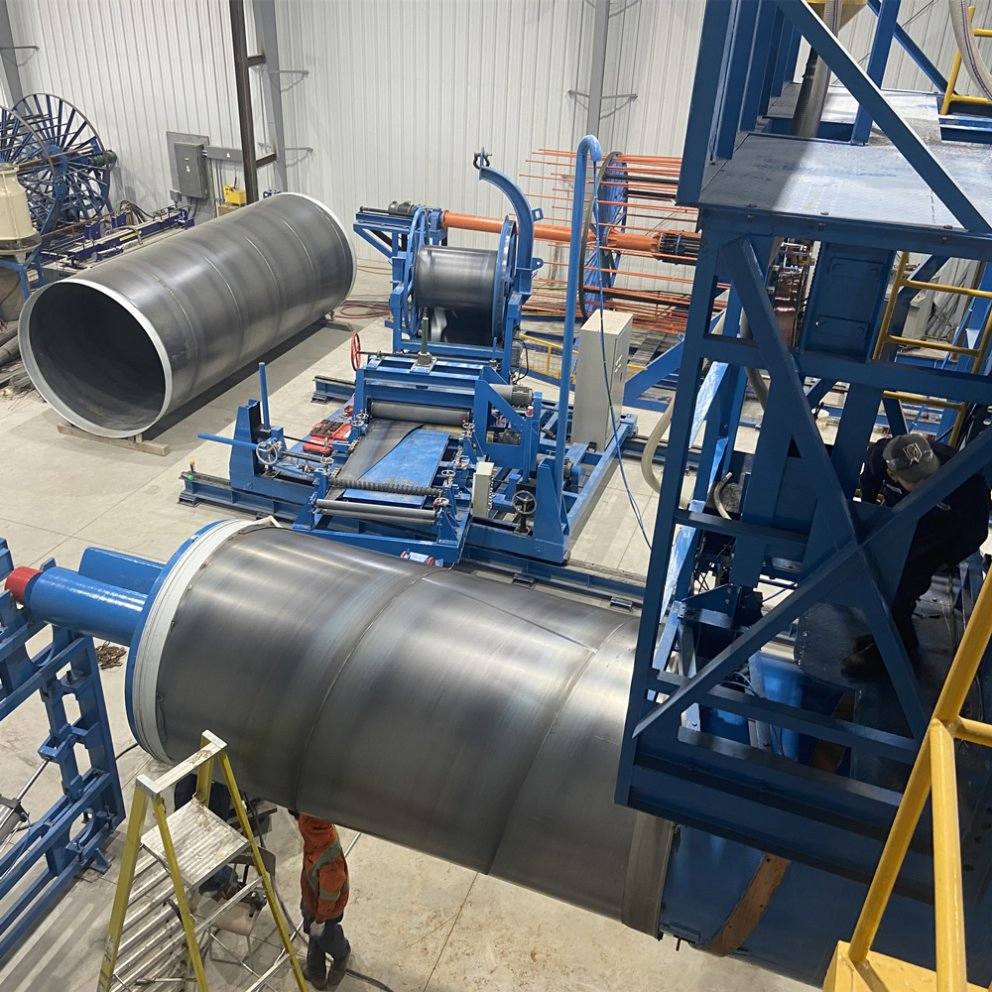

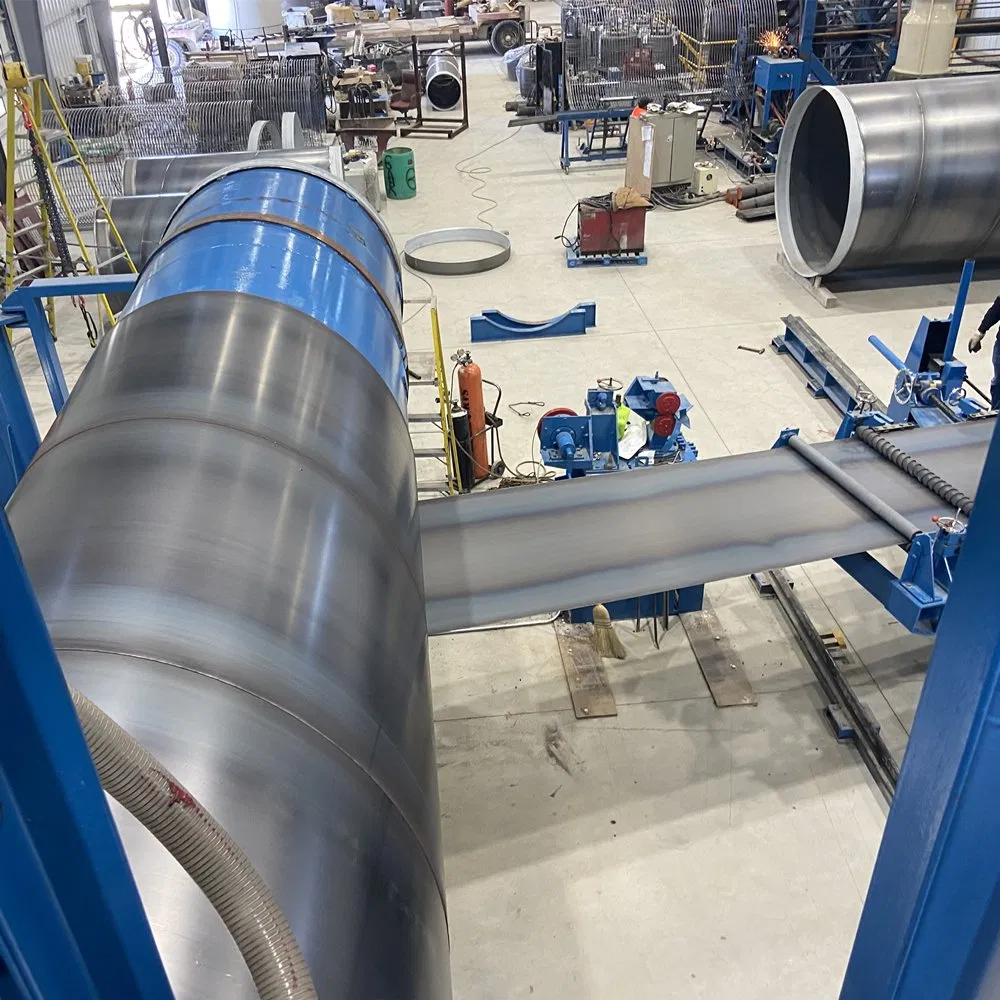

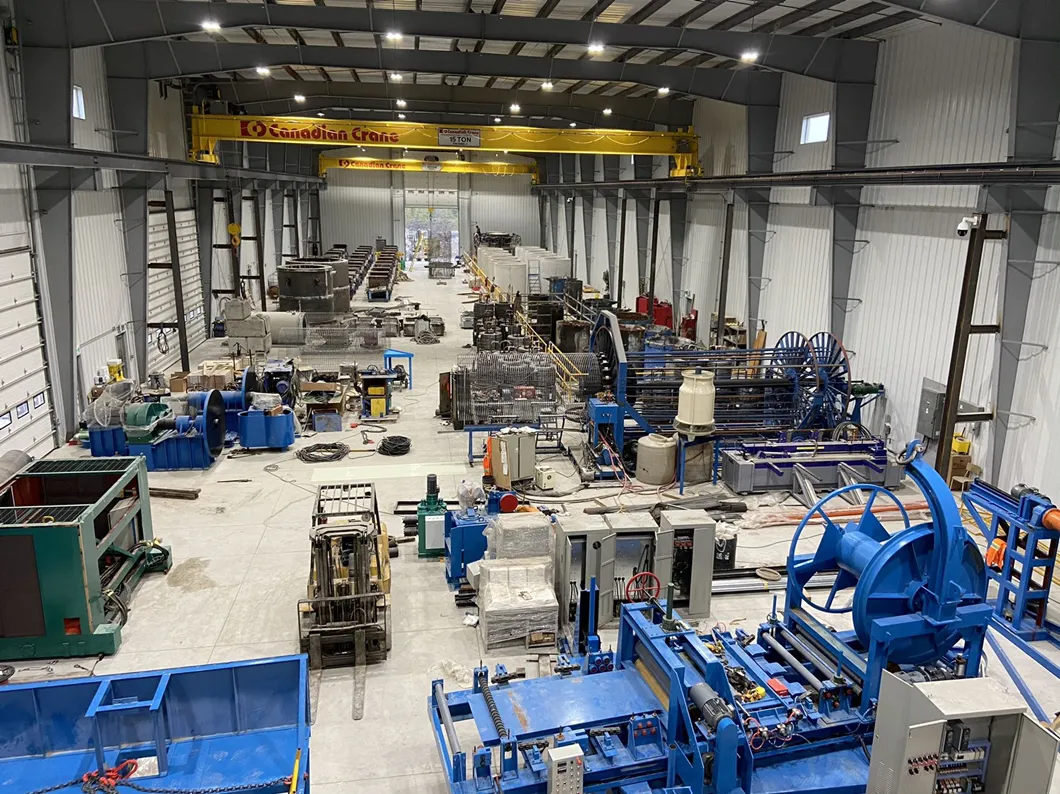

PCCP concrete pipe production line: workshop overview

Professional manufacturer of cement products complete sets equipment and molds with over 40 years of experience in R&D, design, and manufacturing. Holding numerous national patents and ISO9001:2008 certification. Main products include:

  • DN400-4000mm PCCP Pipe Production Line
  • Concrete Drainage Pipe Production Line
  • Cage Welding Machine
  • Concrete Pipe Mold

Technical Parameters

Parameter DN600-1600X6000mm DN1800-3600X6000mm
Welding Pipe Diameter600-1600mm1800-3600mm
Welding Pipe Length6000mm6000mm
Lincoln Welder TypeDC-600DC-1000
Welding Speed0.5-2.5m/min0.5-2.5m/min
Coil StandardGB/T5213-2008 standard oil free cold rolled steel plate
Coil Thickness1.5-2.0mm1.5-2.0mm
Control SystemPLC controlPLC control
Cutting TypeAuto Plasma CuttingAuto Plasma Cutting

Working Flowchart

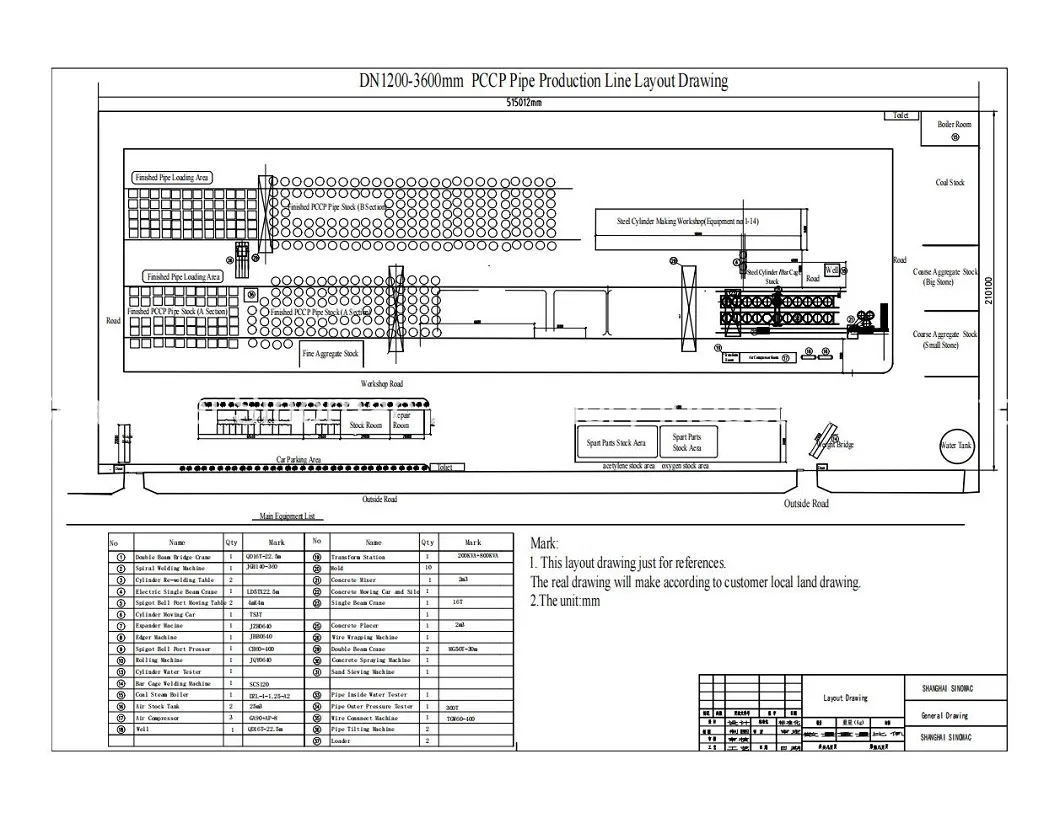

PCCP Working Flowchart

Main Manufacturing Equipment

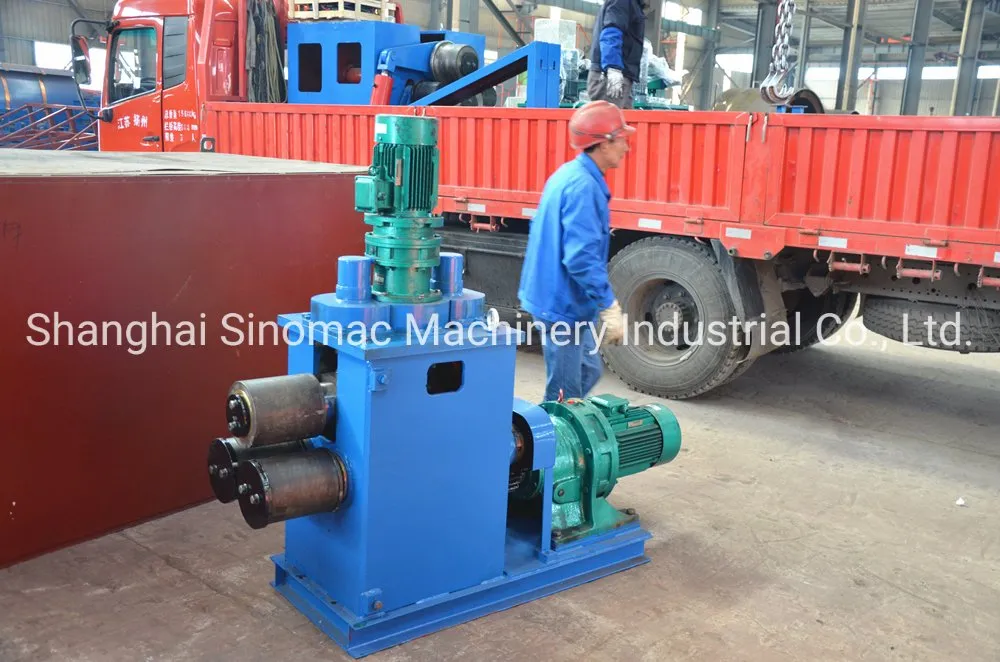

Spigot and Bell Port Rolling Machine

Edge Rolling Machine

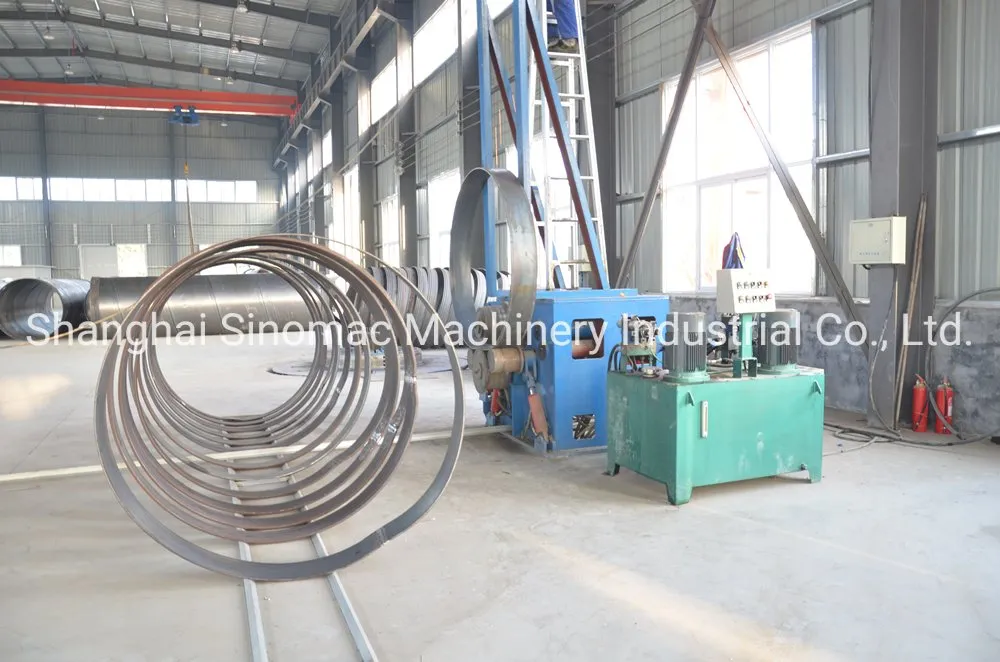

Small Spiral Welding Machine (DN600-1600)

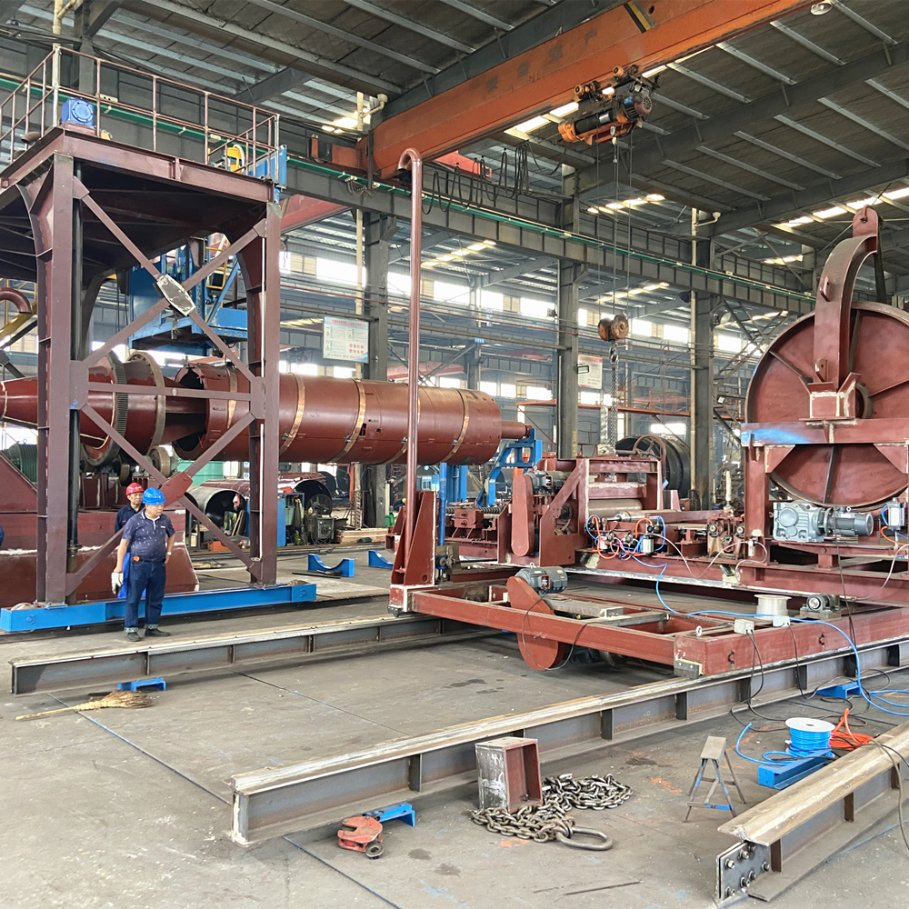

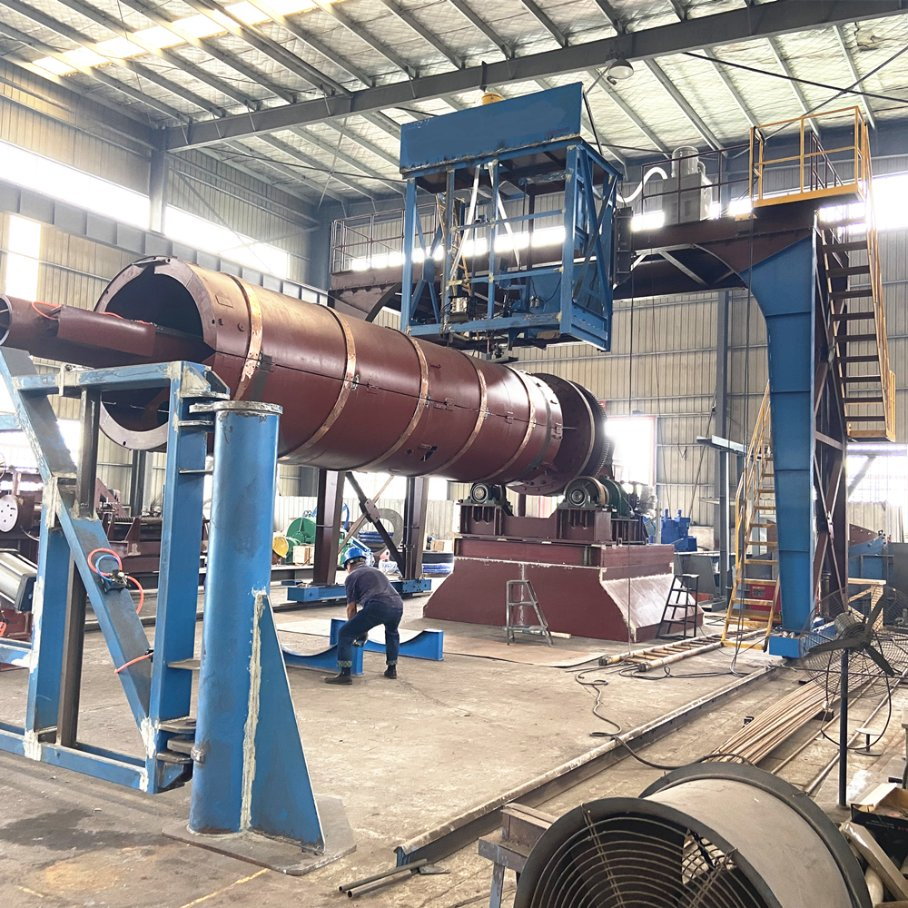

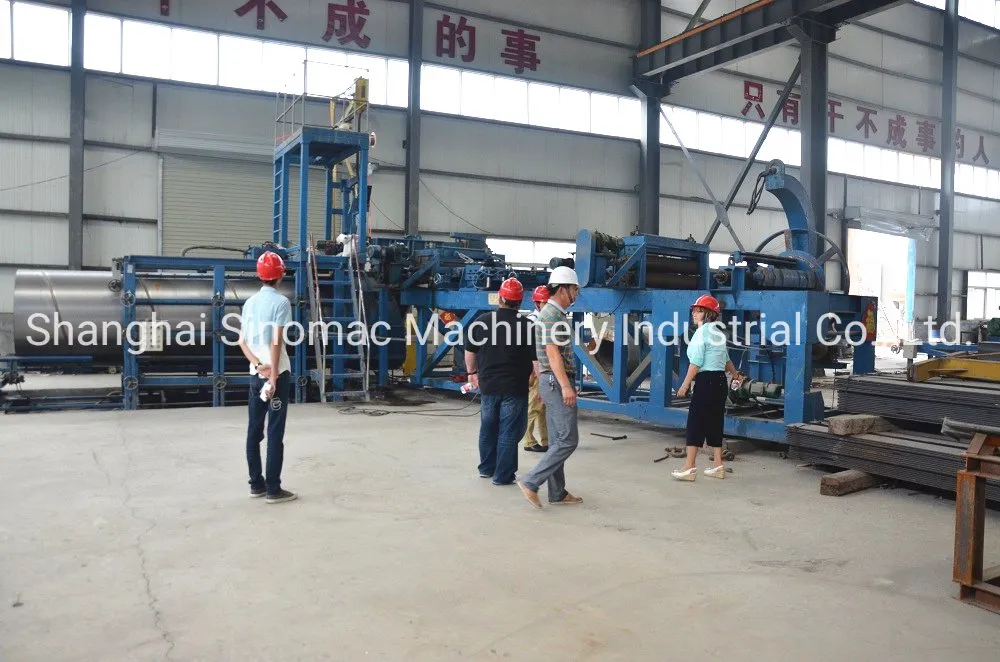

Large Steel Cylinder Welding Machine

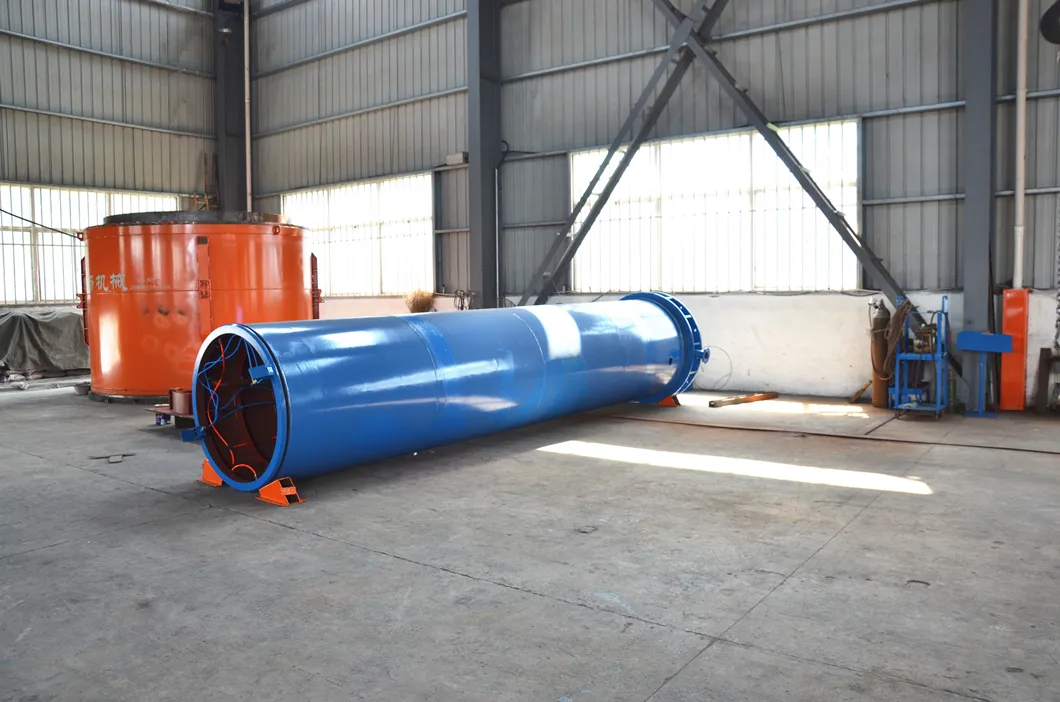

Horizontal Cylinder Water Testing Machine

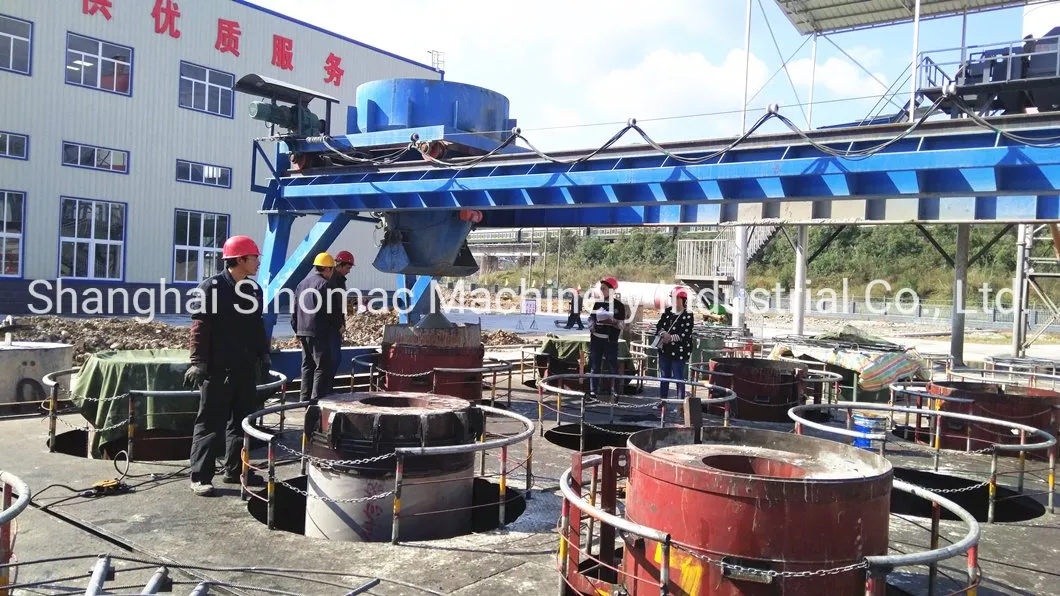

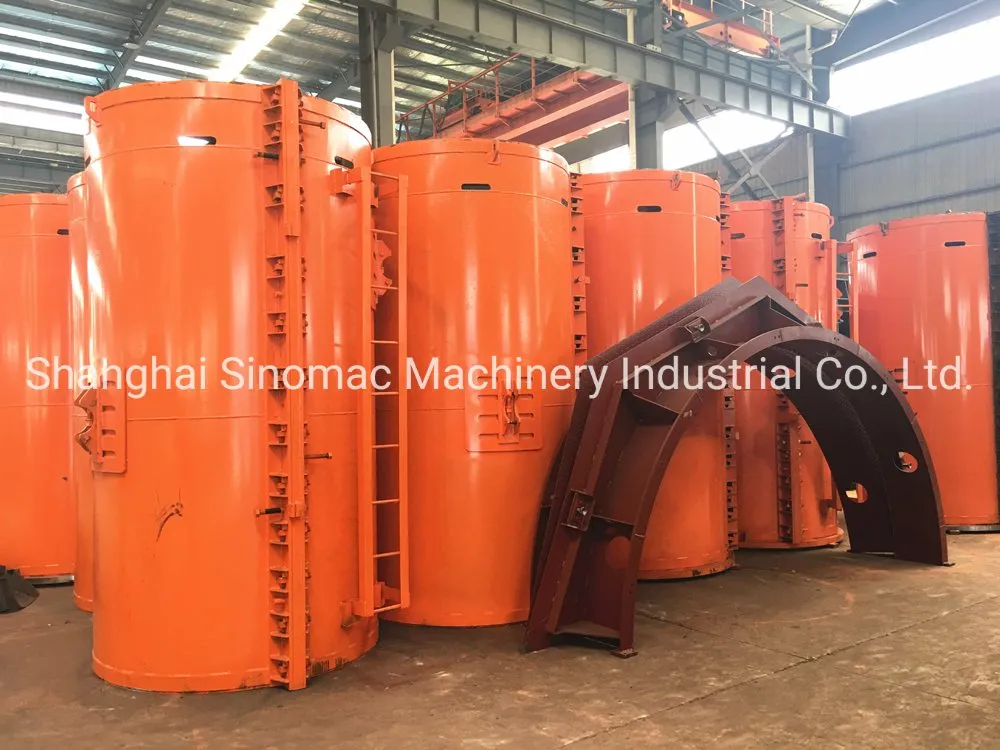

Jacking Concrete Pipe Mould

Concrete Casting Machine

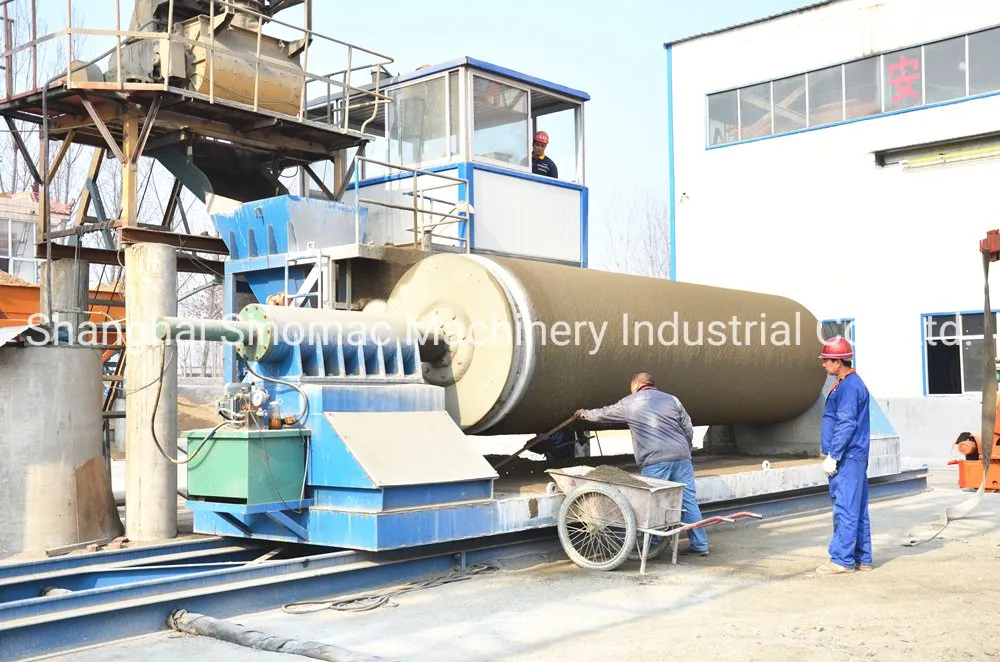

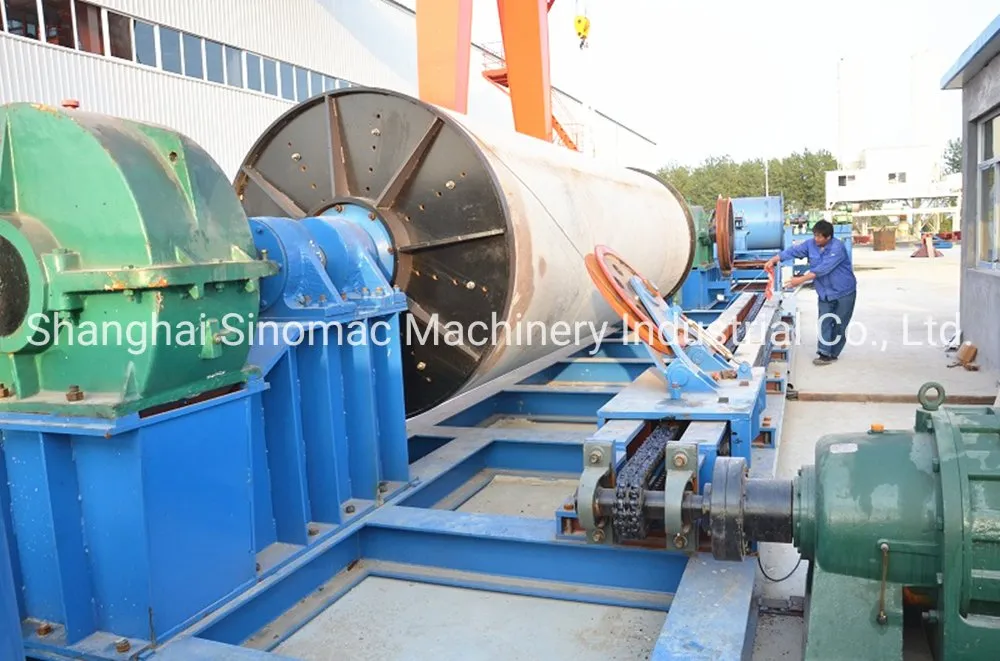

Wire Wrapping Machine

Concrete Pipe Coating Machine

Final Products & Applications

PCCP Pipe Quality Checking

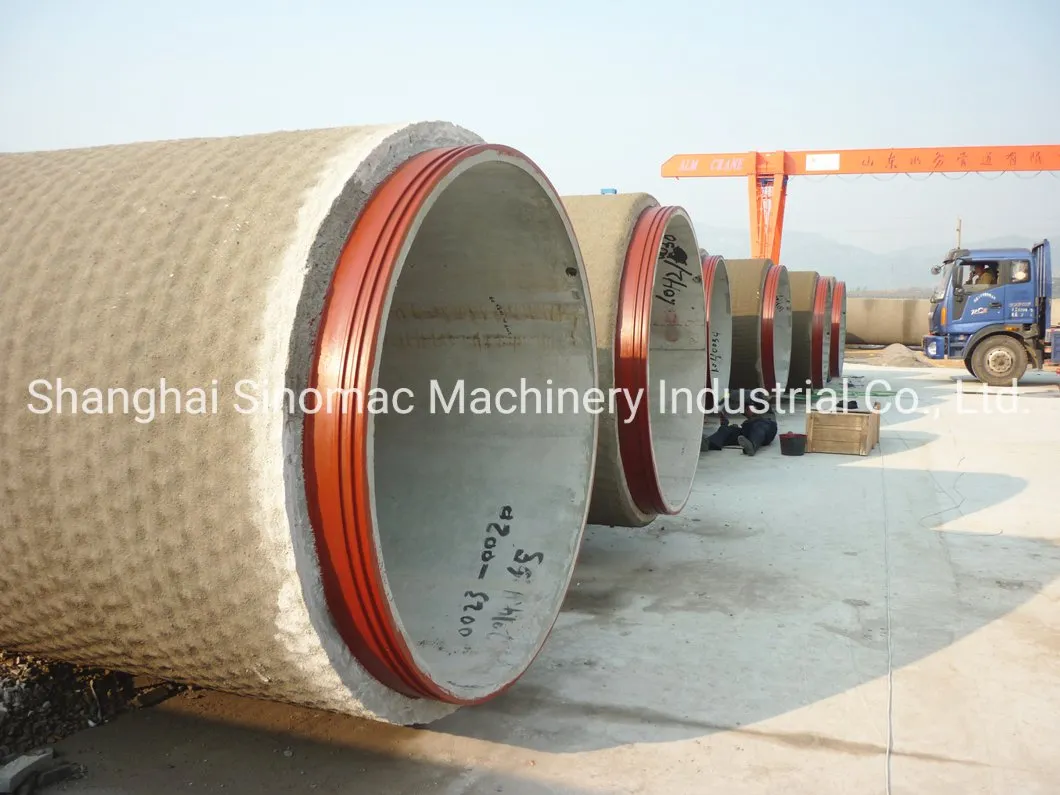

Finished PCCP Pipe Stock

Frequently Asked Questions

What range of pipe diameters can this equipment handle?
The production line is designed to handle diameters ranging from DN600mm up to DN3600mm, with specialized models for different size brackets.
What type of welding technology is utilized?
The system uses advanced Submerged-Arc Welding technology, typically equipped with high-performance Lincoln DC-600 or DC-1000 welders.
How is the welding process controlled?
The entire operation is managed via a PLC control system, ensuring precision in winding, rolling, and automated plasma cutting.
What are the raw material requirements for the steel cylinders?
The equipment is optimized for GB/T5213-2008 standard oil-free cold-rolled or hot-rolled steel plates with thicknesses between 1.5mm and 2.0mm.
Is the equipment suitable for high-pressure water transfer projects?
Yes, the PCCP (Prestressed Concrete Cylinder Pipe) produced is primarily used for large-scale water transfer and power plant cooling systems.
What is the standard welding speed of the machine?
The welding speed is adjustable, typically ranging from 0.5 to 2.5 meters per minute depending on the pipe diameter and material thickness.
