Welding Principle

The hot plate machine exploits the electrothermal melting principle, controlling temperature changes with perfect mechanical means for high-quality welding. It compensates for the limitations of ultrasonic welding when dealing with large and specialized plastic parts. The plastic component is heated by a metal plate with a higher melting point, melting the joint surface. Once melted, the plate is removed, and the parts are pressed together to fuse, ensuring watertight and airtight results.

Scope of Application

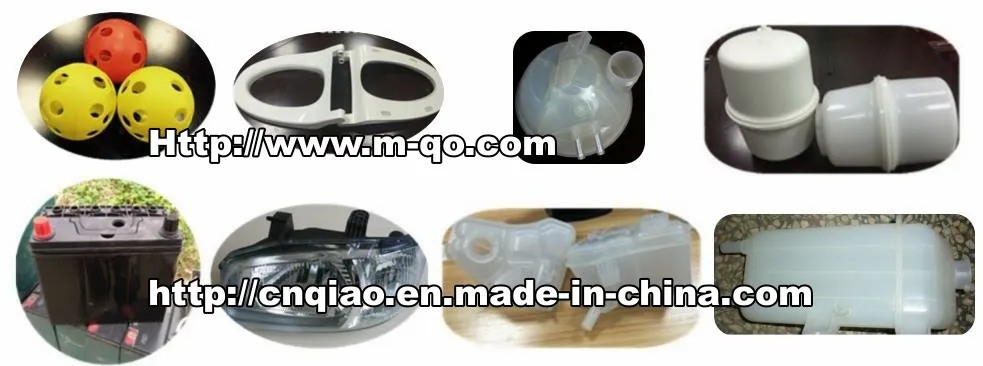

Mainly used for welding thermoplastic materials such as PE, PP, ABS, nylon, acrylic, POM, and complex plastic parts. Common applications include:

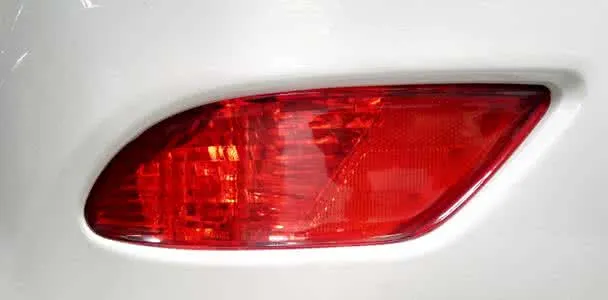

• Car lights & tail lights
• Car water tanks & dashboards
• Washing machine balance rings
• Batteries & steam irons
• Dust buckets & irregular products

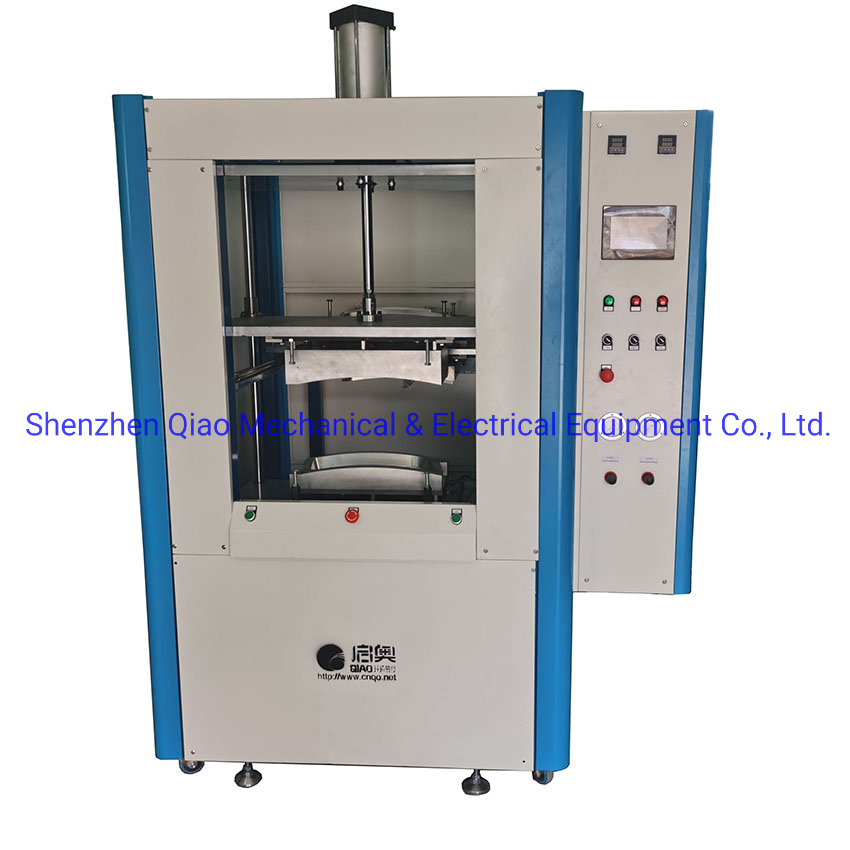

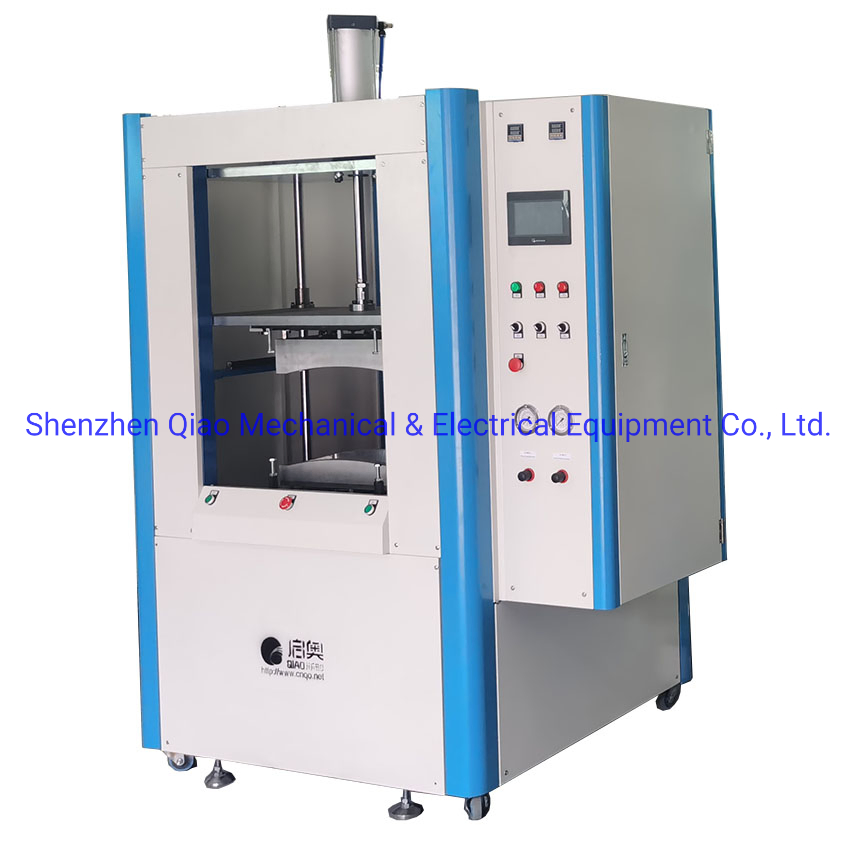

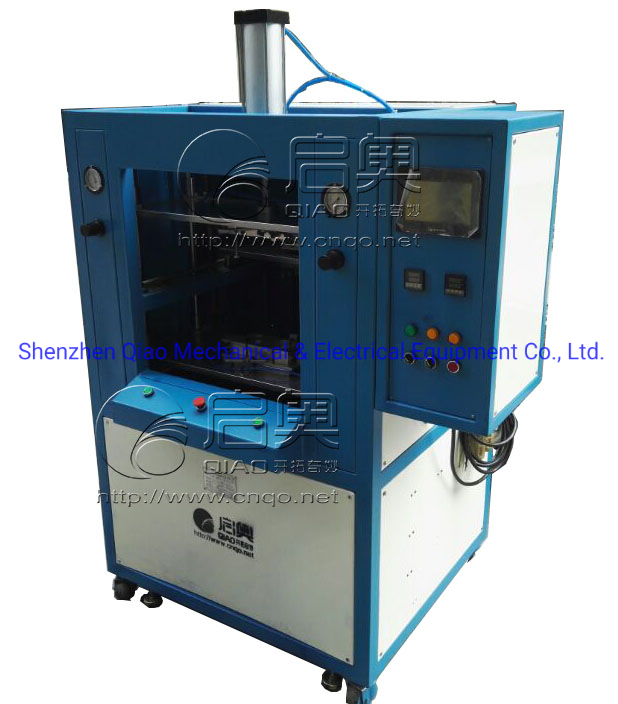

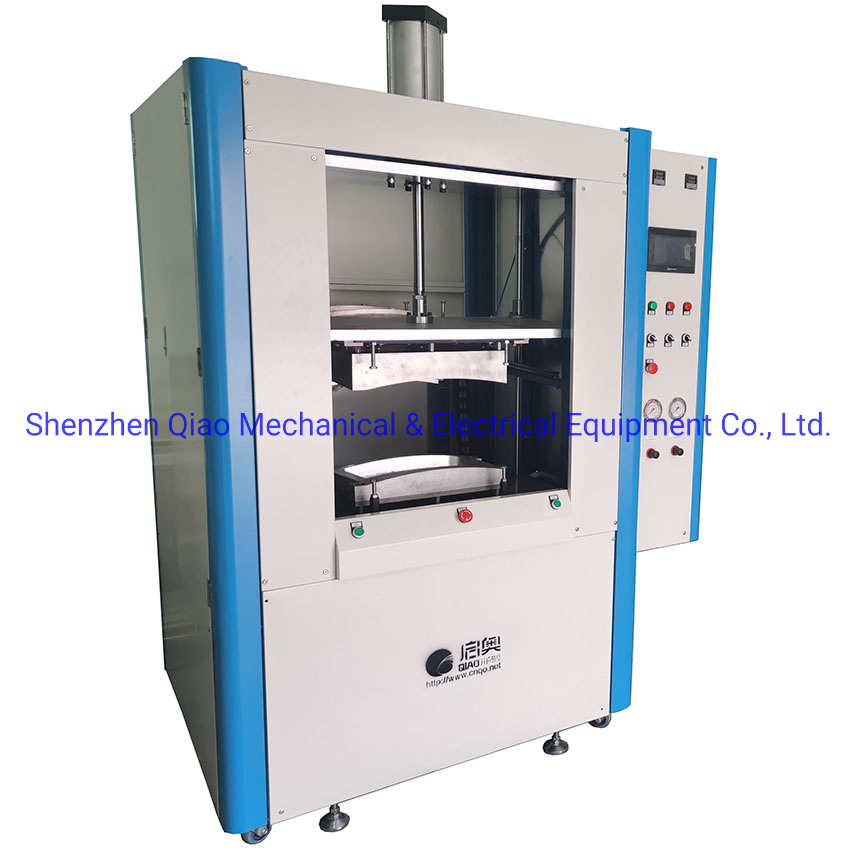

Machine Introduction

The hot plate machine welds plastic components through a temperature-controlled heating plate. When the workpiece makes close contact with the hot plate, the plastic begins to melt. After the molecules reach a molten state, the heating plate retracts. The two parts are then pressed together under specific pressure, integrating through molecular motion to achieve high welding strength upon cooling.

• Easy to learn and operate.
• Driven by pneumatic, hydraulic, or servo motor systems.
• Applicable to various workpiece sizes without area limitations.
• Perfect welding for irregular workpieces without consumables.
• Guaranteed welding strength with plastic allowance compensation.
• Smart PLC control system with man-machine interface.
• Digital display temperature controller for stability.
• High production efficiency and labor-saving speed.
