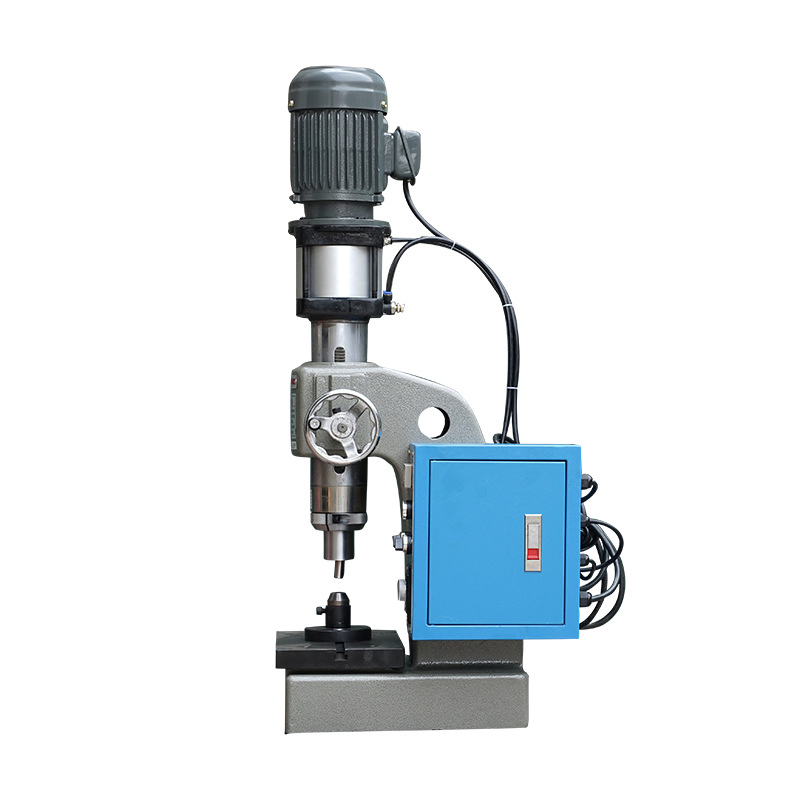

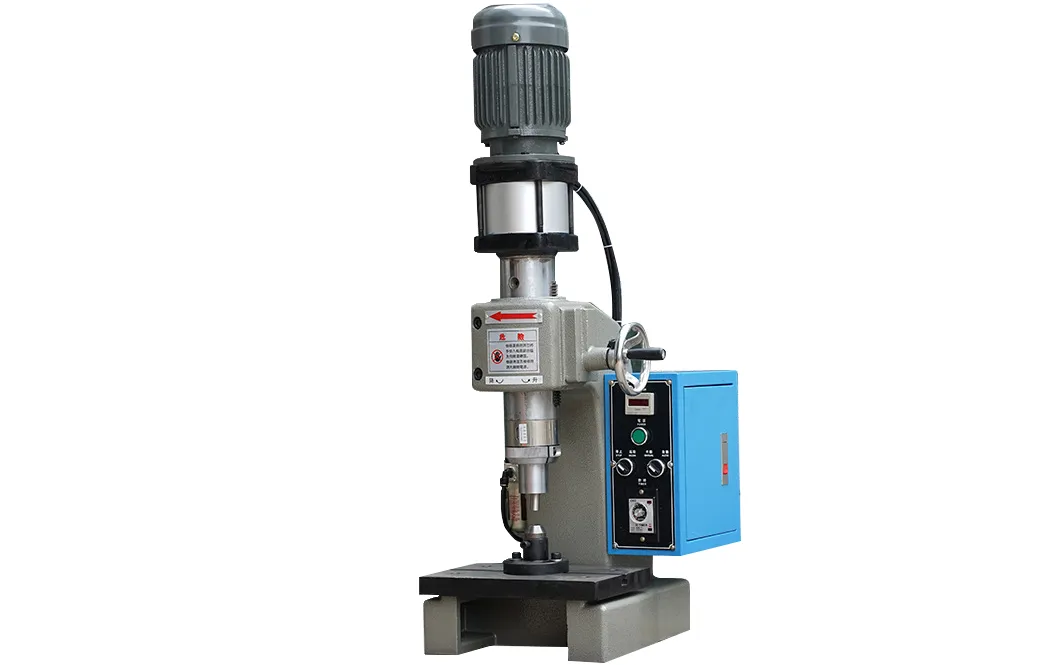

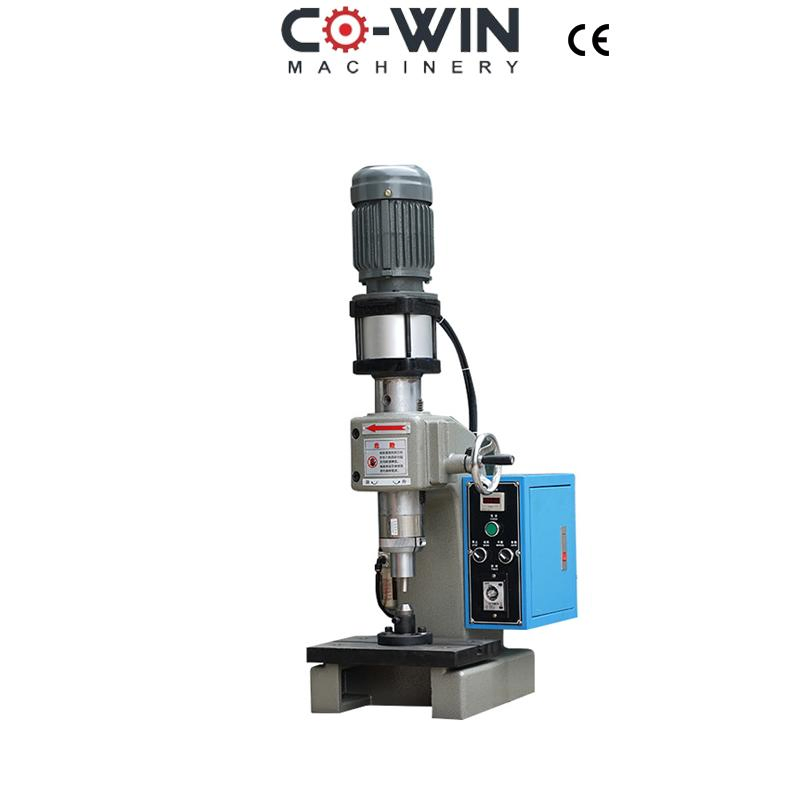

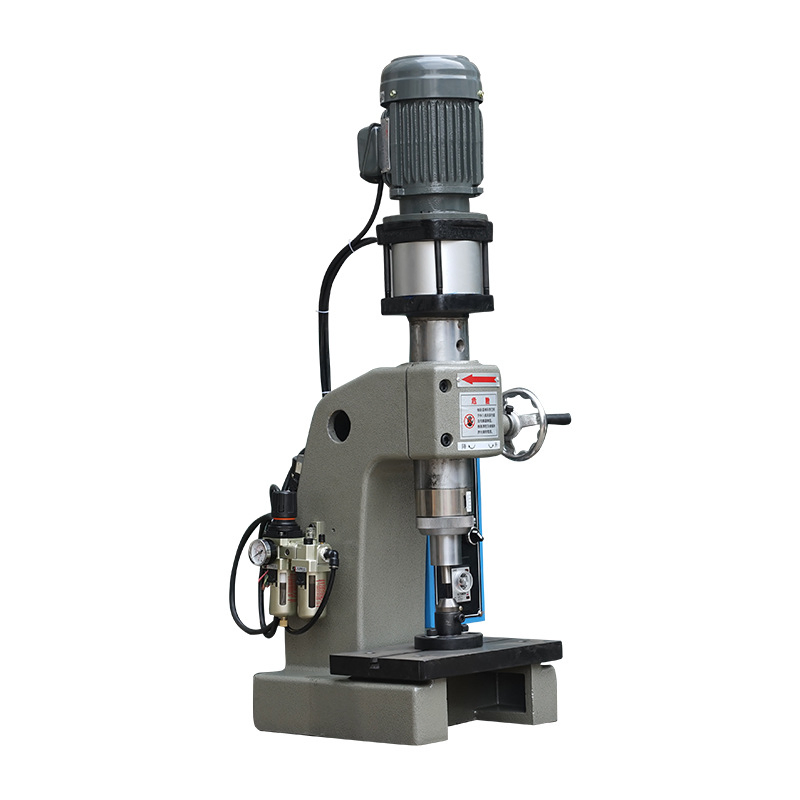

Small Desktop Pneumatic Solid Rivets Orbital Riveting Press Machine

Customization:	Available
After-sales Service:	1 Year
Automatic Grade:	Automatic

Product Overview

Model NO.CW-141

Power SupplyPneumatic

Warranty1 Year

CertificationGS, RoHS, CE, ISO

Weight125kg

Spindle Stroke35mm

Working Time0.5s-6s

Riveting Length125mm

Mpakg/Cm²100-800

SpecificationL341*W440*H1040

OriginChina

HS Code8463900090

Product Description

Small Desktop Pneumatic Solid Rivets Orbital Riveting Press Machine

Main Features

Latest forming and fastening process instead of spinning, hammering, or welding for a smooth surface.
High production efficiency: Riveting processed within 0.5 seconds.
Ensures stability and high-quality finish of the workpiece.
Equipped with double air regulators for effective speed control.
Air filter integrated to prevent moisture in the system.
Compatible with hollow, semi-tubular, and solid rivets.
Easy foot-pedal operation for worker comfort.
Vertical workbench design to reduce operator fatigue.

Technical Specifications

Model	CW-141	CW-143
Max. Capacity	Φ7(Solid) ~ Φ12(Hollow)	Φ8(Solid) ~ Φ15(Hollow)
Riveting Press	800kg	1100kg
Stroke	35mm	35mm
Throat Depth	120mm	130mm
Air Source	2~7bar	2~7bar
Power	370w	750w
Weight	125kg	180kg

Detailed Photos

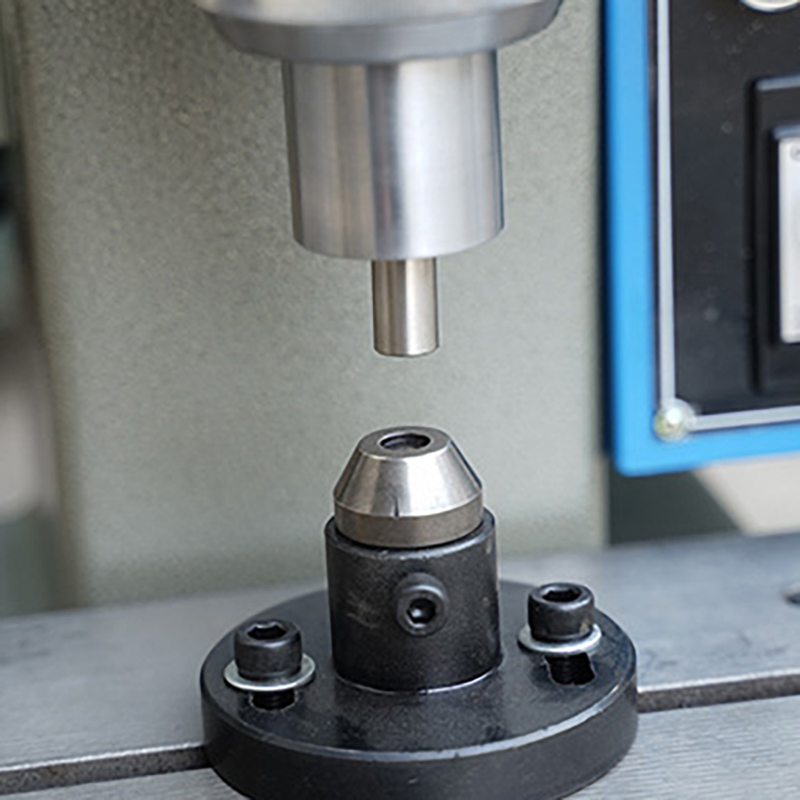

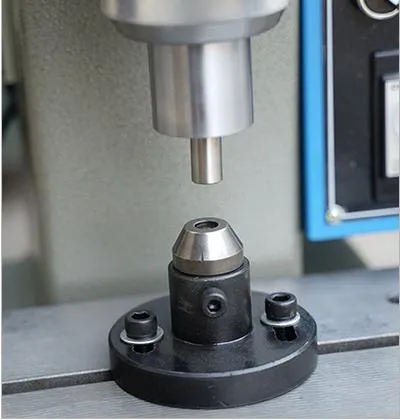

Riveting head
Adjustable stroke, precision bearing

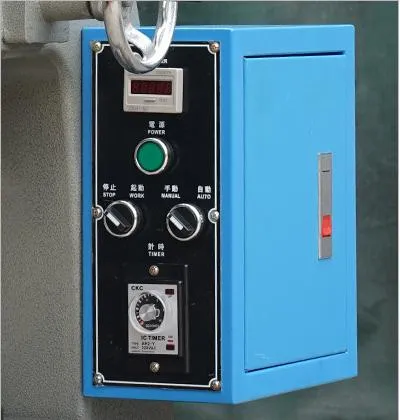

Intelligent controller
Stable quality brand components

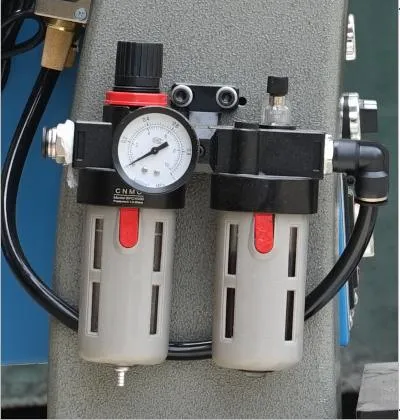

Pneumatic system
Stable pressure adjustment

Application Range

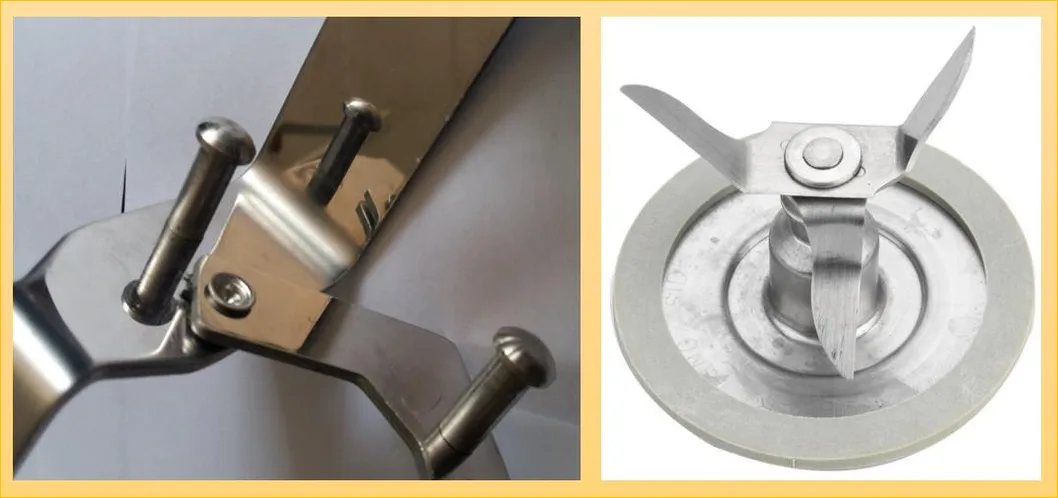

Perfect for light industries such as blender mixing knives, brake pad riveting, baby strollers, and hardware assembly.

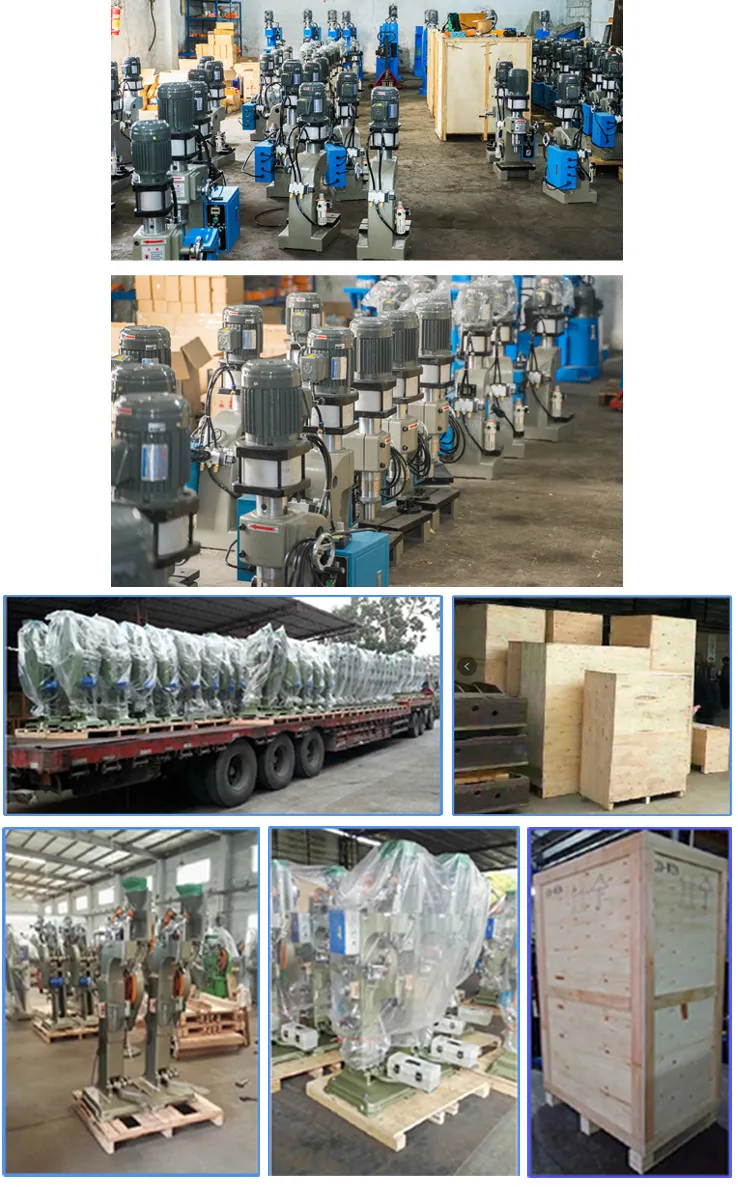

Packaging & Shipping

Our Strength

Our company has a professional technical team with nearly 30 years of experience. Our products are exported to Europe, South America, North America, Southeast Asia, and South Africa. We adhere to the principles of Integrity, Professionalism, and Innovation to provide high-quality solutions.

Why Choose Us

Rich industry experience with mature and stable technology.
Strict quality control according to design requirements and process testing.
Energy-saving, environmentally friendly, and high-efficiency designs.
Modular and customizable designs for easy maintenance.
Comprehensive certifications in line with international standards.

Frequently Asked Questions

Q1: What types of rivets can this machine handle?

A: This machine is highly versatile and acceptable for hollow rivets, semi-tubular rivets, and solid rivets.

Q2: What is the maximum riveting diameter for solid rivets?

A: For the CW-141 model, the maximum solid core capacity is Φ7mm, while the CW-143 model can handle up to Φ8mm.

Q3: How long does a single riveting cycle take?

A: The working time is adjustable between 0.5s to 6s, allowing for extremely fast production cycles.

Q4: Does the machine require a special power supply?

A: It is a pneumatic machine requiring an air source of 2~7 bar, along with a standard electrical supply for the motor (370w to 750w depending on the model).

Q5: Is the machine easy for a single worker to operate?

A: Yes, it features a bench-type vertical design with foot-pedal control, making it very easy and comfortable for workers to operate throughout the day.

Q6: How do you ensure the quality of the rivets?

A: The orbital riveting process provides a very smooth surface finish, and our double air regulators allow precise control over the riveting speed and pressure.
