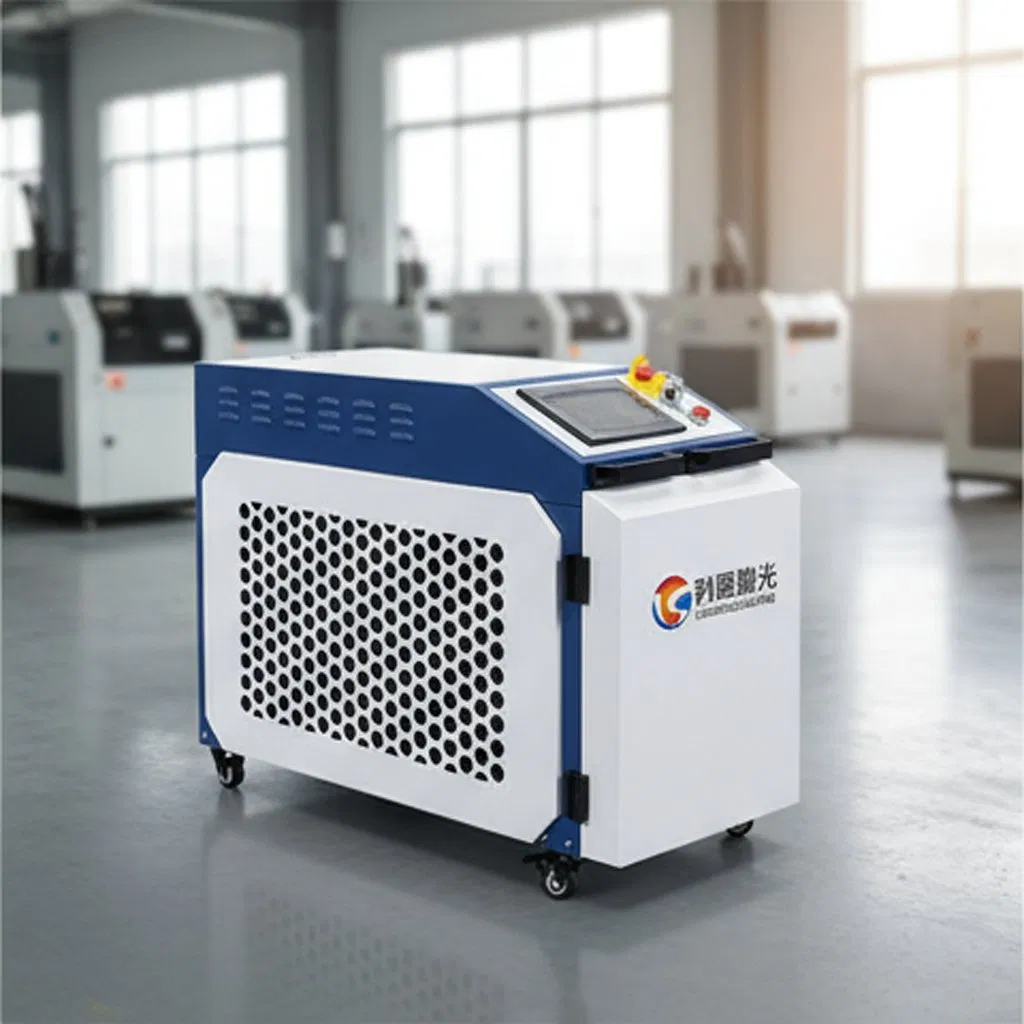

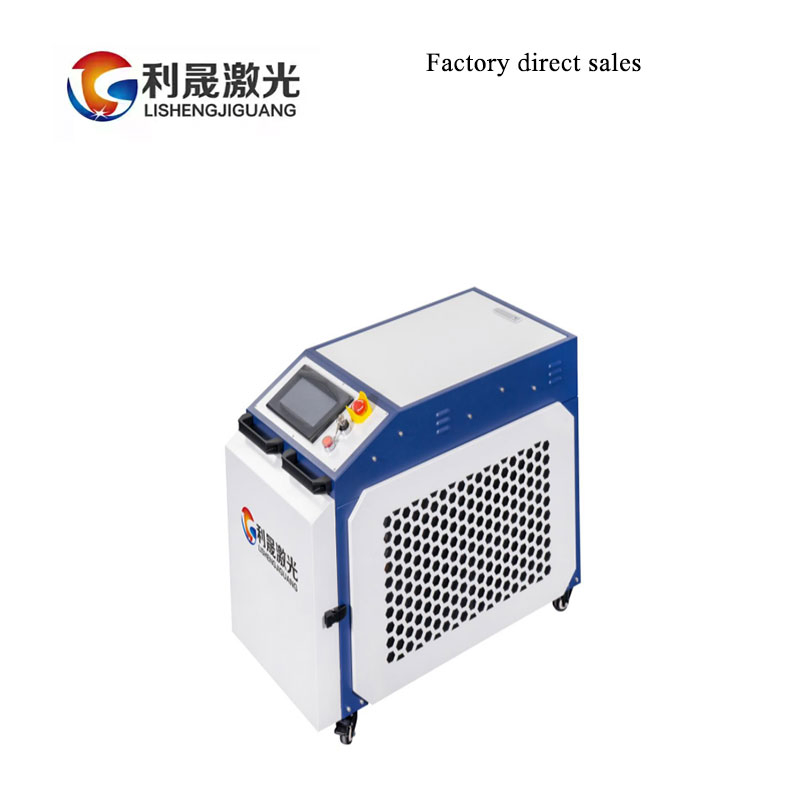

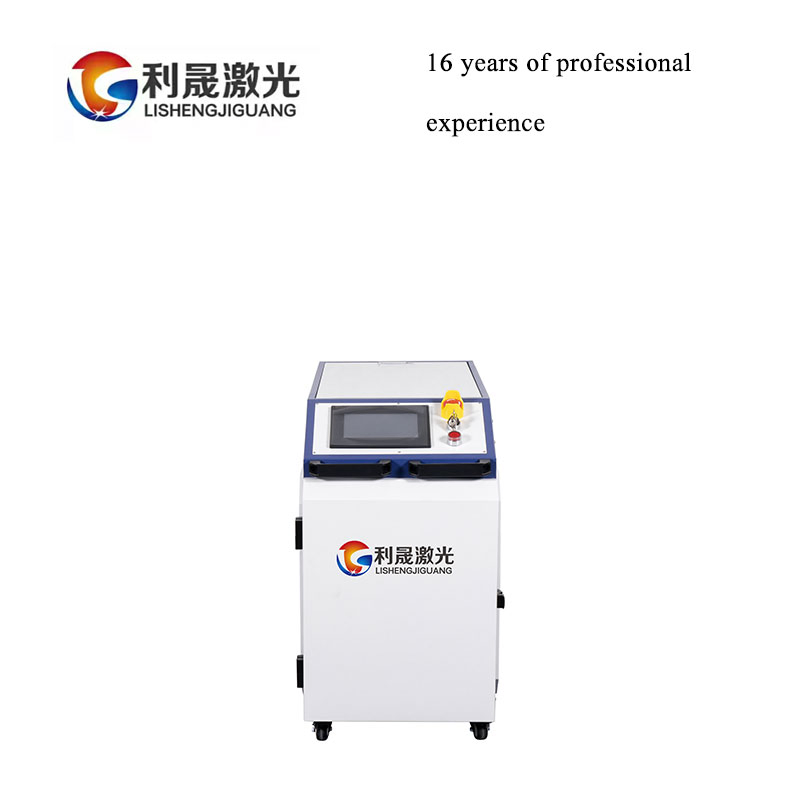

Precision-Driven Small Cabinet & Water Tank Integrated Laser Welder

Customization: Available
After-sales Service: 48 Hours Online
Warranty: 2 Years

Product Description

Basic Information

Model NO.
RFL-1500W/2000W
Application
Biomedicine, Electronics, Automotive, Manufacturing
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Deep Fusion Welding
Laser Type
Optical Fiber Laser
Type
Sensor Welding Machine
HS Code
8515809090
Specification
58.5*97*98
Capacity
500 PCS/Year

Product Introduction

The Handheld Fiber Laser Welding Machine is specifically engineered for high-precision laser welding of long-distance and large-scale sheet metal components. It operates with a minimal heat-affected zone, effectively preventing workpiece deformation, blackening, or surface marking.

This advanced system offers significant welding depth, superior bonding strength, and complete material melting. It serves as an ideal replacement for traditional TIG and electric welding processes, especially when working with thin metal materials like stainless steel, iron, and galvanized plates.

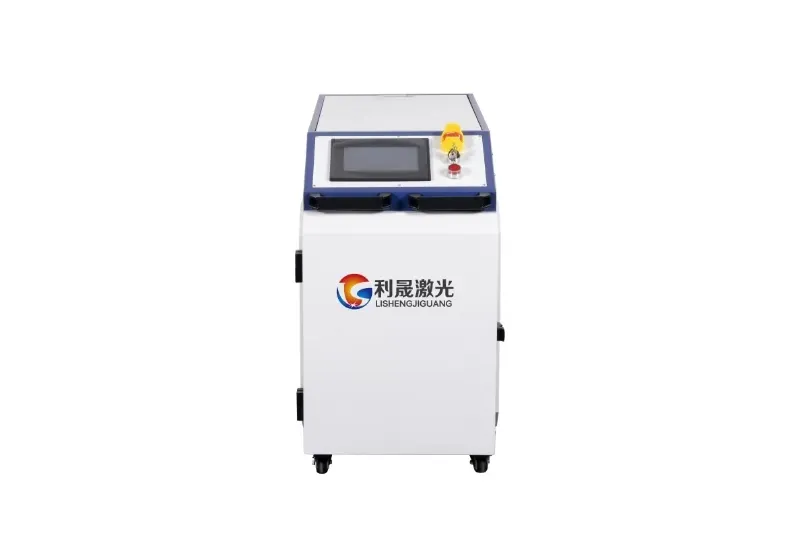

Handheld Laser Welder

Key Advantages

Easy Operation: Simple to master without the need for professional certified welders.
Superior Finish: Smooth, aesthetically pleasing weld seams that require little to no grinding.
Versatile Materials: Easily welds difficult materials like aluminum alloys using an oscillating head.
Extended Reach: Equipped with a standard 10-meter optical fiber for large-scale workpieces.
High Efficiency: 3-5 times faster than traditional welding, significantly reducing labor costs.
Multiple Modes: Supports spot welding, butt welding, and lap welding processes.

Technical Specifications

Specification Chart 1
Specification Chart 2

Frequently Asked Questions

What materials can be welded with this machine?
It is perfect for thin metal materials including stainless steel plates, iron plates, galvanized plates, and aluminum alloys.
Do I need a professional welder to operate it?
No, the machine is designed for simple operation and is easy to learn, making it accessible for non-professional operators.
How fast is the laser welding compared to TIG welding?
The handheld laser welding process is typically 3 to 5 times faster than traditional TIG or electric welding.
What is the reach of the welding torch?
The machine comes with a standard 10-meter optical fiber cable, allowing for flexible movement around large workpieces.
Does the welding cause workpiece deformation?
Due to the concentrated energy and small heat-affected zone, it minimizes thermal deformation and prevents blackening on the back of the material.
What welding styles are supported?
The system supports various processes including spot welding, butt welding, and lap welding to suit different manufacturing needs.
