Product Description

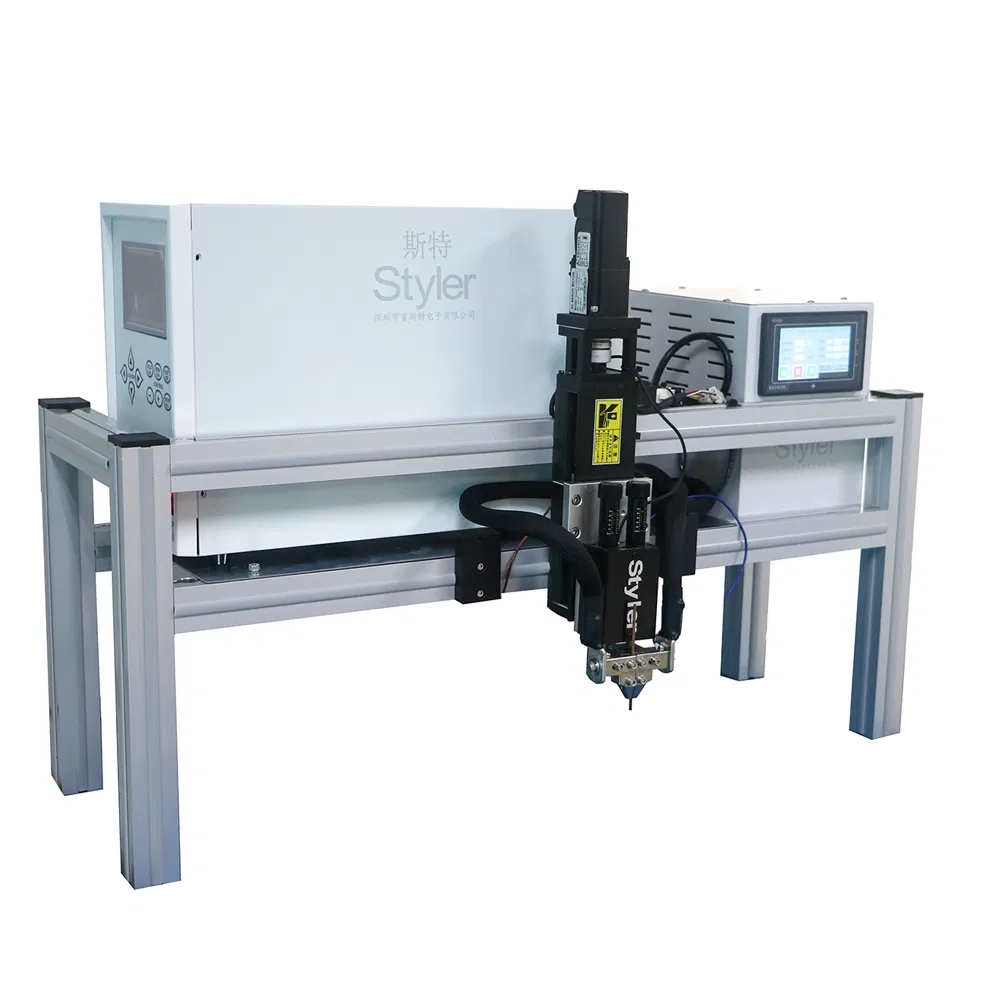

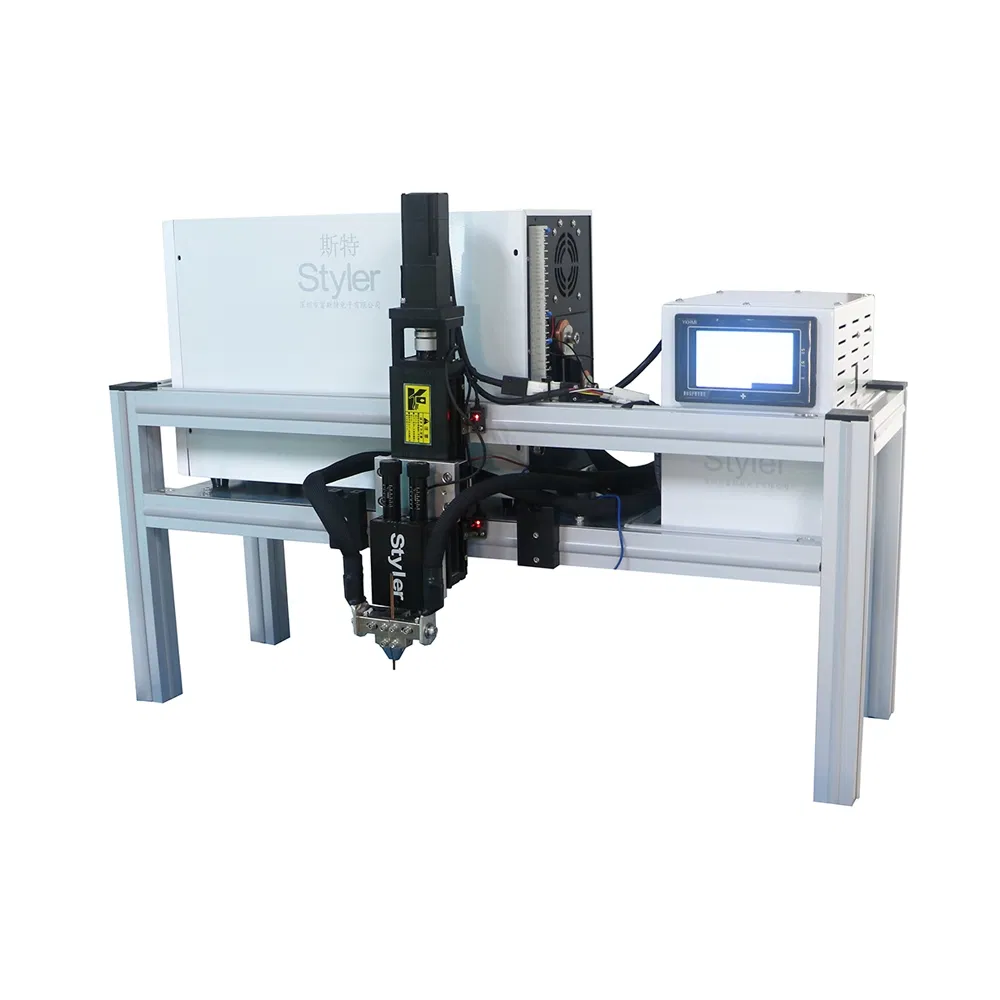

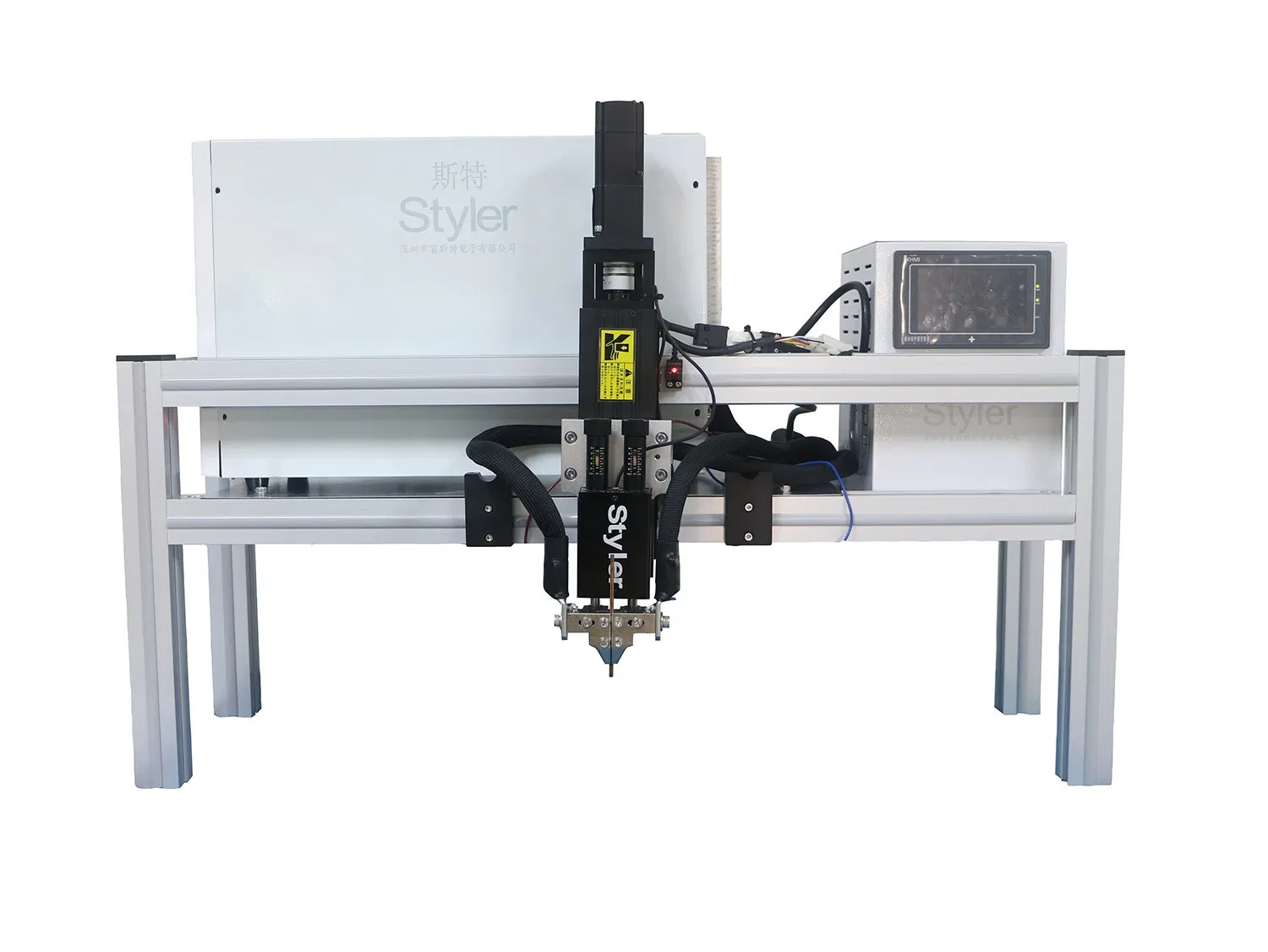

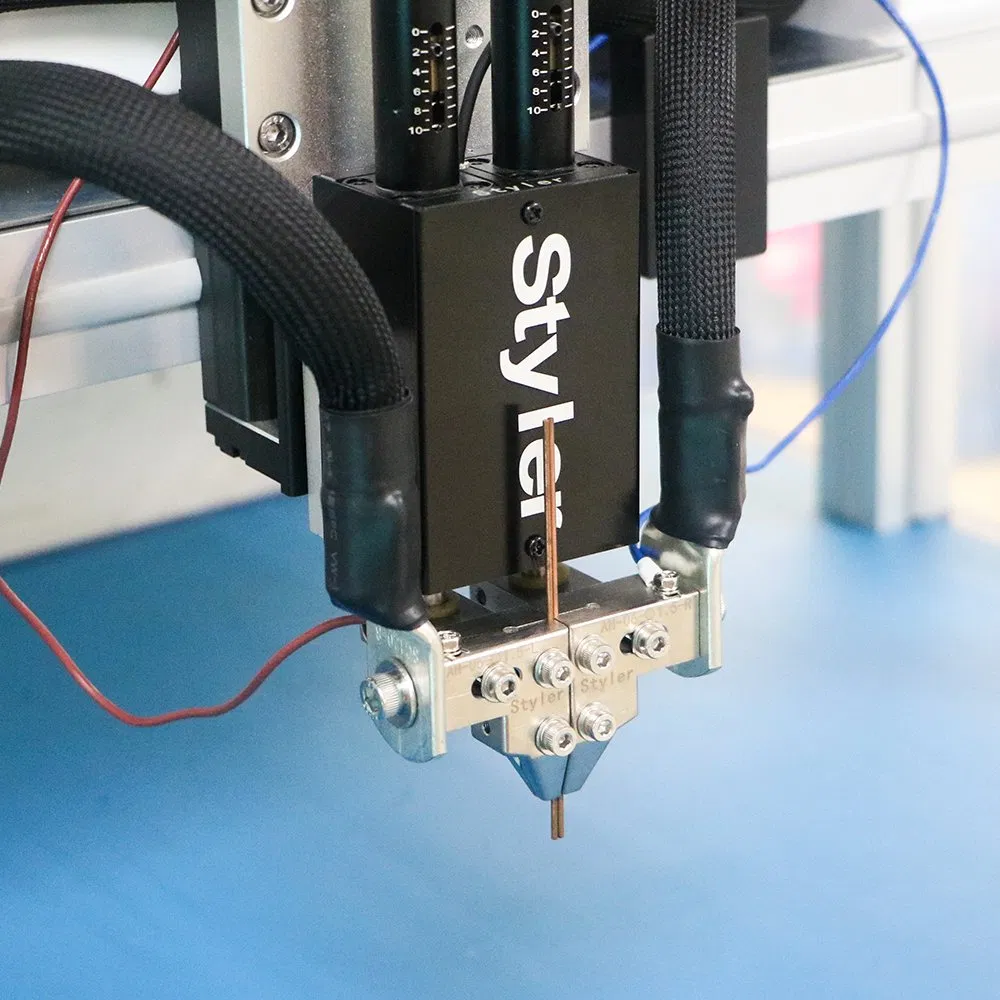

Transistor type precision energy storage spot welder
Transistor spot welding machine welding current rises very fast, can complete the welding process in a short time, the welding heat affected zone is small, and the welding process has no spatter. It is most suitable for ultra-precision welding, such as thin wires, such as button battery connectors, Small contacts and metal foils of relays.
Product Parameters
| MODEL | PDC10000A |
|---|
| MAX CURR | 10000A |
|---|
| INPUT | Three phase 340~420VAC 50/60Hz |
|---|

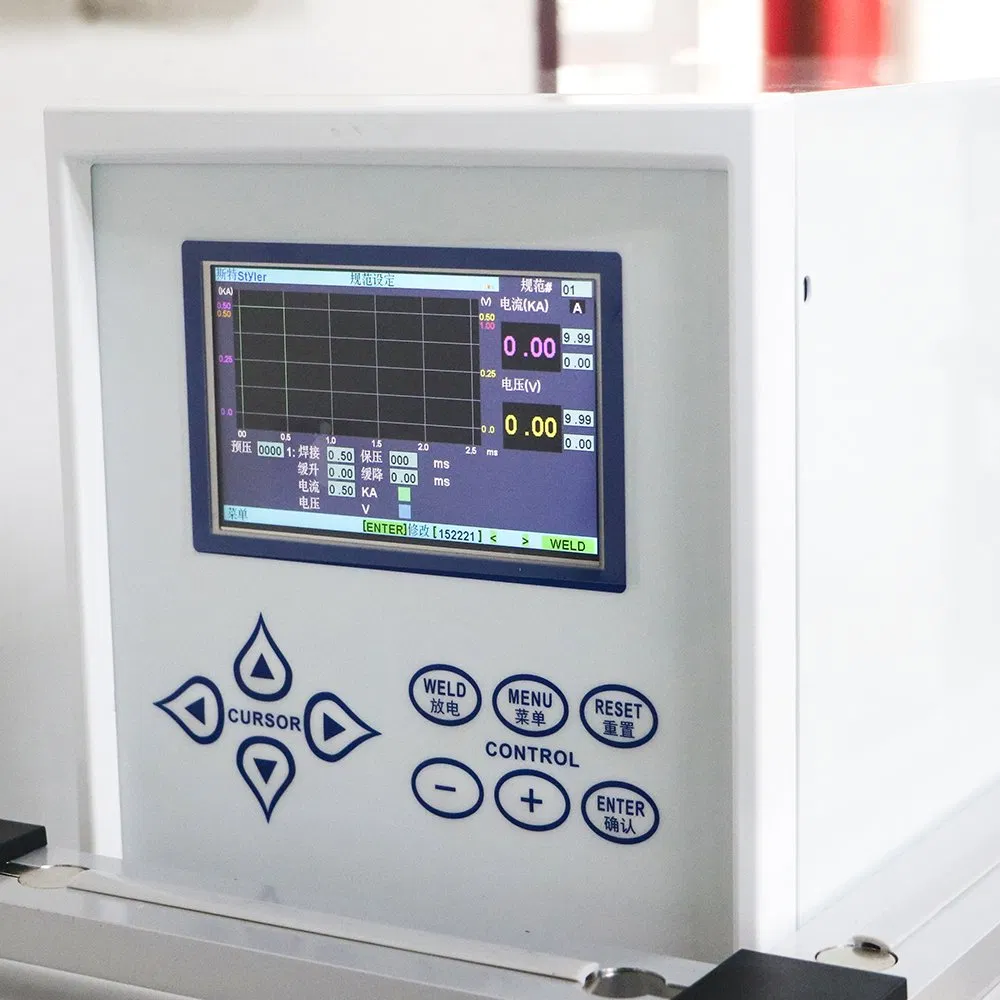

| CONTROLS | 1,const. curr. 2,const. volt. 3,const. curr. and volt. combination. |
|---|
| Pressure contact time | 0000~2999ms |
|---|
| Resistance pre-detection welding time | 0.00~1.00ms |
|---|
| Pre-detection time | 2ms(fixed) |
|---|
| Rising time | 0.00~9.99ms |
|---|
| Interval time | welding1,welding2 time 0.00~9.99ms |
|---|
| Slow down time | 0.00~9.99ms |
|---|
| Cooling time | 0.00~9.99ms |
|---|
| Holding time | 0.00~9.99ms |
|---|
| CURR STG RG | 0.00~9.99KA |
|---|
| VOLT STG RG | 0.00~9.99V |
|---|
| VOLT RG | 0.00~9.99V |
|---|
| EX. SIZE | 215(W)X431(H)X274(D) |
|---|
| G.W. | 23KG |
|---|
Frequently Asked Questions
How can we guarantee the quality of our spot welders?
We ensure quality by providing a pre-production sample before mass production and performing a final inspection before every shipment.
What products can you purchase from us?
Our range includes Lithium Battery Assembly Automation Lines, Battery Spot Welding Machines, Battery Sorting Machines, Battery Comprehensive Tester Systems, and Battery Aging Cabinets.
Why choose us over other suppliers?
We possess a strong technical R&D team with extensive experience in the lithium battery assembly and manufacturing industry. We offer a wide variety of specifications and machinery models.
What are the advantages of transistor type spot welders?
The welding current rises very fast, allowing for quick processes with a small heat-affected zone and no spatter, perfect for ultra-precision welding.
What delivery and payment terms are accepted?
We accept delivery terms such as FOB and EXW. Accepted payment methods include T/T, L/C, D/P, D/A, and PayPal in various major currencies.
What are the primary applications for this equipment?

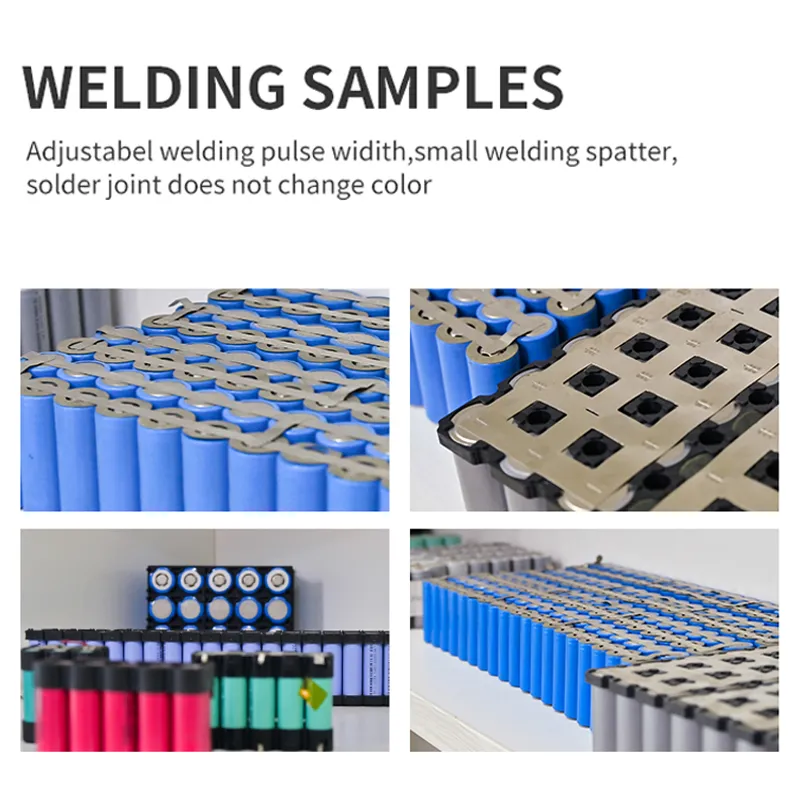

This equipment is specifically designed for lithium battery welding, ultra-precision thin wire welding, button battery connectors, and metal foils.
