PCCP concrete pipe production line making machine workshop
Technical Specifications
Model:DN1200-3600X6000MM
Frequency:Low Frequency
Current:AC
Welder Type:DC-1000 Lincoln Welder
Diameter Range:DN600-3600
Pipe Length:6000mm
Product Overview
Professional manufacturer of cement products complete sets equipment and molds. Strong technical strength with a number of national patents and ISO9001:2008 quality management system certification. Main products include:
DN400-4000mm PCCP Pipe Production Line
Concrete Drainage Pipe Production Line
Cage Welding Machine
Concrete Pipe Mold

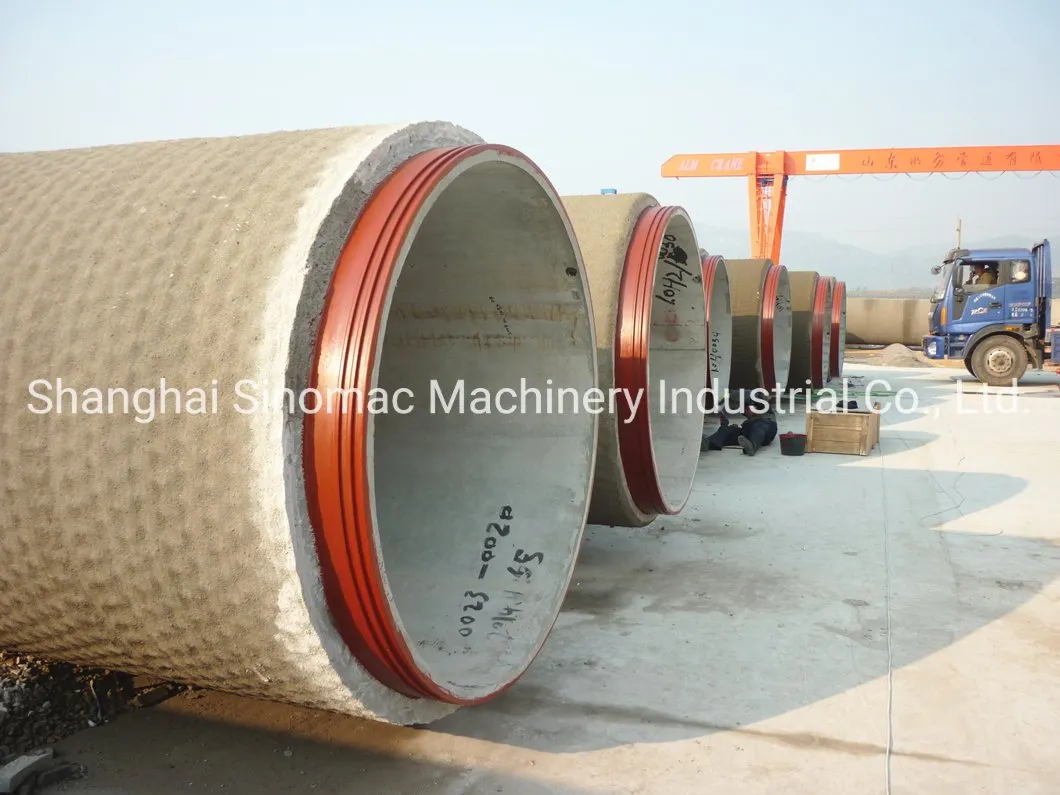

PCCP concrete pipe in stock

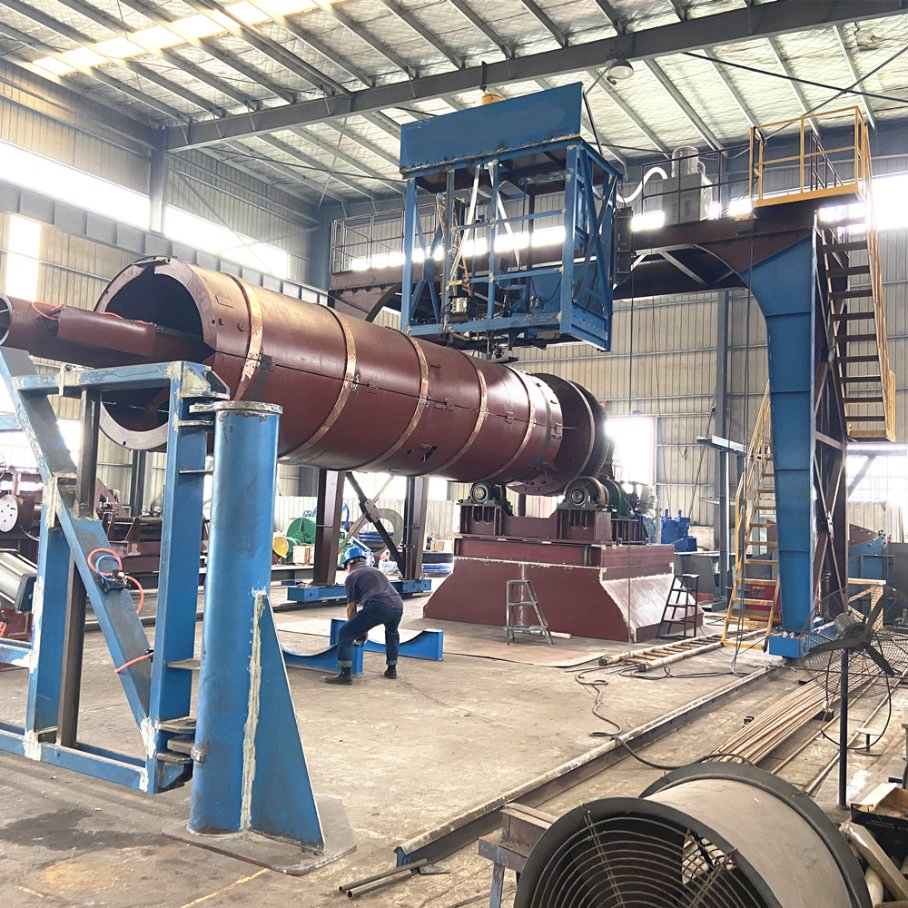

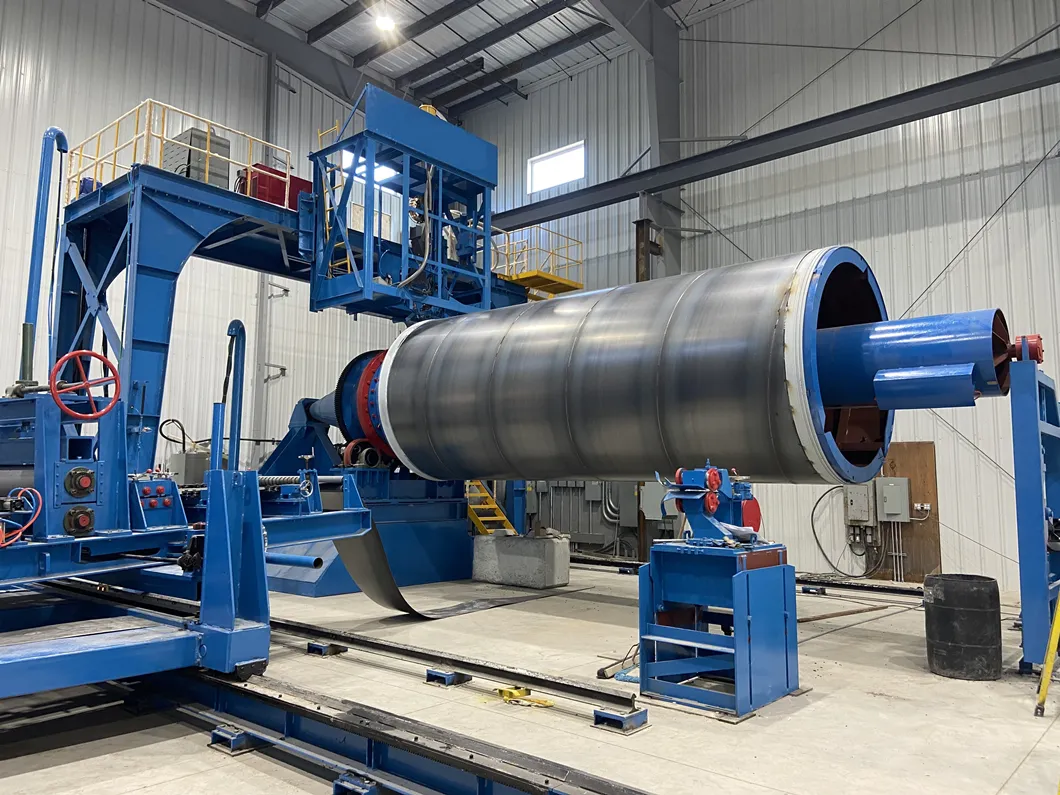

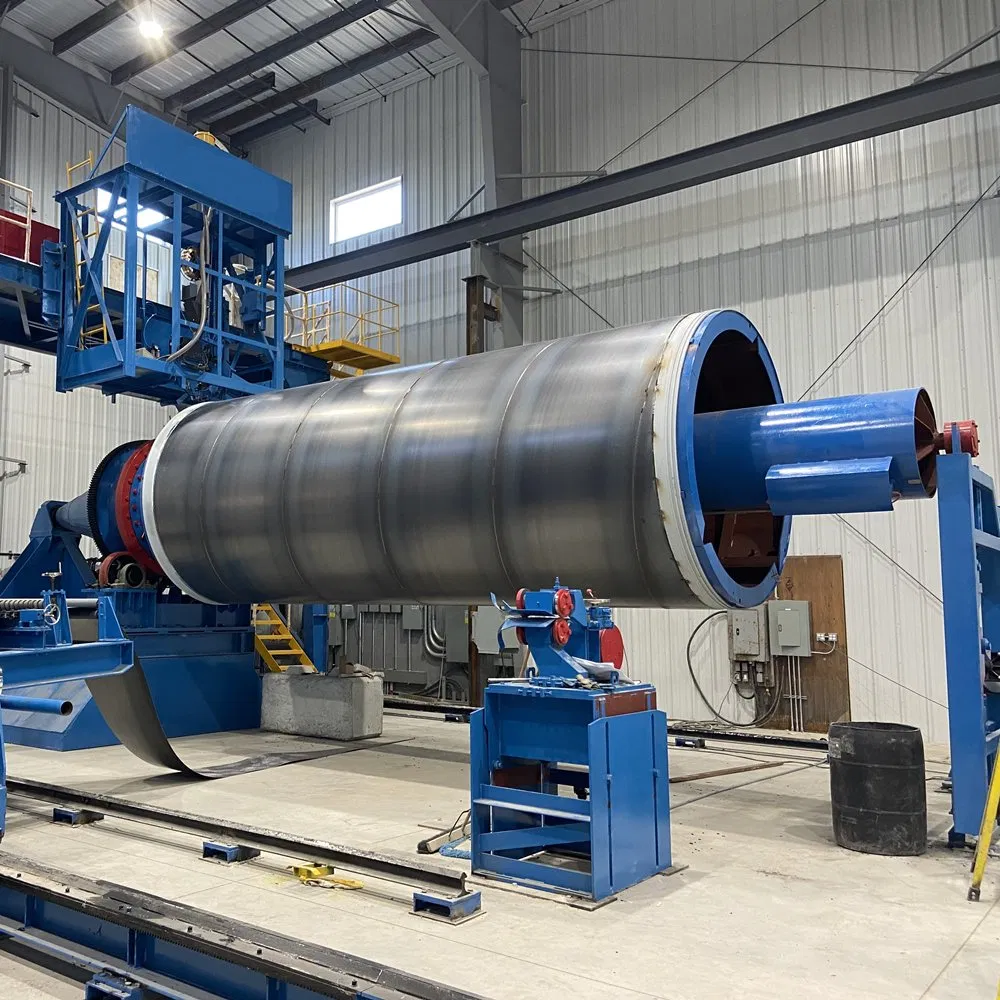

Steel Cylinder Welder installation
Welding Machine Parameters
Feature
DN600-1600X6000mm
DN1800-3600X6000mm
Welding Pipe Diameter
600-1600mm
1800-3600mm
Lincoln Welder Type
DC-600
DC-1000
Welding Speed
0.5-2.5m/min
0.5-2.5m/min
Coil Thickness
1.5-2.0mm
1.5-2.0mm
Control System
PLC control
PLC control
Cutting Type
Auto Plasma Cutting
Auto Plasma Cutting

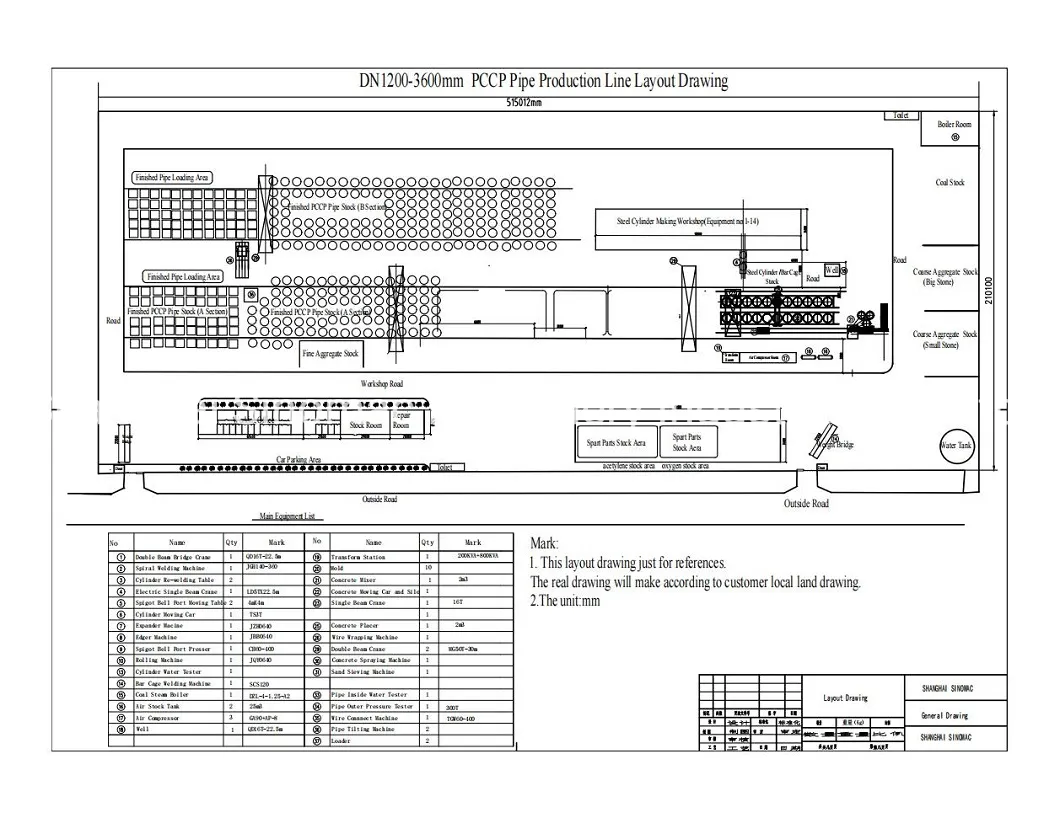

Production Flowchart
Main Equipment List

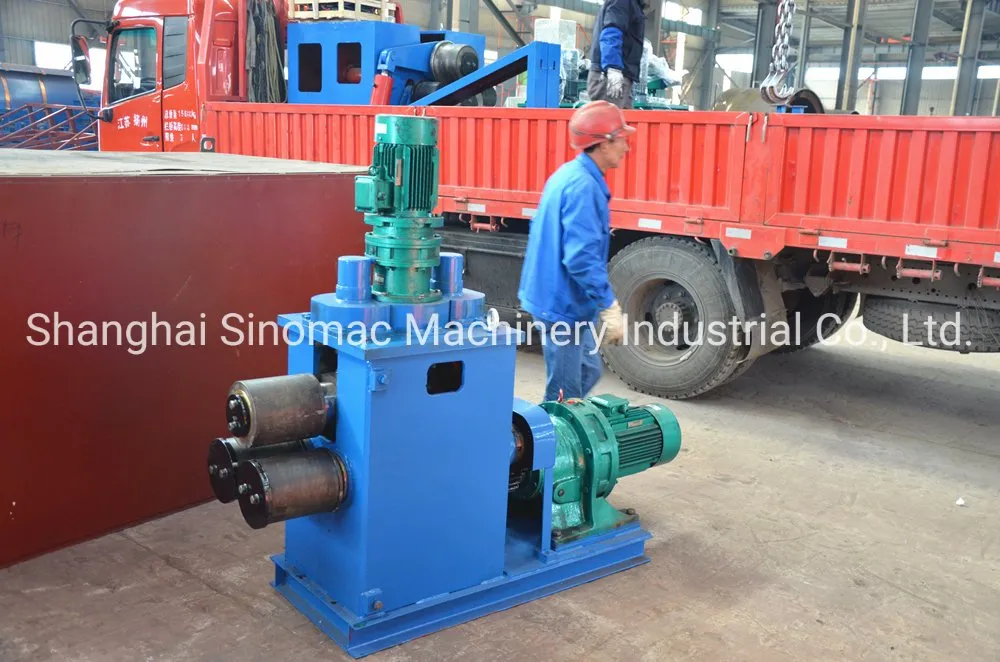

Spigot and Bell Port Rolling Machine

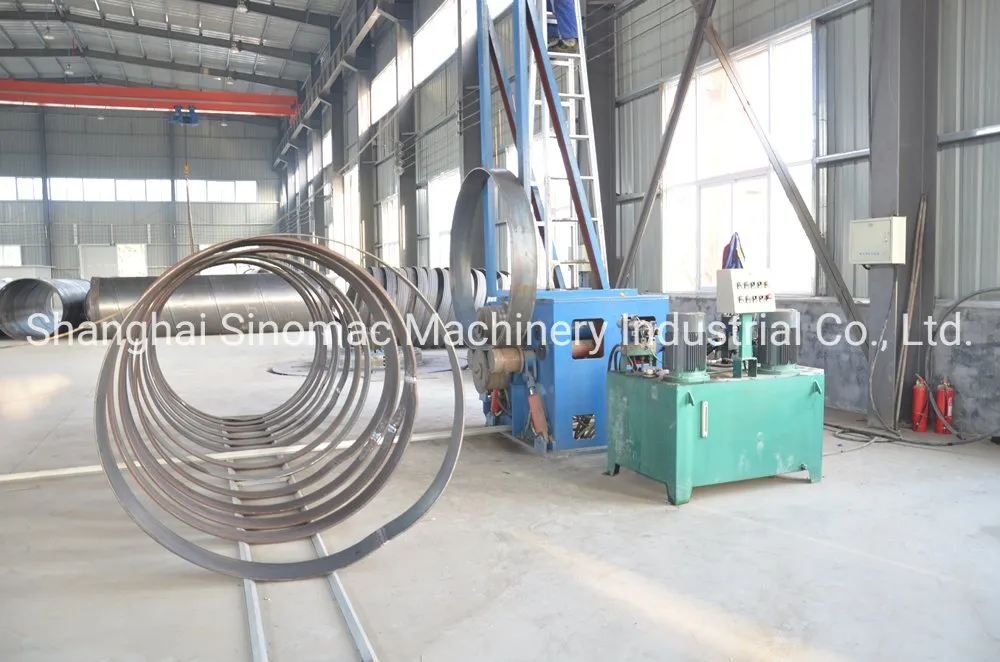

Steel bell ring edging machine

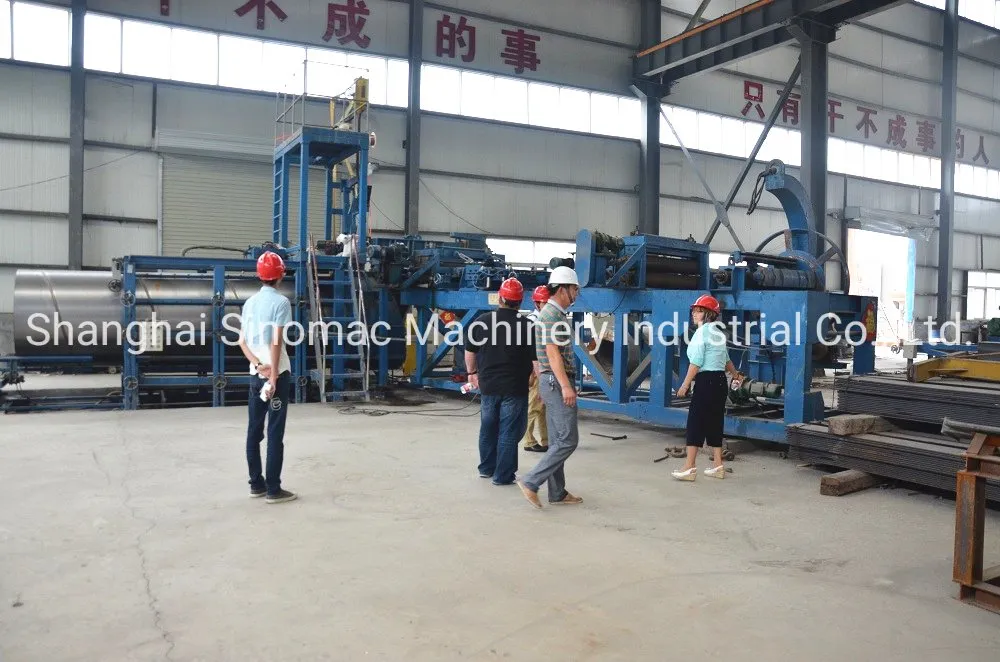

Small steel cylinder welding machine

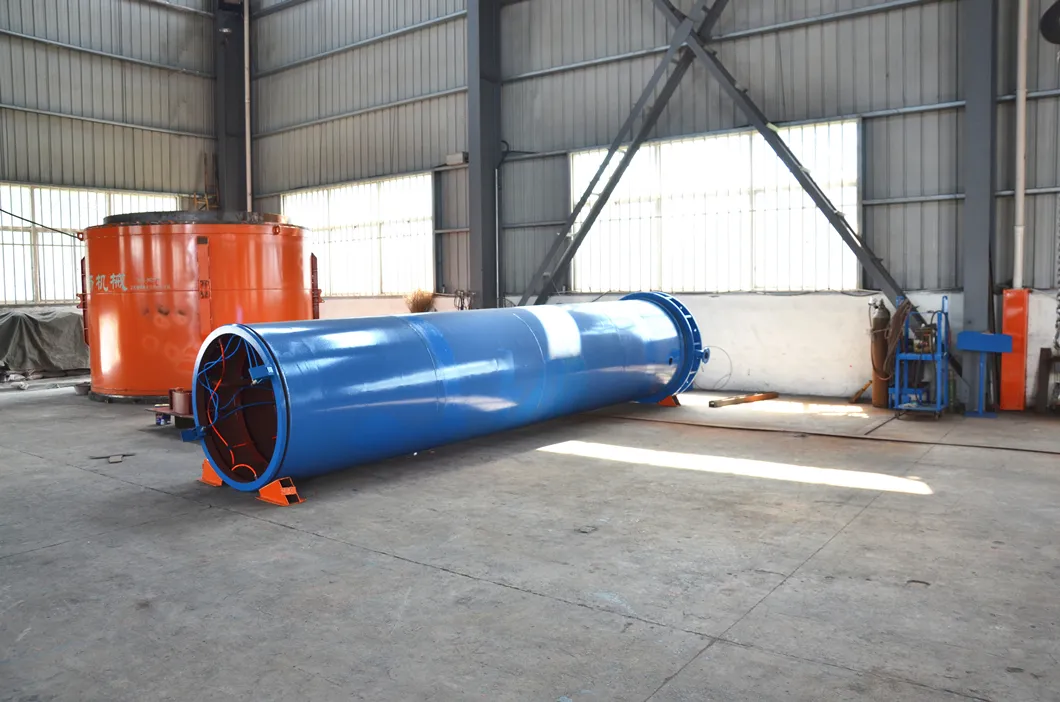

Steel cylinder water pressure testing machine

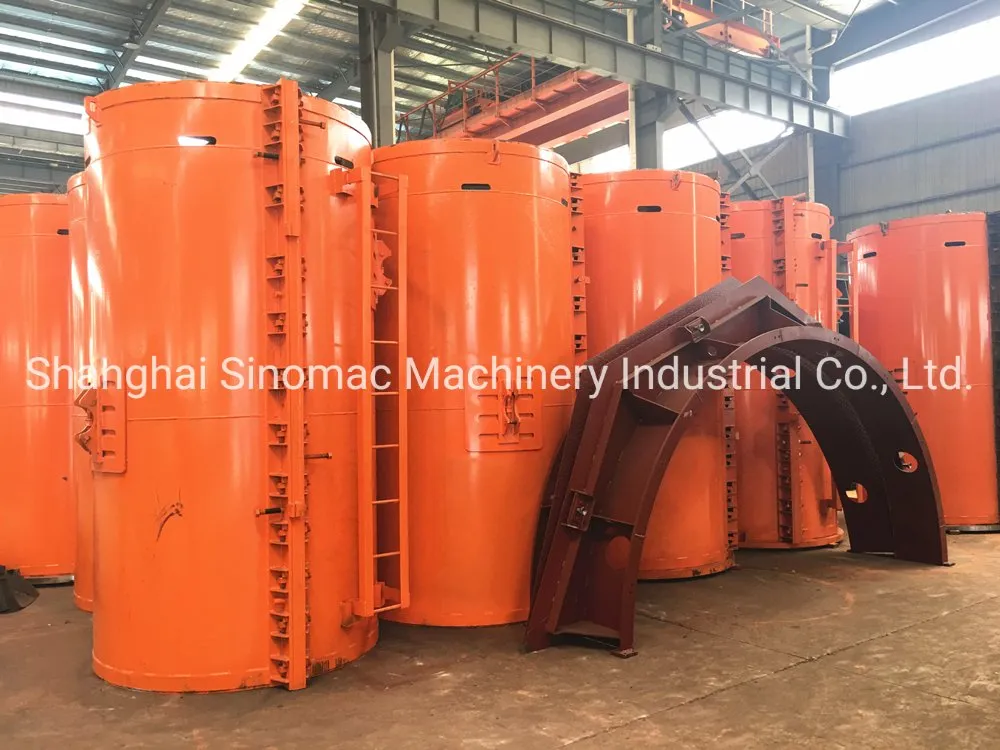

Jacking concrete pipe mould

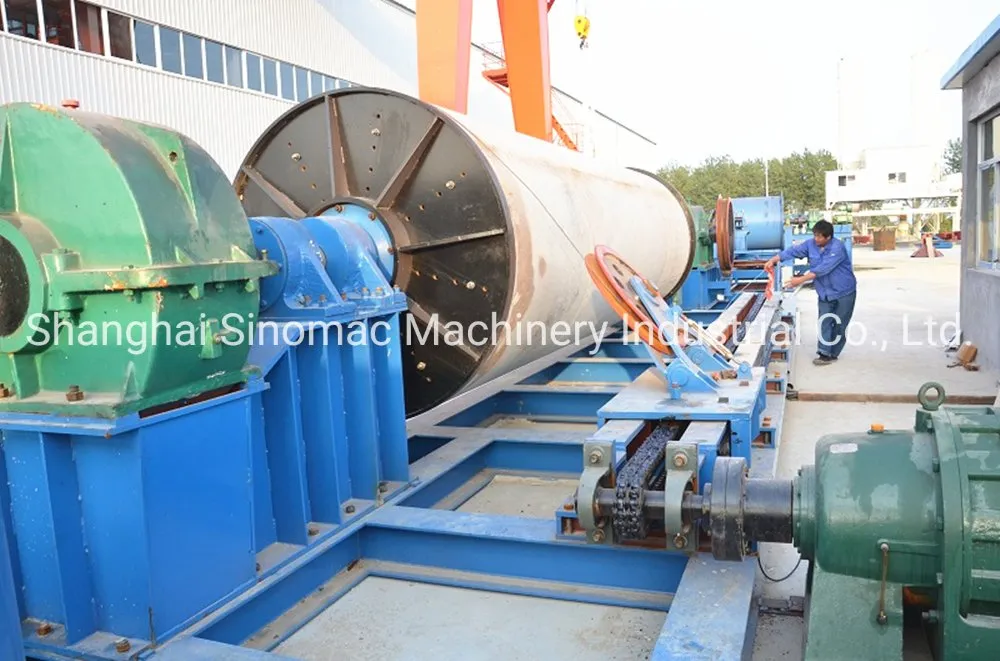

PCCP pipe wire wrapping machine
Packaging & Delivery
Package Size:100.00cm * 90.00cm * 80.00cm
Gross Weight:100.000kg
Packing:Standard Export Packing
Frequently Asked Questions
1. What is the diameter range of pipes this machine can produce?
The production line covers a wide range from DN600 up to DN3600mm, with specific models optimized for different diameter segments.
2. What type of welding technology is utilized?
We utilize high-performance Lincoln Welder systems, specifically the DC-600 and DC-1000 models, ensuring stable and high-quality submerged-arc welding.
3. How is the welding speed controlled?
The welding speed is adjustable between 0.5 to 2.5 meters per minute and is managed via a precise PLC control system.
4. What materials are required for the steel cylinder?
The machine is designed for oil-free cold rolled steel plates (GB/T5213-2008 standard) or hot sheet coils with a thickness of 1.5mm to 2.0mm.
5. Does the machine include automatic cutting features?
Yes, the system is equipped with an Auto Plasma Cutting unit for precise and efficient length management of the steel cylinders.
6. What are the main components of a complete PCCP production line?
A full line includes the rolling machine, edging machine, cylinder welder, water pressure testing machine, concrete placer, wire wrapping machine, coating machine, and various molds.
