Semi-Auto Rotary Table Servo System Ultrasonic Plastic Welder Equipment for Electronics Products

1 / 5

Semi-Auto Rotary Table Servo System Ultrasonic Plastic Welder Equipment for Electronics Products

Customization:	Available
Application:	Household Appliances, Garden Supplies, Decoration, Commodity, Auto Part, Electronic, Stationery, Toy, Medical Equipment
Cooling Way:	Air Cooling

Send Inquiry

Product Description

Basic Info & Overview

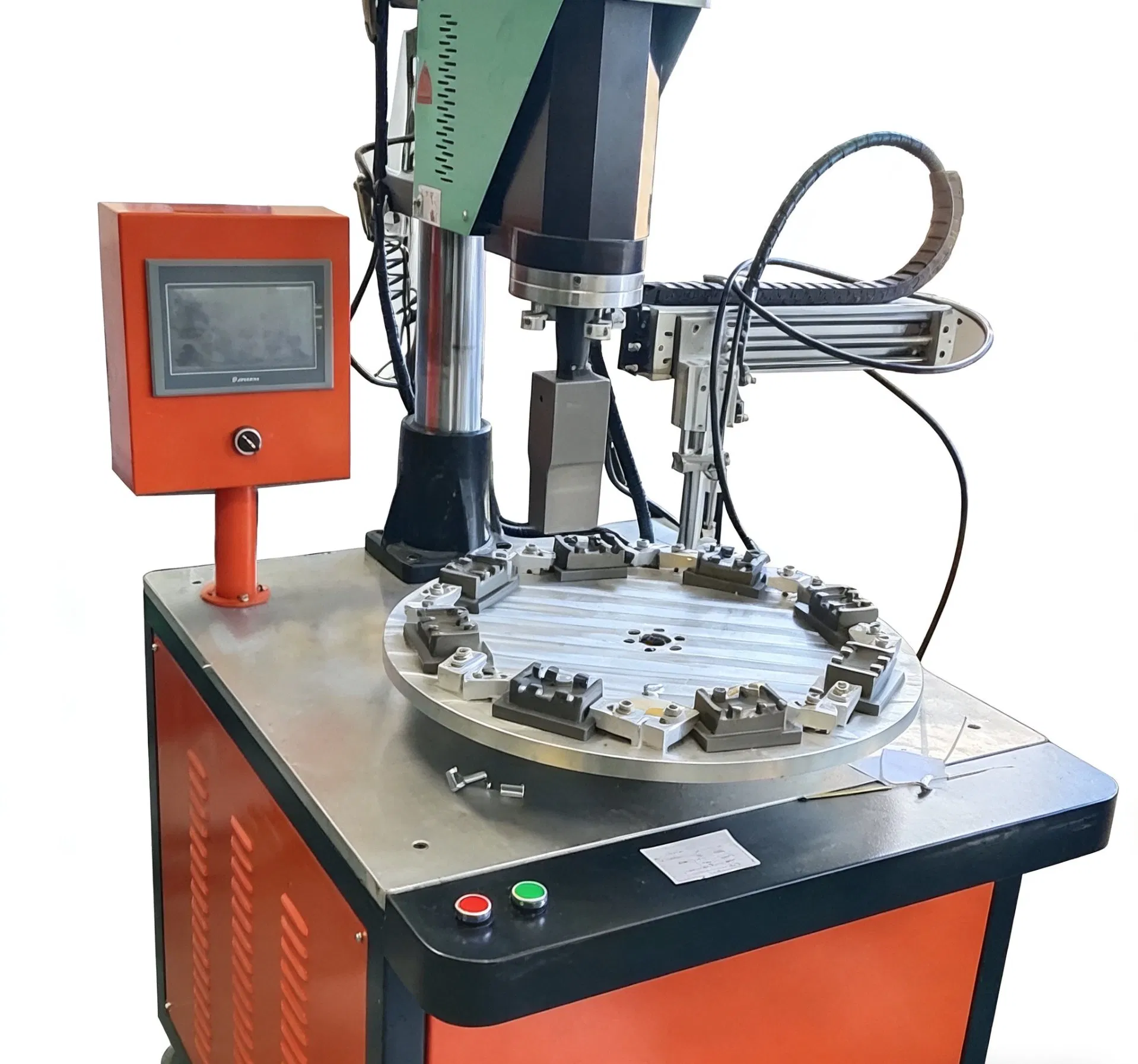

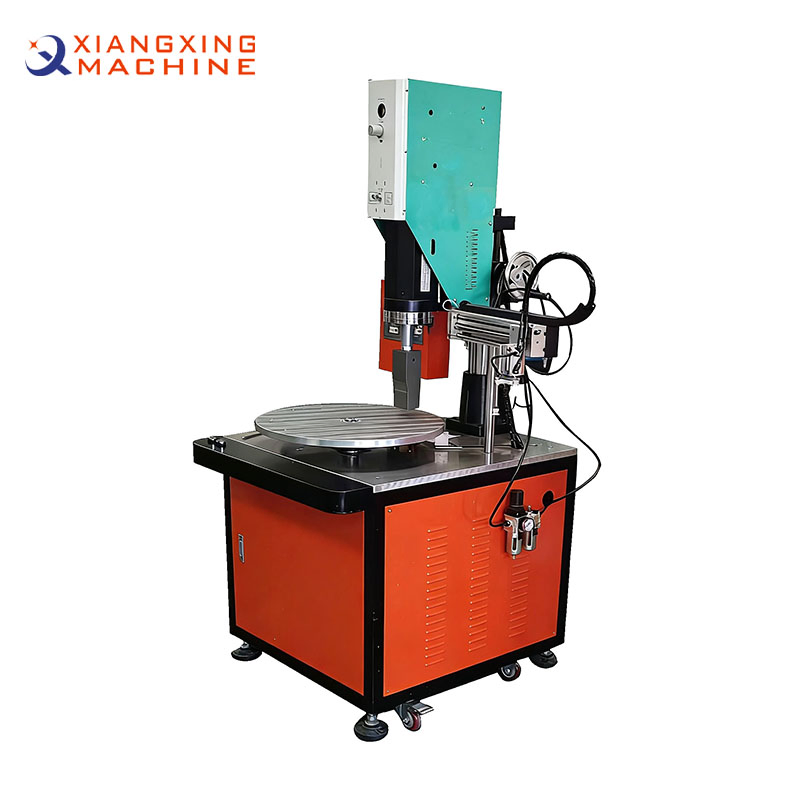

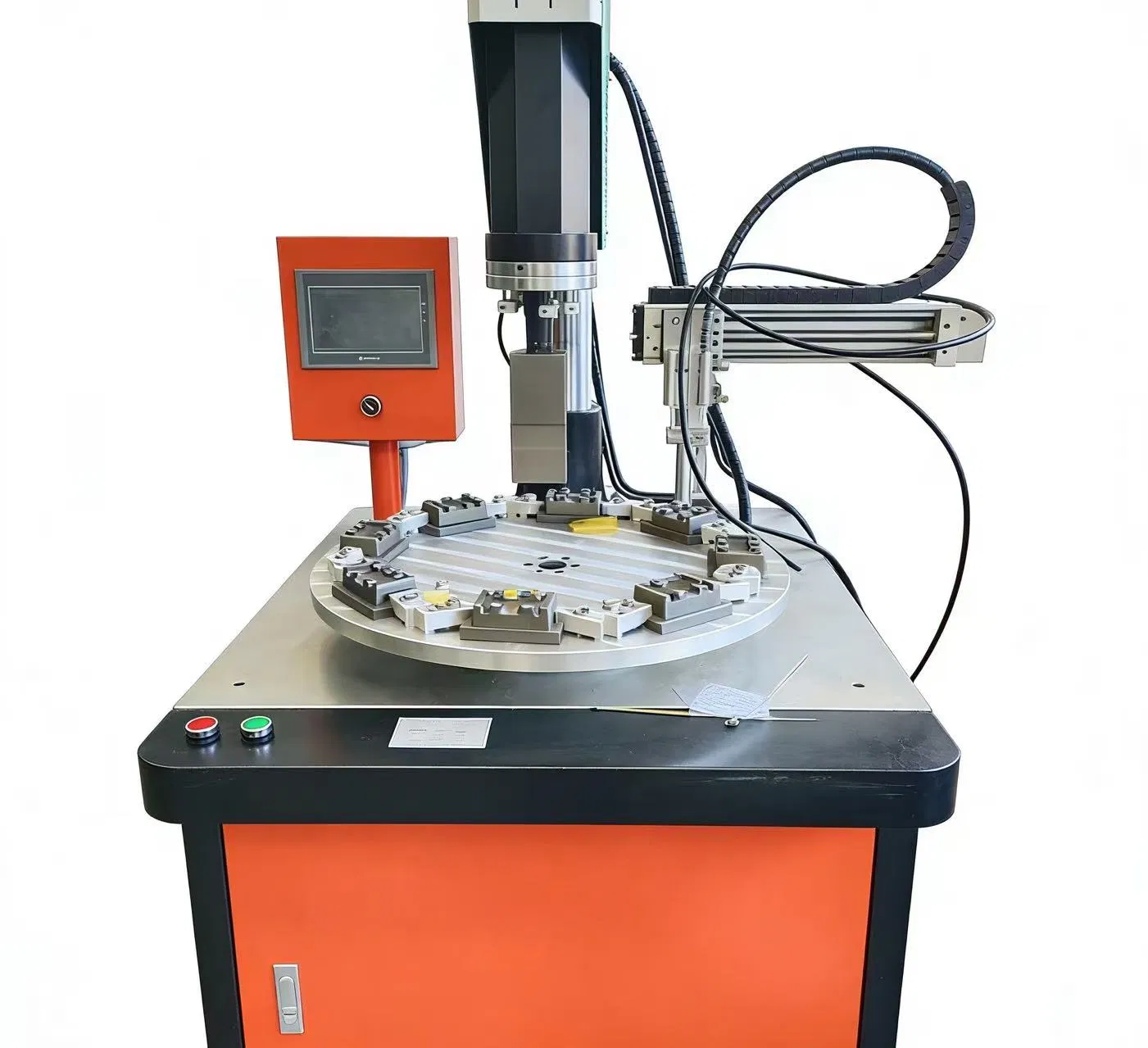

Servo Automatic Rotary Table Ultrasonic Plastic Welding Machine with 8 Working Stations
High Precision Automatic Multi-station Servo Ultrasonic Plastic Welder for professional industrial applications.

Model NO.	XX-R15K26A
Control	Automatic
Frequency Range	High Frequency
Electric Current	AC
Style	Handheld / Integrated
Power	Ultrasonic
Certificate	CE Approved
Production Capacity	10,000 sets/Year

Technical Parameters

Power Supply	AC220V
Power	2600W
Frequency	15KHz
Horn Journey	100mm
Delay/Welding/Cooling Time	0.1-3s (Adjustable)
Net Weight	200KGS
Machine Size	10806501700mm

Product Description

Working Principle

Experience the marvel of ultrasonic technology as it harnesses ultrasonic vibrations through a specialized transmission welding head to seamlessly join parts. This process exploits the acoustic resistance between the two welding parts, generating localized high temperatures that melt the interface. With the application of specific pressure, both components fuse elegantly, producing a final product that boasts a smooth, flawless, and robust finish.

Servo Ultrasonic Plastic Welder Overview

Automatic Frequency Generator: Autonomously tracks and adjusts to frequency changes in the welding head to ensure optimal performance under variable temperatures.

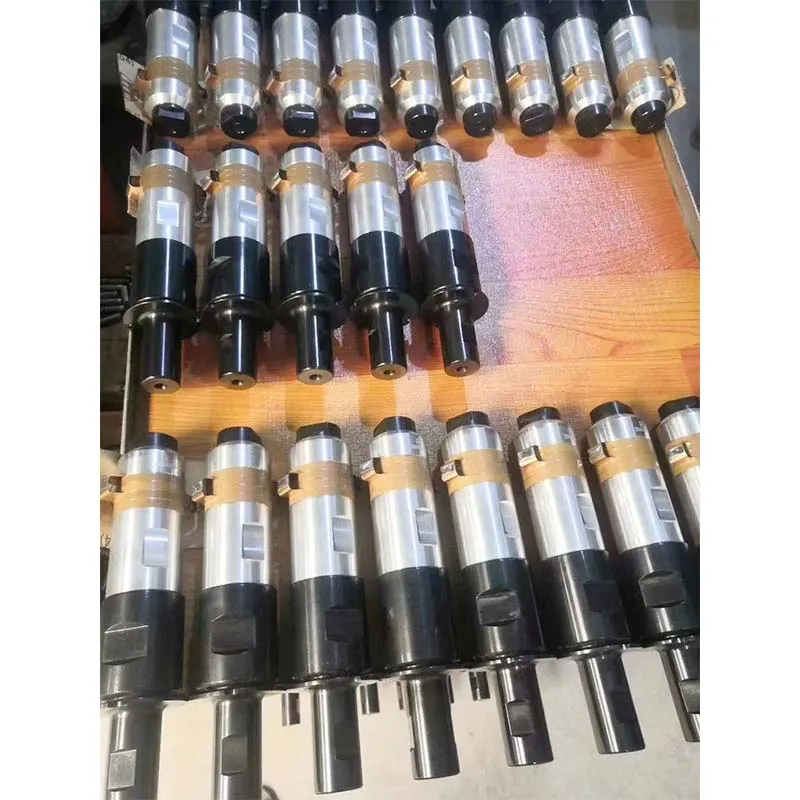

Ultrasonic Transducer: The core component responsible for generating precise pressure and vibration for reliable bonding.

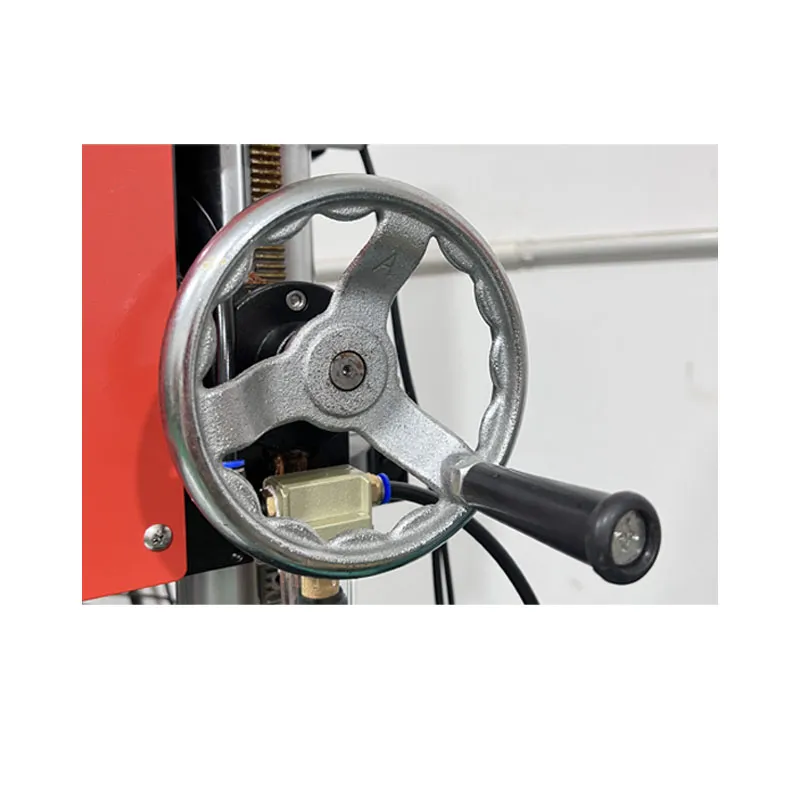

Height Adjust Handwheel: Accommodates various product heights with a maximum adjustable range of 510mm.

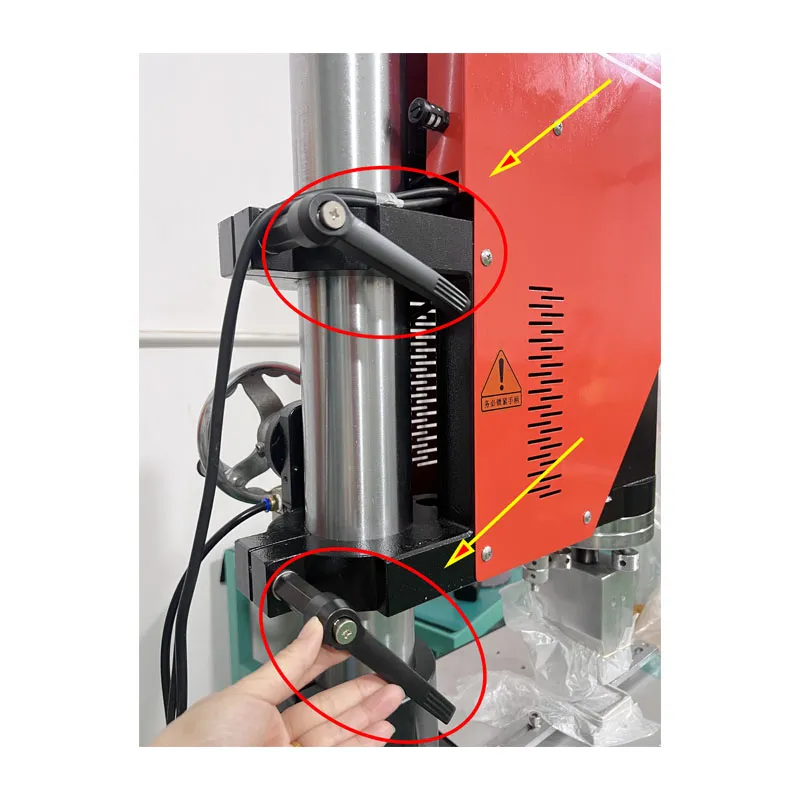

Adjustment Handle: Precision-engineered handles designed to fine-tune machine tension for stability.

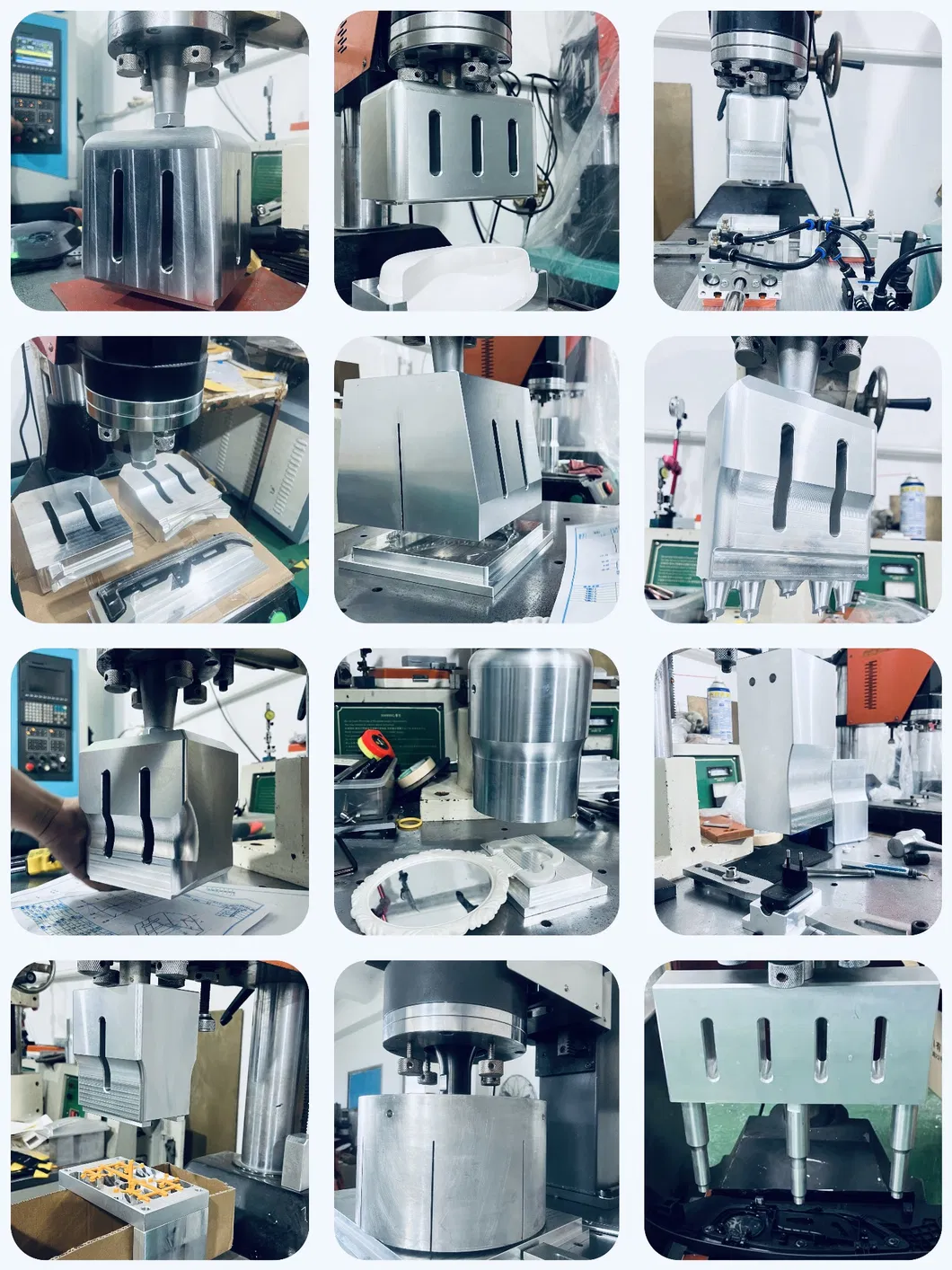

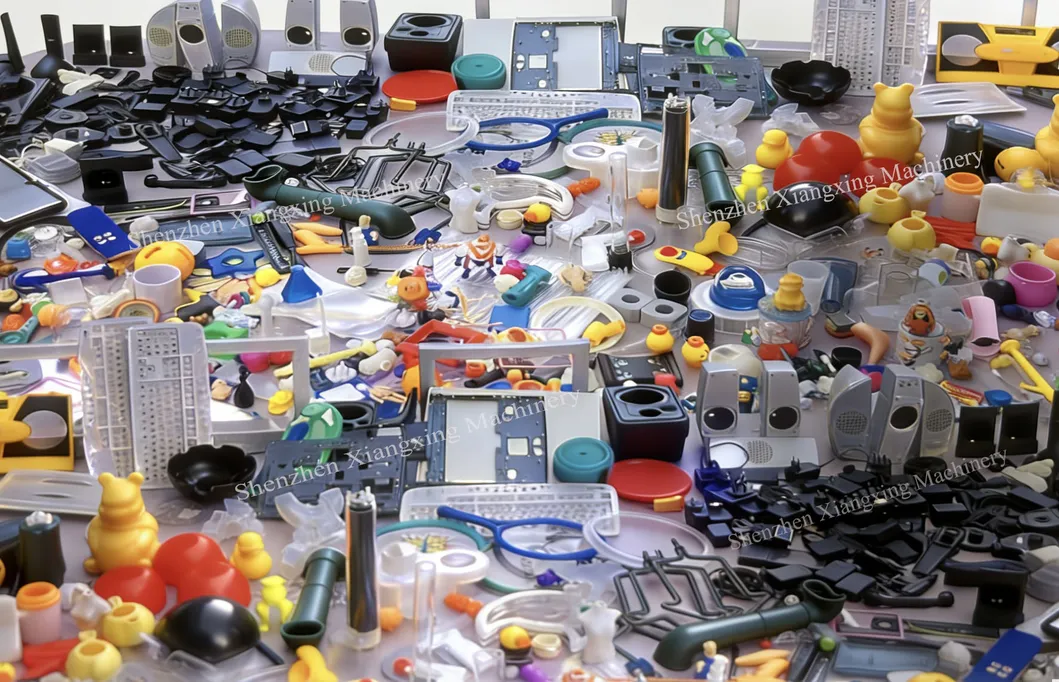

Applications & Samples

Expertly crafted for compatibility with materials such as ABS, PC, PE, PP, PS, PVC, Acrylic, Nylon, and more. Widely used in:

Automotive and Electronics industry
Medical and Household appliances
Packaging and Plastic toy manufacturing
Office supplies and Water treatment industries

Core Features

Automatic Frequency Modulation: Precisely tracks frequency changes for consistent welding.
Constant-Amplitude System: Compensates for air pressure and voltage fluctuations (50%-100% adjustment).
IGBT Technology: High-speed power amplification for rapid response.
Clean Process: Economical and pollution-free alternative to traditional bonding.
Durable Construction: Aluminum/titanium radial poles and Airtac pneumatic components.

Packaging & Shipping

Transport Package	Wooden Case Packing
Package Size	11508001850mm
Gross Weight	240KGS

Frequently Asked Questions

1. How will I learn to operate this machine?

Upon delivery, you will receive a comprehensive operation manual and instructional videos. We also offer remote guidance via video conferencing to ensure your team is fully trained.

2. What is the warranty policy?

We provide a one-year warranty. Manufacturing defects in initial parts are covered for replacement, excluding consumable parts like dies and freight charges.

3. Are custom models or specifications available?

Yes. We have an in-house CNC workshop to custom-design solutions. We can also adjust power supplies (e.g., 220V or 380V) based on your regional requirements.

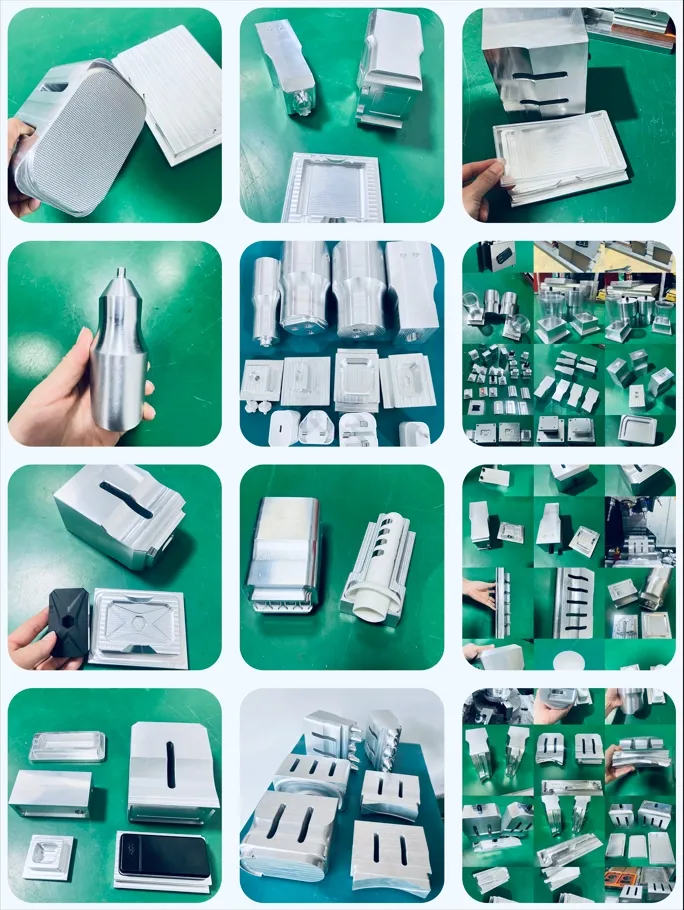

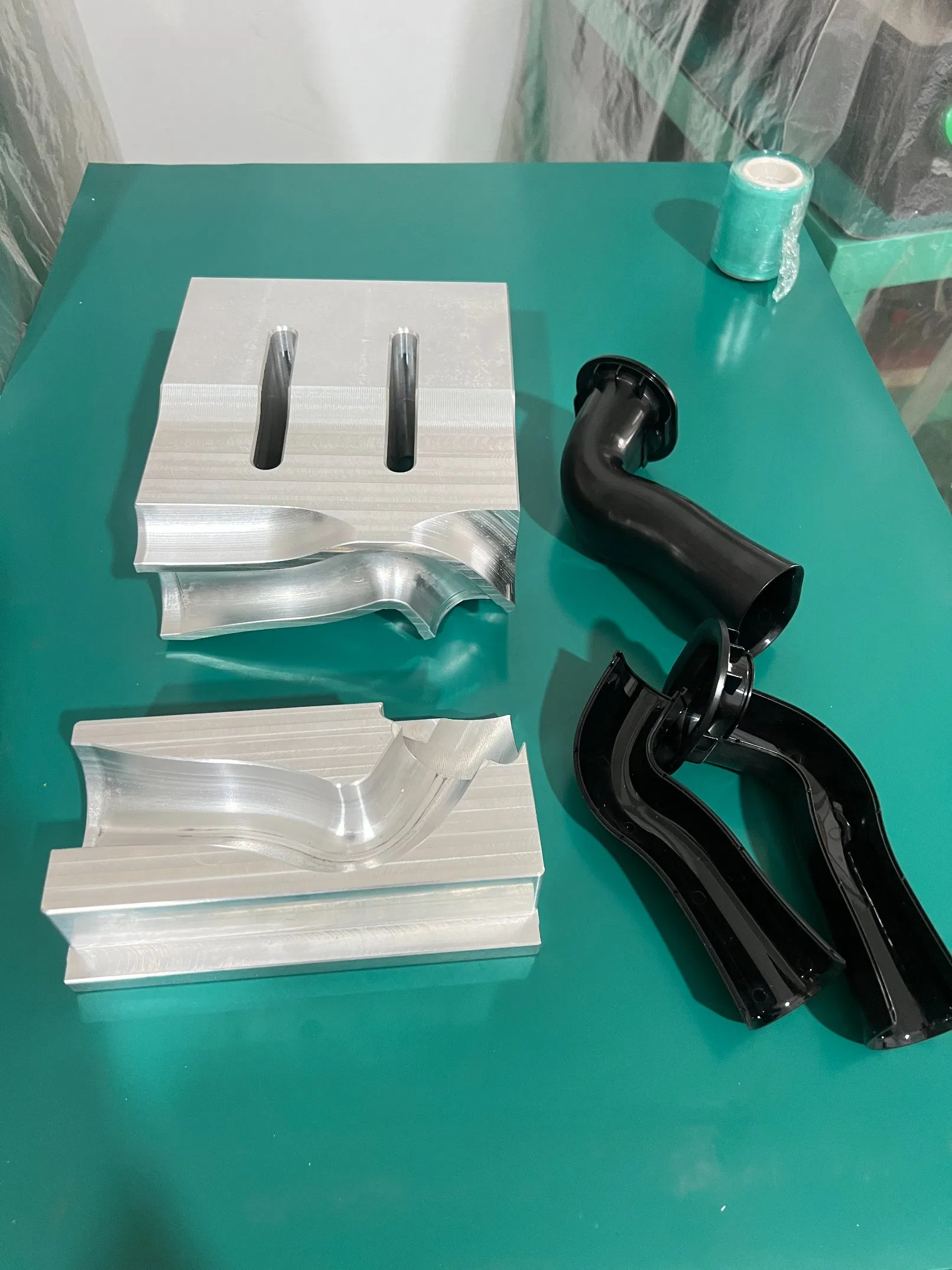

4. Is a custom mold required for my product?

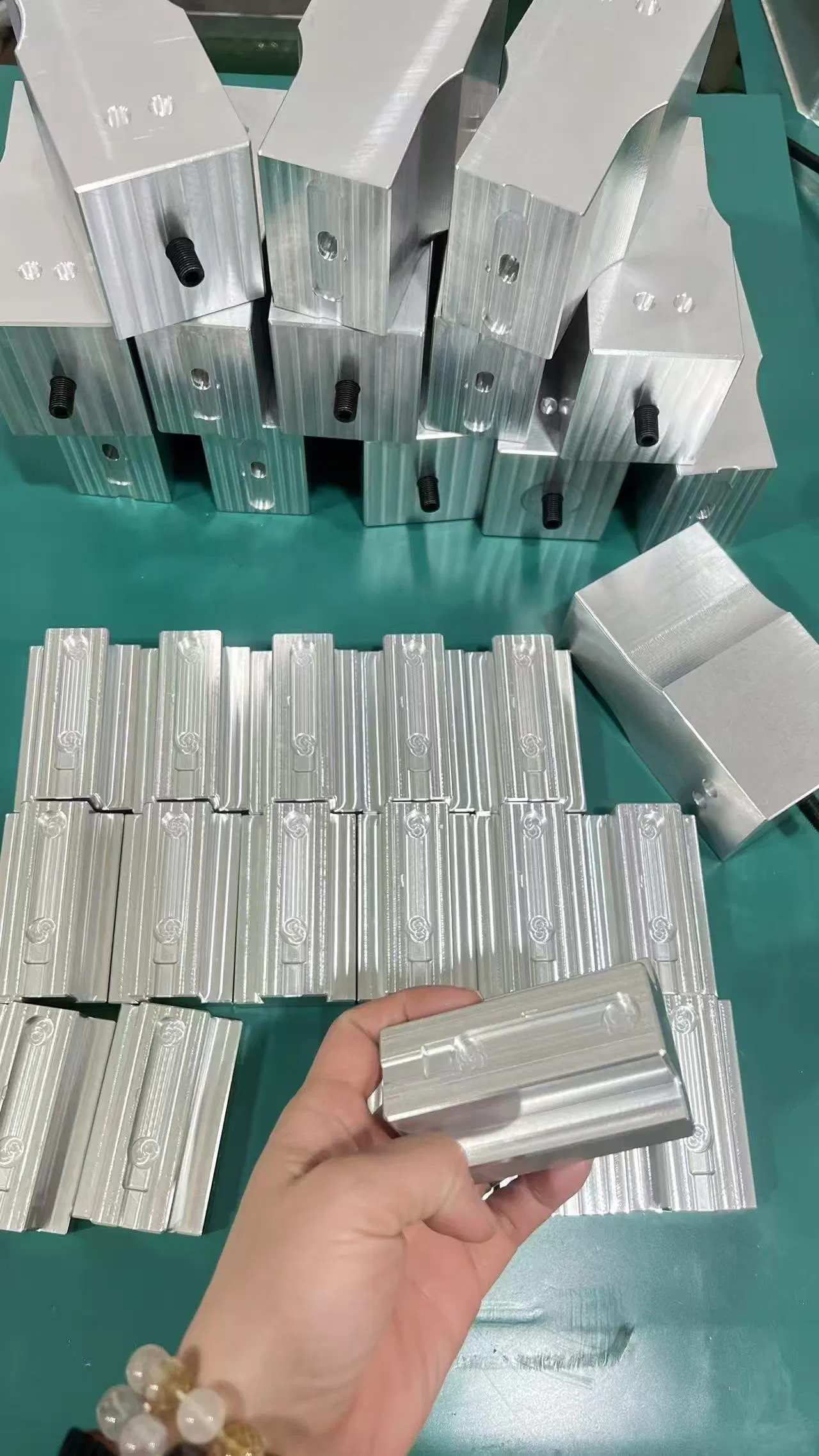

Depending on your product's design, a custom aluminum or copper mold may be necessary. We can create these with precision based on your 3D drawings or samples.

5. What is the standard lead time for orders?

During off-peak seasons, orders are typically ready in 7-10 days. During peak seasons, the timeframe is approximately 10-15 days to ensure strict quality control.

6. Can you assist with raw material sourcing?

We can assist in coordinating with reliable raw material suppliers and arrange for materials to be shipped alongside your machine for convenience.
