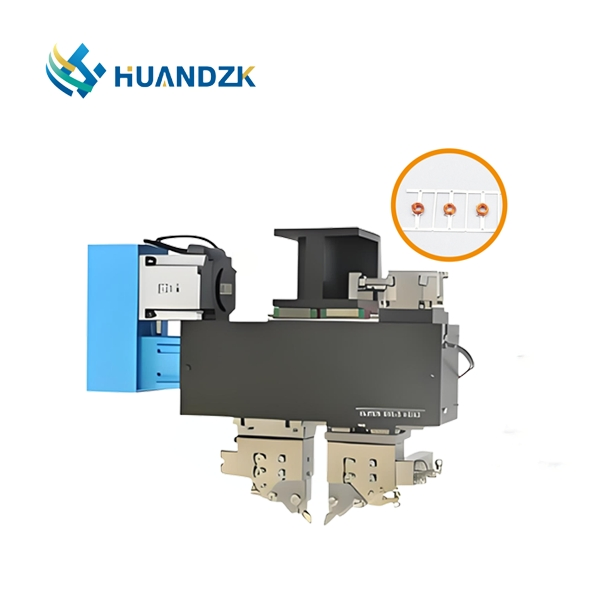

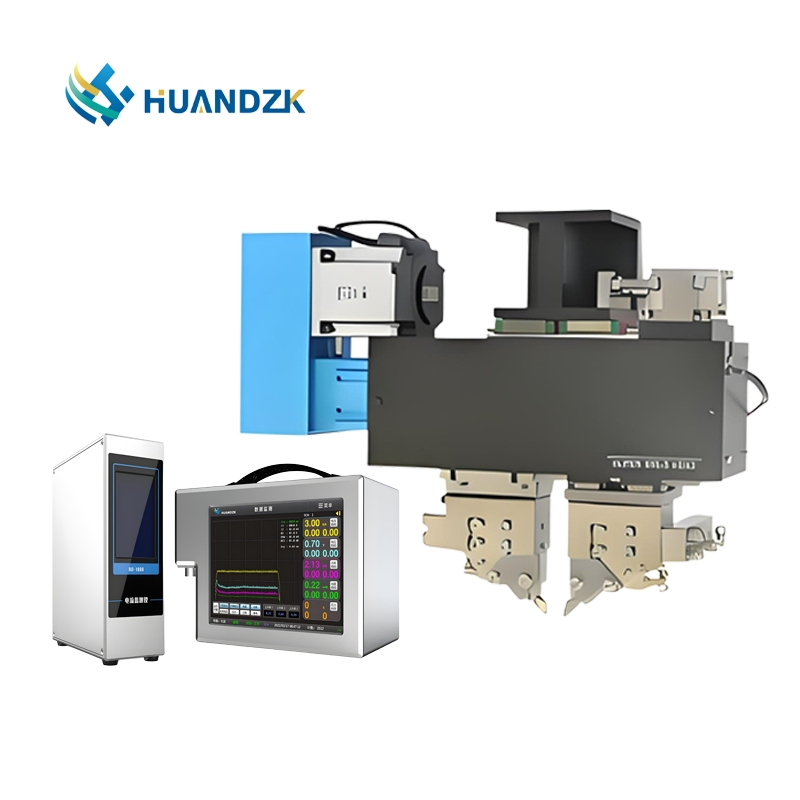

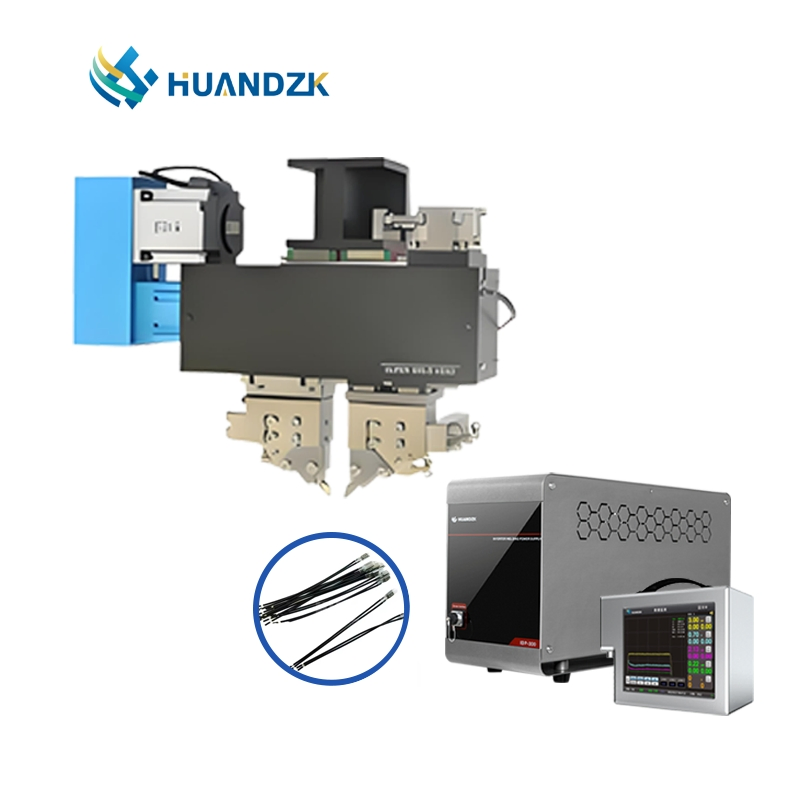

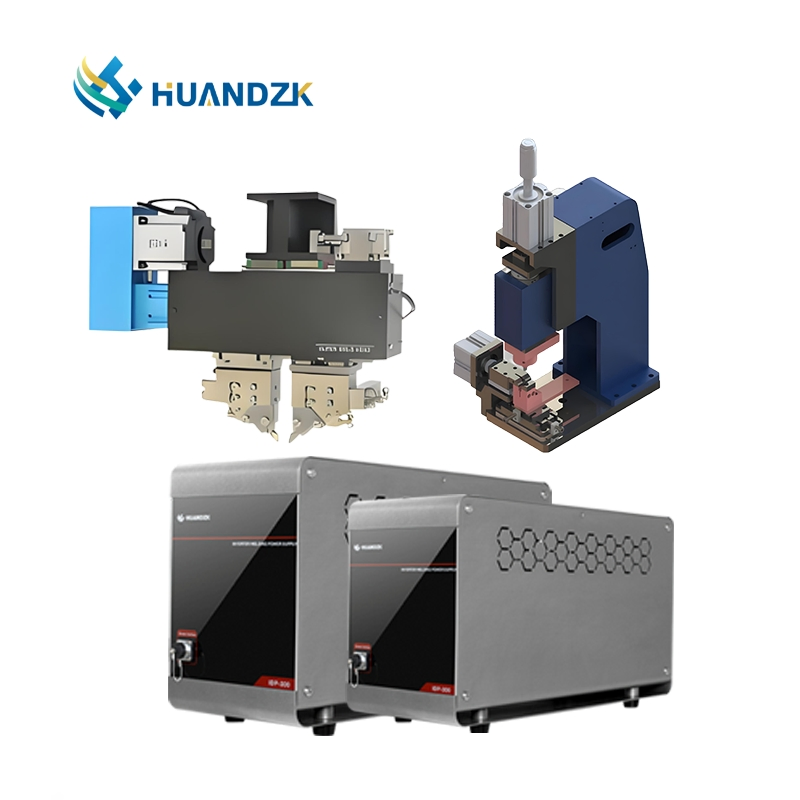

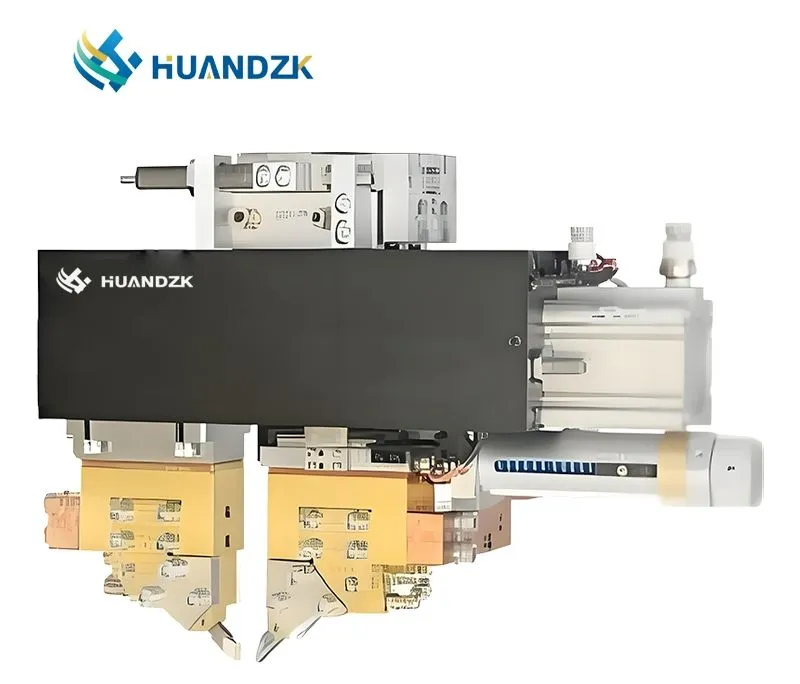

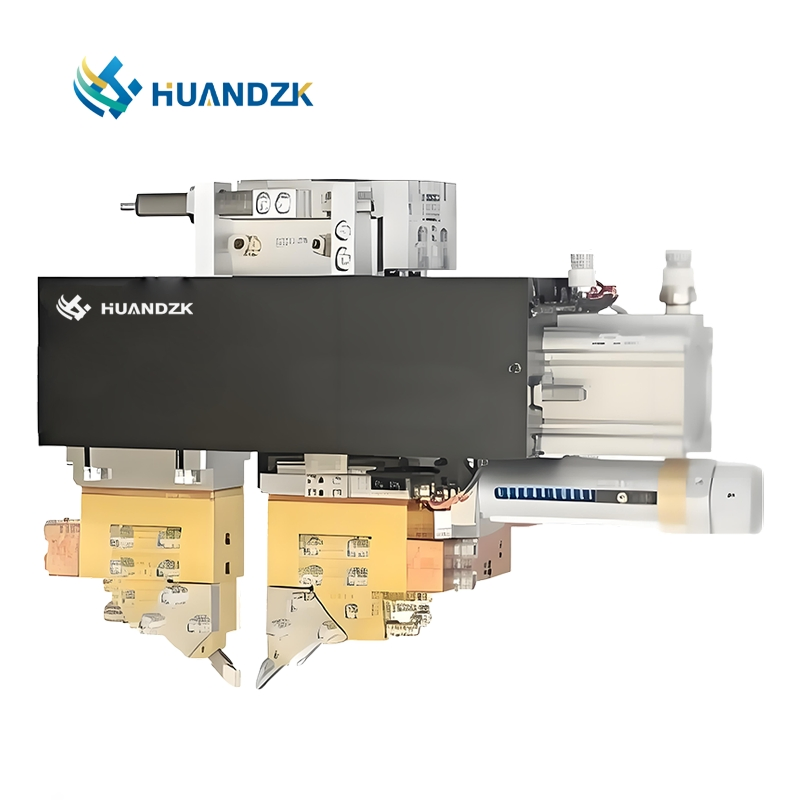

Servo Clamp Welding Mechnism Manual Automatic Soldering Spot Welder

1 / 5

Servo Clamp Welding Mechnism Manual Automatic Soldering Spot Welder

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HD-JHQ/HD-JHS

Style

Fixed / Portable

Electrode Stroke

Vertical

Electric Current

Transmission

Pneumatic / Pedal

Conductive Way

Both-Sided

Welding Spot Number

Double

Type

Universal

Frequency

1-5kHz

Max. Output Current

1000A

Welding Thickness

0.02-8.0mm

Power

10kw

Warranty

1 Year

⚙️ Product Parameters

Model	HD-JHQ (Pneumatic)	HD-JHS (Servo)
Drive Method	Pneumatic	Servo
Pressure Method	Pneumatic + Spring	Servo + Spring
Pressure Range	30-1200N (Varies by sub-model)	80-2200N (Varies by sub-model)
Electrode Travel	Customization	30MM / 40MM / 45MM
Electrode Size	Standard 6-12MM	Standard 8-12MM
Weight	≈7KG - 15KG	≈20KG

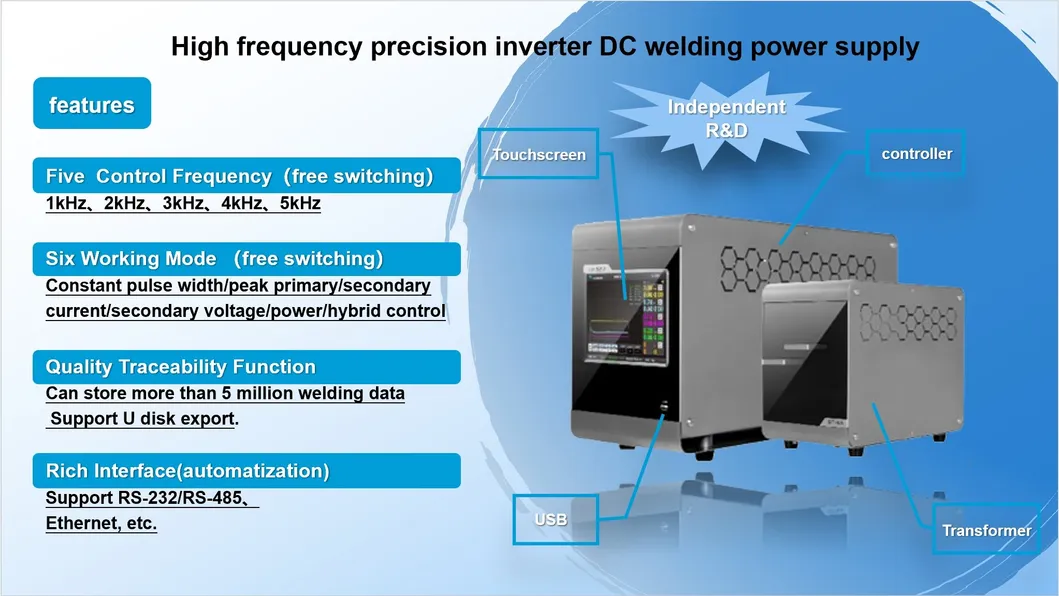

Transformer Specifications:

Model	IDT-40A
Supply Voltage	PWM 500V
Rated Power	15KVA
Unloaded Secondary Voltage	10V
Max. Utilization Rate	4000A(5%)
Cooling Method	Air-cooling
Input Frequency	1-5kHz
Dimensions	424205280mm
Weight	18.5KG

🏢 Company Profile

We are a high-tech enterprise integrating R&D, manufacturing and sales of resistance welding systems and resistance welding peripherals, such as resistance welding power supply, precision spot welder, welding monitor, etc. All of our resistance welding products are independent research and development, with all the independent intellectual property rights.

Our creative team has more than ten years of experience in resistance welding industry, and now we have formed a strong R&D team with professors and doctors as the core. We insist on investing a large amount of R&D funds every year to maintain the competitiveness of our products and to ensure the leading technical R&D strength.

📦 Packaging & Shipping

Package Size

58.00cm * 24.00cm * 46.00cm

Gross Weight

45.000kg

Transport Package

Wooden Box

❓ Frequently Asked Questions

What are your main products?

We are mainly engaged in resistance welding equipment and integrated molding equipment for sheet metal processing.

Why should I choose your equipment over other suppliers?

With our efficient communication ability, ultra-professional service and skills, we provide high-performance products at competitive prices backed by 10+ years of R&D expertise.

What is the estimated delivery time for an order?

The overall lead time for standard products is about 15-30 days, while customized products are negotiated according to specific project conditions.

What kind of after-sales support and warranty do you offer?

Our standard warranty is one year after shipment. We provide online support and video technical assistance to ensure smooth operation.

Do you support OEM production?

Yes, we warmly welcome customers for OEM production in our factory to meet specific branding requirements.

What are the available payment options?

We usually recommend a 30% wire transfer deposit. After the machine is built, we provide photos and videos for verification, and the balance is paid before shipment.
