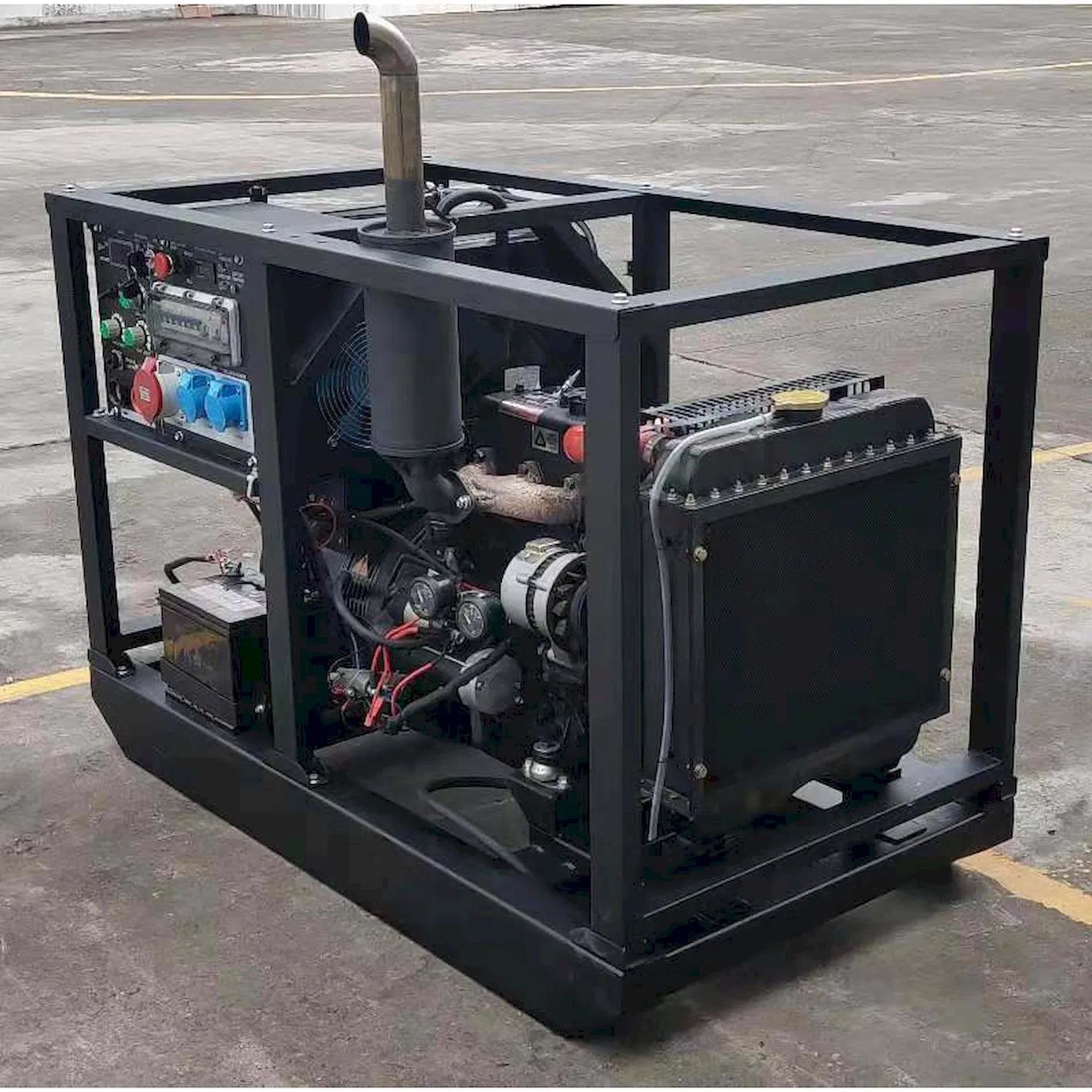

Welding Workstation Diesel Engine Driven Welder /AC Generator WD300

1 / 4

Welding Workstation Diesel Engine Driven Welder /AC Generator WD300

Customization:	Available
Cooling Way:	Air Cooling
Style:	Vertical

Send Inquiry

Product Description

Basic Information

Model NO.

WD300

Frequency Range

High Frequency

Electric Current

Work Form

Moving-Coil

Type

TIG Welder

Trademark

NESTO

Specification

1360*750*950mm

Origin

China

Product Description

DIESEL PIPELINE WORKSTATION WD300

✔Industrial 3-cylinder 1800rpm water-cooled diesel engine driven welder, high reliability for continuous running.
✔Compact size: 1360*750*930mm, Weight: 395kg. High transport capacity (24pcs/20'', 50pcs/40'').
✔2-in-1 functionality: Welder and generator in one machine. Supports independent dual operator work (optional).
✔Full multiprocess capability: Stick (MMA), cellulose (down pipeline), and TIG performance.
✔Current range: 30-350A with digital meter display and wireless remote control capability.
✔VRD Protection: Reduces open-circuit voltage to 15V when power source is not in use.
✔Powerful AC output: Max 3-phase 12KW and single-phase 4.0KW available even during welding.
✔Advanced IGBT module converter technology for high dynamic response.

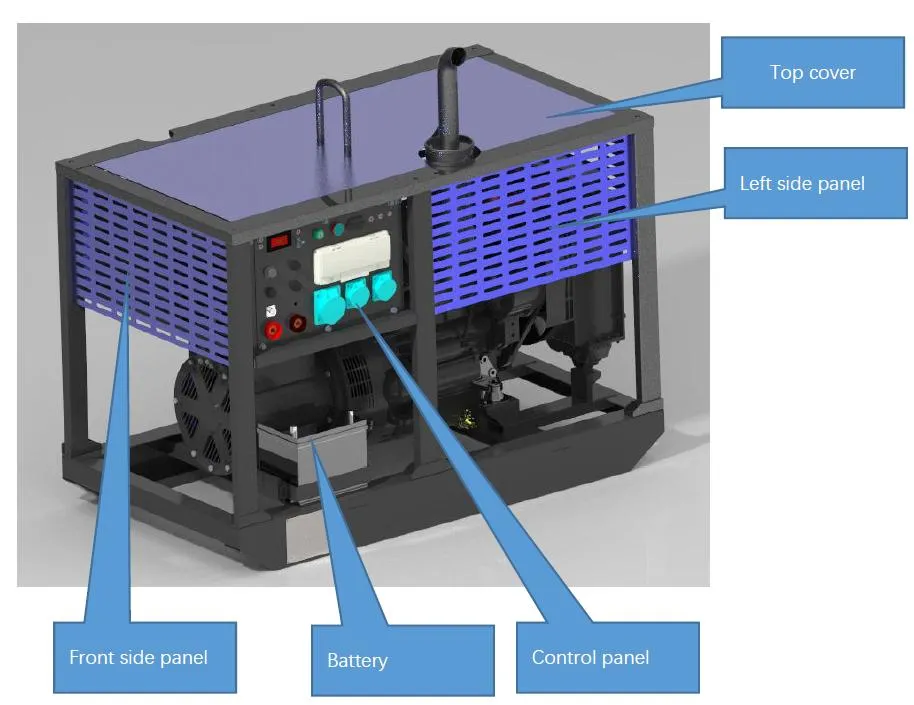

✔Open-side design for easy maintenance and optimized heat dissipation.

Technical Specifications

Feature		Specifications (MMA/TIG/Cellulose)
Welder Source	Current Range	30 - 350A
	OCV (VRD OFF/ON)	76V / 18V
	Duty Cycle	60% @ 300A-350A / 100% @ 250A-300A
	Electrode Diameter	Φ1.6 - 6.0mm
AC Power	Rated Power	12.8kW (Max 14kW)
	Phase/Voltage	3-Phase (400V) / 1-Phase (230V)
	Sockets	1x IP44 3P+N+E (400V), 2x IP44 1P+N+E (230V)
Diesel Engine	Model Options	Laidong KM385BD	Yanmar 3TNV88
	Rated Power	12.8kW	14.7kW
	Speed / Cooling	1800 r/min / Water-cooled
	Fuel Consumption	3.78 L/hr	3.62 L/hr
General	Dimensions	1360(L) × 750(W) × 950(H) mm
General	Weight	370kg - 420kg (Depending on configuration)

Product Details

Quality Assurance and Service

★Rigorous production and inspection processes to ensure zero detail mistakes.
★Incoming inspection and flaw detection are mandatory for all units.
★24-hour response time for any technical inquiries or solutions.
★Professional customization services tailored to specific client needs.
★Strict production scheduling ensuring on-time delivery.

Welcome to your inquiry!

Frequently Asked Questions

Can the WD300 provide AC power while welding?

Yes, single and three-phase AC power is available anytime the engine is running, even during welding operations.

What is the maximum welding current of this workstation?

The WD300 offers a maximum current of 350A, with a fine and stepless adjustment range from 30-350A.

Is the WD300 suitable for pipeline welding?

Absolutely. It features full multiprocess capability, providing excellent performance for cellulose down-pipeline welding and MMA stick welding.

What safety features are included for operator protection?

It includes a VRD (Voltage Reduction Device) that reduces the open-circuit voltage to 15V when not in use, and an IP21S protection rating.

What engine models are used in the WD300?

The workstation can be configured with either a Laidong KM385BD or a Yanmar 3TNV88 industrial water-cooled diesel engine.

How portable is the unit for field work?

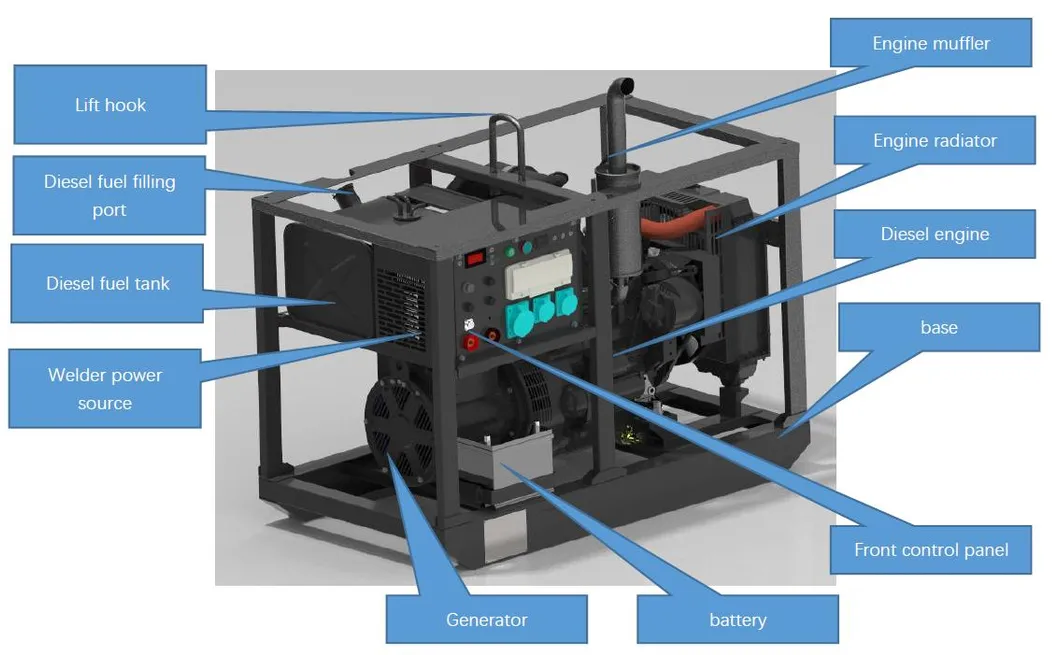

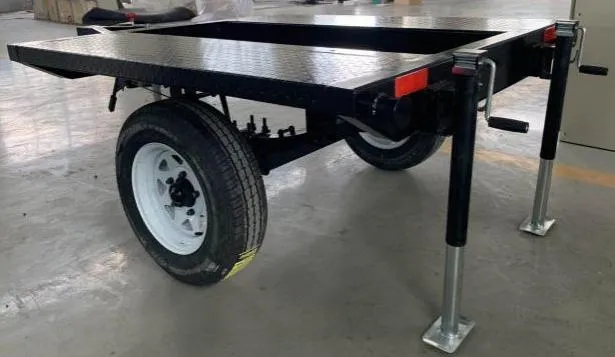

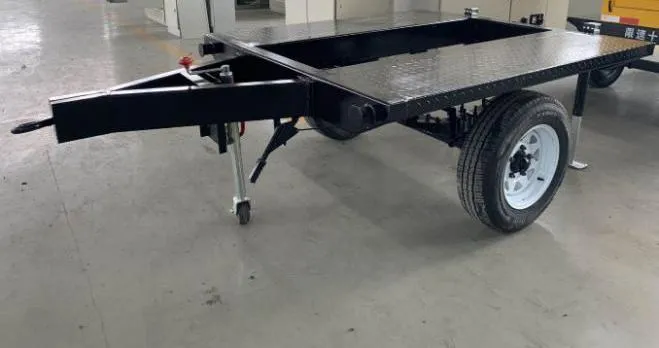

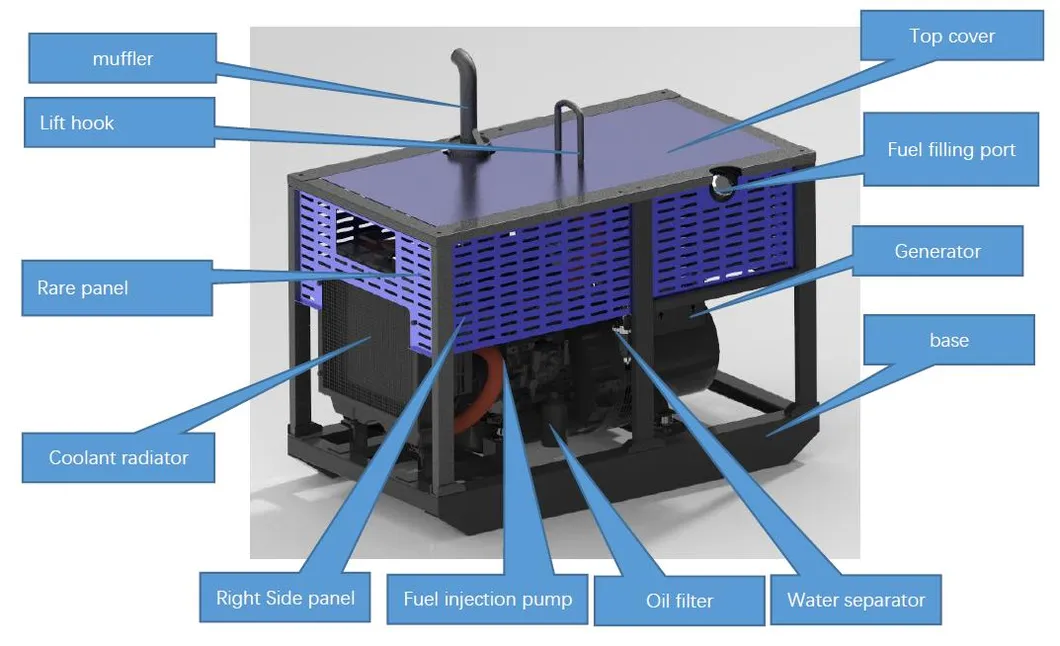

The unit is compact (1360mm length) and features a single-point lift hook on top and truck slips at the bottom for easy transport. Optional two-wheel or four-wheel trailers are also available.
