15kw High Frequency Induction Welding Process Brazing Machine

Customization:	Available
Type:	Induction Heating Machine
Feature:	High Efficiency

Basic Specifications

Model NO.

GY-15A

Condition

New

Cooling

Water

Application

Heating, Forging, Melting, Hardening

Work Condition

24 Hours Continuous

Duty Cycle

100%

Principle

Electromagnetic Induction

Work Power

220V Single Phrase

Certification

CE, ISO, RoHS, FCC, SGS

Structure

Vertical Type

Warranty

12 Months

HS Code

85144000

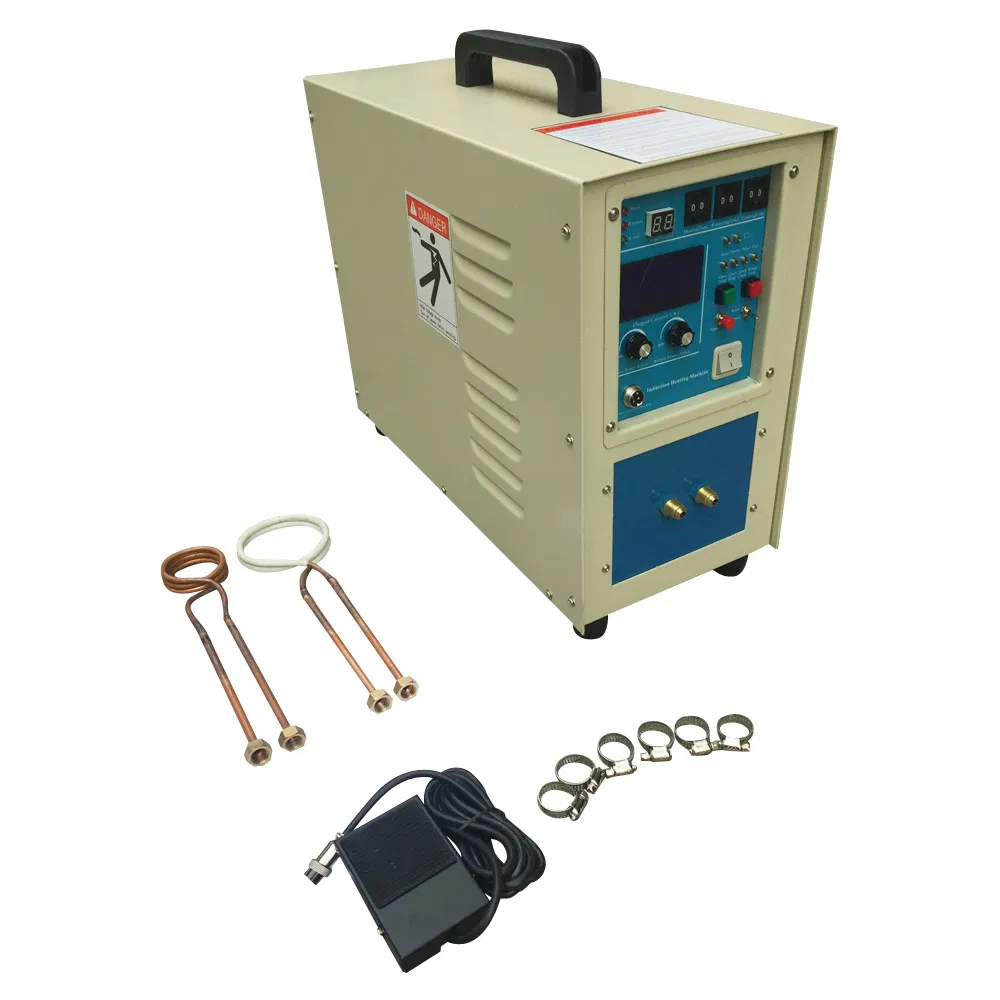

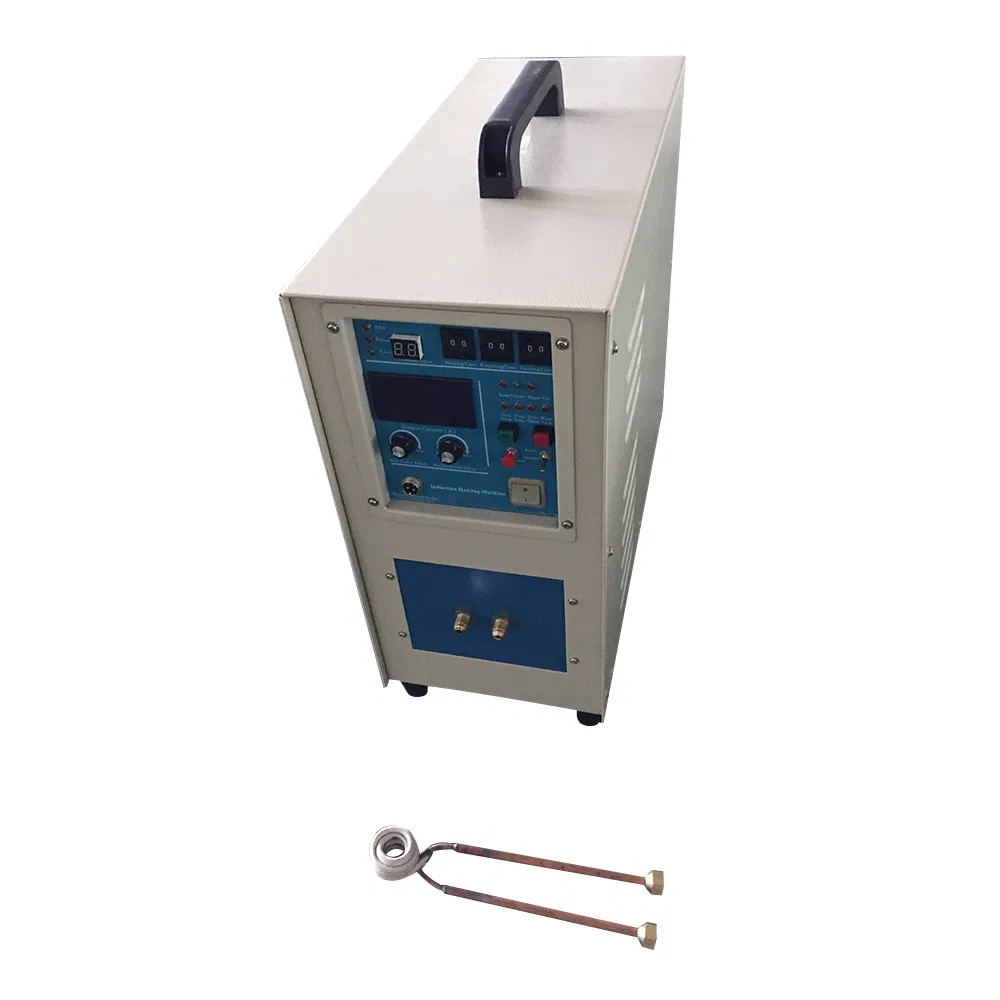

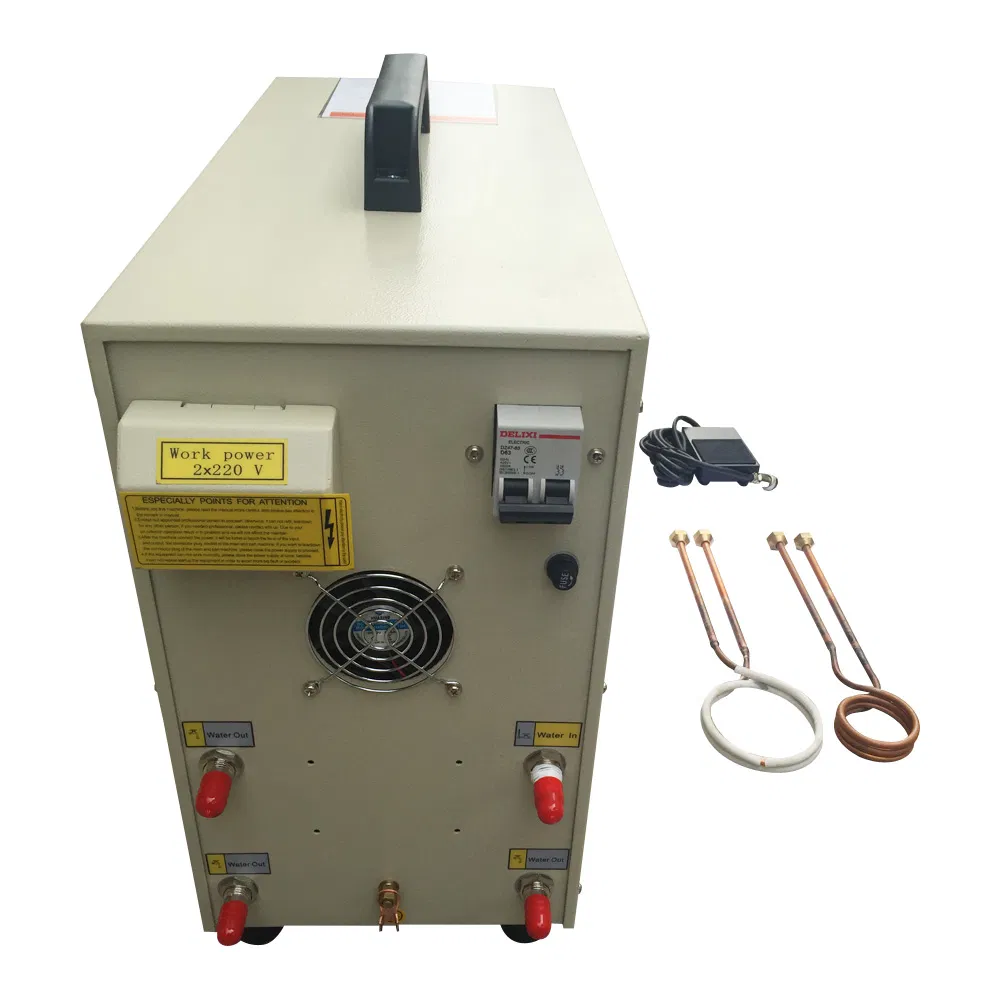

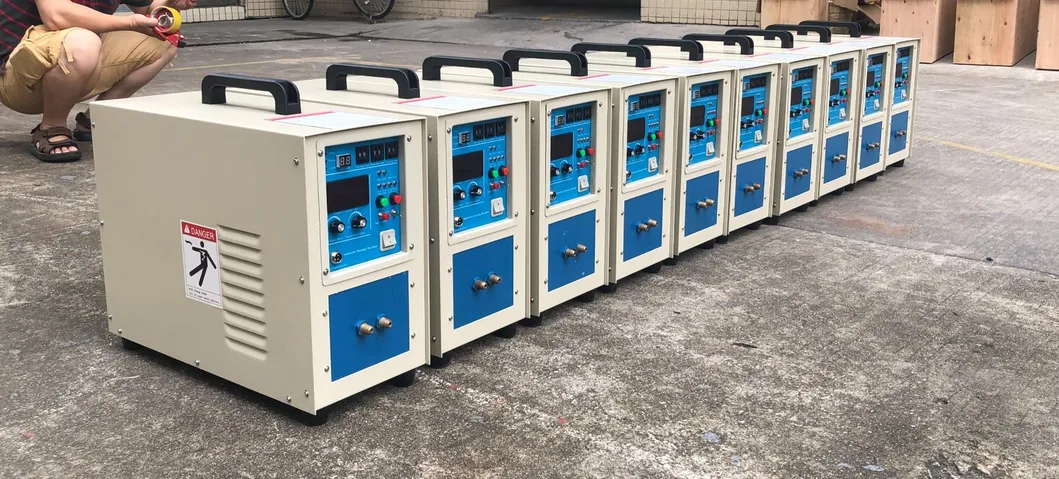

15KW High Frequency Induction Brazing Machine

Induction Heater Advantages

Nearly 20 years experience, stable and goods performance
CE, SGC, FCC, ROSH certificated
Cooperated with global automotive leaders
Suitable for heating, quenching, forging, melting, and soldering
Low environmental pollution
High efficiency, high output & high reliability
Small size & light weight

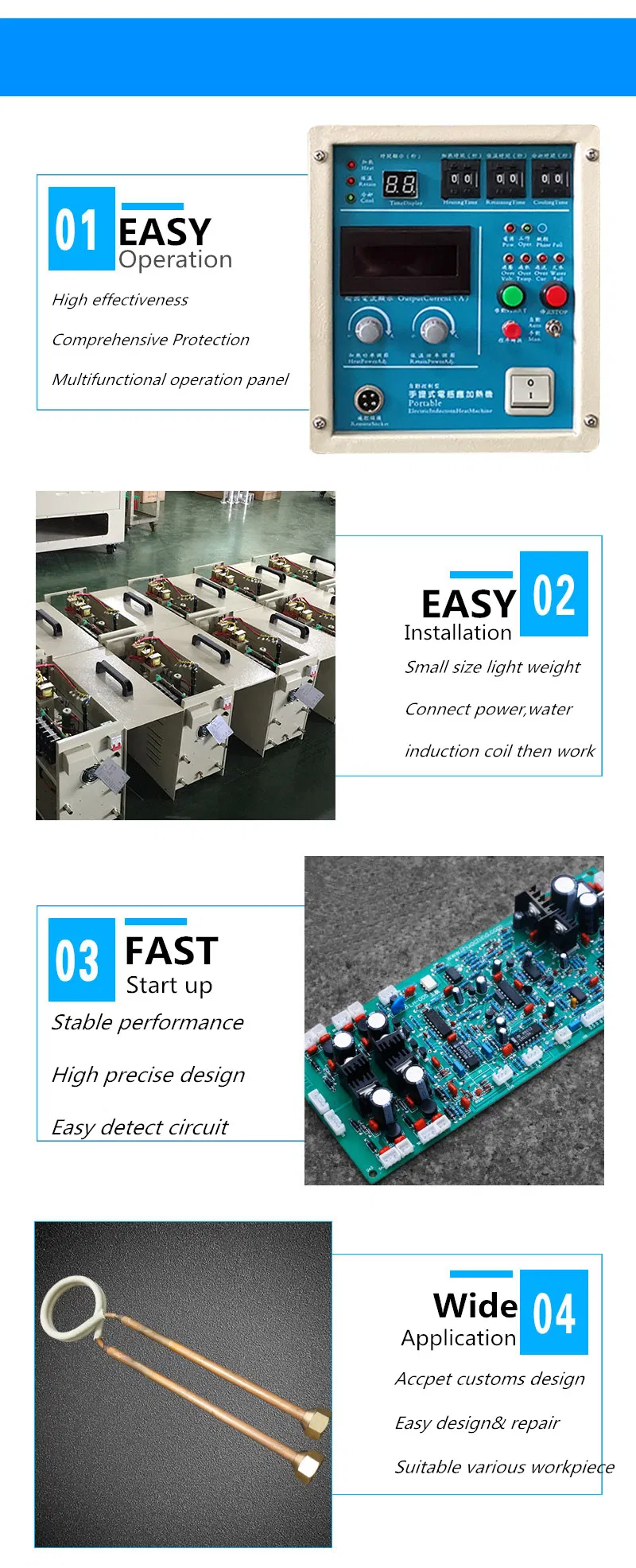

Major Features

Advanced Technology: Adopts MOS, IGBT frequency conversion control for maximum efficiency.
Optimized Process: Constant current and power control functions realize fast heating.
Three-Stage Timing: Independent regulation for heating, heat preservation, and cooling stages.
Safety Protection: Ten types of fault displays including over-current, over-voltage, and water shortage.
Continuous Operation: Comprehensive full load design for 24-hour non-stop work.
Automatic Control: Available for ultraviolet temperature detection to simplify manual operation.

Technical Parameters (GY-15A)

Parameter	Specification
Model	GY-15A (Single phase)
Work Power	180V-250V
Input Current	35A
Fluctuating Output Power	15KW
Fluctuating Frequency	30-100KHZ
Output Current	200-600A
Cooling Water Flow Rate	0.06-0.12Mpa 7.5L/Min
Water Temp Protection	40°C
Product Size	570x230x450mm
Net Weight	27.5kgs

HF Induction Heater Series Comparison

Model	GY-05A	GY-15A	GY-25A	GY-40AB	GY-60AB
Output Power	5KW	15KW	25KW	40KW	60KW
Input Current	32A	32A	24A	41A	52A
Work Frequency	30~100KHZ
Timing Setting	1~99S
Water Temp Protection	40°C

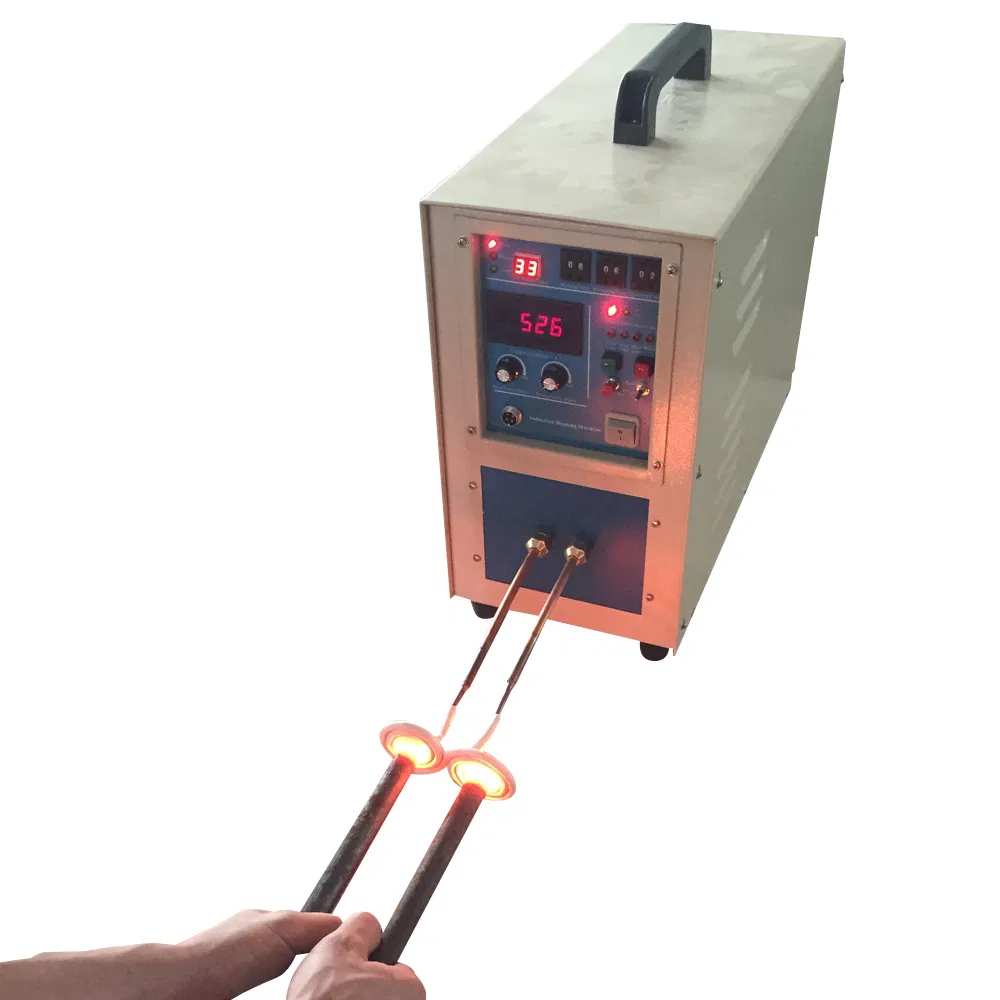

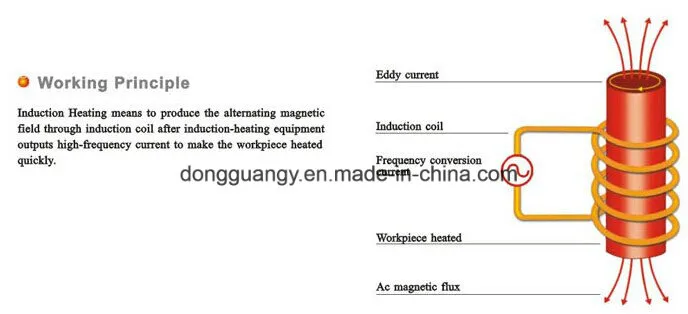

Work Principle & Product Display

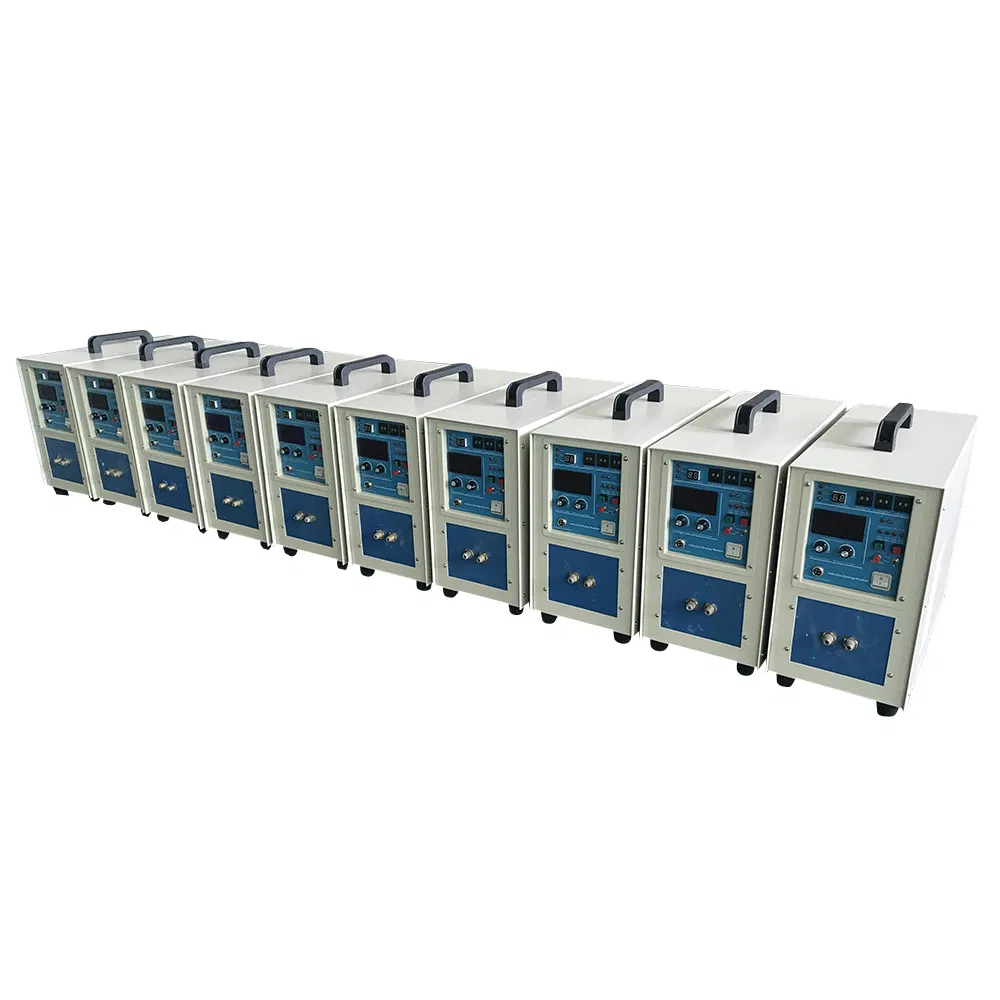

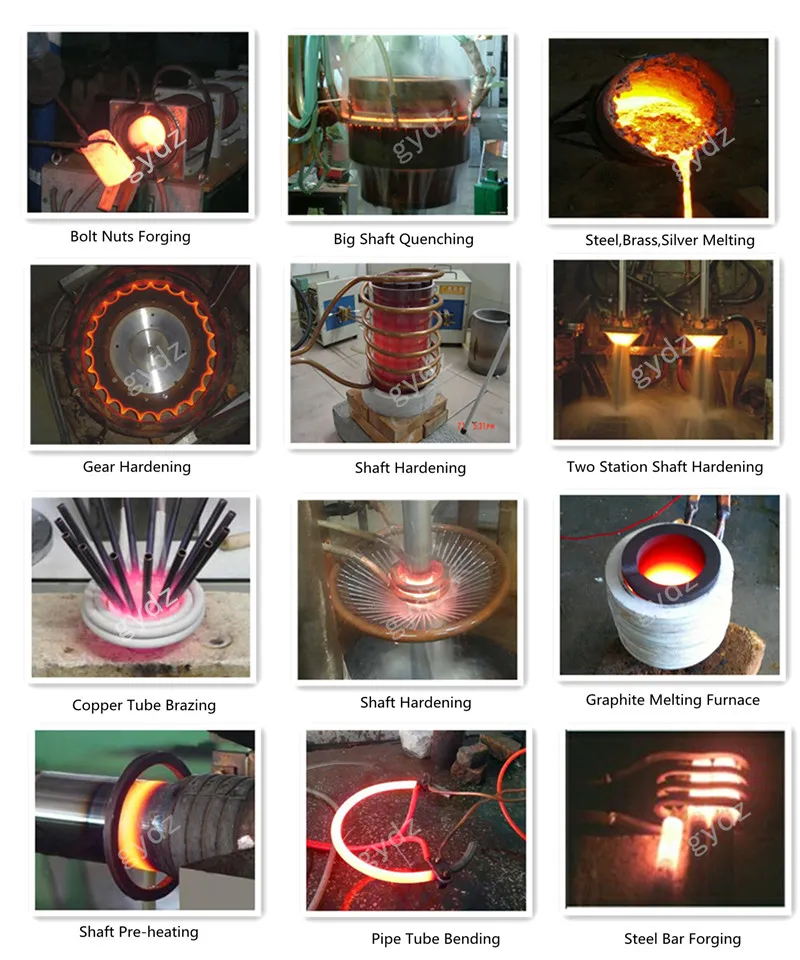

Factory Overview & Applications

Frequently Asked Questions

How do I choose the most suitable induction heating machine?

Selection depends on your specific application (forging, hardening, welding, or melting), the material and size of your workpiece, temperature requirements, and the desired heating time. We can provide a professional recommendation based on these details.

What are the primary applications for this equipment?

The machine is versatile and can be used for hot forging, hot fitting, melting, surface quenching (heat treatment), braze welding, silver soldering, and annealing (tempering and modulation).

What is the standard warranty and technical support?

We provide a one-year warranty for all components (excluding intentional damage). Additionally, we offer lifelong technical support. During the warranty period, spare parts for non-human errors are replaced free of charge.

Can the machine operate continuously?

Yes, the equipment features a comprehensive full-load design that supports 24-hour continuous operation, making it ideal for industrial production lines.

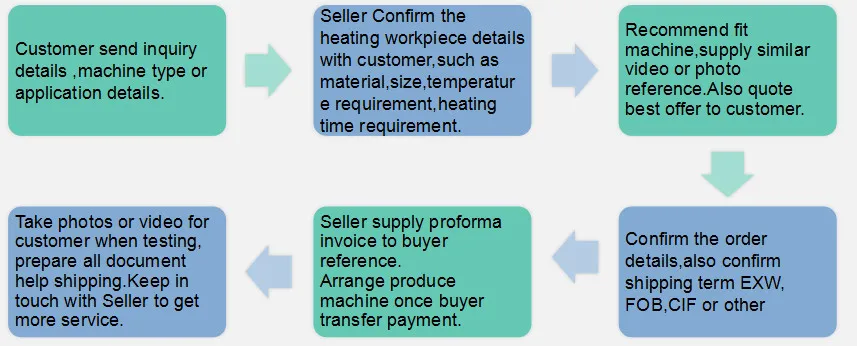

What are the typical delivery times and shipping terms?

Small machines are typically delivered within 3-7 working days, while larger units may take 15-25 working days. We support various shipping terms including EXW, FOB, and CIF via sea, air, or express.

What safety protections are built into the system?

The machine includes advanced fault protection and displays for over-current, over-voltage, water shortage, and phase missing, ensuring high reliability and operator safety.
