Metal Forging Quenching Brazing Annealing High Frequency Induction Heating Machine

Customization: Available
After-sales Service: Online Service Support
Warranty: One Year

Product Description

Basic Information
Model NO.
JRH-40KW
Type
Induction Heating Machine
Certification
CE
Structure
Vertical Type
Power Supply
3 Phase 380V, 50/60Hz
Heating Temp
1800 Degree
Cooling Method
Water Cooling
HS Code
8514400090
Product Description

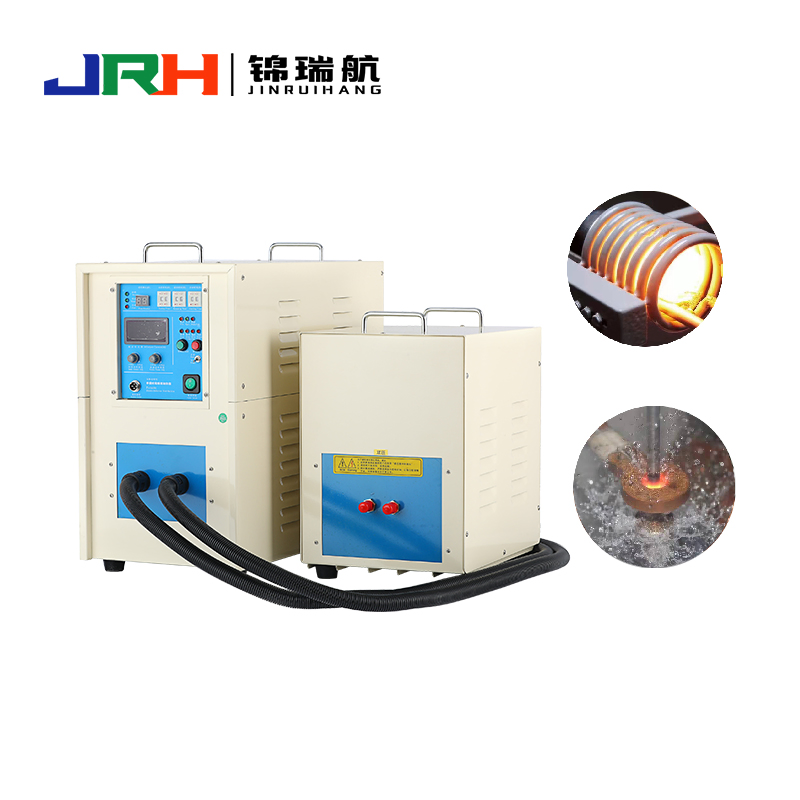

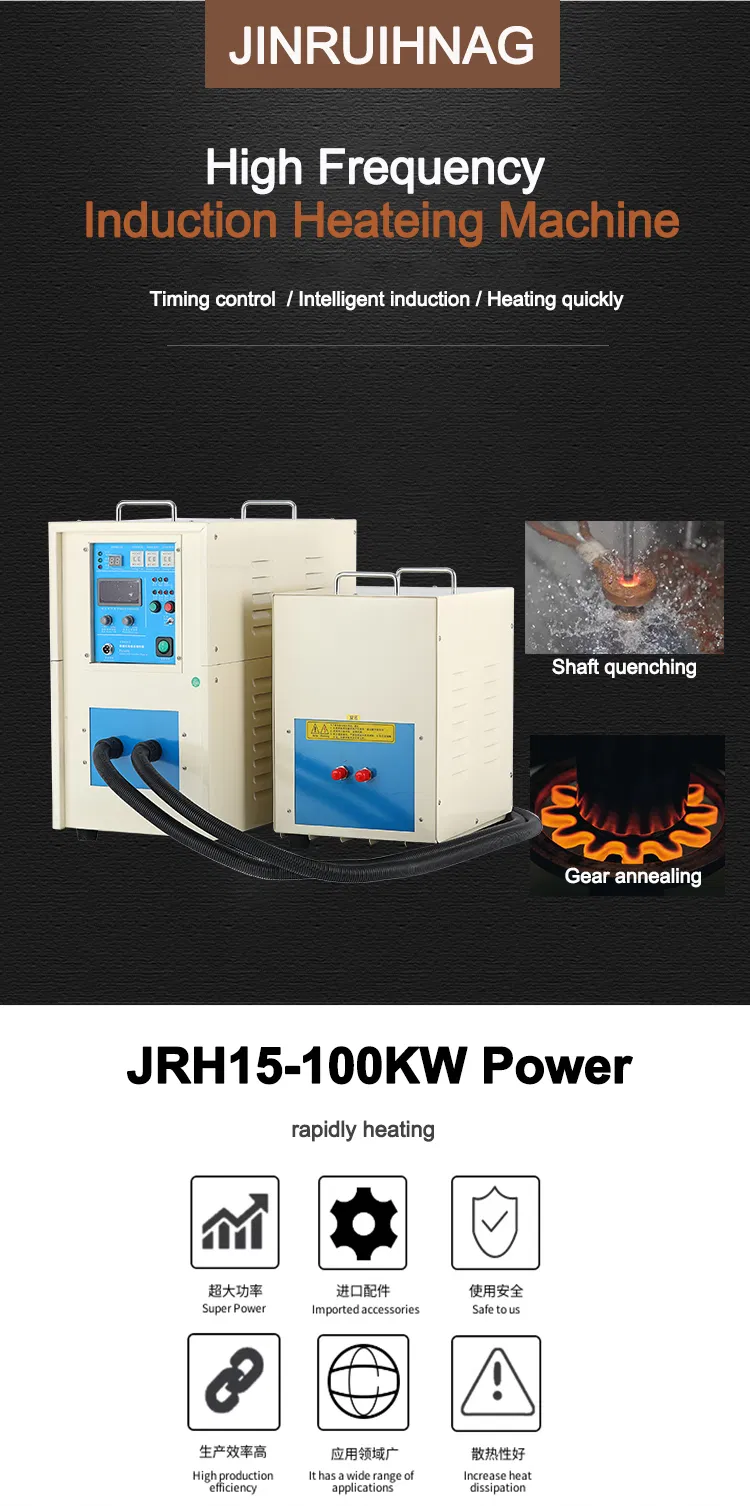

High Frequency Metal Induction Heating Machine Heater

High-frequency heater uses the principle of electromagnetic induction to quickly heat metal materials to high temperature. Its core components include high-frequency power supply, induction coil and cooling system, which generate eddy current in the workpiece through alternating magnetic field to realize efficient and accurate local heating.

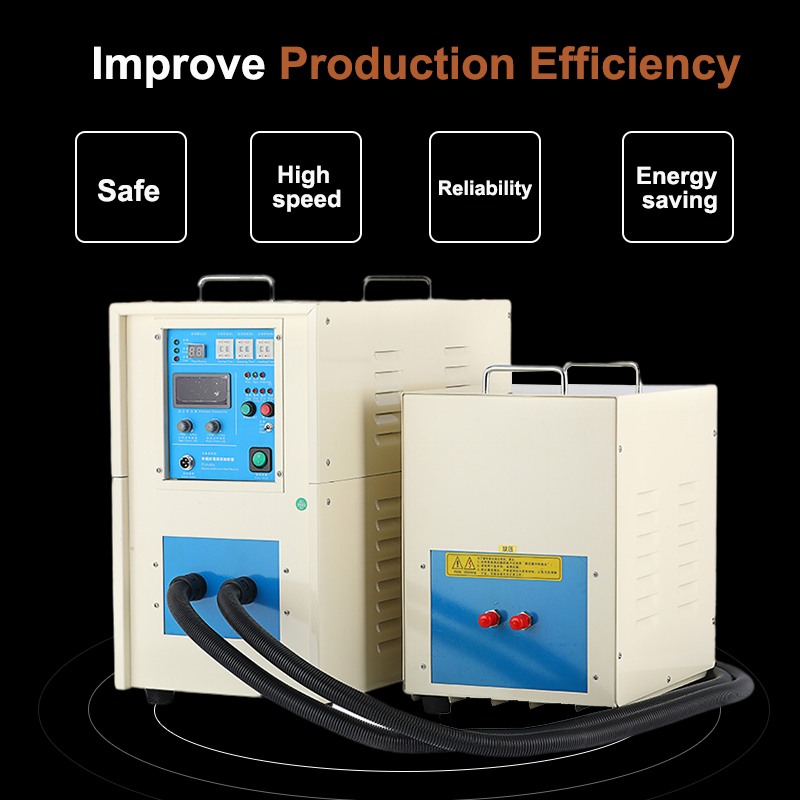

High Frequency Induction Heating Machine
  • Adopting IGBT power device and unique technology of variable current control.
  • Cycle duty: 100%, 24 hours continuous working under maximum power.
  • Function of constant voltage and power control.
  • Digital display of output power, frequency and current.
  • Easy to operate and install, only requires power and water connection.
Specifications & Parameters
Specifications

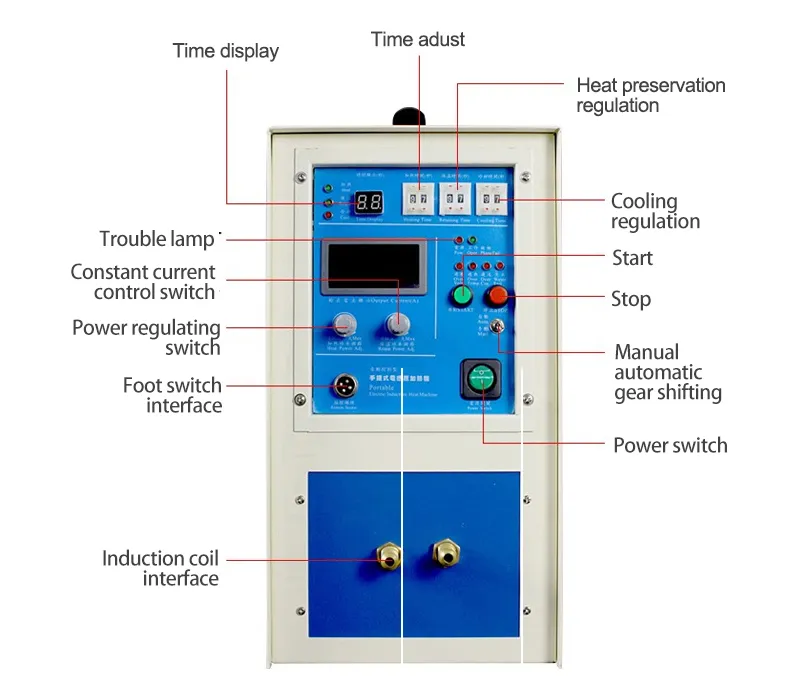

Front View

Front View

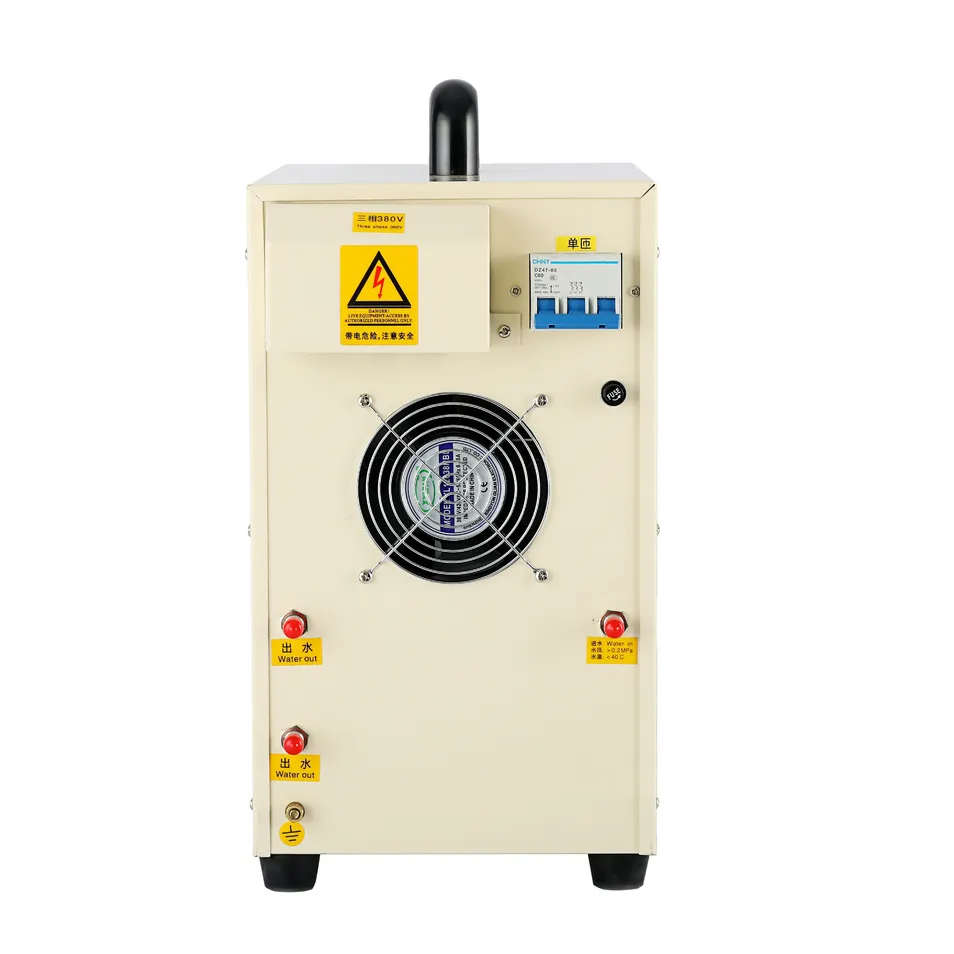

Back View

Back View

Model Voltage Power Frequency Current Size & Weight
JRH-15A1ph 110-250V15KW30-80KHZ200-800A460x215x470mm 23kg
JRH-25A3ph 340-430V25KW30-80KHZ200-1200A490x245x490mm 31kg
JRH-35AB3ph 340-430V35KW30-80KHZ400-1600AMain: 490x245x490mm 28kg
JRH-40AB3ph 340-430V40KW30-80KHZ400-1800AMain: 560x285x530mm 37kg
JRH-60AB3ph 340-430V60KW30-80KHZ400-2400AMain: 850x500x680mm 54kg
JRH-80AB3ph 340-430V80KW30-80KHZ400-3200AMain: 950x620x610mm 80kg
Applications

Metal induction heating machine is suitable for heating, hot forging, hot fitting and melting metal at high temperatures.

  • Heat treatment quenching: Surface quenching of hardware tools, gears, auto parts and dies.
  • Welding: High-temperature brazing, silver welding of various metals.
  • Annealing: Annealing of stainless steel and other metal materials.
  • Others: Melting, hot fitting, thermoforming and heat penetration.

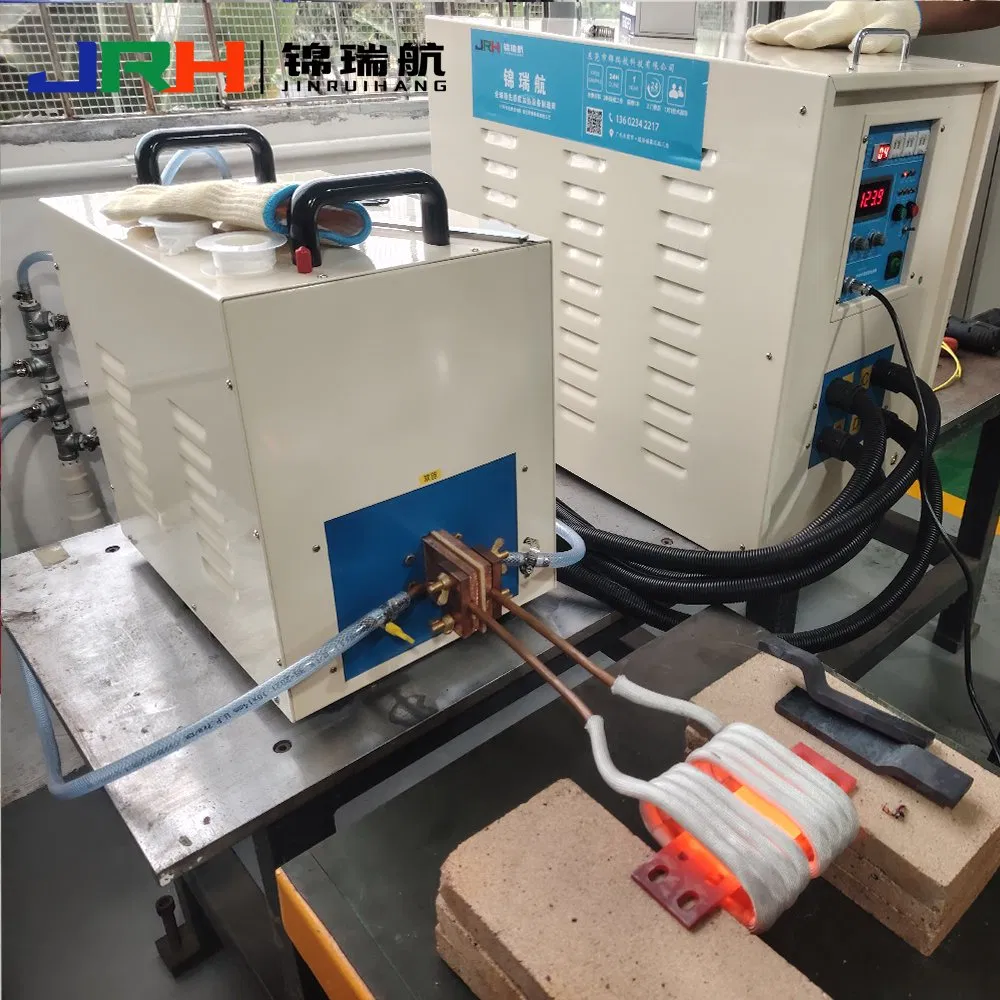

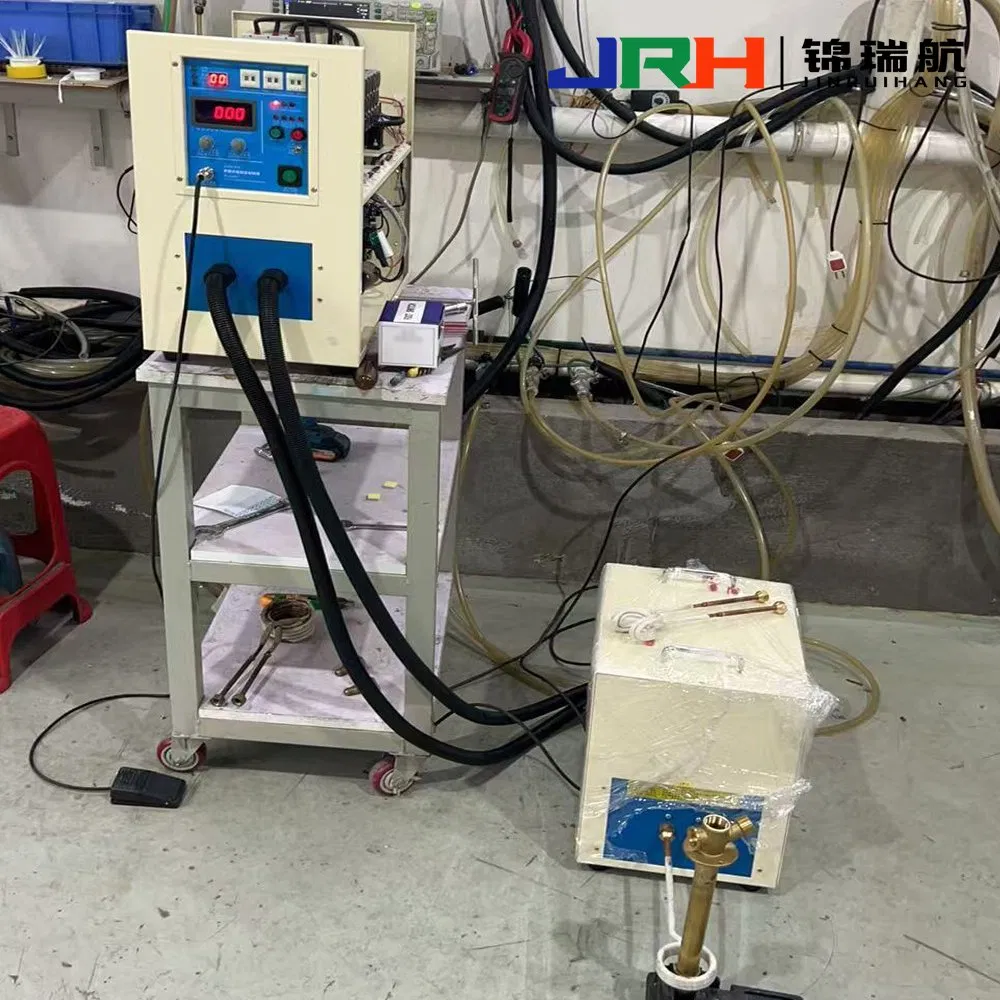

Application Examples
Production & Quality

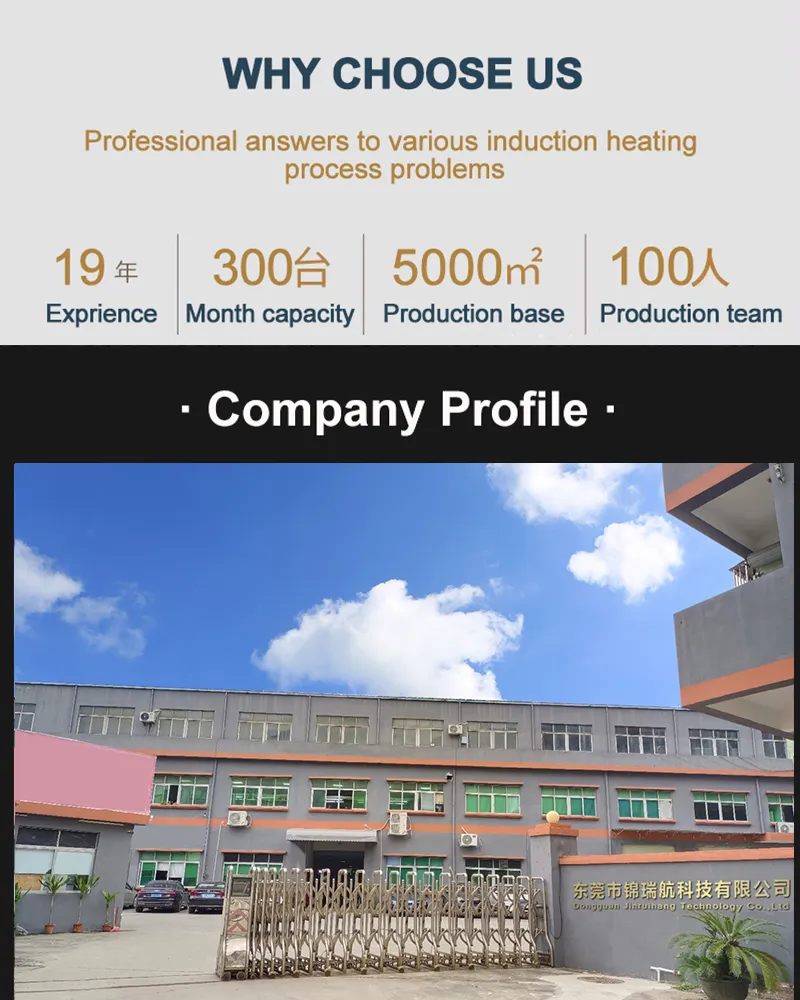

Production
Quality Control
Certifications & Categories
CE Certification
Machine Categories
Frequently Asked Questions
What materials can this induction heater process?
It is designed for various metals including steel, copper, aluminum, and other metallic materials for heating, welding, and annealing.
Does the machine support continuous operation?
Yes, the machine features a 100% duty cycle, allowing for 24 hours of continuous operation under maximum power.
What are the cooling requirements for the equipment?
The system utilizes a water cooling method to ensure stable performance and protect internal components during high-temperature operations.
Is the heating temperature adjustable?
Yes, the machine provides accurate temperature control and can reach heating temperatures up to 1800 degrees Celsius.
Can the induction coils be customized?
Yes, we can design different types of induction coils according to your specific product size and heating requirements.
How difficult is the installation process?
The installation is very straightforward; it only requires connecting the power supply and the water cooling system to begin operation.
