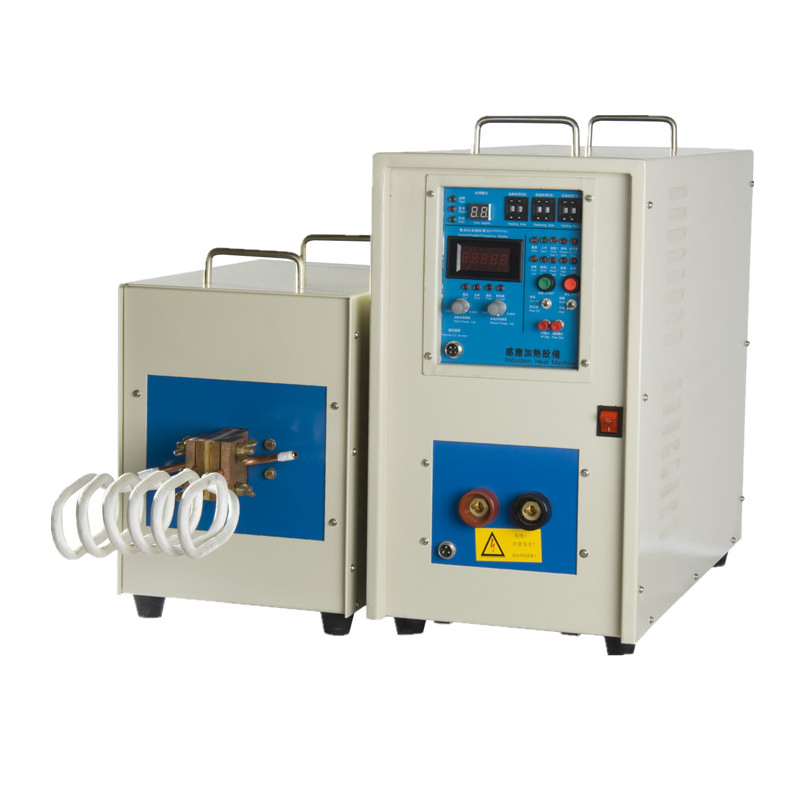

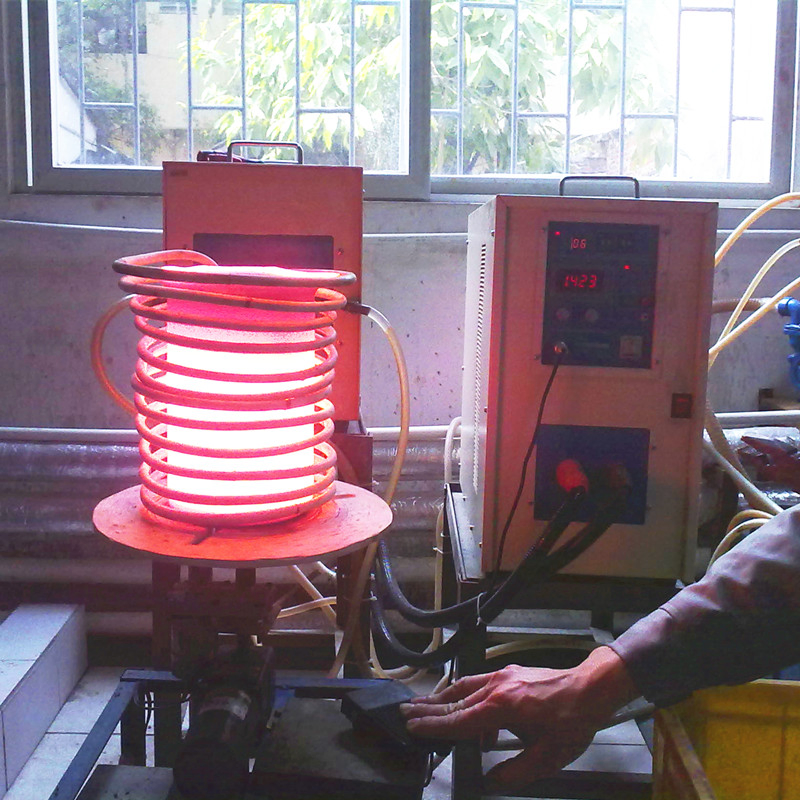

High Frequency Copper Brass Pipe Brazing Induction Soldering Machine

Customization:	Available
Type:	Induction Heating Machine
Feature:	High Efficiency

High Frequency Induction Soldering Machine

High Frequency Copper Brass Pipe Brazing Induction Soldering Machine

Induction heating offers significant advantages over conventional techniques like laser technologies, carburising, and nitriding. Our latest induction heating techniques are designed to meet your specific requirements and applications.

Technical Specifications

Model NO.

GY-40AB

Duty Cycle

100%

Condition

New

Cooling

Water

Work Principle

Electromagnetic Induction

Certification

CE, RoHS, FCC, SGS

Work Condition

24 Hours Continuous

Structure

Vertical Type

Warranty

1 Year

HS Code

85144000

Key Benefits of Induction Heating

Consistency Accurate temperature control provides uniform results consistently, with negligible rejection.

Improved Quality Contact-free process induces heat without physical contact, significantly reducing rejections.

Reduced Distortion Customized processes deliver heat exactly where needed, reducing bend and distortion via precise quenching.

Increased Profits Energy-efficient process converts up to 80% of expended energy into useful heat to save costs.

Maximized Productivity Instantaneous and controlled heat allows for increased production rates at reduced costs.

Environmentally Friendly Clean, non-polluting process producing no smoke, waste heat, noxious emissions, or noise.

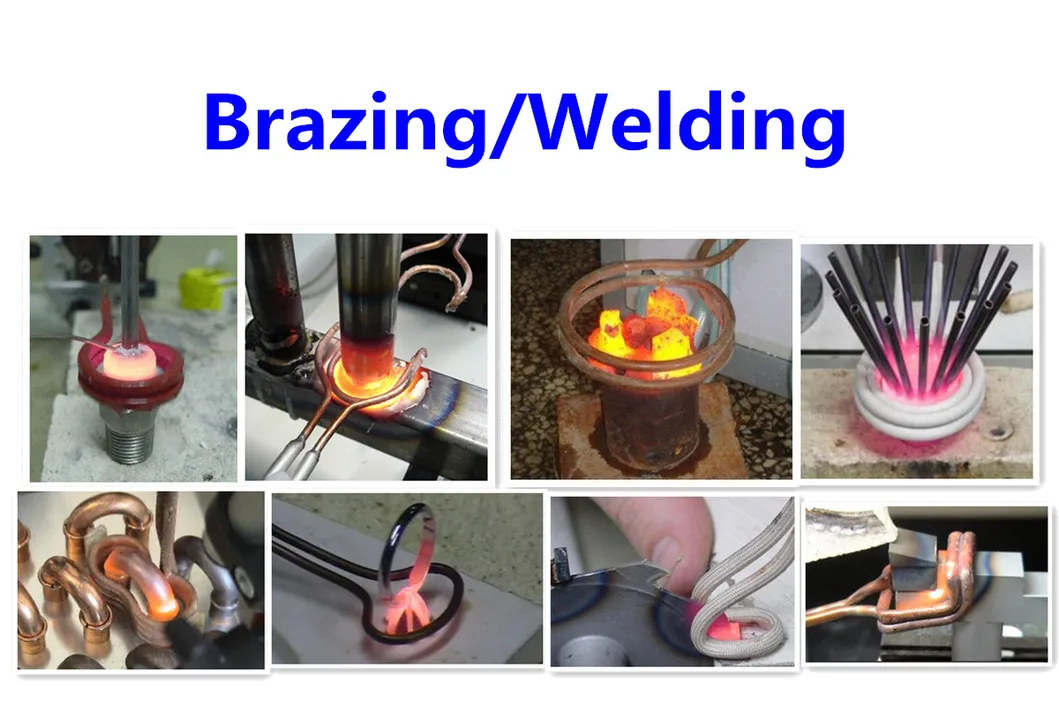

Industrial Applications

Induction heating is widely utilized across various sectors including:

Automotive Industry
Aerospace Industry
Electrical Engineering
Home Appliance Industry
Metal Foundry Industry
Air Conditioning Industry
Hardware Industry
Minerals Industry

Technical Parameters (GY-60AB)

Work Power	220V-520V
Input Current	60A
Fluctuating Output Power	60KW
Fluctuating Frequency	30-80KHZ
Output Current	400-2400A
Cooling Water Flow Rate	0.08-0.16Mpa 7.6L/Min
Water Temp Protection Point	40°C
Main Unit Size	640x280x550 mm
Transformer Size	510x260x410 mm
Net Weight	Main: 37.5 kgs / Transformer: 32.5 kgs

Optional Accessories & Shipping

Available Extras:

Industrial Chiller
Custom Design Coils
Infrared Thermometer
Back-up Electronic Boards
Forging/Melting Furnaces

Logistics:

Delivery Time: Within 5 workdays.
Shipping Terms: By Sea, By Air, or Express.

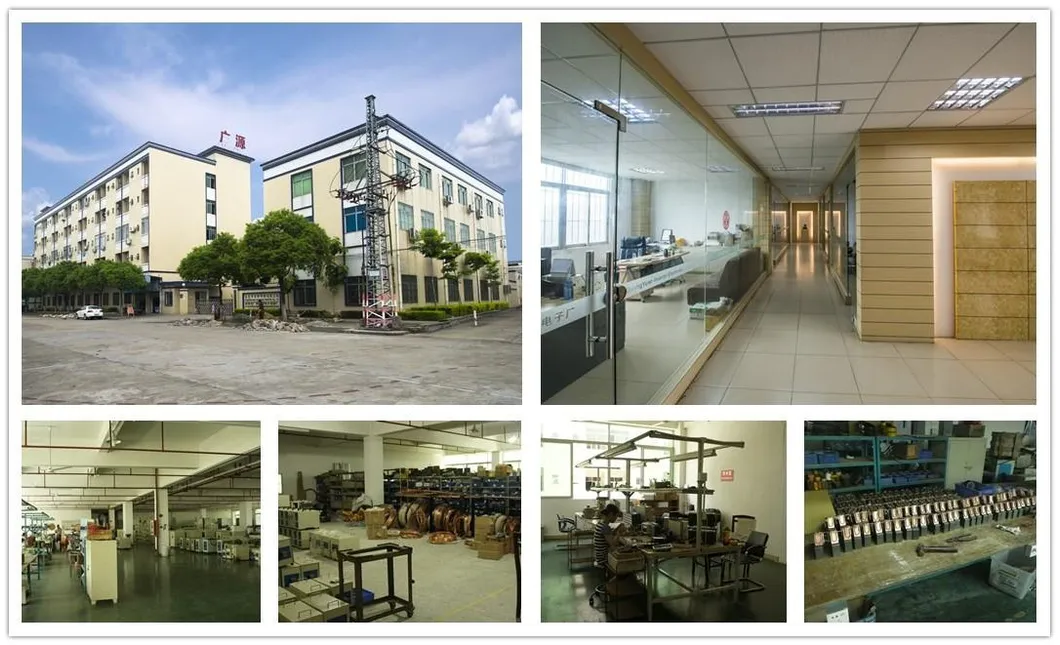

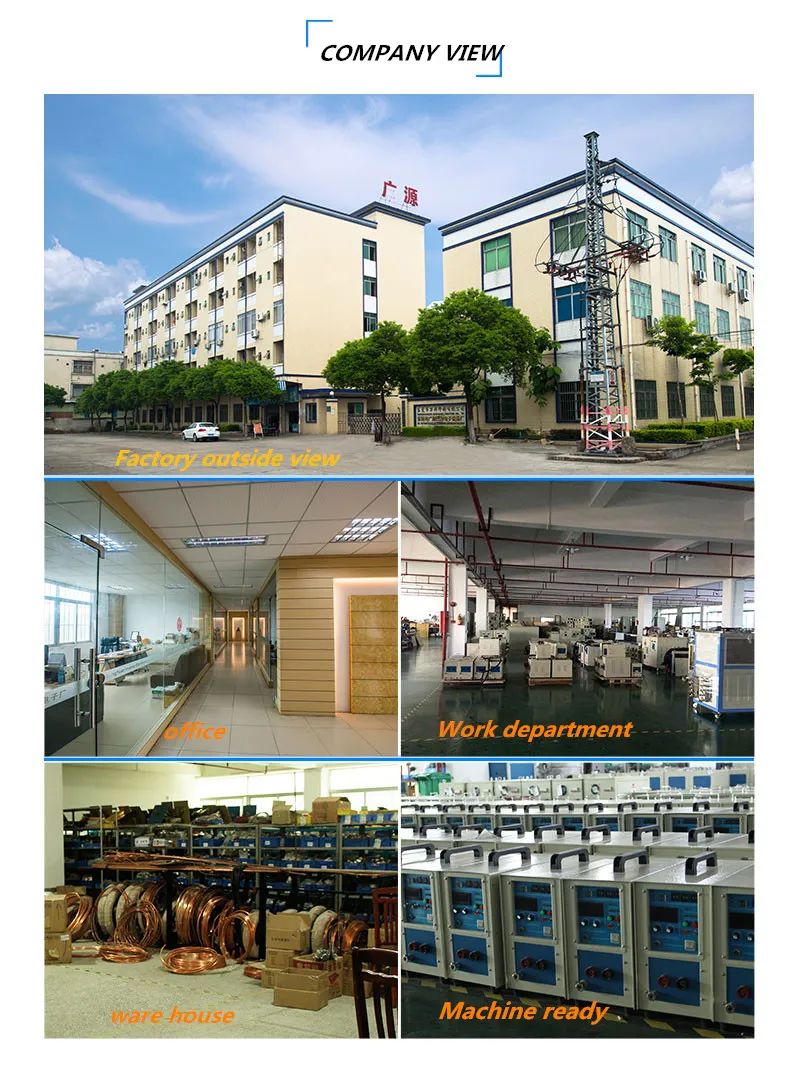

Factory View & Production

Frequently Asked Questions

How do I choose the most suitable machine?

Tell us your specific application (forging, hardening, welding, or melting), provide the workpiece material and size, temperature requirements, and heating time needed. We will recommend the best fit for your reference.

What is the typical delivery time for orders?

Small machines are typically delivered within 3 to 7 workdays. Larger units generally require 15 to 25 workdays for production and delivery.

What kind of warranty and after-sales service is provided?

We offer a one-year warranty for non-intentional damage and support technical services for the lifetime of the machine. During the warranty, we provide free replacement of spare parts if issues arise.

Can the machine operate continuously?

Yes, the machine is designed for heavy industrial use and can operate continuously for 24 hours under a 100% duty cycle.

What certifications do your induction machines hold?

Our equipment is fully certified with CE, RoHS, FCC, and SGS standards, ensuring compliance with international quality and safety regulations.

What cooling method is required for operation?

The machine utilizes a water cooling system. We recommend a cooling water flow rate of 0.08-0.16Mpa and offer optional industrial chillers for optimal performance.
