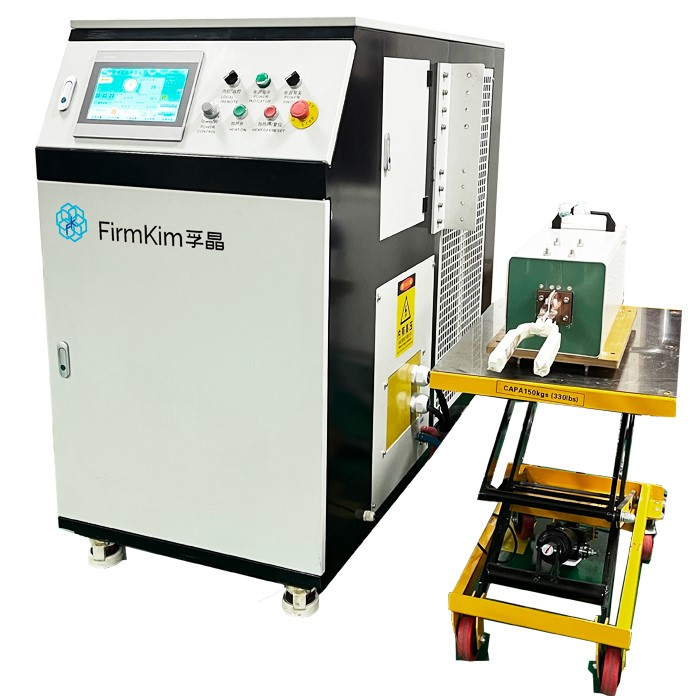

High Frequency Welding Machine for Thin Sheet Metal Fabrication Workshops Induction Brazing Machine

Customization: Available
Type: Induction Brazing Machine
PLC Interface Model: DSP Chip Modbus 485

Product Description

Basic Information
Model NO.FK-060B-S
Warranty Period12 Months
Input Voltage380V±10%
Input Current≤130A
Control ModeConstant Current, Constant Power, Constant Temperature
Ambient Temperature5ºC-45ºC
Specification1550*700*1323
OriginZhejiang
Product Display

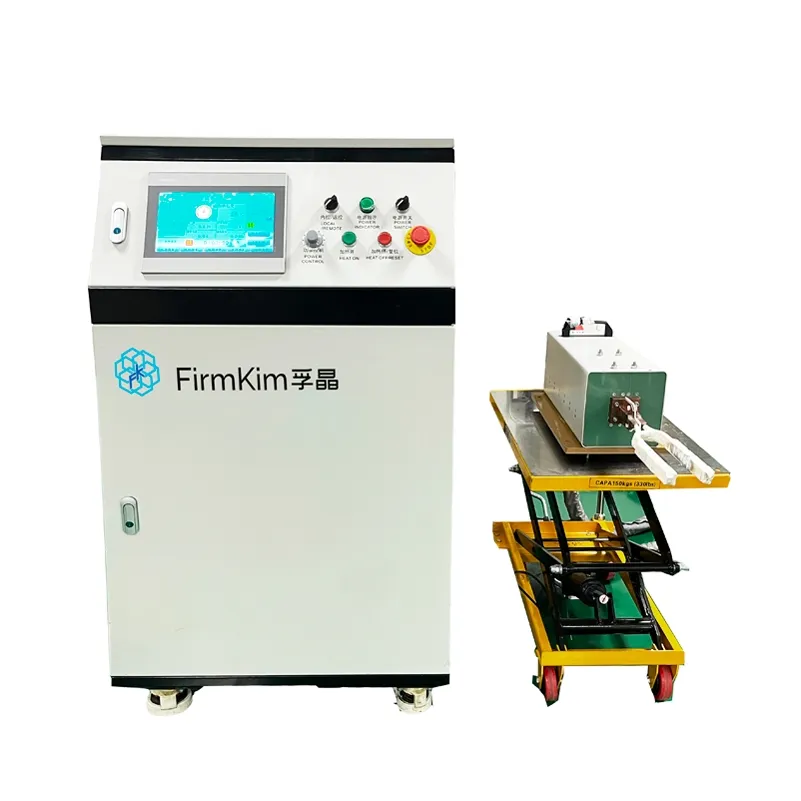

Welding Machine Detail 1

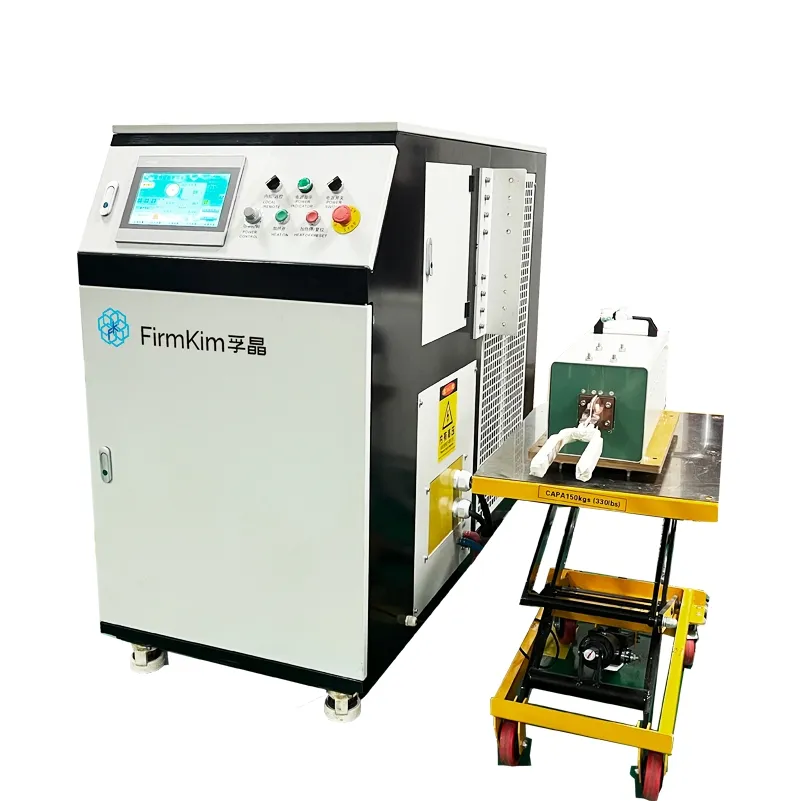

Welding Machine Detail 2

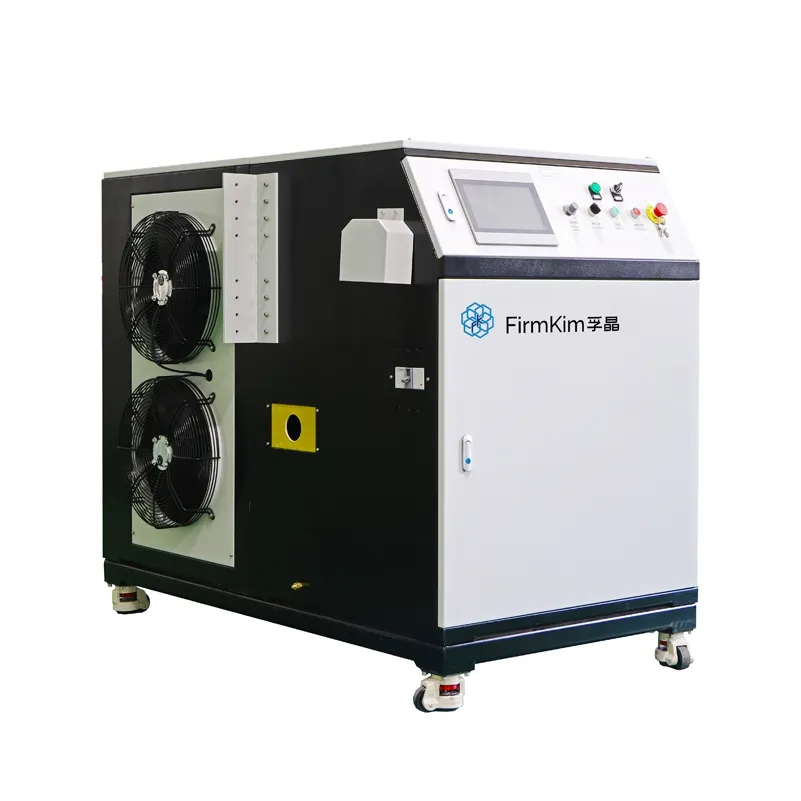

Welding Machine Detail 3

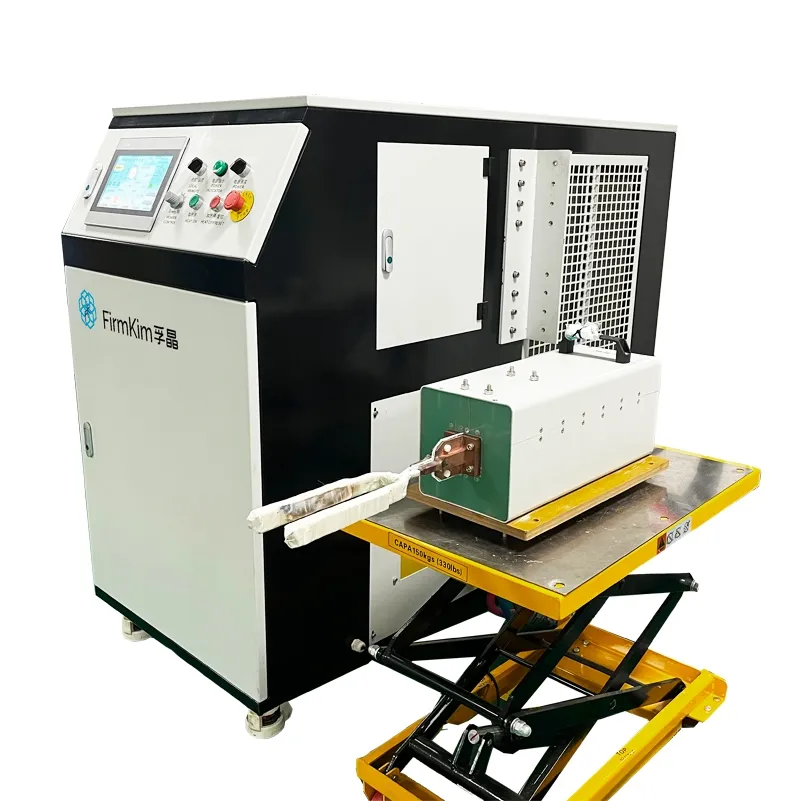

Welding Machine Detail 4

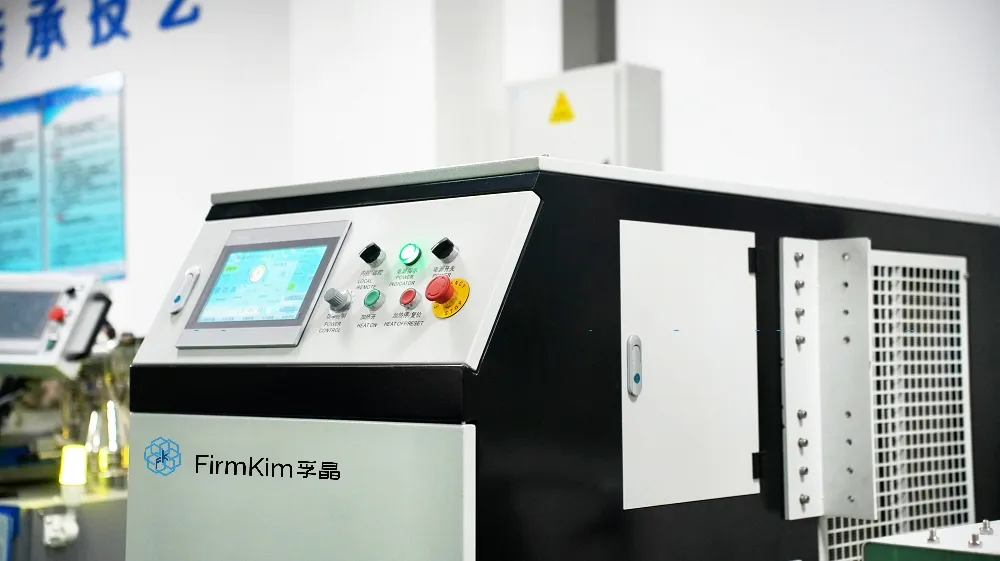

Welding Machine Detail 5

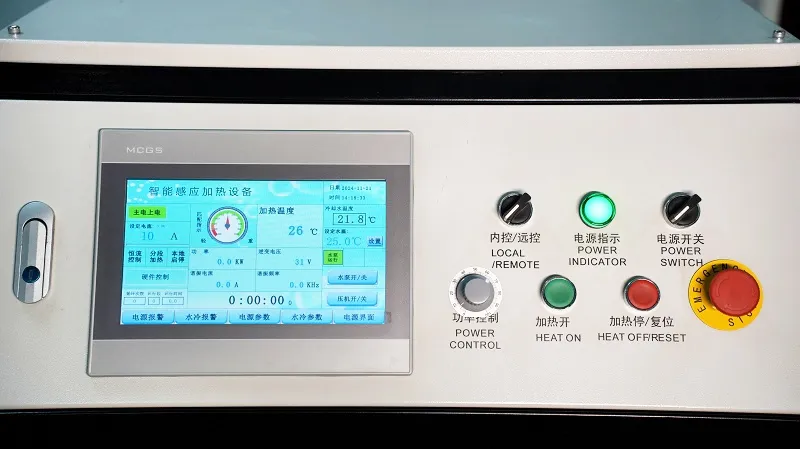

Welding Machine Detail 6
Technical Specification
Product NameFK-060B-S
Cabinet ModelWater-cooled Integrated Type
Equipment Dimensions1550*700*1323
Equipment weight (approx.)185KG
Induction Coil DimensionsEquivalent diameter ≤ 70 mm; Copper tube ≥ 6×6 mm square or 8 mm circular.
Power cord35 mm² copper wires for each phase (at 73 kW peak).
PLC interface modelDSP chip Modbus 485
Power Supply Frequency50/60kHz
Inverter Frequency1kHz-50kHz
Output Power≤60kW
Control Accuracy1‰
Power Output Range5%-100%
Inverter Power Factor≥0.96
Cooling Water Pressure0.4Mpa-0.6Mpa
Application ScopeCopper/Alloys (≤26mm), Stainless Steel (≤32mm), Aluminum Alloy (≤32mm)
Company Overview
Company Profile

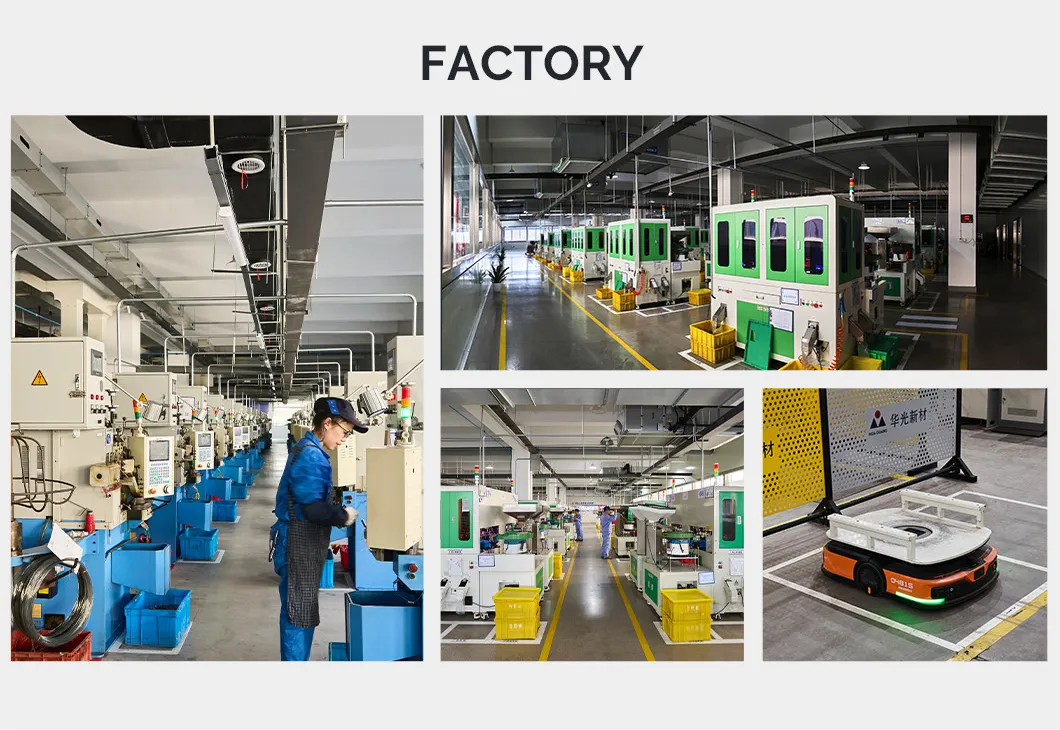

Facility
Workshop
Certifications
Certifications
Our Team & Partners
Our Team
Partners
Exhibition
Exhibition Display
Frequently Asked Questions
What are the trade terms?
Ex Works (EXW), Free on Board (FOB) at Guangzhou Port, or Shenzhen Port depending on the sales model.
What is the warranty period for this machine?
We provide a comprehensive one-year product quality guarantee.
What is the typical production cycle?
During regular seasons, production is typically completed within 20 - 30 days after receiving the deposit.
What payment methods do you accept?
We accept Telegraphic Transfer (T/T) or sight Letter of Credit (L/C). A 60% deposit is required to initiate production.
How is the equipment packaged for shipping?
Packaging is done using detachable wooden cases with pearl cotton interior for shock absorption and extra protection for glass components.
What happens if accessories are missing or damaged?
Small missing accessories are urgently reissued via DHL. In case of transit damage, the responsible carrier bears the loss, and we assist in compensating or repairing parts.
