Low Price Digital Intelligentize High Frequency Induction Welding Machine Application for Brazing, Soldering The Copper Pipe of Engine Rotor and Motor

1 / 5

Low Price Digital Intelligentize High Frequency Induction Welding Machine Application for Brazing, Soldering The Copper Pipe of Engine Rotor and Motor

Customization:	Available
After-sales Service:	Within 24hours Response
Warranty:	18months From Delivering, 12months From Receiving

Send Inquiry

Product Description

Basic Specifications

Model NO.

DSP-50KW

Type

Induction Heating Machine

Certification

CE, ISO

Structure

Vertical Type

Brand

Siemens

Max Current

120A

Max Power

50kw

Work Frequency

10-40kHz

Protection Level

IP54

Origin

China

Product Description

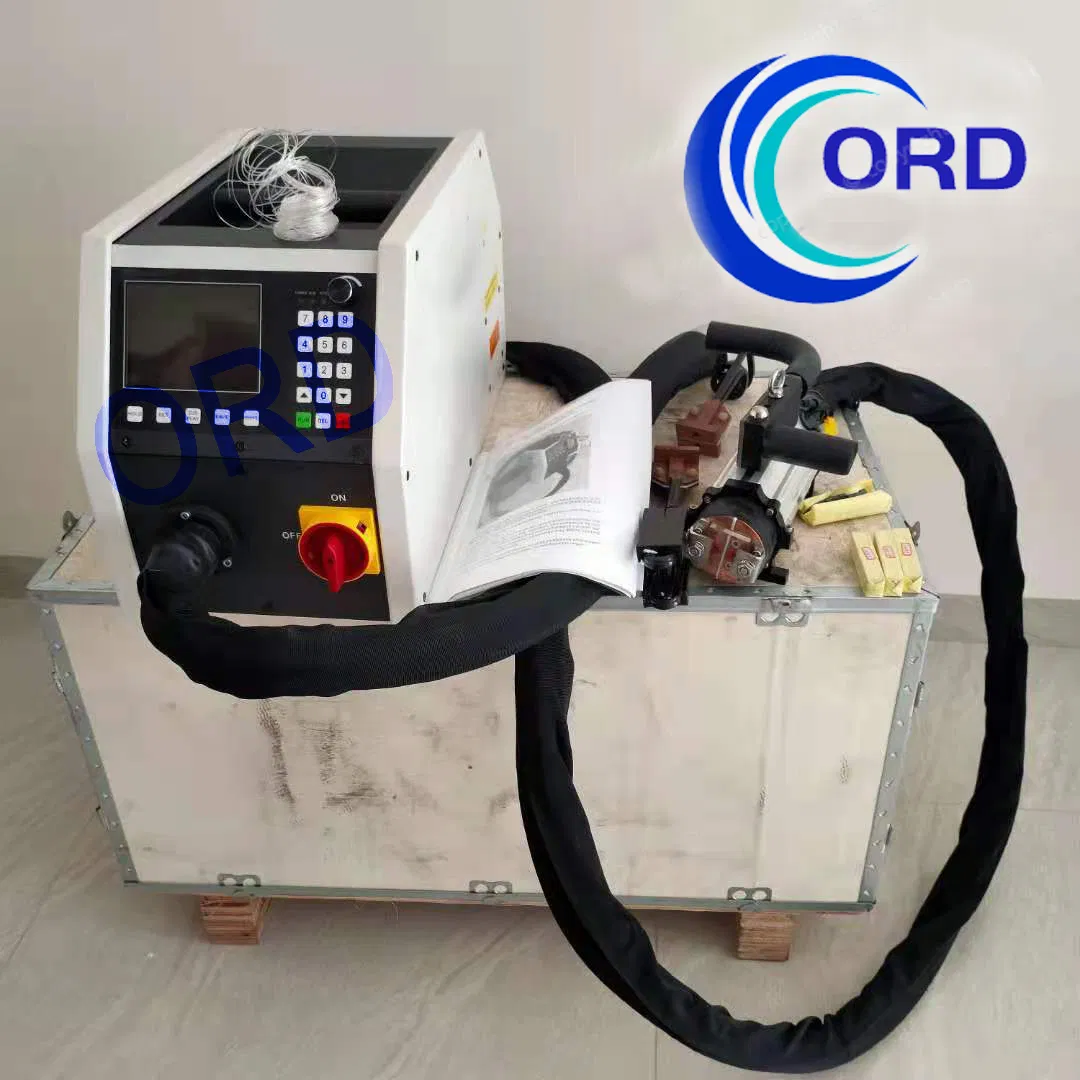

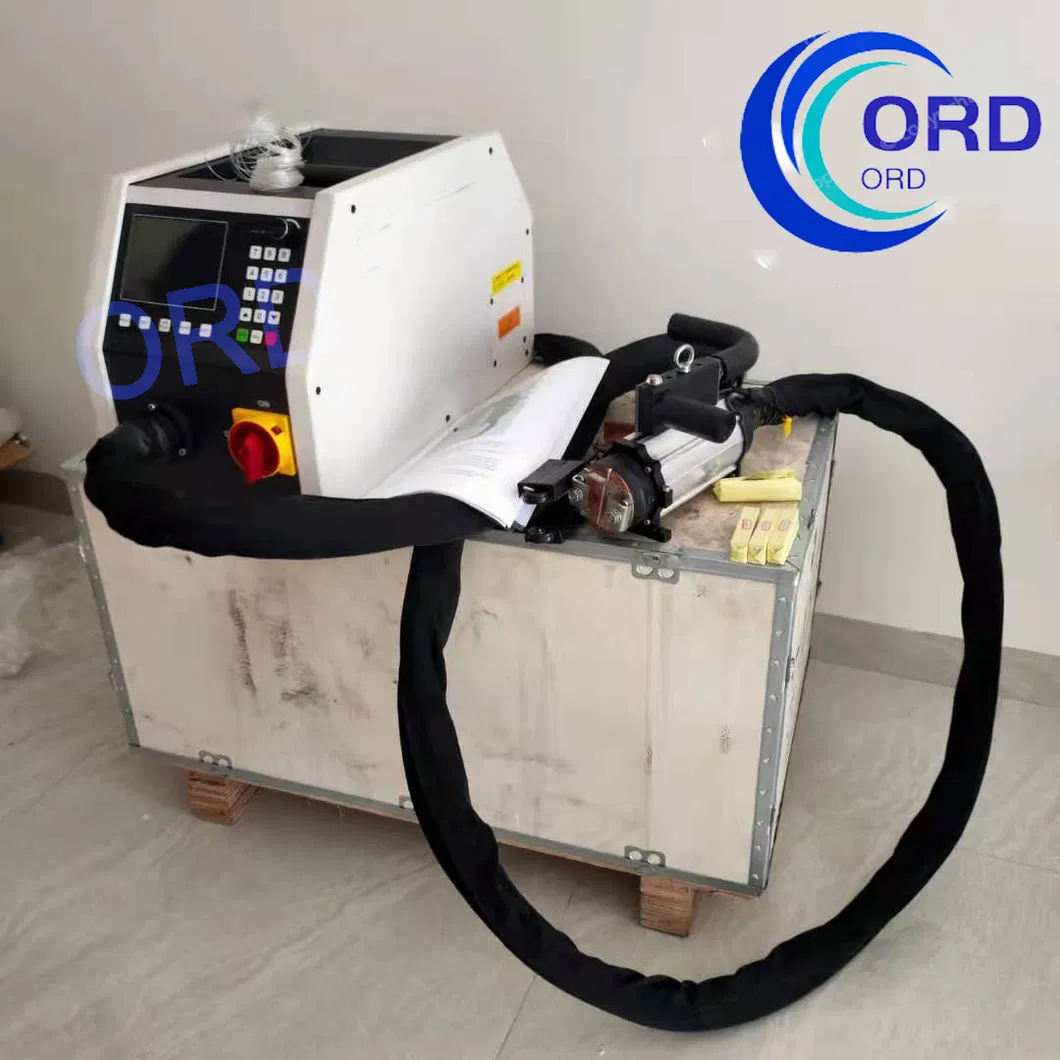

Digital Intelligent High-Frequency Induction Welding Machine designed for brazing and soldering copper pipes of engine rotors and motors. This integrated modular equipment utilizes advanced DSP (Digital Signal Processing) and DDS (Direct Digital Synthesizer) technology for precise control and high efficiency.

Key Technical Features

High Temperature: Heating capacity reaching over 1500°C.
Rapid Heating: Reach target temperatures quickly to improve productivity.
Versatile Material Support: Suitable for stainless steel, carbon steel, copper, brass, aluminum, zinc, and more.

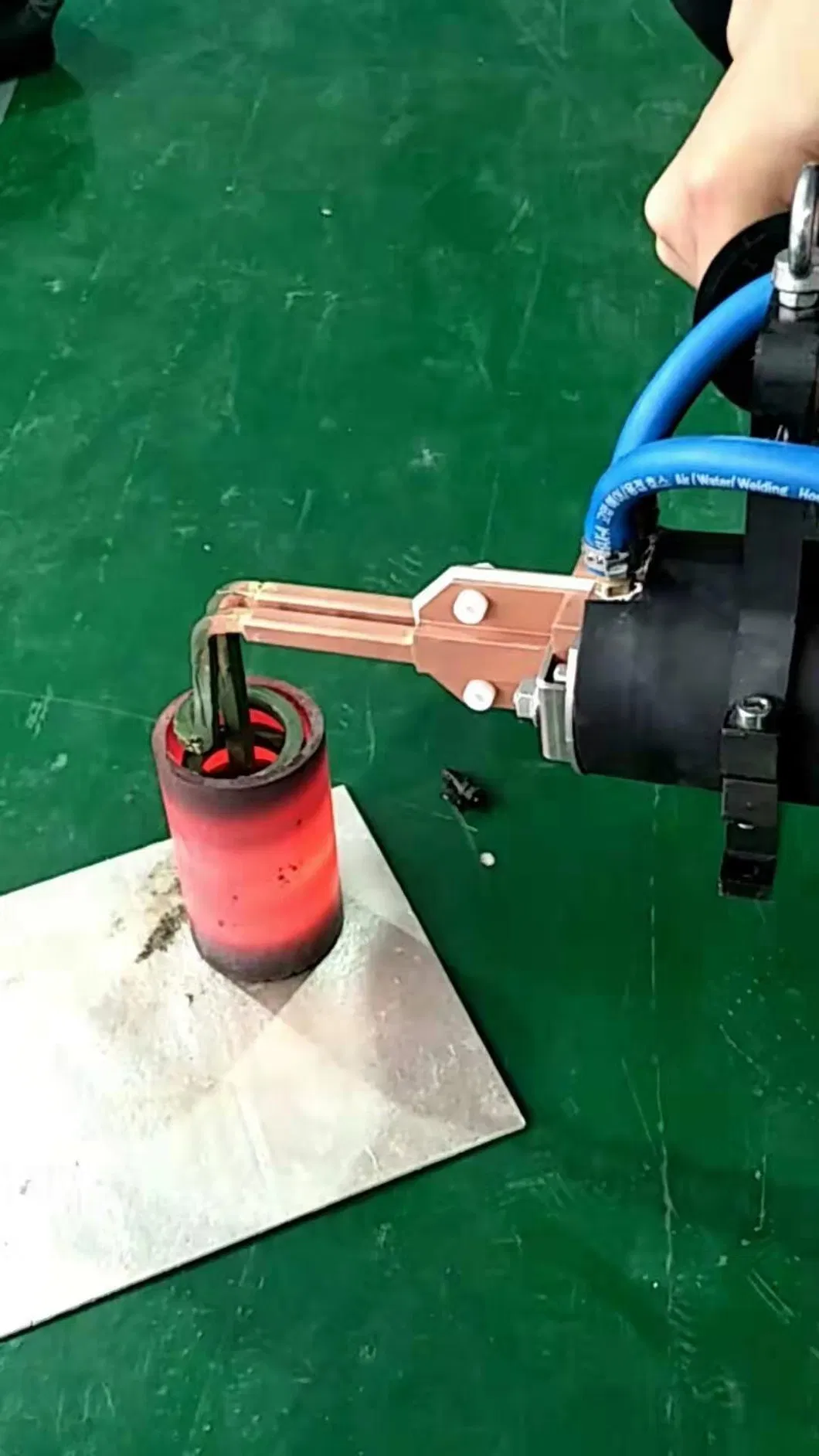

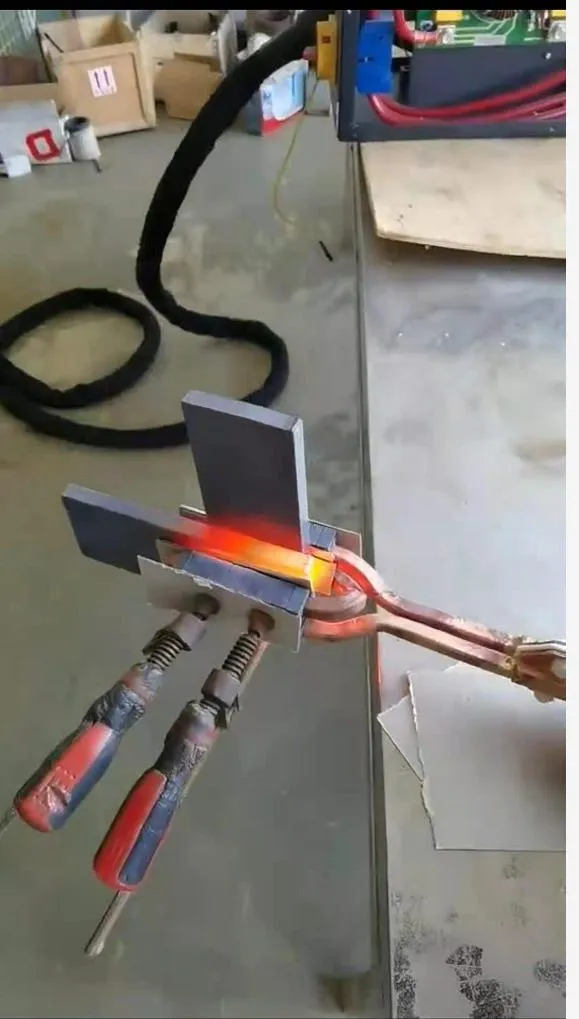

Hand-held Coaxial Transformer: Flexible operation, easily integrated with robotic arms.

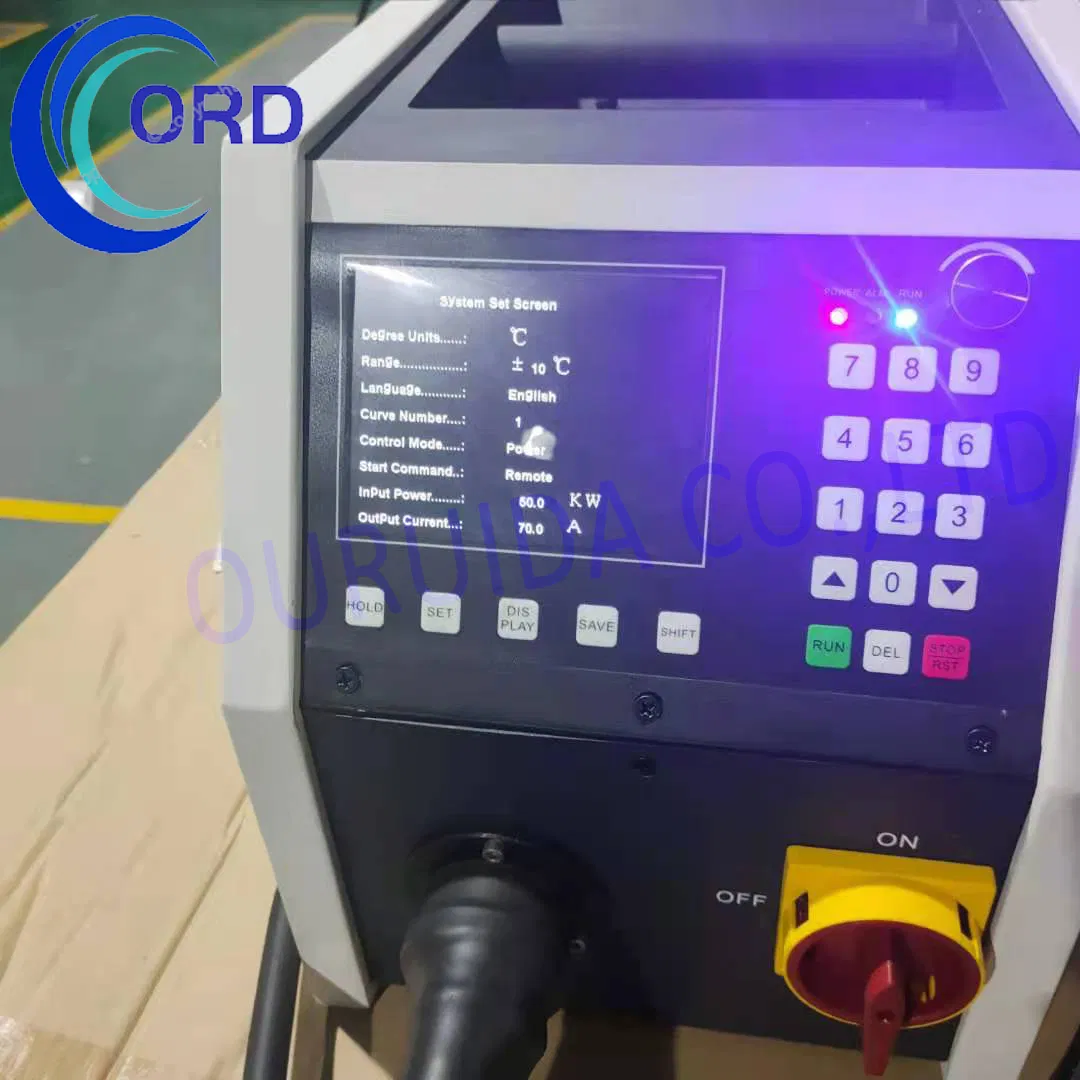

Smart Control: RS485 communication for seamless PLC system integration.
Extended Reach: Supports 5M to 100M cable connections without power reduction.

Technical Parameters

Model Type	DSP-50KW
Rated Output Power	50KW
Rated Output Frequency	10-40KHZ
Power Adjustment Range	1.5-100%
Input Voltage	360-420V 50-60Hz
Protection Level	IP54

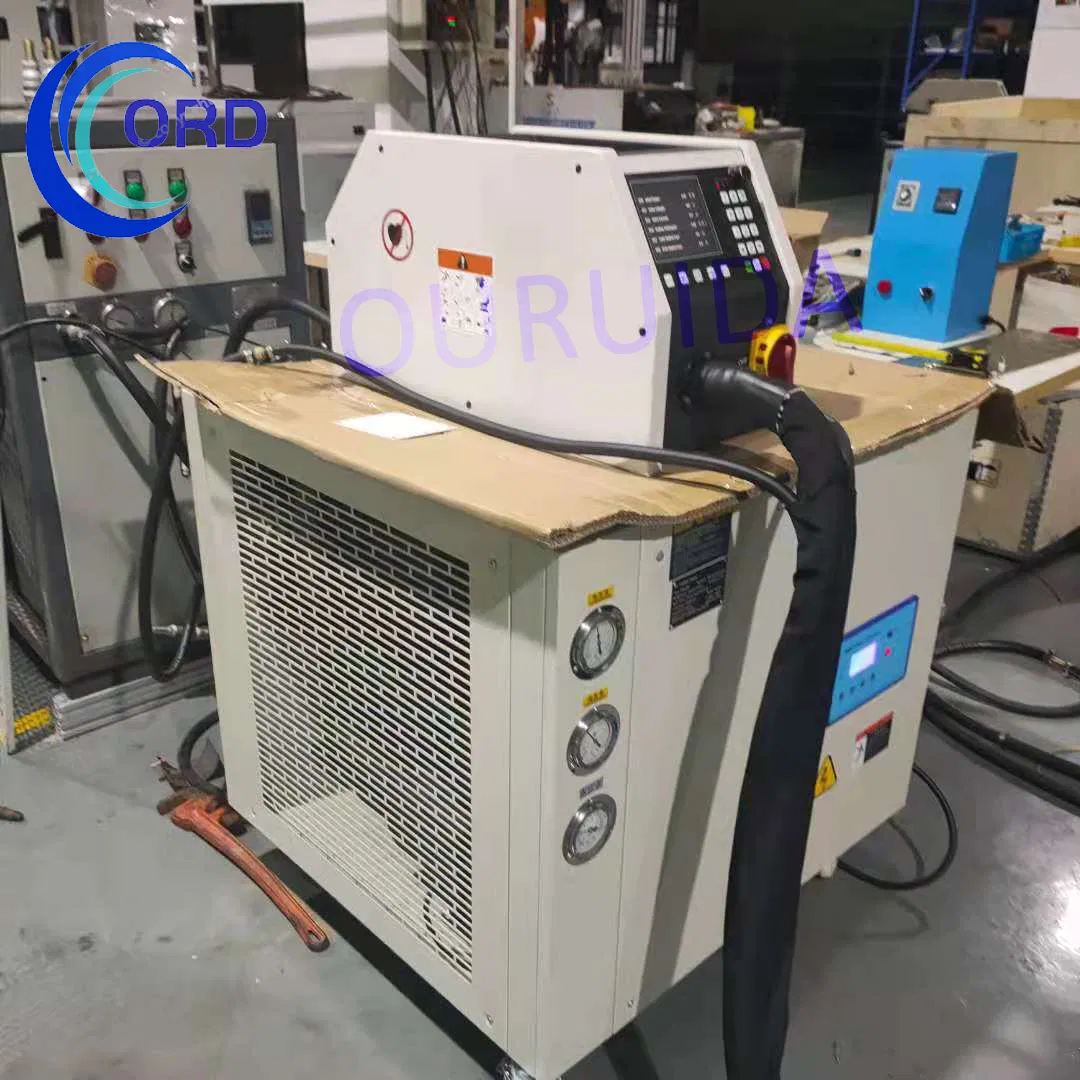

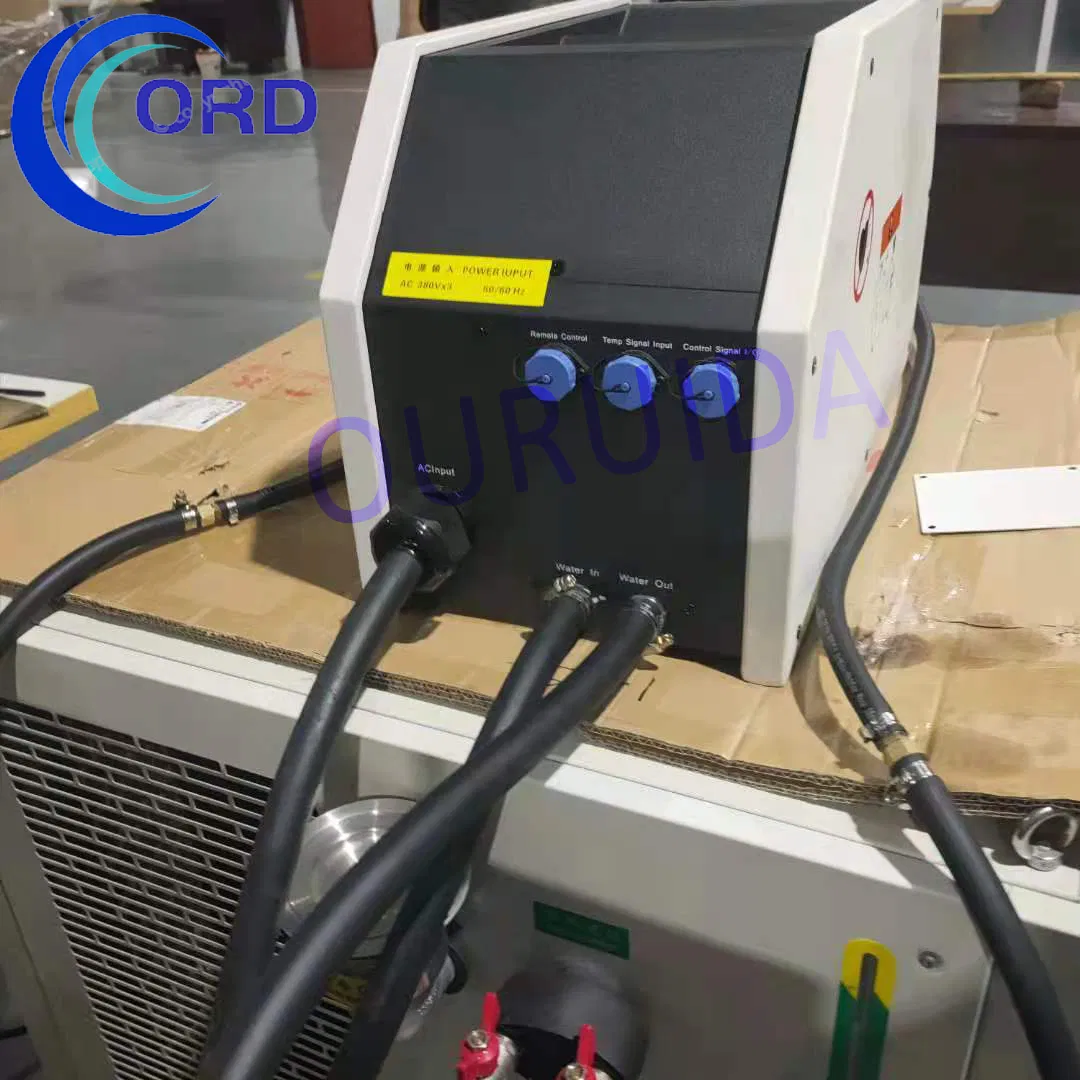

Cooling Water Flow	21L/MIN
Cooling Water Pressure	4-8 Bar
Weight	Approx. 100kg

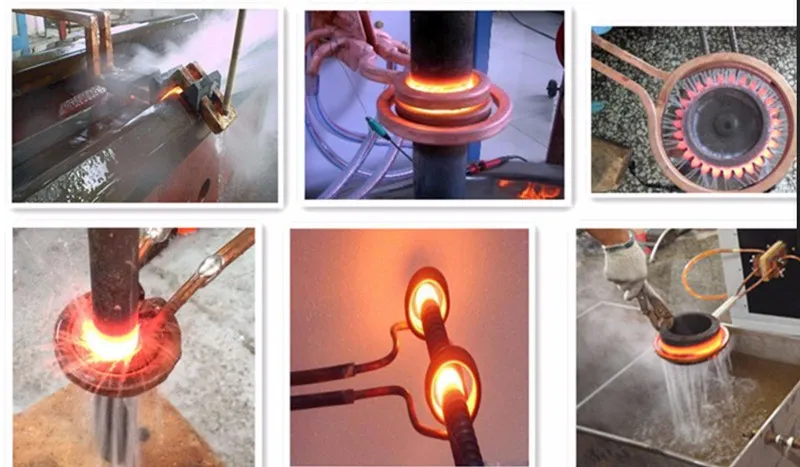

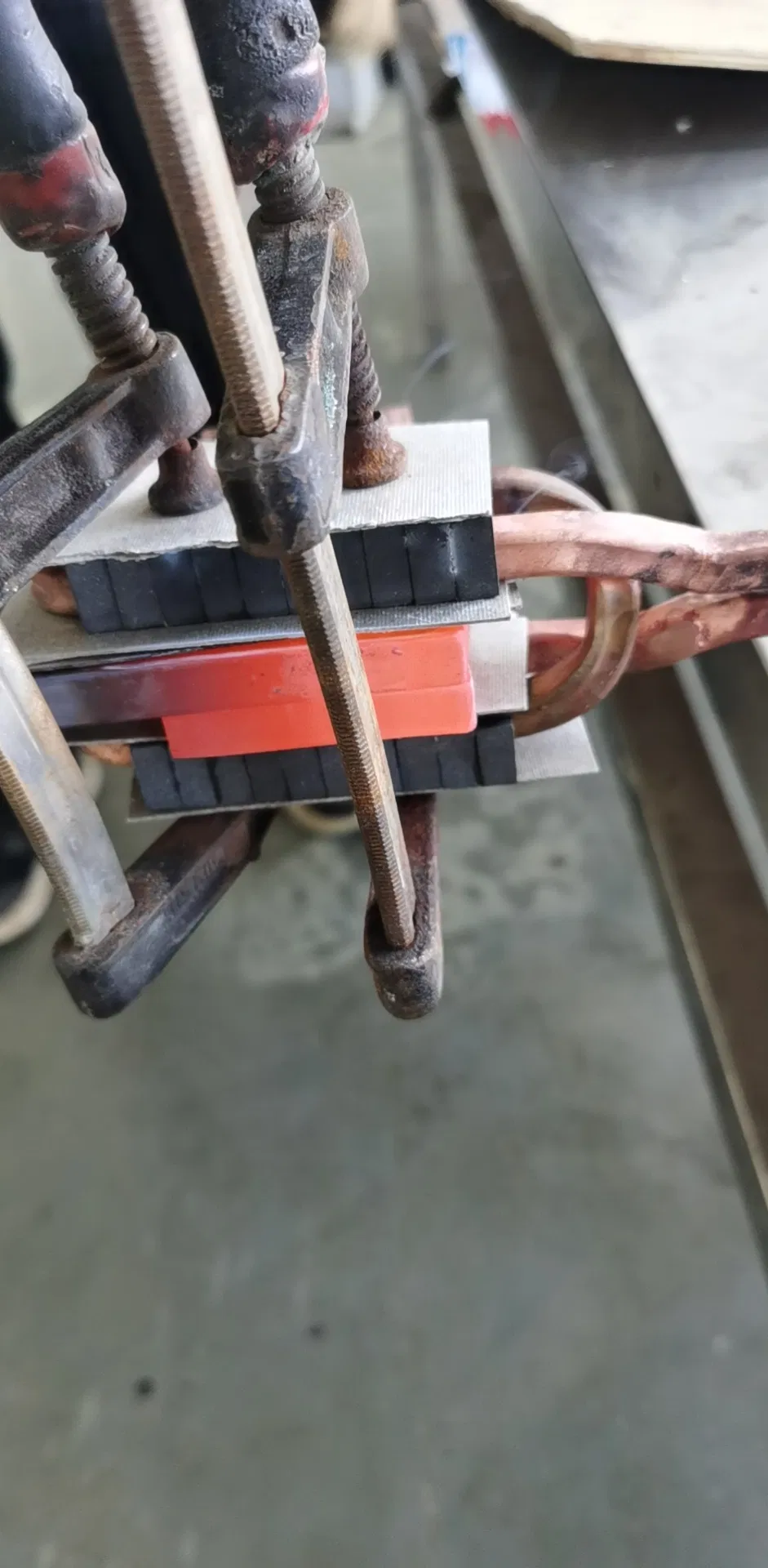

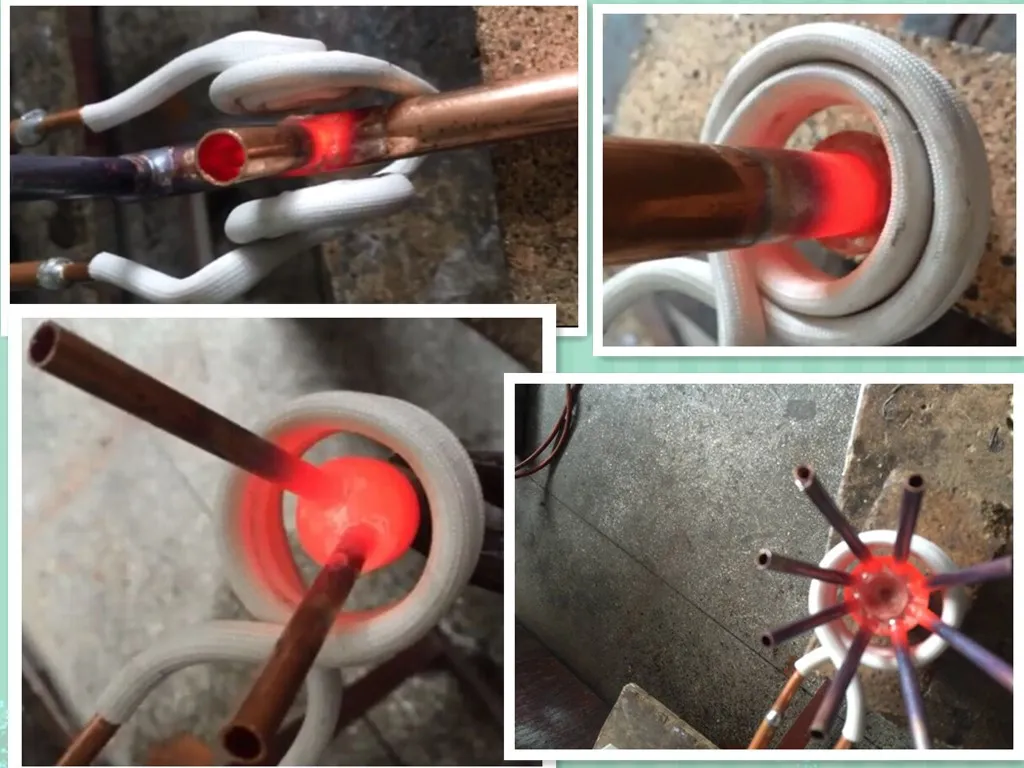

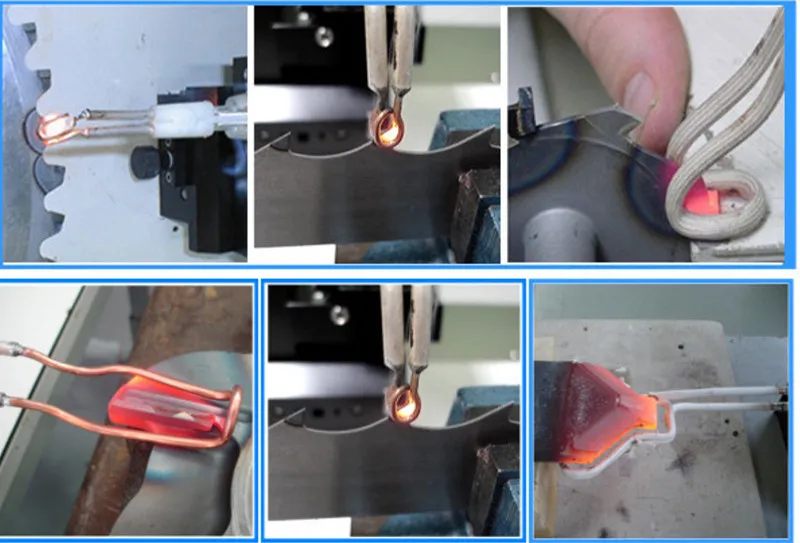

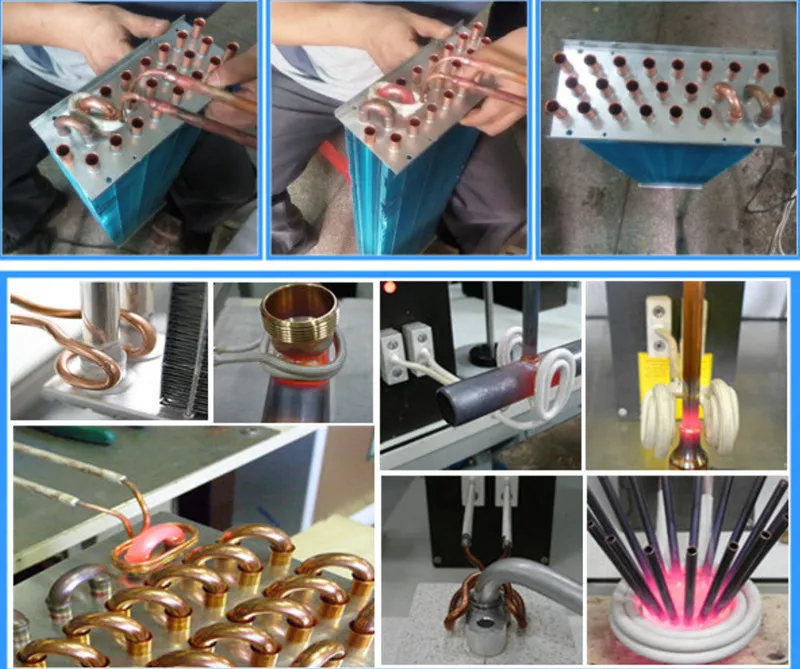

Application & Equipment Display

Our Service Commitment

Pre-sale & In-sale

We recommend the most suitable equipment based on your specific requirements and provide sample testing support. Every machine undergoes strict manufacturing standards and run-test regulations before timely delivery.

After-sale Support

Warranty: 18 months from delivery or 12 months from receipt.
Free Parts: Replacement of parts for non-artificial faults during the warranty period.
Lifetime Maintenance: Continuous technical support and spare parts availability at cost price.

Frequently Asked Questions

Q1: What is the maximum heating temperature of this machine? The DSP-50KW induction heating machine can reach temperatures exceeding 1500°C.

Q2: Can this equipment be integrated into automated production lines? Yes, it features RS485 communication and is fully compatible with existing PLC systems for automation expansion.

Q3: What materials are suitable for heating and welding? It is applicable to a wide range of metals, including stainless steel, carbon steel, copper, brass, aluminum, zinc, and titanium.

Q4: Does the long cable connection affect the output power? No, the specialized cable connection (available up to 100m) is designed to handle the load without reducing the heating power.

Q5: What is the protection rating for harsh environments? The equipment has an IP54 protection level, allowing it to operate reliably in challenging outdoor or industrial environments.

Q6: What are the primary safety protections included? The system includes water pressure/flow protection, over-heating, over-voltage, over-current, and frequency protection.
