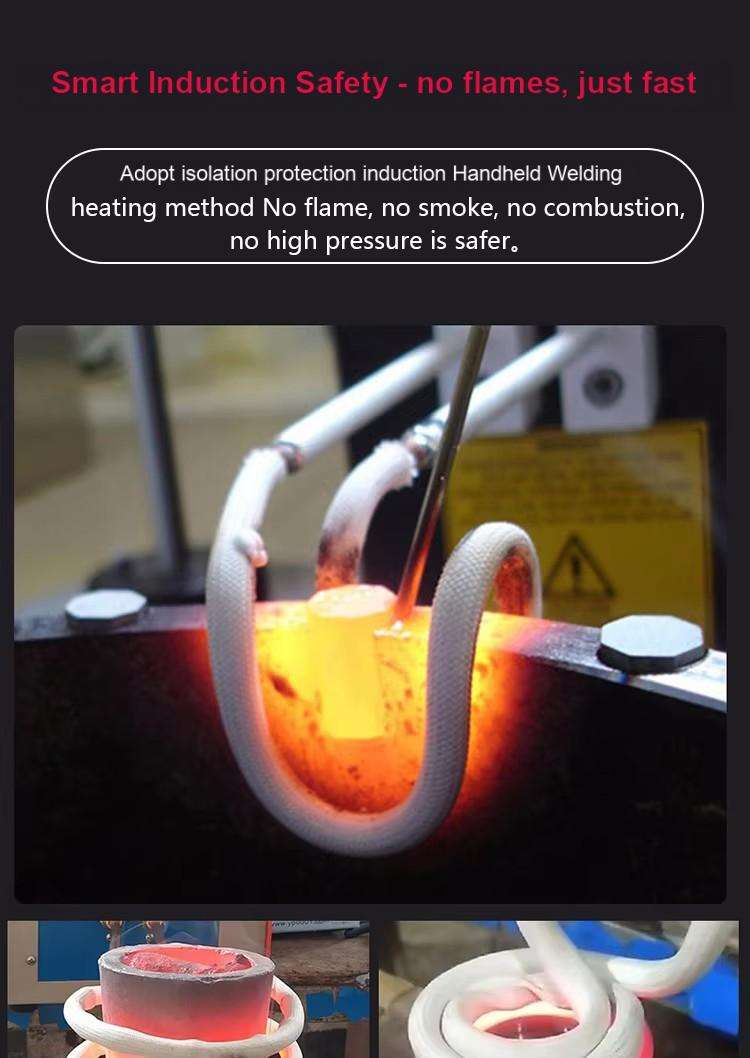

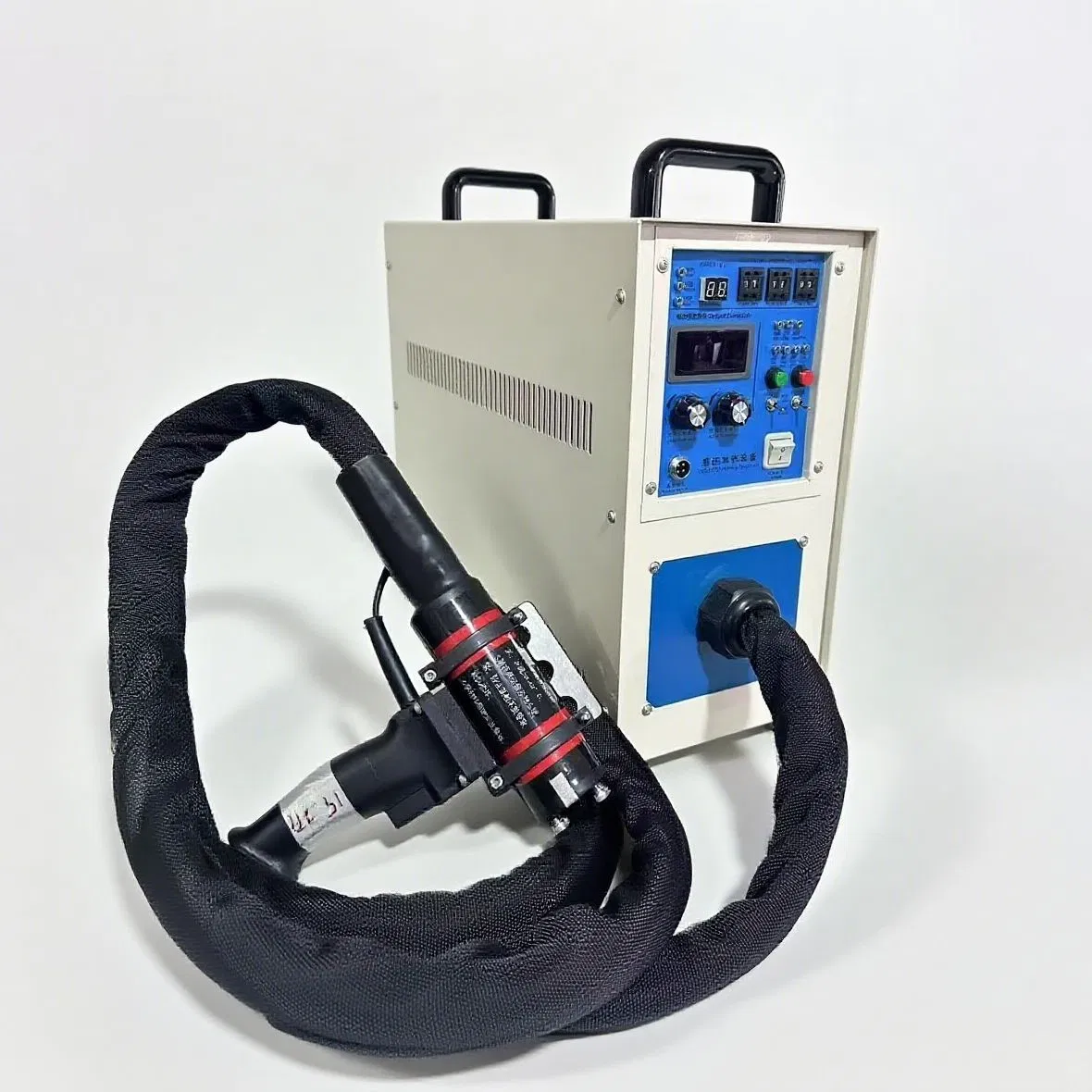

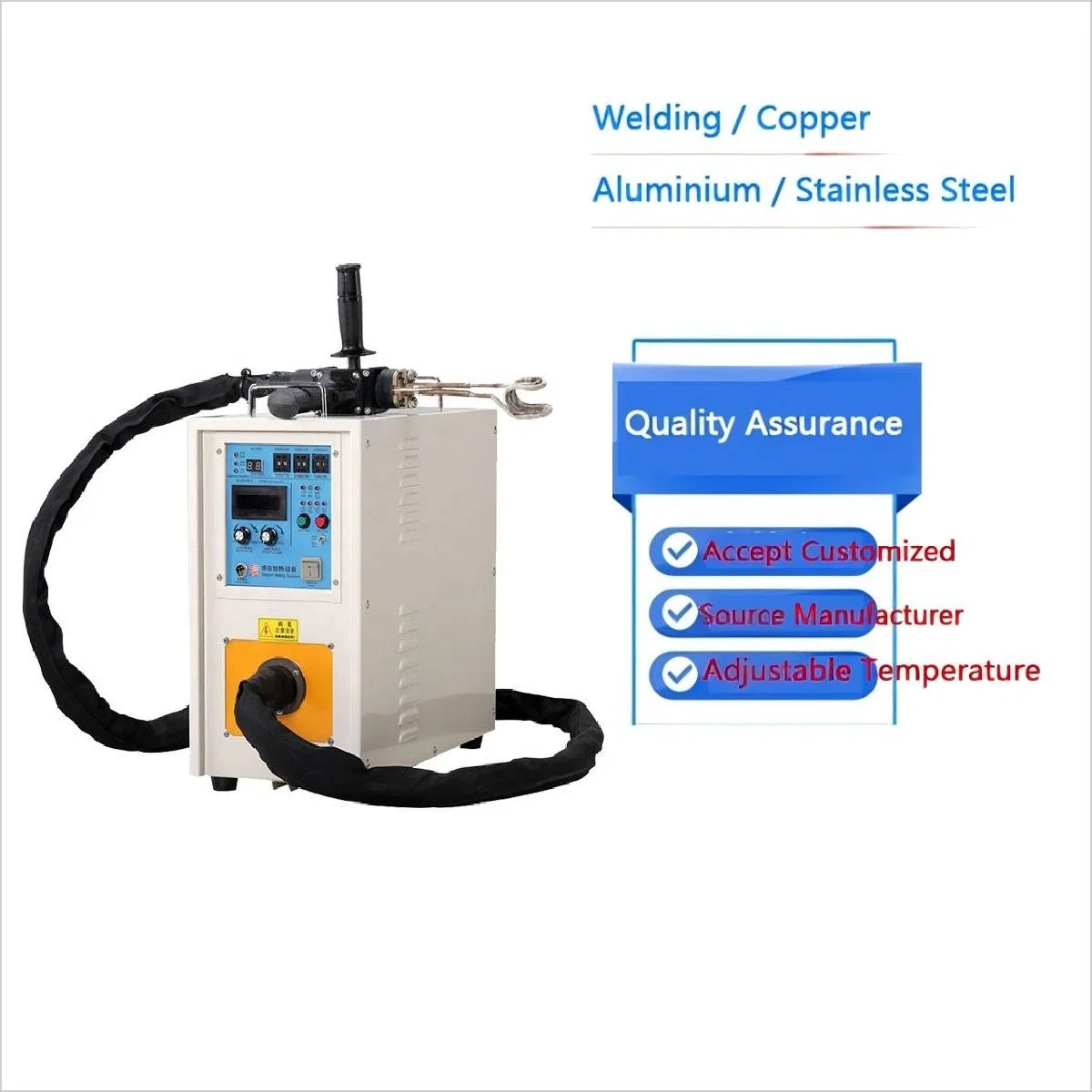

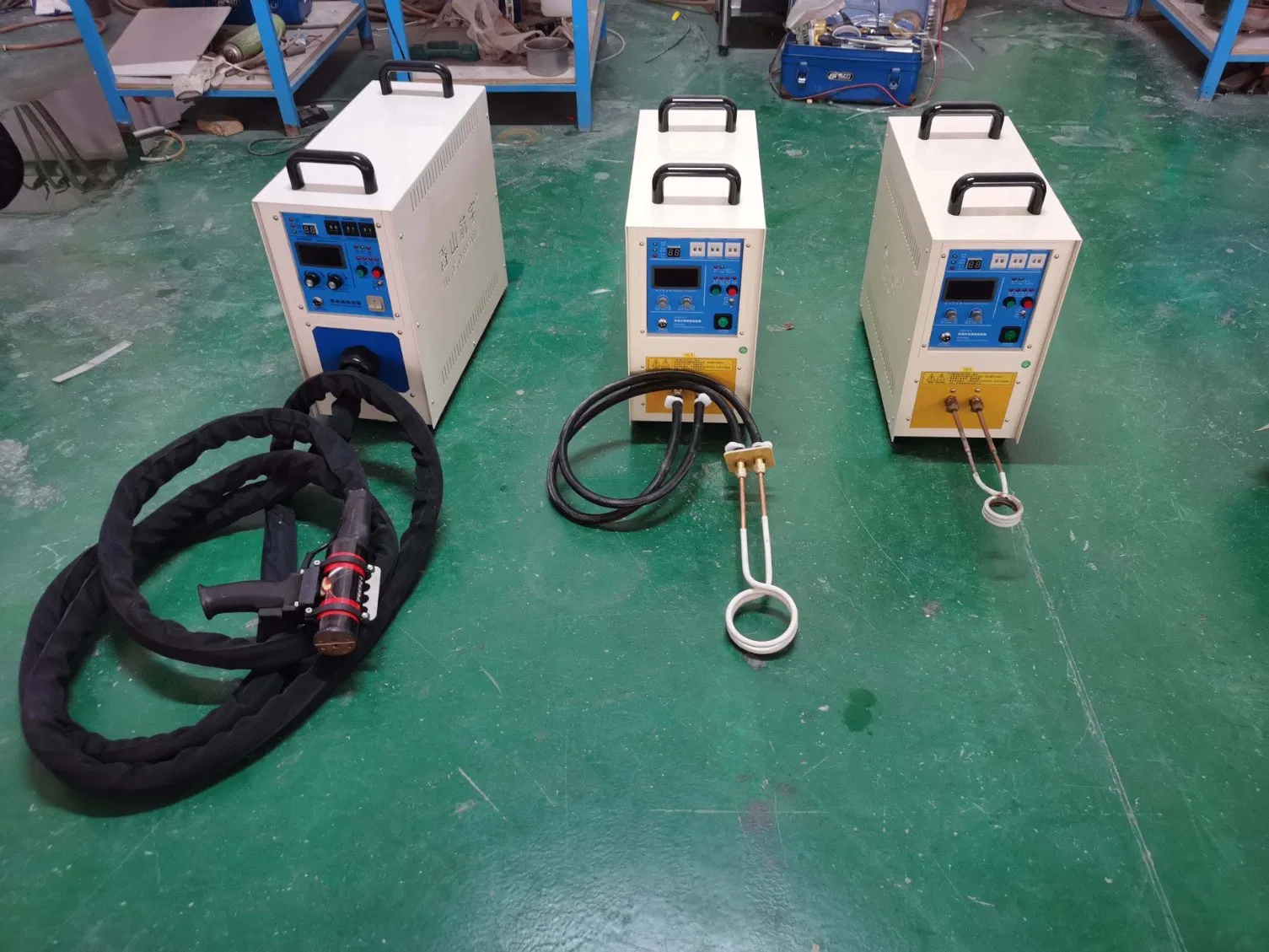

Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
1 / 5
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine
Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine

Handheld Quenching Brazing Forging Soldering High Frequency Induction Heating Machine

Customization: Available
After-sales Service: Installation and Use
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
2316
Type
Induction Heating Machine
Certification
CE, ISO
Structure
Horizontal Type
Core Components
PLC
Voltage
220V
Machinery Test
Provided Report
Origin
China

Induction Heating Advantages

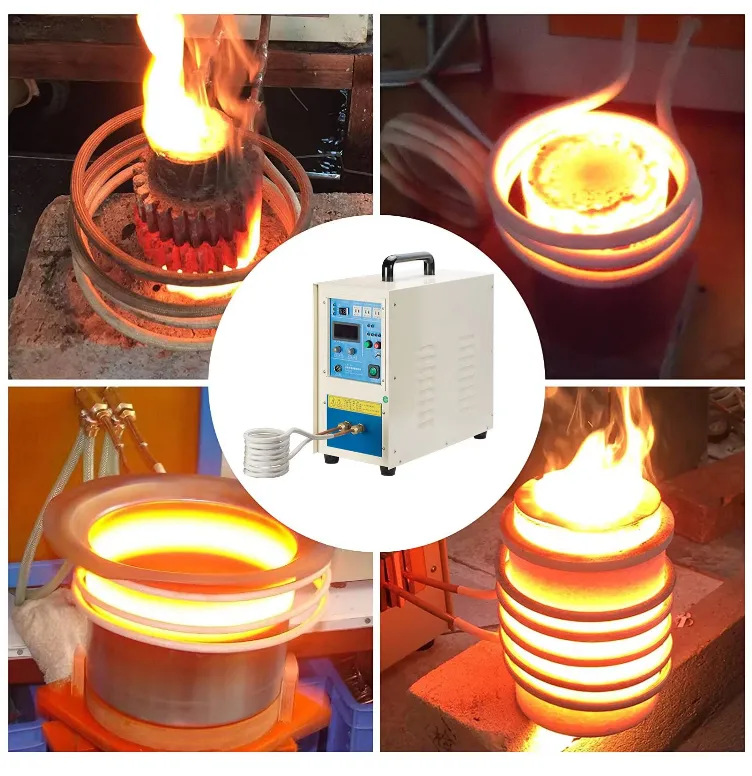

Induction Heating Advantage
⚡
Rapid Heating Heats up in under 1 second with adjustable and precise temperature control.
🔧
Wide Applications Suitable for various metal products; ideal for quenching, annealing, brazing, hot forging, and press fitting.
🌱
Energy Saving Over 95% thermal efficiency, consuming 30% less power than traditional methods. Zero emissions and no open flames.
🎯
Superior Performance Ensures uniform surface heating and rapid temperature rise, reducing oxidation and deformation.
💻
Easy Operation CNC intelligent design with intuitive controls; master the system within 5 minutes.

Technical Specifications

Model Power Voltage Current Frequency Weight Size (mm)
HCXG-15KW15KW220V34A30-100KHZ25KG510*220*440
HCXG-25KW25KW380V26A30-100KHZ28KG510*220*440
HCXG-35KW35KW380V35A30-80KHZ54KGMH:520*250*480
HCXG-45KW45KW380V55A30-80KHZ60KGMH:580*280*490
HCXC-6KW6KW220V30A800k-1.1MHZ20KG405*315*155
HCXC-10KW10KW380V15A500-600MHZ23KG570*260*500
HCXC-20KW20KW380V18A150-300MHZ30KG460*260*450

* Custom configurations are available to suit diverse processes and specialized applications.

Application & Design

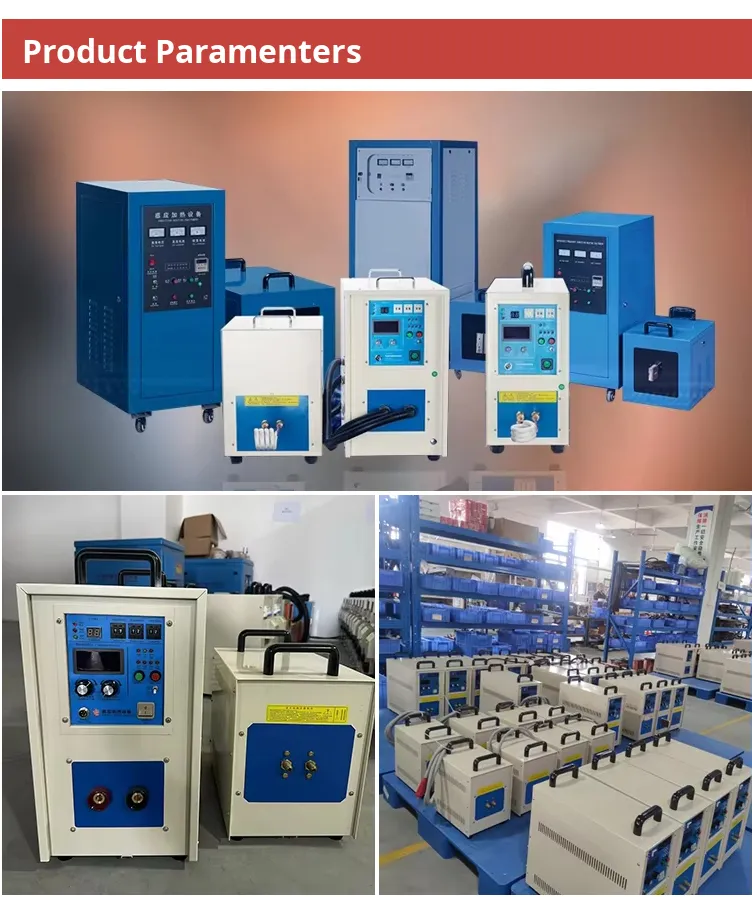

Machine Detail 1

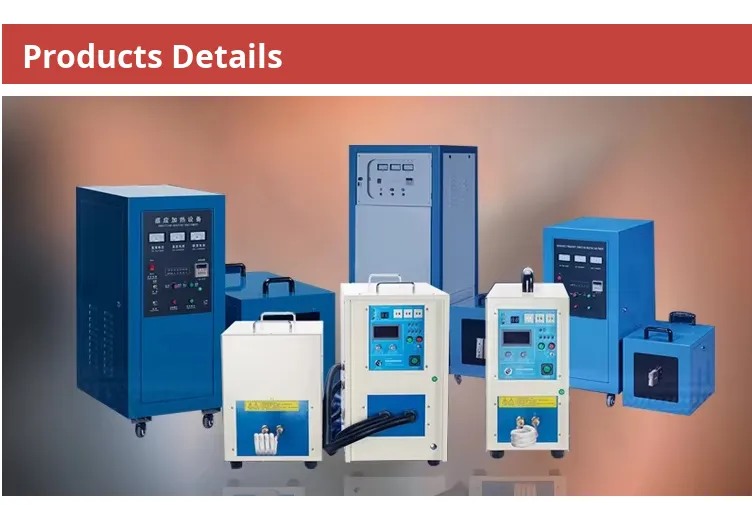

Machine Detail 2

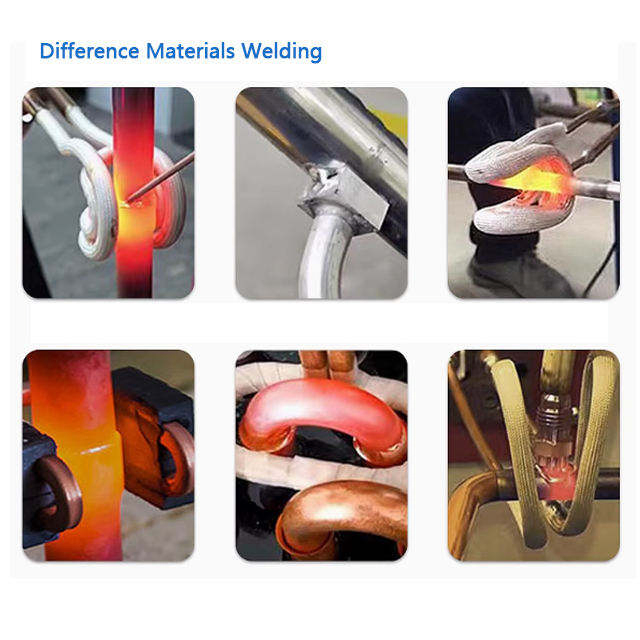

These induction heating machines empower users to perform various heat treatment processes including hardening, annealing, brazing, welding, and hot forging. Equipped with custom-designed induction coils, they offer flexibility for complex workpiece shapes with temperature outputs up to 2000℃.

Process Display 1

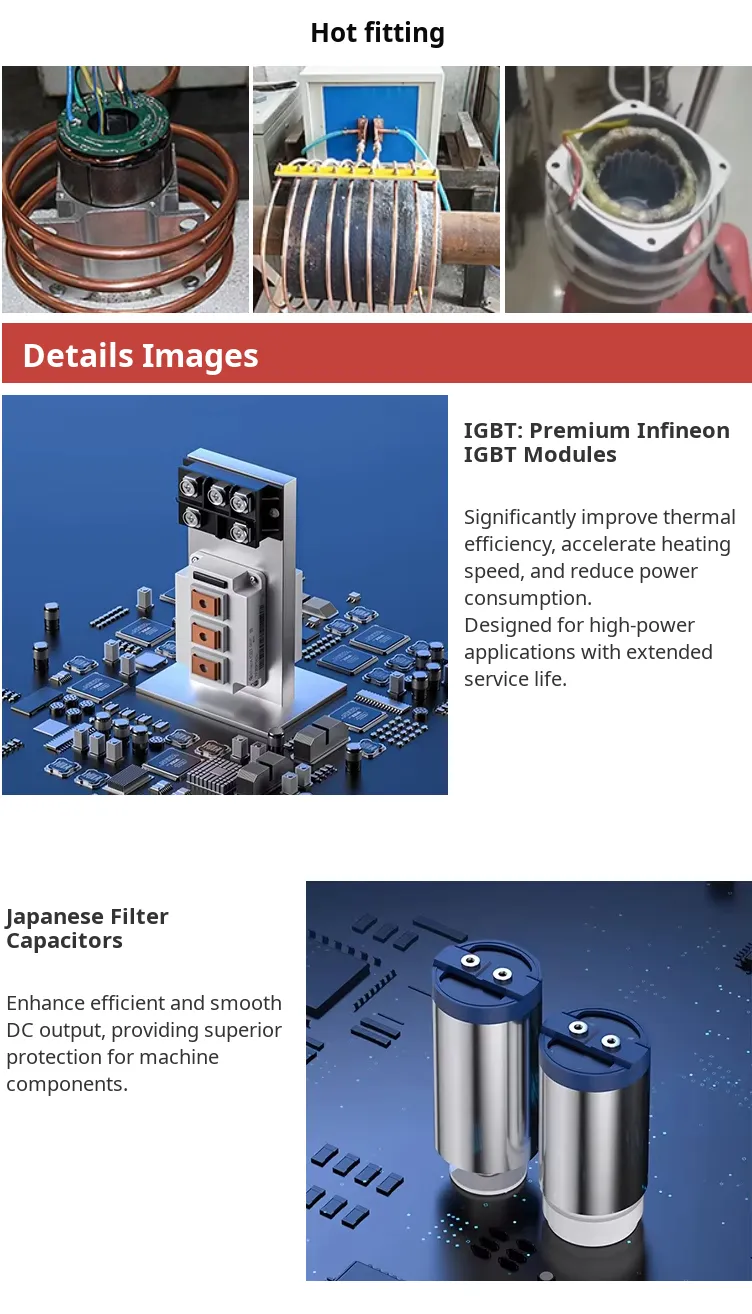

Process Display 2
Process Display 3

Industrial Reliability

Specializing in medium-frequency, high-frequency, and ultra-high-frequency equipment, our solutions range from 3KW to 3000KW. Widely applied in machinery manufacturing and automotive parts industries for stable, 24-hour industrial operation.

Factory Testing
Quality Control
Equipment Batch

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a specialized manufacturer integrated with R&D and production, with products exported to over 53 countries.
What kind of quality assurance do you provide?
We provide a 12-month warranty period along with remote technical support to ensure worry-free operation.
How do your products differ from cheaper alternatives?
Our machines use high-quality IGBT modules, branded capacitors, and self-developed high-precision circuit boards to ensure 24-hour industrial stability and a long lifespan.
How do I choose the correct model for my needs?
Please provide your product specifications and processing requirements so we can recommend the most cost-effective and efficient model for you.
Do you support product customization?
Yes, customization is our strength. We can tailor machine configurations and induction coils based on your specific workpiece features.
Is the equipment easy to operate for new users?
Absolutely. The CNC intelligent design requires no complex debugging, and most operators master the controls within 5 minutes.
