Hcx High Frequency Induction Brazing Heater and Melting Machine

Customization: Available
After-sales Service: Installation and Use
Warranty: 1 Year

Product Description

Basic Specifications

Model NO.
2198
Type
Induction Heating Machine
Certification
CE, ISO
Structure
Horizontal Type
Core Components
PLC
Usage
Melting & Heat Treatment
Voltage
220V
Weight (T)
0.023
Specification
Small-sized
Origin
China

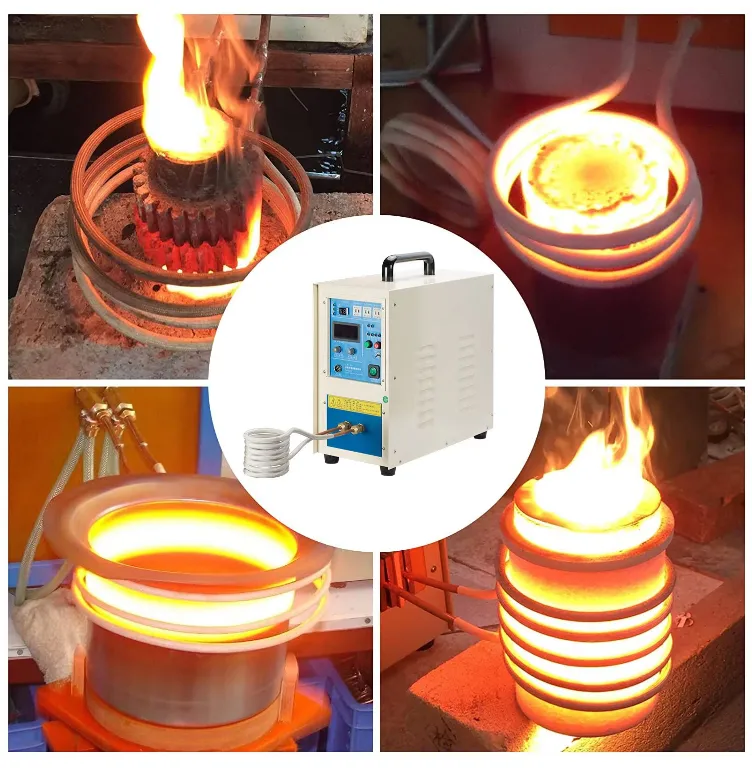

Induction Heating Advantages

Induction Heating Advantage
  • 01
    Rapid Heating: Heats up in under 1 second with adjustable and precise temperature control.
  • 02
    Wide Applications: Suitable for quenching, annealing, brazing, hot forging, and press fitting with custom-made induction coils.
  • 03
    Energy Saving: Over 95% thermal efficiency, consuming 30% less power than traditional methods. Zero emissions and no open flames.
  • 04
    Superior Performance: Uniform surface heating reduces oxidation and minimizes workpiece deformation.
  • 05
    Compact & Portable: Small footprint and lightweight design for easy transport.
  • 06
    Easy Operation: CNC intelligent design; intuitive controls allow mastery within 5 minutes.

Technical Parameters

Model Power Voltage Current Frequency Weight Size (mm)
HCXG-15KW15KW220V34A30-100KHZ25KG510*220*440
HCXG-25KW25KW380V26A30-100KHZ28KG510*220*440

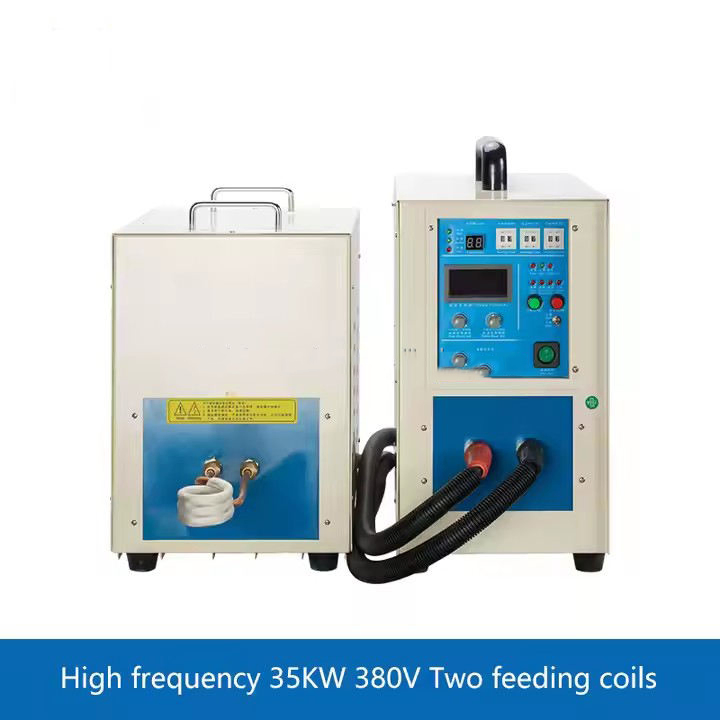

HCXG-35KW35KW380V35A30-80KHZ54KG520*250*480
HCXG-45KW45KW380V55A30-80KHZ60KG580*280*490
HCXY-30~300KW30-300KW380V50-450A10-30khz--
HCXC-6KW6KW220V30A800k-1.1MHZ20KG405*315*155
HCXC-20KW20KW380V18A150-300MHZ30KG460*260*450
We offer extensive customization options to meet your unique requirements and specialized parameters.

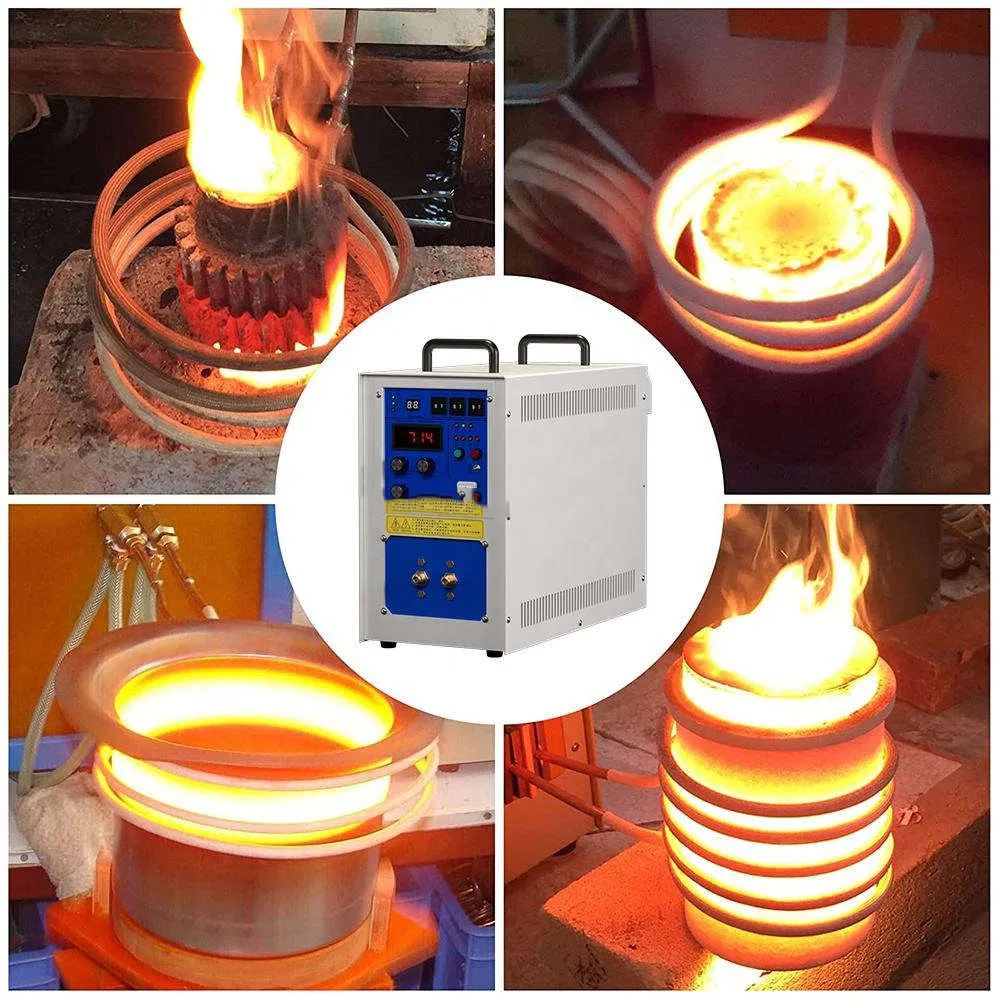

Multi-purpose Applications

Our induction heating machines empower you to effortlessly perform various heat treatment processes, including hardening, annealing, brazing, welding, hot forging, and shrink fitting. With a maximum temperature output of up to 2000℃, your operations will become more efficient and reliable.

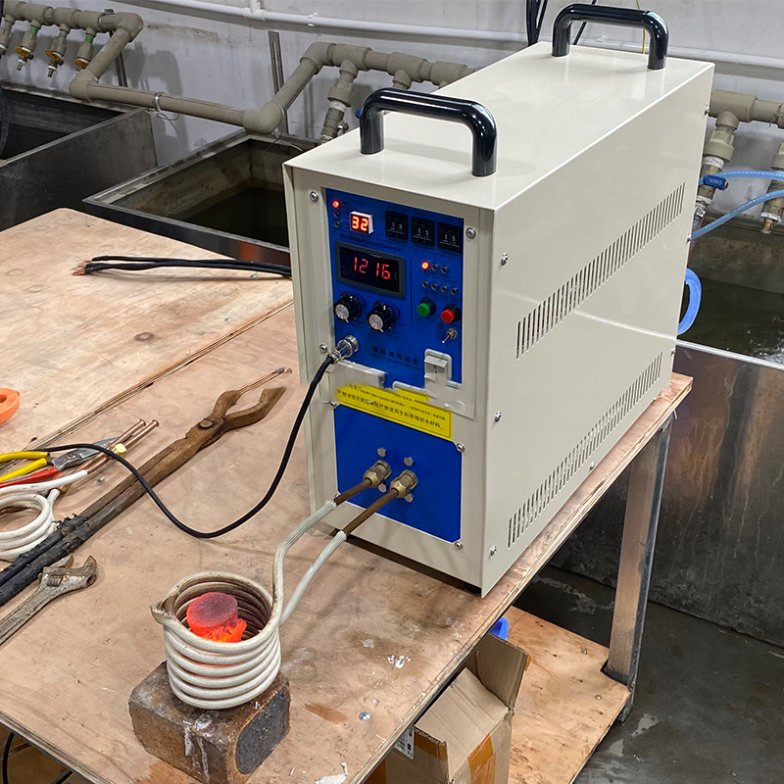

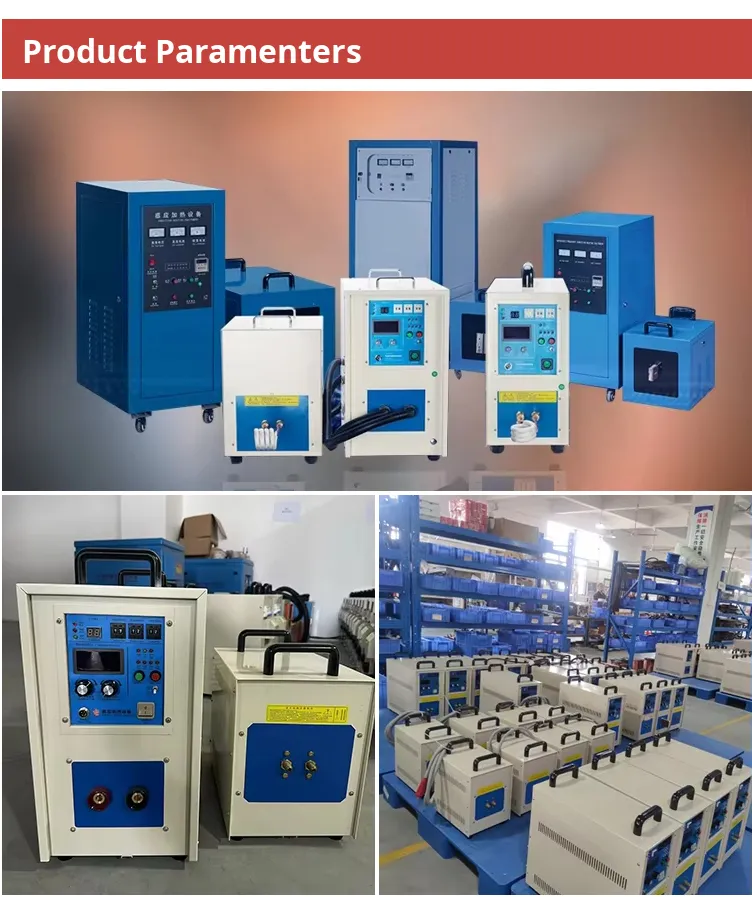

Equipment Detail 1

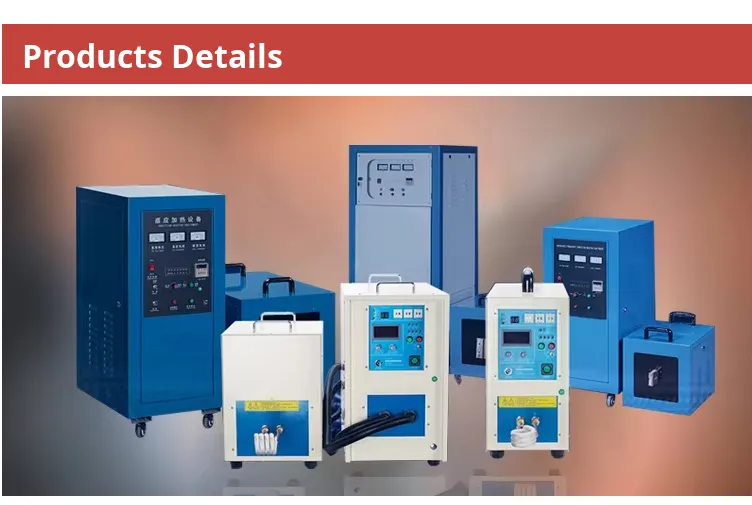

Equipment Detail 2

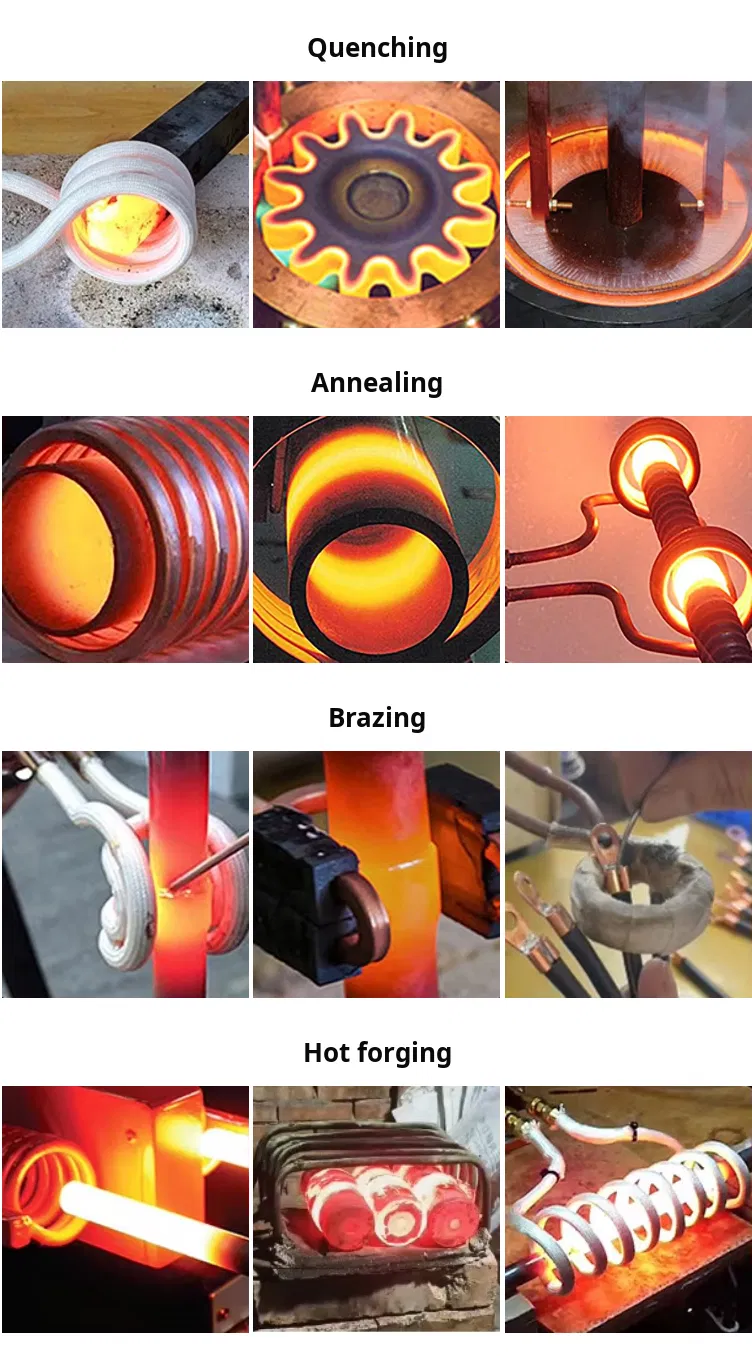

Application 1
Application 2
Application 3

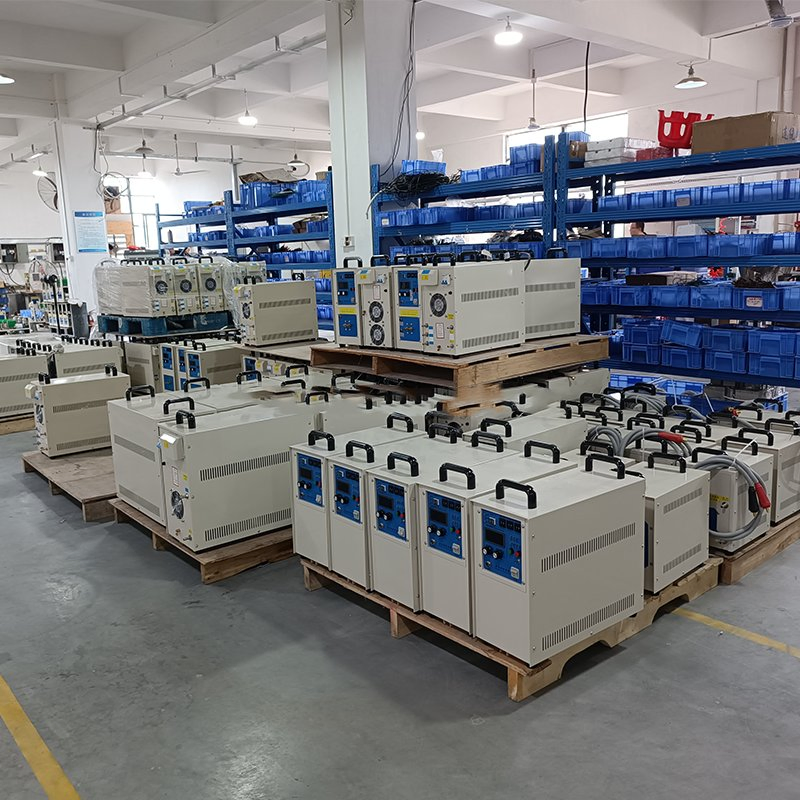

Professional Manufacturing

Specializing in the research, development, and production of induction heating equipment, we offer over 30 types of medium-frequency, high-frequency, and ultra-high-frequency specialized equipment. With power outputs ranging from 3KW to 3000KW, our products are widely applied across diverse industries including machinery manufacturing and automotive parts.

Factory 1
Factory 2
Factory 3

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a professional manufacturer integrated with sales, R&D, and production, with over 15 years of experience exporting to 53 countries.
Do you offer quality assurance and after-sales support?
Yes! We provide a 12-month warranty period. Our products are designed for ease of use, and we offer comprehensive remote technical support.
What are the advantages of your products over cheaper alternatives?
Our machines use high-quality IGBT modules, branded capacitors, and self-developed high-precision circuit boards. This ensures device stability and a long lifespan capable of 24-hour stable industrial operation.
How do I choose the appropriate induction heater?
Please provide your product details and processing requirements. We will recommend the most suitable machine to optimize your performance and minimize costs.
Can you accept customization for specific needs?
Certainly! Customization is our strength. We can tailor machine configurations and induction coils based on your specific workpiece shapes and processing features.
What is the maximum temperature output?
Our induction heating systems can achieve a maximum temperature output of up to 2000℃, depending on the material and configuration.
