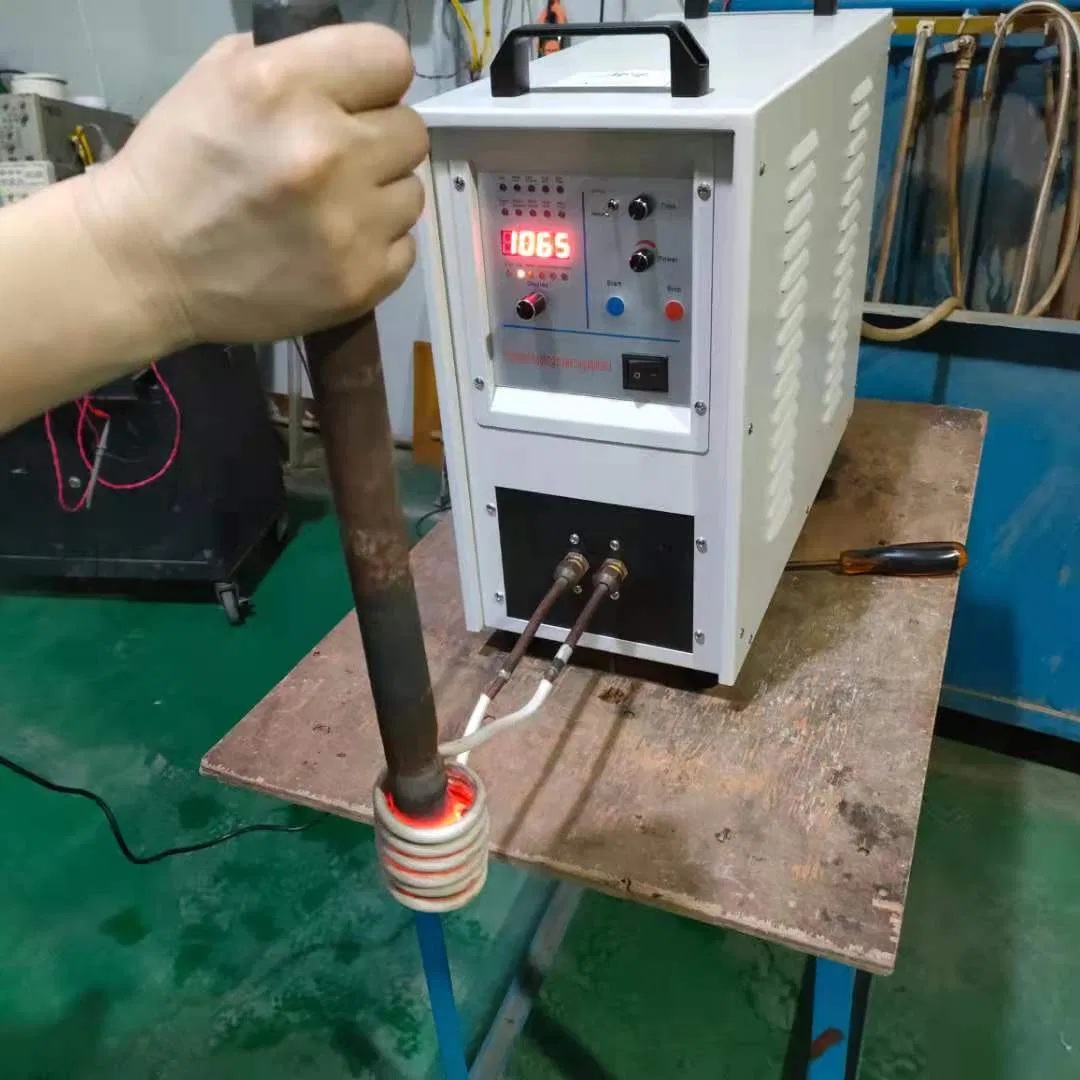

Hf-25kw China Supplier High Frequency Induction Heating Machine for Brazing Copper

1 / 5

Hf-25kw China Supplier High Frequency Induction Heating Machine for Brazing Copper

Customization:	Available
Type:	Induction Heating Machine
Main Use:	Heating, Quenching, Forging, Melting, Welding

Send Inquiry

Product Description

Basic Specifications

Model NO.

HF-25KW

Power

25kw

Frequency

30-80kHz

Heating Time

1-100.9s

Work Voltage

380V - 480V

Product Name

Induction Heating Equipment

Cooling Type

Water Cooling

Certification

CE, ISO

HS Code

8514400090

Production Capacity

10,000 sets

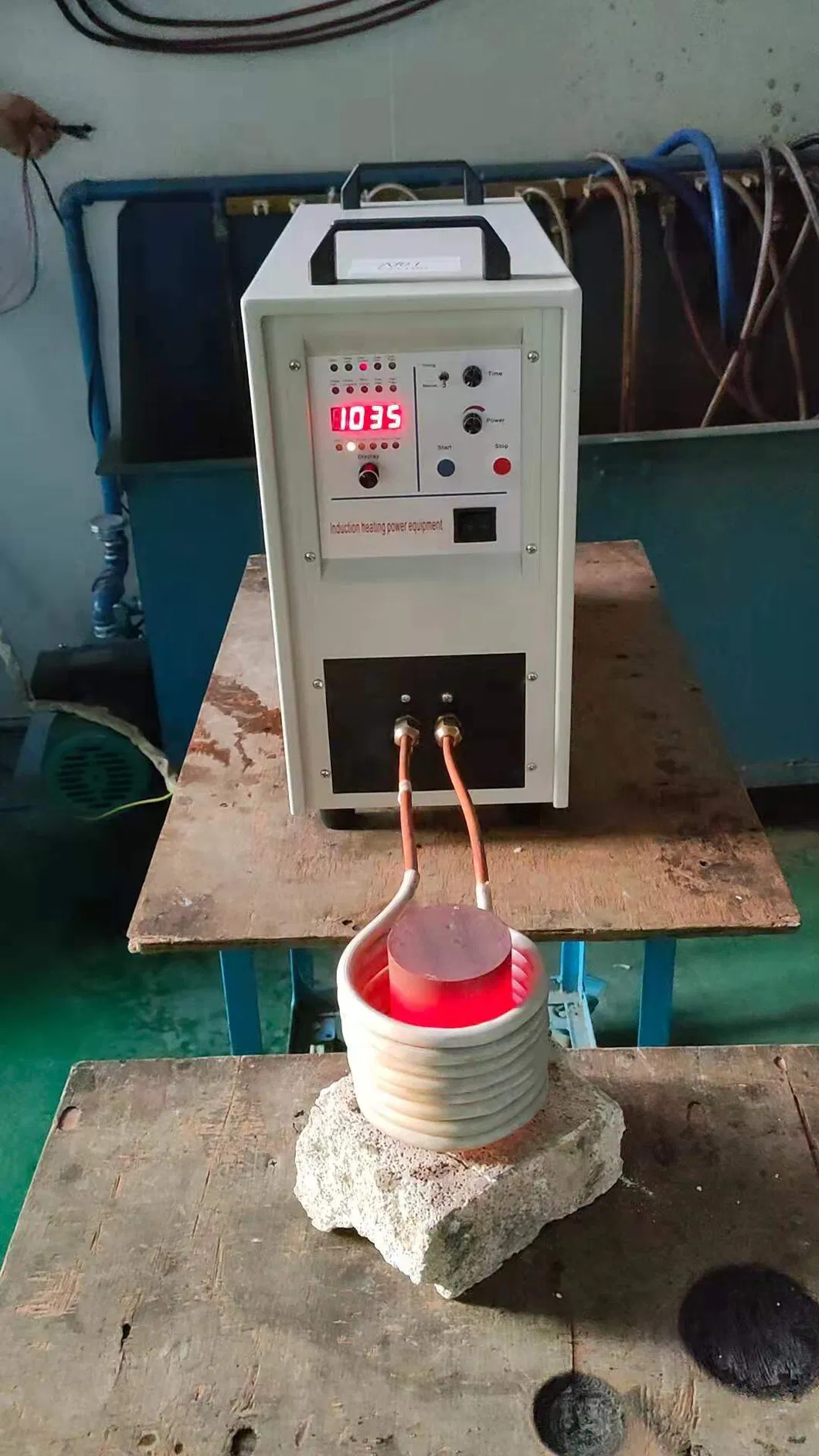

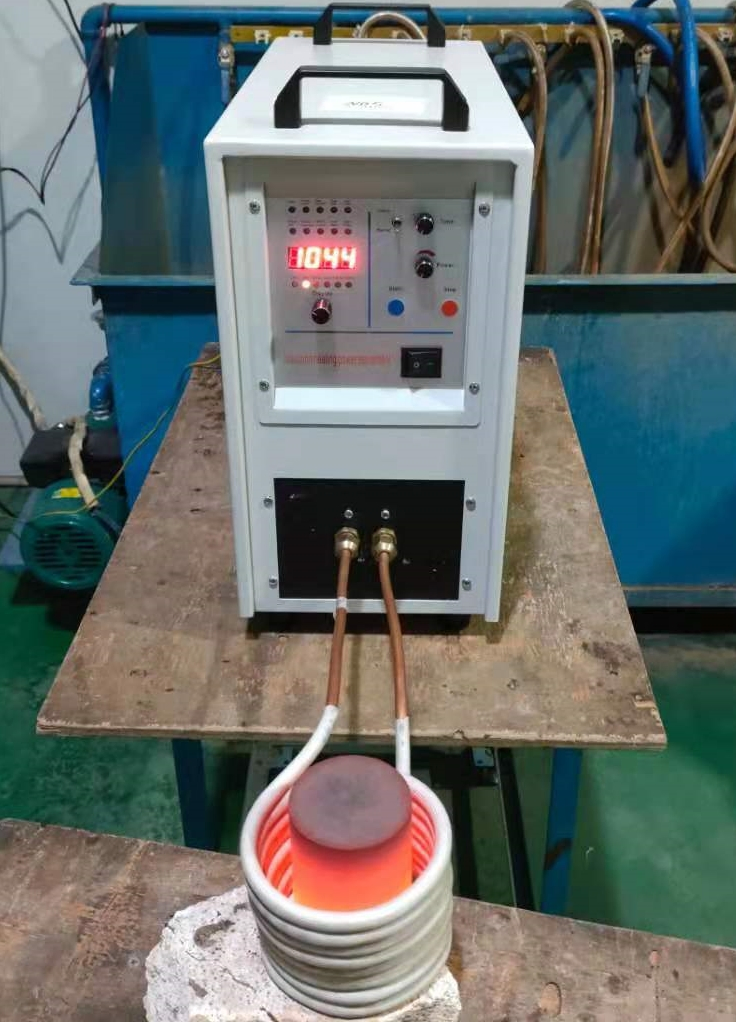

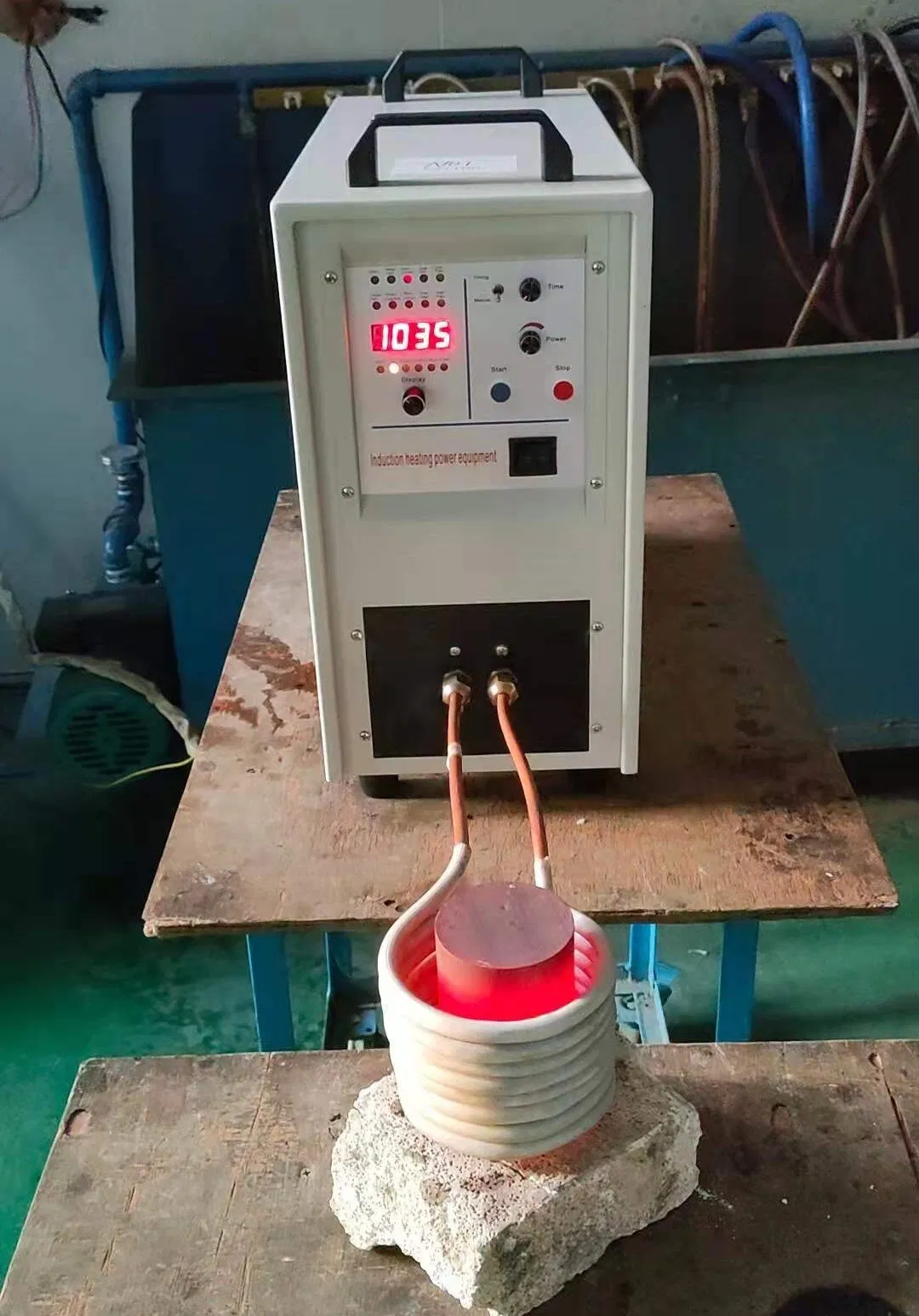

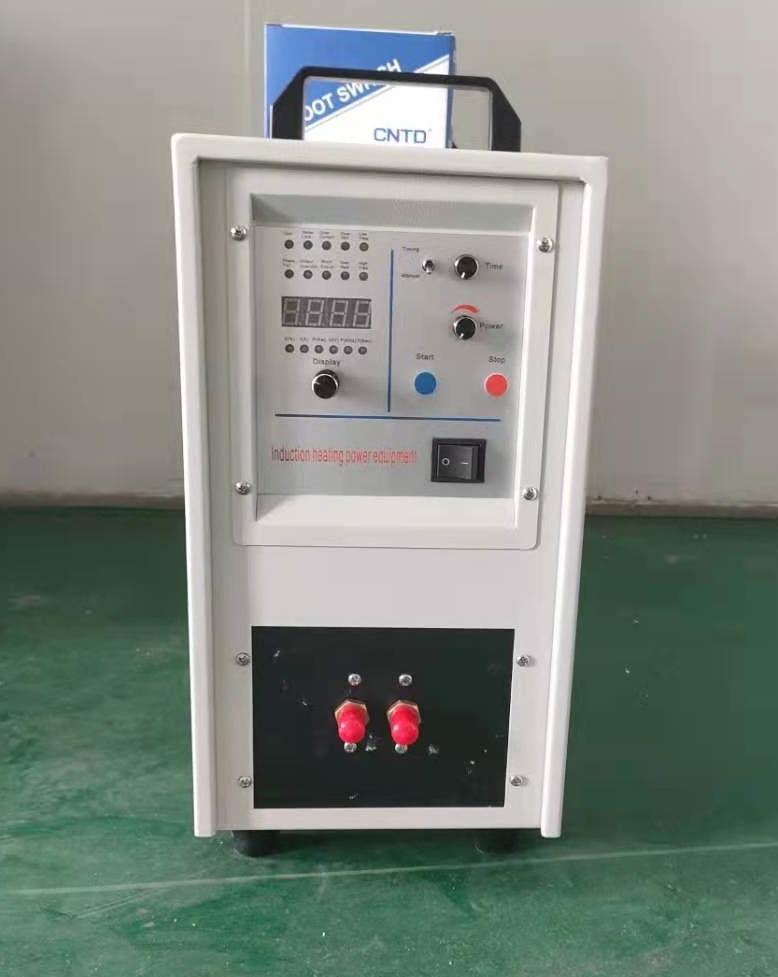

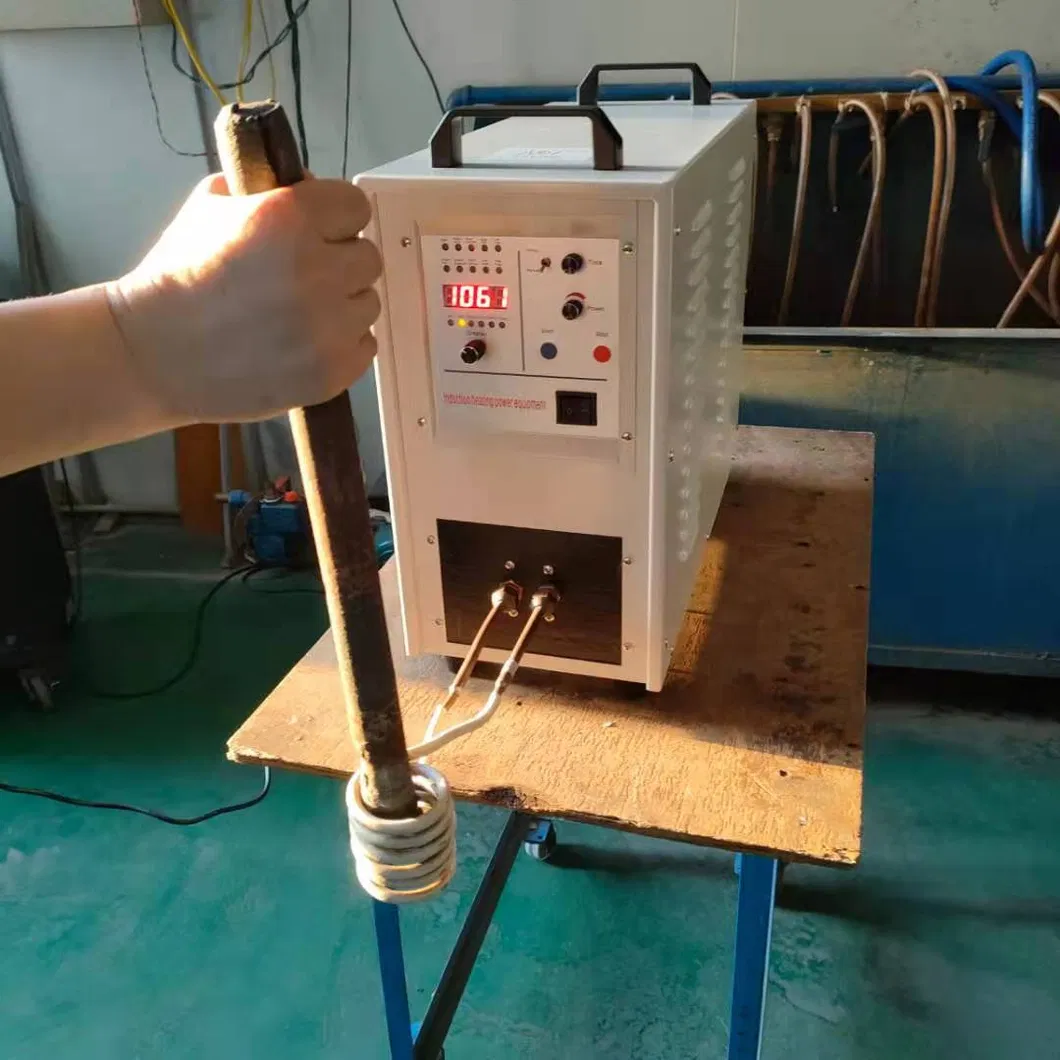

High Frequency Induction Heating Machine HF-25KW

Key Advantages

✓ More than 21 years experience, stable and goods performance
✓ CE certificated
✓ Suitable for a large range: heating, quenching, forging, melting, soldering, etc.
✓ Two transformer ratios to match different induction coil lengths

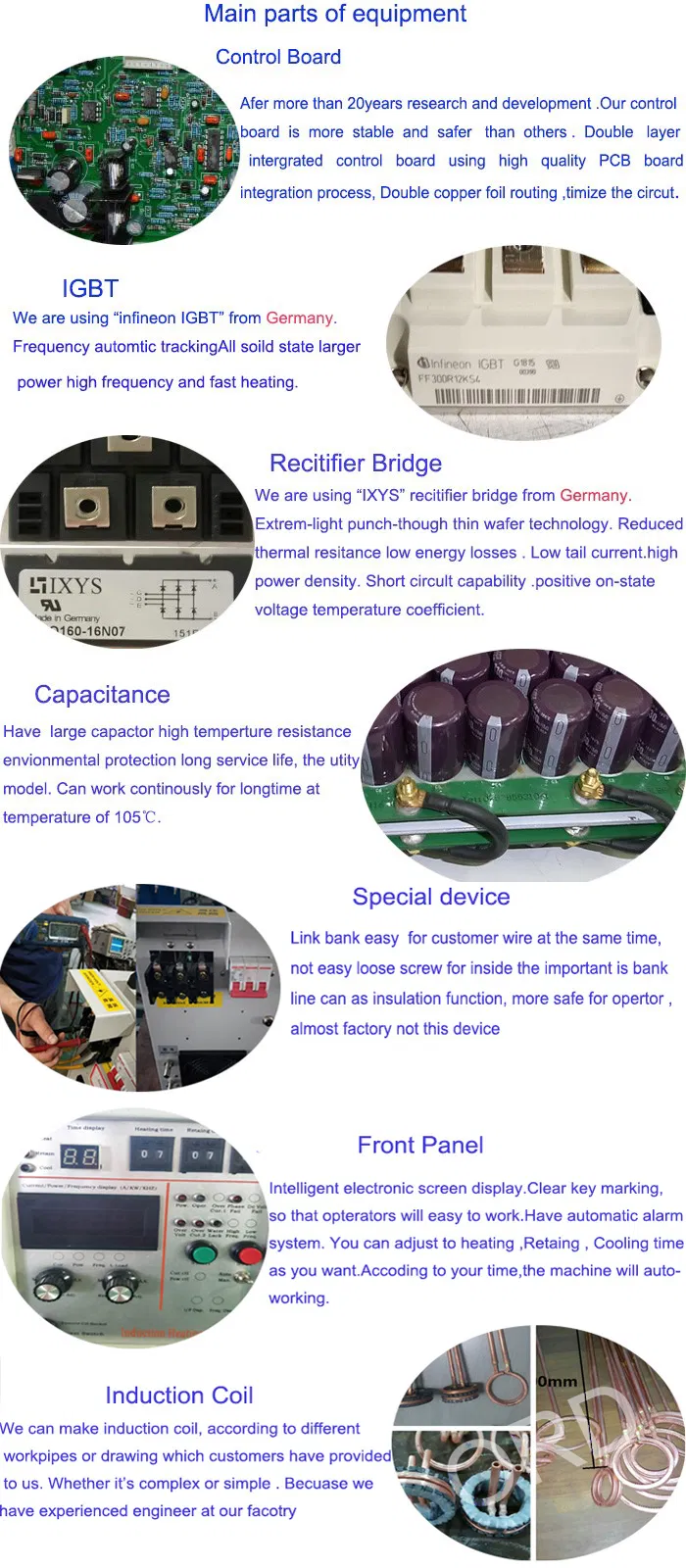

✓ High-quality components: Siemens IGBT, IXYS Bridge, DELIXI Switch

Main Characteristics

✓ Third generation Inverting technologies for high reliability and low maintenance.
✓ 100% Duty cycle: allows continuous working at maximum power output.
✓ Real-time display of heating power, current, and oscillating frequency.
✓ Easy installation: can be performed by non-professionals.
✓ Manual/auto models available with time or temperature control.

Technical Parameters

Type	HF-25KW
Work Power	3*380v/415v/440v/480v 50-60hz
Operating Voltage Range	340-430V AC
Output Power	25KW
Input Current	28A
Fluctuating Frequency	30-80khz
Timing	1-100.9S
Cooling Water Flow Rate	0.15 Mpa 18L/Min
Water Temp Protection	40°C
Duty Cycle	100% (40°C room temperature)
Weight	Main: 38Kg \| Transformer: 25Kg
Size (LWH)	Main: 600350600MM \| Transformer: 550300500MM

Our Service Support

Pre-sale Service

Selection of the most suitable machine based on requirements, inquiry support, sample testing support, and factory visits.

In-sale Service

Strict manufacturing according to technical standards, comprehensive run tests before delivery, and guaranteed on-time shipping.

After-sale Service

Warranty: 18 months from delivery or 12 months from receiving. All non-artificial fault parts are free within the warranty period. We provide lifetime maintenance and spare parts at cost price.

Frequently Asked Questions

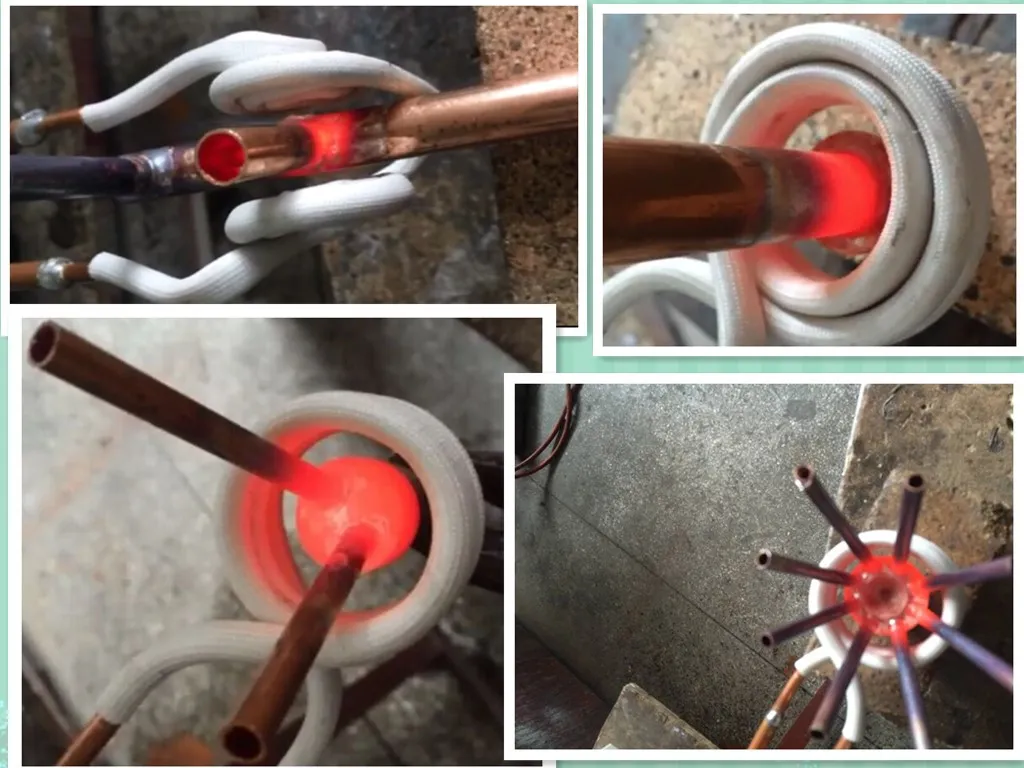

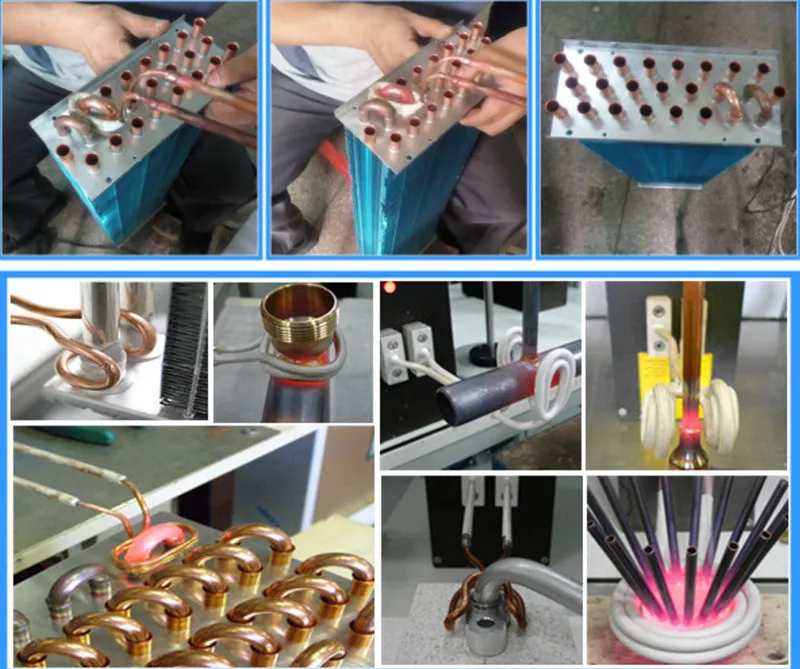

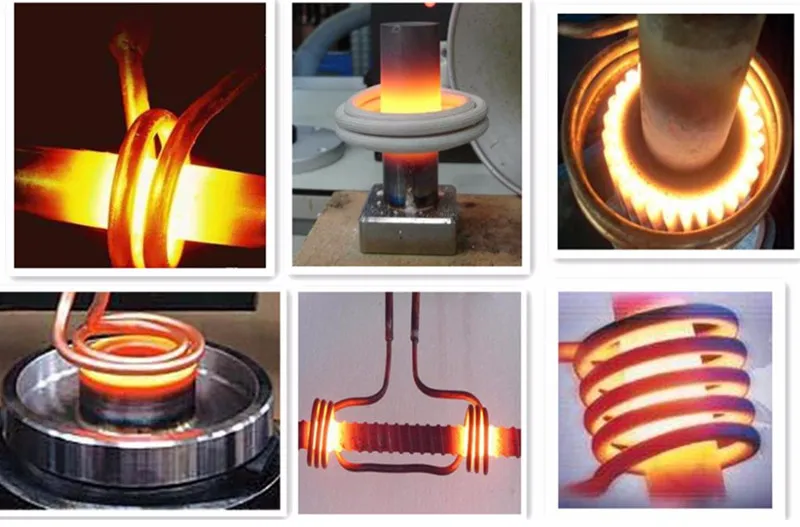

Q1: What are the main applications for the HF-25KW induction heating machine? A1: It is widely used for brazing, heating, forging, quenching, and annealing of various metal parts.

Q2: Can this machine work continuously? A2: Yes, it features a 100% duty cycle, allowing it to work 24 hours a day at maximum power output.

Q3: What kind of cooling does the machine require? A3: The HF-25KW uses a water cooling system with a required flow rate of 18L/Min and a protection point at 40°C.

Q4: Is the installation of the equipment complicated? A4: No, the installation is designed to be simple and can be easily completed by non-professional personnel.

Q5: What is the frequency range of this model? A5: The oscillating frequency ranges from 30kHz to 80kHz, suitable for various industrial heating needs.

Q6: What certifications does this induction heating equipment have? A6: The equipment is fully certified with CE and ISO standards, ensuring high quality and safety.
