Energy-Saving Circular Vibrating Screen for Mining, Mineral, Sand, Gravel, Aggregate, Quarry Production

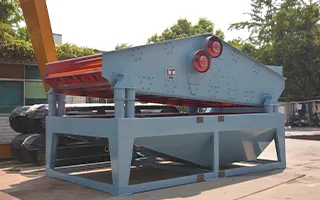

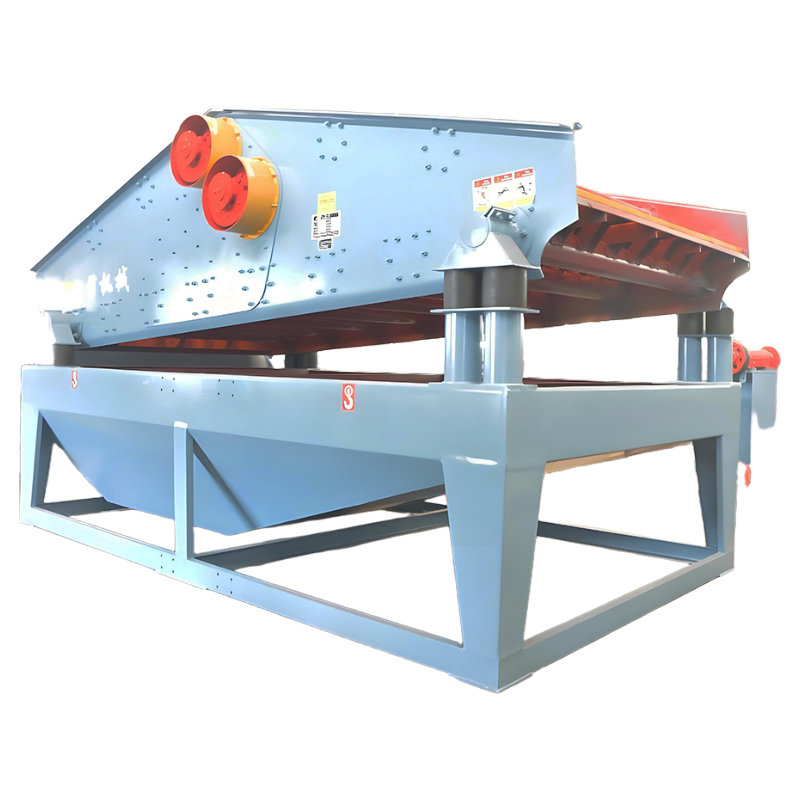

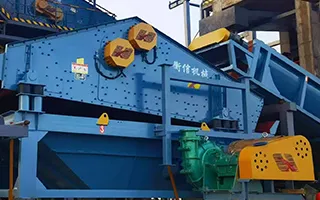

The HXTS series Dewatering Screen is engineered to remove water (or other liquids) from materials in industries like sand production, coal, metallurgy, mining, and recycling. It is ideal for dewatering, desliming, or recovery of medium and fine-grained materials for downstream process or product quality.

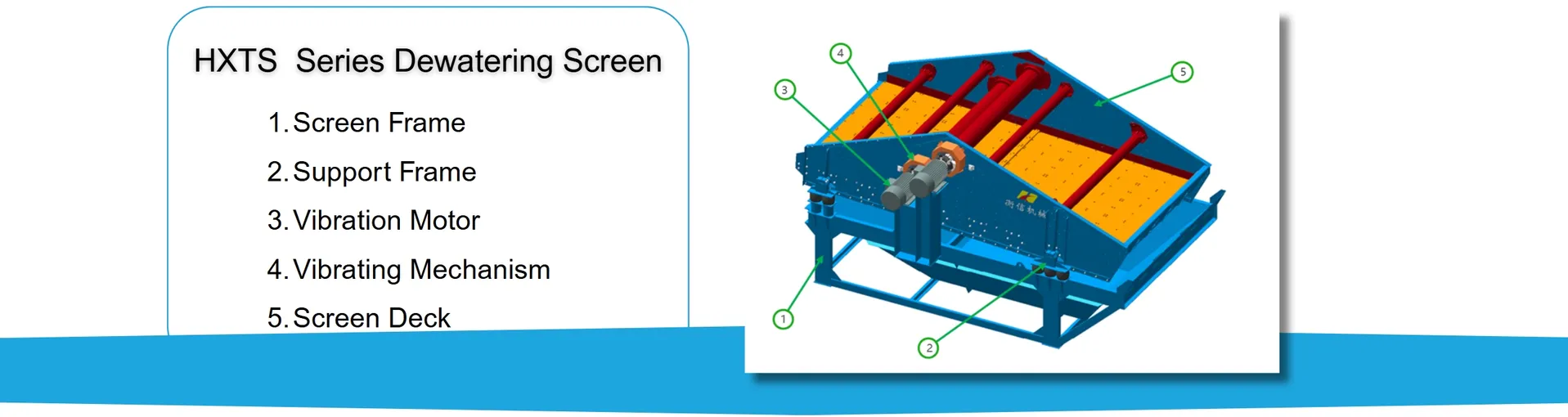

The linear dewatering screen operates based on the principle of self-synchronization. Two identical eccentric blocks rotate in opposite directions, generating a synchronized excitation force. This results in a unidirectional excitation force that drives the screen box to perform a reciprocating linear motion, effectively achieving dewatering and material separation.
| Model | Screen Size (mm) | Inclined Angle | Feeding Size | Amplitude (r/min) | Double Amp (mm) | Capacity (t/h) | Power (kw) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HXTS1830 | 1800*3000 | 0-5 | ≤5mm | 960 | 6.5-9 | 50-100 | 3.7*2 | 6000 |
| HXTS2455 | 2400*5500 | 0-5 | ≤5mm | 980 | 6.5-9 | 80-180 | 11*2 | 8900 |
| HXTS3060 | 3000*6250 | 0-5 | ≤5mm | 980 | 6.5-9 | 100-225 | 18.5*2 | 13700 |
* Note: All parameters are for reference only & subject to change without notice.

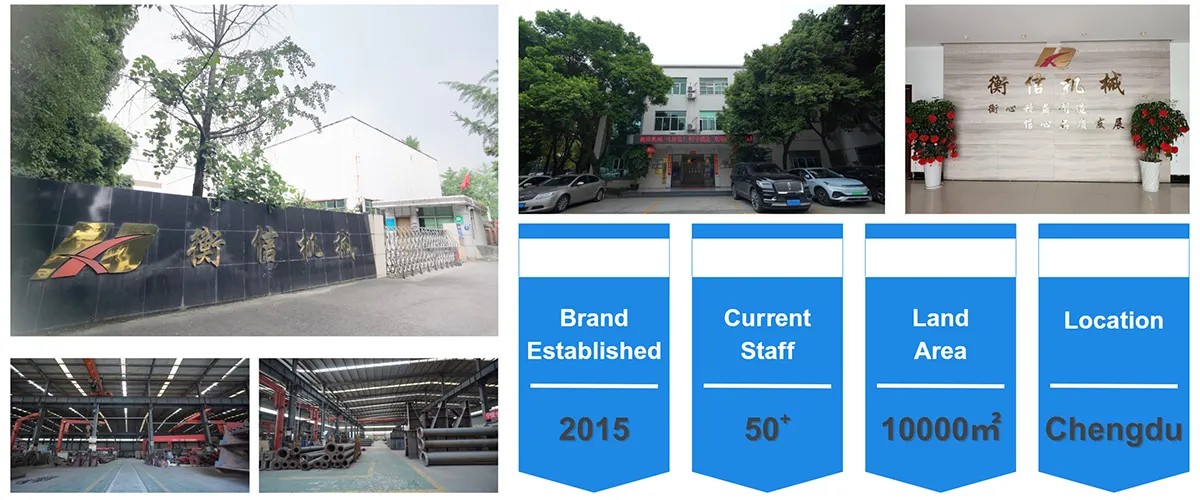

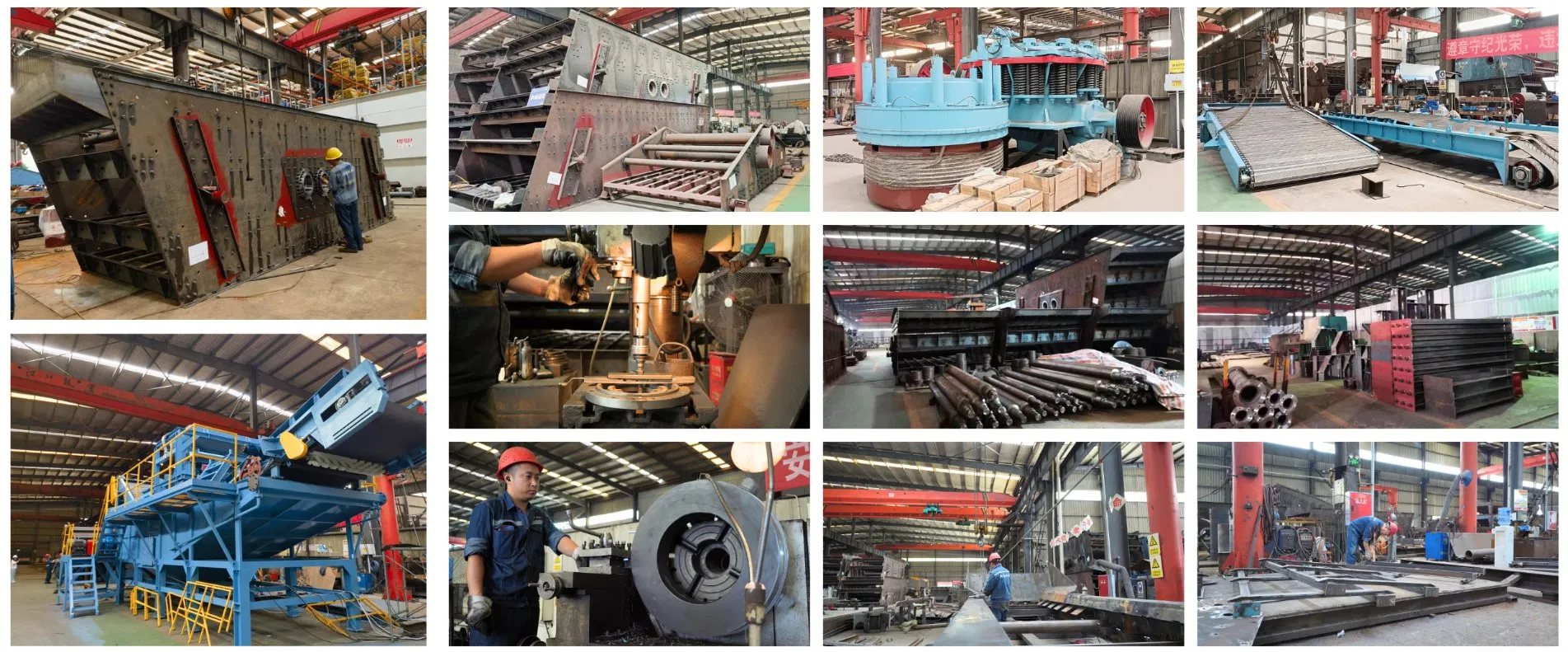

We are a trusted Mining Machinery Manufacturer and System Solution Provider, integrating R&D, design, manufacturing, sales, and after-sales service.
We specialize in Integrated System Solutions, Turnkey Services, and EPC Services for sand and aggregate production. Our equipment range includes vibrating screens, dewatering screens, crushers, sand washers, feeders, and conveyors.
