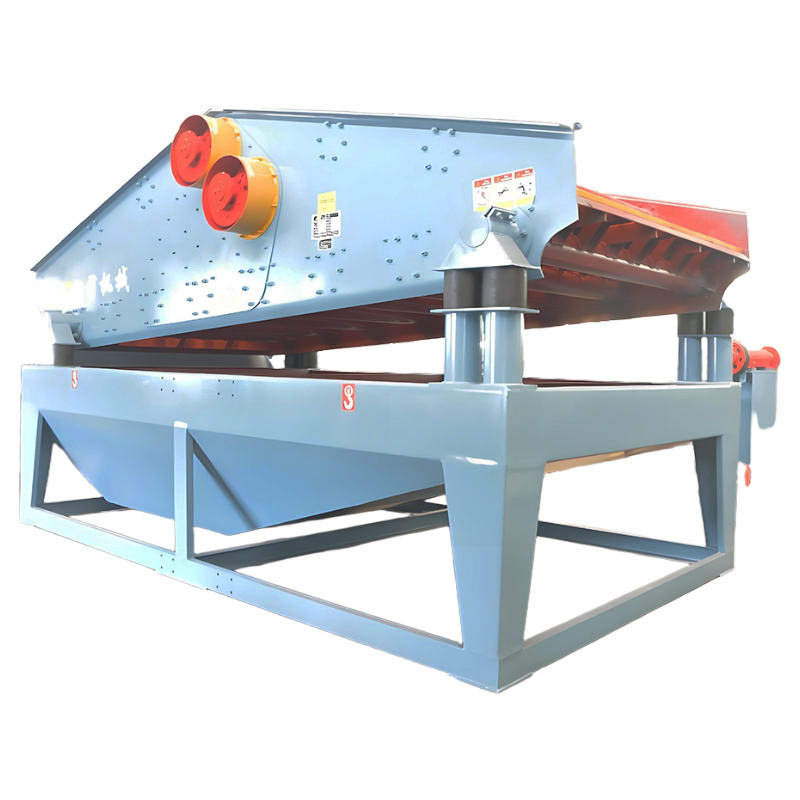

Sand Dewatering Screen Machine Mining Water Removal Equipment
Dewatering Vibrating Screen High-Frequency Screen Tailings Dewatering Slurry Dewatering Mining Screens

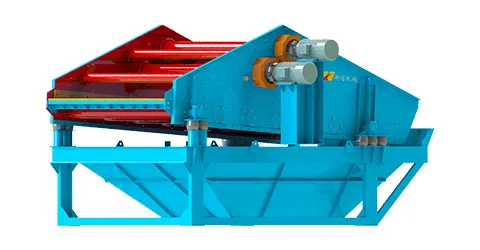

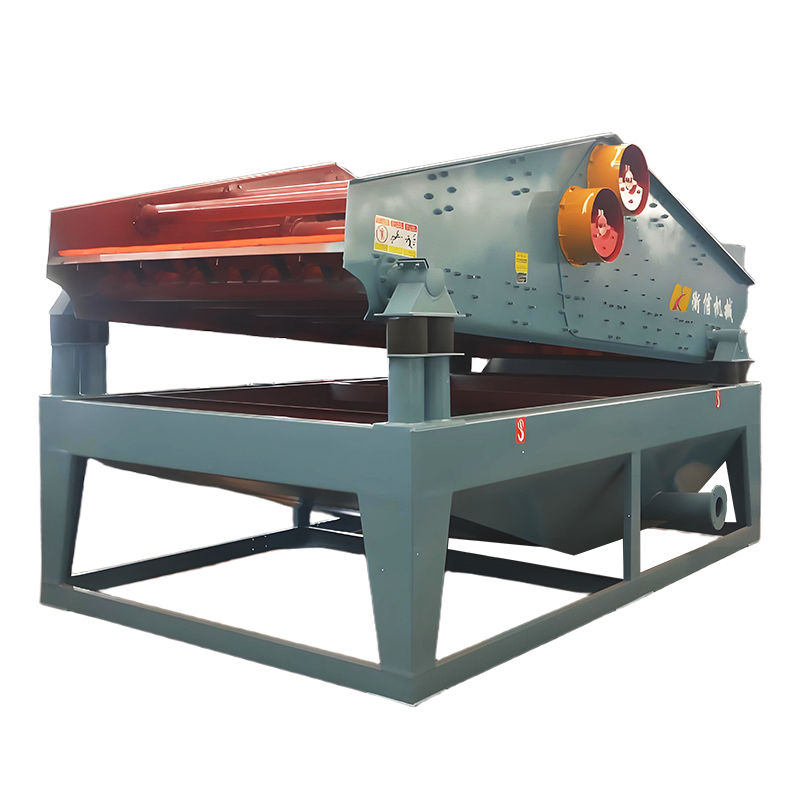

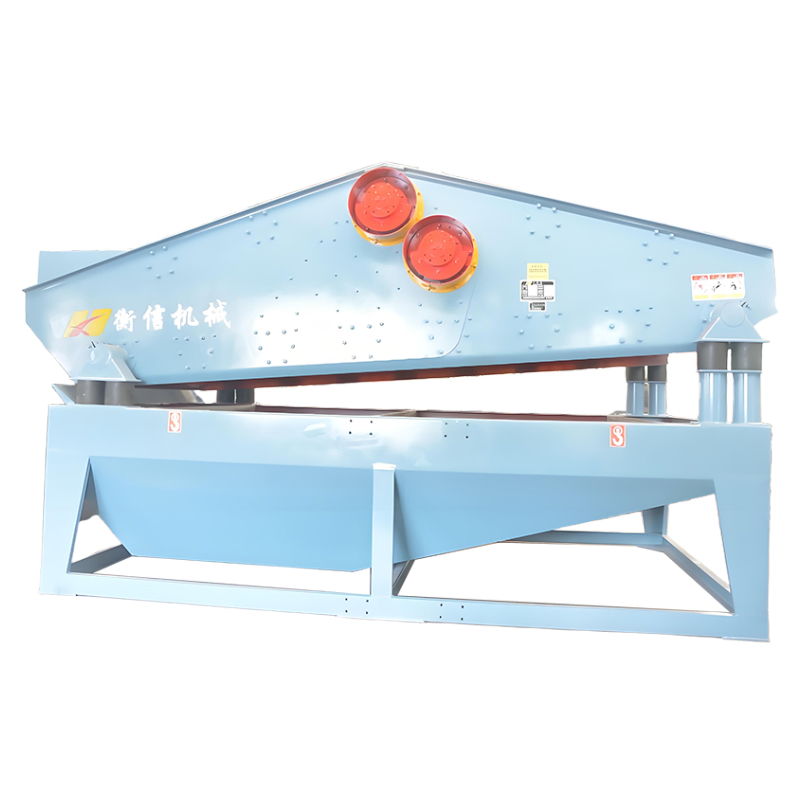

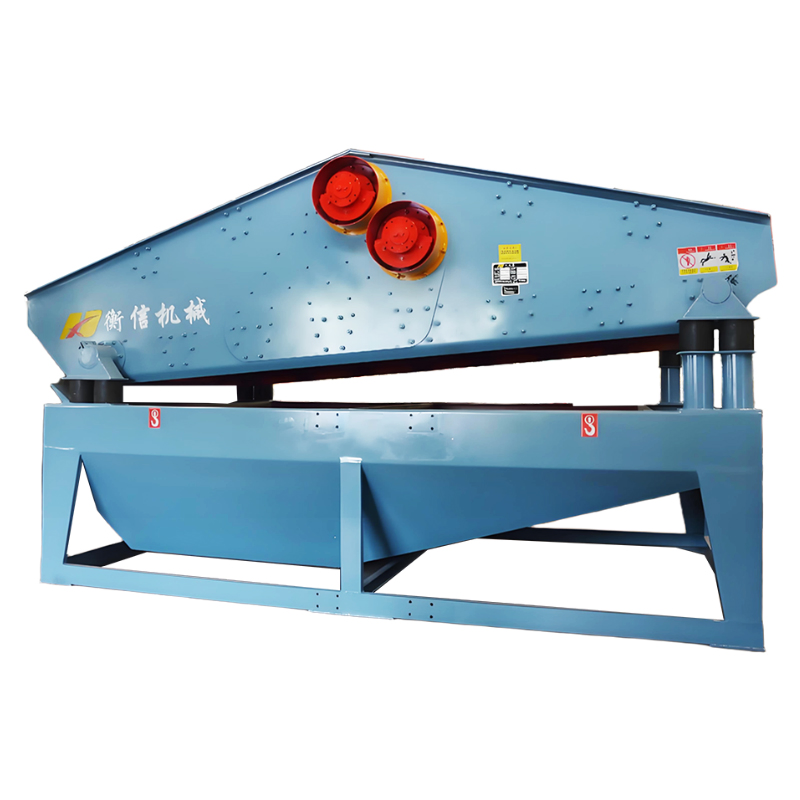

The HXTS Series Dewatering Screen is specifically designed to deliver superior water removal across demanding industries such as sand production, coal, metallurgy, mining, and recycling. Engineered for efficiency, it excels in dewatering, desliming, and fine material recovery, ensuring cleaner output and higher product quality.
| Model | Screen Size (mm) | Inclined Angle | Feeding Size | Amplitude (r/min) | Double Amp (mm) | Capacity (t/h) | Power (kw) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HXTS1830 | 1800*3000 | 0-5 | ≤5mm | 960 | 6.5-9 | 50-100 | 3.7*2 | 6000 |
| HXTS2455 | 2400*5500 | 0-5 | ≤5mm | 980 | 6.5-9 | 80-180 | 11*2 | 8900 |
| HXTS3060 | 3000*6250 | 0-5 | ≤5mm | 980 | 6.5-9 | 100-225 | 18.5*2 | 13700 |
* Note: All parameters are for reference only & subject to change without notice.
Integrated System Solutions: Connect, optimize, and power your operations with smart Integrated System Solutions. We provide turnkey services from concept to operation, delivering projects on time, every time.
Full Supply of Equipment:
