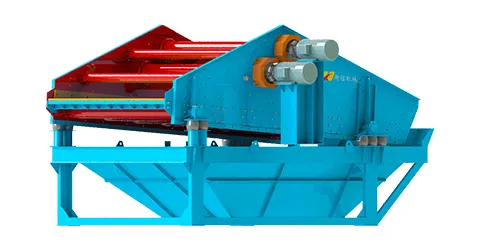

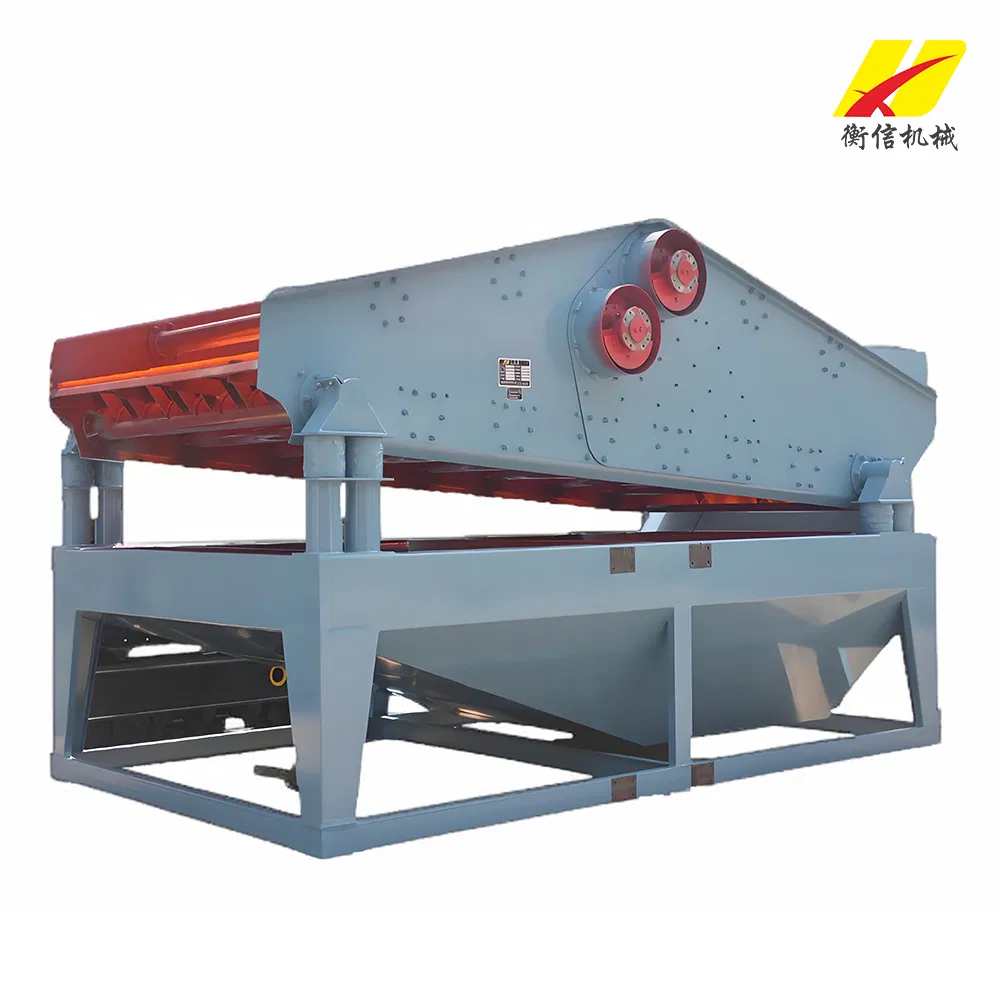

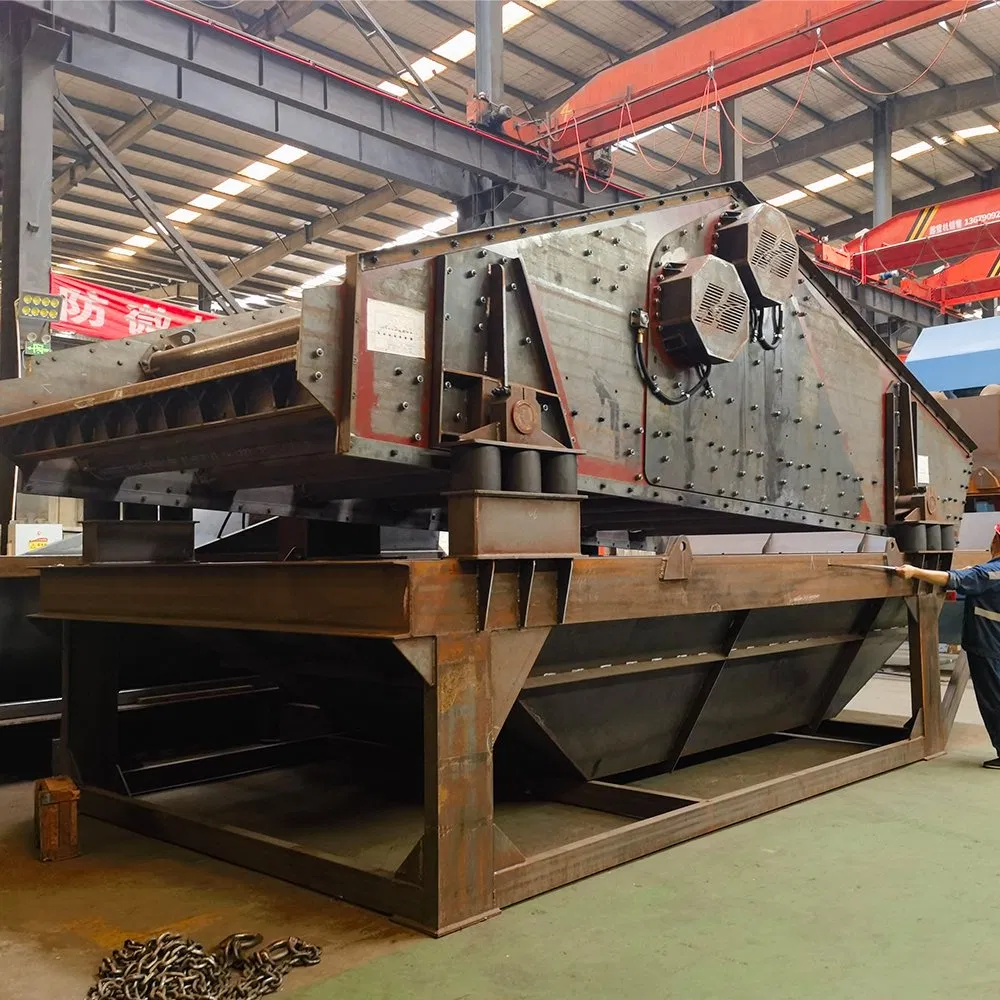

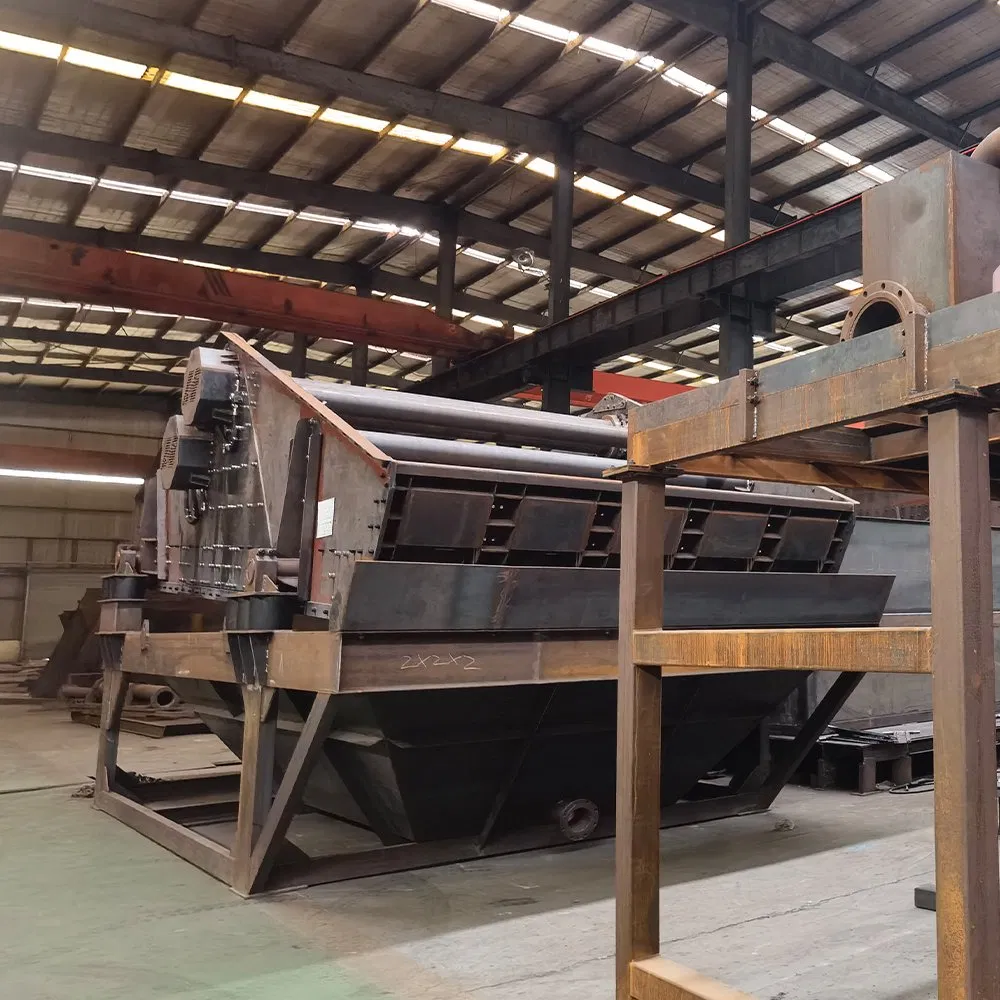

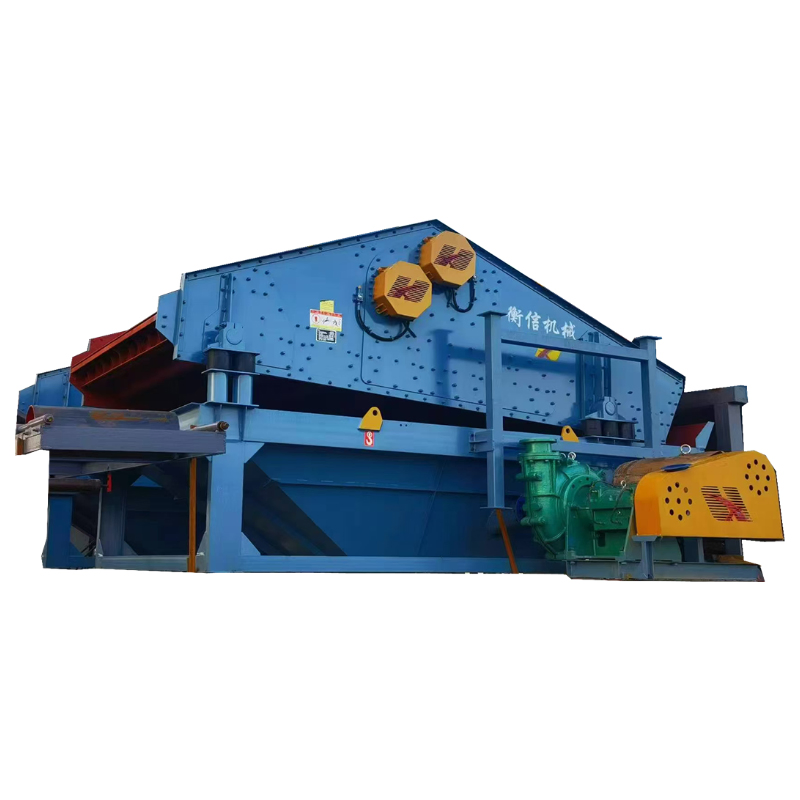

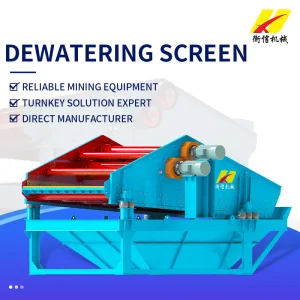

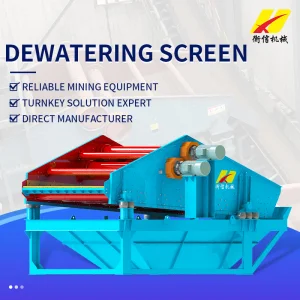

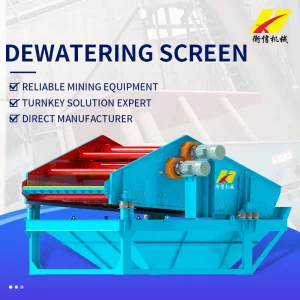

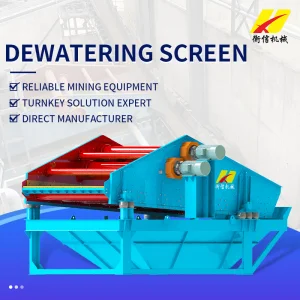

Sand Dewatering Screen Machine Mining Water Removal Equipment
The HXTS Series Dewatering Screen is specifically designed to deliver superior water removal across demanding industries such as sand production, coal, metallurgy, mining, and recycling. Engineered for efficiency, it excels in dewatering, desliming, and fine material recovery, ensuring cleaner output and higher product quality.
Delivers a drier final product, reduces water content for easier handling, and lowers transport costs.
Handles high slurry volumes without overflow, increasing productivity.
Longer service life, reduced downtime, and lower replacement costs.
Advanced motor drive reduces power consumption and lowers operating costs.
| Model | Screen Size (mm) | Inclined Angle | Feeding Size | Amplitude (r/min) | Double Amp (mm) | Capacity (t/h) | Power (kw) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HXTS1830 | 1800*3000 | 0-5° | ≤5mm | 960 | 6.5-9 | 50-100 | 3.7*2 | 6000 |
| HXTS2455 | 2400*5500 | 0-5° | ≤5mm | 980 | 6.5-9 | 80-180 | 11*2 | 8900 |
| HXTS3060 | 3000*6250 | 0-5° | ≤5mm | 980 | 6.5-9 | 100-225 | 18.5*2 | 13700 |
Note: All parameters are for reference only and subject to change without notice.
