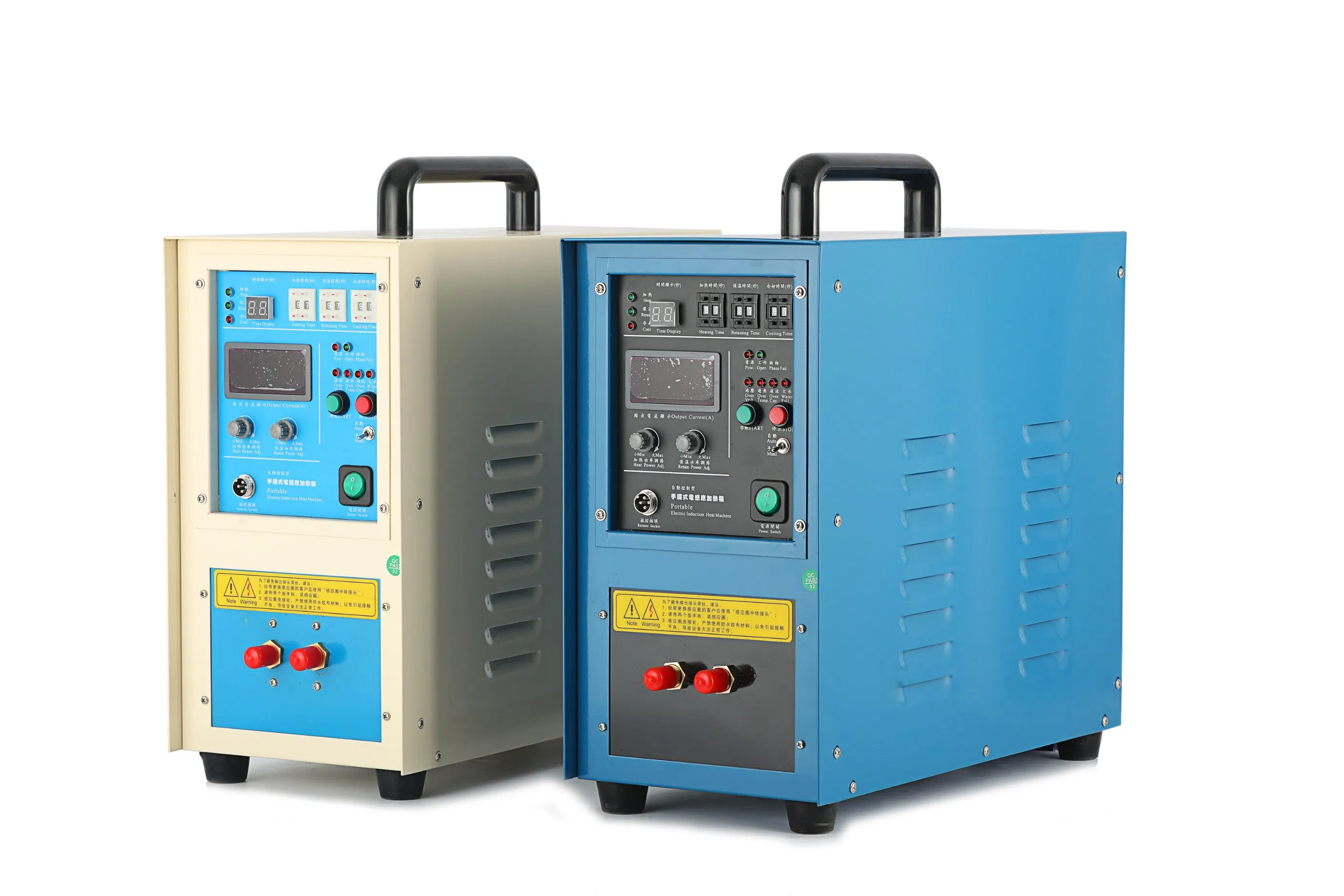

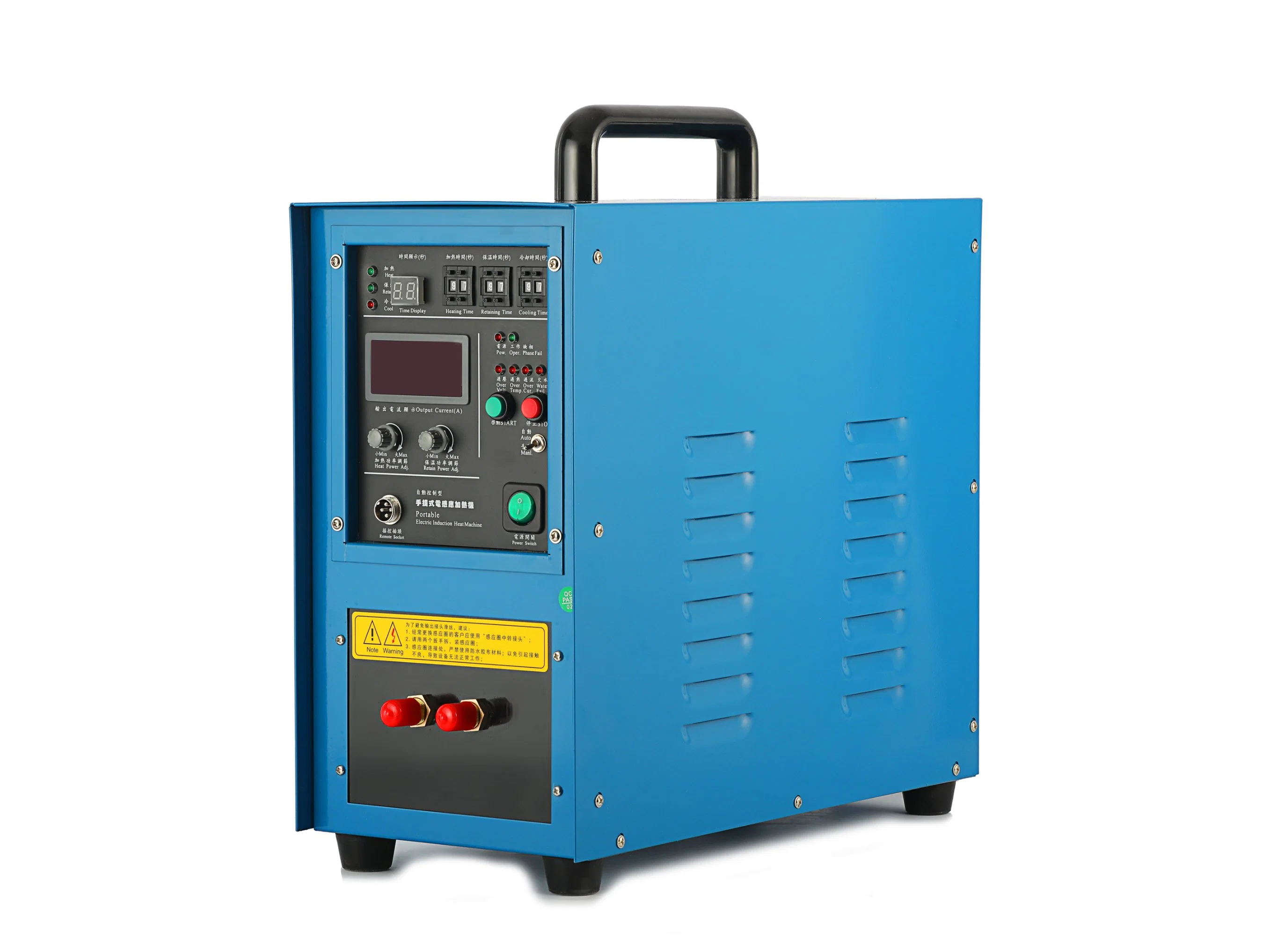

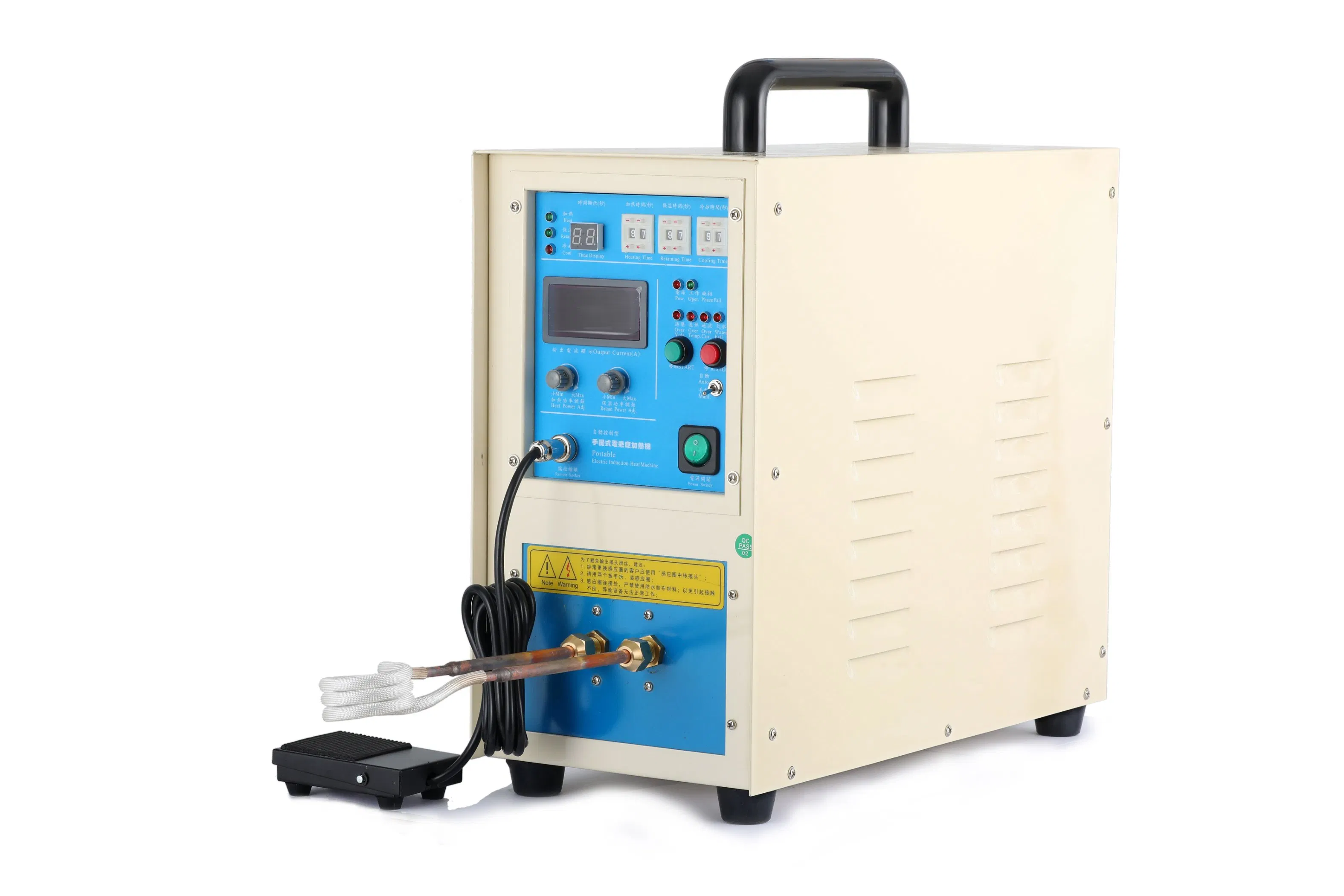

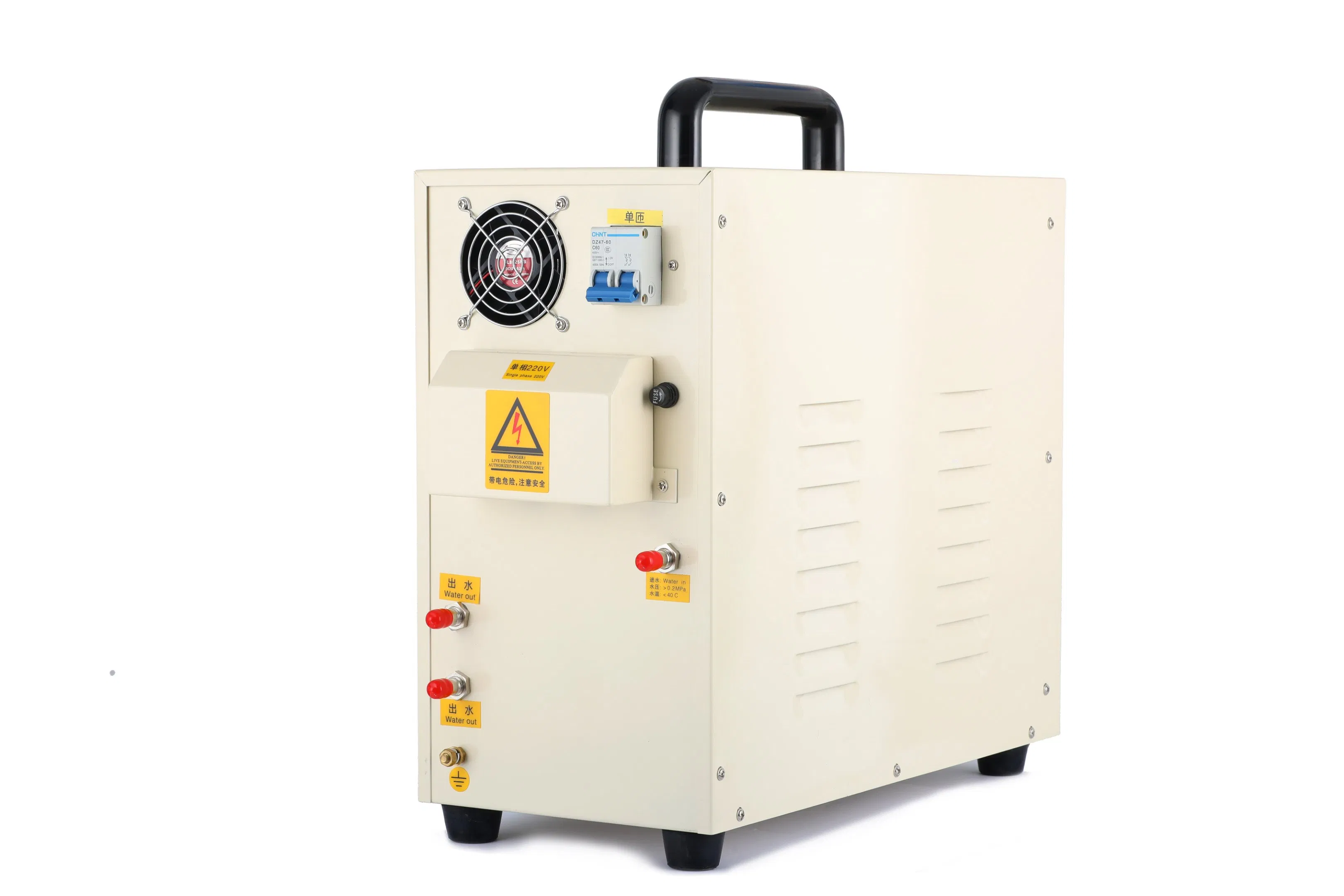

High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
1 / 5
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder
High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder

High Frequency Induction Heating Brazing Machine / Moveable Portable Induction Head/Welder

Customization: Available
Control: Semi-Automatic
Cooling Way: Water Cooling
Send Inquiry

Product Description

Basic Info

Style
Fixed
Electrode Stroke
Vertical
Electric Current
DC Shock Wave
Conductive Way
One-Sided
Welding Spot Number
Multiple
Type
Special
Customize
Can Made as Customers'requests
Transport Package
Plywood Case
Specification
Customized
Trademark
GZhoulong
Origin
China
HS Code
8515219900
Production Capacity
5000PCS/Year

High Frequency Induction Heating Brazing Machine

1Portable: Integrated transformer saves 80% space and 75% weight, monolithic shell design for flexibility and acid/alkali resistance.
2Complex Metallic Heating: Uses amorphous magnetic core for wider frequency range, ideal for irregular shaped workpieces.
3Efficient & Intelligent: 8s heating speed, ideal for copper pipe welding in air conditioning/refrigerator industries.

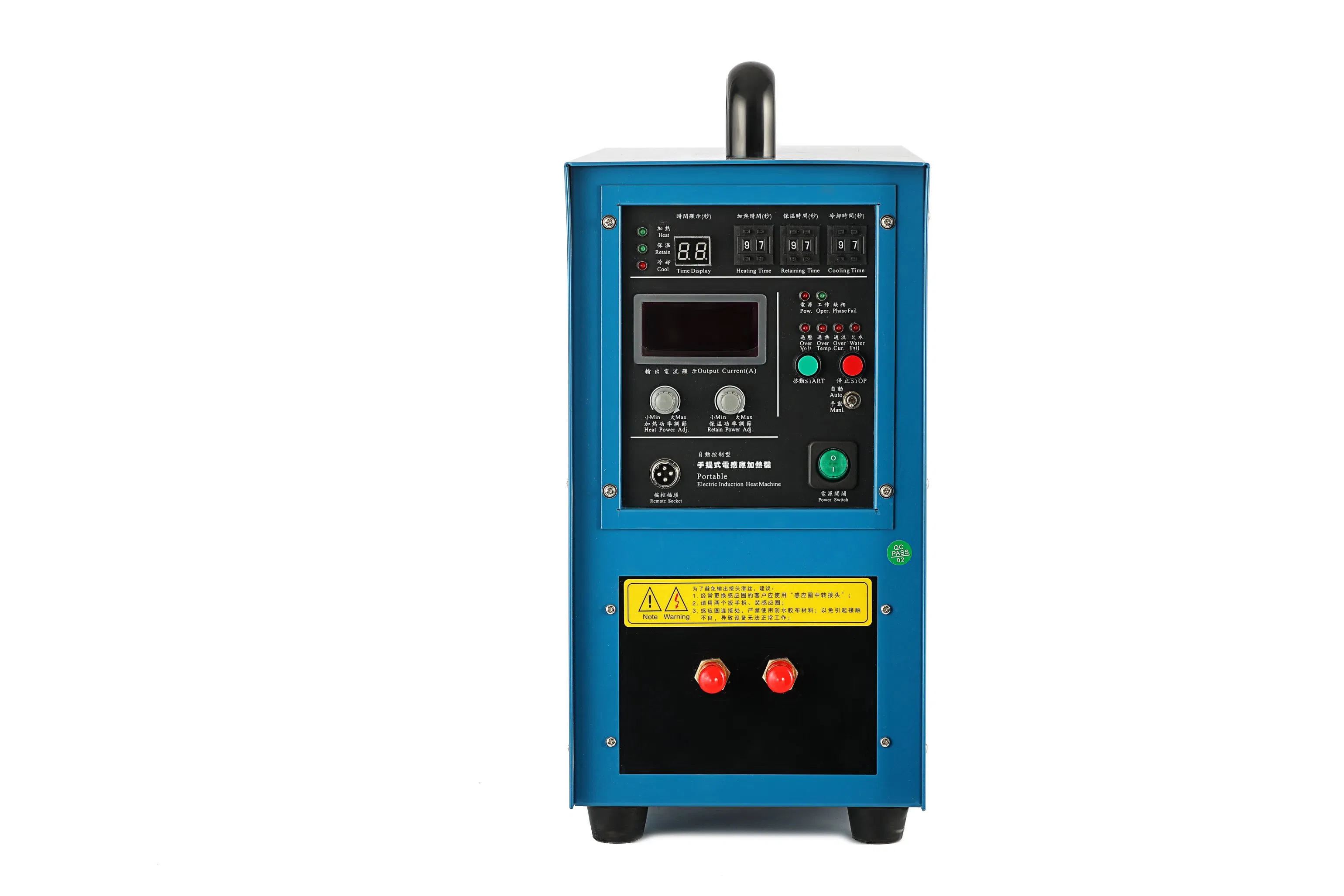

4Operating Interface: Clear digital display for intuitive control and production monitoring.
5Safe & Durable: Separation of water and electricity design, oscillation voltage up to 3000v for maximum safety.
6Cold Water Machine: Precise temperature control with high cooling efficiency and low noise vibration.

Application Range

Hot Forging
Thermal Coordination
Smelting
Surface Quenching
Silver Welding
Copper Welding
Annealing
Tempered

Technical Parameters

Model Input Voltage Output Power Max Input Current Frequency Handed Length Water Pressure Head Weight
GYT-15AB-1P-2220V 50KHZ15KW35A30-80HZ5 m0.15-0.3Mpa2KG
GYT-25AB-2P-2220V 50KHZ25KW25A30-80HZWithin 5 m0.15-0.3Mpa2KG
GYT-25AB-2P-4.5380V 50KHZ25KW25A30-80HZWithin 5 m0.15-0.3Mpa4.5KG
GYT-30AB-2P-4.5380V 50KHZ30KW32A30-80KHZWithin 5 m0.15-0.3Mpa4.5KG
GYT-30AB-3P-4.5380V 50KHZ30KW32A30-80KHZWithin 5 m0.15-0.3Mpa4.5KG
GYT-30AB-3P-6.5380V 50KHZ30KW32A30-80KHZWithin 5 m0.15-0.3Mpa6.5KG
GYT-40AB-3P-6.5380V 50KHZ40KW40A30-80KHZWithin 5 m0.15-0.3Mpa6.5KG
GYT-60AB-5P-10380V 50KHZ60KW60A30-80KHZWithin 5 m0.15-0.3Mpa10KG

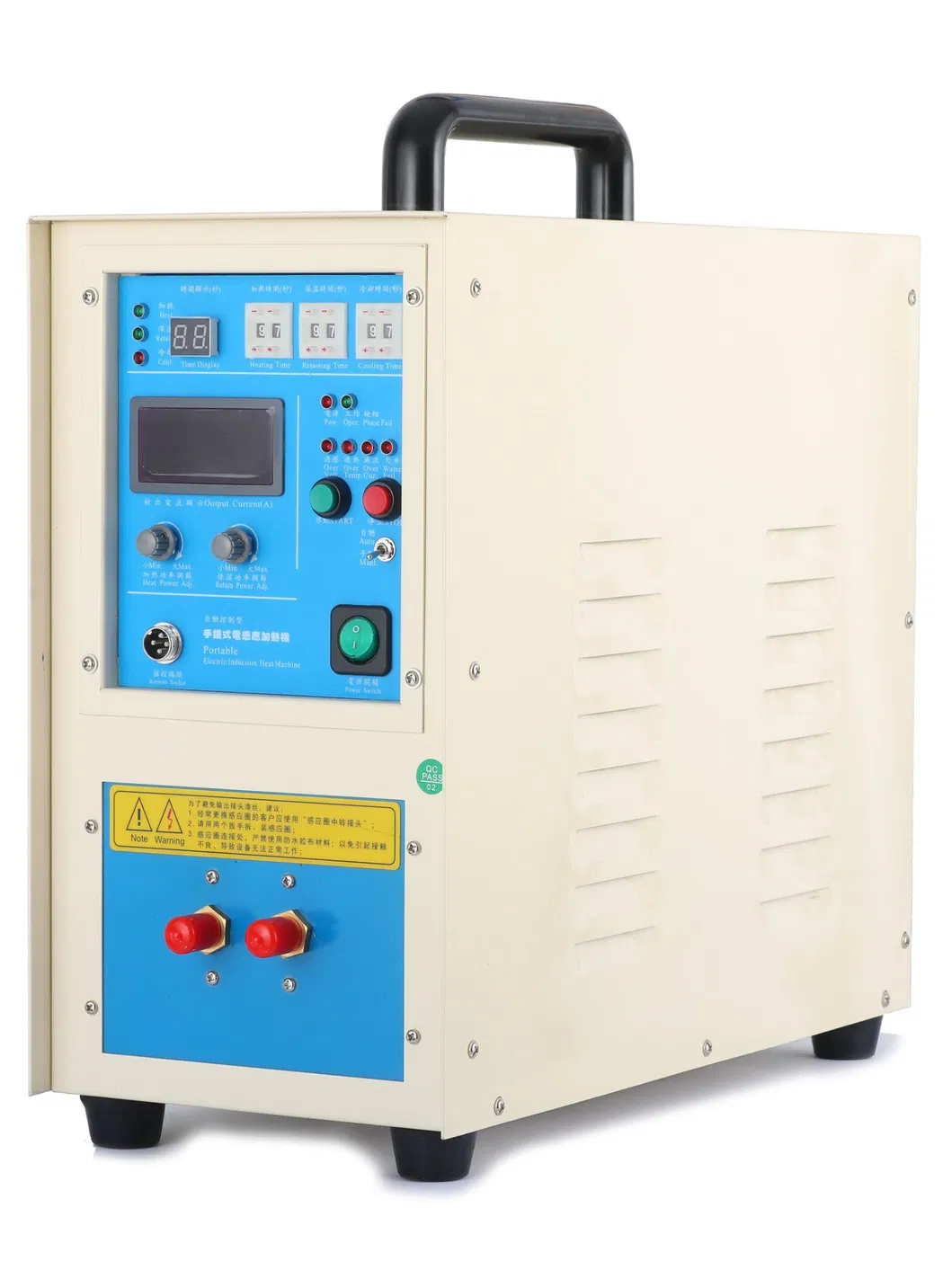

Induction Heating Machine Portable Induction Head Welding Process Equipment Detail Control Panel Water Cooling System Main Machine Unit

Frequently Asked Questions

What are the main advantages of a portable induction heating head?
The portable head is integrated with a traditional transformer, saving over 80% of space and 75% of weight, allowing for high flexibility in complex heating tasks.
How fast can the machine heat workpieces?
The machine features high-speed heating, reaching optimal temperatures in as little as 8 seconds, making it ideal for high-volume production.
Is the equipment safe to use around water?
Yes, the machine uses an advanced water and electricity separation design to ensure safe operation, even with oscillation voltages up to 3000v.
Can this machine heat irregular-shaped workpieces?
Absolutely. The handheld head utilizes amorphous magnetic core materials, which provide a wider frequency range suitable for complex and irregular shapes.
What cooling system is required?
It requires a cold water machine with environmental protection refrigerant to accurately control the equipment's temperature and ensure long-term stability.
What industries is this machine best suited for?
It is highly recommended for the air conditioning and refrigerator industries for copper pipe welding, as well as for quenching, annealing, and smelting.
