Equipment Usage: Mainly used for cutting low-carbon steel, stainless steel, aluminum-magnesium alloy, titanium alloy, high-temperature alloy, and other metal materials.
| Material | Thickness (mm) | Speed (m/min) | Gas | Nozzle Type | Effect |
|---|---|---|---|---|---|
| Carbon Steel (Q235B) | 1 | 32~35 | N2 | Single: 1.0 | Glossy |
| 2 | 9~10 | N2 | Single: 1.5 | ||
| 3 | 2.9~3.2 | O2 | Double: 1.0 | ||
| 4 | 2.4~2.6 | O2 | Double: 1.0 | ||
| Stainless Steel (SUS304) | 1 | 32~35 | N2 | Single: 1.0 | No Residue |
| 2 | 9~10 | N2 | Single: 1.5 | ||
| 3 | 4.2~4.5 | N2 | Single: 2.0 |
Note: Data is for reference only. Differences in machine tools, water cooling, environment, and gas pressure may affect actual results.

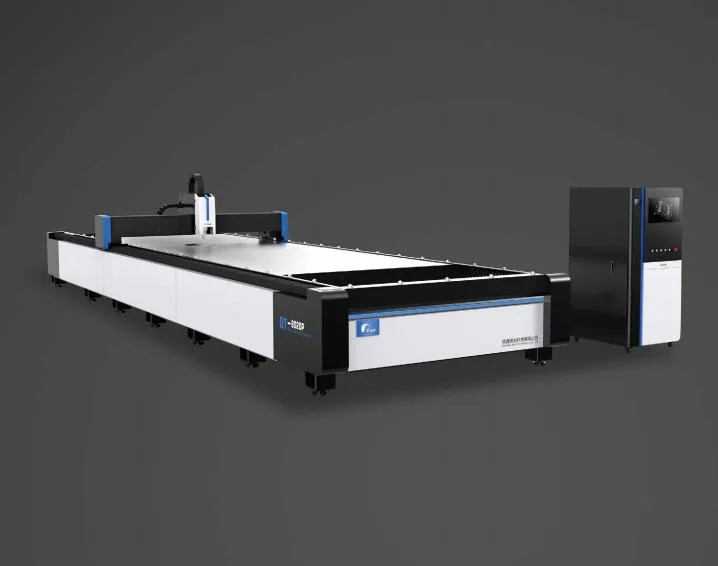

1. Fiber Laser Cutting Machine Host: Composed of the bed, beam, Z-axis device, and operation control part.
2. Machine Body: Integral welded structure of square tubes, treated with secondary vibration aging for maximum stability. Equipped with high-torque servo motors and precision linear guides.
3. Beam Part: Made of lightweight aluminum alloy with excellent dynamic performance, ensuring rigidity and stability.
4. Z-axis Unit: Features a capacitive sensor for real-time distance tracking between the nozzle and the plate to ensure consistent cutting quality.
5. Air & Water System: Dual-part air path for cutting and auxiliary gases; high-efficiency water cooling cycle for both the laser source and cutting head.
