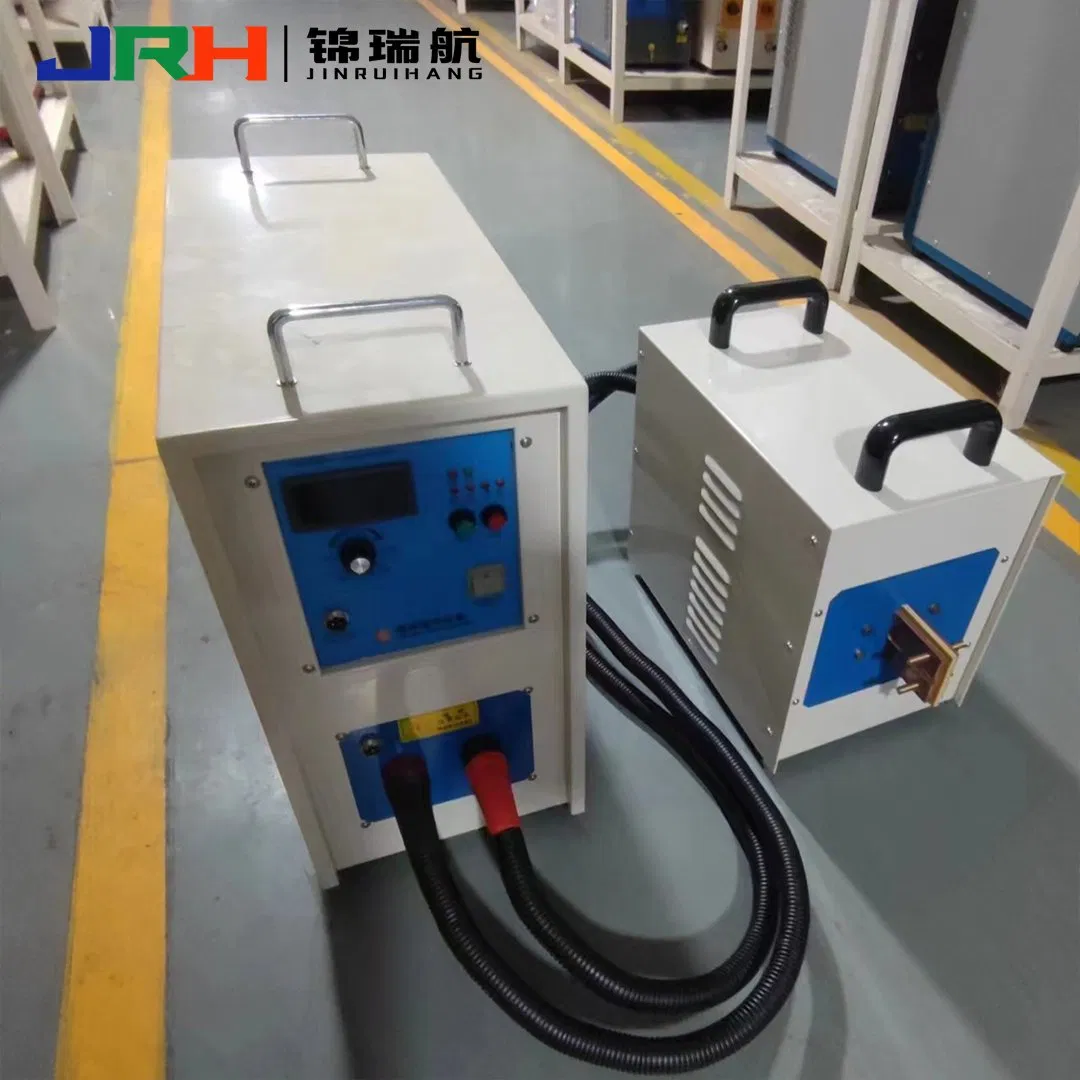

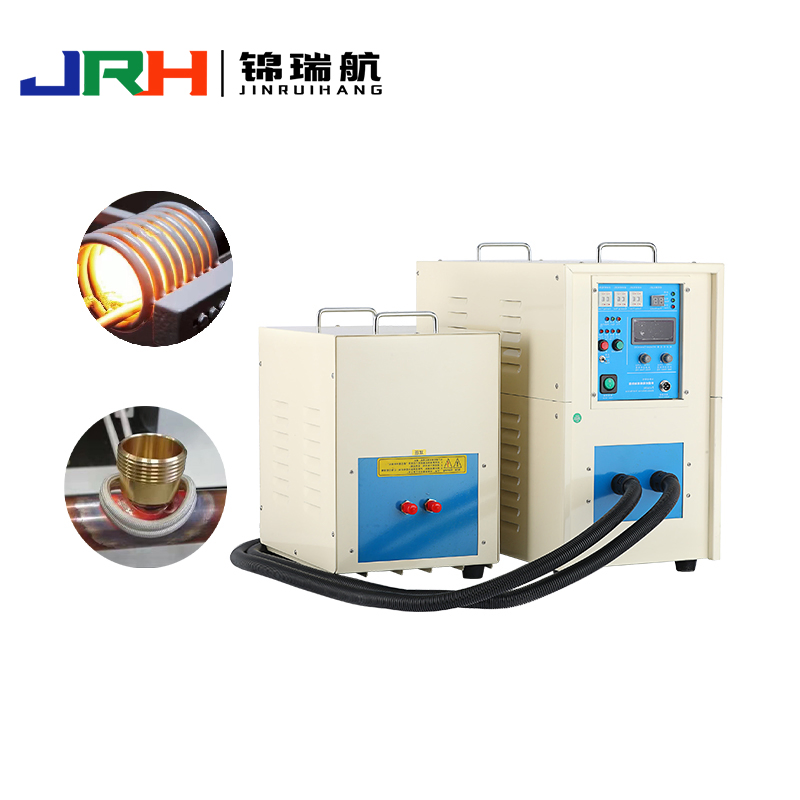

High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
1 / 5
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine
High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine

High Frequency Induction Metal Heating Equipment Mining Drill Bit Brazing Repair Machine

Customization: Available
After-sales Service: Online Service Support
Warranty: One Year
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
JRH-80KW
Type
Induction Heating Machine
Certification
CE, Bureau
Structure
Vertical Type
Power Supply
3 Phase 380V, 50/60Hz
Heating Temp
Up to 1700 Degree
Feature
High Efficiency, Energy Saving
Cooling Method
Water Cooling
🔥 High Frequency Metal Induction Heating Machine
The High-frequency heater utilizes the principle of electromagnetic induction to rapidly heat metal materials to extreme temperatures. Key components include a high-frequency power supply, induction coil, and an advanced cooling system. It generates eddy currents within the workpiece through an alternating magnetic field, ensuring efficient and precise local heating.
Induction Metal Heating Equipment
  • Advanced Technology: Adopting IGBT power devices with unique variable current control technology.
  • 100% Duty Cycle: Supports 24 hours of continuous operation under maximum power.
  • Precision Control: Features integrated constant voltage and power control functions.
  • Real-time Monitoring: Digital display for output power, frequency, and current.
  • Plug & Play: Easy to operate and install; requires only power and water connections.
📊 Technical Parameters

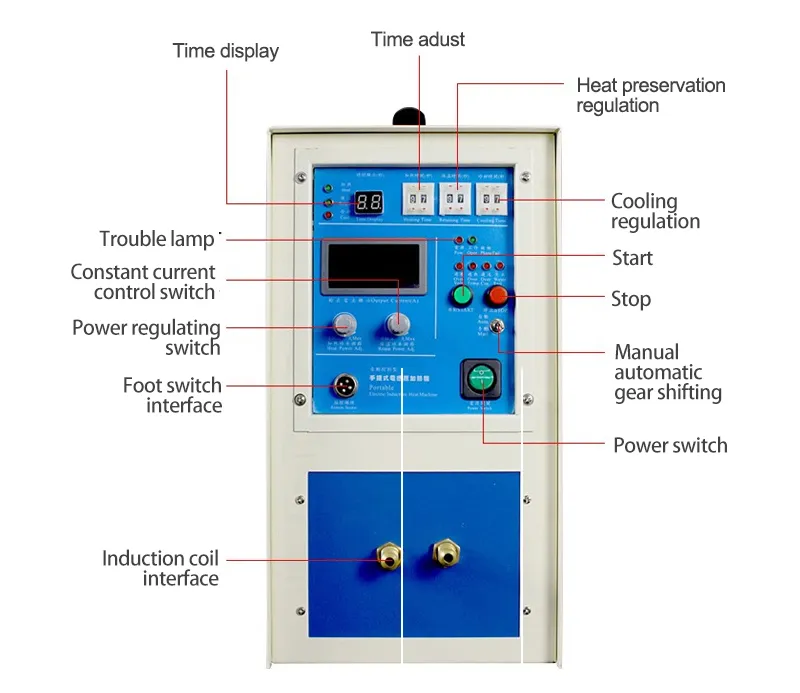

Machine Front View

Front View

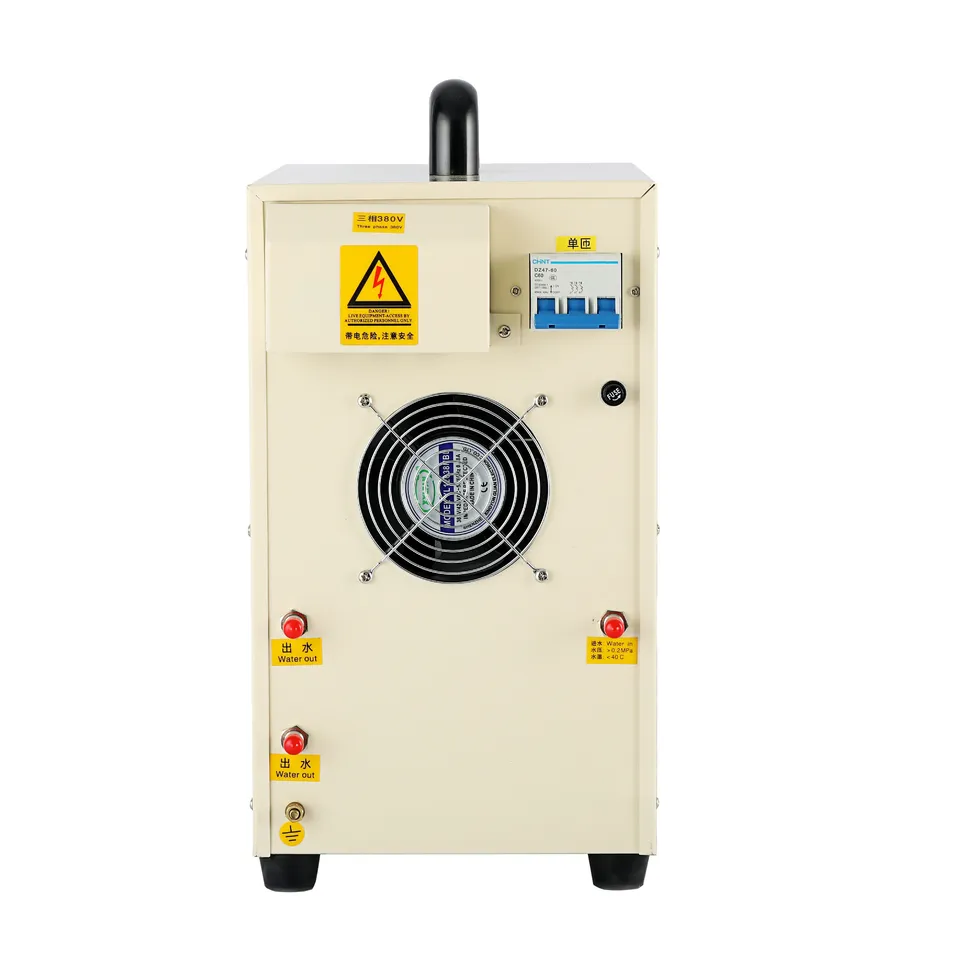

Machine Back View

Back View

Model Voltage Output Power Frequency Output Current Weight / Dimensions
JRH-15A Single Phase 110-250V 15KW 30-80KHZ 200-800A 460x215x470mm | 23kg
JRH-25A Three Phase 340-430V 25KW 30-80KHZ 200-1200A 490x245x490mm | 31kg
JRH-40AB Three Phase 340-430V 40KW 30-80KHZ 400-1800A Main: 37kg | Trans: 32kg
JRH-60AB Three Phase 340-430V 60KW 30-80KHZ 400-2400A Main: 54kg | Trans: 36kg
JRH-80AB Three Phase 340-430V 80KW 30-80KHZ 400-3200A Main: 80kg | Trans: 85kg
🛠️ Industrial Applications
The metal induction heating machine is versatile and suitable for various thermal processing needs:
  • Heat Treatment: Surface quenching of hardware tools, gears, auto parts, and dies.
  • Welding & Brazing: High-temperature brazing and silver welding of different metals.
  • Annealing: Treatment for stainless steel industries and various metal components.
  • Melting & Forming: Suitable for metal melting, hot fitting, and thermoforming applications.
Application Examples
📐 Category & Design
Specifications Diagram
Machine Category
❓ Frequently Asked Questions
How do I choose the right frequency for my application?
Generally, the higher the frequency, the shallower the heating depth (surface heating). Lower frequencies provide better heat permeability for deep-core heating.
Can the induction coils be customized?
Yes, we design different types of induction coils according to the specific size and shape of your product for optimal heating efficiency.
What are the installation requirements?
The machine is designed for easy installation. You only need to provide the appropriate power supply (per model specs) and a stable water cooling connection.
Is the machine suitable for 24/7 operation?
Yes, utilizing IGBT technology, the machine features a 100% cycle duty, allowing for 24 hours of continuous working under maximum power.
What materials can be heated with this equipment?
It is designed for all conductive metal materials, including steel, copper, aluminum, and various alloys used in industrial manufacturing.
How is the temperature controlled?
The equipment features constant voltage and power control functions, with a digital display showing output power and current for precise monitoring.
