Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
1 / 5
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)
Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)

Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)

Customization: Available
Type: Induction Welding
Control Mode: Induction Heating Machine
Send Inquiry

Product Description

Basic Specifications

Model NO.
JLCG-3
Voltage
Single Phase 220V / 3 Phase 380V
Certificate
ISO9001:2008, CE
Frequency
0.2-1.1MHz
Size
Generator: 260x270x145mm
Warranty
1 Year
Capacity
5000 Sets / Month
HS Code
8514400090

Product Description

Low Price High Frequency Induction Welding Brazing Machine (JLCG-3)

High Frequency Induction Welding Machine

Main Features

  • Ultrahigh series: High frequency, capable of heating Φ0.1mm work-pieces.
  • Energy Saving: Small size, light weight, and saves up to 70% power compared to vacuum tube machines.
  • Precision Welding: Ensures solid welding points, pleasing appearance, and complete crystal structure of internal metal parts.
  • Advanced Protection: Ten types of fault protection including over-current, over-voltage, and water shortage displays.

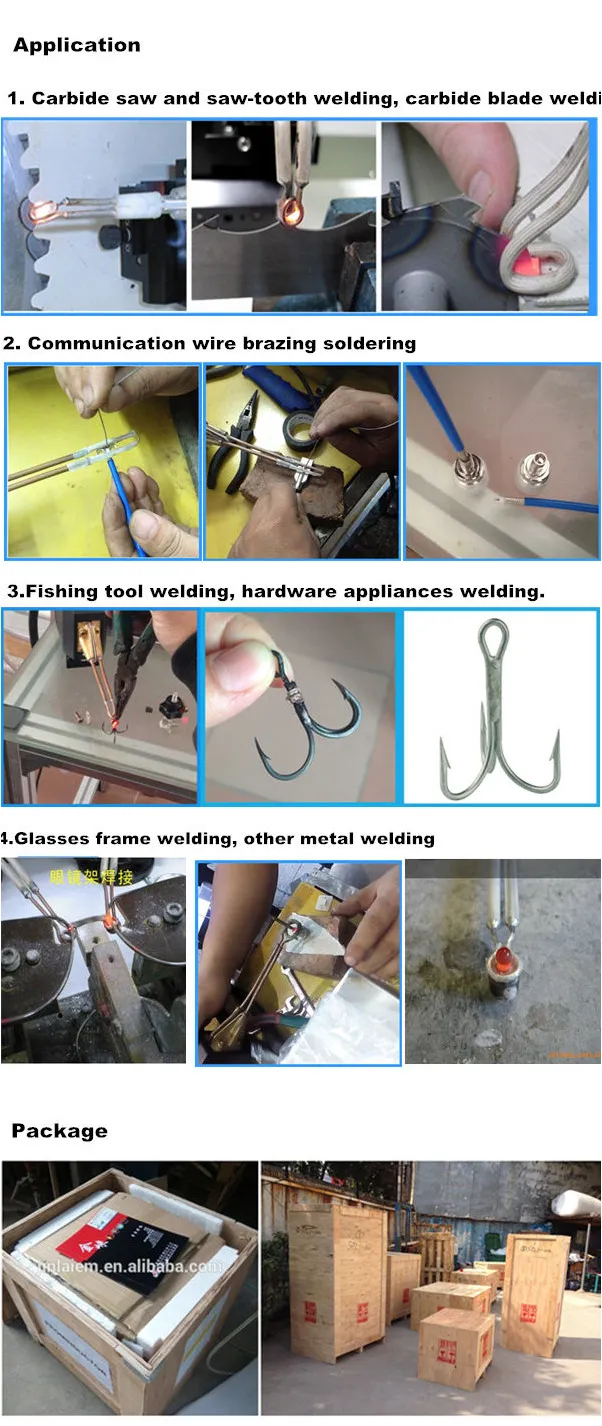

  • Versatile Application: Ideal for couplers, inserts, small-size relays, refrigerating parts, and ornamental articles.

Technical Parameters

Model JLCG-3KW
Input PowerSingle phase 220V 50/60HZ
Max Oscillate Power3KW
Max Input Current14A
Oscillate Frequency0.5-1.1MHZ
Cooling Water Desire>0.2MPa 2-6L/Min
Duty Cycle100% (40°C)
Dimensions (L*W*H)420*370*180mm
Net Weight17kg

Core Component Introduction

  • IGBT Module: Germany SIEMENS INFINEON (Fast response, high stability).
  • Electrolytic Capacitor: Japan Nichicon filter capacitor.
  • Quality Material: High pressure resistance and thermostability water pipes.
  • Smart Control: Full automatic tracking frequency and continuous adjustable power.
  • Efficiency: Fast heating, small size, and simple operation.

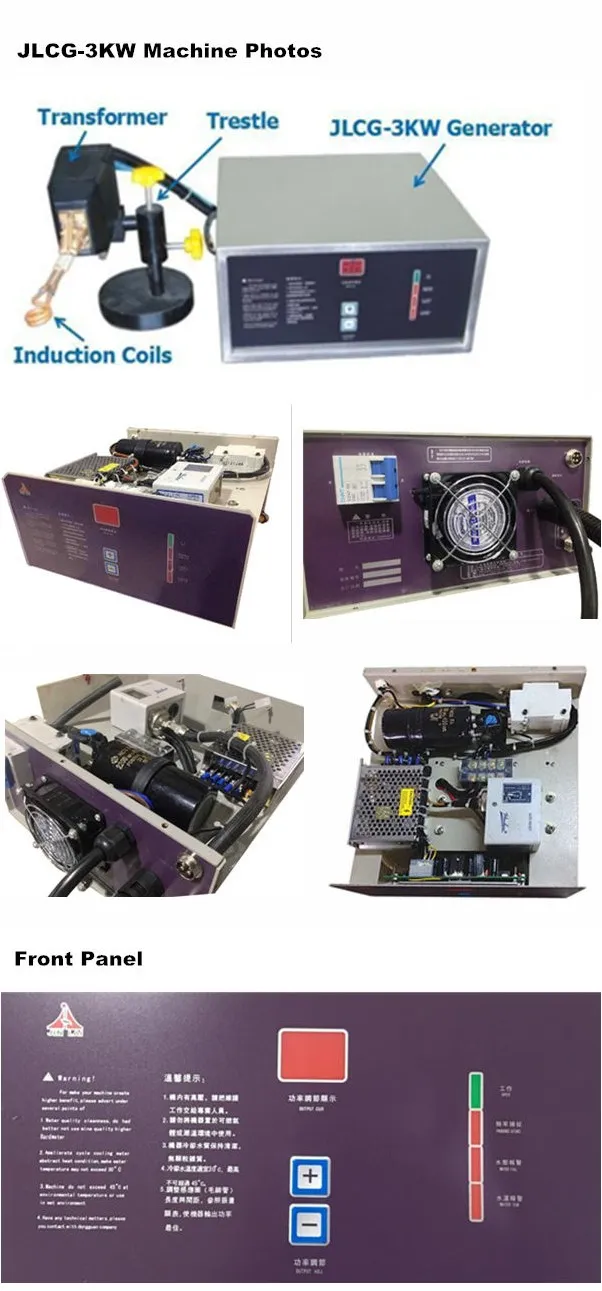

Machine Parts Details
Induction Welding Components

Series Comparison

Series Technical Comparison

Frequently Asked Questions

Which countries are your products exported to?
Our products are sold all over the world and come with related certifications to meet international standards.
How about the warranty?
All our products have a one-year quality warranty. During this time, spare parts replacement is free, and we provide lifelong technical support.
How to install the machine?
We provide detailed paper installation instructions and videos to guide you through the process until you are proficient.
What are the payment terms and delivery time?
We accept T/T, Western Union, and L/C. Small machines are typically delivered within 7 days, while larger units take about 15 days.
Do your goods have ISO9001 or CE certificates?
Yes, all our goods are high-quality products and carry both ISO and CE certifications.
What is the cooling water requirement for the machine?
The machine requires cooling water with a pressure of >0.2MPa and a flow rate of 2-6L/Min for optimal performance.
