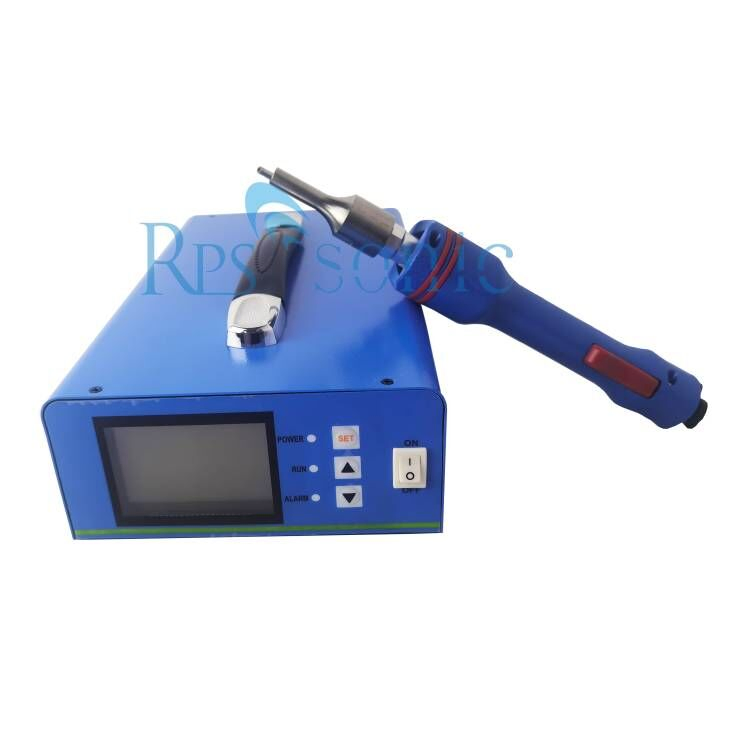

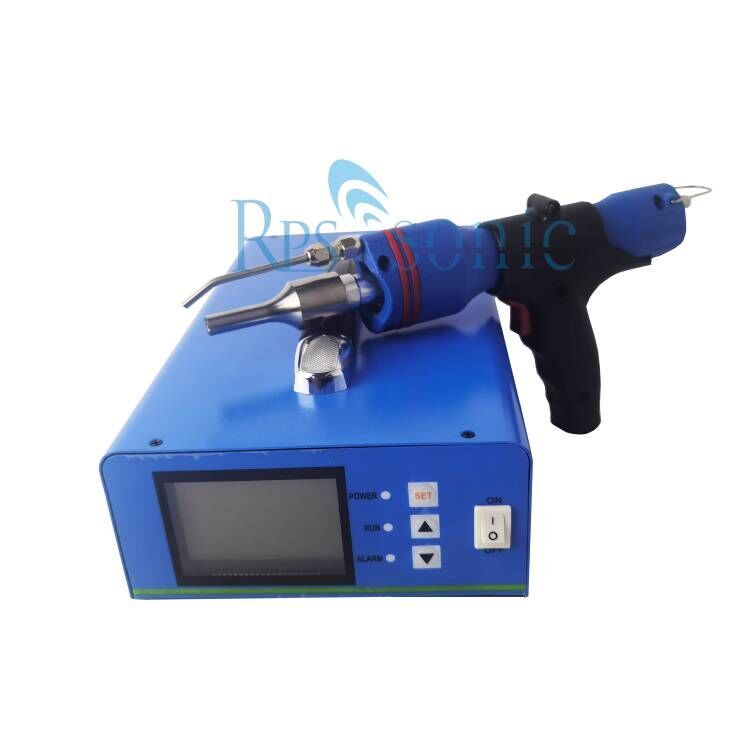

High power 1200w ultrasonic spot welding machine
| Item | Parameter | Advantage | Application |
|---|---|---|---|

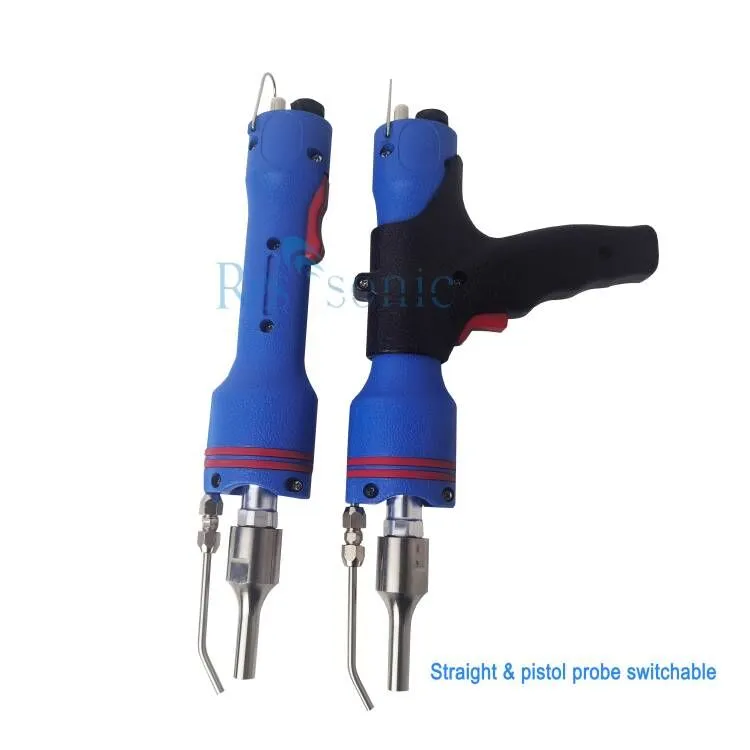

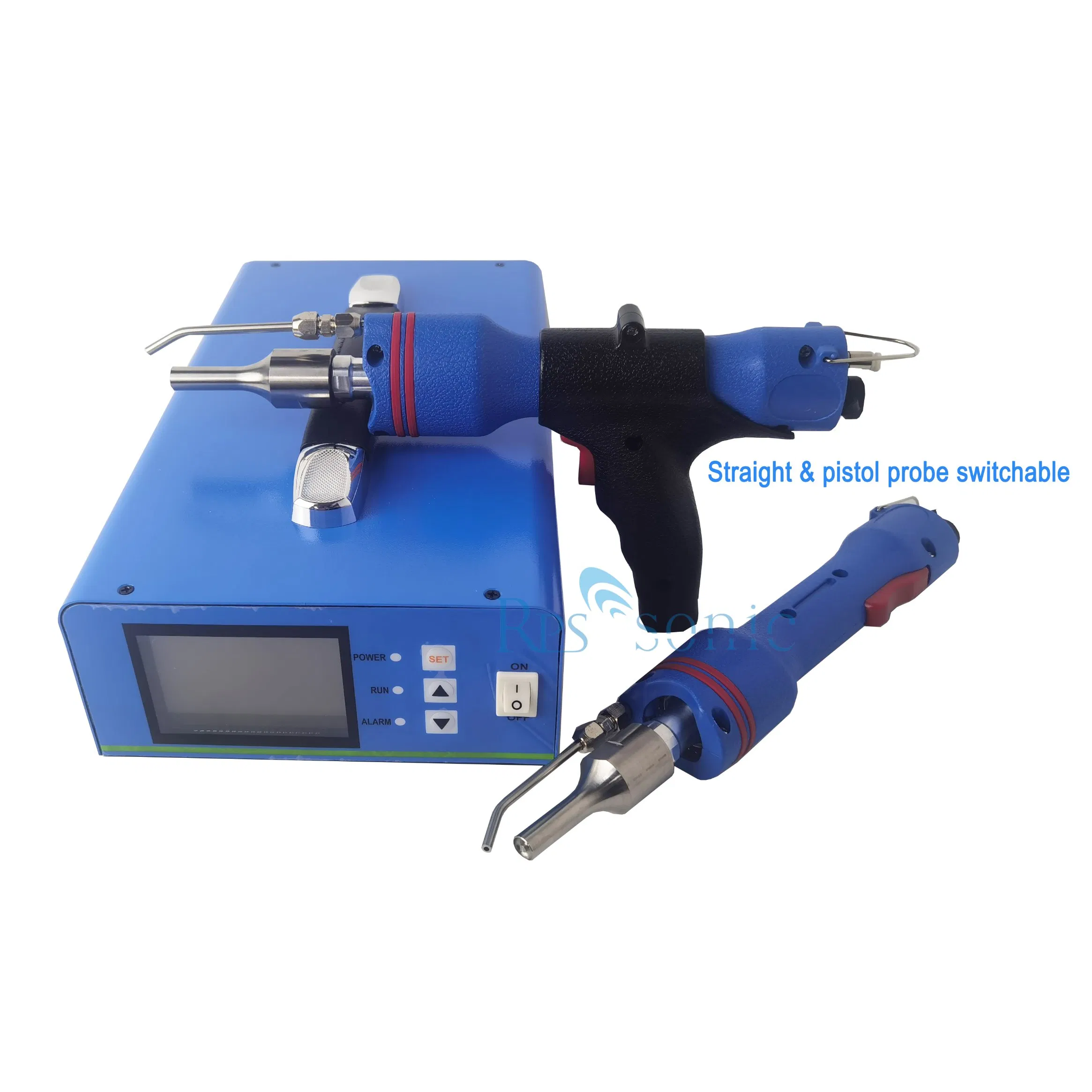

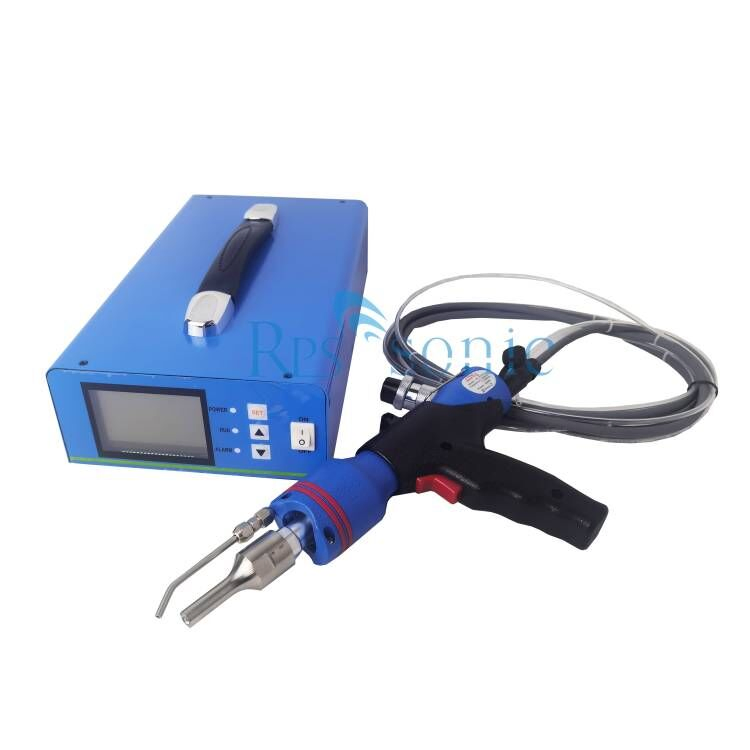

| 28Khz Ultrasonic Hand Welder (Straight type / Gun type) |
▪ 28Khz 800W ▪ Digital generator ▪ Horn customized ▪ Aluminum/Steel/Titanium alloy ▪ Power: 220v 50/60HZ |
1. Light generator (4kg) and hand welder (0.8-1kg). Total weight approx 5KG. 2. Special alloy metal housing: light but firm, durable and anti-deform. 3. Digital generator: Auto frequency tracking, easy operation, adjustable output/welding time. |
PP, PVC, Woven Fabric, PE, ABS, PS, Nylon, PU, PET and all thermoplastic materials. Thickness: Max 8mm (28Khz) Max 5mm (35Khz) |
| 35Khz Ultrasonic Hand Welder (Straight type / Gun type) |
▪ 35Khz 500W ▪ Digital generator ▪ Horn customized ▪ Aluminum/Steel/Titanium alloy ▪ Power: 220v 50/60HZ |
Ultrasonic spot welding is used predominantly when flat mouldings without weld preparation (ED) have to be welded, such as semi-finished products, thermoformed, blow-moulded, or large-surface mouldings.
The tip of the sonotrode penetrates through the upper part into the lower part. Heat produced on the contact surfaces plasticises the material. The expelled plastic forms a ring-shaped elevation while the back of the lower part remains free of marks. The HandyStar Energy is perfect for manual workstations, providing solutions for spot welding, riveting, crimping, and cutting.
Developed for simplicity and cost-efficiency, this device meets the requirements for manual workstations and test laboratories. Applications developed can be easily integrated into production lines using the identical MAG generator.
