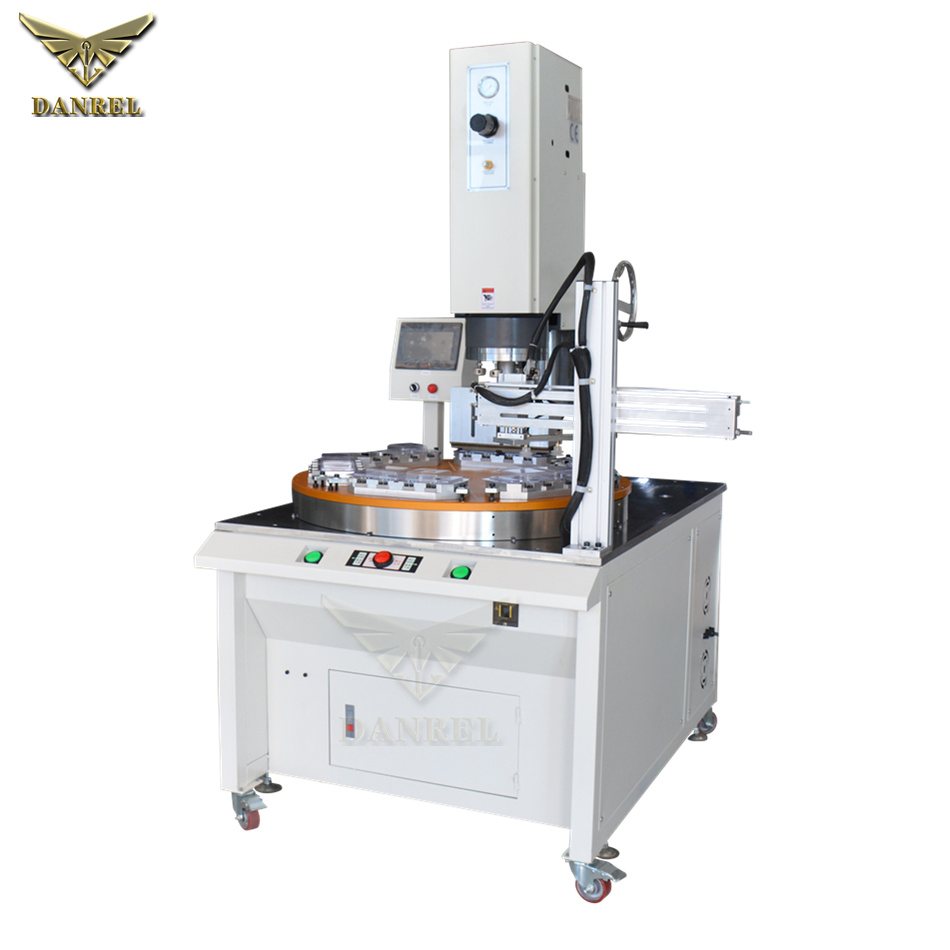

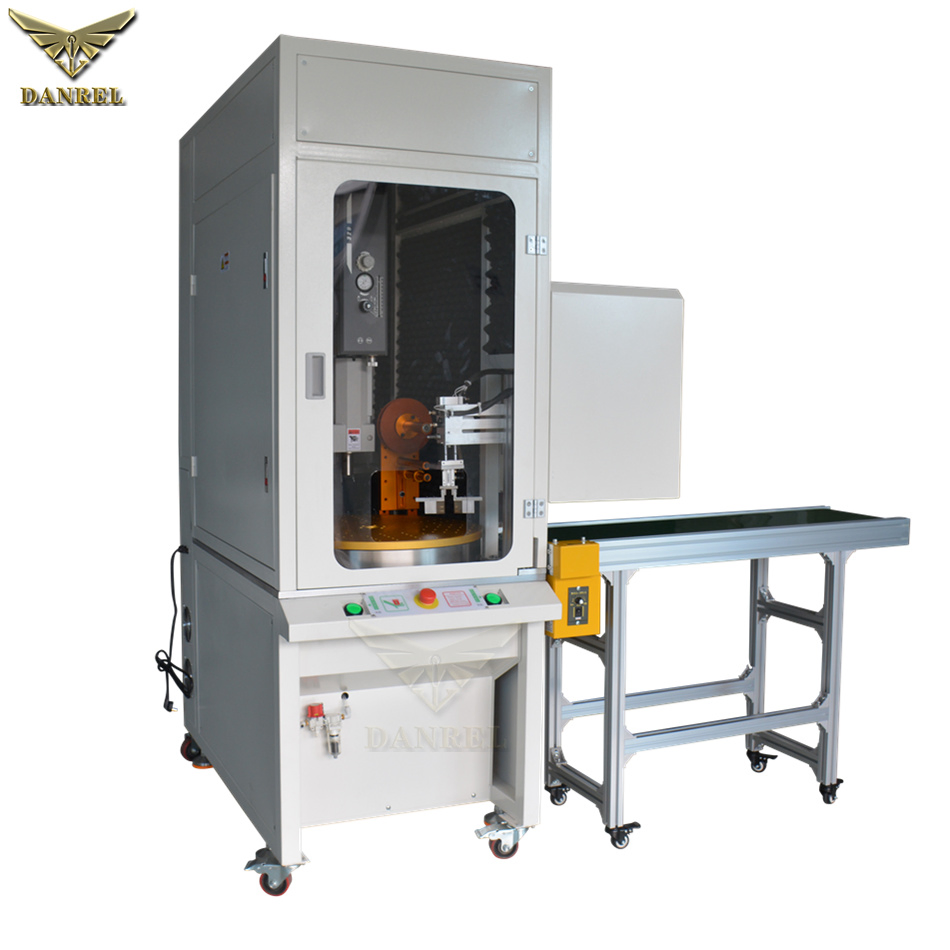

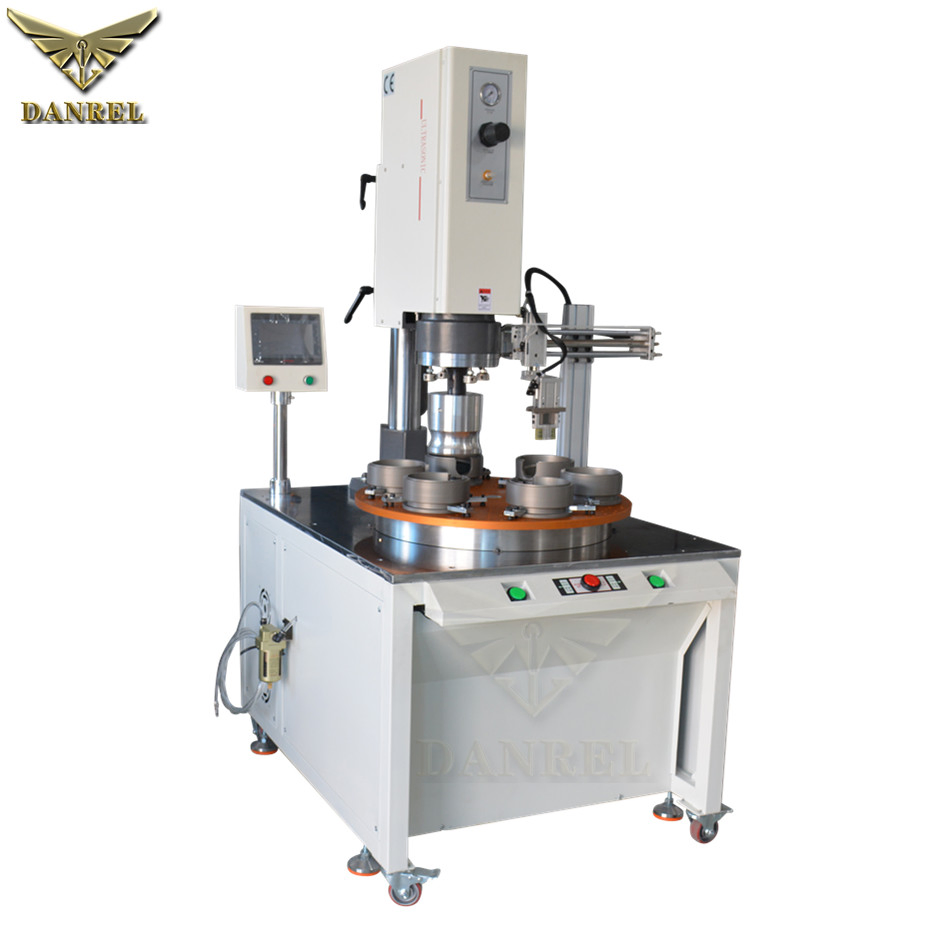

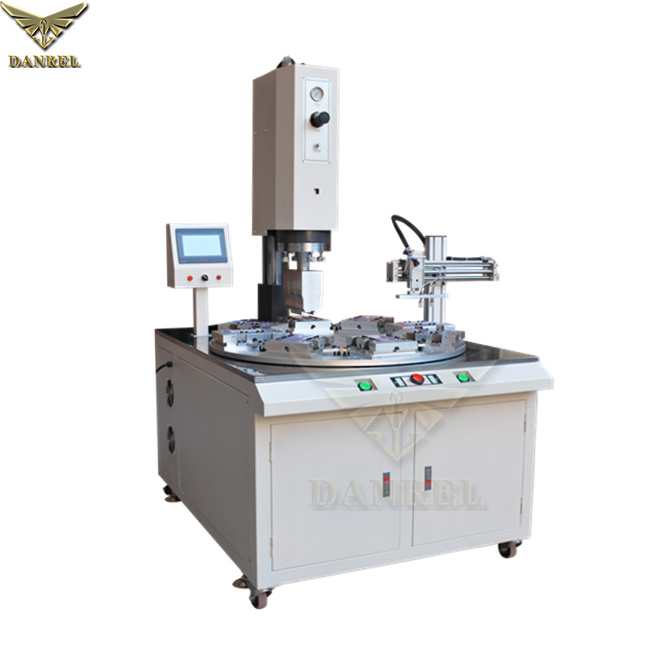

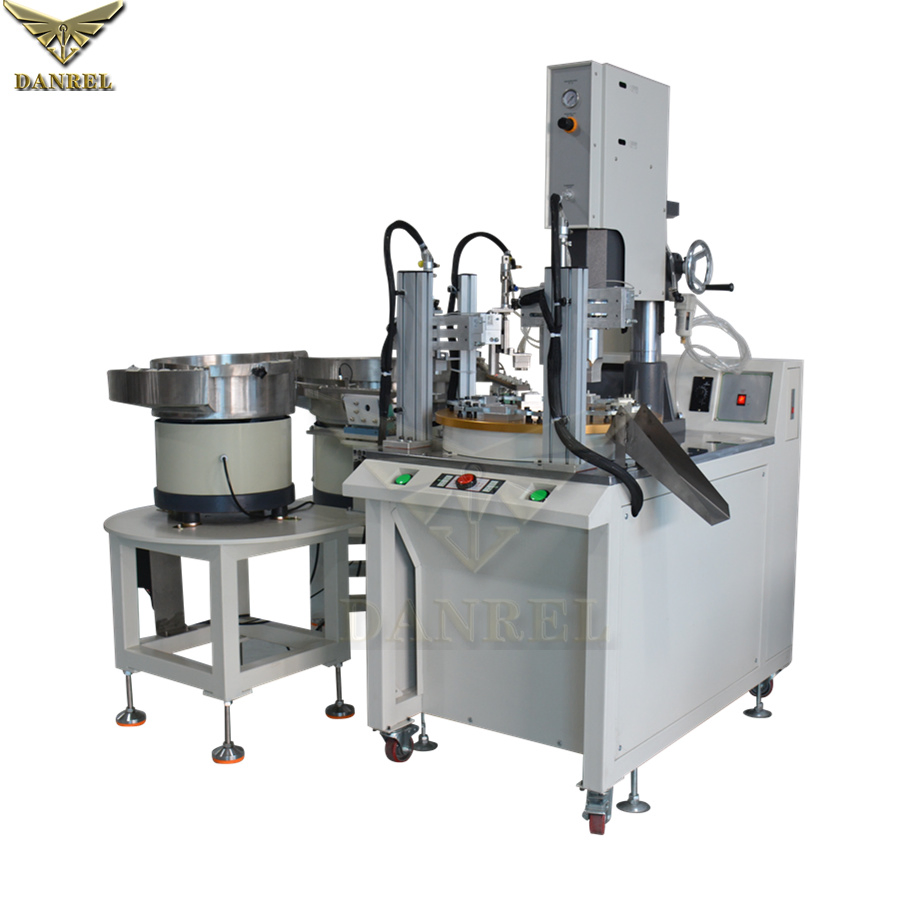

High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
1 / 5
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm

High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm

Customization: Available
Application: Household Appliances, Garden Supplies, Decoration, Commodity, Auto Part, Electronic, Stationery, Toy, Packing
Cooling Way: Air Cooling
Send Inquiry

Product Description

Basic Information
Model NO.DR-1542A
ControlSemi-Automatic
Frequency Range20kHz, 15kHz
Electric CurrentDC
StyleVertical
PowerUltrasonic
Ultrasonic Power4600W
VoltageAC110/220V (Customization Offered)
Production SpeedApprox 25 PCS Per Min
Working Pressure0.5MPa
LanguageEnglish
CertificateCE
Product Description

ULTRASONIC PLASTIC WELDING MACHINE

The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.

  • Eliminate use of consumable material
  • Produce airtight and watertight seams
  • Increase production time
🚀 Main Features
  • Automatic rotary table with multiple working stations for continuously manufacturing, high efficiency.
  • Equipped with robot arm to unload welded work piece automatically.
  • Optional Automatic Film Feeder to protect the work piece surface being damaged.
  • PLC/HMI easy operation touch screen, English Interface.
  • Self-protection: Over-Current, Frequency Deviation, Over-Temperature.
Technical Specifications
Ultrasonic Frequency15KHz
Driven ModePneumatic (Air compressor needed)
Rotary Table DiameterStandard 750MM (Customization Offered)
Working Stations6/8/10/12 (Customization Offered)
Air Cylinder Stroke100MM (Customization Offered)
Delay/Weld/Hold Time0.01-9.99S (Adjustable)
Welding AreaDiameter 300MM (Depends on material)
Packing Dimension1650*1200*2200MM

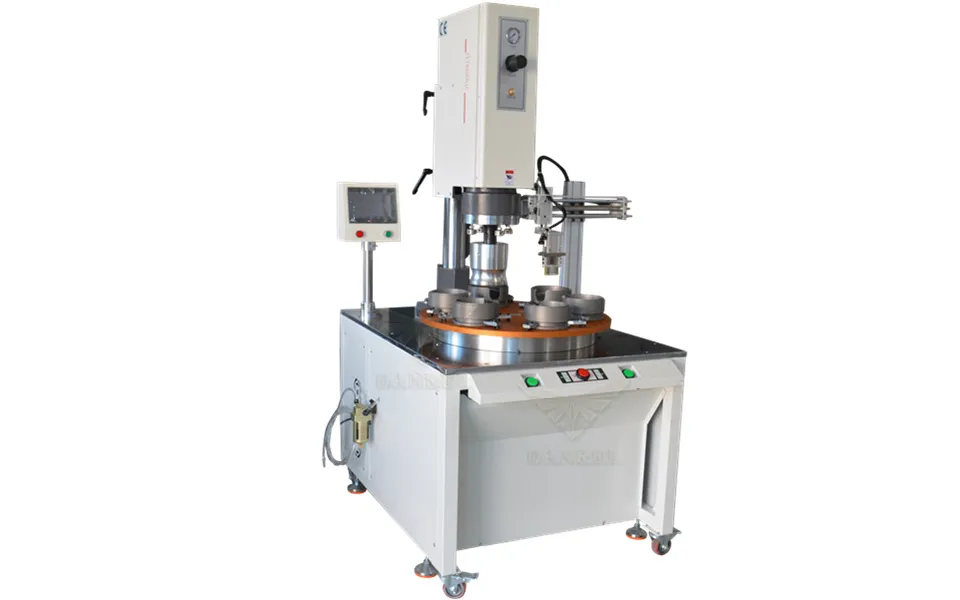

Ultrasonic Plastic Welding Machine

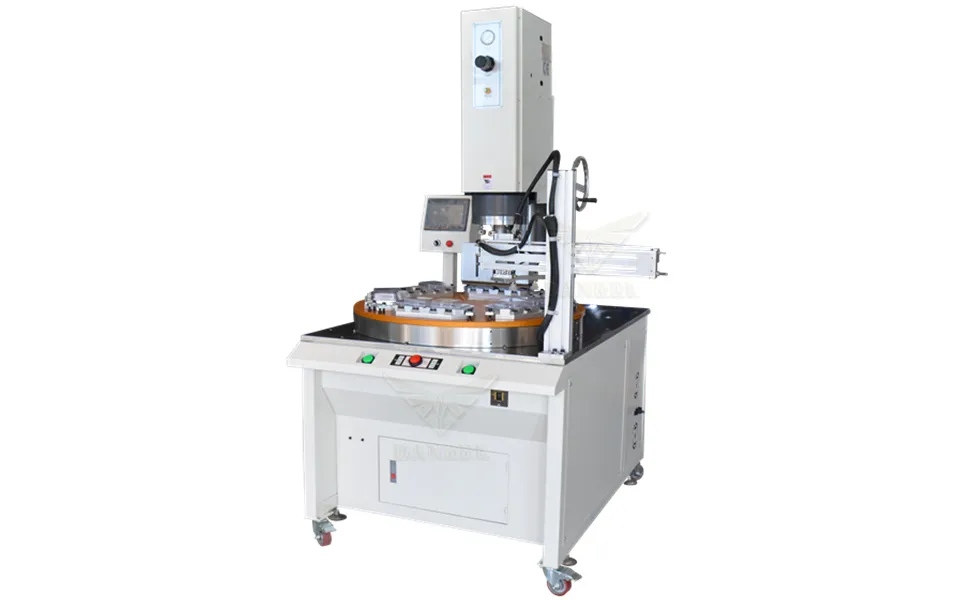

Machine Detail 1

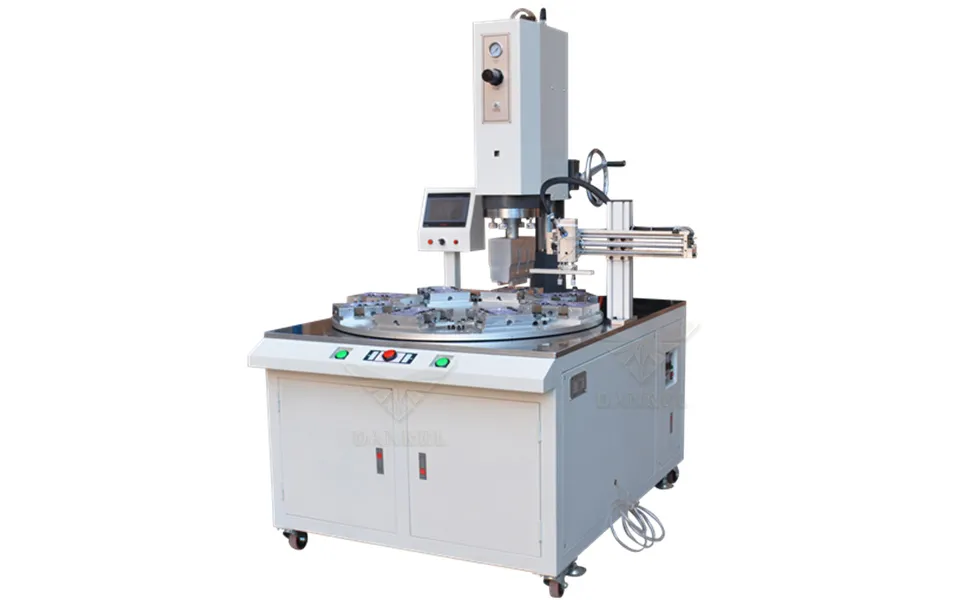

Machine Detail 2

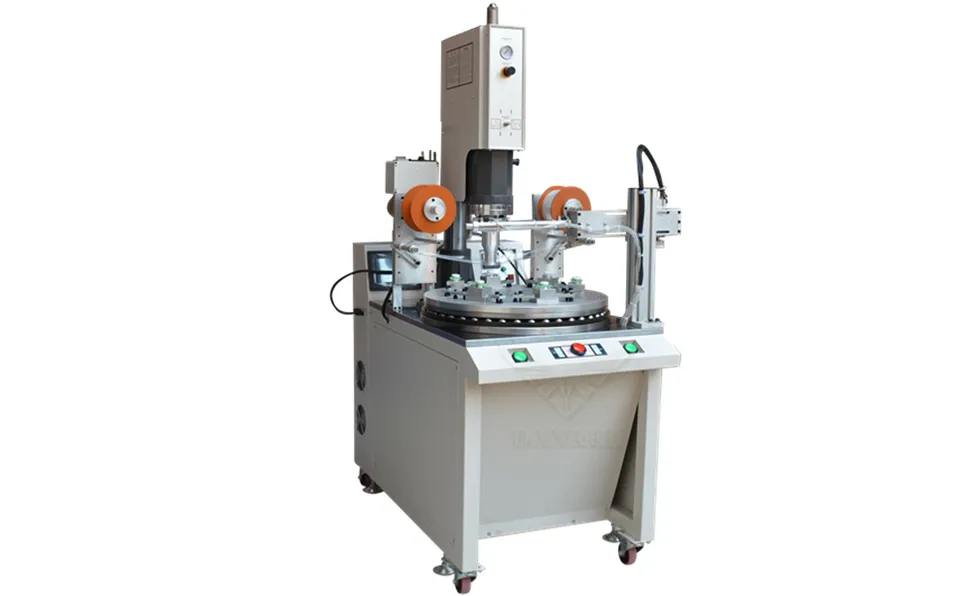

Welding Process 1

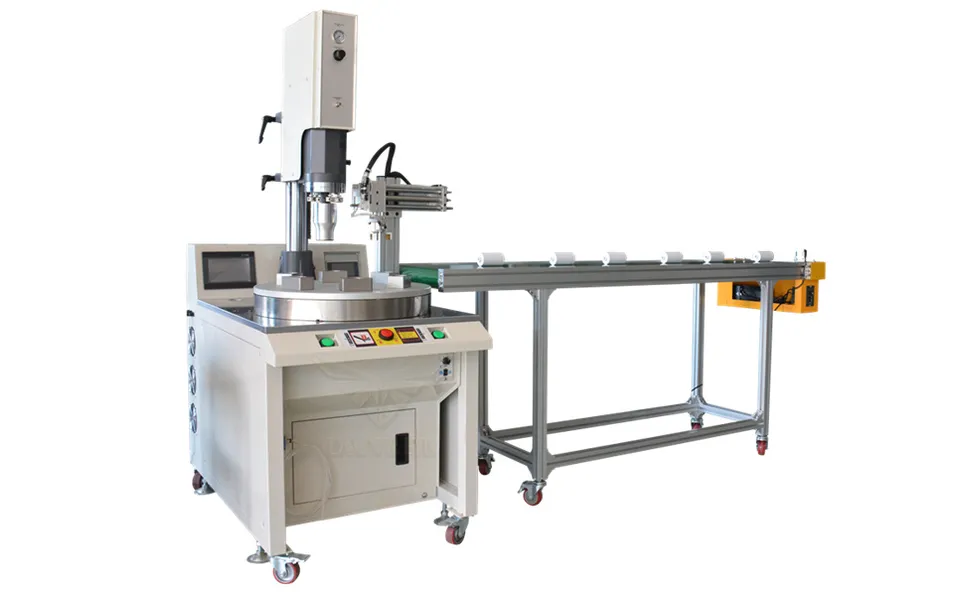

Welding Process 2

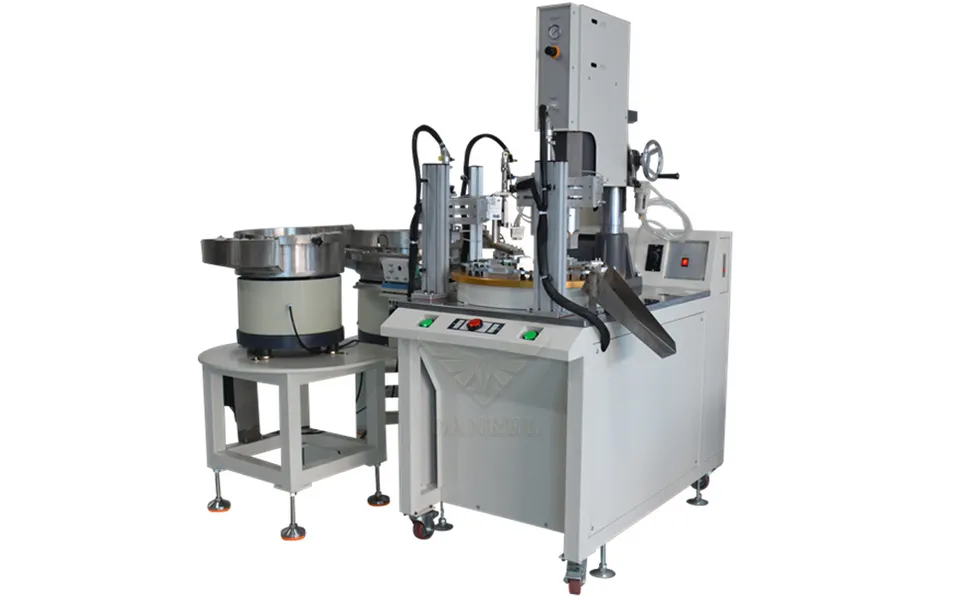

Welding Process 3
Application Areas

Our ultrasonic plastic welding technology is widely used across various industries:

🚗 Automotive: Plastic body parts, dashboards, lights, filters, and fluid tanks.
📱 Electronics: Mobile phone accessories, battery cases, chargers, and Bluetooth devices.
🏥 Medical & Daily: Oral liquid bottle caps, drip caps, cosmetics bottles, and electric kettles.
📂 Stationery: Folders, albums, ink cartridges, and PP hollow boards.
Machine Details

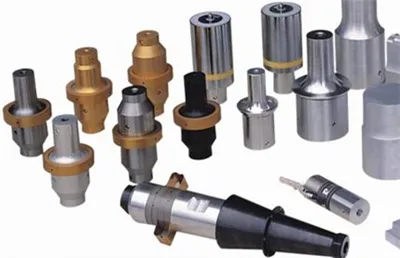

Ultrasonic Generator

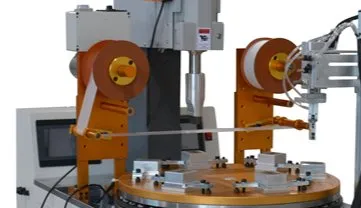

Piezoelectric Ceramic

Core Components:

  • Transducer: Adopts Japan Piezoelectric ceramic, highly stable and durable.
  • Rotary Table: Customizable multiple workstations for continuous manufacturing.
  • Safety: Soundproof shelter and safety guards can be customized for operator protection.
Factory Overview Production Line
Frequently Asked Questions
What are the main benefits of using ultrasonic welding?
Ultrasonic welding eliminates the need for glues, screws, or solvents. it creates clean, airtight, and watertight seams very quickly, which significantly increases production efficiency.
Can this machine be customized for specific products?
Yes. We offer customization for the number of working stations (6, 8, 10, or 12), rotary table diameter, voltage requirements, and automatic feeder systems to suit your specific production needs.
What safety features are included?
The machine includes a self-protection system for over-current, frequency deviation, and over-temperature. Additionally, soundproof shelters and safety guards can be added as optional features.
What industries is this equipment suitable for?
It is widely used in automotive, electronics, medical, stationery, and packaging industries for welding thermoplastic components like car lights, battery cases, and medical bottle caps.
Is the interface easy to operate?
Yes, the machine is equipped with a PLC/HMI touch screen with an English interface, making it user-friendly and easy to adjust parameters like weld and hold time.
What kind of maintenance is required?
The machine uses high-quality Japanese piezoelectric ceramics and stable pneumatic parts, requiring minimal maintenance. Regular checks of air pressure and cleaning of the welding horns are recommended.
