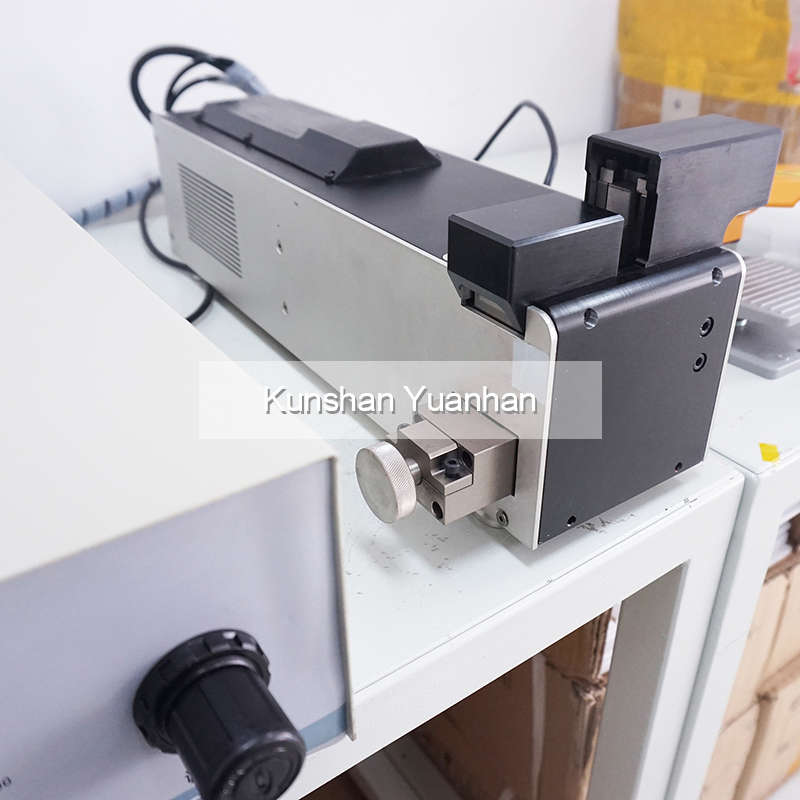

High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
1 / 5
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder
High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder

High Power Ultrasonic Metal Welding Machine for Wiring Harness Welder

Customization: Available
Application: Electronic
Cooling Way: Air Cooling
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Yh-X2020A
Control
Semi-Automatic
Frequency Range
Intermediate Frequency
Electric Current
Inverter
Style
Vertical
Power
Electric
Welding Area
0.5-16 mm2
Air Pressure
0.05-0.9MPa
Working Frequency
20kHz
Working Voltage
220V
Package
Wooden Case
Origin
China
⚙️ High Power Ultrasonic Metal Welding Machine

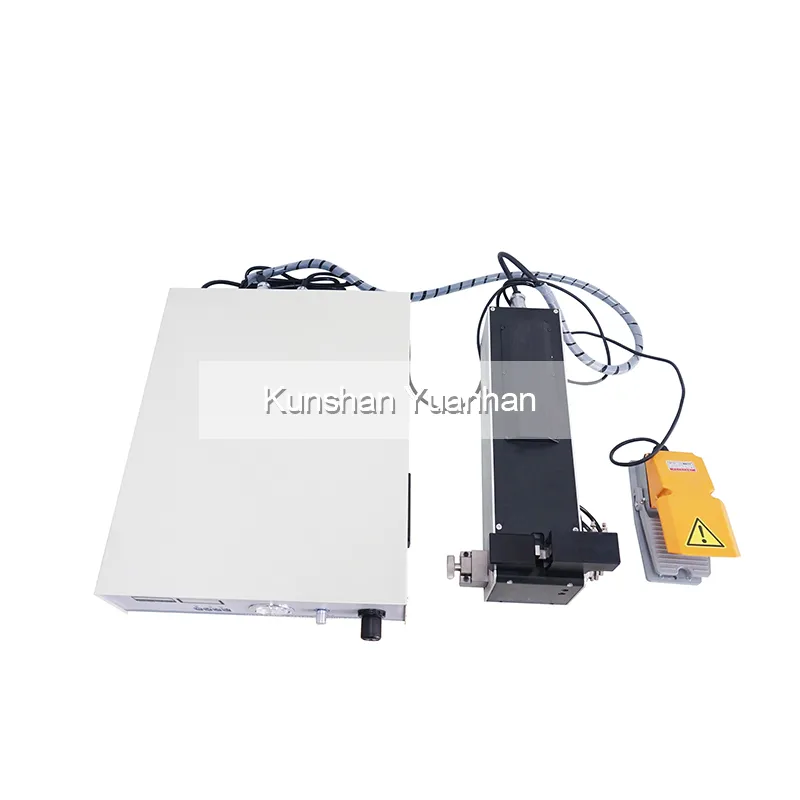

Ultrasonic Metal Welding Machine
  • Widely used in automobiles, electronic appliances, motors, and communication equipment for wiring harness area from 0.5-16 mm2.
  • Independent electrical control box with a compact and integrated design.
  • 2000W equipment power suitable for lap welding, wire head forming, and multiple wire mutual welding.
  • Equipped with PLL lock-in frequency automatic tracking technology for stable welding effects.
  • Excellent electrical conductivity after welding with near-zero resistivity.
  • Ideal for welding copper and aluminum wire harnesses, braided wires, and enameled wires.
  • Portable design, light in weight, and convenient to move for various industrial applications.
📊 Technical Specifications
Model YH-X2020A YH-X2030A YH-X2040A
Power 2000W 3000W 4000W
Welding area 0.5-16 mm2 0.5-20 mm2 1-30 mm2
Working air pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Working frequency 20KHz 20KHz 20KHz
Working voltage 220V 220V 220V
🔍 Product Details & Applications

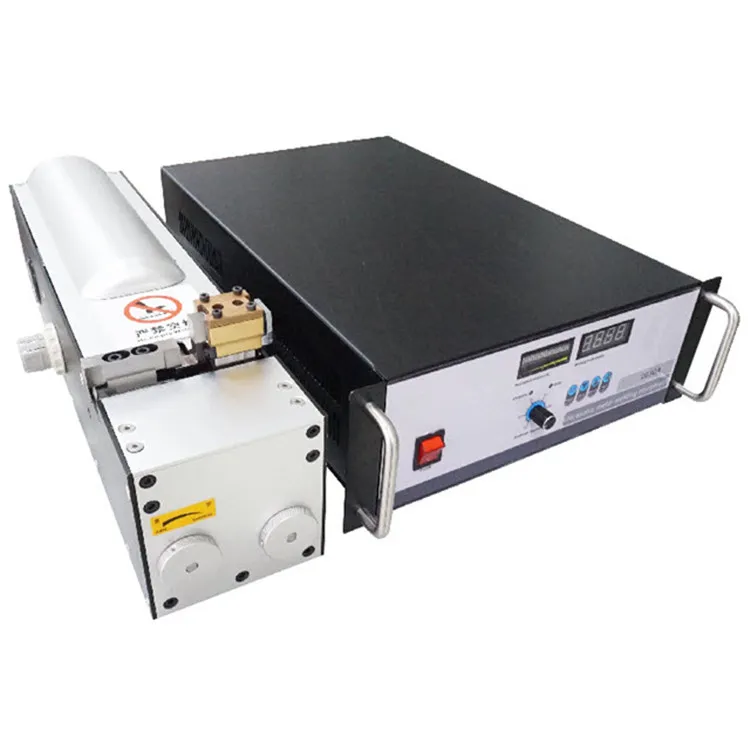

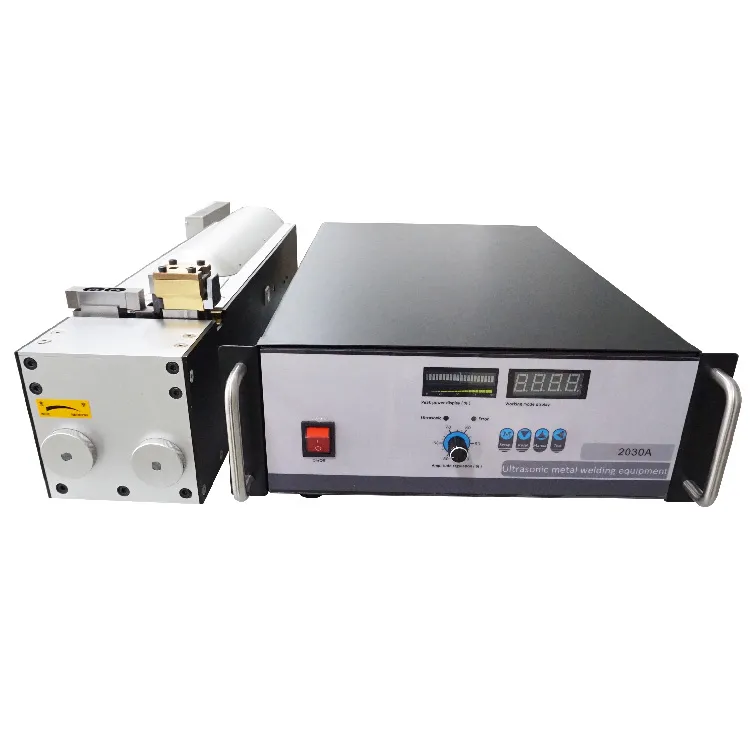

Welding Detail 1 Welding Detail 2

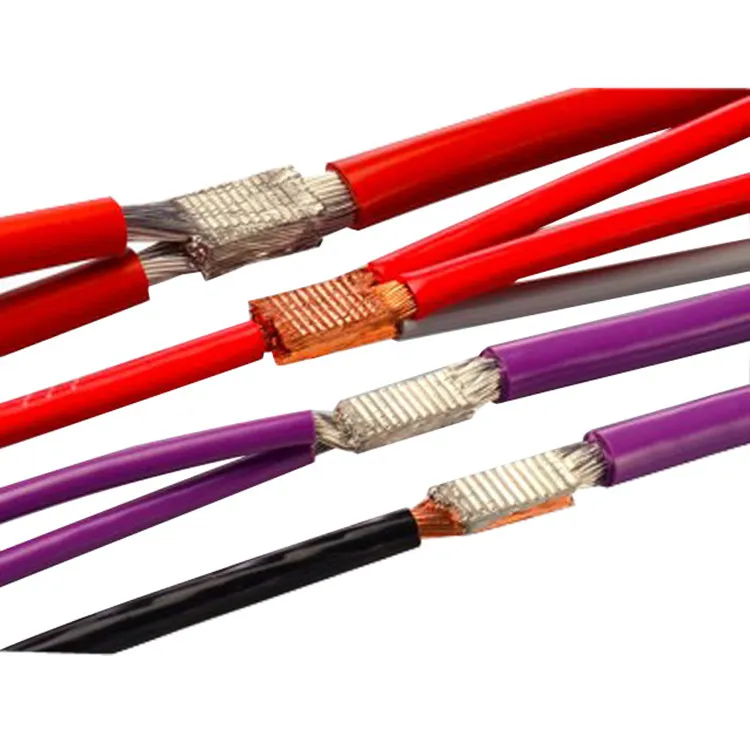

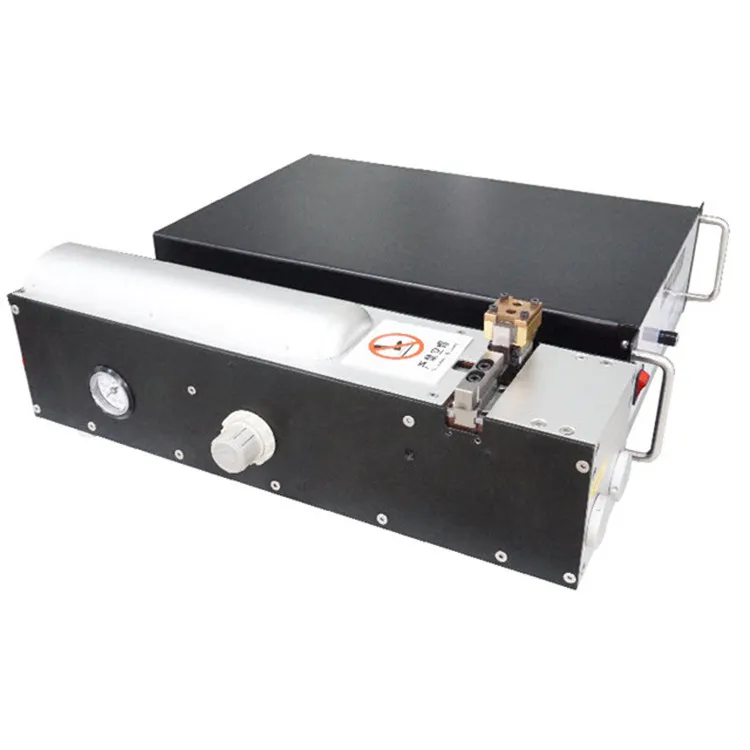

Application 1 Application 2 Application 3

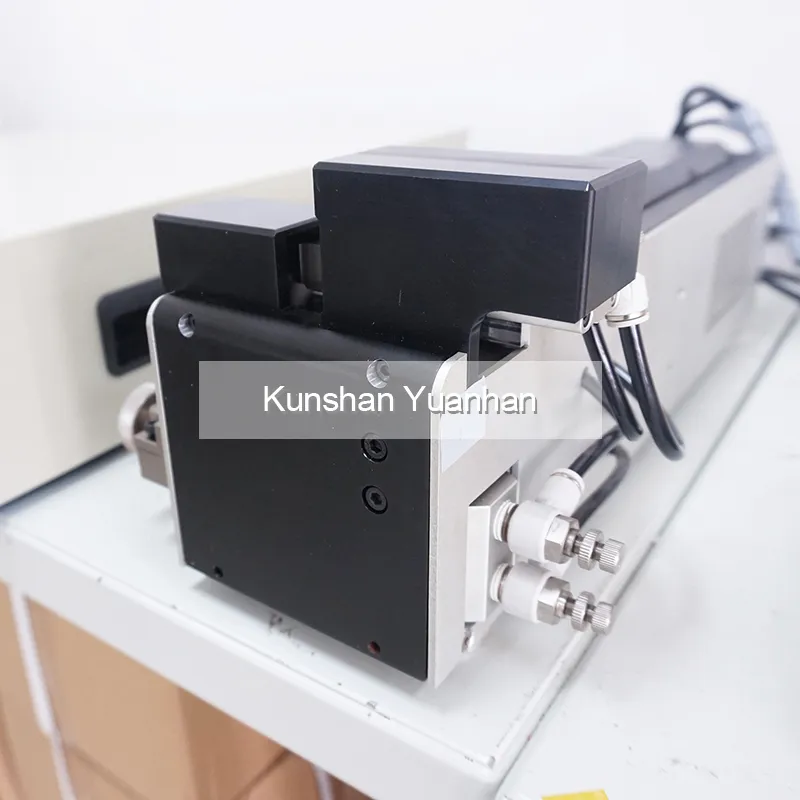

Harness Welder 1 Harness Welder 2

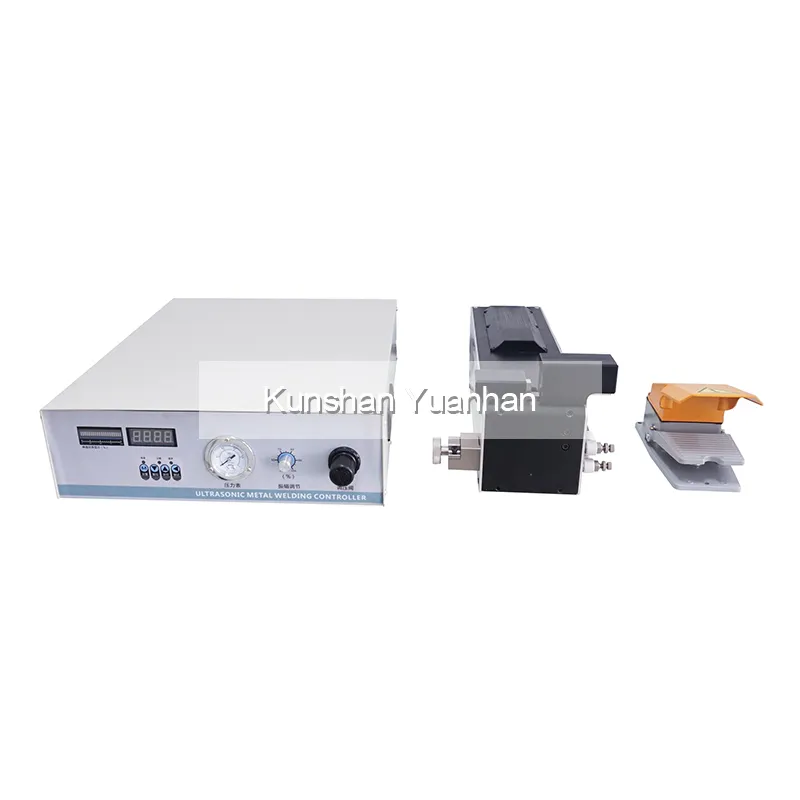

Component 1 Component 2
📜 Certifications
Certificates
❓ Frequently Asked Questions
What is the welding range for the YH-X2020A model?
The YH-X2020A model is designed to handle a welding harness area ranging from 0.5 to 16 mm².
What materials can be welded with this ultrasonic machine?
It is highly suitable for copper and aluminum wire harnesses, metal braided wires, stranded wires, and enameled wires.
How does the automatic frequency tracking work?
The machine utilizes PLL (Phase-Locked Loop) lock-in technology to automatically track the frequency, ensuring consistent and high-quality welding results.
Is the electrical conductivity affected after welding?
No, the process ensures excellent electrical conductivity with low resistivity or near-zero resistance at the joint.
Which industries are the main users of this equipment?
This machine is widely used in the automotive industry, electronic appliance manufacturing, motor production, and communication equipment sectors.
What is the power requirement and working voltage?
The equipment operates at a power of 2000W to 4000W (depending on the model) and requires a standard working voltage of 220V.
