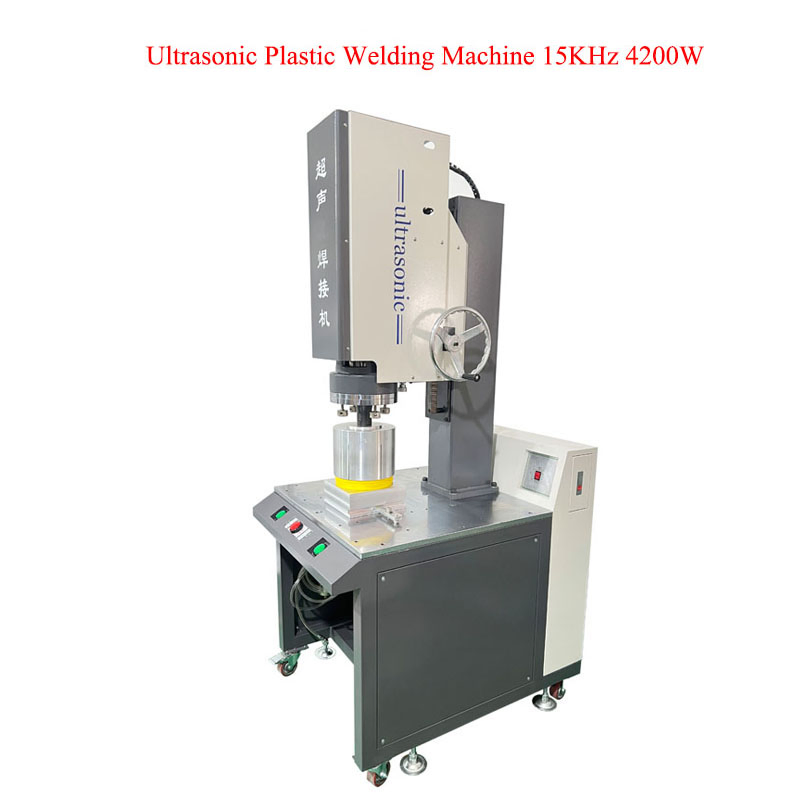

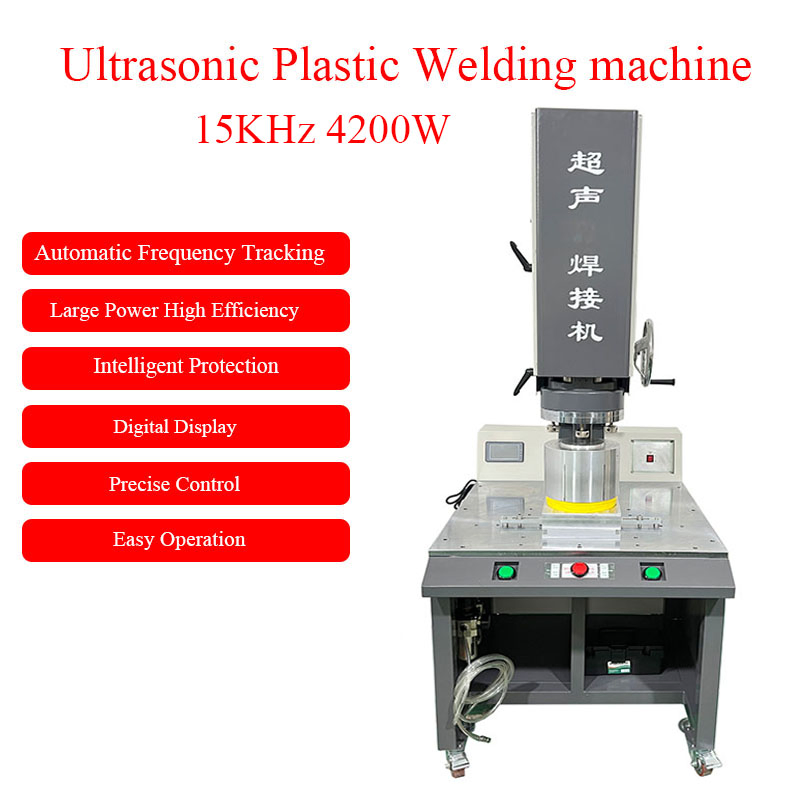

High-Performance Ultrasonic Plastic Welding Solutions
Our range includes Digital Intelligent Ultrasonic Plastic Welding Machines, perfect for ABS, HDPE, PE, PP, and PVC materials. These machines are CE certified and ideal for welding car lamps, bumpers, mobile chargers, power banks, and various electronic products.
| Basic Information | |
|---|---|
| Model NO. | XX-15K42A |
| Application | Auto Part, Electronic, Stationery, Toy, Medical |
| Cooling Way | Air Cooling |
| Control | Automatic |
| Frequency Range | High Frequency |
| Electric Current | AC |
| Style | Handheld |
| Power | Ultrasonic |
| Certificate | CE Approved |
| Operation Way | Semi-Automatic |
| Production Capacity | 100,000 sets/Year |
| Model | XX-15K42A |
| Usage | Plastic welding |
| Power supply | AC220V |
| Power | 4200W |
| Frequency | 15KHz |
| Horn journey | 100mm |
| Delay time | 0.10~3.00s |
| Welding time | 0.10~3.00s |
| Cooling time | 0.01-9.99s |
| Net weight | 260KGS |
| Machine size | 750*1005*1960mmH |

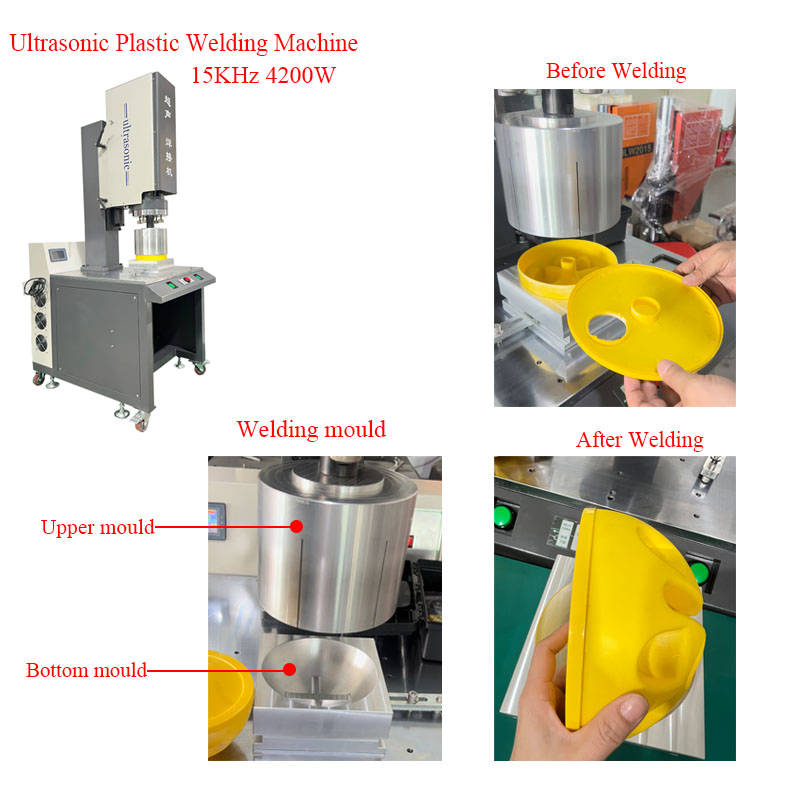

The high-voltage, high-frequency signal generated by the sound generator is converted into high-frequency electrical energy through the transduction system. The transducer then converts this into high-frequency vibrations of tens of thousands of times per second. The welding mold head transmits this energy to the plastic workpieces, causing instantaneous temperature rise at the interface due to friction. Once the melting point is reached, the surfaces melt and are fused under pressure, completing a perfect weld.

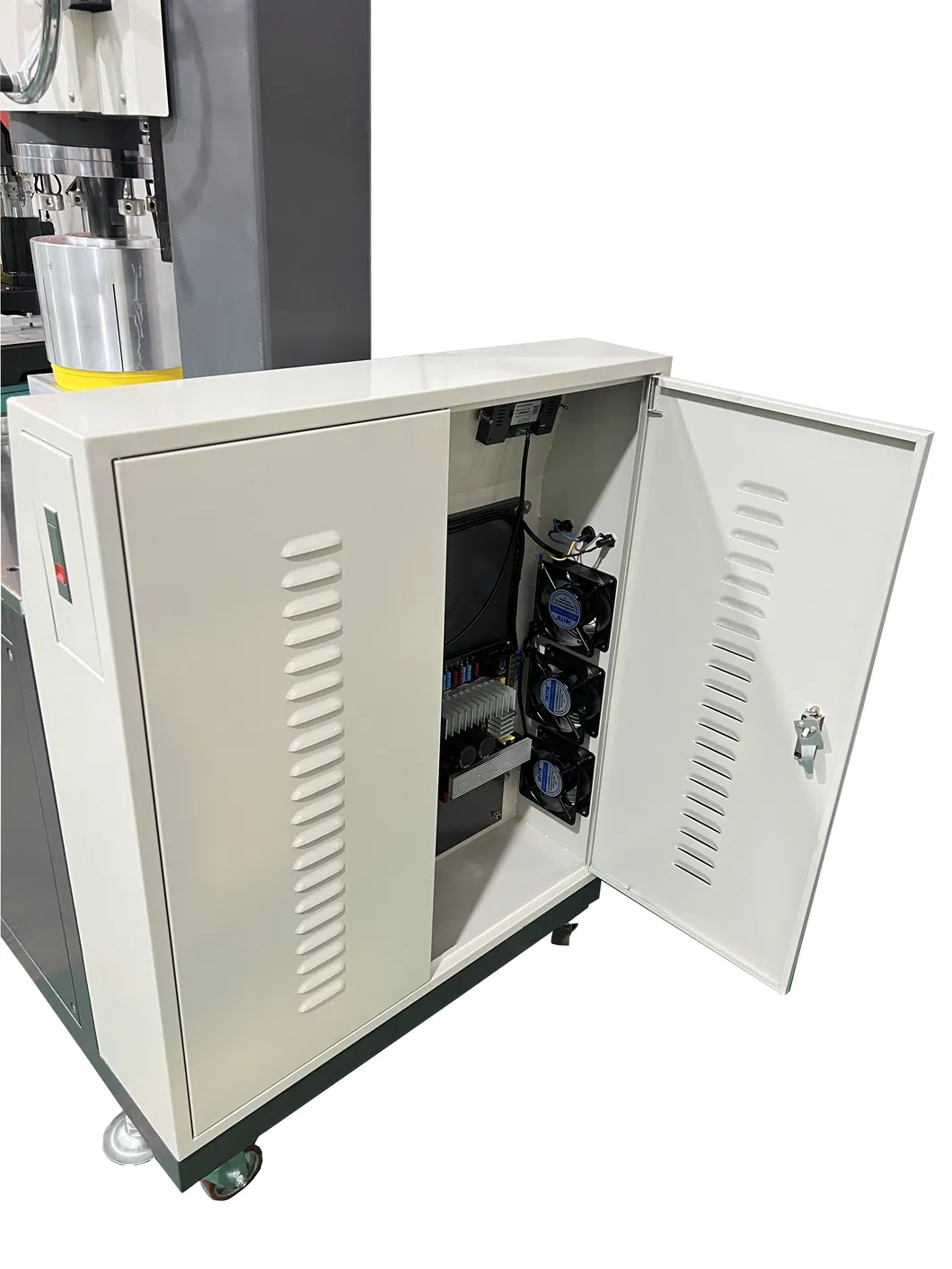

Automatic Frequency Generator: Autonomously tracks and adjusts to frequency changes for optimal performance.

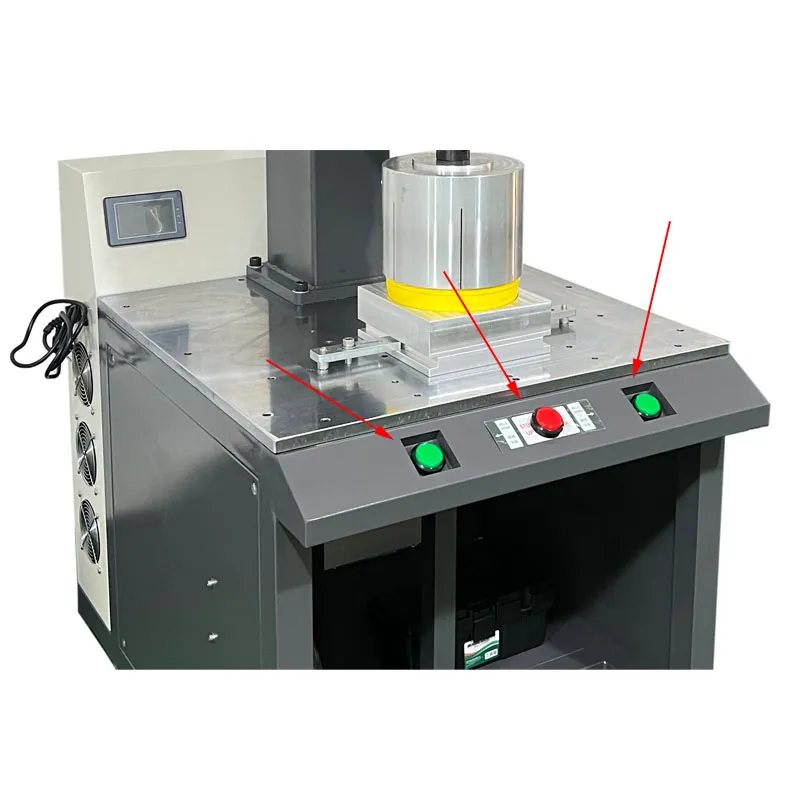

Safety Controls: Dual-operation switches and an emergency stop button for maximum operator protection.

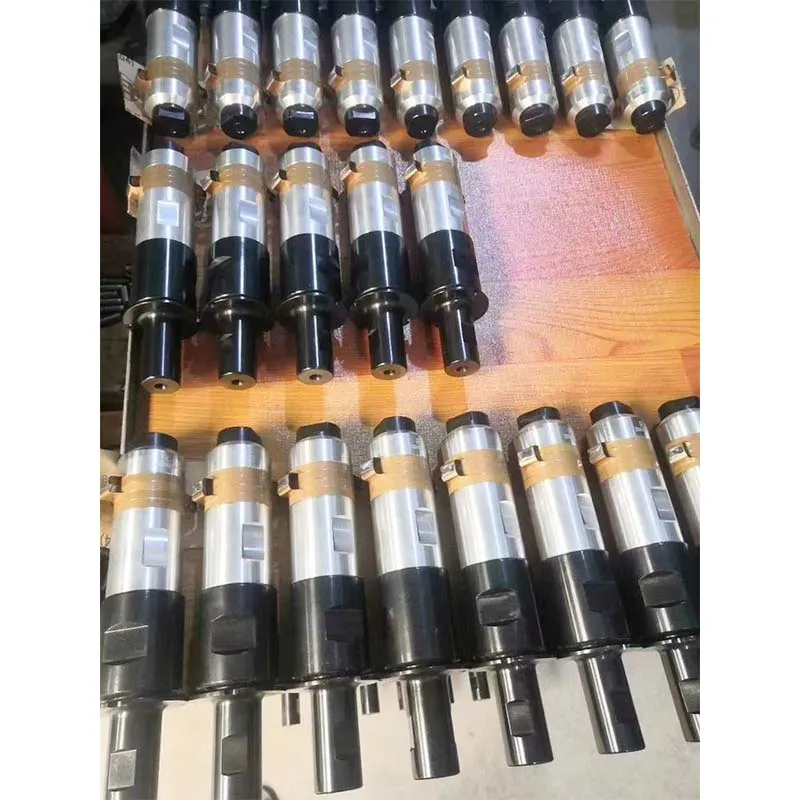

Ultrasonic Transducer: The core component responsible for generating precise pressure and vibration.

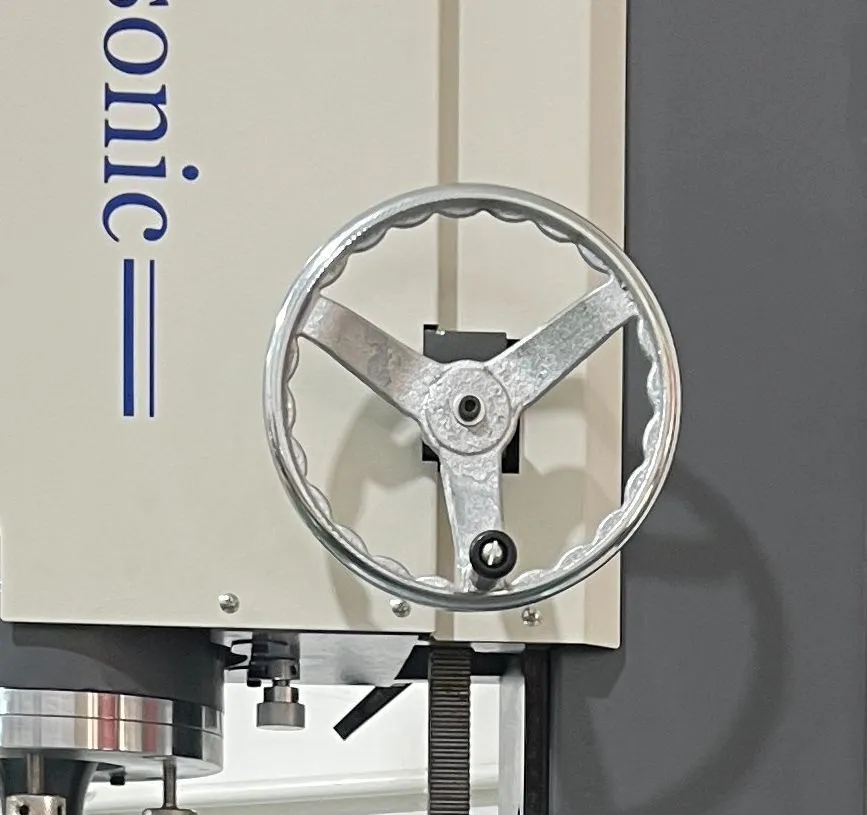

Height Adjustment: Effortlessly accommodates products up to 510mm in height.

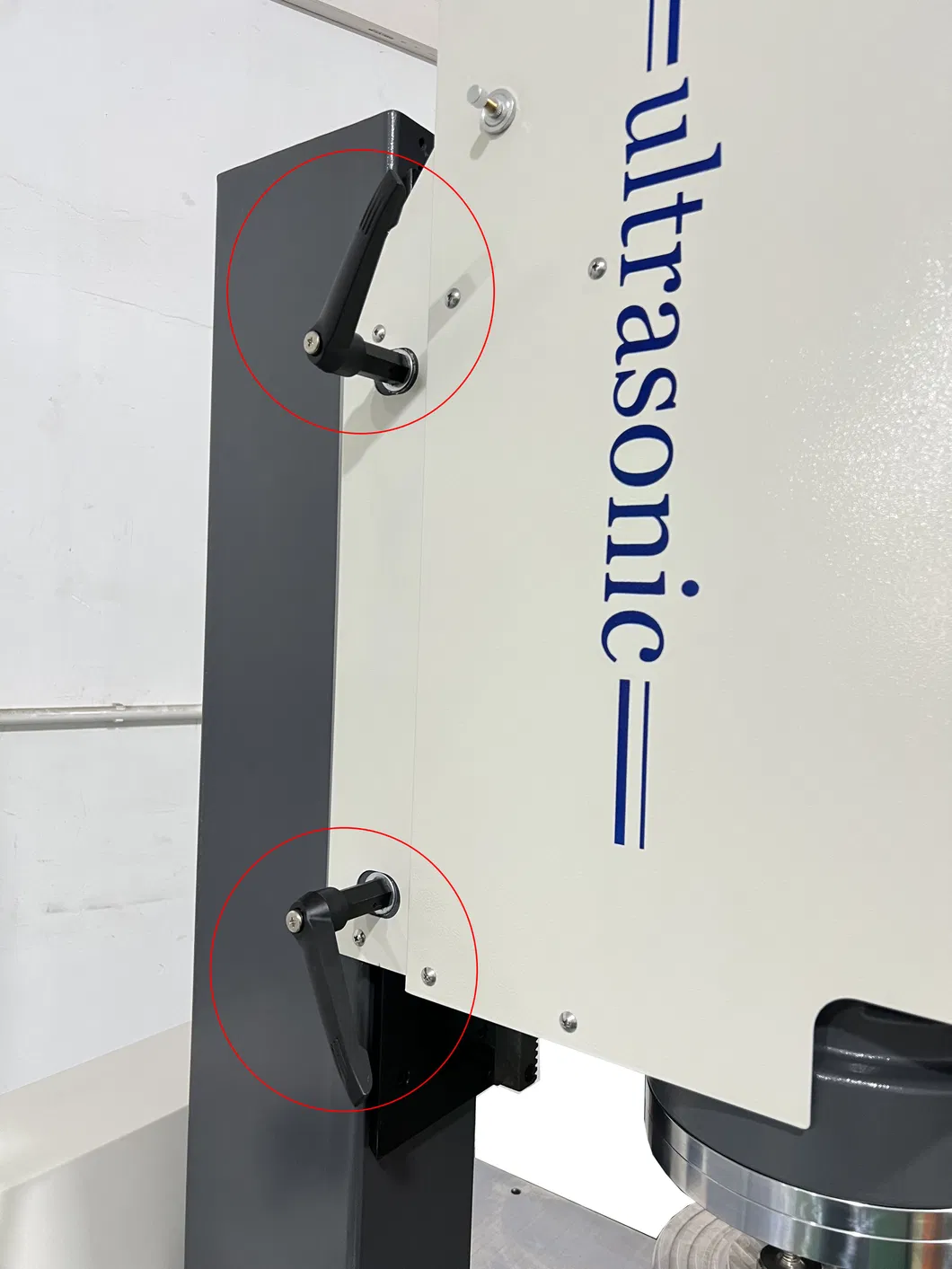

Precision Handles: Fine-tune machine tension for reliable welding results.

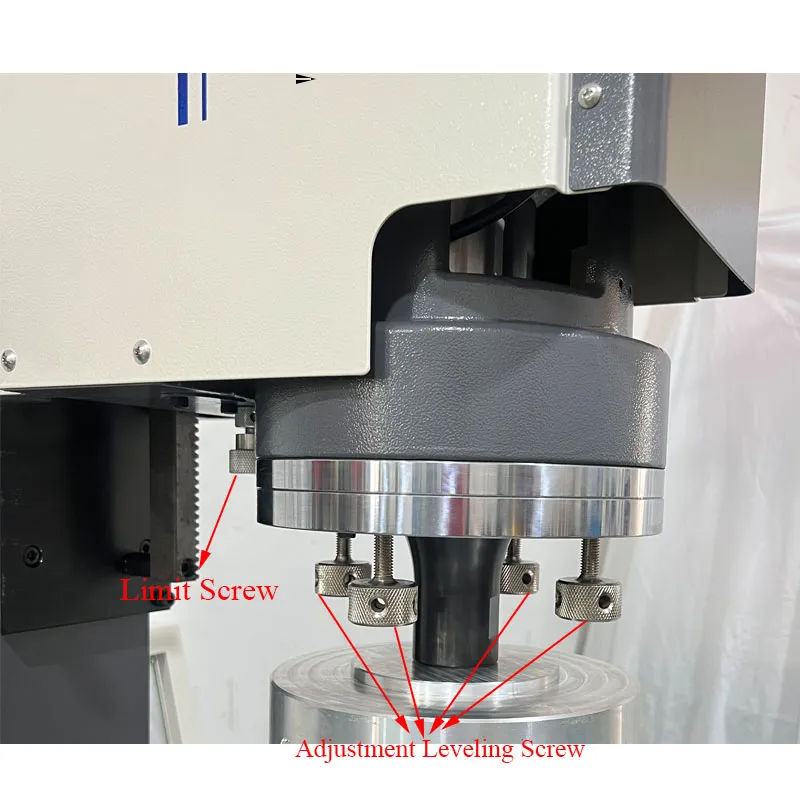

Calibration Screws: Limit and leveling screws ensure superior balance and consistency.
Precisely tracks frequency changes in the welding head for stable operation under heat.
Compensates for air pressure and voltage fluctuations (50% to 100% adjustment).
Ensures rapid response and protection, 100x faster than traditional tubes.
Clean, pollution-free welding with high strength and superior sealing speed.
Compatible with: ABS, PC, PE, PP, PS, PVC, SAM, Acrylic, Cellulose, Nylon, and more.
