High Power Battery Ultrasonic Welding Machine For Tabs Copper Foil Welding

Manual winding machine for lithium ion pouch battery production line. This ultrasonic spot welder is worked through solid phrase weld, effecting high-mode vibration and stress across all work pieces.

Basic Specifications
Model NO.
GN-800
Standard
GB
Tolerance
+/-0.01mm
Surface Treatment
Powder Coated
Machining Method
Casting
Material
Stainless Steel
Power Supply
220V/110V 50Hz/60Hz
Power
6000W
Pressure
0.4~0.6MPa
Working Stroke
12mm
Frequency
20kHz±10%
Max Output Power
8000va
Welding Thickness
Less Than 1mm
Origin
China
Main Features
  • ✓ Simple structure in linear type, easy in installation and maintenance.
  • ✓ Capable of welding cylinder cell caps and Al & Ni tabs effectively.
  • ✓ Highly customizable according to specific client requirements.
  • ✓ Professional support and robust design for long-term production use.
Technical Parameters

Power Supply: 220V / 110V, 50HZ

Max Out Power: 5000VA

Pressure: 0.4~0.6 Mpa

Welding Head Size: 420mm x 180mm x 290mm

Working Stroke: 12~45mm

Welding Ability: Multilayer copper and aluminum below 0.3mm

Outer Dimension: 420 × 180 × 290mm

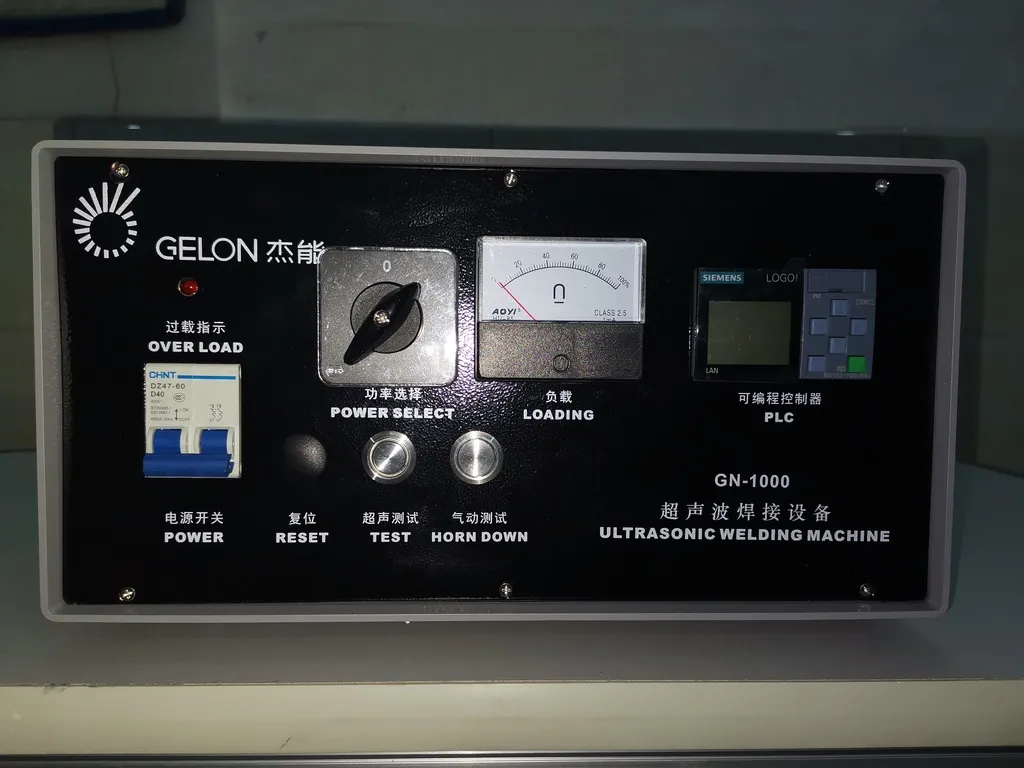

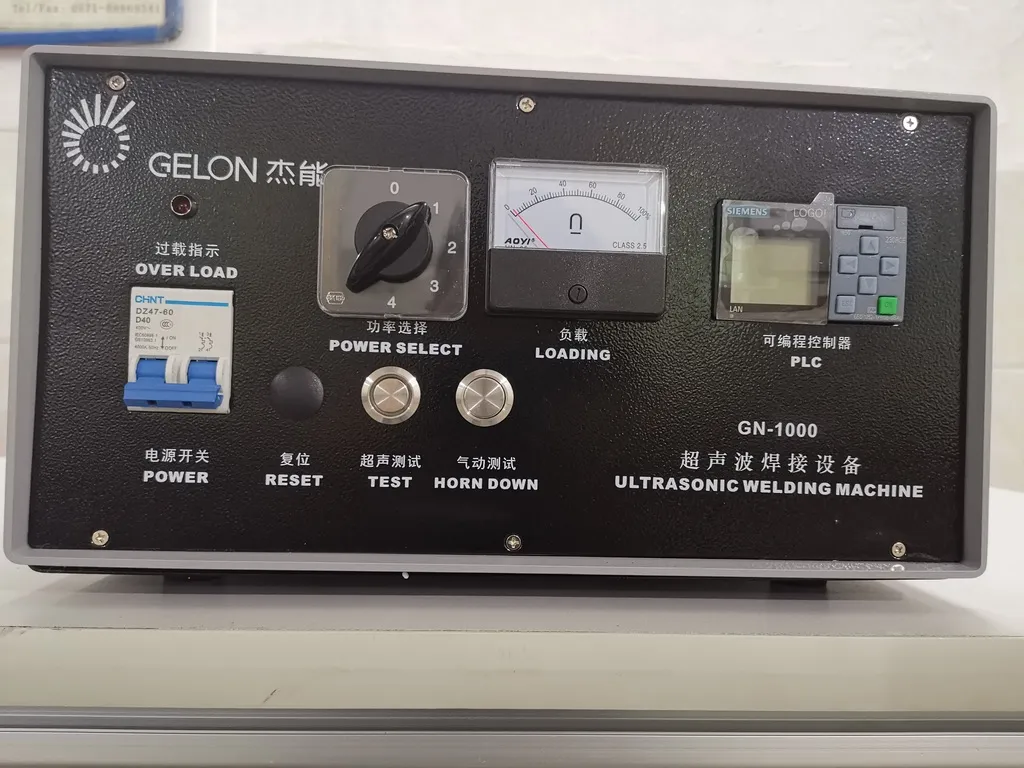

Battery Ultrasonic Welding Machine View 1
Battery Ultrasonic Welding Machine View 2

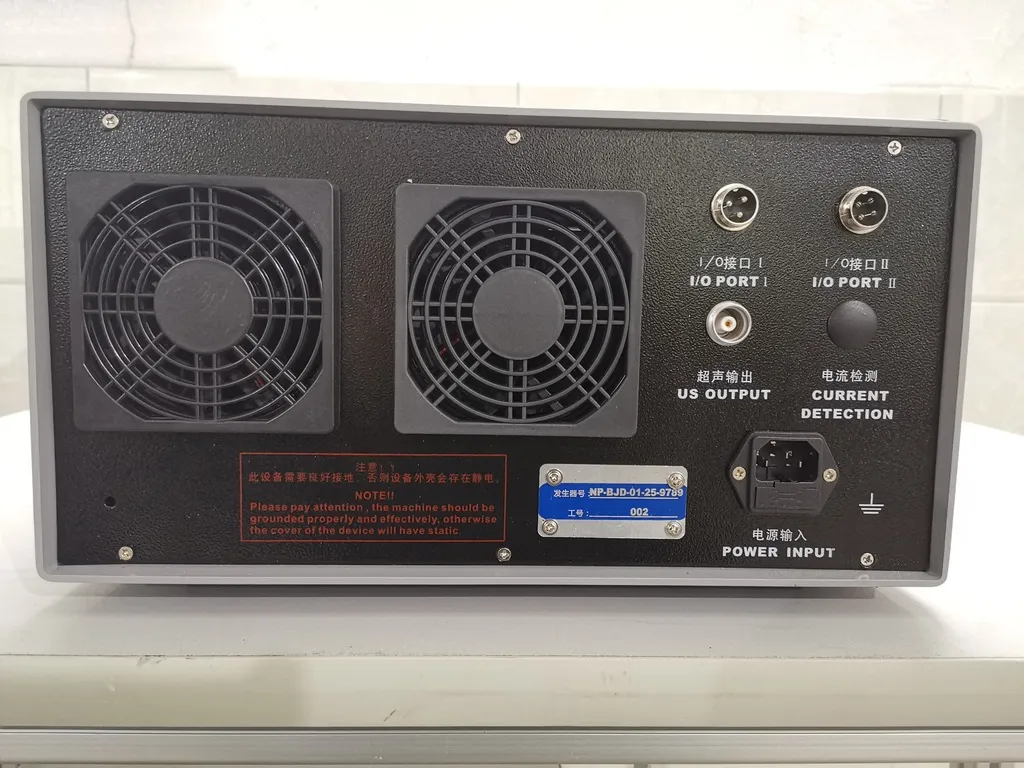

Battery Ultrasonic Welding Machine View 3

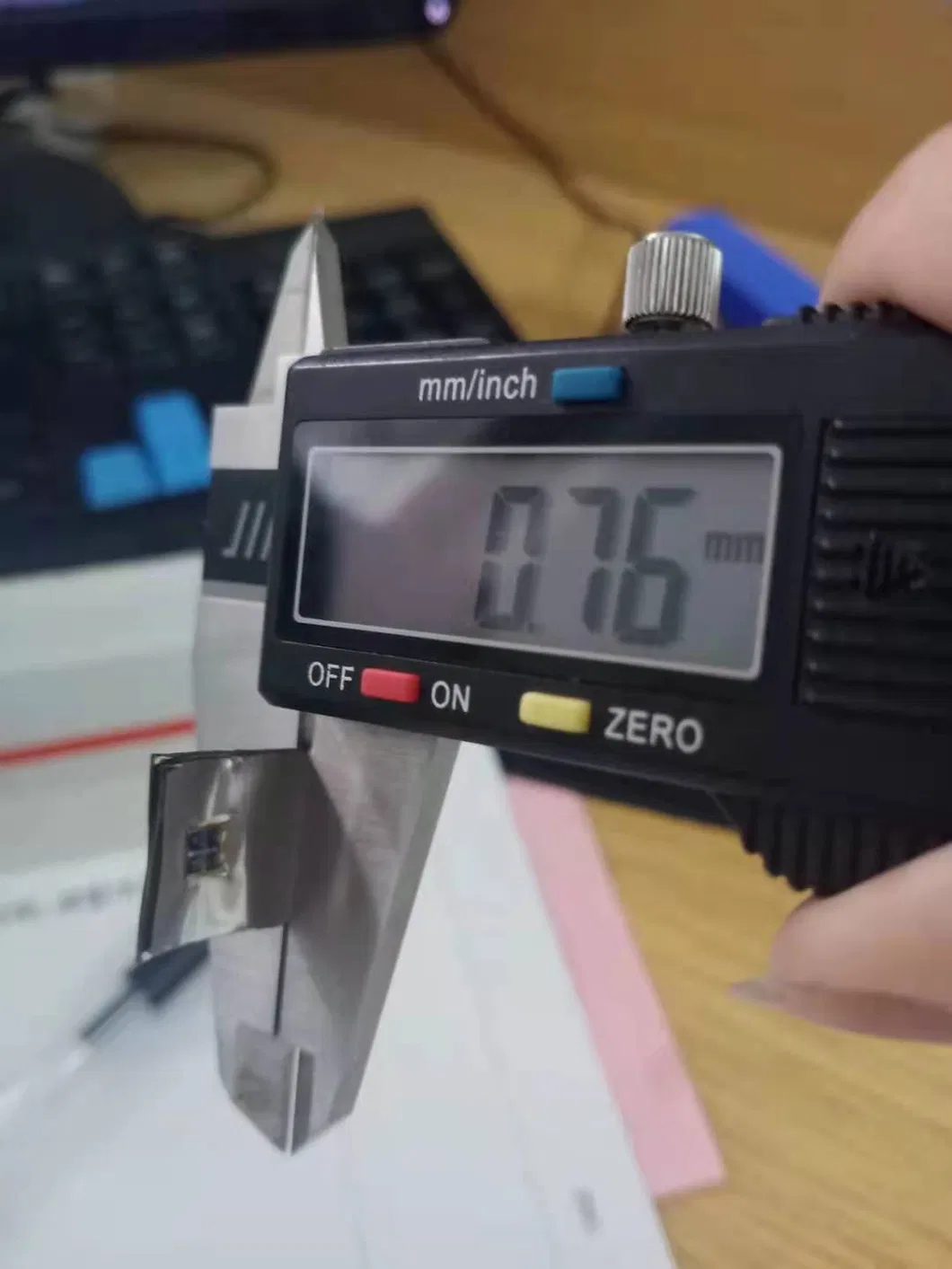

Ultrasonic Welding Process Details 1

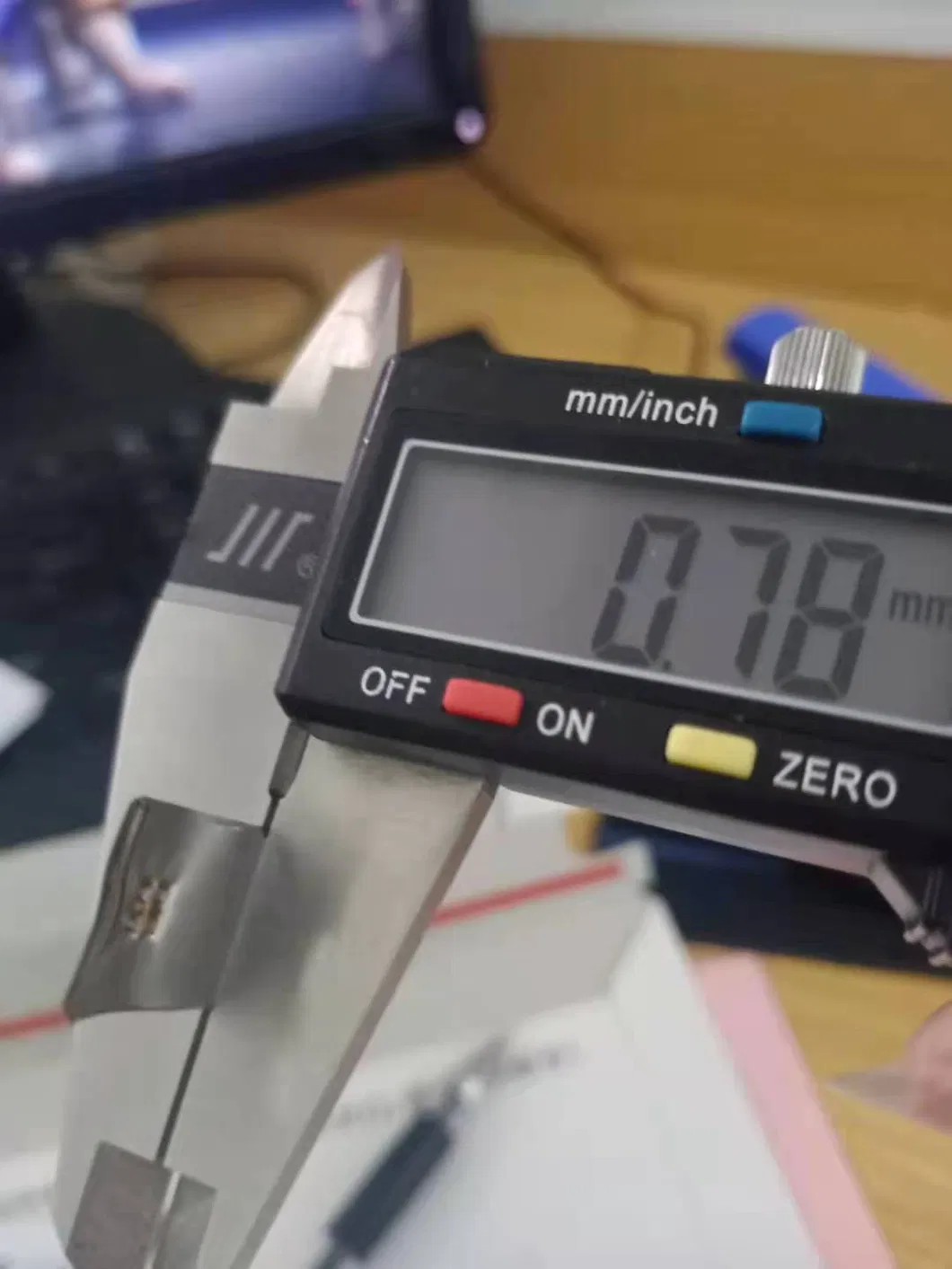

Ultrasonic Welding Process Details 2

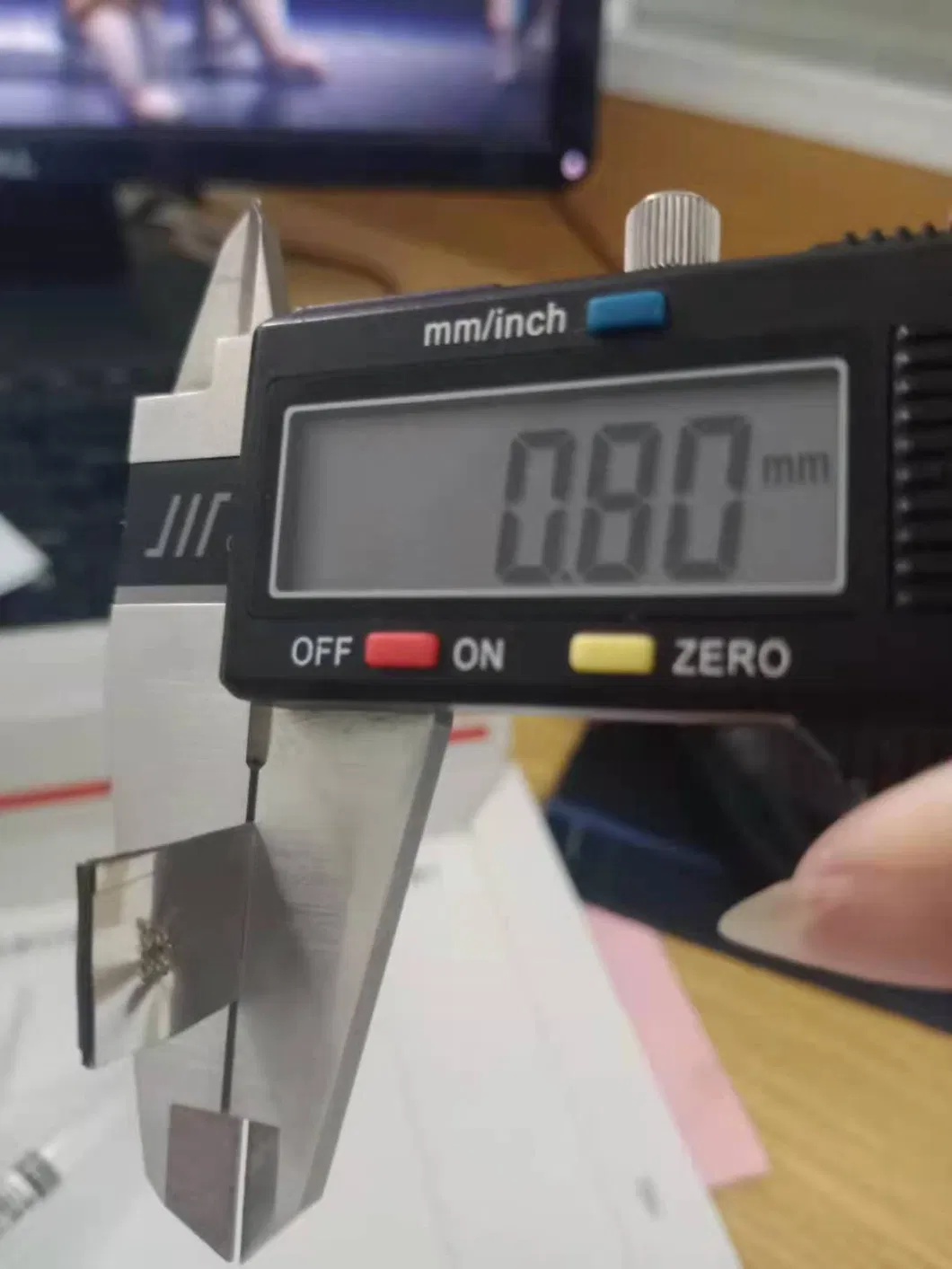

Ultrasonic Welding Process Details 3
Industrial Solutions & Services

We provide a comprehensive range of solutions for lithium battery production:

Materials Cathode (LiMn2O4, LiFePO4, NMC), Anode (LTO, Graphite, MCMB), Aluminum/Copper foils, and separators.
Equipments Full production line: Mixing, Coating, Oven, Rolling, Slitting, Winding, and Sealing machines.
Technology Design for Lab, Pilot, or Full production lines for Coin, Pouch, Cylinder, and Prismatic cells.
Battery Material Solutions
Battery Equipment Solutions
Battery Technology Solutions
Frequently Asked Questions
What types of battery tabs can this machine weld?
This ultrasonic welding machine is specifically designed to weld Aluminum (Al) and Nickel (Ni) tabs, as well as cylinder cell caps.
What is the maximum thickness the machine can handle?
It can weld multilayer copper and aluminum foils where the individual layer thickness is below 0.3mm, with a total welding thickness capability of less than 1mm.
Does the machine support international power standards?
Yes, the machine is compatible with both 220V and 110V power supplies at 50Hz or 60Hz frequency.
Can the machine be customized for specific production needs?
Absolutely. The structure and welding parameters can be customized according to the client's specific battery design and material requirements.
What is the typical welding time for a single spot?
The welding process is extremely efficient, typically taking less than 1 second per welding cycle.
What kind of maintenance does the linear structure require?
The simple linear type structure is designed for easy maintenance, requiring only standard periodic cleaning and pressure checks to ensure long-term stability.
