Adopting advanced ultrasonic circuit, imported piezoelectric ceramic chip in the transducer, mould head is made of titanium alloy materials. It is of stable performance and easy manipulating. This product can be applied to the different seam craft of toys, garments, hair decorations and ribbons. It is adopted special mould head to stick the artificial diamond on the fabrics. The horn material and shape can selected by you, it depends on your application.
Key Features:
- Hand welder can be applied to a single point welding, screw implants, riveting.
- Portable design, save space, easy to operate.
- Can be used independently or with automatic peripheral equipment.
- Special lesson device models for rhinestones/PC drill mount in haute couture.
- Ultrasound output size can be adjusted.
| Item | Parameter |
|---|
| Frequency | 20Khz |
| Power | 1000W |
| Ceramice chips | 4 chips |
| Speed | 20m/min max |
| Welding width | 15mm max |
| Welding horn | 20Khz rotary horn |
| Welding type | Continuous welding |
Industrial Applications:
- Automotive industry & Prototype/trials work
- Conveyor belt repair & Re-work for automation
- Fabric repairs and joining & Blister packs
- Electrical and computer industry (wire harnesses, microcircuits)
- Medical sensors and battery component assembly

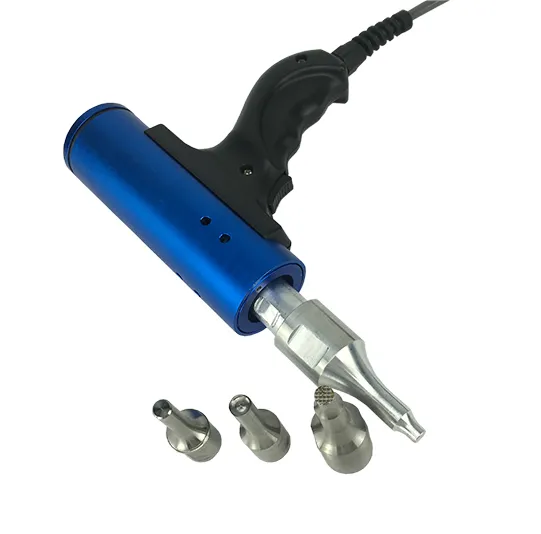

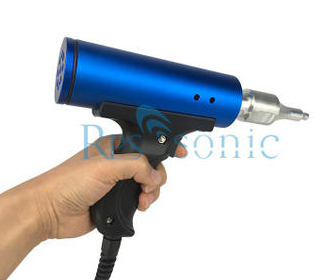

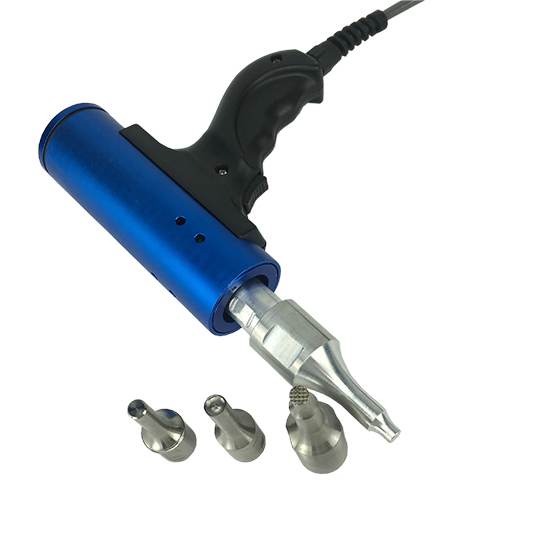

The ultrasonic hand-held sonotrode is equipped with an ultrasonic generator. The horn and the handle are made of high-quality materials, ensuring long life and smooth operation. The handheld design allows for welding hard-to-reach areas and tamper-proof sealing of packaging.
Frequently Asked Questions

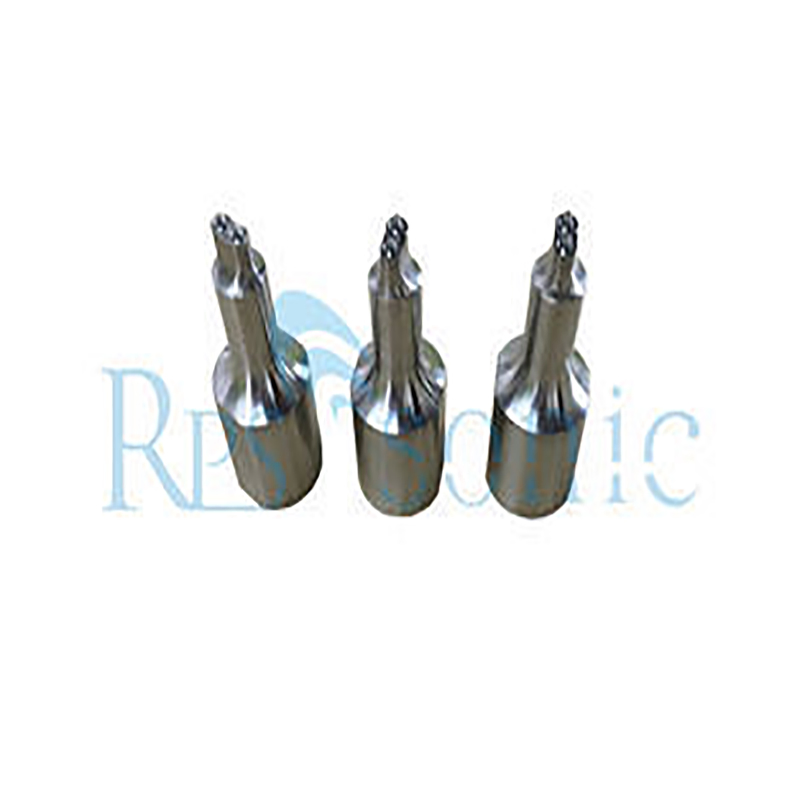

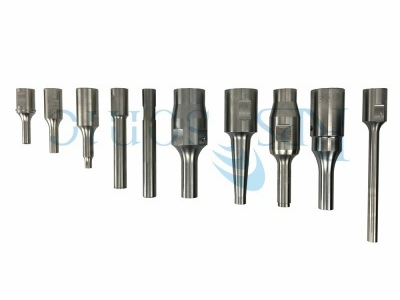

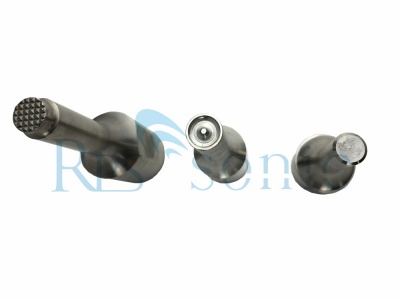

What materials are used for the ultrasonic horn?
The welding horn is typically constructed from high-quality Titanium Alloy or Aluminum, depending on the specific requirements of your application.
How fast is the welding process?
The welding speed is approximately 5 seconds per point, though this can vary based on the material type and the desired bonding results.
Is this welder suitable for dissimilar materials?
Yes, one of the key advantages of ultrasonic welding is its ability to join dissimilar materials, such as copper, nickel, and aluminum connections in battery assembly.
Does the device require special preparation of the parts?
No special preparation or energy directors are required for ultrasonic spot welding, making it ideal for large vacuum-formed parts.
Can the ultrasonic output be adjusted?
Yes, the ultrasound output size is adjustable to suit different welding tasks, from delicate microcircuits to robust automotive components.
Is the generator digital or analog?
This model features a high-performance Digital Type generator for stable output and precise control during operation.
