| Item | Parameter | Advantage | Application |

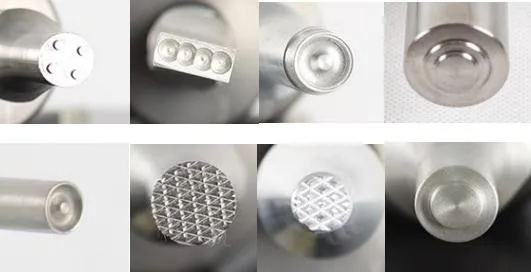

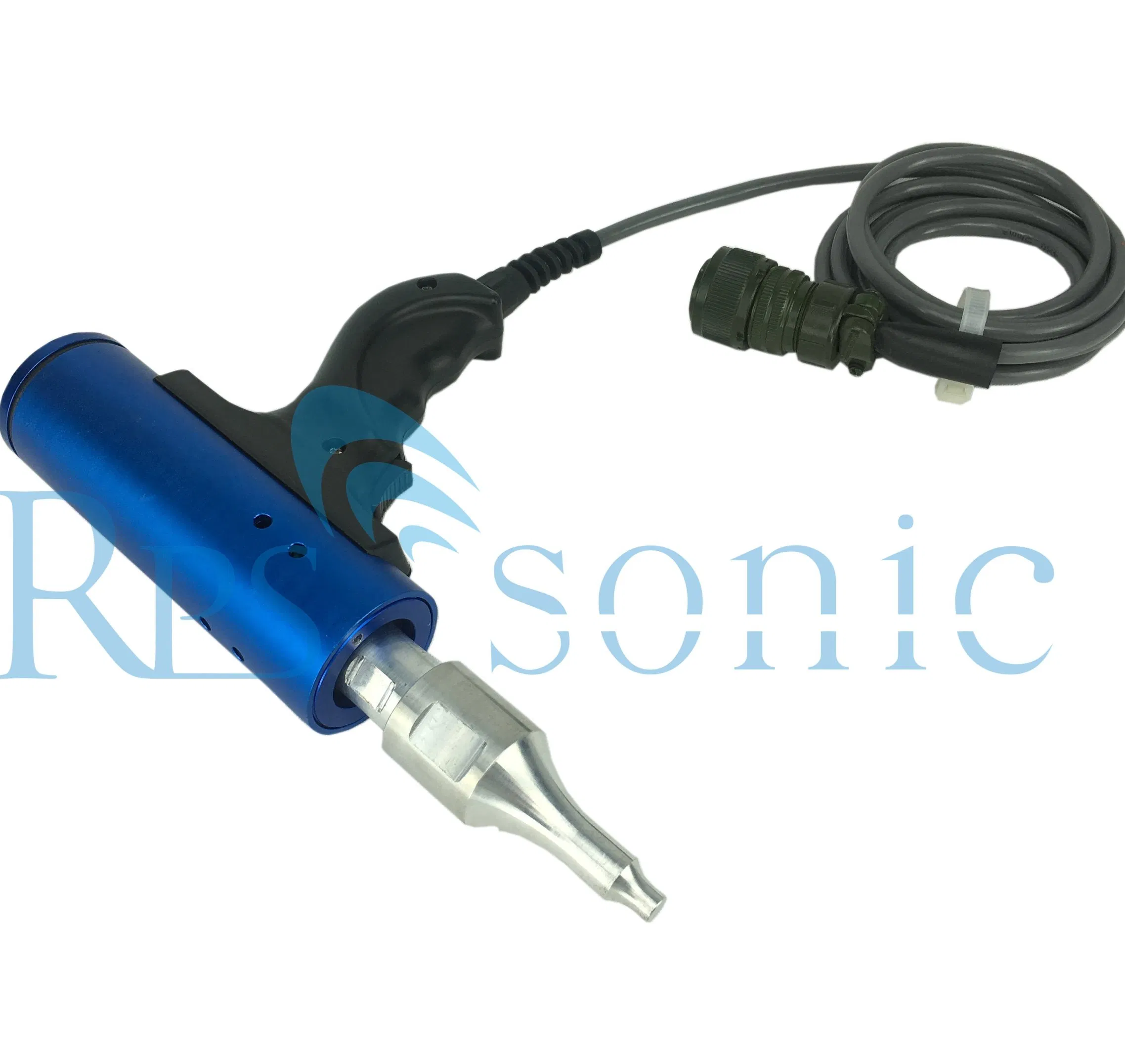

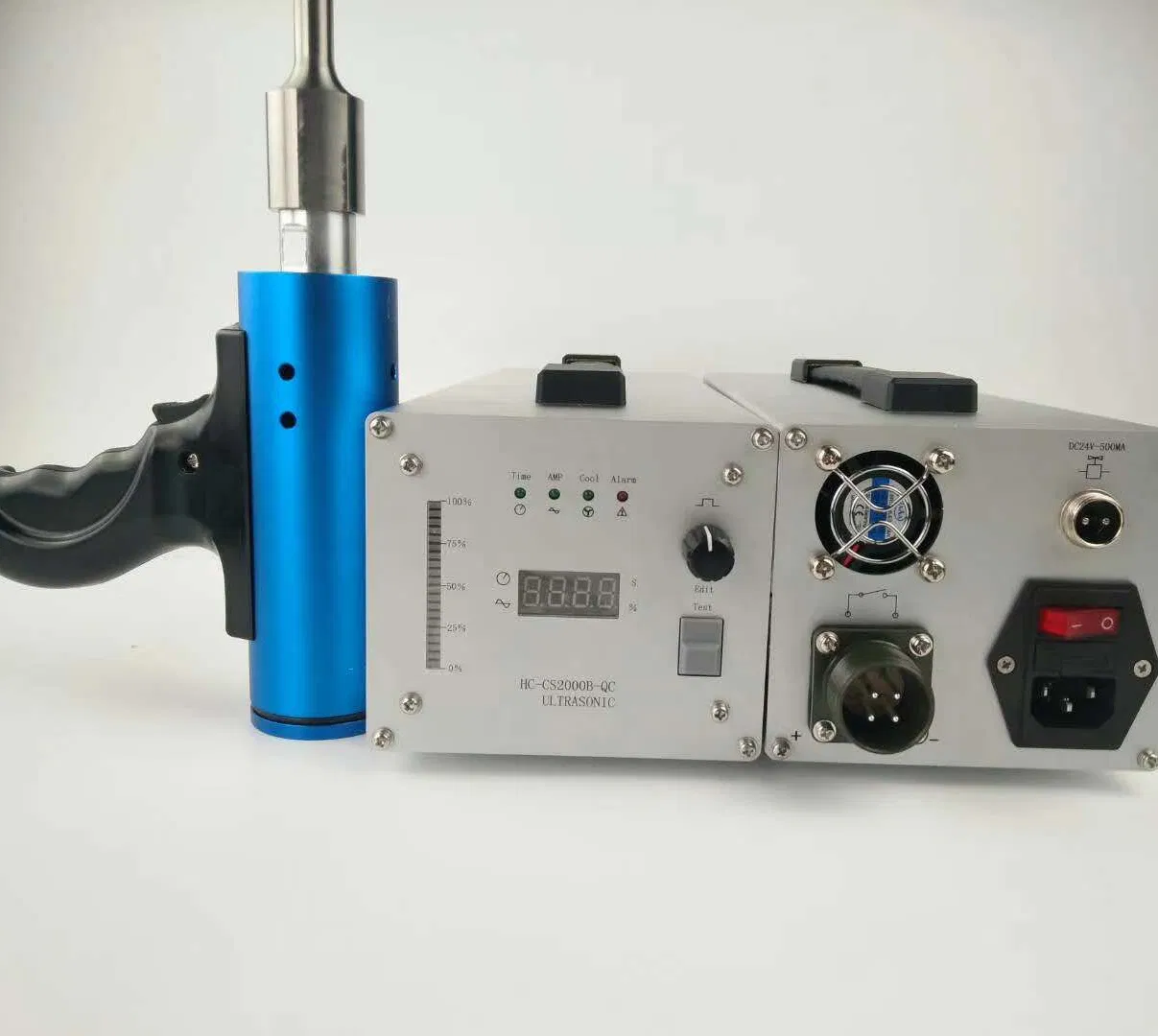

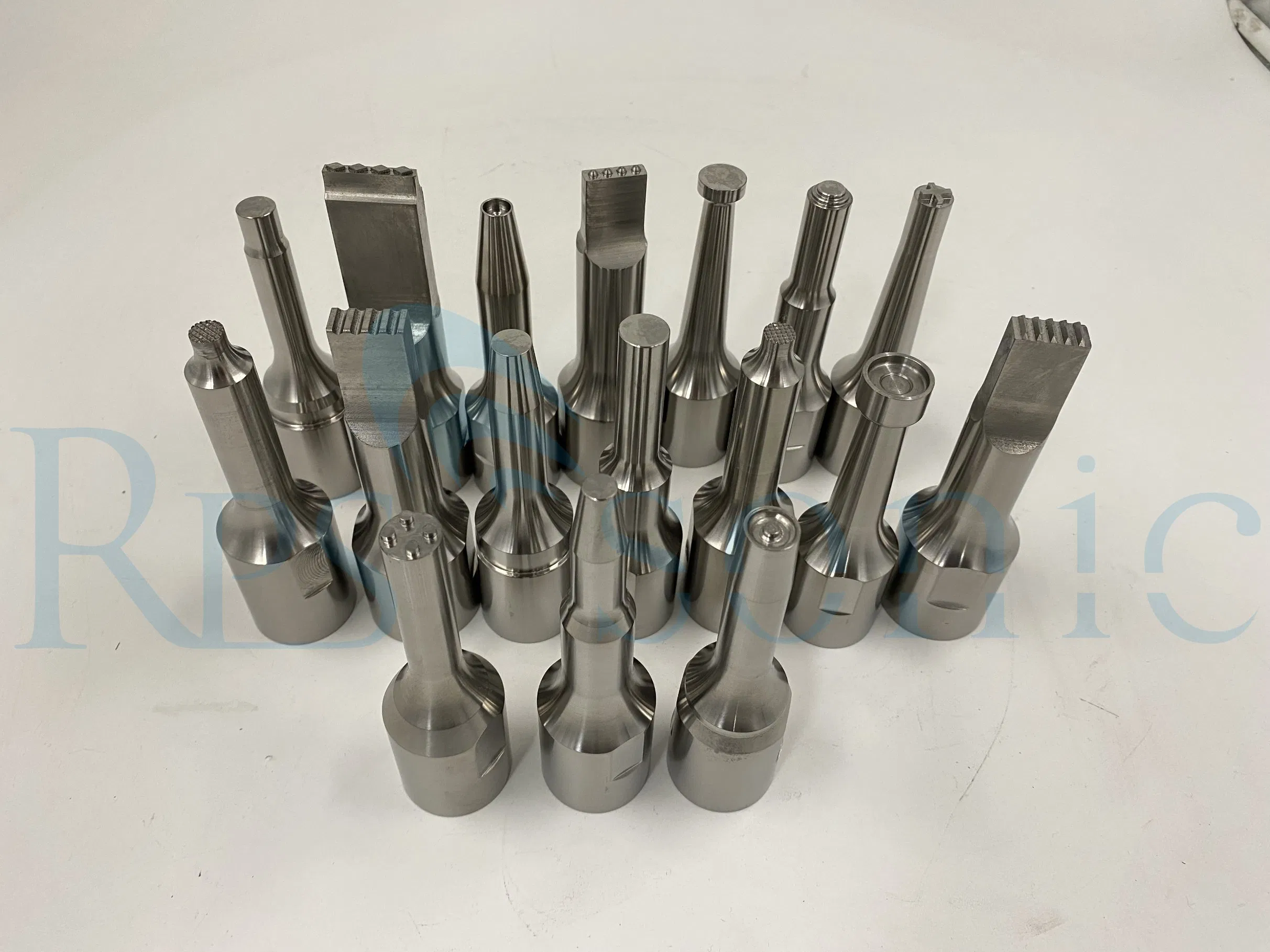

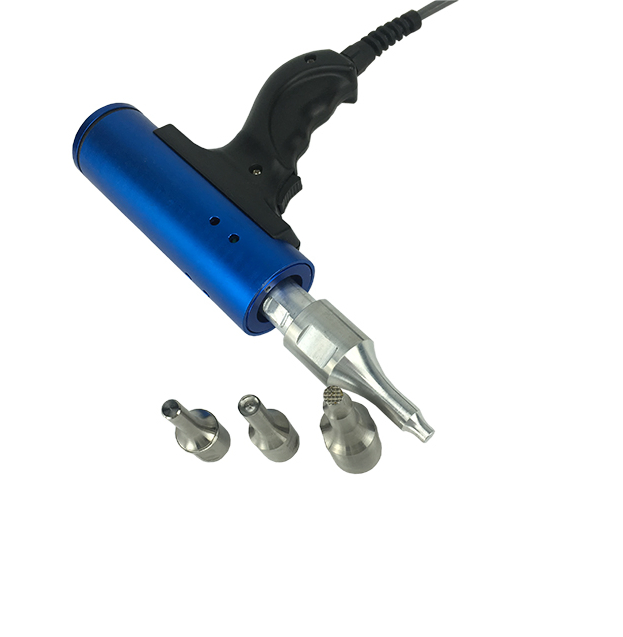

| 28Khz ultrasonic hand welder (Straight/Gun) | ▪ 28Khz 800W ▪ Digital generator ▪ Horn customized ▪ Aluminum/Steel/Titanium alloy ▪ 220v 50/60HZ |
1. Light generator (4kg) and hand welder (0.8-1kg). 2. Special alloy metal housing, firm and durable. 3. Digital generator with auto frequency tracking. |
PP PVC Fabric woven PE ABS PS Nylon PU PET. Max thickness 8mm. |
| 35Khz ultrasonic hand welder (Straight/Gun) | ▪ 35Khz 500W ▪ Digital generator ▪ Horn customized ▪ Aluminum/Steel/Titanium alloy ▪ 220v 50/60HZ |
PP PVC Fabric woven PE ABS PS Nylon PU PET. Max thickness 5mm. |
Principle of Ultrasonic Plastic Welding:
When ultrasonic waves act on the thermoplastic contact surface, high-frequency vibrations (tens of thousands of times per second) generate local high temperatures due to acoustic resistance. This causes the contact faces of the plastics to melt rapidly. Under pressure, they integrate into one strong molecular chain. The welding strength can be close to the strength of the raw material.
