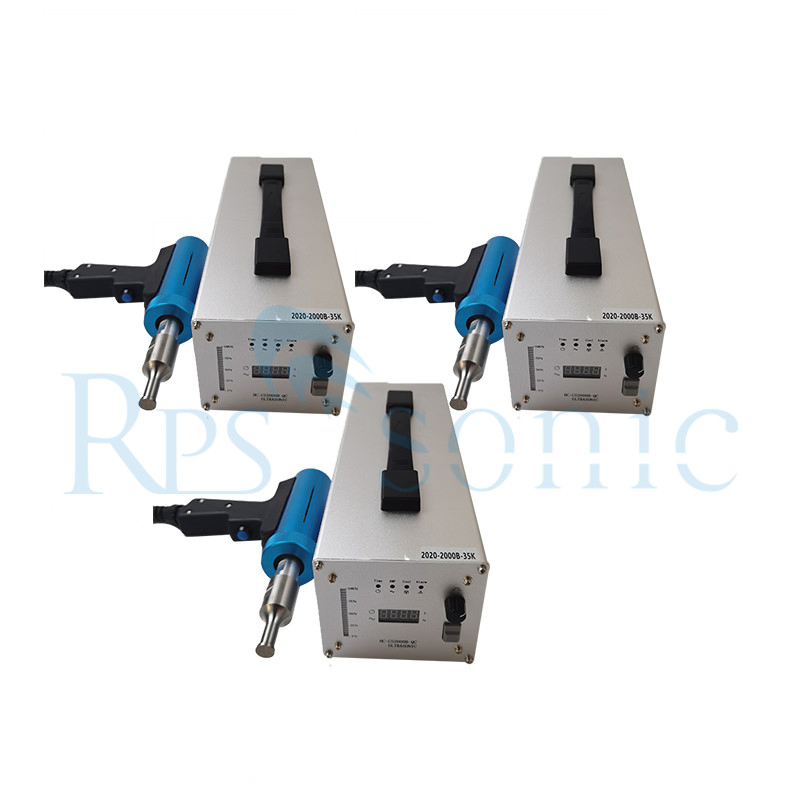

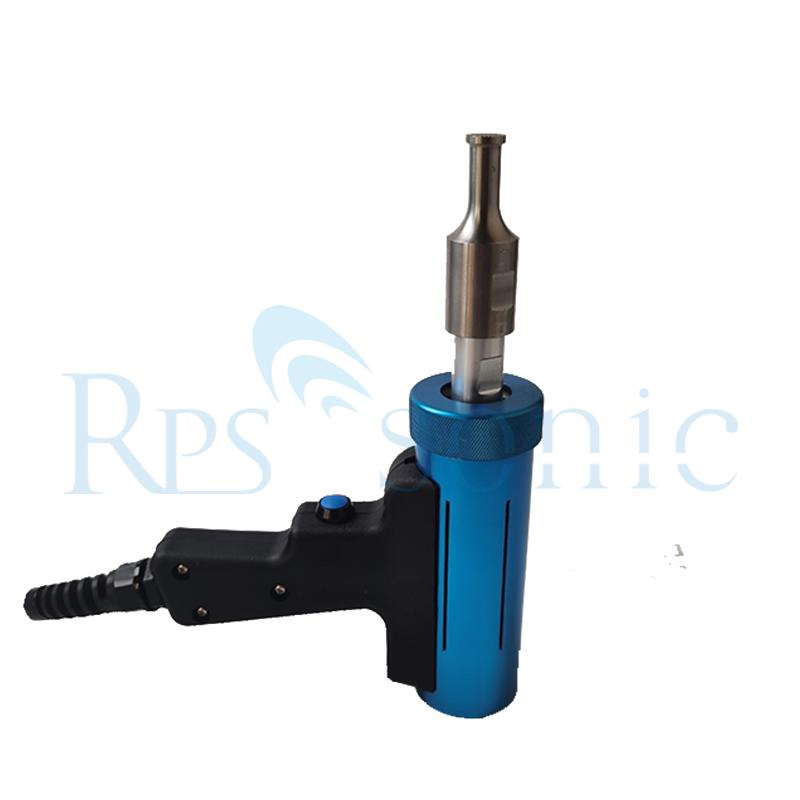

Portable 35Khz Ultrasonic Spot Welder for chicken bands welding
Ultrasonic spot welding is an efficient solution for welding flat mouldings without specific weld preparation. It is ideal for thermoformed, blow moulded, and large-surface mouldings where the sonotrode tip penetrates the upper part to create a plasticised bond with the lower part.
| Model Type | Parameters | Key Advantages | Materials & Application |
|---|---|---|---|

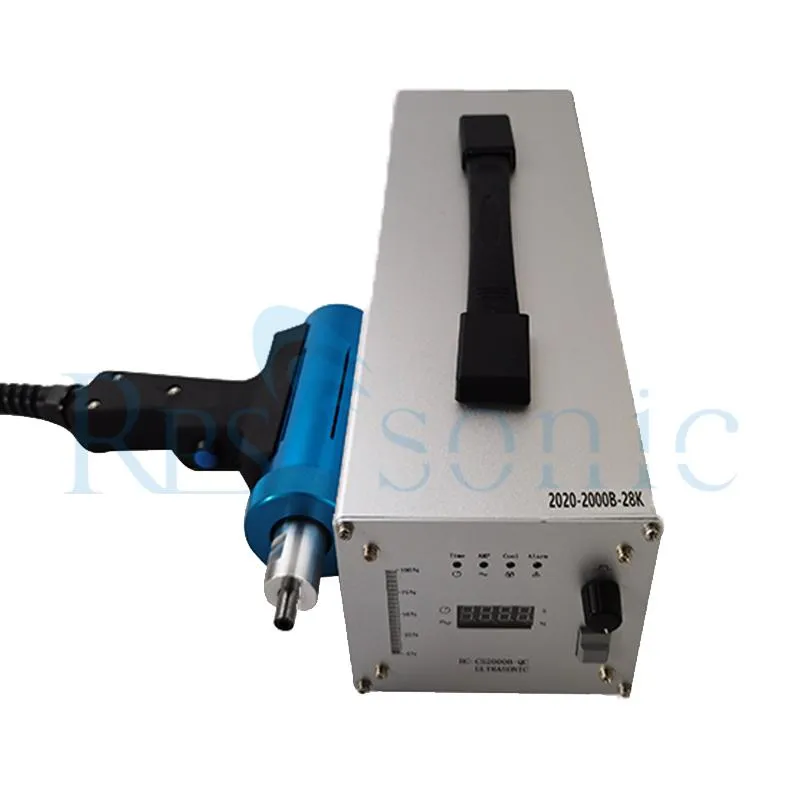

| 28Khz Hand Welder (Straight/Gun) | 800W, Digital Generator, Custom Horn, 220V 50/60HZ |
1. Lightweight (Generator 4kg, Hand piece 0.8-1kg) 2. Firm Alloy metal housing, long service life. 3. Digital generator with auto frequency tracking. |
PP, PVC, PE, ABS, PS, Nylon, PET (Max thickness 8mm). |

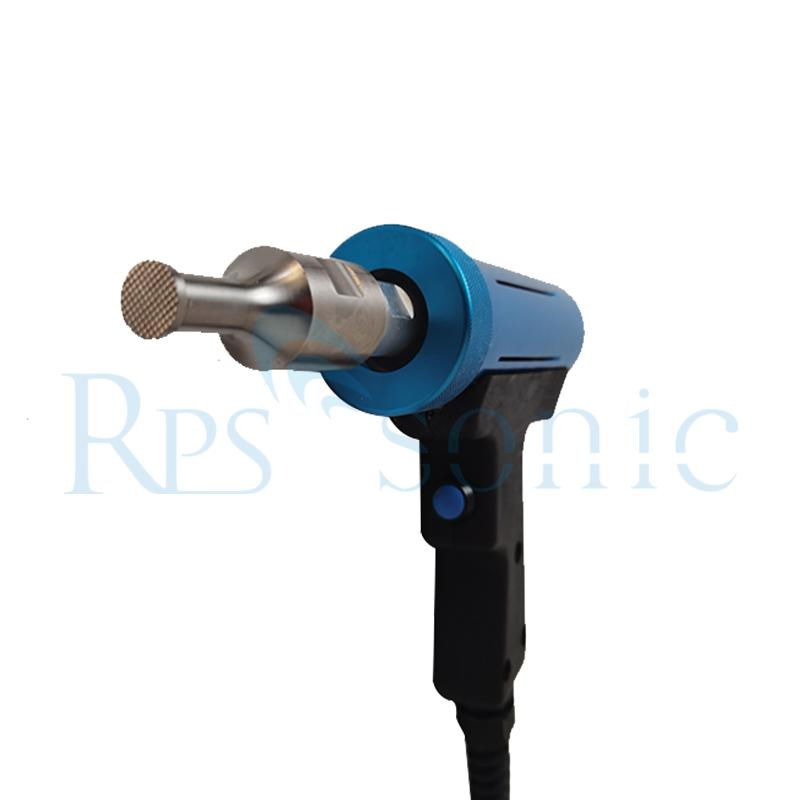

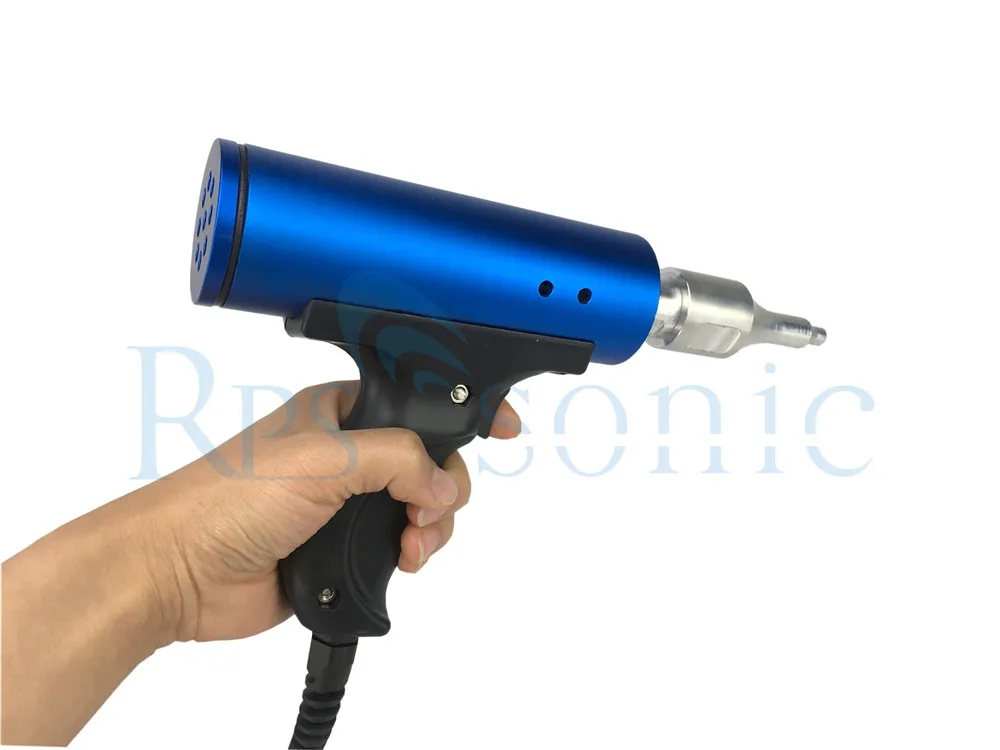

| 35Khz Hand Welder (Straight/Gun) | 500W, Digital Generator, Custom Horn, 220V 50/60HZ | Thermoplastic materials (Max thickness 5mm). Ideal for chicken bands. |
The device is based on a high-performance Multi-Application Generator, mastering common welding modes such as Time, Energy, and Manual. It features integrated compressed air cooling for the converter, automatically activated to minimize operating costs.
