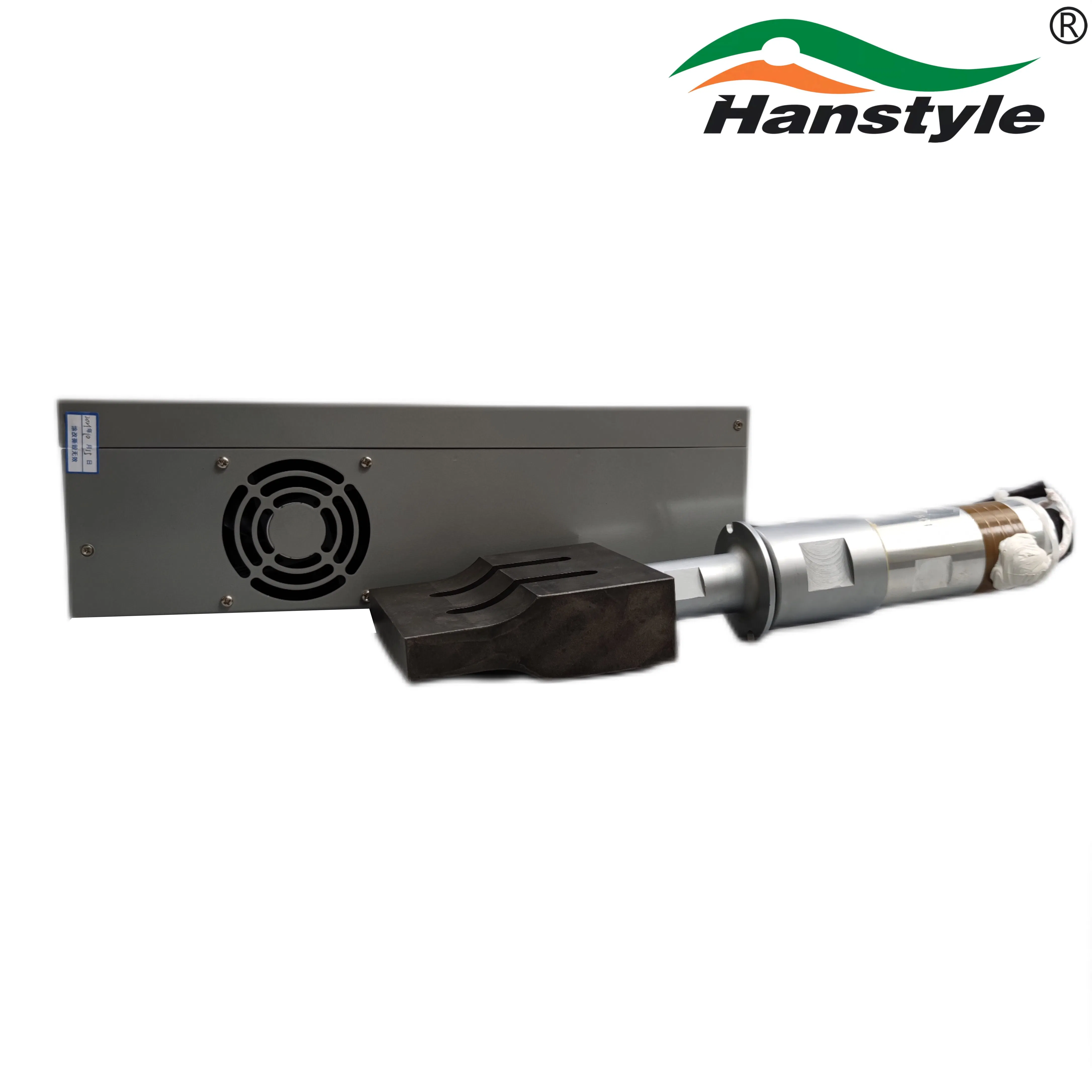

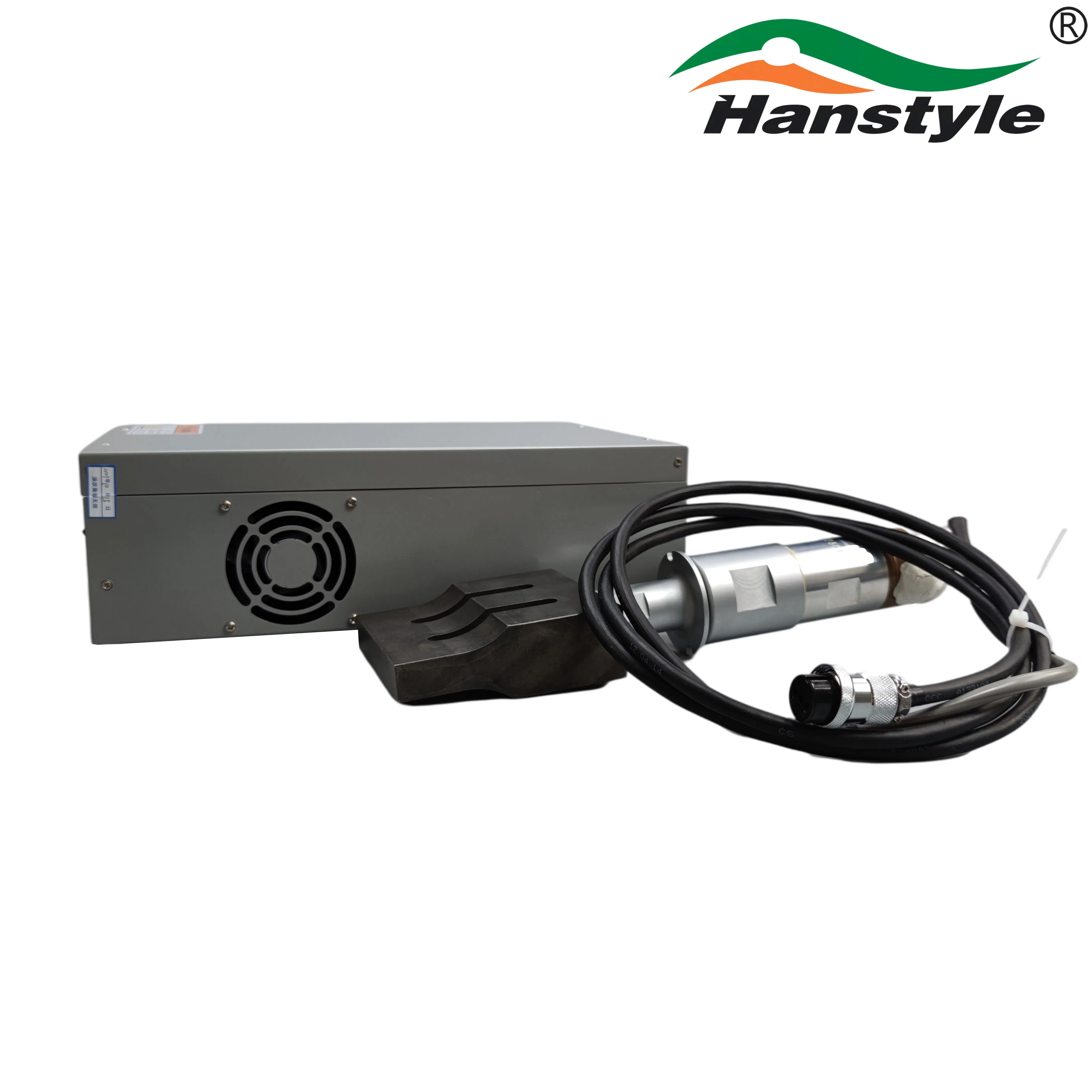

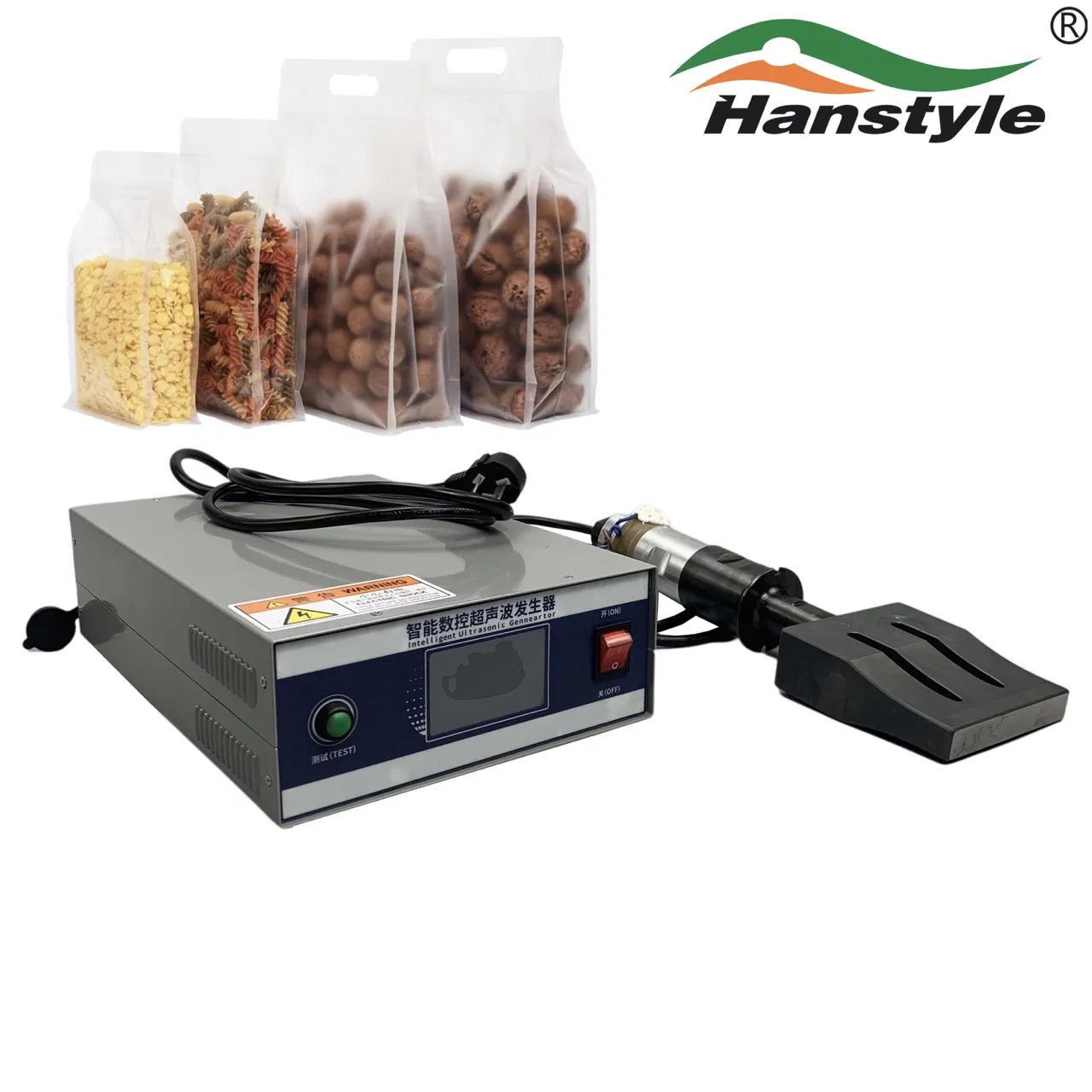

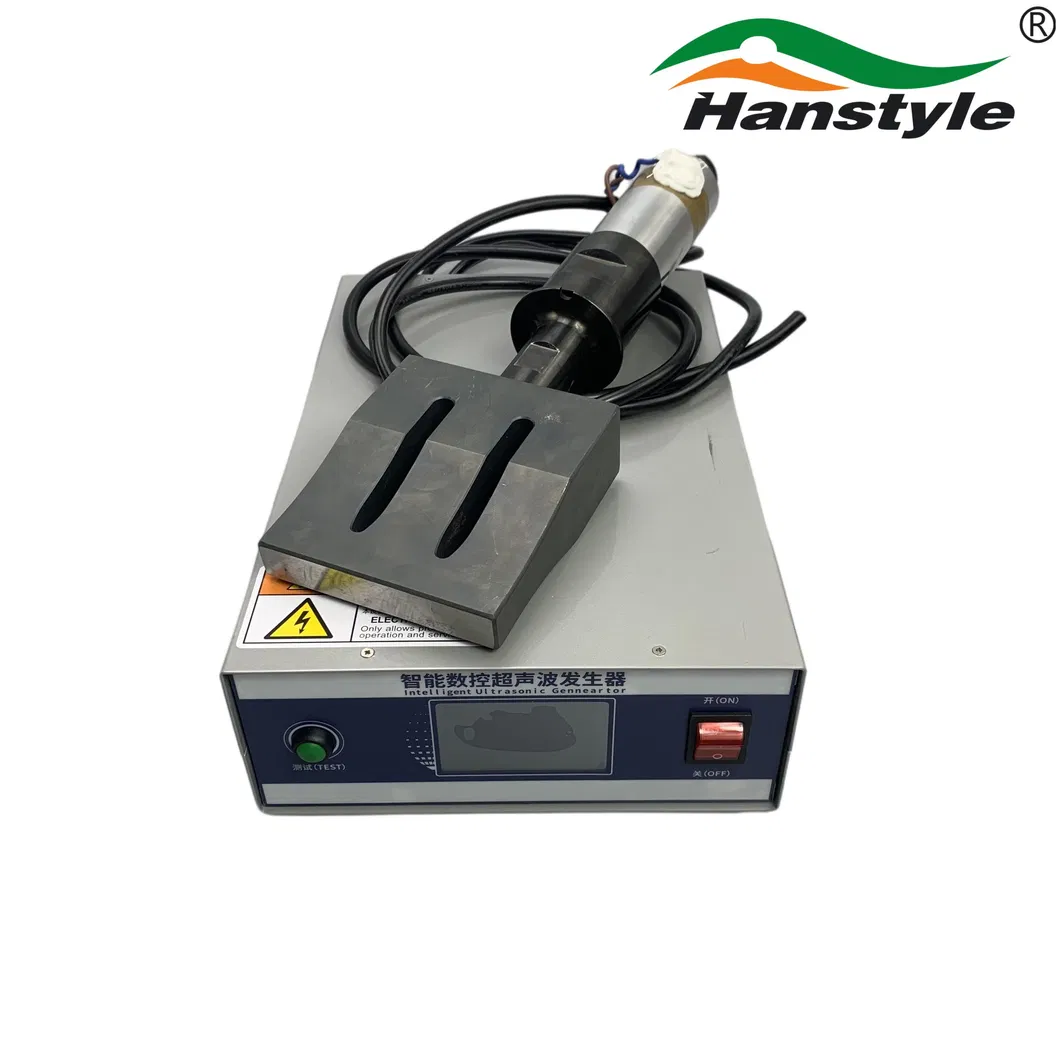

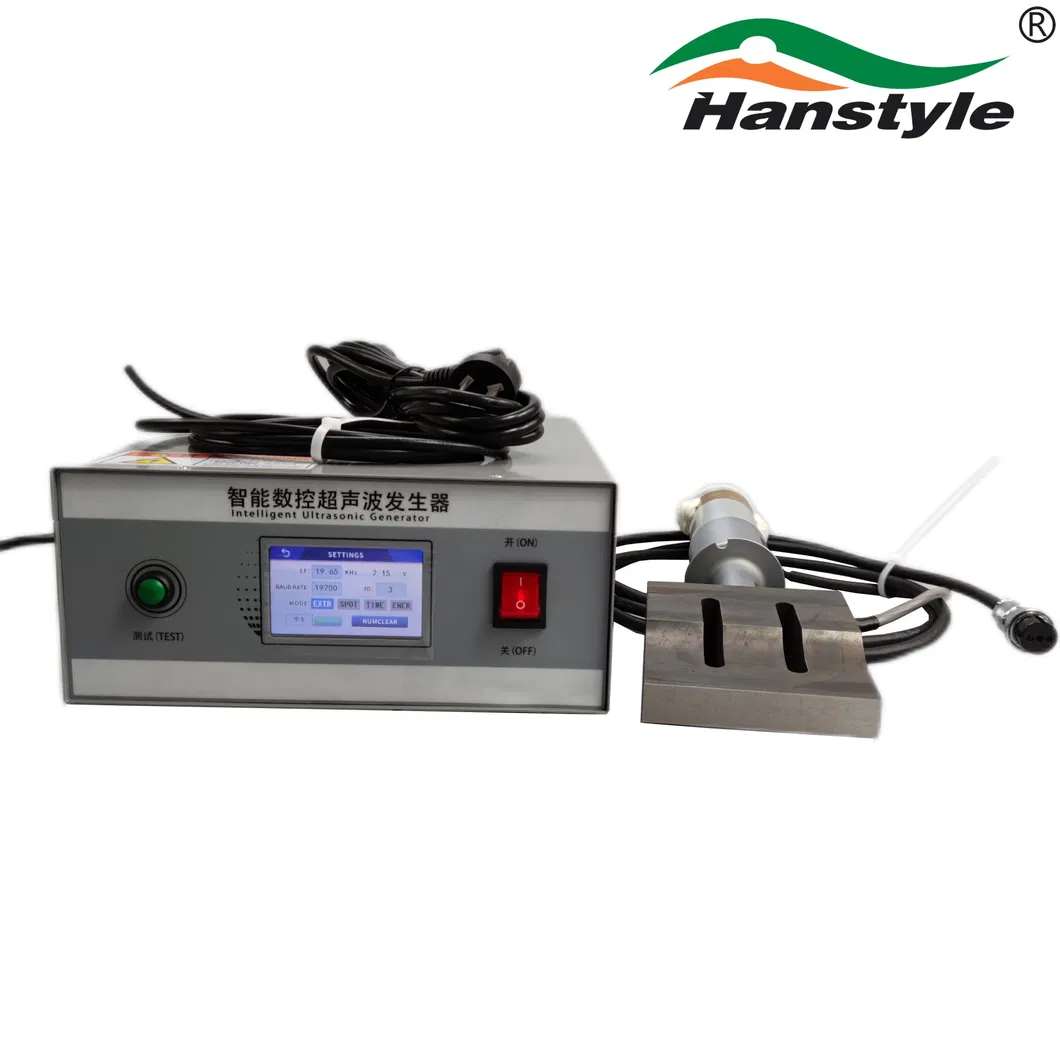

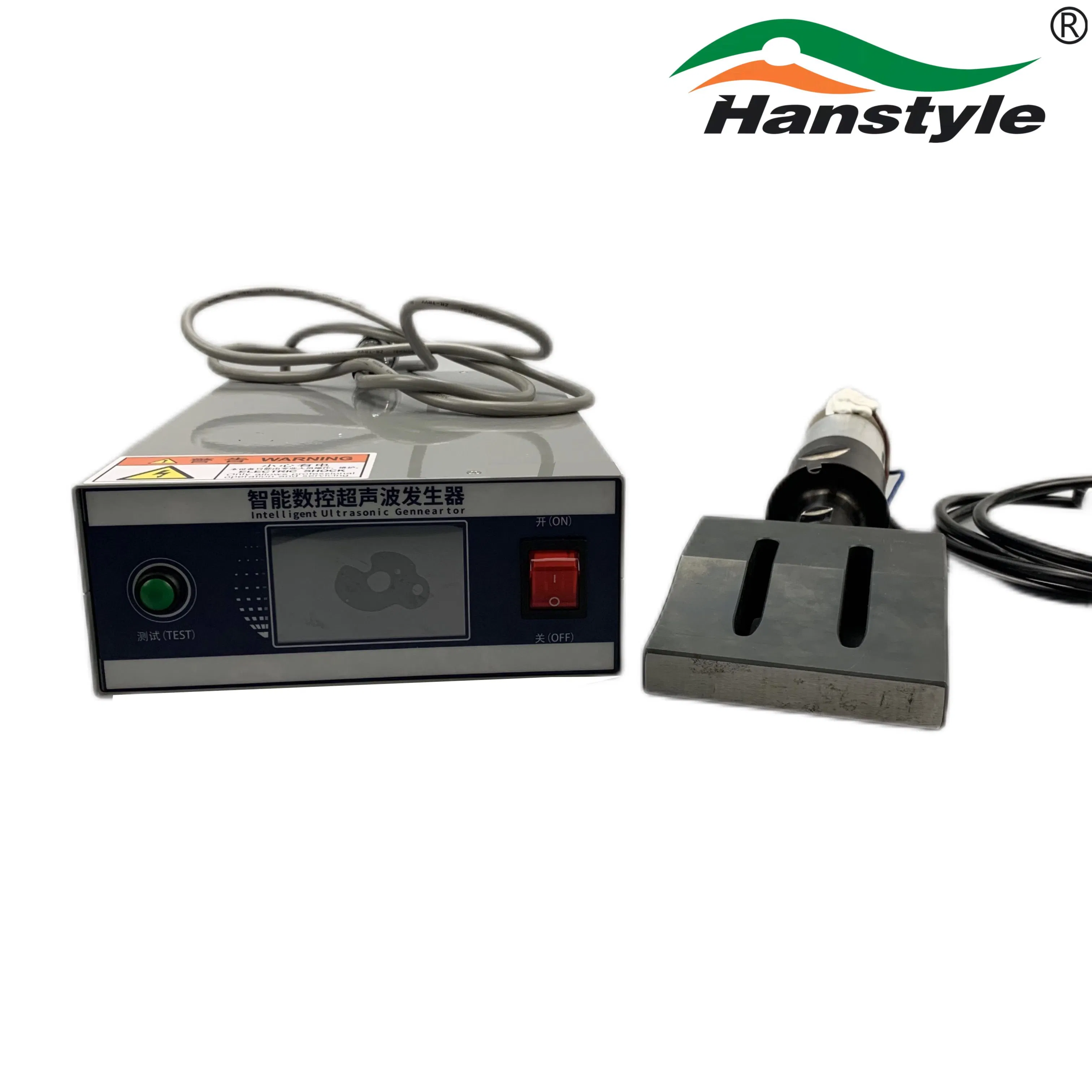

High Quality Fast Speed High Efficiency Continuous High Power Ultrasound Waves 20KHz Ultrasonic Welding Device For Packing Machine

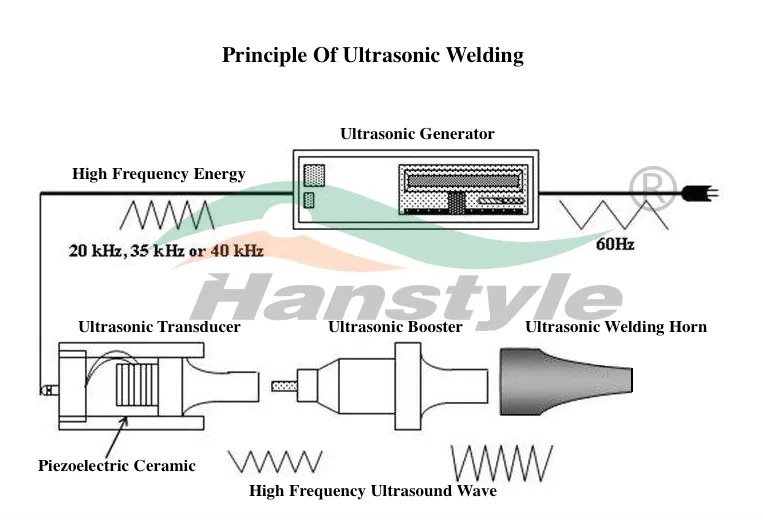

Ultrasonic welding is the principle of fusion between the surfaces of two objects to be welded to form molecular layers by friction with each other. Ultrasonic welding is the conversion of 50/60 Hz current into 15, 20, 30 or 40 KHz electrical energy by means of an ultrasonic generator.
The welding head transmits the received vibration energy to the joint of the workpiece. In this area, the vibration energy is converted into heat energy by friction, and the surface of the object is melted to complete effective bonding. Today, ultrasonic welding is widely used in many industrial production fields.

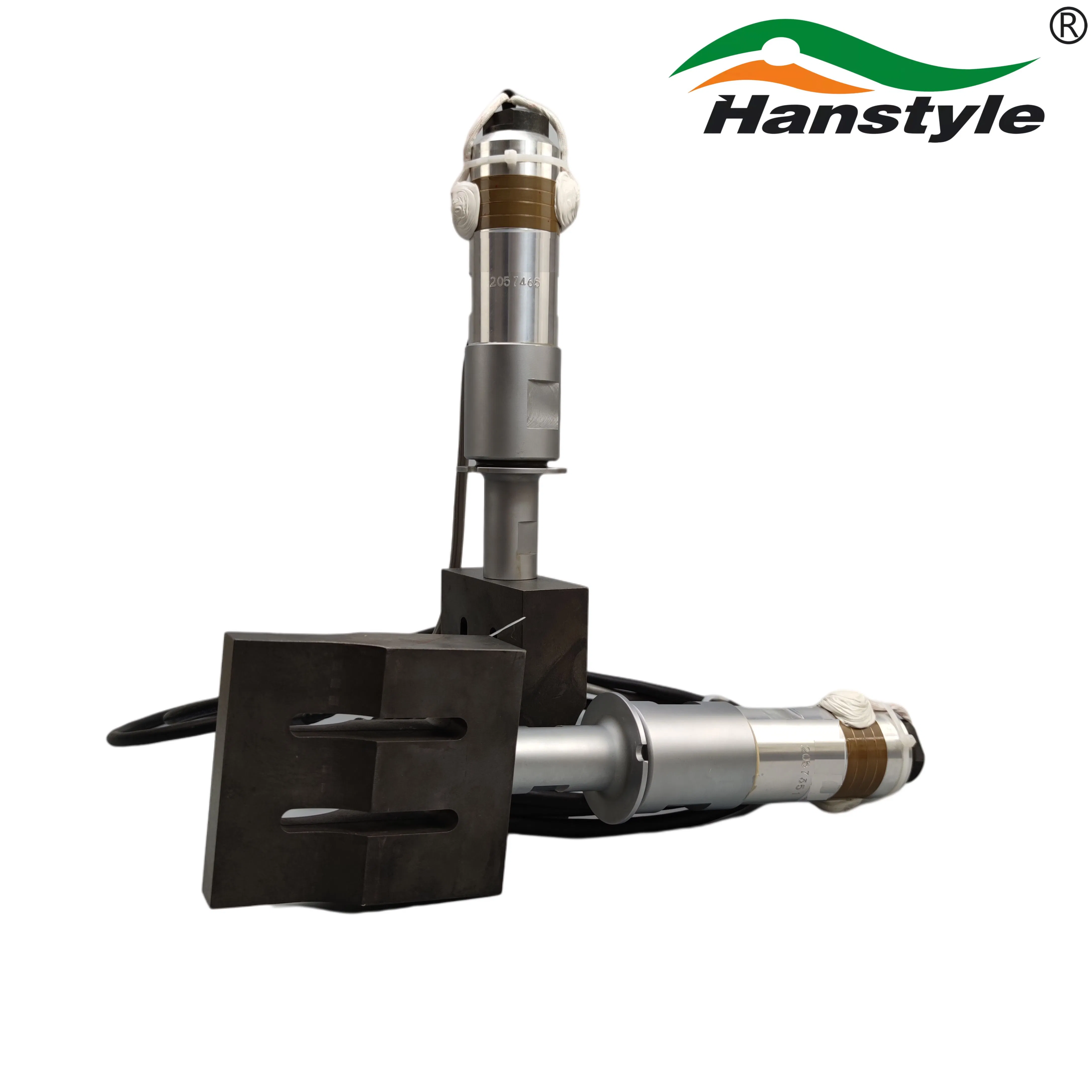

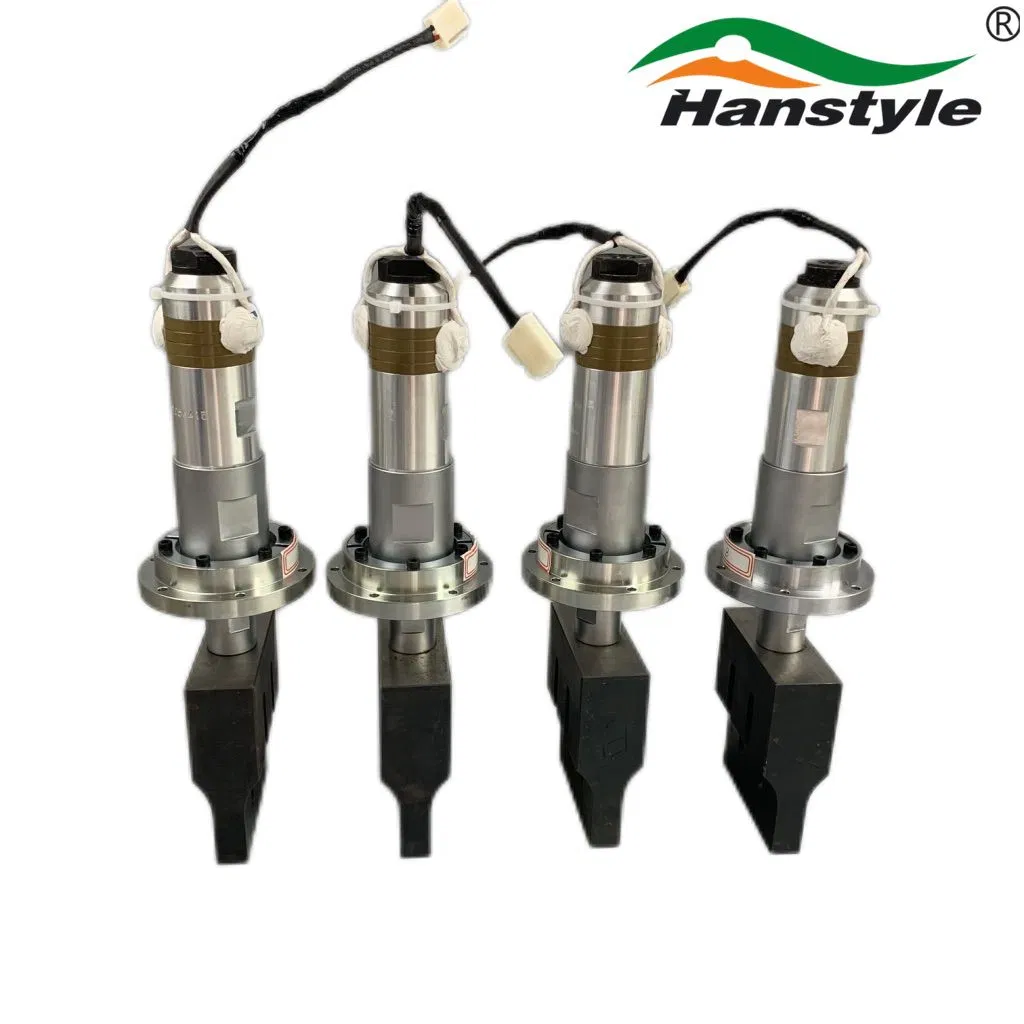

| Feature | Ultrasonic Transducer | Ultrasonic Generator |
| Model | H-5020-4Z | H-UW20 |
| Ultrasonic Frequency | 20KHz ± 0.5KHz | 20KHz ± 0.5KHz |
| Ultrasonic Power | 2000Watt | 2000Watt |
| Ultrasound Wave | - | Continuous / Intermittent |
| Capacitance | 11000±10%pF | - |
| Resistance | ≤10Ω | - |
| Working Temperature | 75ºC | 0~40ºC |
| Size | 110*20mm | - |
| Weight | 8Kg | 9Kg |
| Power Supply | - | 220V, 50/60Hz, 1 Phase |
Because of the fast, efficient, clean and firm characteristics, ultrasonic welding has quickly won the favor of all walks of life. It is widely used in:
