| Model NO. | MD-PW2015A |
|---|---|
| Control | Semi-Automatic |
| Frequency Range | High Frequency |
| Electric Current | AC |
| Style | Vertical |
| Power | Pneumatic |
| Frequency | 15kHz |
| Welding Time | 0.01-9.99 Sec |
| Air Pressure | 0.15MPa-0.6MPa |
| Welding Head Stroke | 85 mm/Customise |
| Warranty | One Year |
| Generator Type | Digital Automatic Frequency Tracking |
| Function | Output Amplitude Adjusted From 5% to 100% |
| Transport Package | Wooden Box |
| Trademark | MD |
| Origin | Guangdong |
| Production Capacity | 10000/Year |

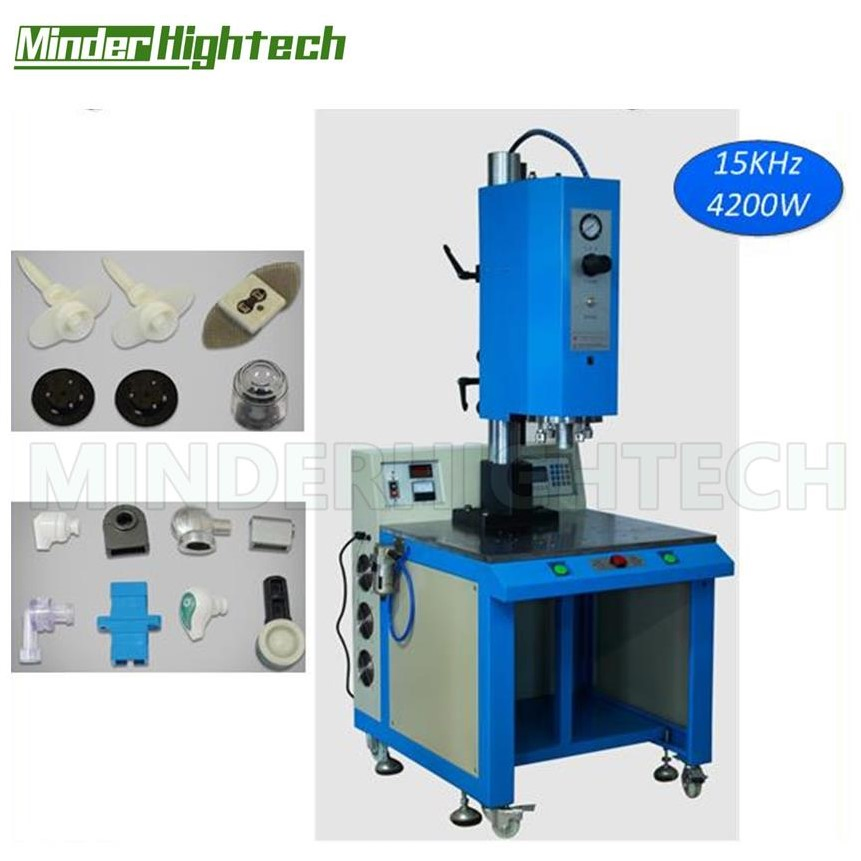

Desktop High Power Ultrasonic Plastic Welding Machine 15KHz
As a joining process for industrial thermoplastics, the ultrasonic method is very well proven in practice. Particularly in the production of mass-produced parts, the process offers definite advantages over previous methods such as high strength, clean weld seams, fast processing time, extremely low rejection rates, and low energy consumption. This technique is also successful for riveting, forming, stacking, and embedding metal parts into thermoplastics.
This machine adopts a new generation of ultrasonic welding technology, shortening processing time to a few milliseconds.

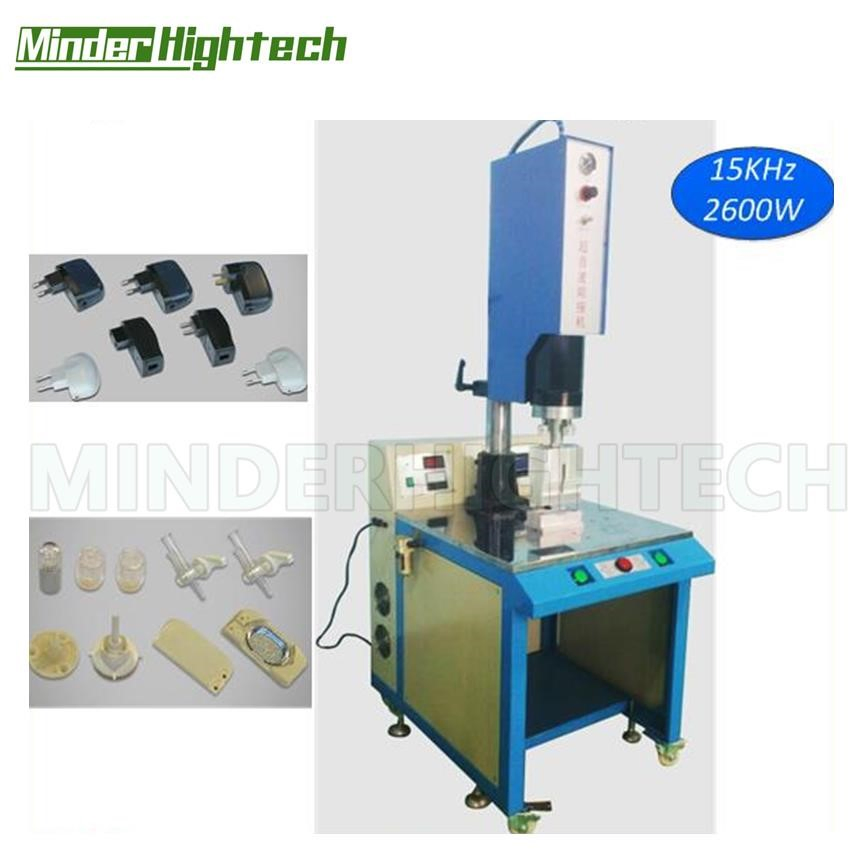

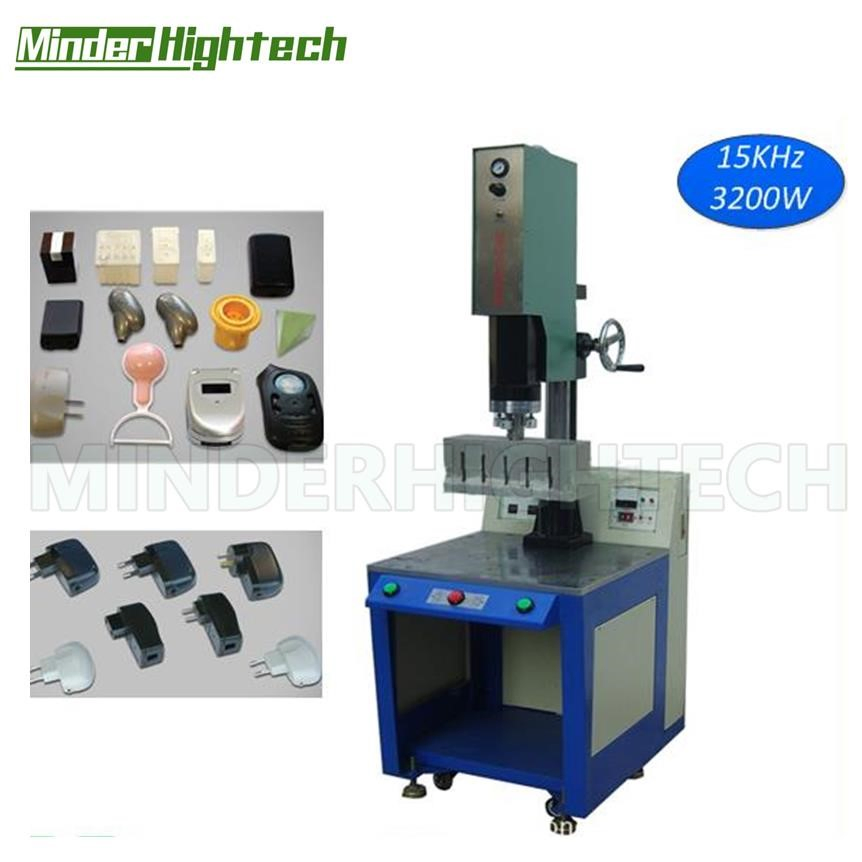

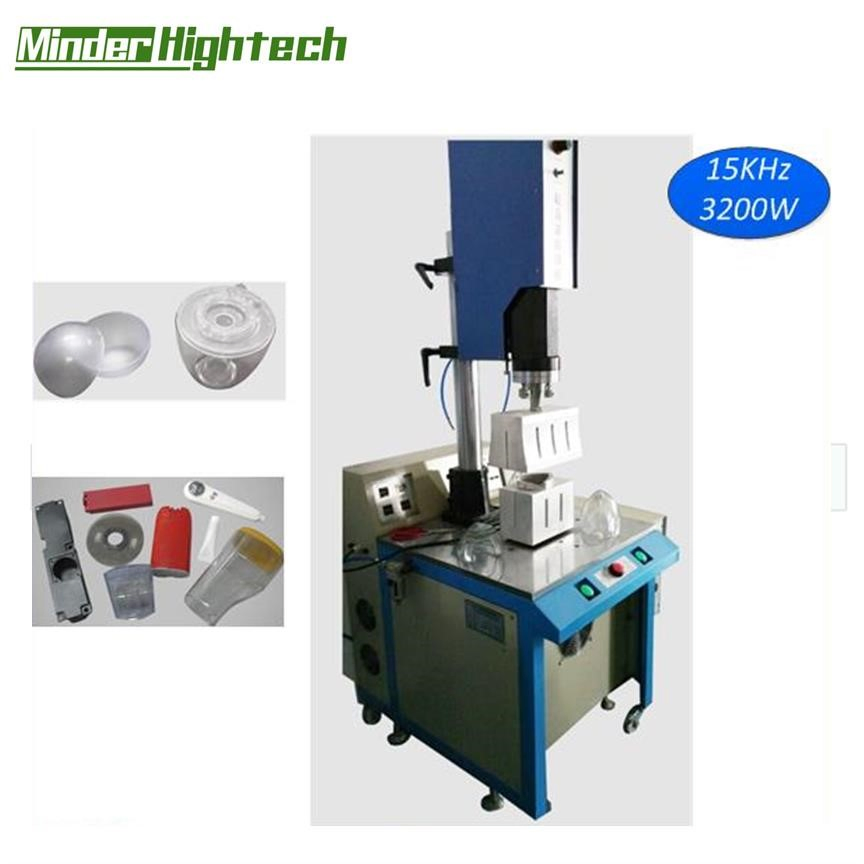

| Model | MD-PW1526 | MD-PW1532 | MD-PW1542 |
|---|---|---|---|
| Input Voltage | AC 220/110V, 50/60 Hz | ||
| Frequency | 15 KHz | ||
| Output Power | 2600 W | 3200 W | 4200 W |
| Welding Size | 200*200 mm² | 260*260 mm² | 320*320 mm² |
| Air Pressure | 1-7 bar | ||
| Welding Head Stroke | 75 mm | ||
| Generator Type | Digital automatic tracking, adjustable amplitude 5%-95% | ||
| Welding Time | 0.01~6S | ||
| Weight | 260 kg | 290 kg | 320 kg |
Main Features:
Core Advantages:

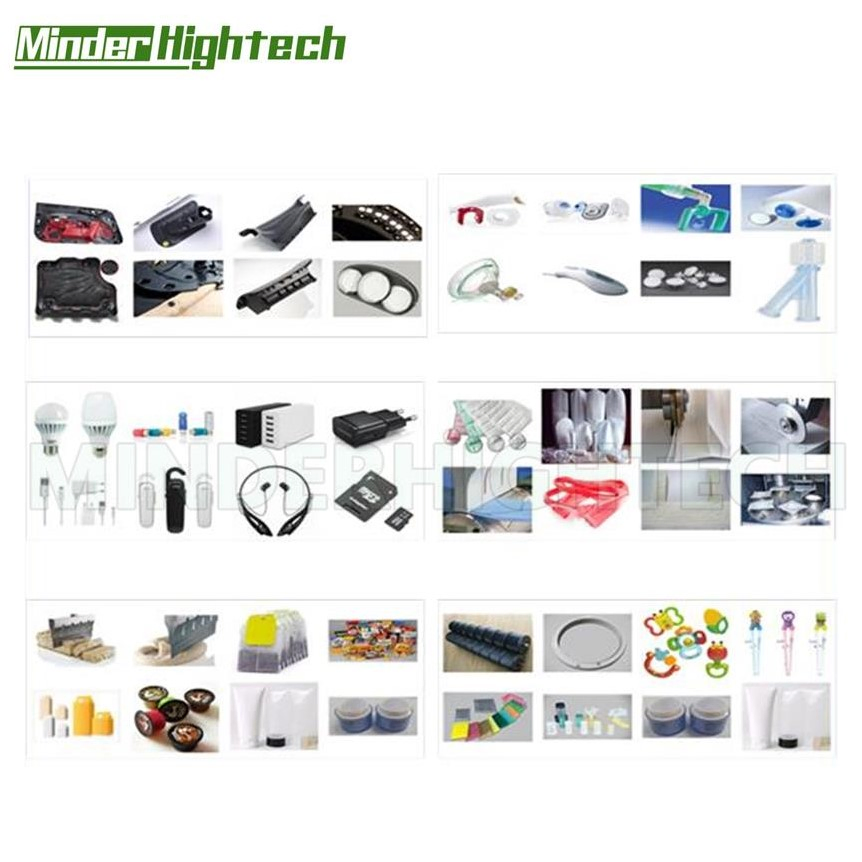

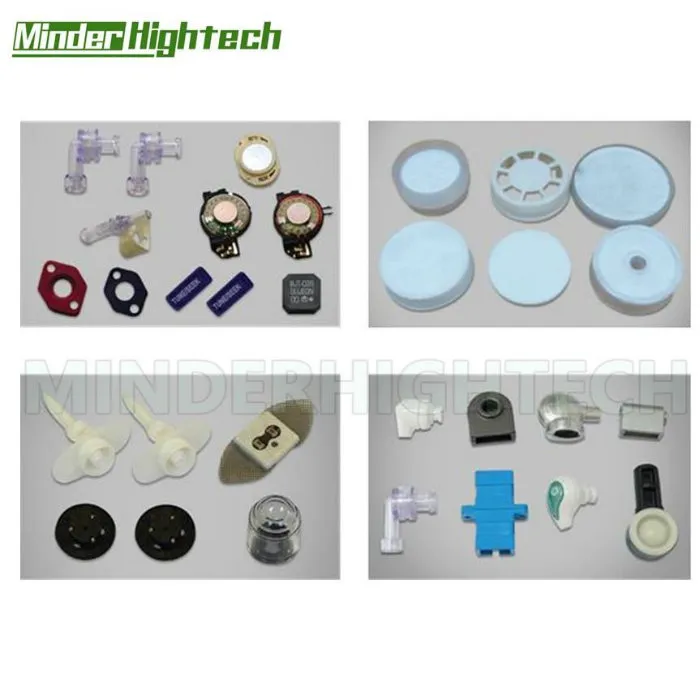

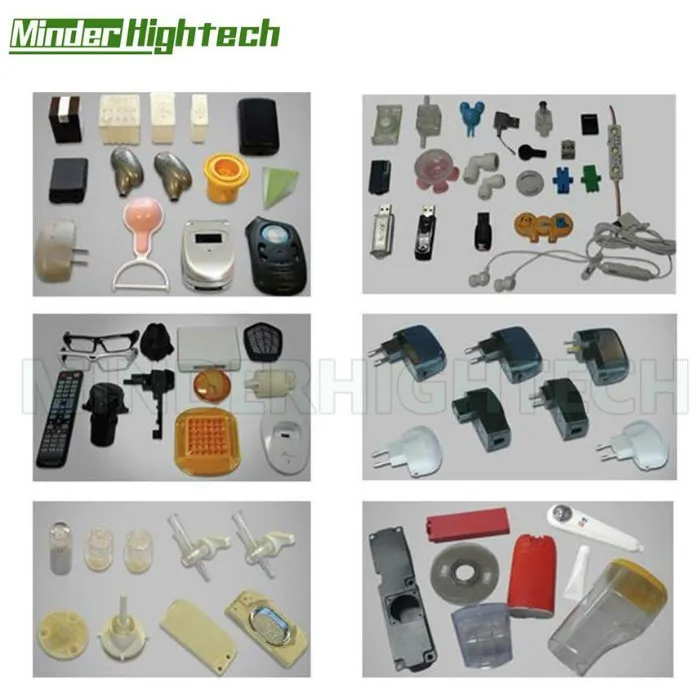

| Toy Industry | Plastic toys, water guns, dolls, plastic gifts. |
|---|---|
| Electronic Products | Mobile phone batteries, transformers, remote controls, disk enclosures. |
| Household Appliances | Electric clocks, hairdryers, steam iron tanks, electric kettles. |
| Stationery & Daily Needs | Stationery, cosmetics boxes, toothpaste tube seals, insulated cups. |

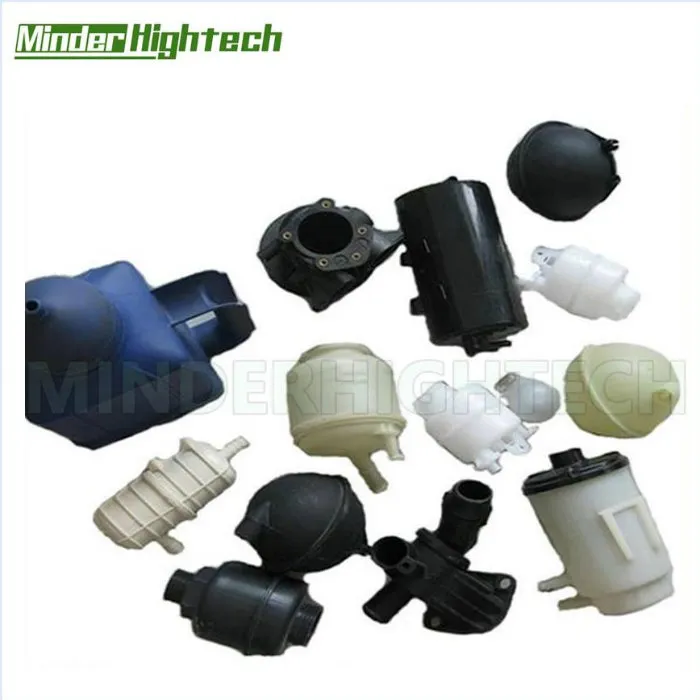

| Automotive & Motorcycle | Battery, lamps, instruments, reflectors, bumper repair, engine covers. |
| Packaging & Garment | Hollow crate welding, ziplock welding, underwear procedures, hot fix. |
A: The machine operates at a high frequency of 15 KHz, which is ideal for desktop high-power plastic welding applications.
A: Yes, the digital generator allows for automatic frequency tracking, and the output amplitude can be precisely adjusted from 5% up to 100%.
A: The machine is highly efficient, with a welding time range between 0.01 and 9.99 seconds per cycle.

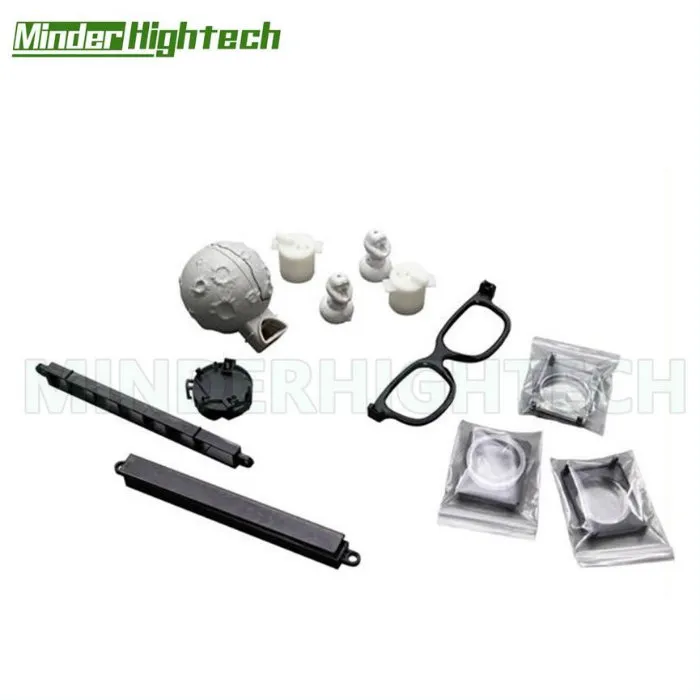

A: It is primarily designed for joining industrial thermoplastics and can be used for riveting, forming, and stacking metal parts into plastic.
A: We provide a one-year manufacture warranty with lifetime technical support for the machine.
A: Absolutely. The machine offers high strength, fast processing times, and low rejection rates, making it perfect for mass-produced parts in various industries.
