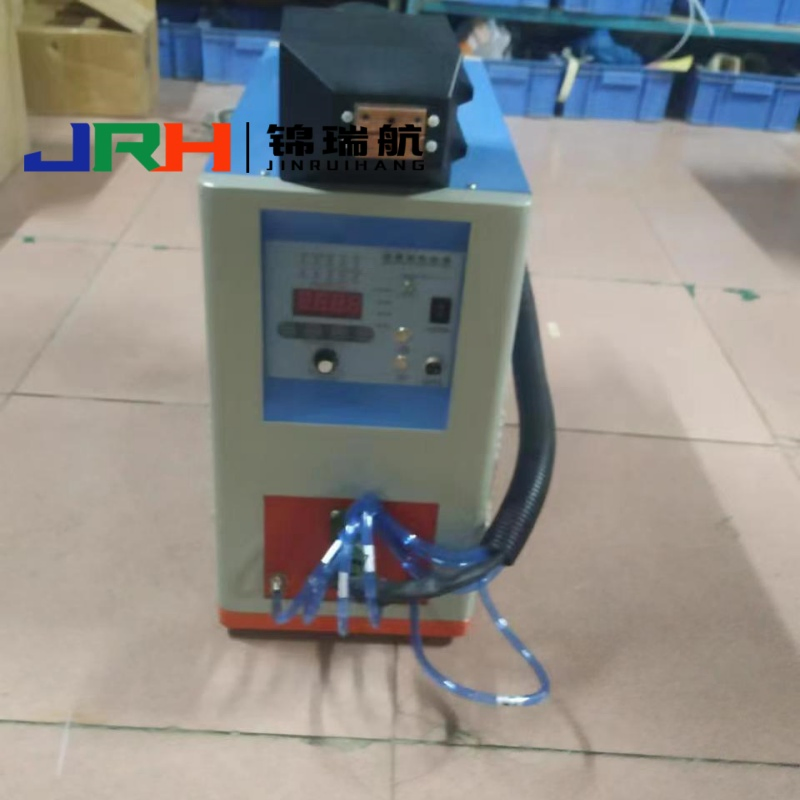

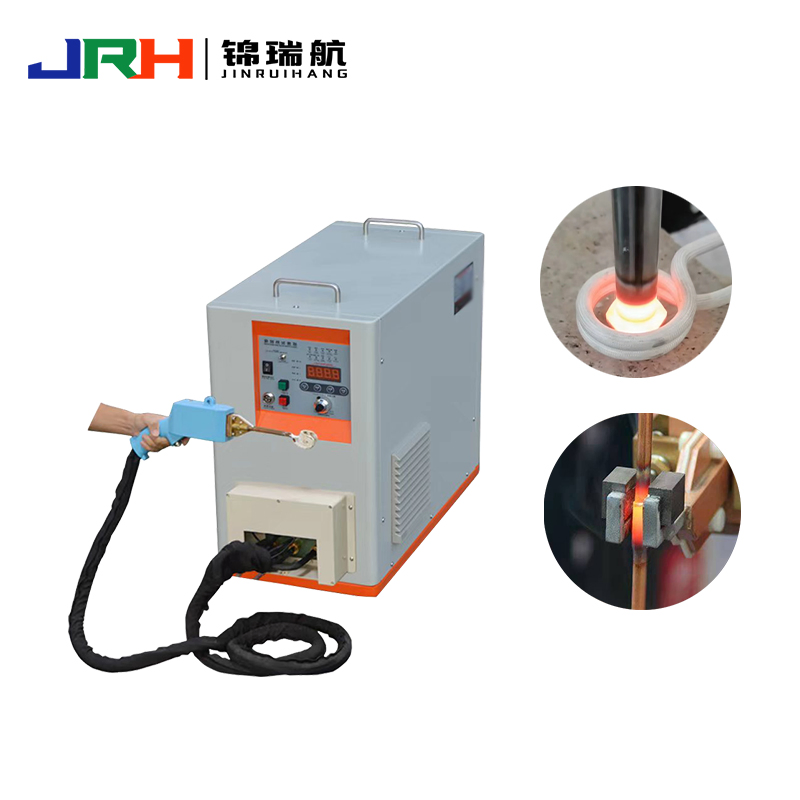

Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
1 / 5
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine
Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine

Motor Copper Metal Plate Hand-Held Ultra High Frequency Induction Heating Welding Machine

Customization: Available
Type: High Frequency Brazing Machine
Name: Potable Handheld Induction Heater
Send Inquiry

Product Description

■ Basic Information
Model NO.
JRCG-SCS20KW
Power Supply
3 Phase 380V, 50/60Hz
Application
Metal Heating Welding, Annealing, Quenching, etc.
Feature
High Efficiency, Energy Saving
Heating Temp
1700 Degree
Heating Material
Metal, Steel, Copper, Al, etc.
Cooling Method
Water Cooling
HS Code
8514400090
■ Product Description

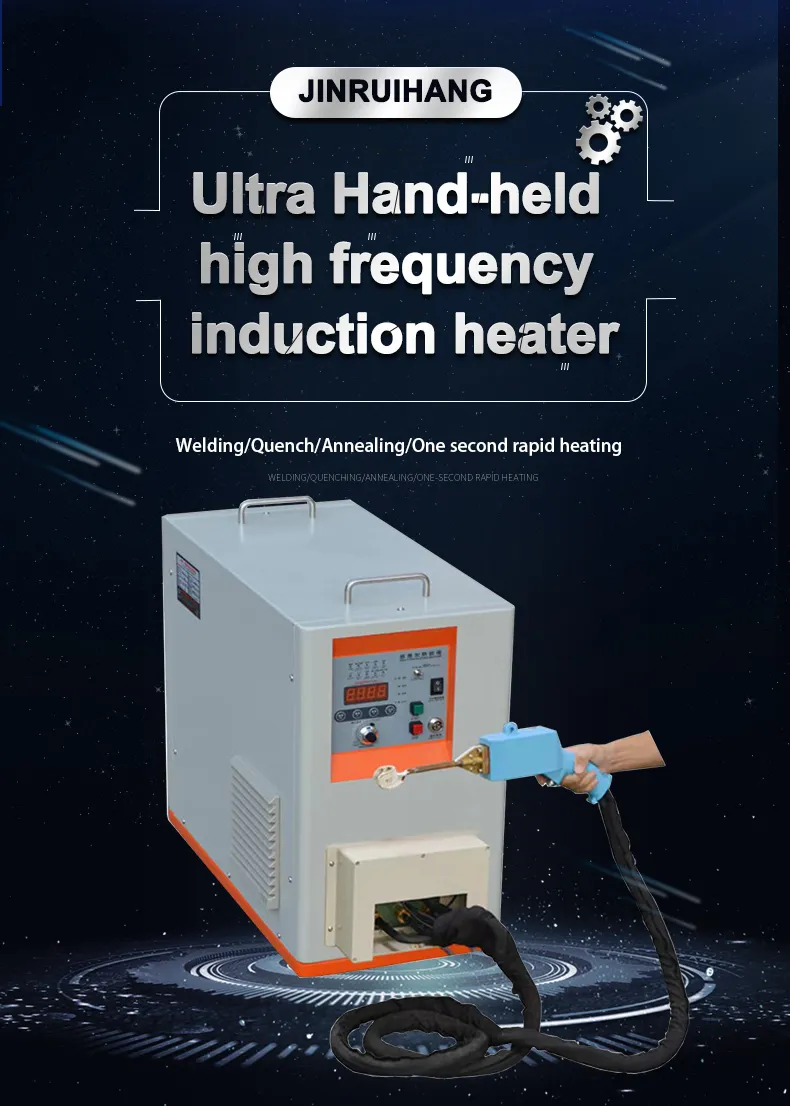

Handheld UHF Induction Heating Machine
Handheld Ultra-High Frequency Induction Machine

Hand-held UHF induction heating equipment (frequency 80-150kHz) is a portable and efficient metal heat treatment tool. It is designed for local rapid heating, brazing, quenching, and annealing, widely used in precision machining, electronic components, medical instruments, and maintenance.

★
Core Advantages:
Portable and Flexible: Lightweight design with a gun head weighing only 1.5KG-2KG. Hand-held operation allows for accurate positioning in complex workpieces or narrow spaces.
★
Extreme Heating: Ultra-high frequency electromagnetic induction achieves second-level temperature rise, reducing the heat-affected zone and improving efficiency.
★
Energy Saving: No open flame, low energy consumption, and safer than traditional flame heating methods.

Fast Welding Speed: Only 3-6 seconds to weld copper tubes.

Ideal for welding Al-Al pipes, Cu-Cu pipes, Fe-Fe pipes, and Cu-Fe pipe combinations in refrigeration household appliances such as refrigerators, freezers, and air conditioners. It completely replaces flame welding and ring welding technology.

■ Technical Specifications

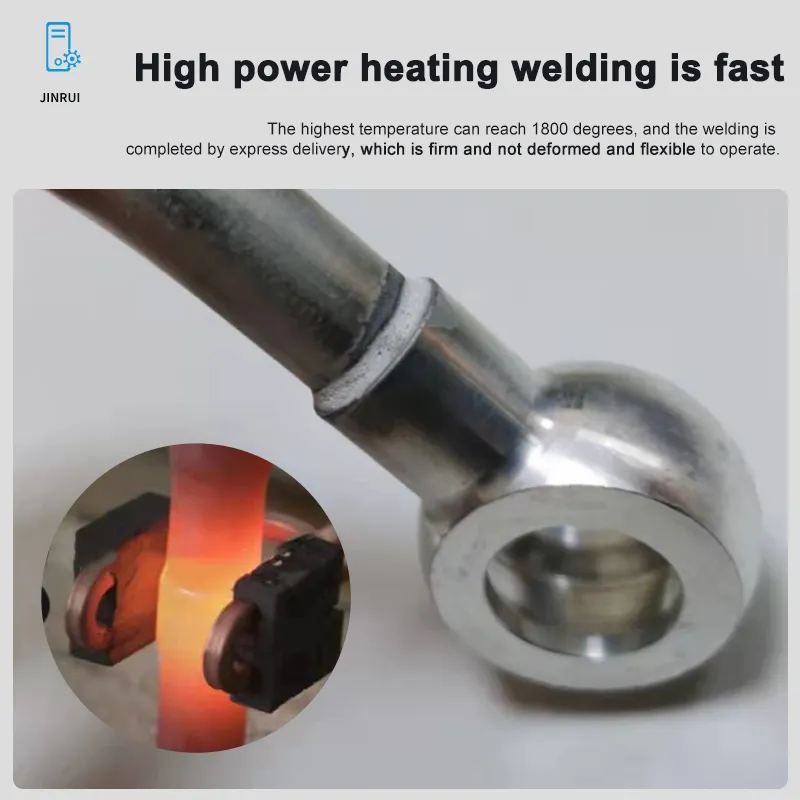

Specification Image 1 Specification Image 2
Style Voltage Output Power Frequency Handheld Length Head Weight
JRCG-SCS10KW 110-250V / 380V 10KW 80-150KHZ 3-5 meters 1.5KG
JRCG-SCS20KW 3 Phase 340-430V 20KW 80-150KHZ 3-5 meters 1.5KG
JRCG-SCS30KW 3 Phase 340-430V 30KW 80-150KHZ 3-5 meters 2KG

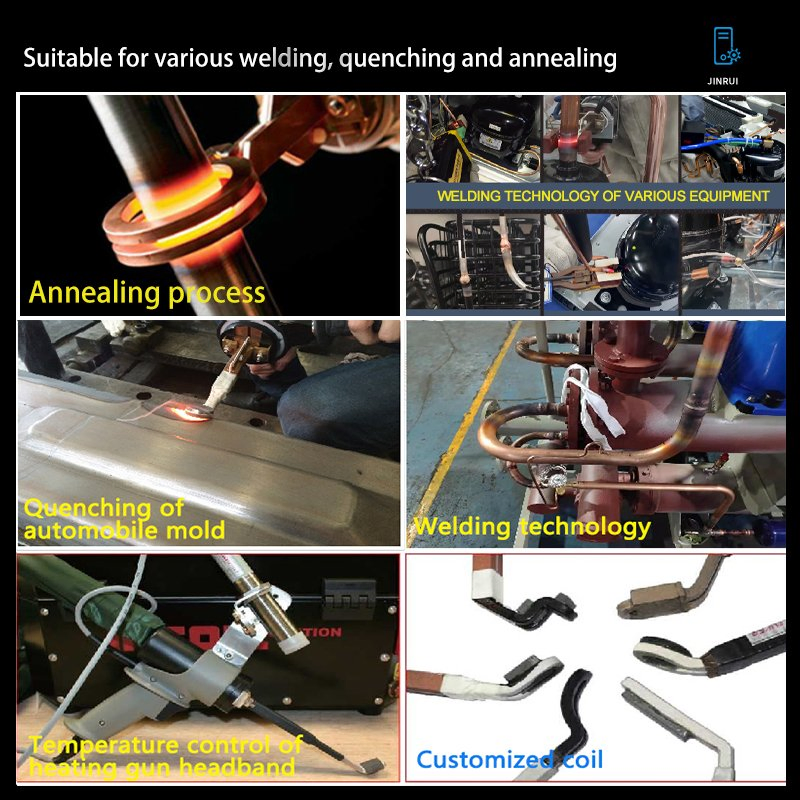

■ Wide Applications
✔
Air conditioning refrigeration valve parts, refrigerator pipeline parts, and compressor parts.
✔
Washing machine pipe welding, surface heating coating, and on-site copper pipe heating.
✔
Welding of stainless steel pipelines, branch pipes, and motor short circuit rings.

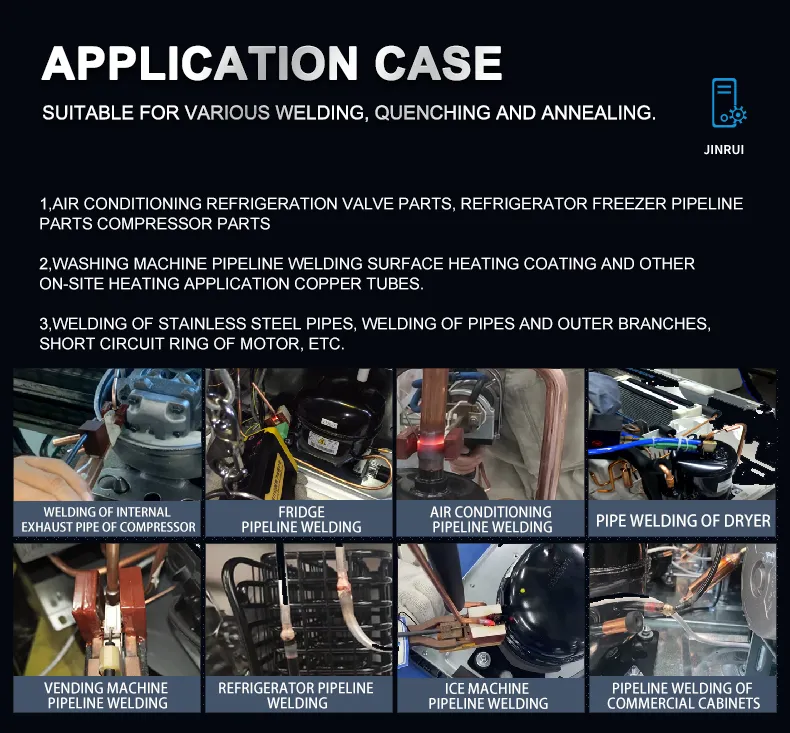

Application Scenarios
■ Product Gallery & Certifications
Gallery 1 Gallery 2 Certification
Machine Category
Frequently Asked Questions
Q1: What is the frequency range of this handheld induction heater? A: The equipment operates at an ultra-high frequency range of 80-150kHz, which is ideal for rapid surface heating and precision brazing.
Q2: How fast can it weld a standard copper tube? A: The welding speed is extremely fast, typically taking only 3 to 6 seconds to complete a copper tube weld.
Q3: Is the handheld heating head heavy to operate? A: No, the handheld head is designed for portability and ease of use, weighing only between 1.5KG and 2KG depending on the model.
Q4: What materials can be processed with this machine? A: It is suitable for various metal materials including copper, steel, aluminum, and stainless steel for applications like welding, annealing, and quenching.
Q5: What are the cooling requirements for the system? A: The system requires water cooling. You can use either a dedicated water pump or an industrial chiller to maintain the operating temperature.
Q6: Can the induction coils be customized for different products? A: Yes, induction coils can be designed and customized according to the specific size and shape of your product to ensure optimal heating efficiency.
