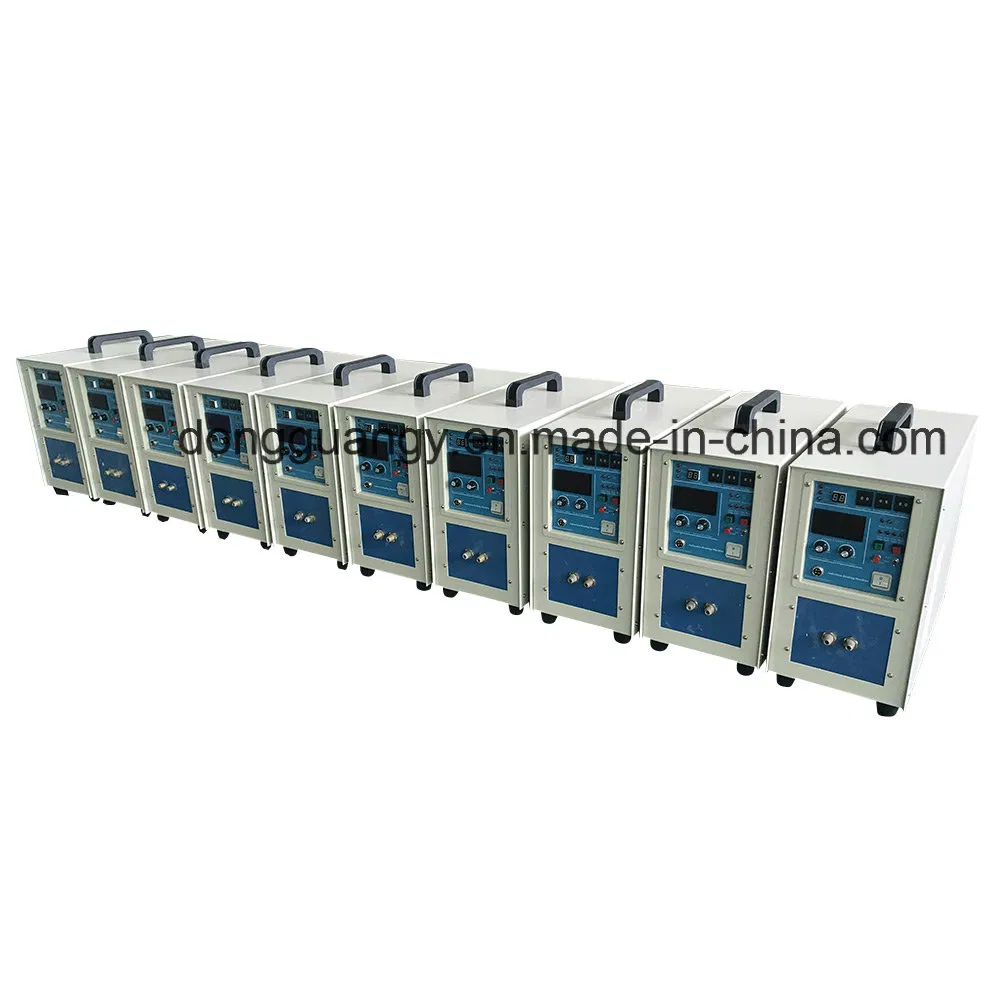

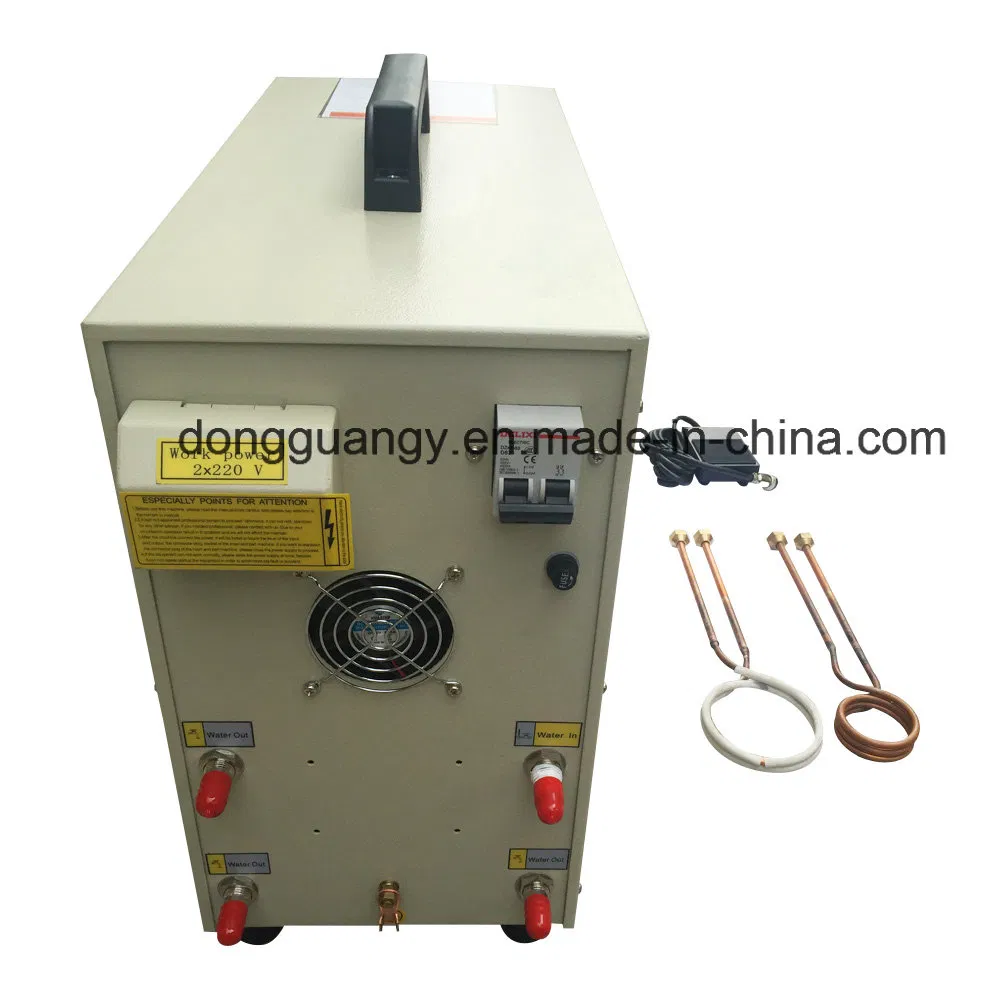

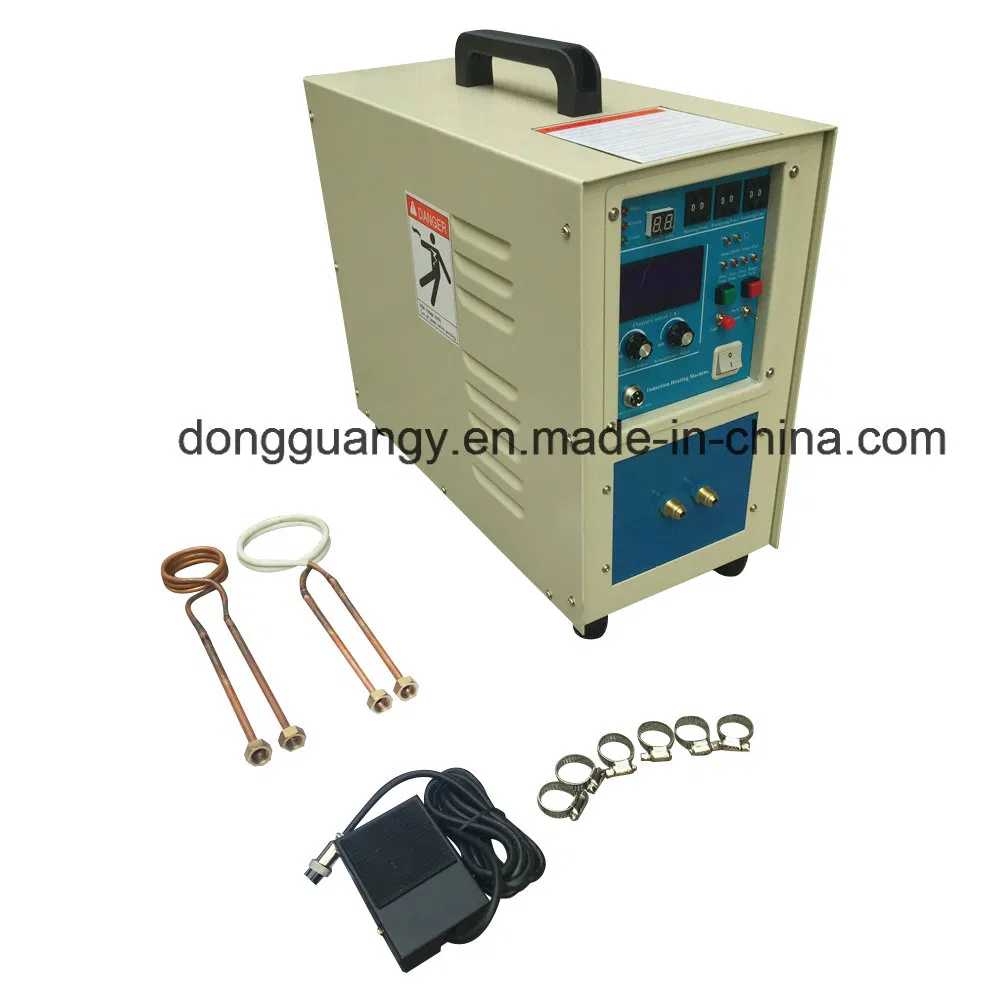

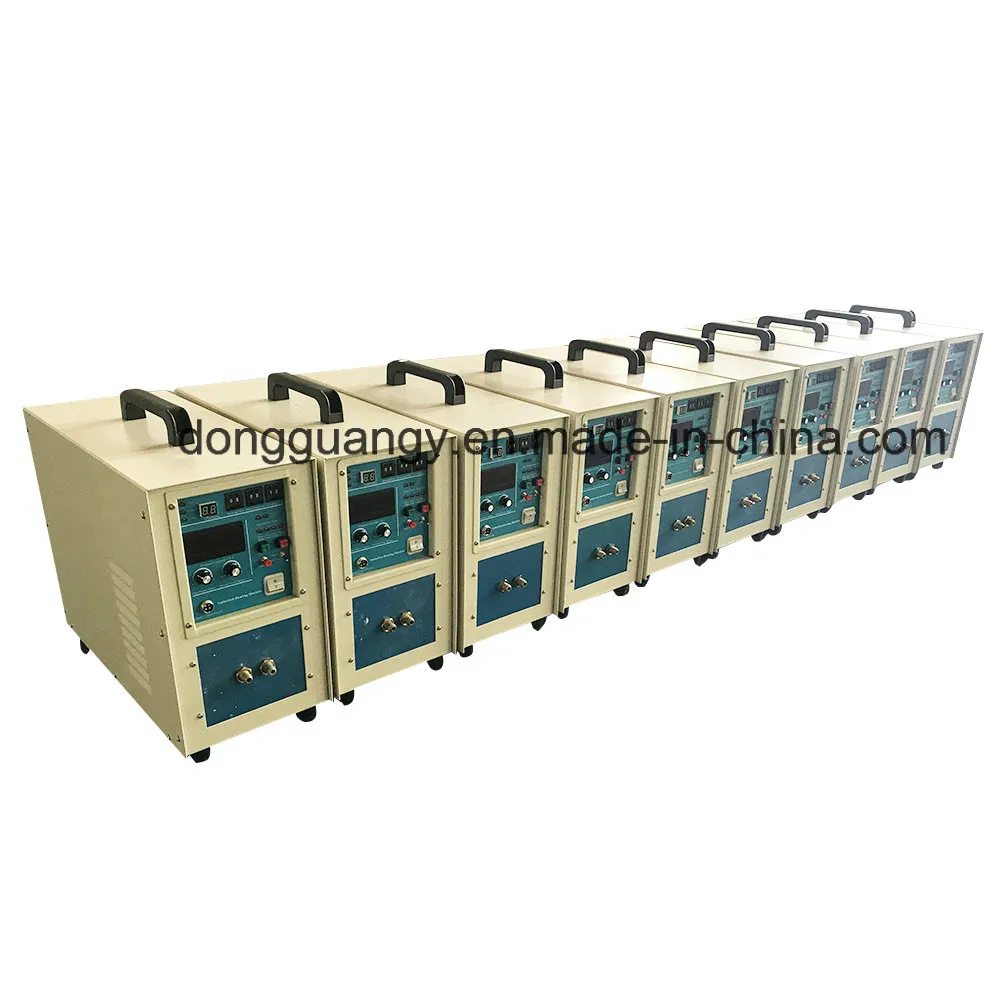

High Frequency Induction Heating Machine Welding Stone Cutters
High Frequency Induction Heating Machine Welding Stone Cutters
High Frequency Induction Heating Machine Welding Stone Cutters
High Frequency Induction Heating Machine Welding Stone Cutters
High Frequency Induction Heating Machine Welding Stone Cutters
1 / 5
High Frequency Induction Heating Machine Welding Stone Cutters
High Frequency Induction Heating Machine Welding Stone Cutters
High Frequency Induction Heating Machine Welding Stone Cutters
High Frequency Induction Heating Machine Welding Stone Cutters
High Frequency Induction Heating Machine Welding Stone Cutters

High Frequency Induction Heating Machine Welding Stone Cutters

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
GY-15A
Structure
Vertical Type
Feature
High Efficiency
Warranty
12 Months
Condition
New
Cooling
Water
Duty Cycle
100%
Work Principle
Electromagnetic Induction
Transport Package
Wooden Box
Certification
CE, SGS, FCC, RoHS
High Frequency Induction Heating Machine

Professional Welding Solution for Stone Cutters

✔
Advanced Technology: Adopts MOS, IGBT frequency conversion control for maximum output power.
✔
Process Optimization: Constant current and power control realize fast, high-efficiency heating.
✔
Three-Stage Control: Independent regulation for heating, heat preservation, and cooling stages.
✔
Safety Protection: 10 types of fault displays including over-current, over-voltage, and water shortage.
✔
Industrial Durability: Designed for 24-hour continuous full-load operation.
✔
Intelligent Monitoring: Ultraviolet temperature detection for automatic heating performance control.
Technical Parameters
ModelGY-15A (Single phase)
Work Power180V-250V
Input Current35A
Fluctuating Output Power15KW
Fluctuating Frequency30-100KHZ
Output Current200-600A
Cooling Water Flow Rate0.06-0.12Mpa 7.5L/Min
Water Temp Protection40°C
Product Size570x230x450mm
Net Weight27.5kgs
Applications & Accessories

Primary Applications:

Heating (Forging/Fitting) Heat Treatment (Quench) Welding (Braze/Solder) Annealing (Tempering)

Available Extra Accessories:

  • Chiller
  • Customized Induction Coils
  • Infrared Thermometer
  • Back-up Electronic Boards
  • Hardening Fixtures
  • Melting/Forging Furnaces
Product Visuals

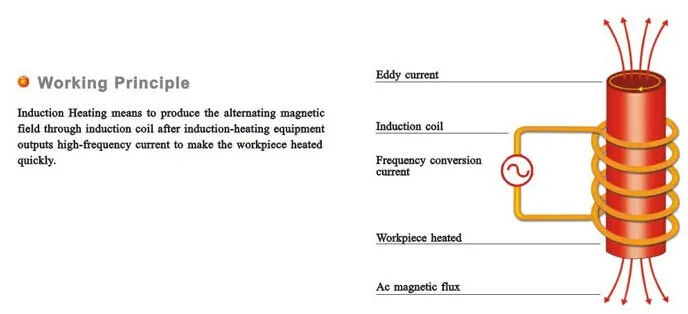

Work Principle

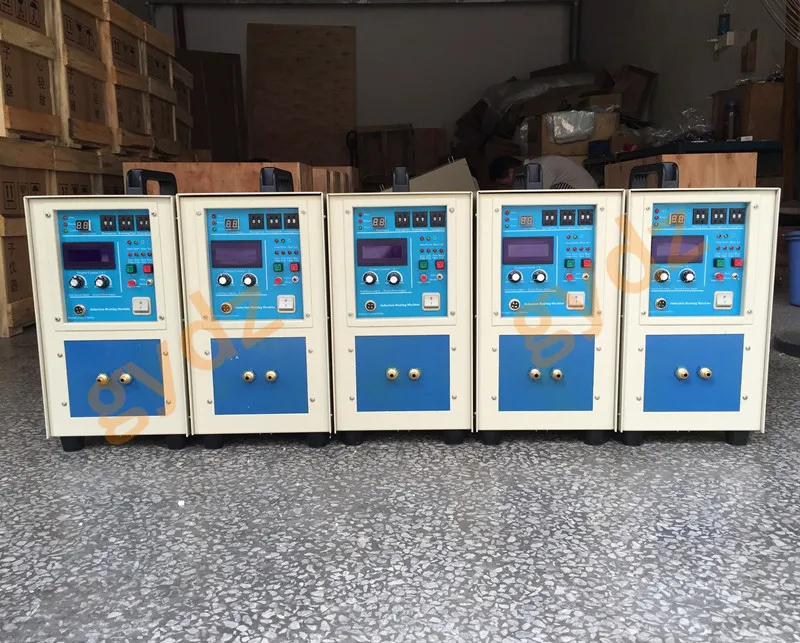

Machine Photo
Product Detail 1
Product Detail 2
Frequently Asked Questions
How do I choose the most suitable induction heating machine?
Selection depends on your specific application (forging, hardening, welding, or melting), the material and size of your workpiece, the required temperature, and the heating time needed. We recommend consulting technical parameters for the best match.
What is the typical delivery time for these machines?
Standard small machines are usually delivered within 3 to 7 working days, while larger industrial units may take 15 to 25 working days.
What kind of warranty and technical support is provided?
The equipment comes with a one-year warranty covering non-intentional damage. Technical service and support are available for the entire lifespan of the product.
Can the GY-15A operate continuously for long shifts?
Yes, the machine is designed with a comprehensive full-load capability, allowing for 24-hour continuous industrial operation.
What safety features are integrated into the system?
It includes up to ten types of fault protections, including over-current, over-voltage, water shortage, and phase missing, ensuring high reliability without the need for high-voltage external equipment.
What are the shipping methods for international orders?
Orders can be shipped via sea freight, air freight, or express delivery depending on the urgency and destination.
