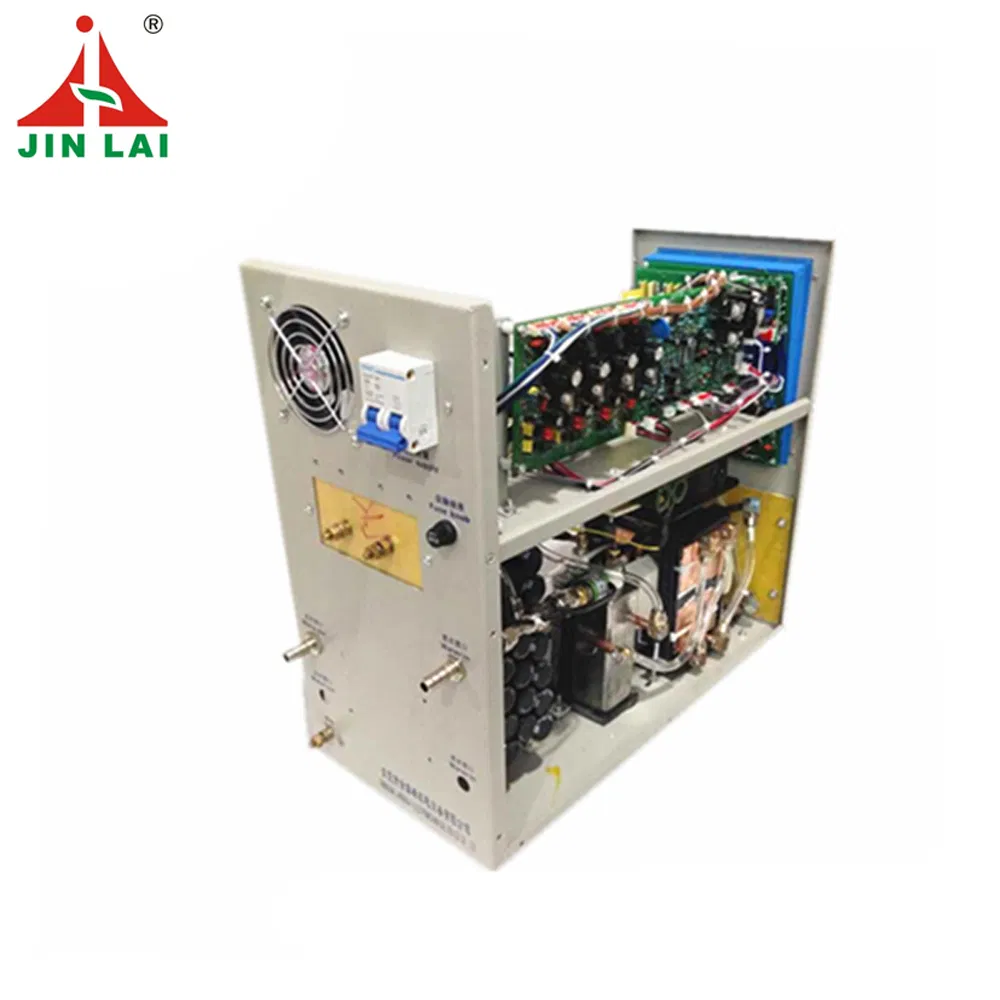

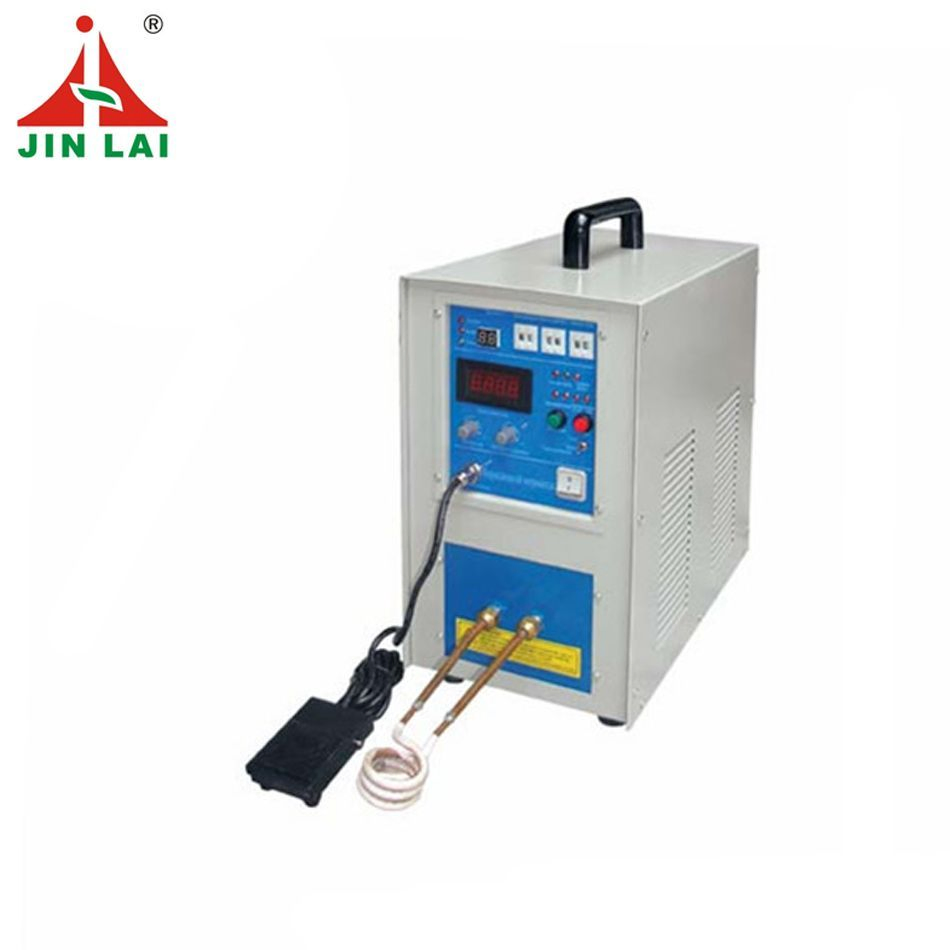

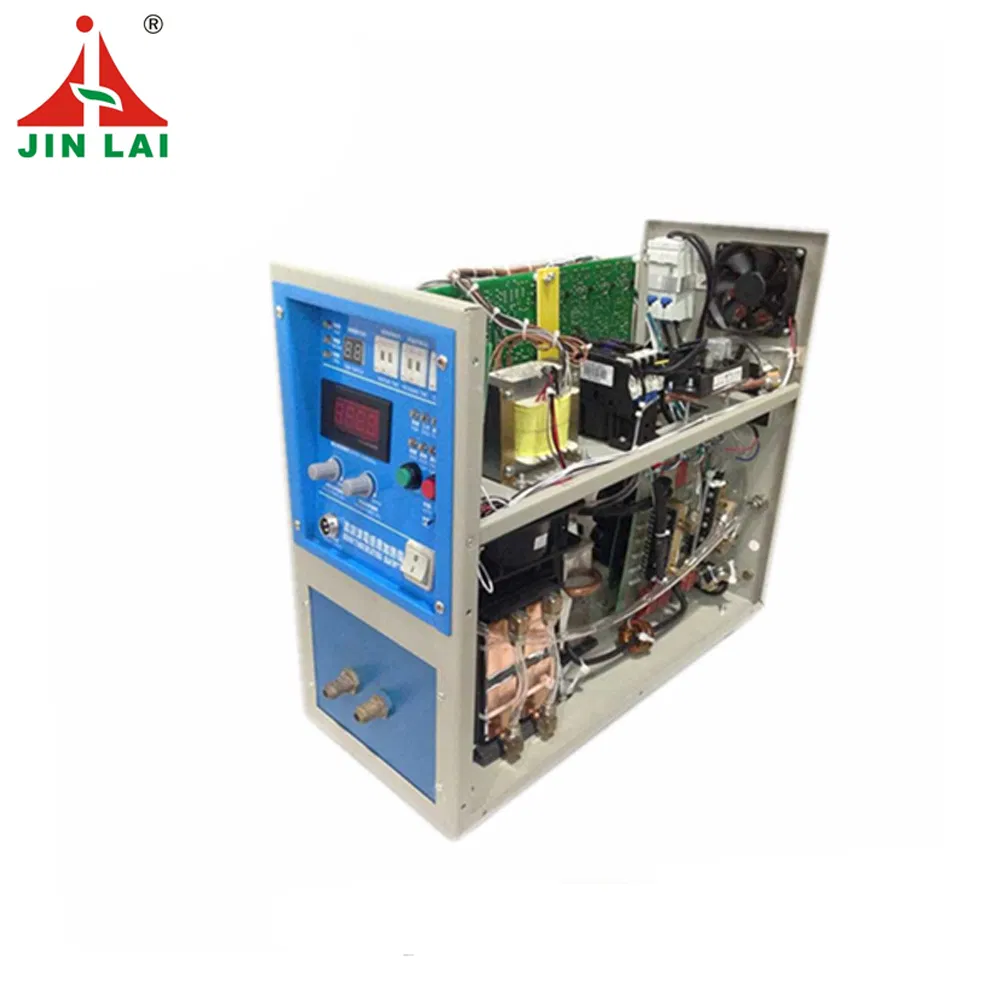

Monthly Deals High Frequency 15kw Metal Welding Forging Melting Induction Heating Machine

Customization:	Available
Type:	Induction Heating Machine
Certificate:	ISO9001:2008

Send Inquiry

Product Description

Basic Information

Model NO.

JL-15KW

Frequency

30-100kHz

Including Parts

Generator, Transformer, Induction Coils, Cable

Feature

Energy Saving and Portable

Working Theory

Electromagnetic

Application

Hardening, Brazing, Forging, Annealing, Tempering

Certification

CE, ISO, UL, SGS, BV etc.

Warranty

1 Year

Cooling Water

>0.2MPa, 2-6L/Min

Structure

Vertical Type

Product Description

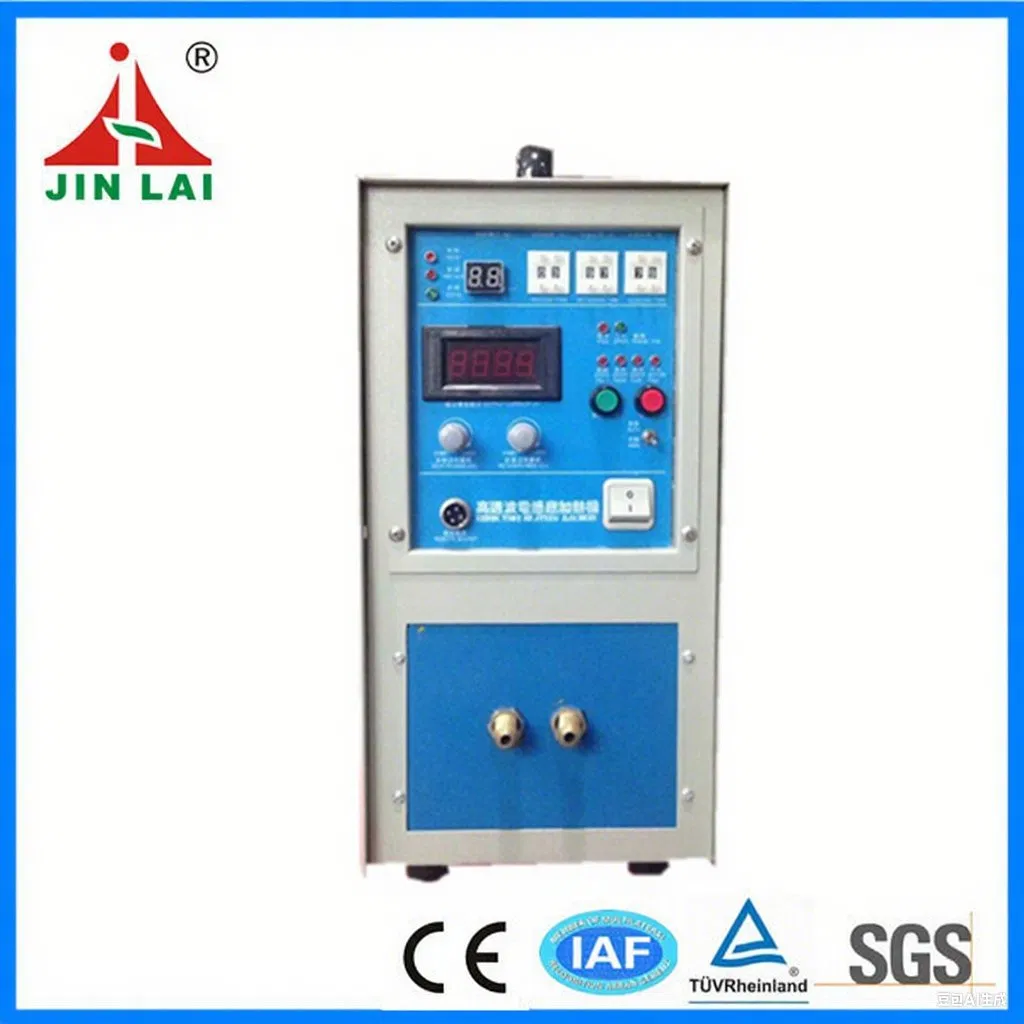

High Frequency 15kw Metal Welding Forging Melting Induction Heating Machine

Main Characteristics

Adopting MOSFET and IGBT inverting device, tracking frequency automatically.
High frequency, heated quickly, power consumption is only 20%~30% of electronic tube induction heating machines.
Security and reliability with secure voltage operation.

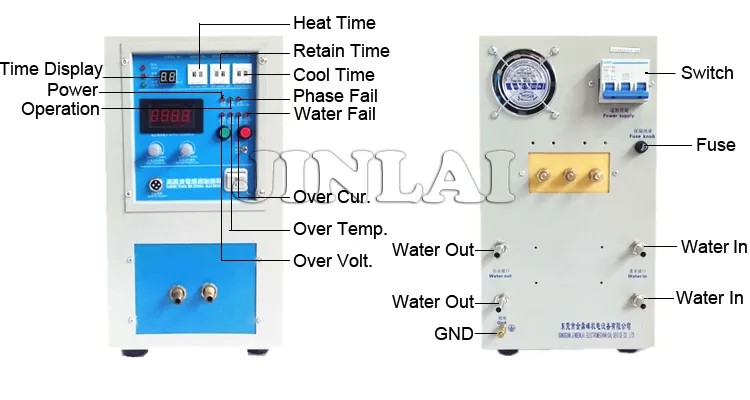

Manual and automatic regulating; protects against over-voltage, over-current, lack of water, phase failure, and overheating.
No open-fire, low noise, and zero pollution for environmental protection.

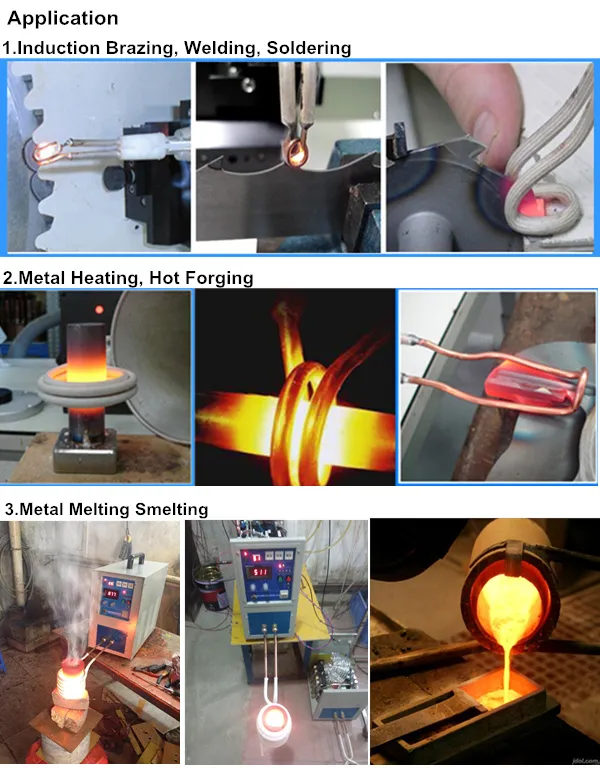

Recommended usage: Welding, forging, hot cooperation, melting, quenching, annealing, etc.

Technical Parameters

Model	JL-15KW	JL-25KW
Input Power	Single phase 220V 50/60HZ	3 phase 380V 50/60HZ
Oscillate Power Max	15KW	25KW
Max Input Current	37A	24A
Max Input Power	7KW	15KW
Oscillate Frequency	30-100KHZ	30-100KHZ
Cooling Water Desire	>0.2MPa 2-6L/Min ≤40°C	>0.2MPa 2-6L/Min ≤40°C
Duty Cycle	100%	100%
Dimensions (LWH)	500210460mm	550240480mm
Net Weight	25kg	30kg

Water Cooling System

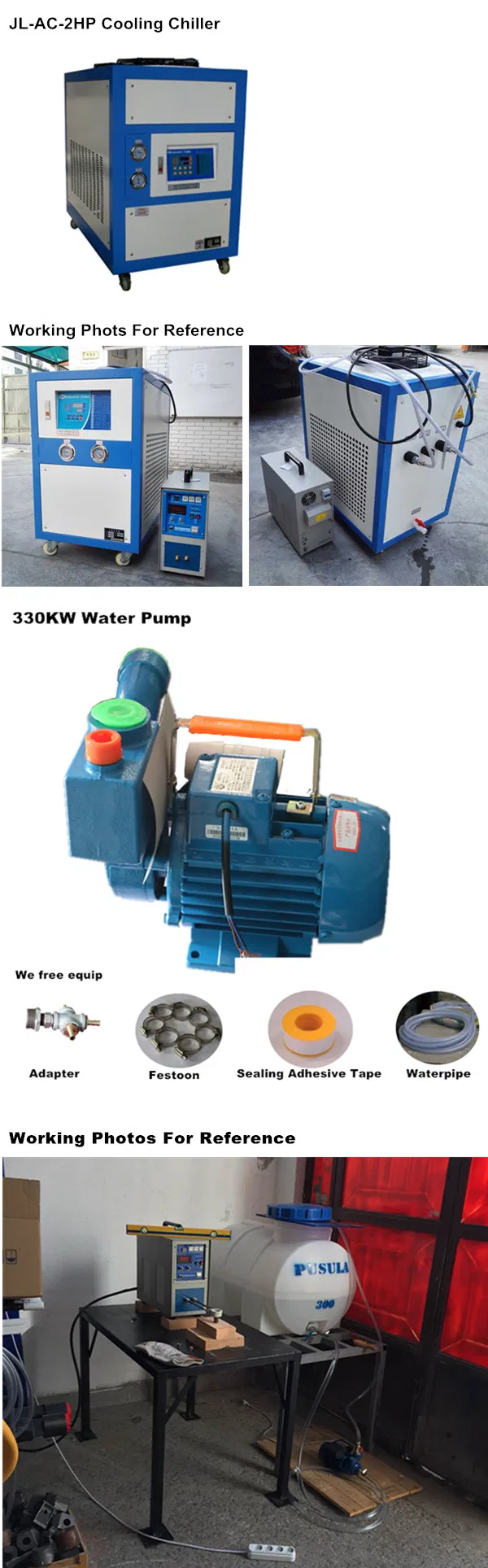

There are two types of cooling systems available for option:

Option A: Cooling Chiller
Option B: 330W Water Pump + 200-300L Water Tank

High Frequency Series Range

Model	JL-5	JL-15	JL-25	JL-30	JL-40	JL-60	JL-80
Power Max	5KW	15KW	25KW	30KW	40KW	60KW	80KW
Frequency	100-250KHz	30-100KHz					30-80KHz
Duty Cycle	100%

Our Service Commitment

Pre-sale Service

1. Recommend the most suitable machine based on requirements.

2. Inquiry and consulting support.

3. Sample testing support.

In-sale Service

1. Strict manufacturing according to technical standards.

2. Comprehensive run tests before delivery.

3. Strict quality checks and on-time delivery.

After-sale Service

1. 12 months warranty period.

2. Free replacement for non-artificial quality faults within one year.

3. Lifetime technical support and favorable pricing on spare parts.

Frequently Asked Questions

How does induction heating improve efficiency?

Induction heating uses electromagnetic fields to generate heat directly within the metal part. This is much faster than traditional methods and consumes only 20%-30% of the power used by electronic tube machines.

What materials can be processed with this machine?

It is suitable for various metals including steel, copper, brass, and aluminum for applications like welding, forging, melting, and quenching.

Does the machine require a specific cooling system?

Yes, water cooling is essential. You can choose between a professional cooling chiller or a combination of a water pump and a large water tank (200-300L).

Is the induction heating machine safe to operate?

Absolutely. The equipment operates with secure voltage and features automatic protection against over-voltage, over-current, water shortage, and overheating.

What is the difference between JL-15KW and JL-25KW?

The JL-15KW is a single-phase 220V machine suitable for lighter tasks, while the JL-25KW is a 3-phase 380V machine designed for higher power requirements and faster heating.

What kind of maintenance is required?

Maintenance is minimal. Regularly check the cooling water quality and flow, ensure the electrical connections are tight, and keep the generator environment clean and dry.
