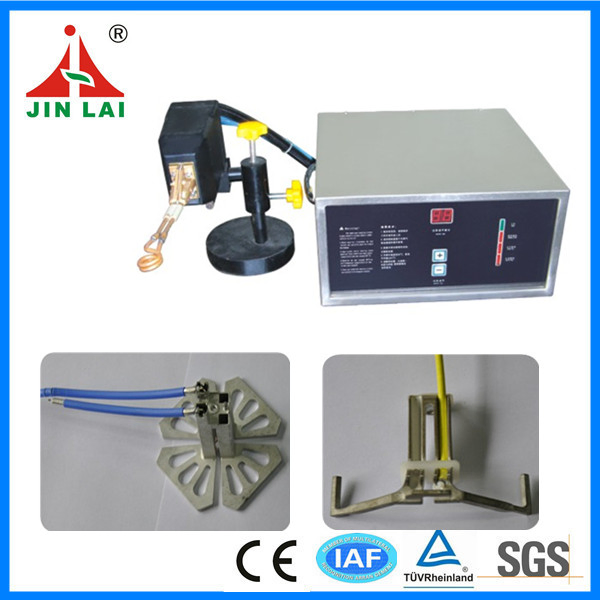

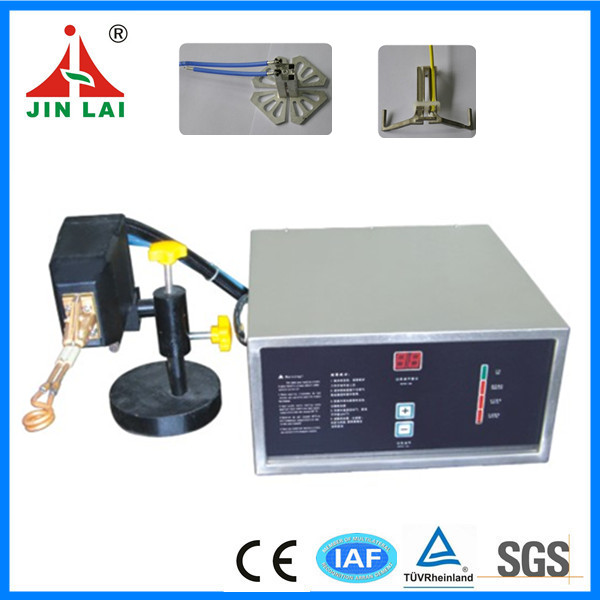

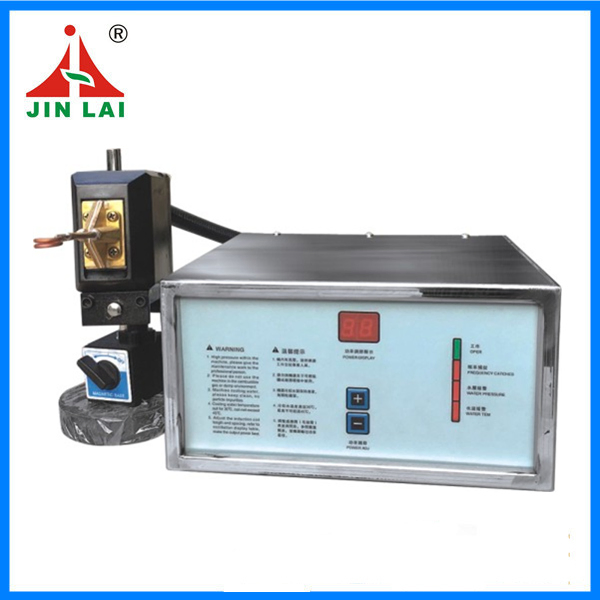

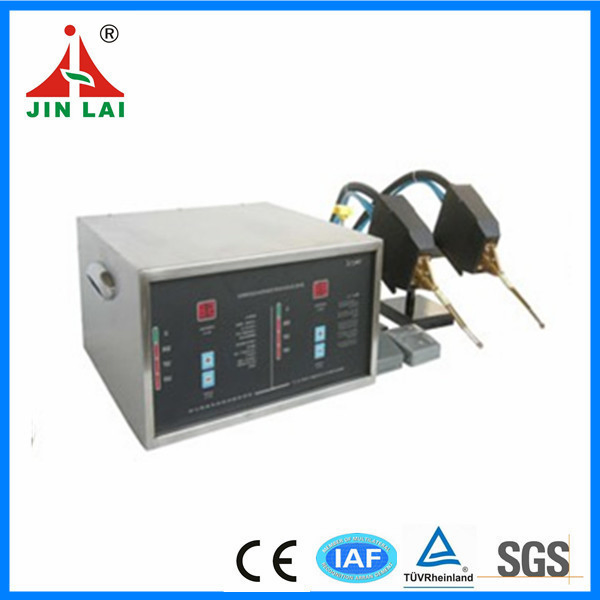

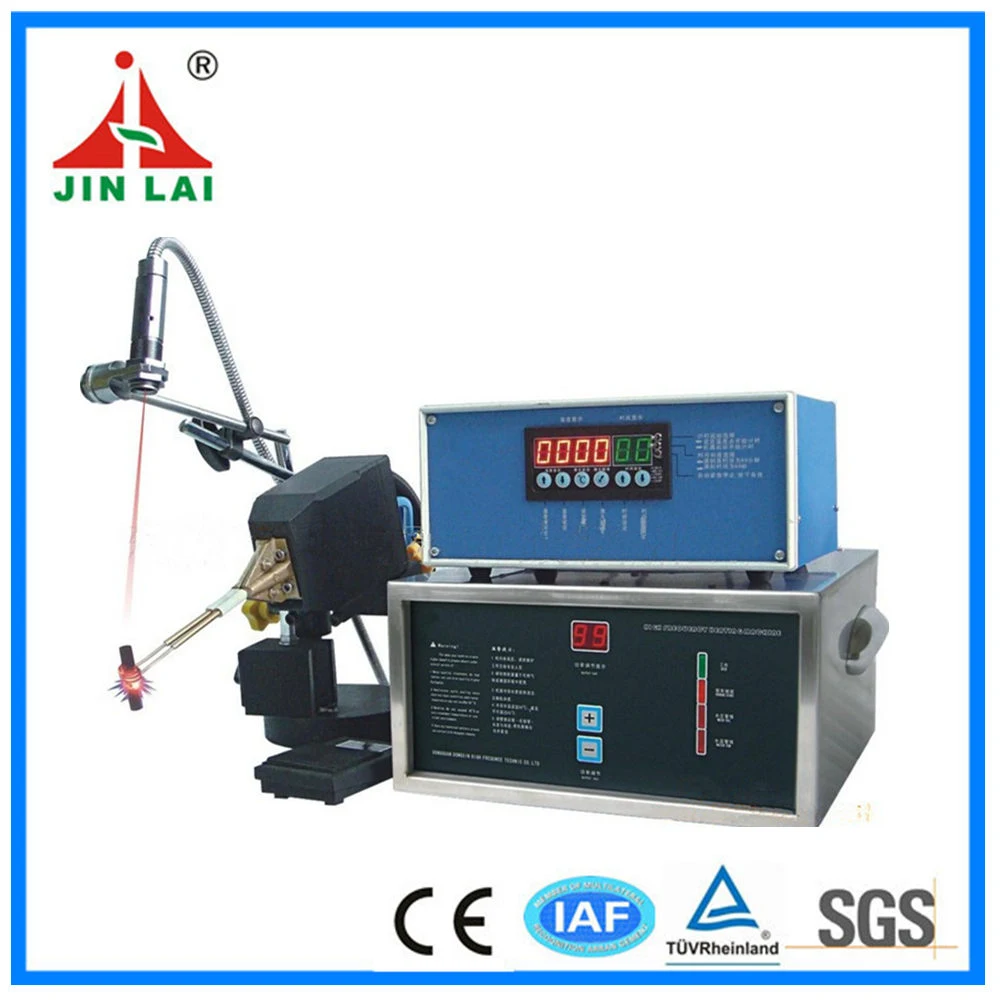

10%off High Frequency Induction Welding Heating Machine (JLCG-3)

Customization: Available
Type: Induction Heating Machine
Frequency: 100kHz-1.1MHz

Product Description

Basic Information
Model NO.
JLCG-3
Applications
Hardening, Quenching, Brazing, Welding etc
Working Theory
Electromagnetic Induction Heating
Feature
Environmental, Energy Saving, High Efficiency
Condition
New
Water Chiller
0.6p
Heating Size
Diameter Less Than 10mm
Voltage
Single Phase 220V
Certification
CE, ISO, RoHS, UL, BV etc.
Warranty
1 Year
Product Description

High Frequency Induction Welding Heating Machine (JLCG-3)

Main Features
  • Ultrahigh series: high frequency, able to heat Φ 0.1mm work-piece.
  • Small size, light weight, low failure rate and energy conservation (saves up to 70% power compared to vacuum tube machines).
  • Ensures solid, pleasing, and delicate welding points with perfect surface grain and complete crystal structure.
  • Comprehensive protection: Over-current, over-voltage, water shortage, and phase missing protection for high reliability.
  • Wide application: Metal glass manufacturing, electronics, small-size relays, headwear decorations, and art wares.
Technical Parameters
Parameter Specification (JLCG-3KW)
Input PowerSingle phase 220V 50/60HZ
Max Oscillate Power3KW
Max Input Current14A
Oscillate Frequency0.5-1.1MHZ
Cooling Water Requirement>0.2MPa 2-6L/Min
Duty Cycle100% (40°C)
Dimensions (L*W*H)420*370*180mm
Net Weight15kg
Machine Components & Spare Parts
Item Name of Machine or Parts Amount
1JLCG-3KW Generator1 pcs
2JLCG-3KW Transformer1 pcs
30.6P Water Chiller1 pcs
4Foot Pedal (3 core)1 pcs
5Induction Coils2 sets
6Instruction Manual1 pcs
Premium Component Integration
  • Germany SIEMENS INFINEON IGBT Module: 40-60KHZ oscillation frequency, fast response, and super stability.
  • Japan Nichicon Electrolytic Capacitor: High-quality filter capacitor for stable performance.
  • Thermostability Materials: All water pipes use high-pressure resistance and best quality materials.
  • Advanced Control: Signal and drive circuit boards using components from Toshiba, Hitachi, and Motorola.
  • Technical Advantage: Full automatic tracking frequency and continuous adjustable power.
Product Photos

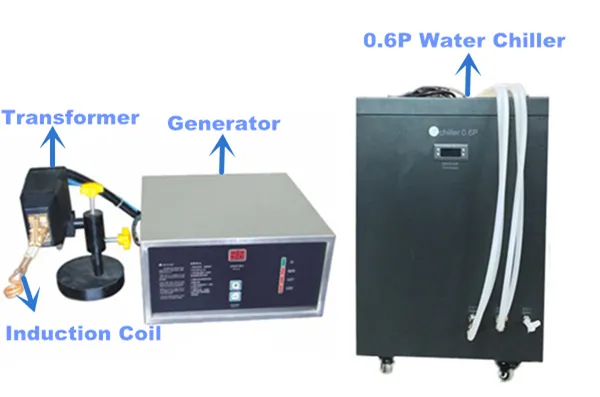

Induction Welding Machine

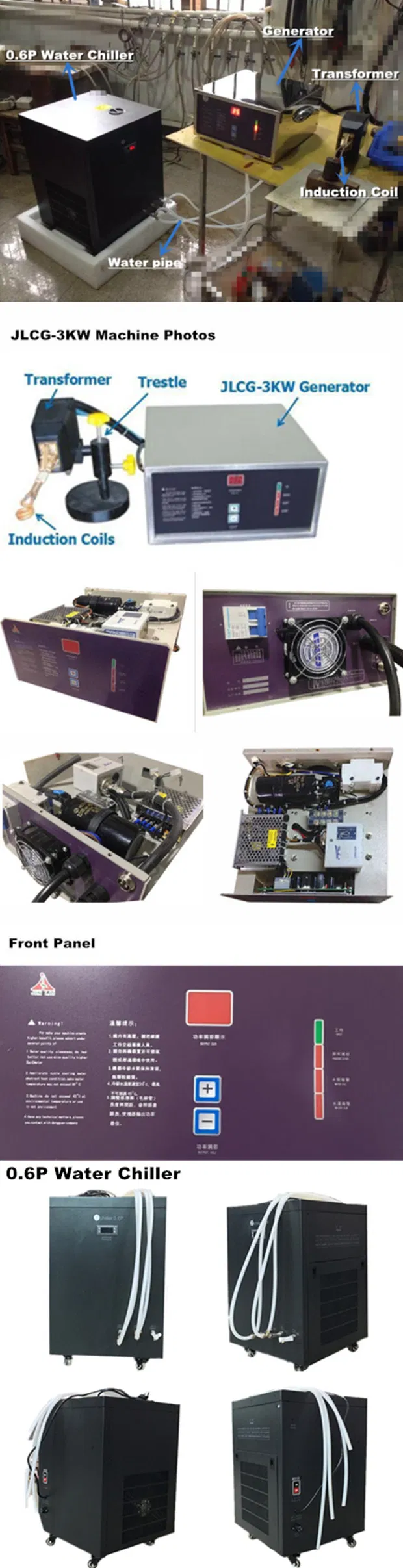

Machine Details
Application Examples
Wide Range of Applications
  • Brazing: Copper, brass, tungsten steel, stainless steel, and aluminum brazing.
  • Welding: Glasses, fishing tools, hardware appliances, and jewelry.
  • Carbide Tools: Carbide saw-tooth and blade welding.
  • Electronics: Motor rotor hot-cooperate, electrode silver and tin soldering.
  • Industrial: Communication equipment soldering and copper coaxial cable connector soldering.
Packaging
Ultrahigh Frequency Series Comparison
Model JLCG-3 JLCG-10 JLCG-20 JLCG-40 JLCG-100
Oscillate Power 3KW 10KW 20KW 40KW 100KW
Frequency 0.5-1.1MHZ 200-500KHZ 50-250KHZ 50-200KHZ 50-150KHZ
Net Weight 15kg 30kg 25kg/15kg 35kg/25kg 60kg/40kg
Frequently Asked Questions
1. What is the warranty period for the induction heating machine? All products come with a one-year quality warranty. During this period, spare parts replacement is free, and we provide lifelong technical support.
2. How do I install the machine upon delivery? We provide comprehensive paper installation instructions and video guides to ensure you can set up and operate the machine effectively.
3. Which export ports are commonly used for shipping? We typically use major ports such as Shenzhen, Guangzhou, or Hong Kong, but we can arrange shipment from any Chinese port according to your preference.
4. What are the payment terms for international orders? For small machines, we require 100% T/T or Western Union in advance. For larger orders, a 30% deposit is required with the remaining 70% due before shipment.
5. Does the equipment have international certifications? Yes, all our goods are manufactured to high-quality standards and carry ISO and CE certifications.
6. What is the typical delivery time? Small machines are usually delivered within 7 days, while larger units may take approximately 15 days. We prioritize on-time delivery for all orders.
