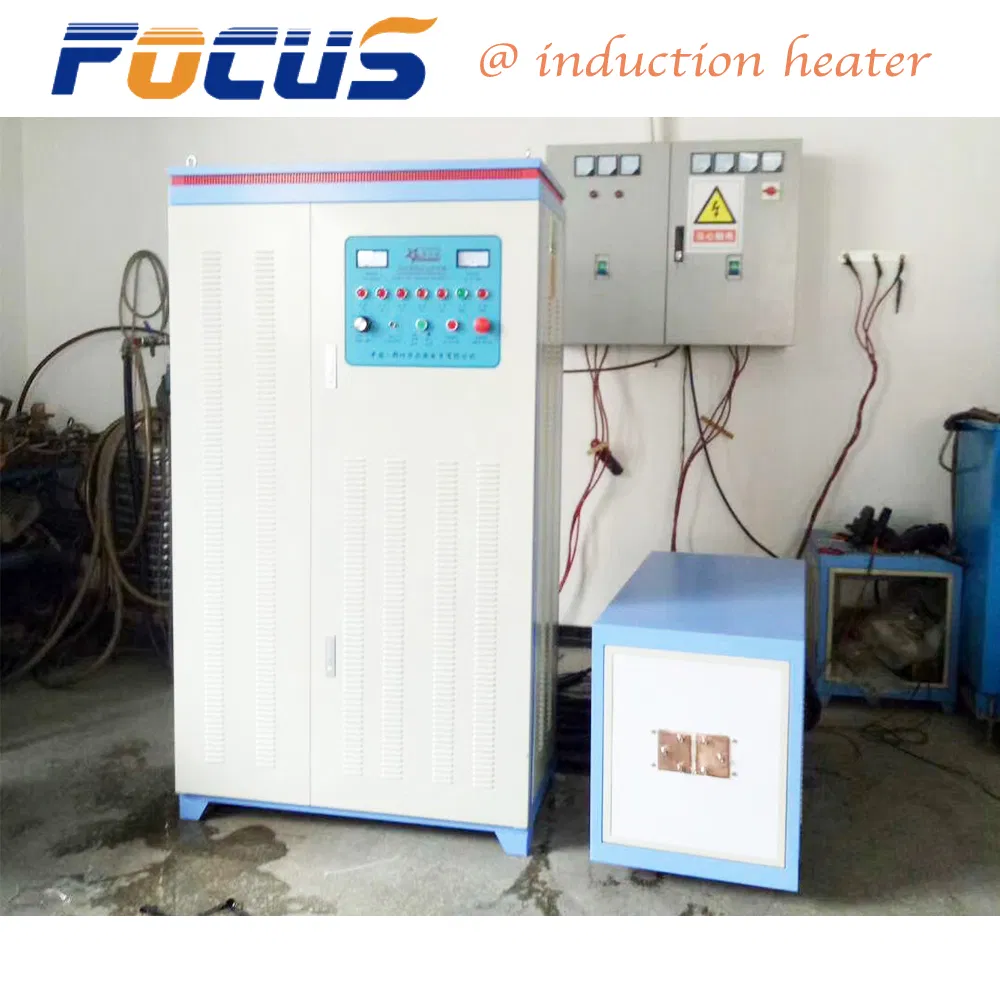

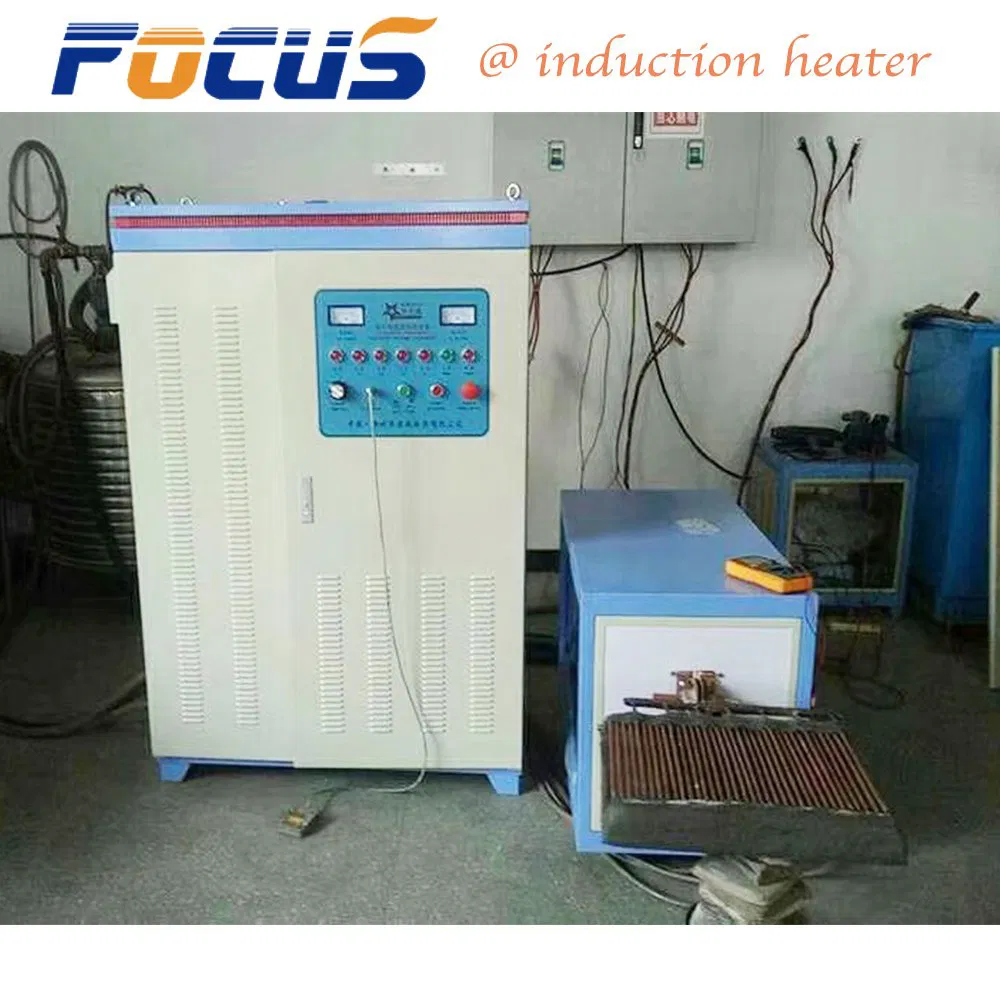

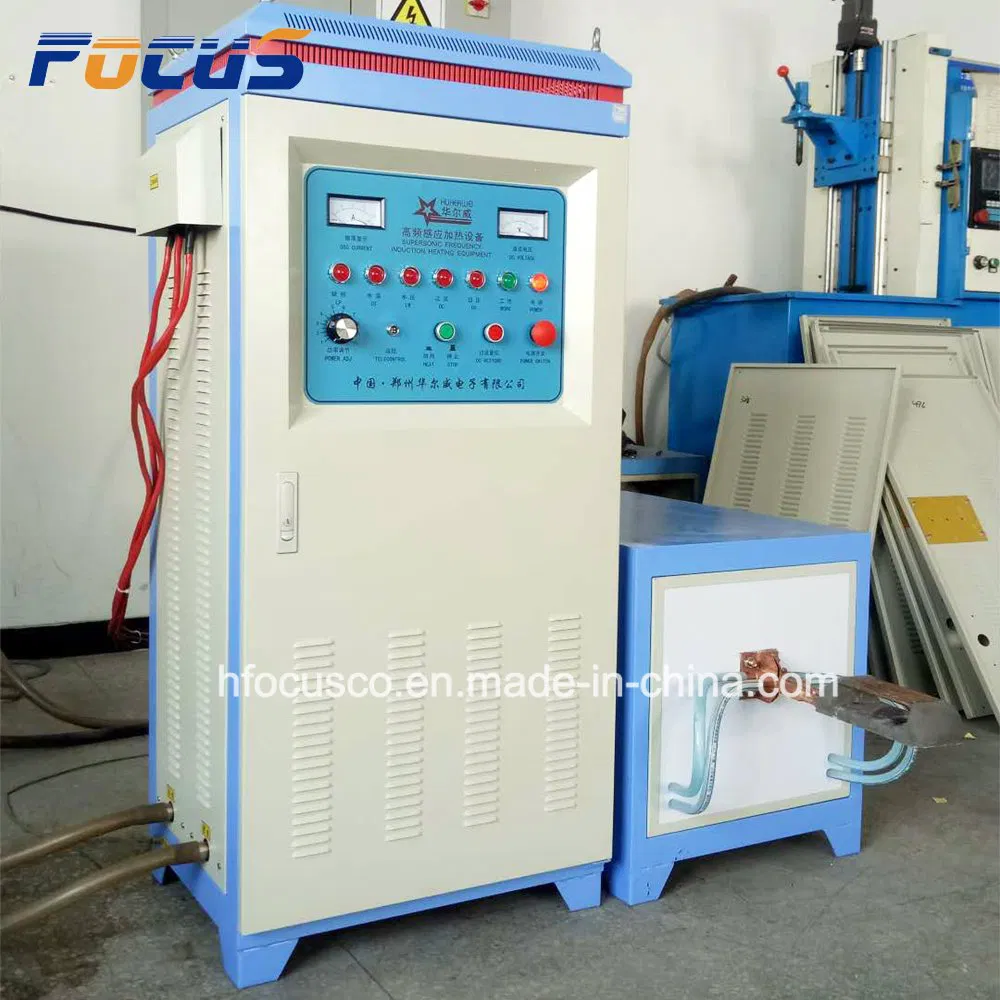

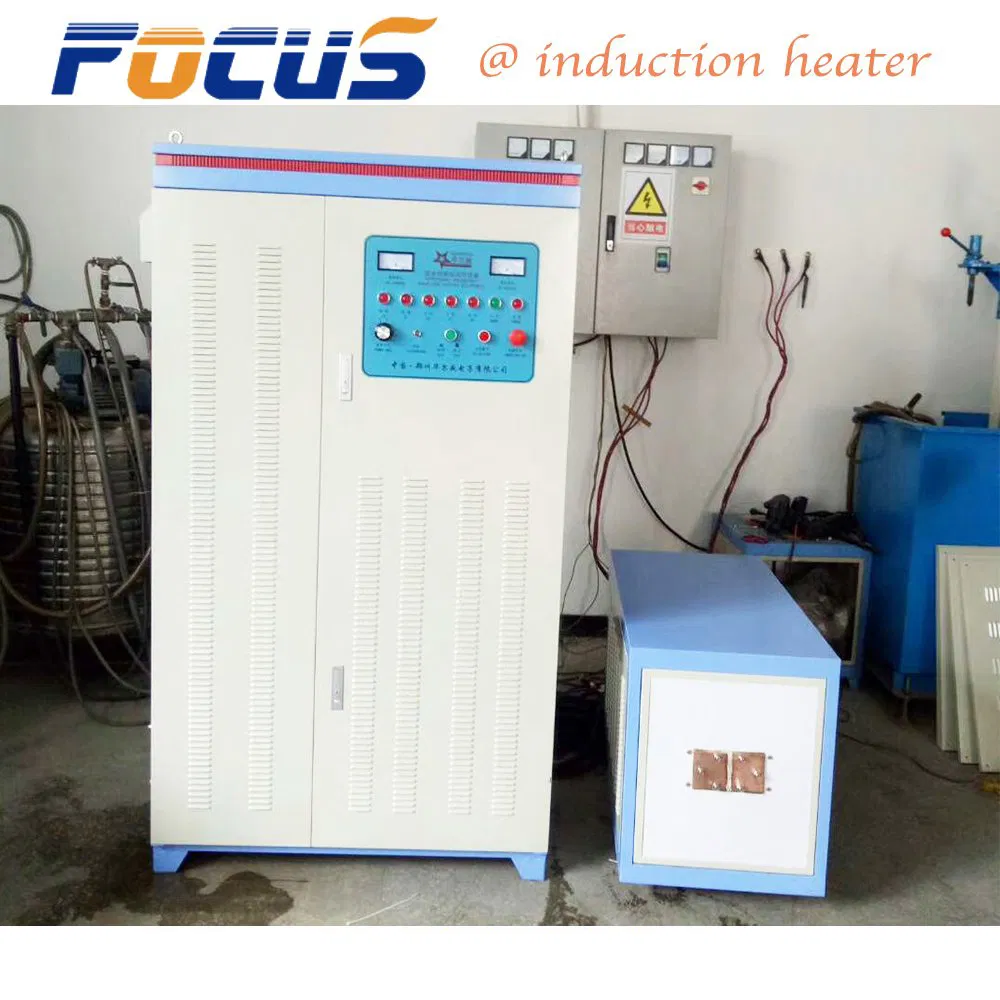

High Frequency Welding Melting Induction Heater/ Heating Machine

1 / 5

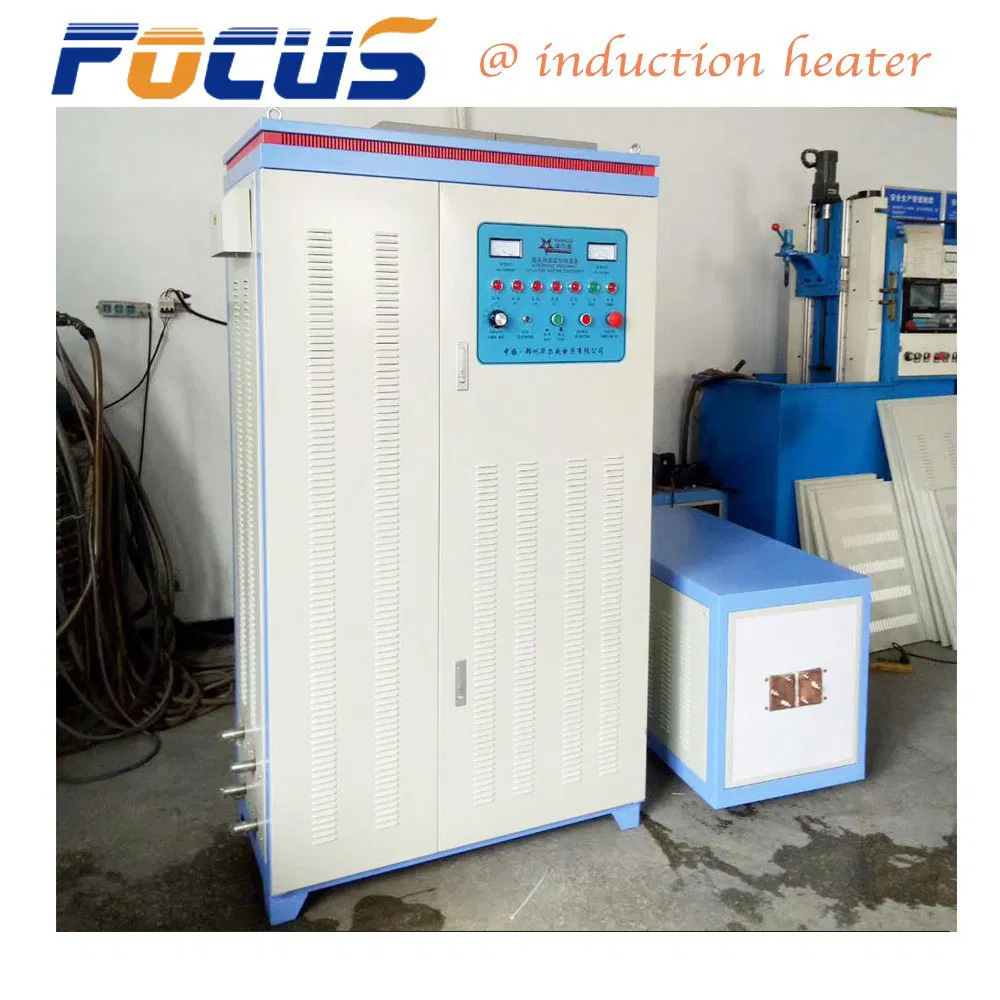

High Frequency Welding Melting Induction Heater/ Heating Machine

Customization:	Available
Type:	Induction Heating Machine
Certification:	CE, ISO, RoHS

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

FCS-120

Structure

Vertical Type

Max Input Power

120kw

Oscillation Frequency

15~25kHz / 25~45kHz

Working Power

Three Phase 380V/50-60Hz

Max Input Current

180A

Efficiency

90%

Duty Cycle

100%

Cooling Water Pressure

0.1~0.3MPa

Production Capacity

5000 Sets/Year

🔥

High Frequency Induction Heater

High Frequency Welding Melting Induction Heater / Heating Machine

With over 20 years of technical expertise, our induction heating equipment is designed to meet the rigorous demands of industrial applications. The 120KW high-frequency system is ideal for surface quenching, gear processing, and machine tool guide treatment.

⚙️

Technical Parameters

Working voltage	Three Phase 380V/50Hz	Cooling water flow (host)	32L/Min(0.1MPa)
Voltage range	360V~420V	Cooling water flow (transformer)	29L/Min(0.1MPa)
Max input current	180A	Cooling water pressure	0.1~0.3MPa
Max input power	120KW	Weight of host	88Kg
Oscillation frequency	25~45KHz	Transformer weight	93Kg
Efficiency	90%	Host Dimensions(mm)	650×480×1440

🛠️

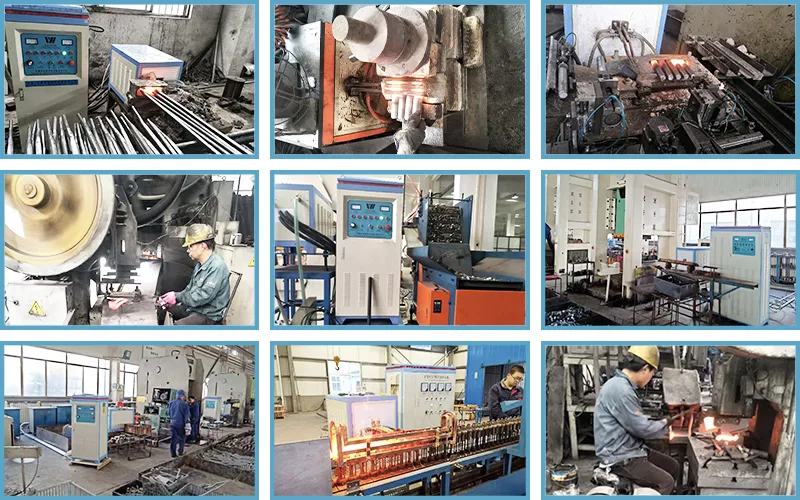

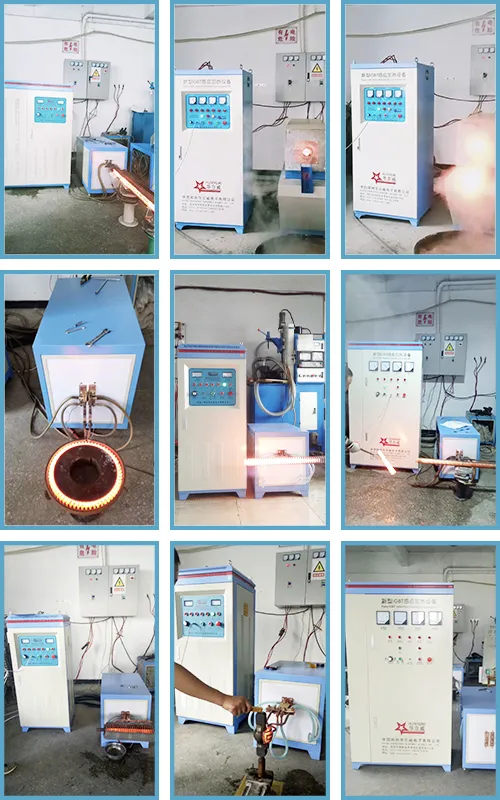

Application Areas

Penetration forging of round steel (diameter < 45mm).
Quenching of mechanical parts (disks < 350mm, shafts < 100mm).
Machine tool guide quenching.
Auto and motorcycle parts heat treatment.
Tools treatment: pliers, wrenches, screwdrivers, hammers, and axes.

📦

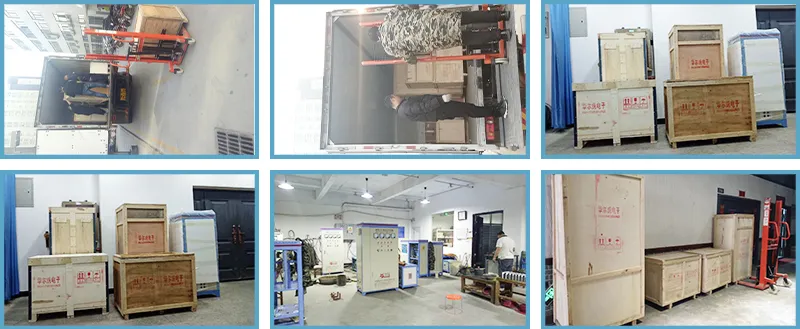

Packing & After-Sale Service

Logistics: Machines are wrapped in film, protected with foam, and packed in standard export wooden cases. Suitable for 20GP or 40HQ containers.

Support: We provide comprehensive manuals, installation videos, and professional phone support. On-site technical engineering is available upon request.

💡

Equipment Selection Guide

1. Workpiece Size: Large/solid materials require high power and low frequency. Small parts/gears require lower power and high frequency.

2. Heating Depth: Deep heating requires low frequency; shallow/surface heating requires high frequency.

3. Process Requirements: Quenching/welding usually needs higher frequency; tempering/forging/smelting needs lower frequency for better thermal penetration.

🛒

Buying Process

1. Send Enquiry

2. Quotation (12h)

3. Tech Negotiation

4. Contract & Deposit

5. Production

6. Balance & Shipment

❓

Frequently Asked Questions

Q1: What is the main advantage of the FCS-120 model?

A: It features a 100% duty cycle for continuous operation and 90% high efficiency, making it perfect for heavy-duty industrial quenching and forging.

Q2: Can this machine be used for different types of metals?

A: Yes, it is suitable for various metal materials including steel, copper, and alloys. Power settings can be adjusted based on the melting point and resistance of the material.

Q3: What are the cooling requirements for the equipment?

A: It requires a cooling water pressure of 0.1~0.3MPa. The host requires a flow of 32L/Min, and the transformer requires 29L/Min.

Q4: How do you ensure the machine is not damaged during shipping?

A: We use a multi-layer protection system: film wrapping, foam cushioning, and a sturdy standard export wooden case.

Q5: Is technical support available for international customers?

A: Absolutely. We provide detailed installation videos, manuals, and remote technical guidance. We can also dispatch engineers for on-site maintenance if required.

Q6: What is the warranty period for the induction heater?

A: We provide a 1-year after-sales service period for all our equipment to ensure smooth operation in your facility.
