Melting Capacity: 750KG
| Sr. No. | Description | Rating |
|---|---|---|
| 1 | Rated Power (KW) | 600 |
| 2 | Total Input KVA | 600 |
| 3 | Input Power Factor | 0.94 |
| 4 | Input Voltage (Volts) | 380 |
| 5 | Output Frequency (Hz) | 1000 |
| 6 | Output Voltage (Volts) | 750 |
| 7 | Melting Temperature (°C) | 1650 |
| 8 | Rated Capacity of furnace in Kg for Steel(kg) | 750 |
| 9 | Melting Rate for Steel at 1650° C at 500KW (Kg/Hr) | 750 |
| 10 | Lining material | Acid or alkaline material |
| 11 | Multi-protections | Overcurrent, overpressure, water pressure, phase loss, leak alarm, temp alarm (Yes) |
| Item | Product Name | Model | QTY | Unit |
|---|---|---|---|---|

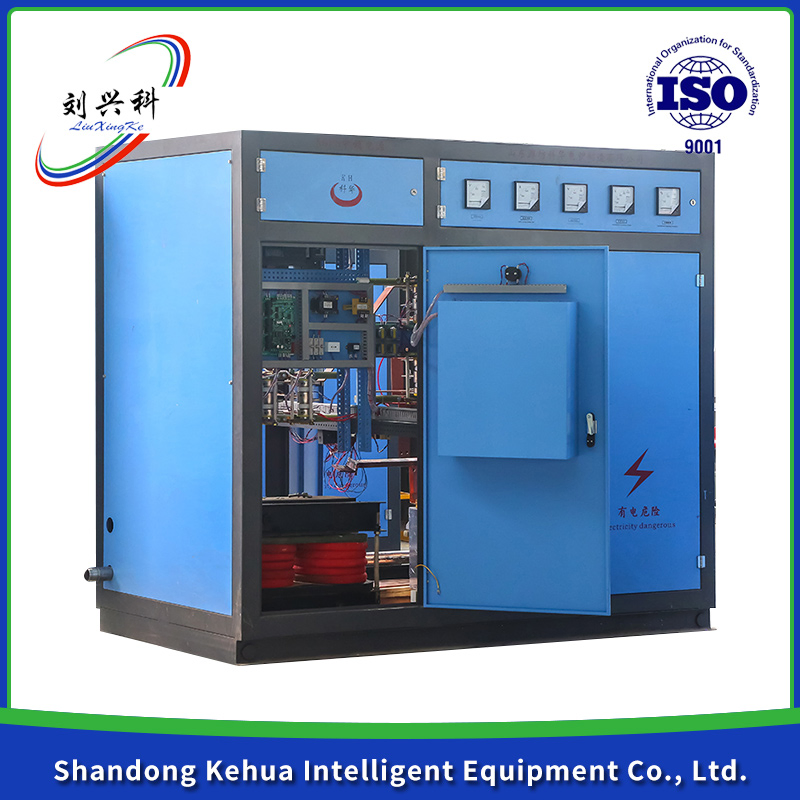

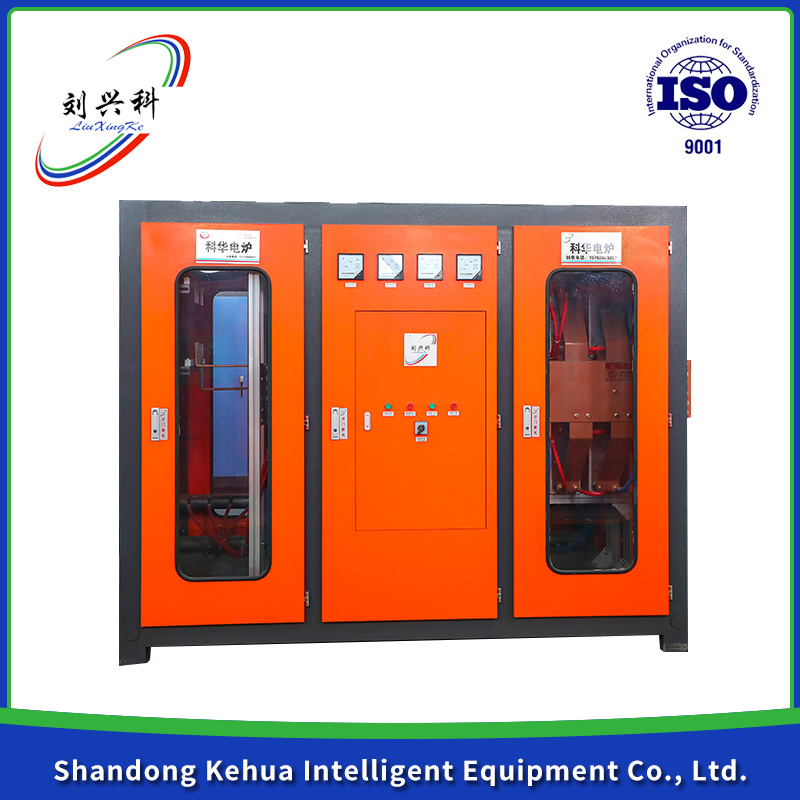

| 1 | MF Power Supply Converter Cabinet | KGPS-CL-600-1S | 1 | Set |
| 2 | Capacitor | KH-600 | 1 | Set |

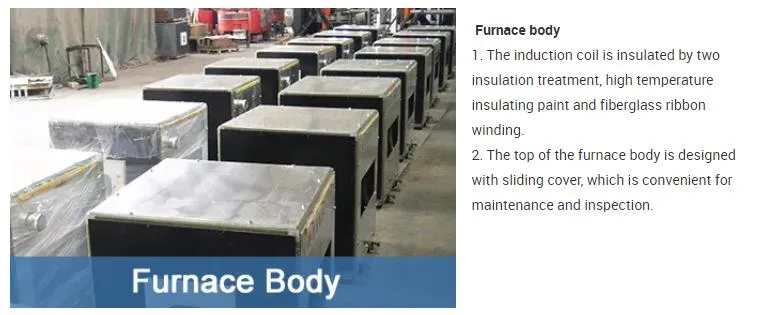

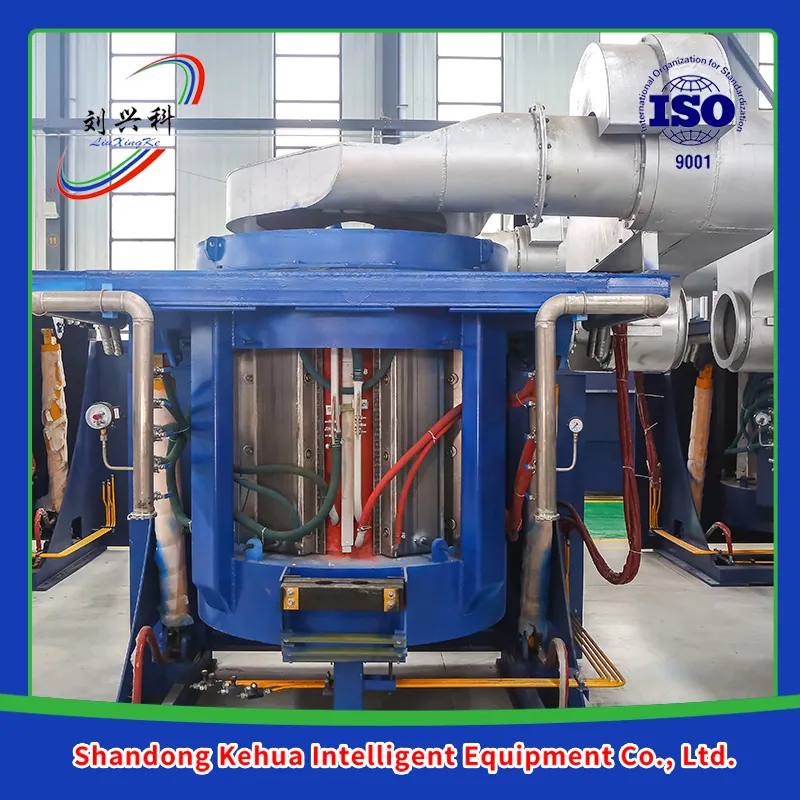

| 3 | Furnace Pot (Steel shell) | - | 1 | Set |
| 4 | Hydraulic Pumping Unit | - | 1 | Set |

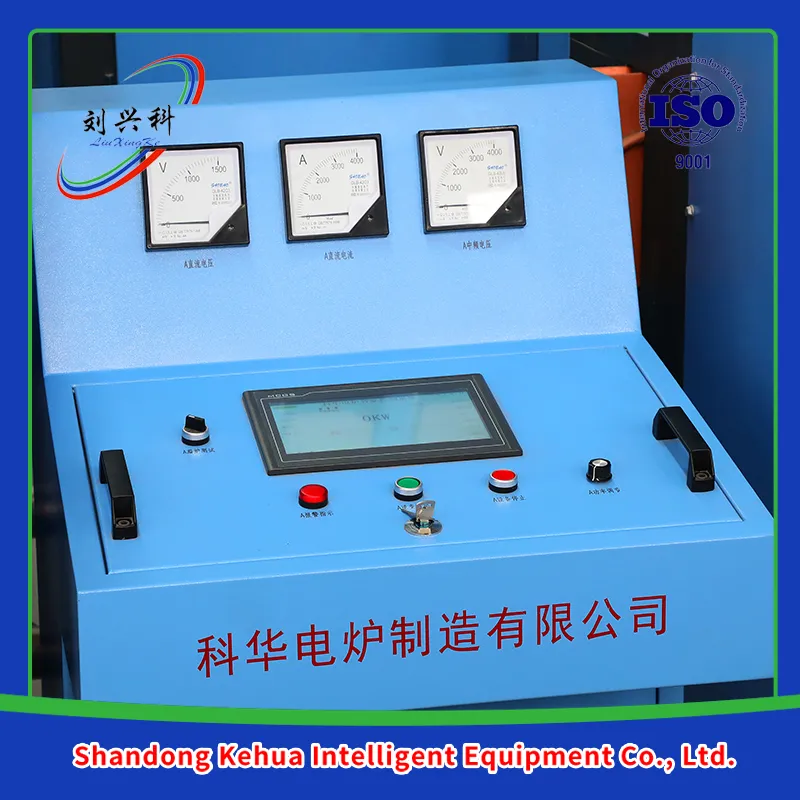

| 5 | Remote Control Panel (Leakage Alarm) | - | 1 | Set |

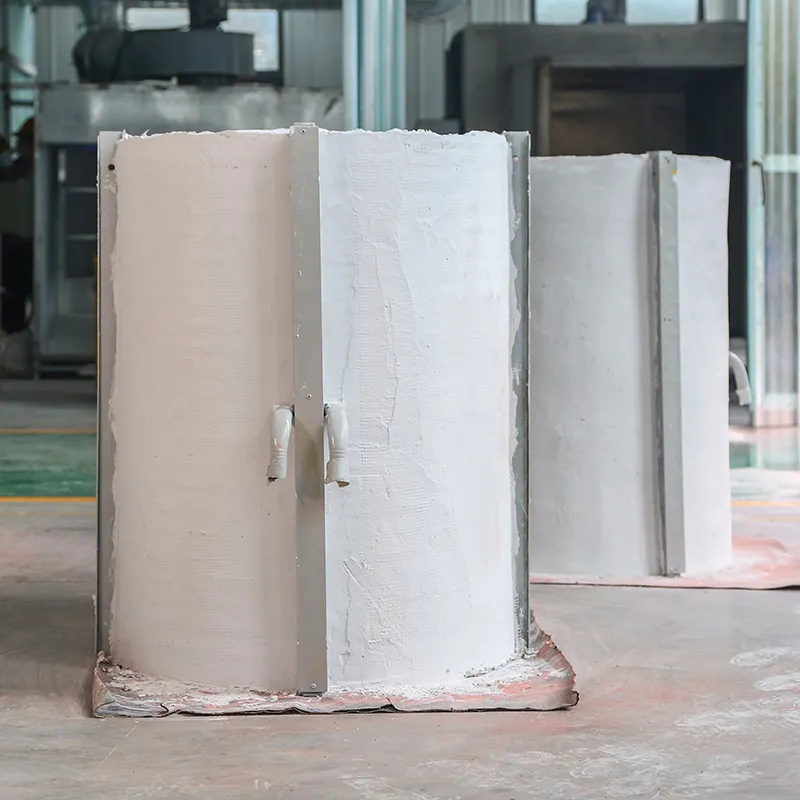

| 6 | Crucible | - | 1 | Pc |
| 7 | Water Cooled Cable | - | 1 | Set |
| 8 | Closed Water Cooling Tower | FL-600 | 1 | Set |
