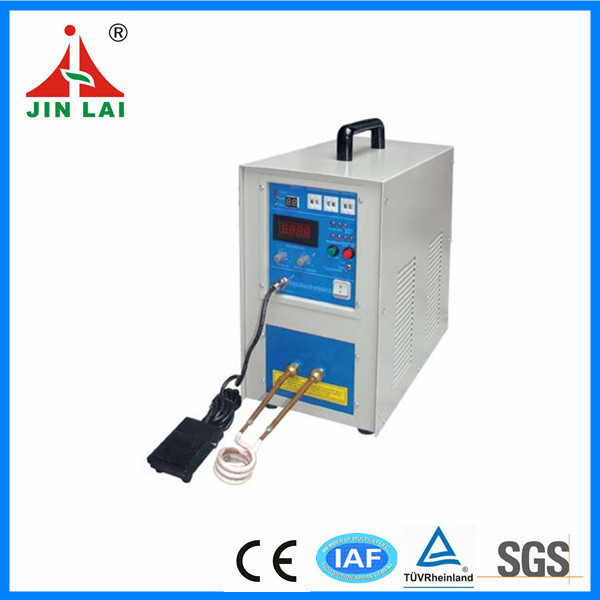

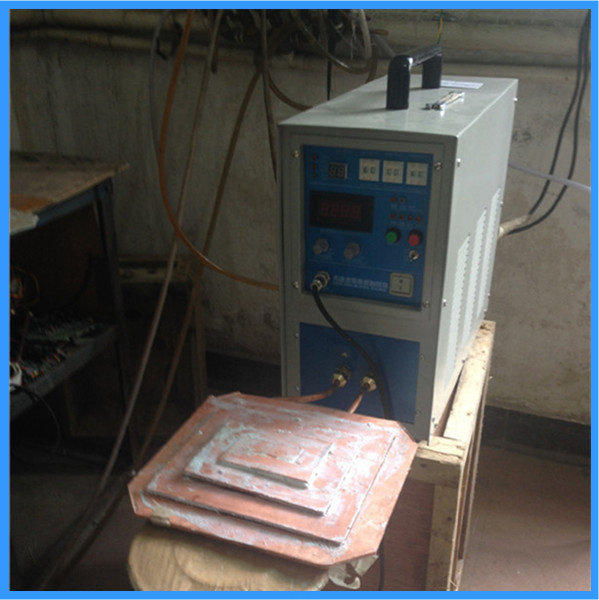

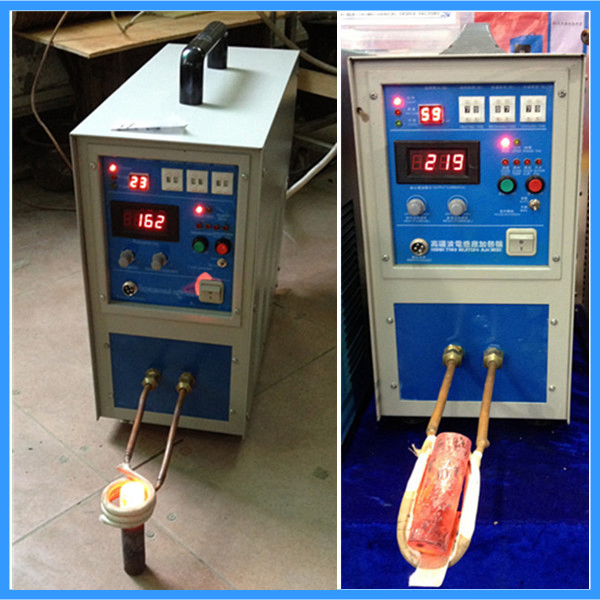

High Frequency Induction Heating Machine for Brazing/Welding/Soldering

1 / 5

High Frequency Induction Heating Machine for Brazing/Welding/Soldering

Customization:	Available
Type:	Induction Heating Machine
Certification:	CE, ISO, SGS

Send Inquiry

Product Description

Basic Information

Model NO.

JL-15/25

Structure

Vertical Type

Brand

SGS

Transport Package

Plywood Case

Specification

32KG

Trademark

JINLAI

Origin

China

HS Code

8514200090

Production Capacity

50000/Year

Packaging & Delivery

Package Size

65.00cm * 35.00cm * 75.00cm

Gross Weight

40.000kg

Product Description

Induction Heating Machine Induction Heater for Welding Brazing Hardening

Main Features

Adopts advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.

Constant current and power control function to optimize metal heating process, ensuring high efficiency and fast heating.

Ten types of fault protection (over-current, over-voltage, water shortage, etc.) for higher reliability and durability.

Safe and reliable operation, requiring no high-voltage equipment.

Available for infrared temperature measurement to realize automatic control and simplify manual operation.

Technical Parameters

Parameter	Specification (JL-15)
Input power desire	Single phase 220V 50/60HZ
Oscillate power max	15KW
Max input current	37A
Oscillate frequency	30-100KHz
Cooling water desire	>0.3MPa >20L/ Min ≤40°C
Duty cycle	100%
Generator Size/Weight	650350750mm / 40KG
Cable length	2-6 meters

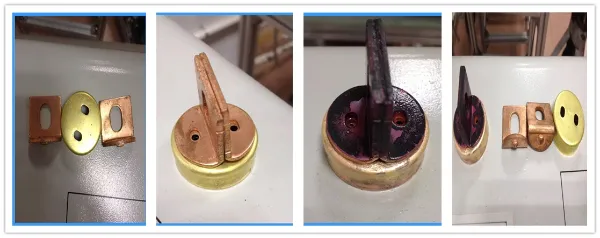

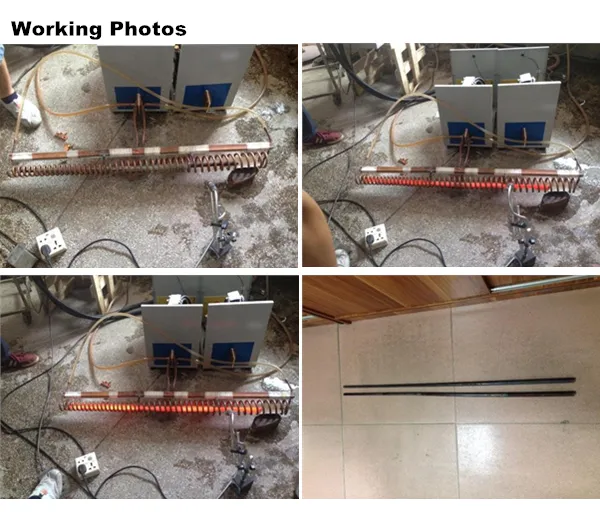

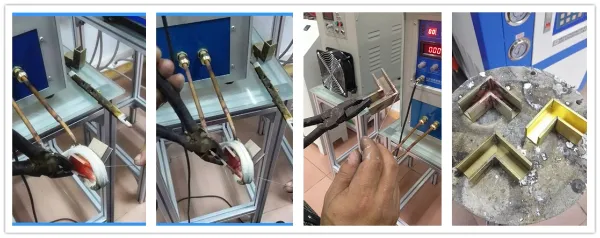

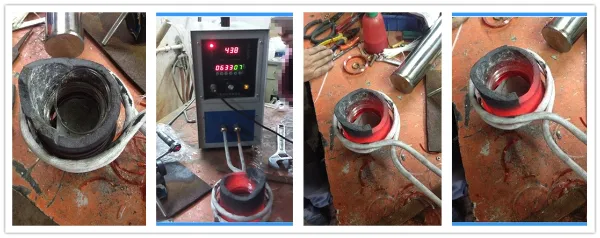

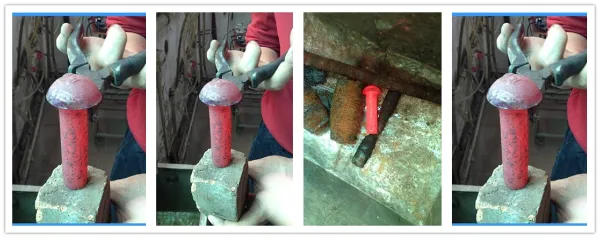

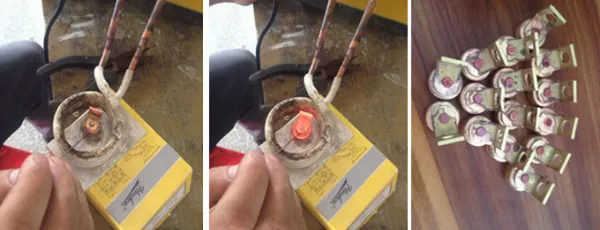

Application Cases

Frequently Asked Questions

What are the primary uses for this induction heating machine?

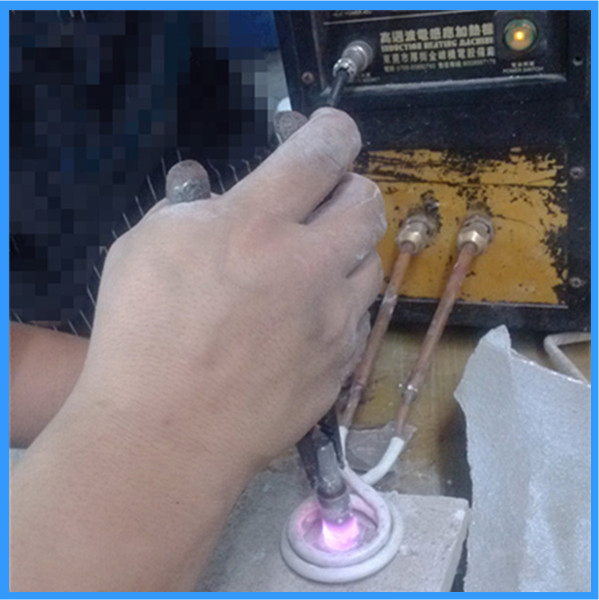

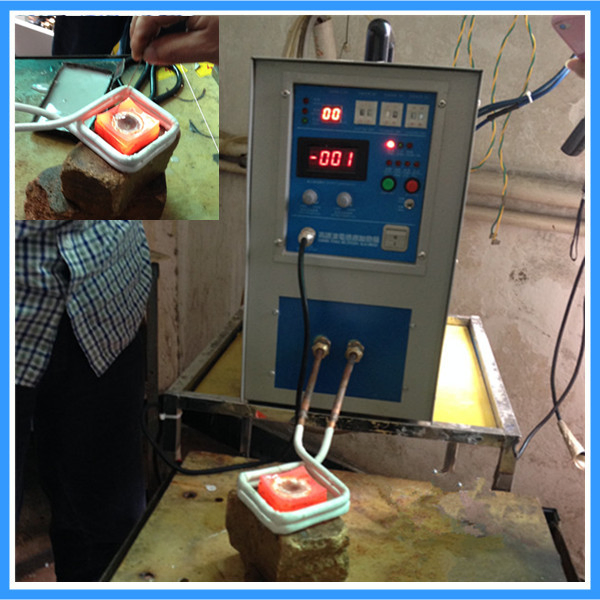

This machine is specifically designed for high-frequency metal heating processes, including welding, brazing, hardening, and soldering of various metal components.

What is the advantage of IGBT technology in this heater?

The IGBT frequency conversion control allows for automatic frequency tracking, ensuring the machine operates at peak efficiency with constant power control regardless of the load.

Does the machine require a special cooling system?

Yes, it requires cooling water with a pressure greater than 0.3MPa and a flow rate of at least 20L/Min, with an inlet temperature below 40°C to ensure stable operation.

Can this machine work continuously?

Yes, the machine features a 100% duty cycle, meaning it is designed to operate 24 hours a day at maximum power output without overheating, provided cooling requirements are met.

What safety protections are built into the device?

The unit includes approximately ten types of fault protections, including over-current, over-voltage, water shortage, and phase missing alerts, which are displayed on the panel for easy troubleshooting.

Is it possible to automate the temperature control?

Absolutely. The machine is compatible with infrared temperature measurement devices, allowing for fully automatic temperature regulation and improved heating consistency.
