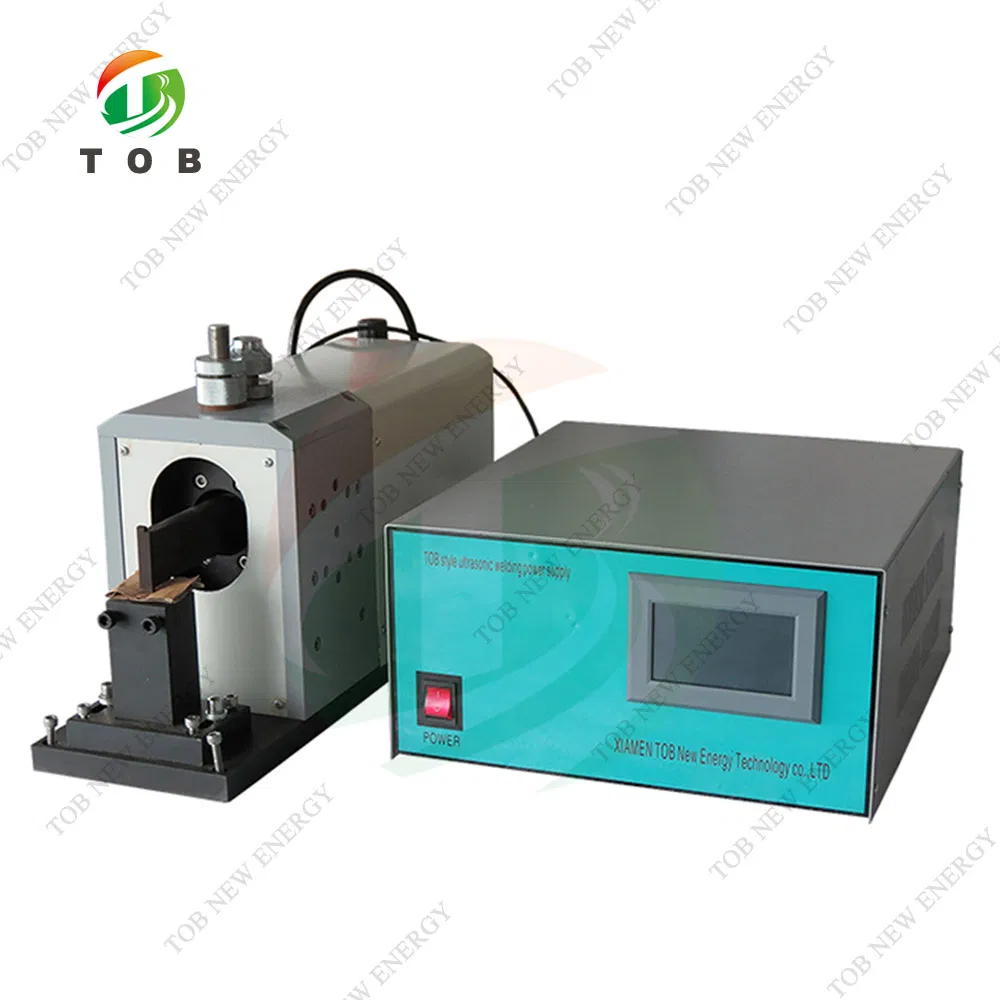

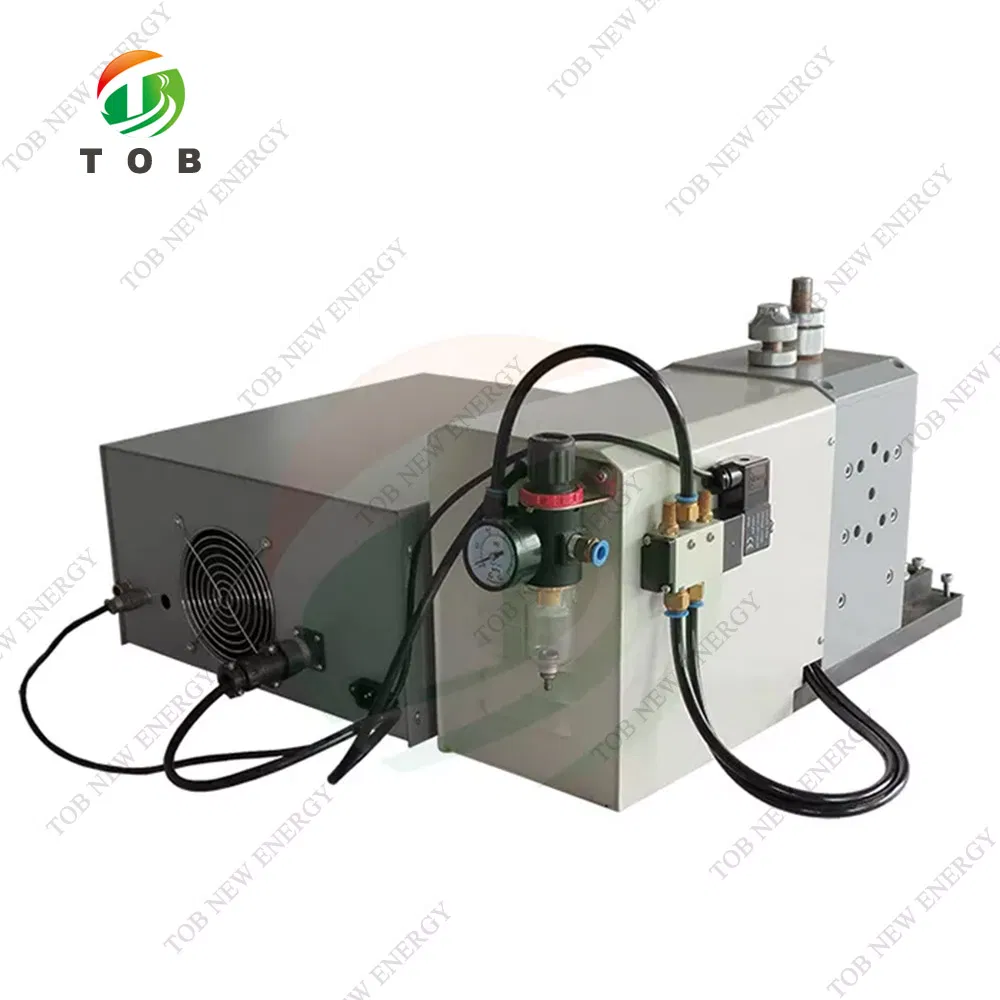

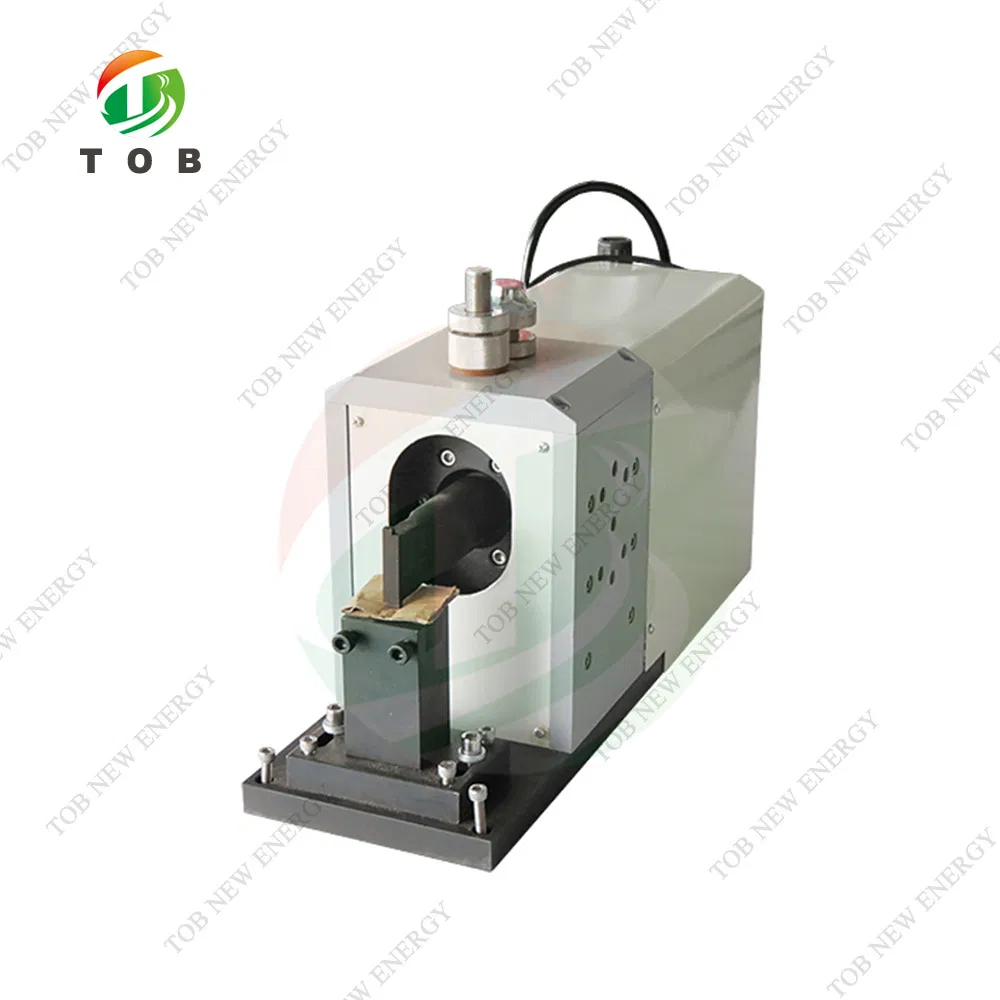

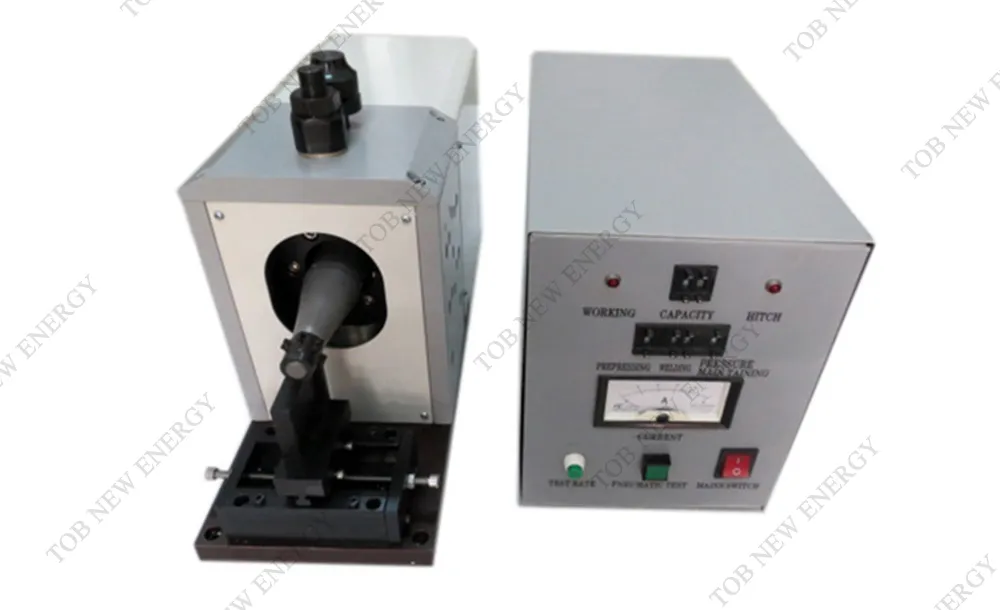

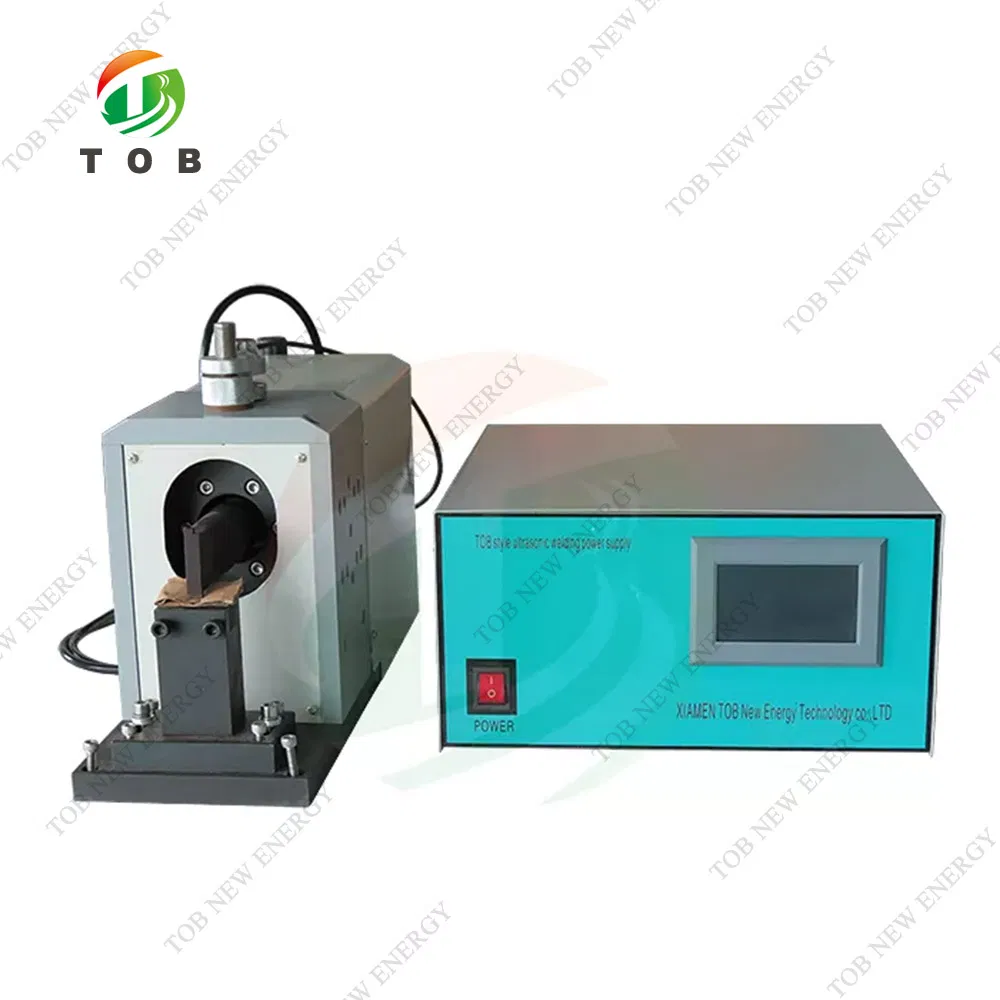

Ultrasonic Metal Welder Machine
1. The ultrasonic metal welding machine is specifically designed for Lithium battery tab welding, featuring a sophisticated touch-screen controller. It is ideal for welding stacked electrode sheets (Copper & Aluminum) and tabs onto current collectors, supporting both R&D laboratory preparation and full production lines for Li-ion pouch cells.
2. This Battery Welding Machine is capable of welding stacked electrodes with 10-30 layers of aluminum or copper foil with Al and Nickel tabs. For larger battery requirements involving up to 60 layers, alternative high-power models like the USW-4500W are available.
| Model | TOB-USW-3000W |
| Type | Ultrasonic spot welding machine |
| Welding Ability (Copper) | 10-30 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding. |
| Welding Ability (Aluminum) | 10-30 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding. |
| Welding Ability (Belt) | 0.2mm Al belt + 0.2mm Ni belt or Nickel-clad copper wrapping welding. |
| Welding Point Sizes | 4*6, 4*8, 4*10, 4*12 mm customized |
| Frequency | 24KHZ |
| Max Output Power | 3000W |

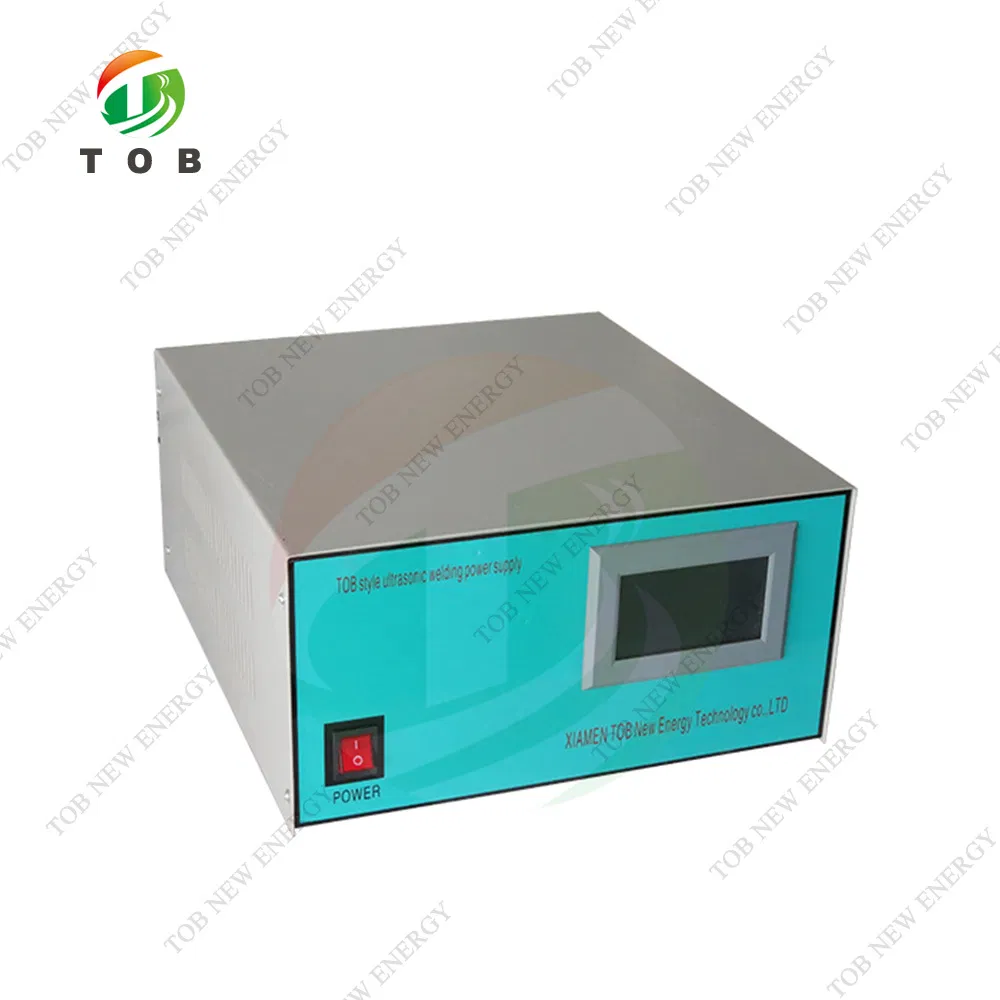

| Control Mode | CPU control with Touch-screen |
| Air Supply | ≥0.5MPa |
| Voltage Source | 110/220V 50HZ/60HZ |
| Operational Humidity | ≤48% |
| Operational Temp | ≤45ºC |
| Warranty | One year limited warranty with lifetime support |
