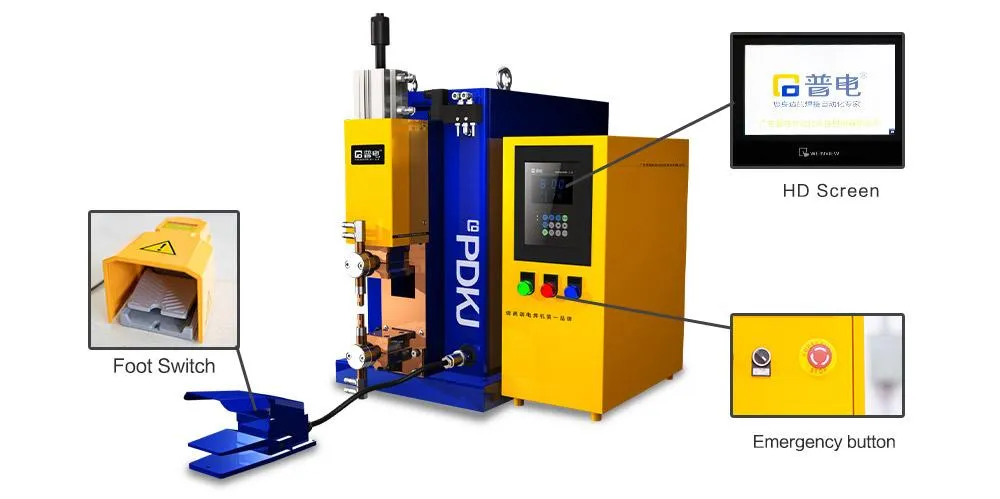

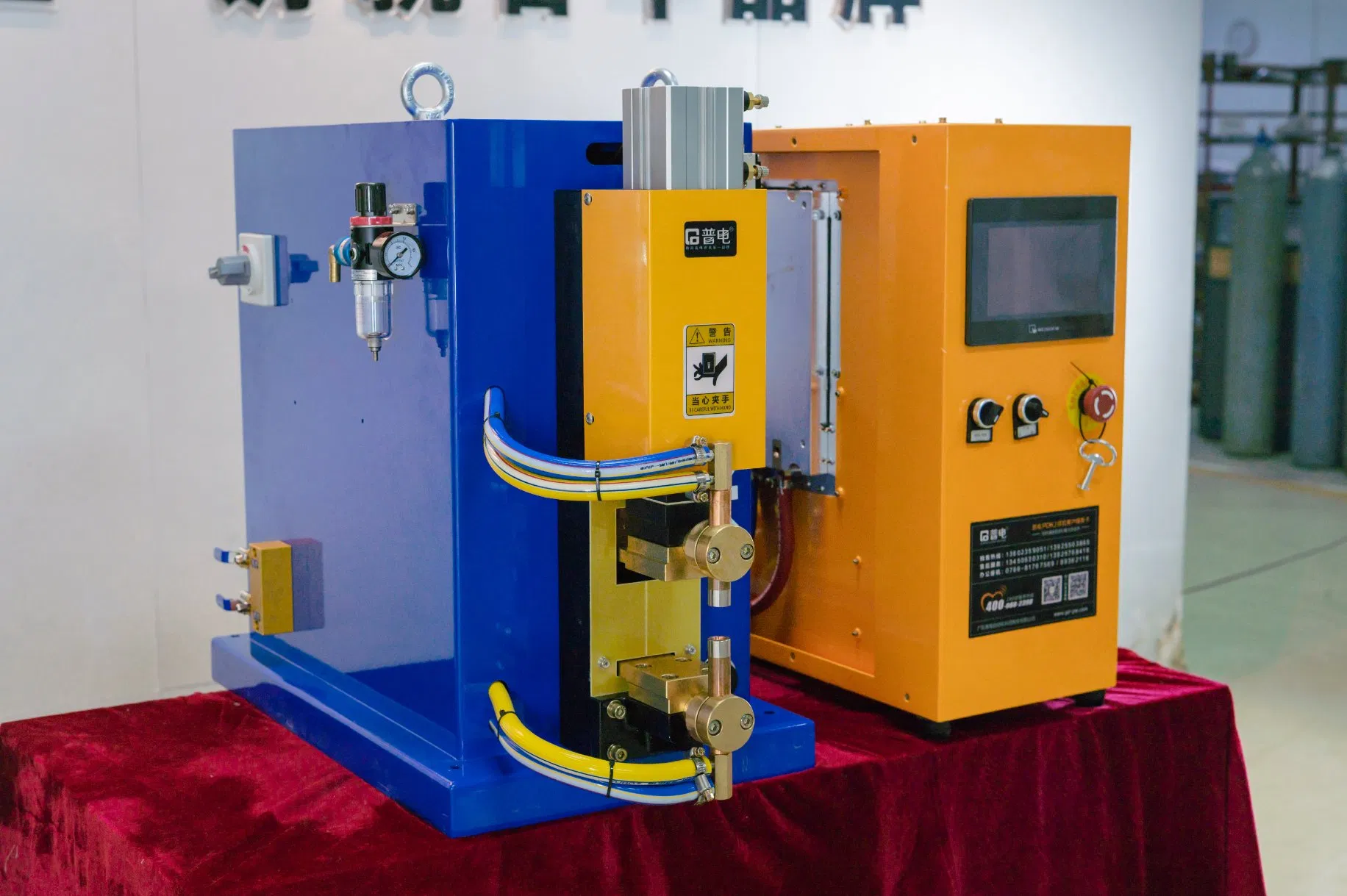

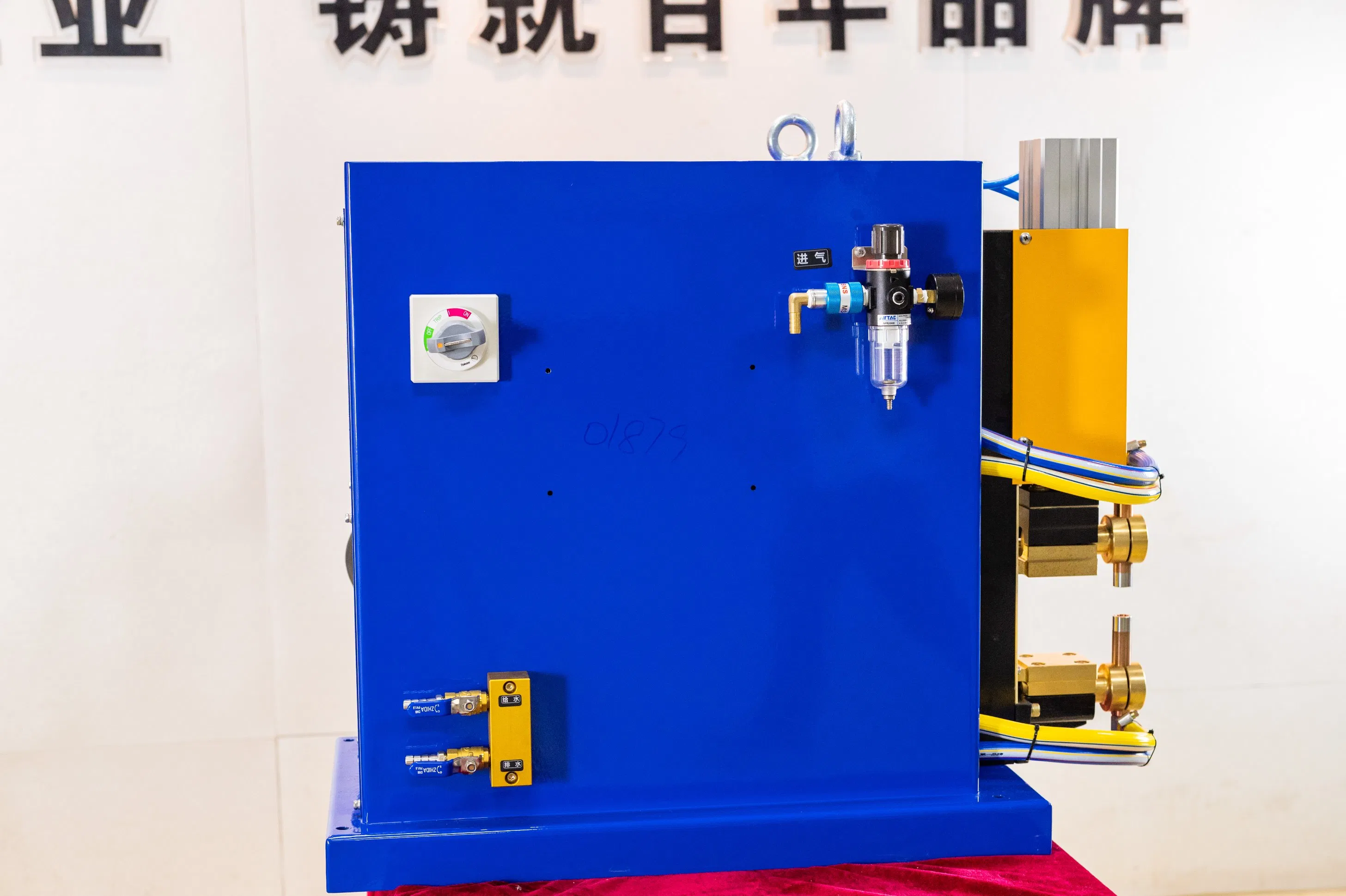

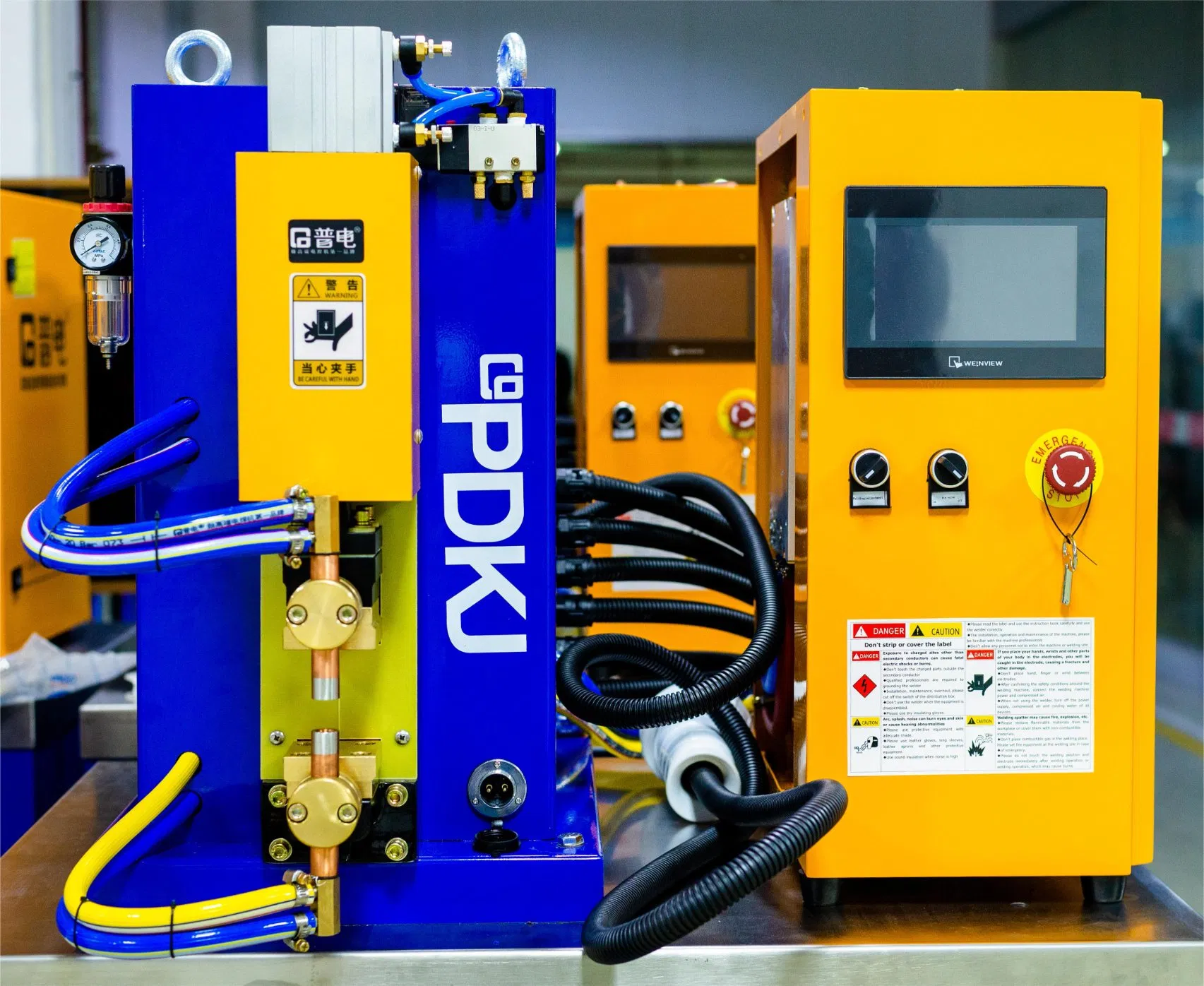

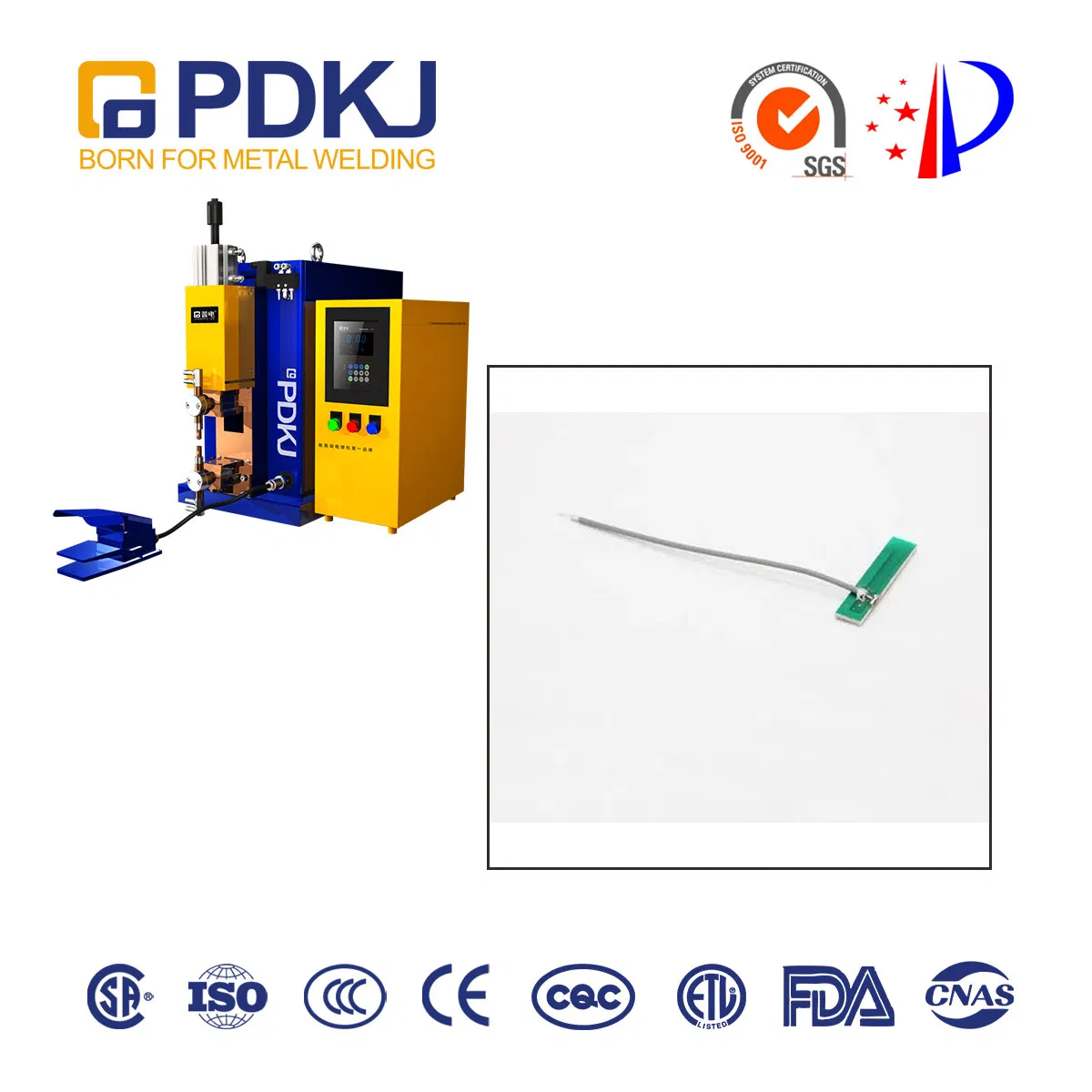

Desktop Intermediate-frequency Inverter DC Spot Welding Machine

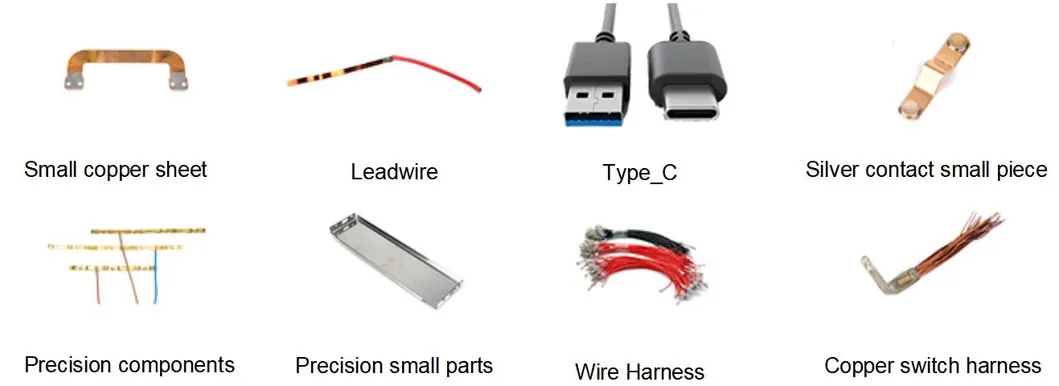

This precision spot welder is specifically designed for fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses, and hardware. It is widely utilized in the assembly of precision components for electronics, medical devices, and instrumentation.
| Parameter | DB-80T Specification |
|---|---|
| Rated capacity | 80KVA |
| Input power | 3 φ 380V |
| Short-circuit current | 22000A |
| Load duration | 20% |
| Control mode | Primary / secondary constant current |
| Inverter frequency | 1000HZ |
| Arm extension size | 120mm x 115mm |
| Maximum pressure | 750N |
| Electrode stroke | 50mm |
| Cooling water flow | 4L/min |
| Weight | 150kg |
| Overall dimension | 800*670*765mm |
Ideal for welding aluminum, copper, galvanized sheet, carbon steel, nickel, and tungsten. It is highly effective for high-temperature enameled wire, flexible connections, and inductance coils. Key industries include automotive parts, new energy batteries, photoelectric communication, electric light sources, and hardware manufacturing.
Founded in 2006, our technical team is a professional supplier of welding automation solutions. We have passed the ISO9001 international quality management system certification and hold more than 70 authorized national patents. As a recognized high-tech enterprise, we have served nearly 9,000 users worldwide over the past 17 years. Our precision welding machines are popular in more than 30 countries and regions.
