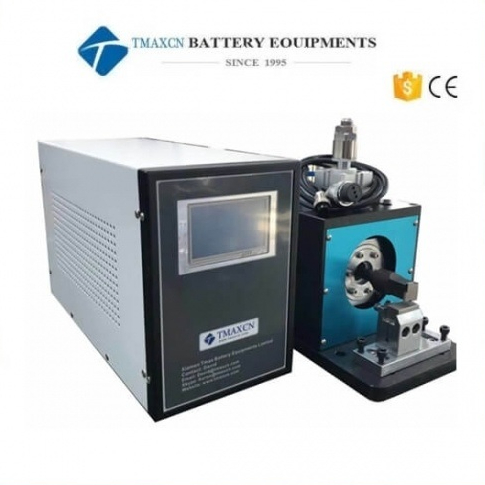

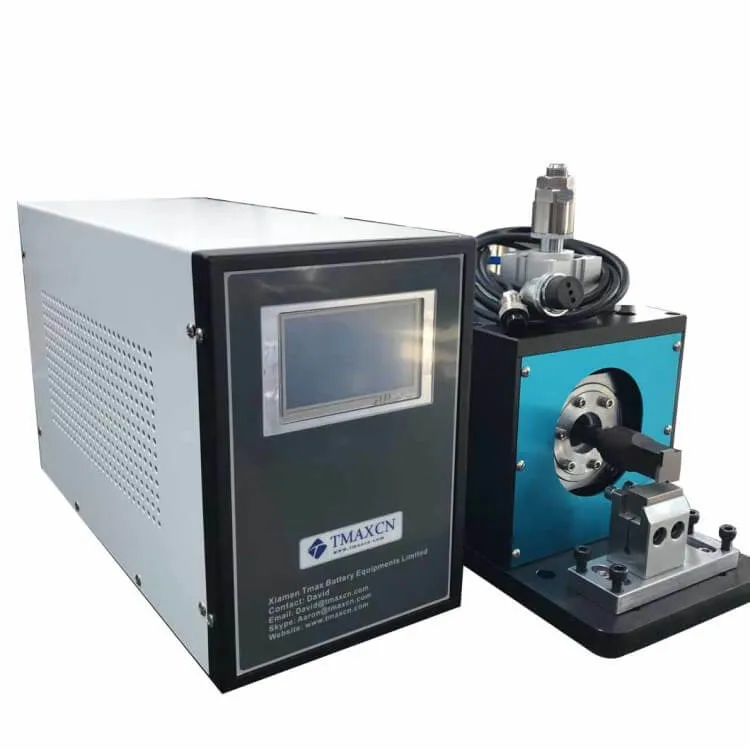

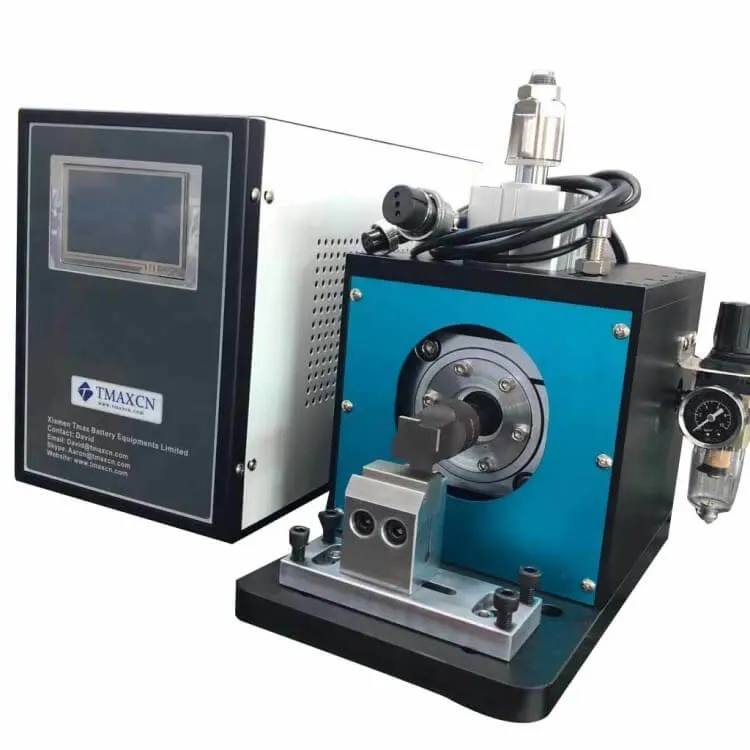

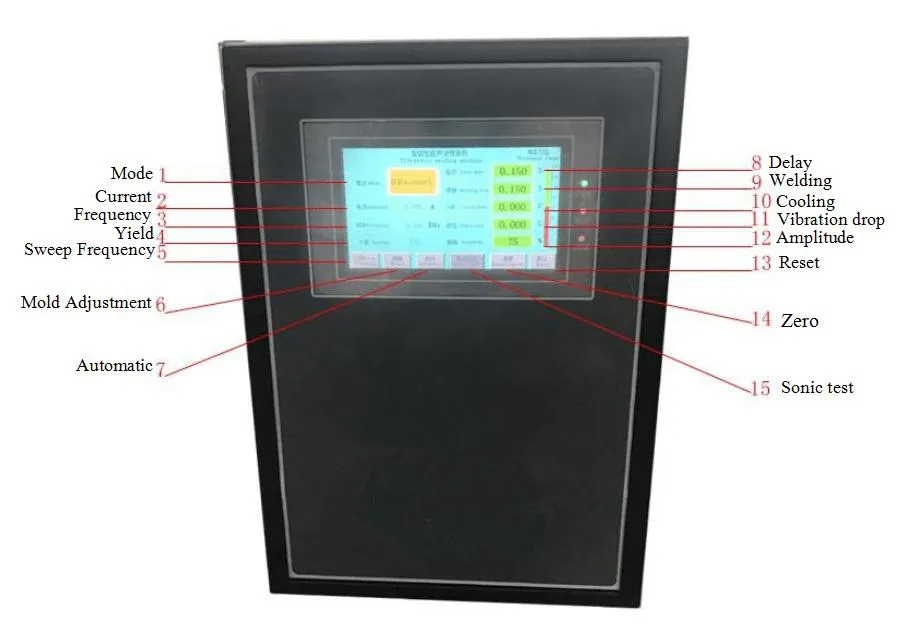

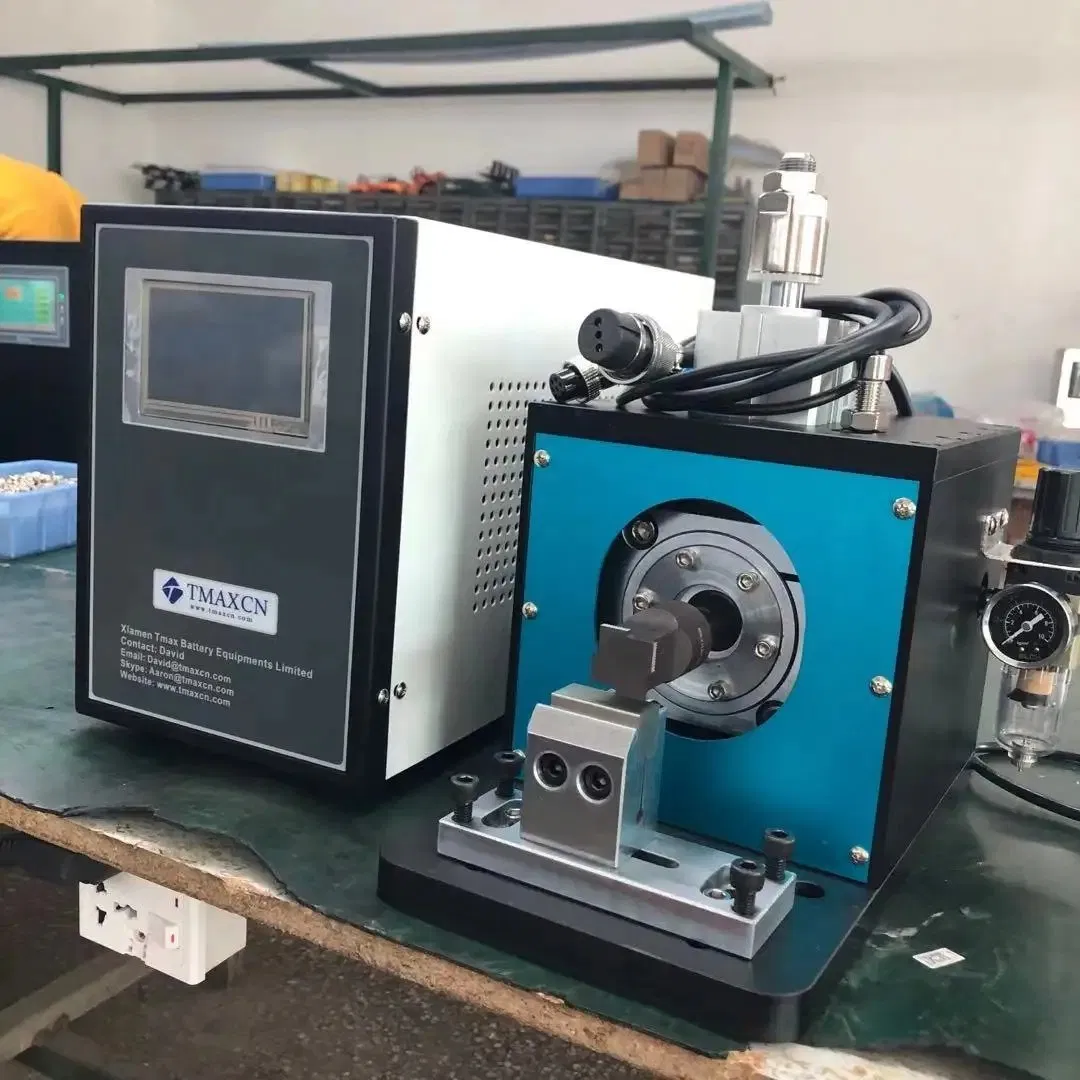

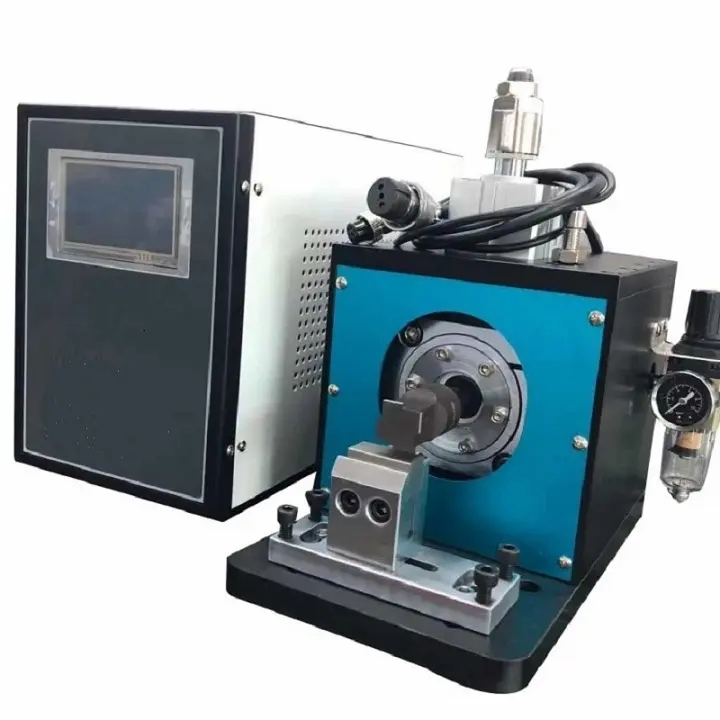

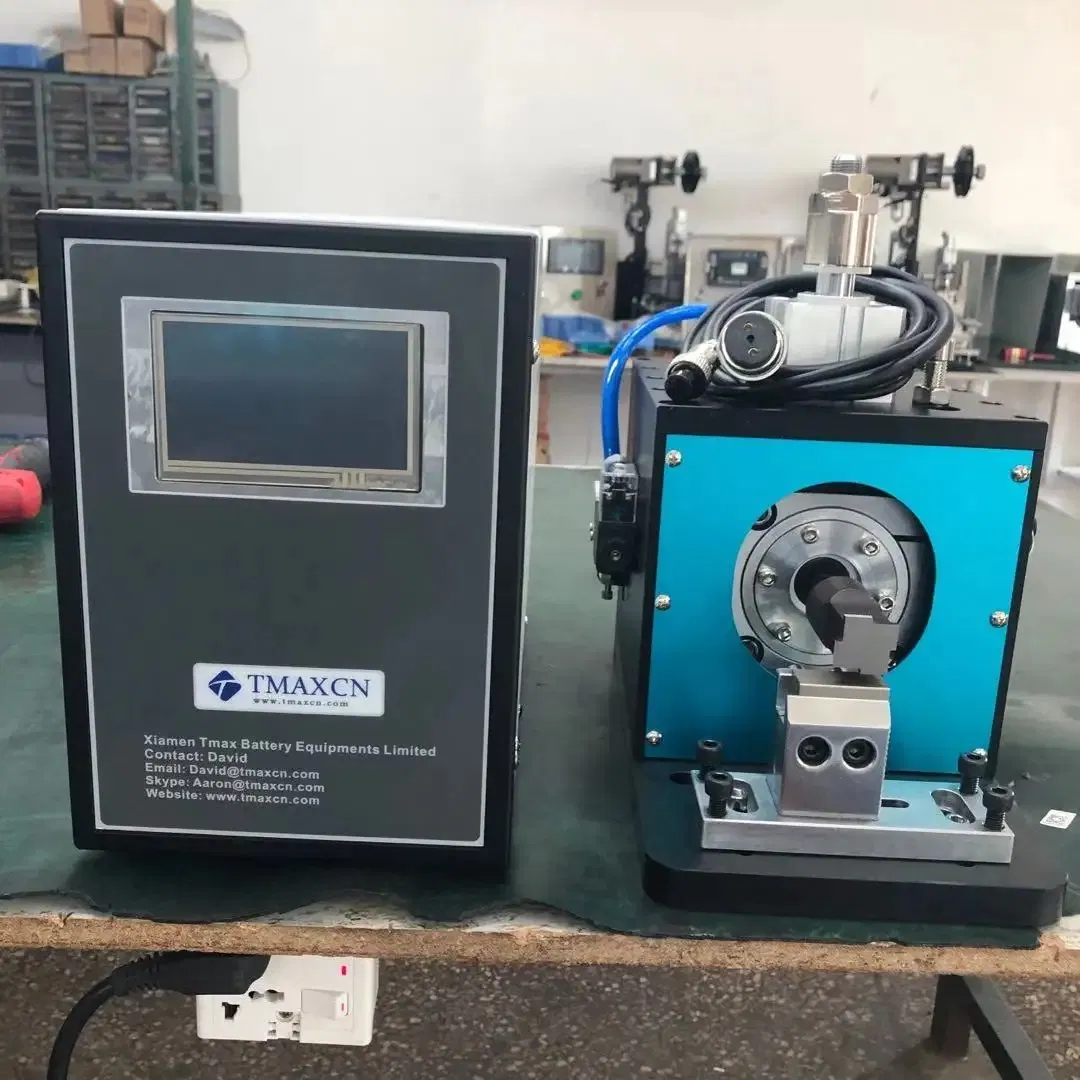

The TMAX-VS-24A is a CE Certified ultrasonic metal welder equipped with a touch-screen controller. It is specifically designed for welding stacked electrode foils or sheets and tabs onto current collectors during the preparation of Li-ion pouch cells and cylindrical cells.
This 3000W battery welder can weld stacked electrodes with 10-35 layers of aluminum foil or copper foil using Aluminum and Nickel tabs.
| Features | Preset welding programs selectable for Al and Cu (Adjustable for Au, Fe, Ni, Ag, etc.) |
| Input Voltage | AC 110V or 220V +/-10%, 50/60Hz |
| Max. Power Consumption | 3000W (Customizable) |
| Welding Area | 4mm(L) x 4mm(W) (Customizable) |
| Welding Head | Includes heads and base for welding Al & Cu current collectors (2 to 40 layers) |
| Ultrasonic Frequency | 24K Hz (Customizable) |
| Net Weight | 70kg |
| Compliance | CE Certificate |
