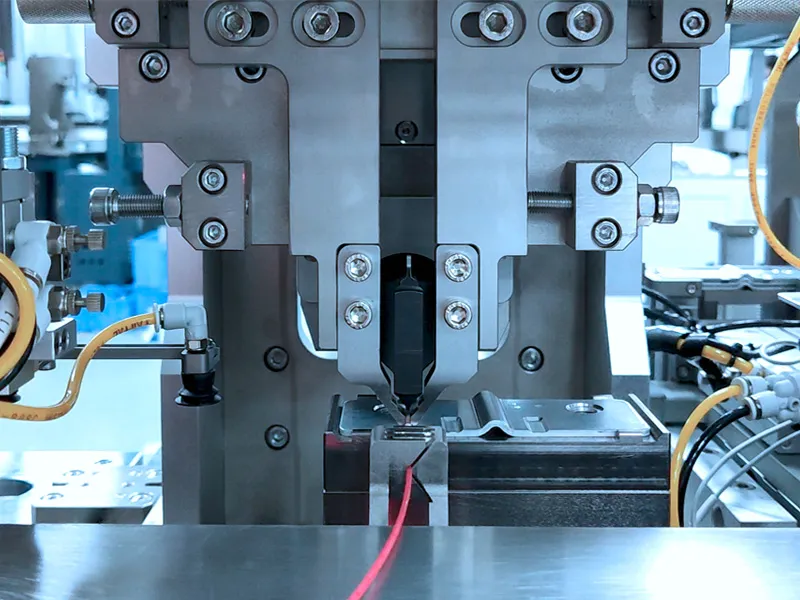

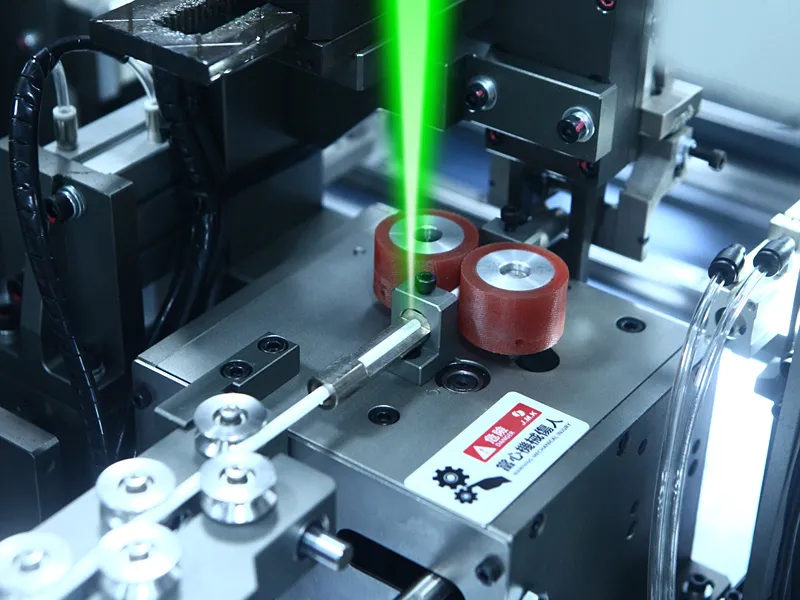

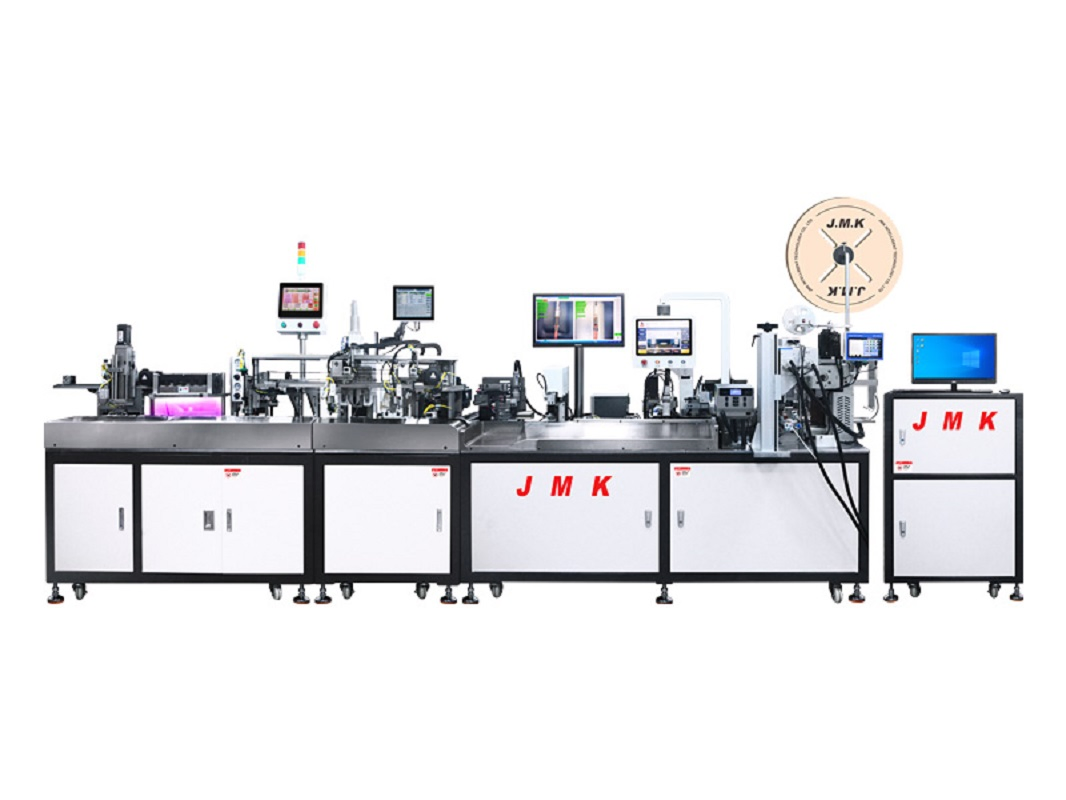

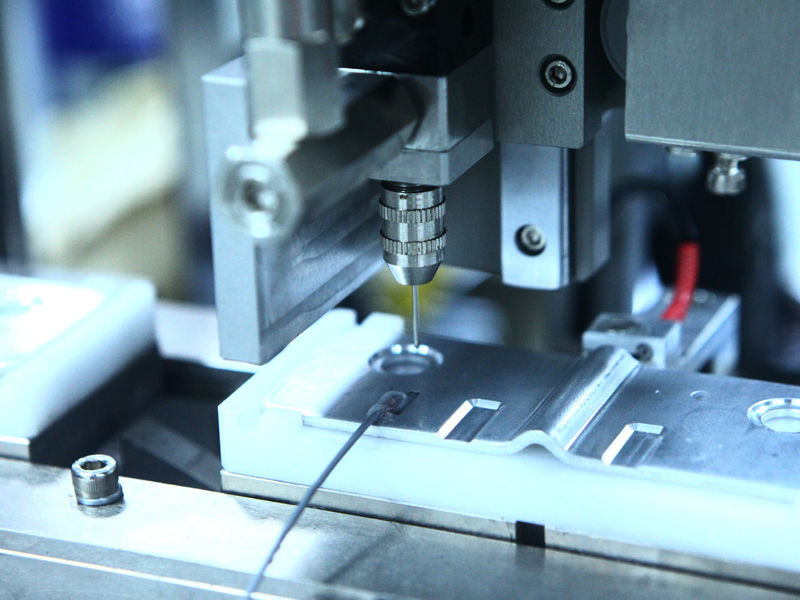

JMK-S400 automatic single end welding terminal insertion machine supports bulk terminals and manipulator automatic feeding.
The R&D of customized machine is one of the biggest features. Some non-standard wire harnesses often appear in the wire harness processing industry, but it is difficult for standard models to achieve universal product specifications. We combine the advantages of existing products with non-standard modules to meet these specific requirements.
| Parameters | JM-S400 | JM-600B (Optional) |
|---|---|---|
| Power Supply | AC220V/50-60Hz 10A | Customized |
| Total Power | 13Kw (Max) | - |
| Capacity | 1.2 s per cable | - |
| Compress Air | 0.5-0.7 Mpa | - |
| Wire Cuttable Length | 50-1000mm | - |
| Cut Off Precision | ±0.05mm (manual) | - |
| Stripping Length | 0-10mm | - |
| Wire Diameter | 10m²-16m² (AWG10-AWG12) | - |
| Feeding Speed | 8-12m/s (Max) | - |
| Crimping Ability | 0.8T (Customizable) | - |
| Machine Size | 3300 x 1100 x 1900mm | - |
| Machine Weight | ~1200Kg | - |
| Optional Parts | Seal Station, conduit station, visual module, puller, safety cover | |
We are professional engaged in equipment solutions including automotive wire harness processing centers, FAKRA/Ethernet automation lines, new energy HV cable lines, and auxiliary equipment. Our expertise covers pneumatic applicators, CCD visual inspection, and CFM Crimp monitoring systems.
Through continuous exploration, our manufacturing covers multi-station terminal crimping machines and automatic insertion machines, supported by numerous software copyrights and utility model patents.
