TMAXCN Brand Pouch Cell Tab Ultrasonic Metal Spot Welder Welding Machine

Customization:	Available
Cooling Way:	Air Cooling
Conductive Way:	Both-Sided

Send Inquiry

Product Description

Basic Information

Model NO.

TMAX-VS-40A

Welding Spots

Multiple

Type

Universal

Package

Wood Packing

Trademark

TMAX

Origin

China

Product Description

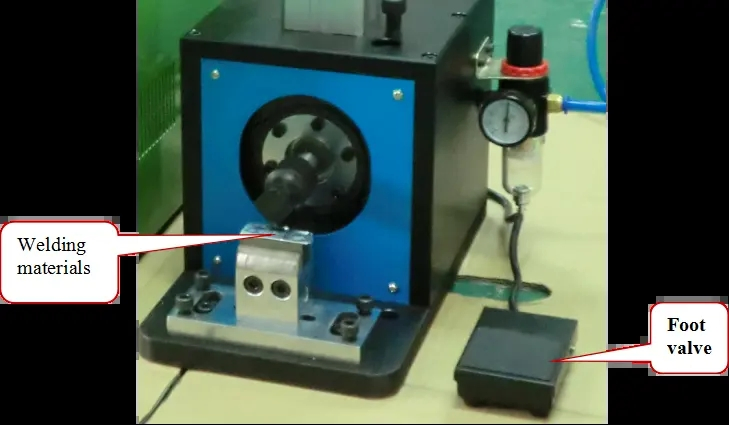

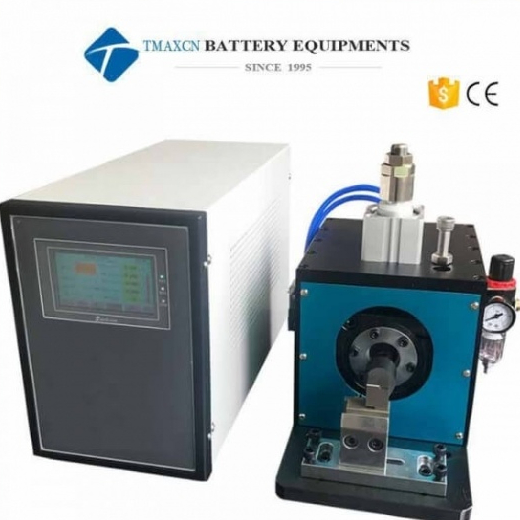

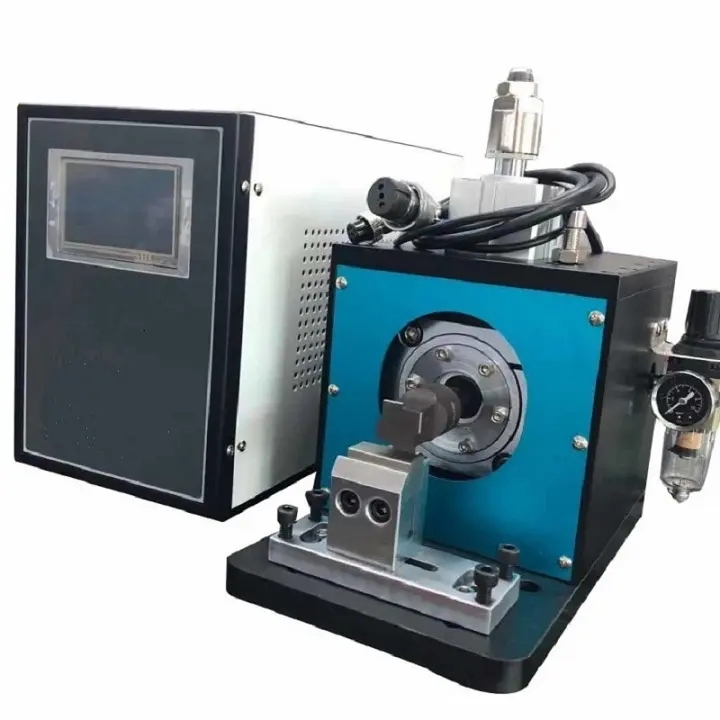

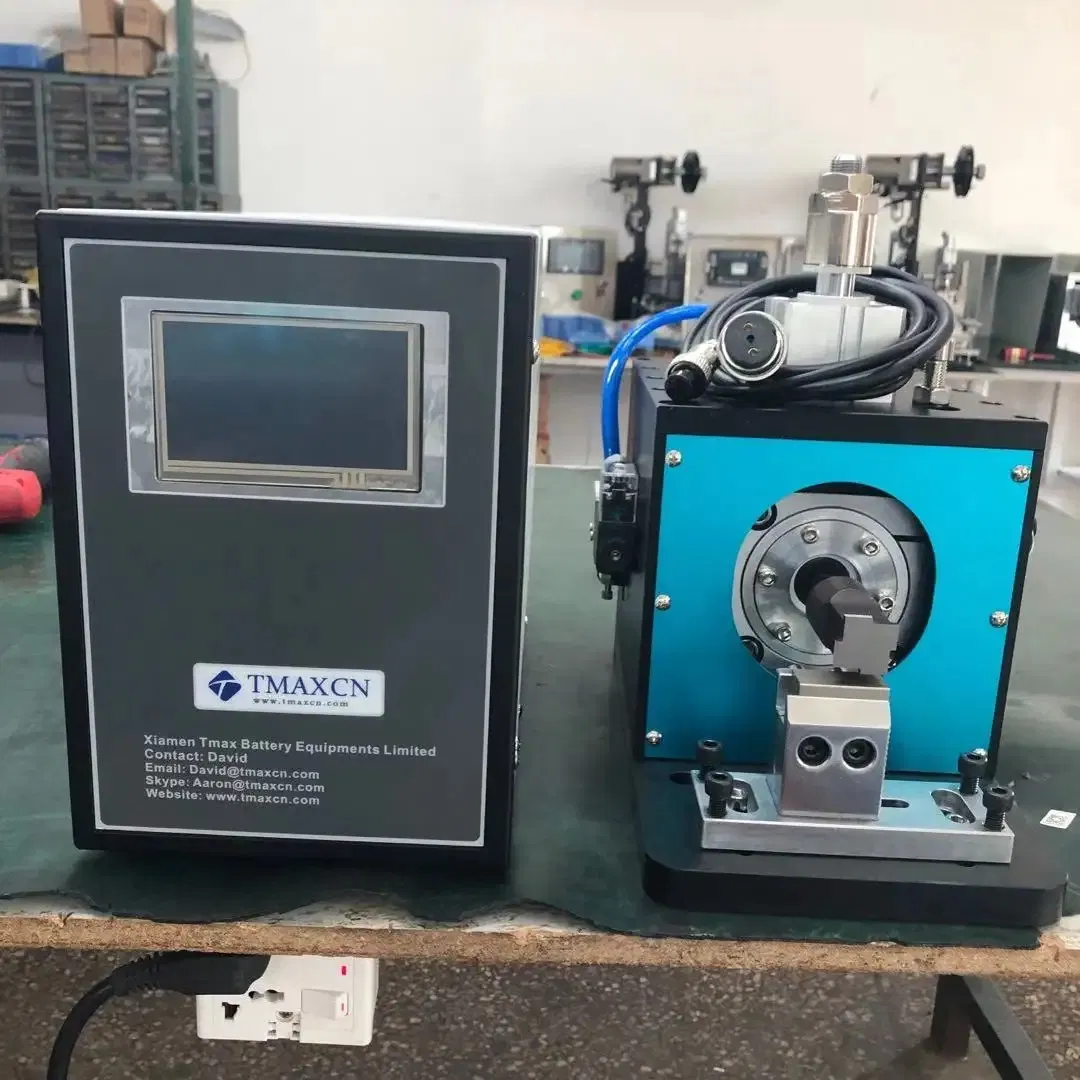

Pouch Cell Tab Ultrasonic Metal Spot Welder Welding Machine

★

TMAX-VS-40A is a CE Certified ultrasonic metal welder with touch-screen controller. It is designed for welding stacked electrode foils/sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells.

★

The 2000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab.

Note: To find the most suitable solution, please provide the following parameters:

✔ 1. Weld material
✔ 2. Thickness of the material
✔ 3. Layer number of material

Specifications

Features	Preset welding programs selectable for Al and Cu (Adjustable for Au, Fe, Ni, Ag...).
Input Voltage	AC 110V or 220V +/-10%, 50/60Hz
Max. Power Consumption	2200W (Customizable)
Welding Area	4mm(L) x 4mm(W) (Customizable)
Welding Head	Included for Al & Cu collectors from 2 to 25 layers
Ultrasonic Frequency	40K Hz (Customizable)
Product Dimensions	Controller: 360x480x200mm; Welder: 200x460x270mm
Net Weight	70kg
Compliance	CE Certificate
Warranty	One Year limited warranty with lifetime support

Assembly Recommendations

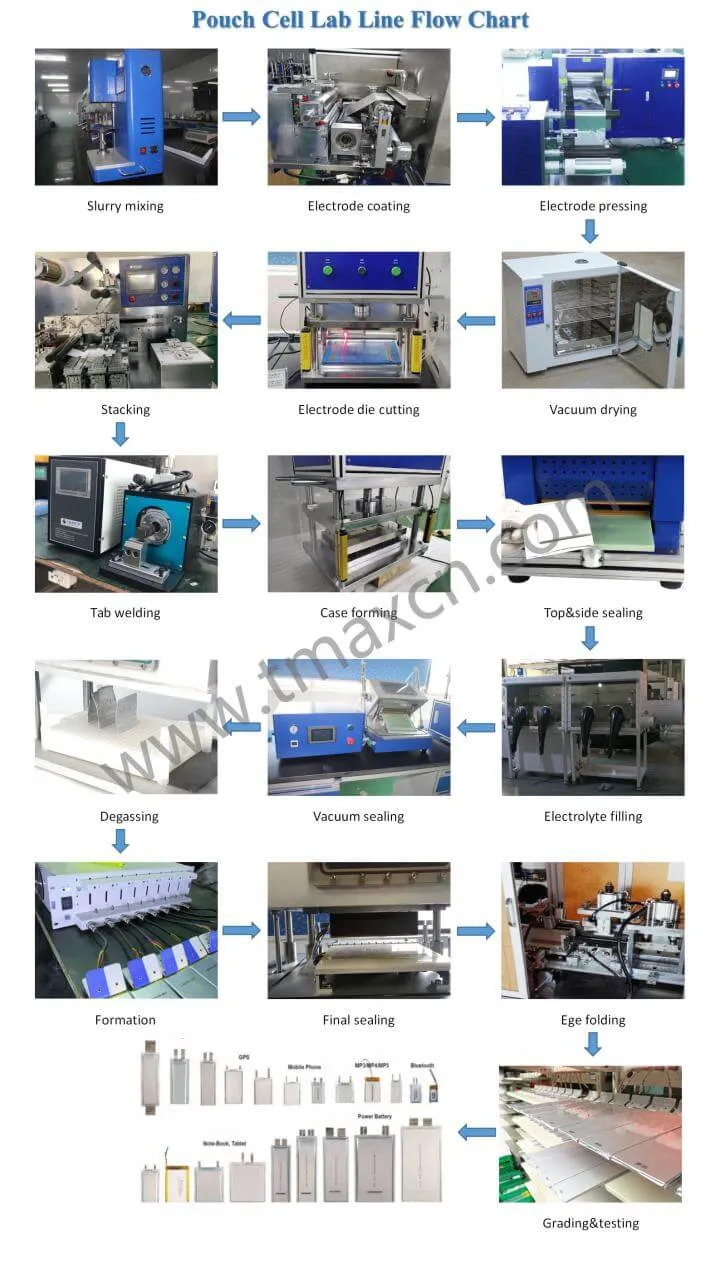

For pouch cell assembly, we also recommend:

• Forming machine • Hot sealer with tab • Vacuuming seal • Stacking machine • Die Cutter • Al Laminated Film

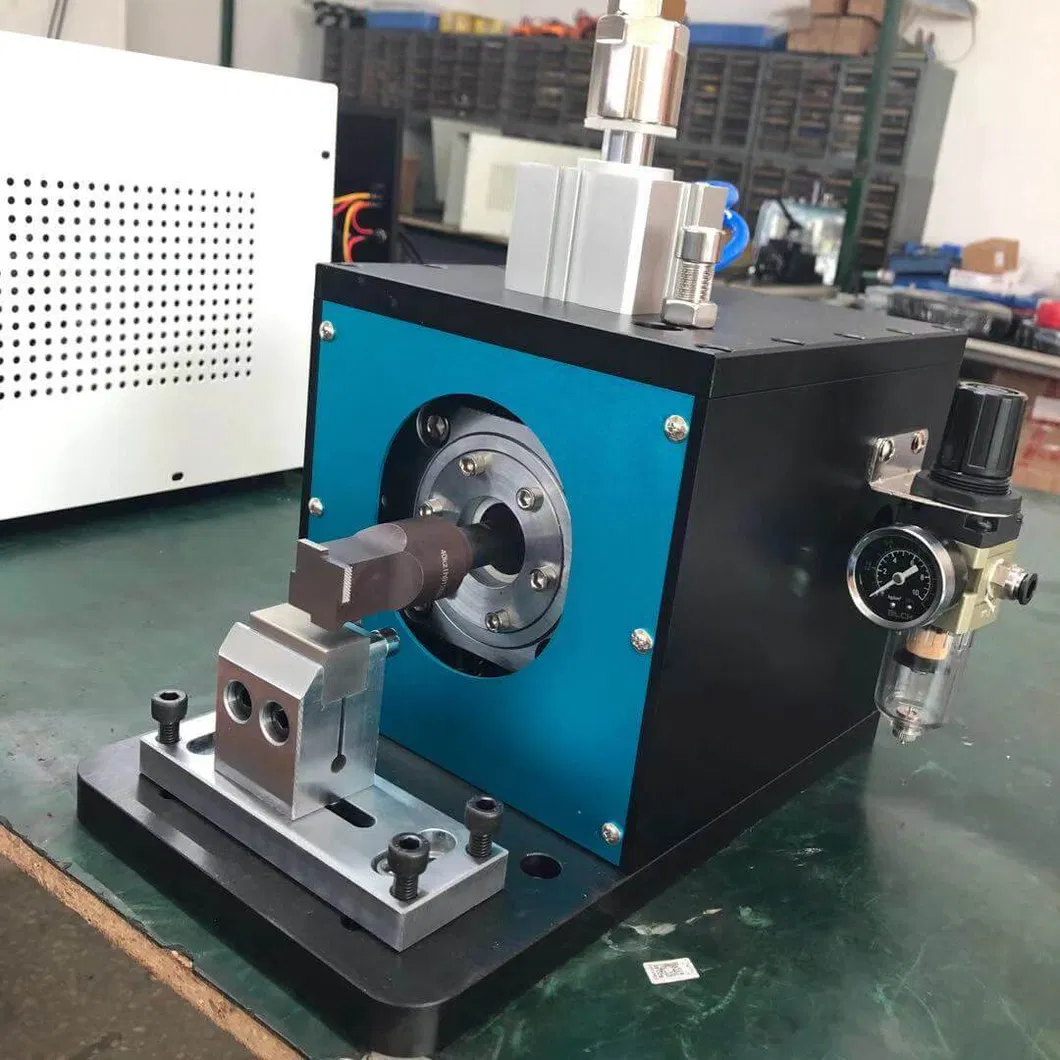

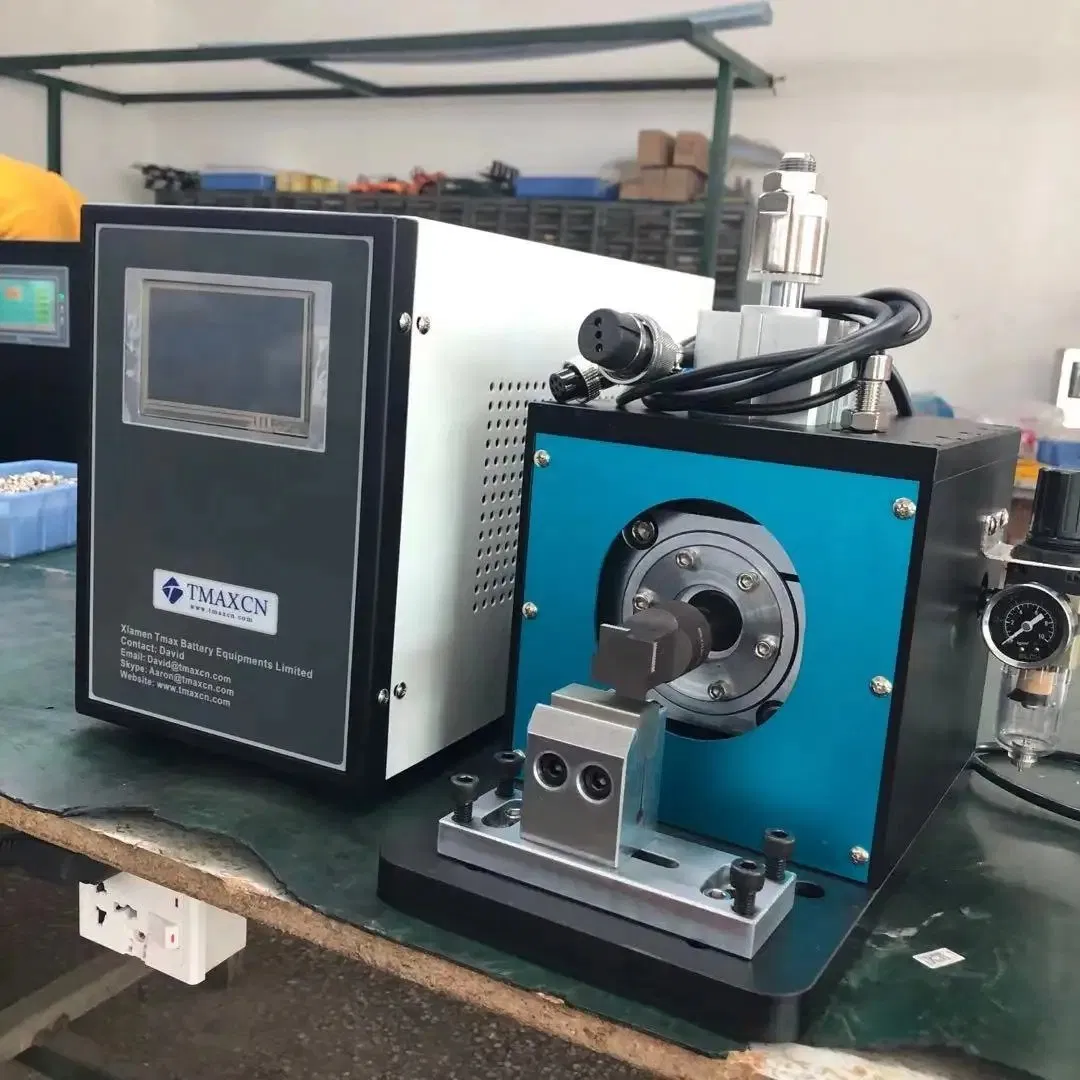

Product Display

Frequently Asked Questions

How many layers of foil can this machine weld?

The TMAX-VS-40A can weld stacked electrodes with 10-35 layers of aluminum or copper foil.

Is the welding power consumption customizable?

Yes, the maximum power consumption is 2200W, but it can be customized based on your specific requirements.

What types of cells is this welder suitable for?

It is specifically designed for the preparation of Li-ion pouch cells and cylindrical cells.

Can it weld metals other than aluminum and copper?

Yes, the welding programs are adjustable to fit other metals such as Gold (Au), Iron (Fe), Nickel (Ni), and Silver (Ag).

Does the machine come with a warranty?

It includes a one-year limited warranty along with lifetime technical support.

Is it easy to operate for new users?

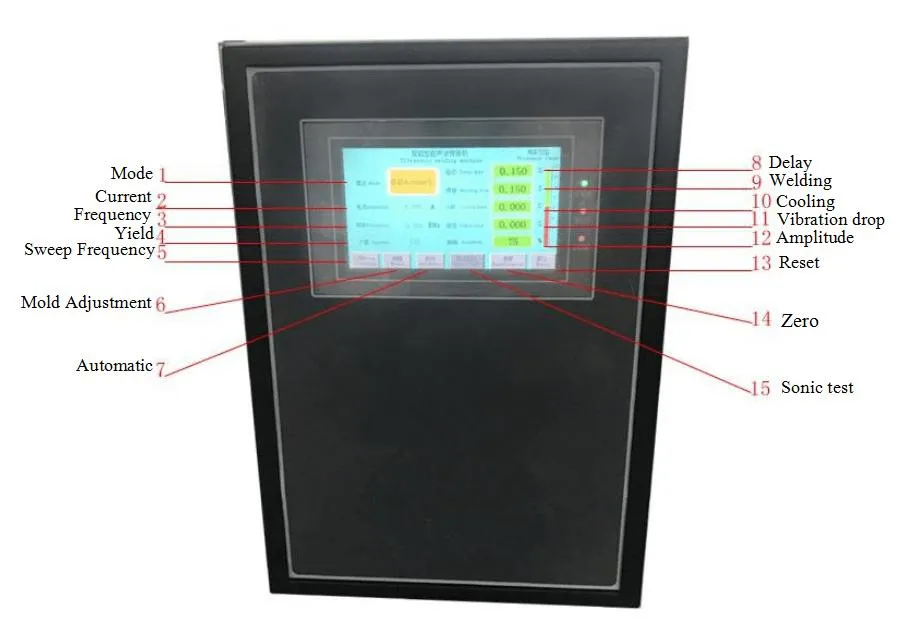

Yes, it features a touch-screen controller with preset welding programs for user-friendly operation.
