Basic Information
Model NO.

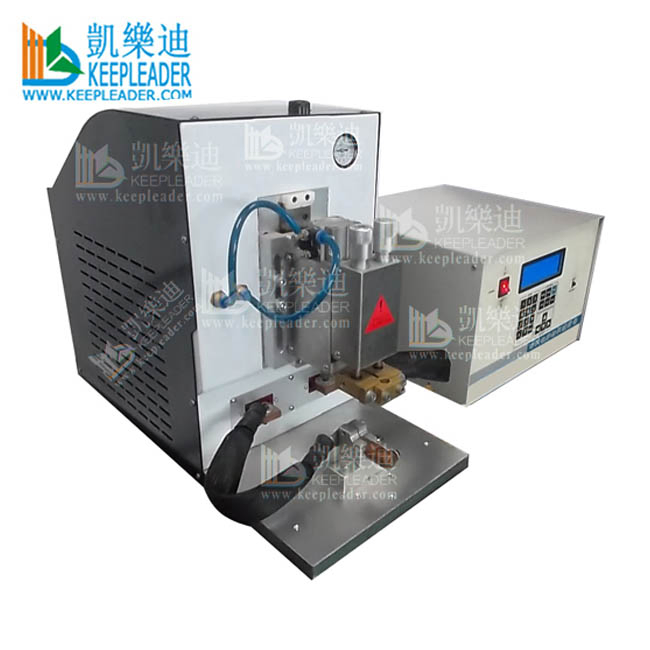

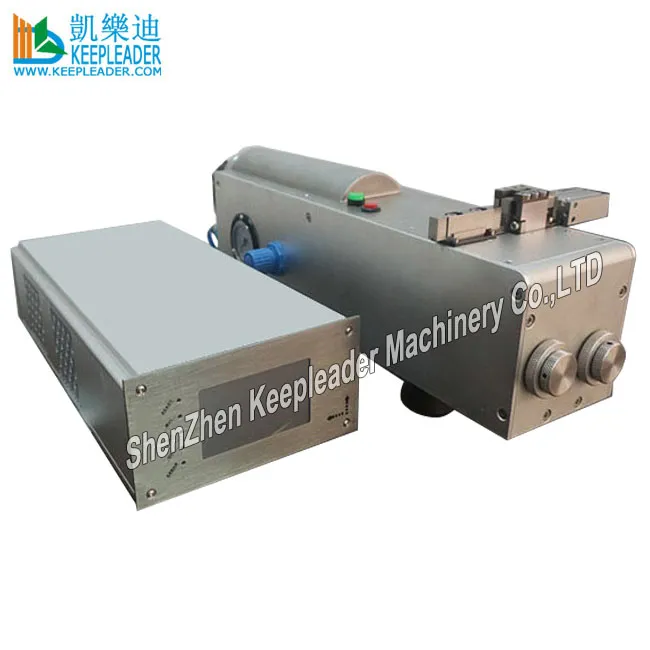

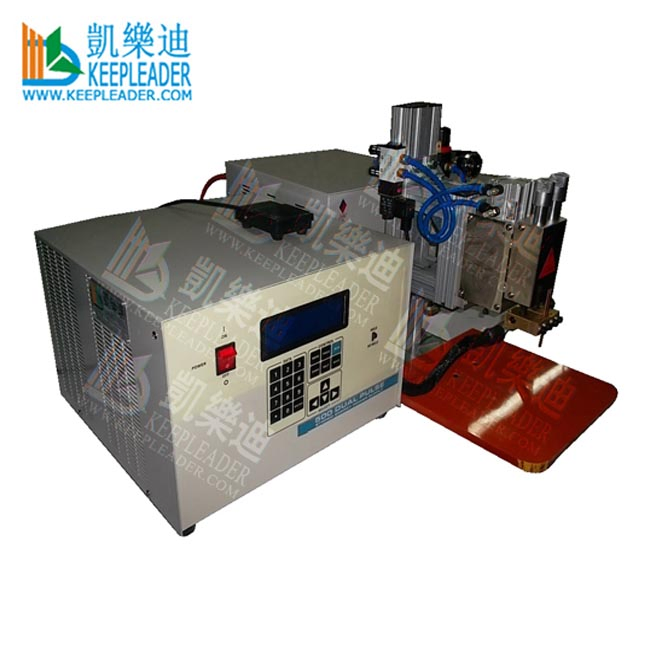

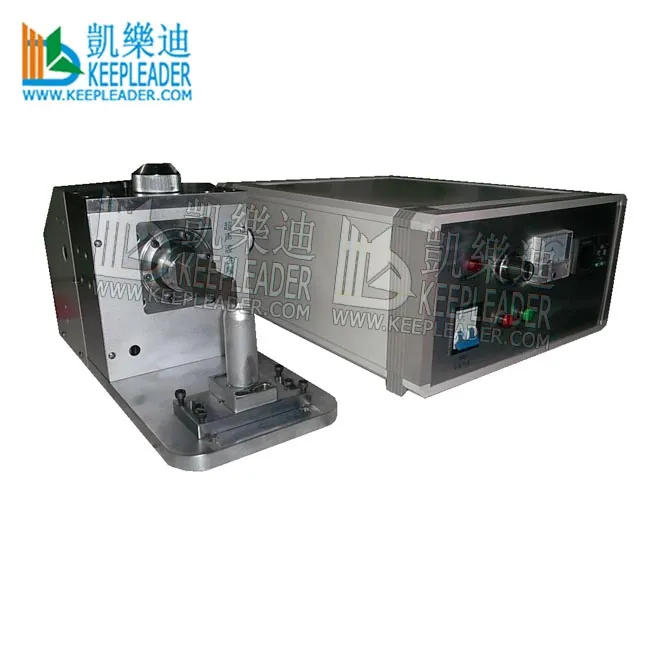

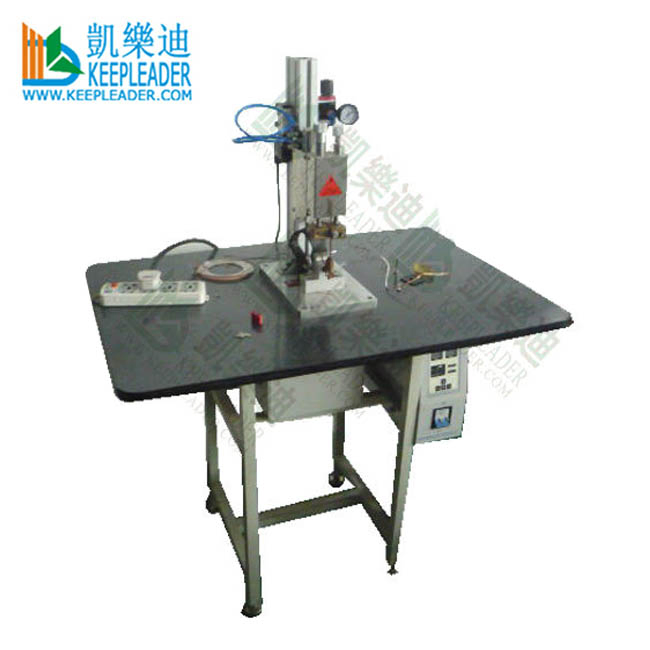

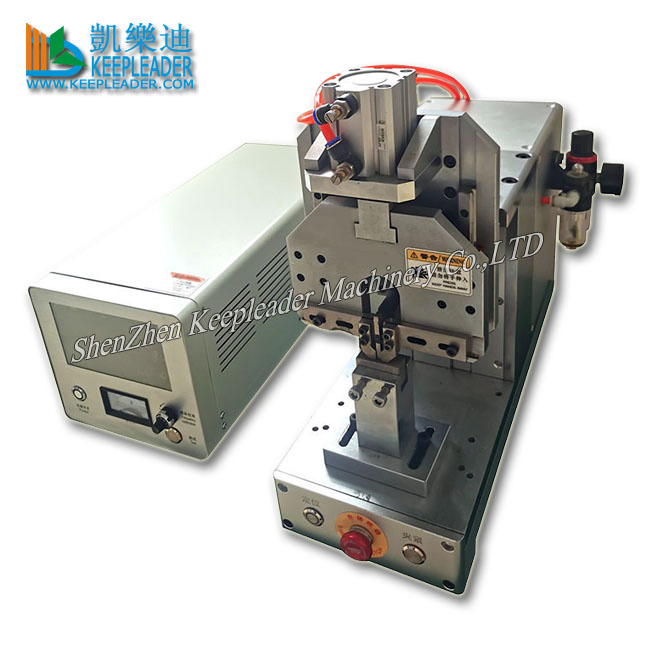

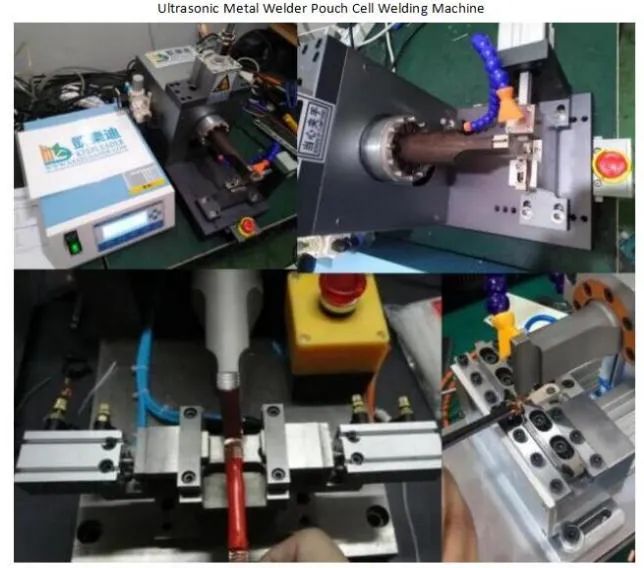

Ultrasonic Metal Welder Pouch Cell Welding Machine
Transport Package
Wooden Case
Specification
ultrasonic spot welding machine
Product Description
Ultrasonic Metal Welder Pouch Cell Welding Machine is designed for battery electrode bonding. In the processing schedule, the foil-to-tab weld gathers all anode and cathode foils inside the cell and joins them to tabs, allowing energy transfer to an external source. This robust joining process meets requirements for high joint strength, low electrical resistance, and minimal inter-metallic layers.
The machine utilizes ultrasonic vibration (typically 20khz, 25khz, or 40khz) to rub tab-to-foil layers together under pressure. This scrubbing action removes oxides and contamination, creating smooth, clean surfaces that form a solid-state weld under moderate heat and pressure.
Technical Parameters
| Model: KLM-1224 Specifications |
|---|
| Ultrasonic Power | 1.2kw (Options: 300w, 600w, 1200w) |
| Ultrasonic Frequency | 24khz |
| Air Supply | 7-8 bar (kg/cm*2) |
| Power Supply | 220VAC, 50HZ |
| Welding Time | 0.01s - 10s (adjustable) |
| Welding Thickness | 0.1 - 2mm |
| Welding Material | AL+NI / CU+NI / AL+AL |
| Welding Spot Size | 3*4 / 3.5 / 4*5 / 5*5 MM |
| Net Weight | 40kgs |

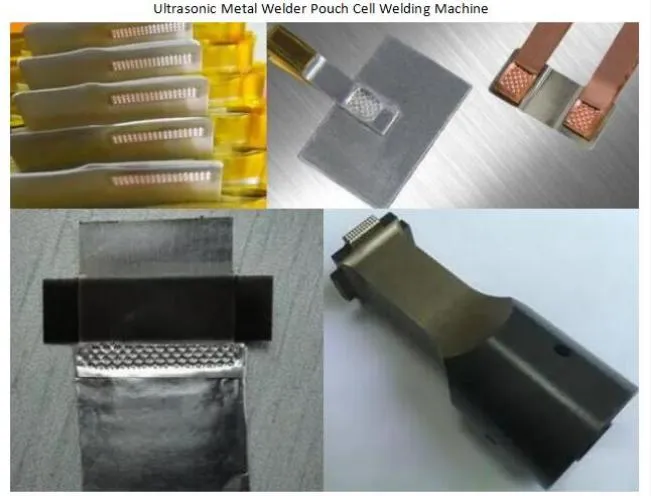

Welding Capabilities
⚡
10~25 layers 0.09~0.012 copper foil + 0.1~0.3mm Ni or nickel-clad copper tab.
⚡
10~25 layers 0.09~0.012 aluminum foil + 0.1~0.3mm Al tab.
⚡
0.2mm Al belt + 0.2mm Ni belt or Nickel-clad copper wrapping.
⚡
2~4 layers 0.2mm Al tab or 2~4 layers 0.2mm Ni tab.
Key Advantages
Ultra Fast: Process lasts for mere split seconds.
Precise: Spot-on results with adjustable parameters.
Cost-efficient: No solder, gas, or chemical agents needed.
Eco-friendly: Low energy consumption, no sparks or smoke.
Conductivity: Ensures high strength and excellent electrical conductivity.
Gentle: Metals are not damaged or deformed outside the weld spot.
Applications

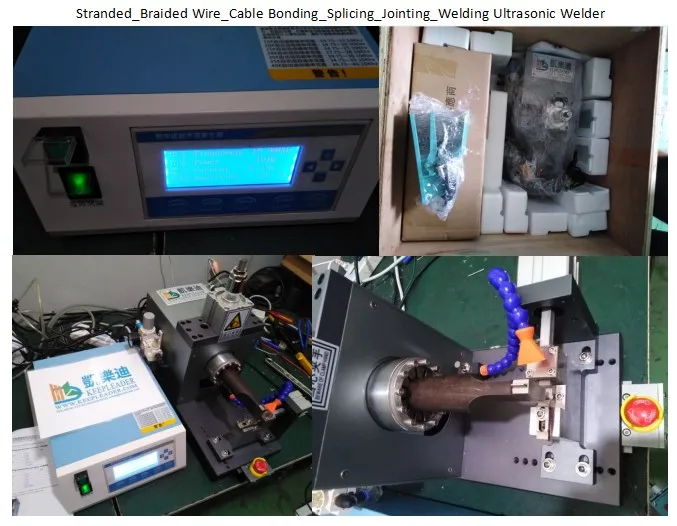

Increasing demands for lithium-ion batteries impel the development of this technology. It is a reliable approach for manufacturing pouch cell batteries, wire splicing, wire termination, battery tabbing, cable processing, seam welding, and tube sealing.
Frequently Asked Questions
What is the primary application of this ultrasonic welder?
It is specifically designed for pouch cell battery building, joining multiple layers of aluminum or copper foils to tabs with high precision.
Does this machine require solder or flux?
No, it uses ultrasonic vibration to create a solid-state molecular bond, eliminating the need for solder, gas, or any chemical agents.
How many layers of foil can it weld?
The 1200W model can weld stacked electrodes within 20 layers of aluminum or copper foil. Higher power options up to 5400W are available for thicker stacks.
What are the safety benefits of ultrasonic welding?
The process is very safe as it generates no sparks, smoke, or harmful fumes during operation.
Is the welding time adjustable?
Yes, the welding time is fully adjustable from 0.01s to 10s to suit different material thicknesses and types.
What materials are compatible with this equipment?
It is ideal for non-ferrous metals including combinations of Aluminum to Nickel, Copper to Nickel, and Aluminum to Aluminum.
